Yamaha AG08 8-Channel Live Streaming Mixer

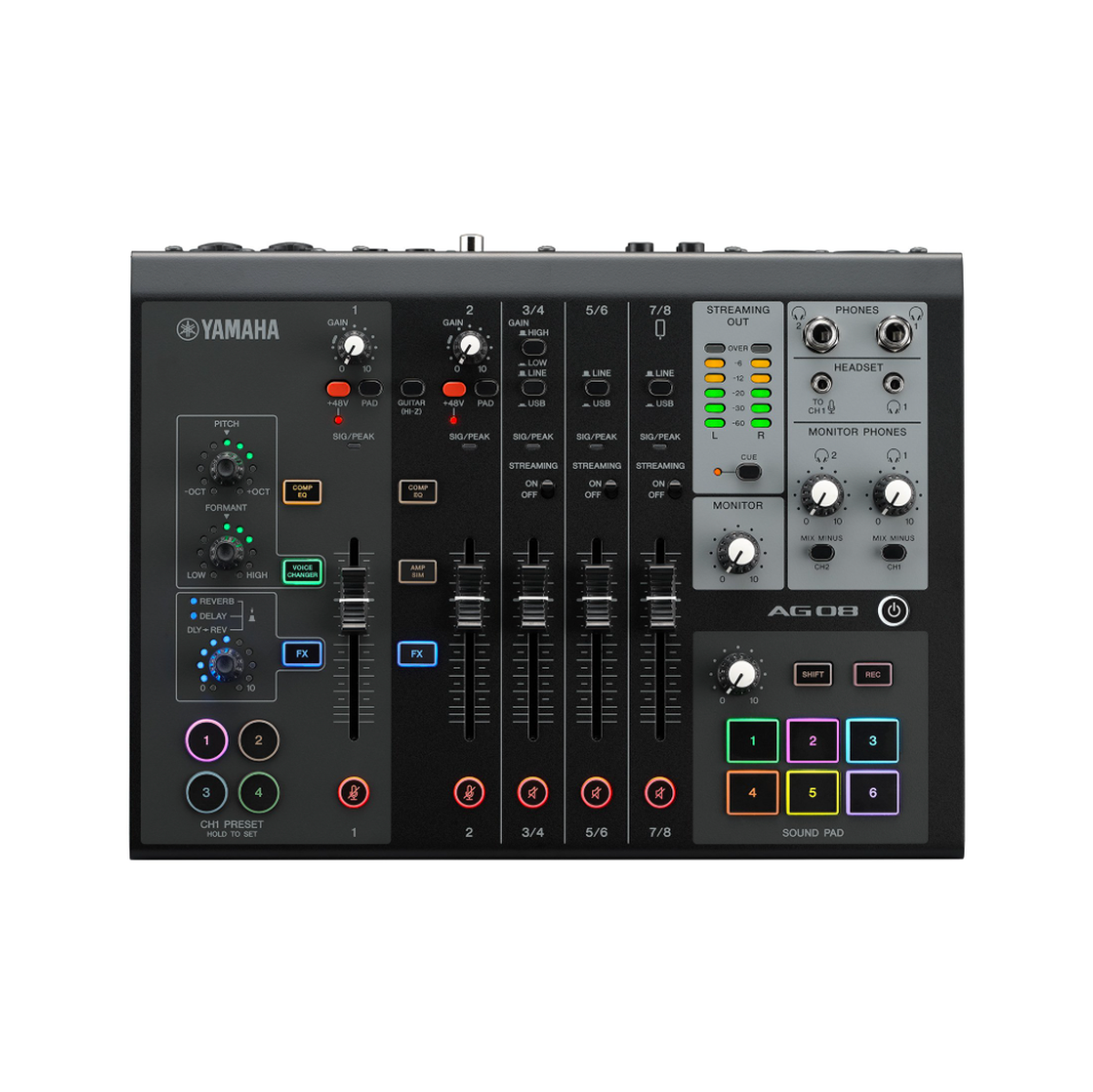

The Yamaha AG08 8-Channel Live Streaming Mixer

As the flagship model of Yamaha's second-generation AG series lineup, the AG08 combines all the essential functionality of its predecessors with a versatile selection of practical new features to give you a powerful all-in-one streaming station. By integrating more flexible I/O and USB routing options, expanded foot switch functionality, as well as additional DSP effects and improved internal circuitry for class-leading sound, the AG08 is able to support an impressive depth of live streaming applications, as well as offline audio content creation. From single-user talking, gaming, ASMR, voice acting, or vocal/instrument performances, to multiple personnel applications even on the scale of a full-blown variety show, the real-world, real-time functionality of the AG08 will leave your audience wanting more.

Two Condenser Mic In with Two Headphone Out: Like the AG06MK2, Channel 1 and 2 of the AG08 are equipped with phantom power to support condenser microphones that are favoured amongst musicians and dialogue-driven content creators for their exceptional sensitivity and fidelity. You can also pan left and right with the AG08 Controller dedicated app for any kind of stereo microphones including ASMR microphones.

In addition, there are two independent headphone monitor channels for applications where two people are broadcasting a conversation or where there is someone other than the performers managing the audio.

Three Assignable Faders for Flexible USB In/Out: The signal from multiple apps on a USB-connected PC, or analogue line inputs can be individually assigned to the faders for Channel 3/4, 5/6, or 7/8 of the AG08, allowing you to intuitively mix the Line/USB audio signals via physical control of the faders. Conversely, three USB mixed outputs from the AG08 can be individually assigned to various apps on the PC via USB connection.

Combining these functions makes it easy to respond more flexibly in real time, for example sharing optimally mixed audio with chat partners or listeners during live chats and streaming.

What's more, for ASIO-supported apps such as DAW software, the direct out from each input channel (Channels 1, 2, 3/4, 5/6, and 7/8) and three mixed channels can be used in parallel, enabling multi-channel recording even during live streams.

Four Effect Preset Buttons for CH1: The four effect preset buttons on the bottom left of the AG08 console allow you to seamlessly switch between customized effect presets for Channel 1 on the fly. This gives users versatile, real-time control to add just the right amount of effect - including the new Voice Changer - during voice-acting and live music performances in particular.

Five DSP Effects: The AG08 comes equipped with high-quality effects to colour, correct, or enhance your vocal and musical instrument signals. Grouped into the five categories detailed below, all effects are processed by the onboard DSP, so there is no latency and no impact on PC processing. *Details of each DSP effect can be set in the AG08 Controller app.

• Voice Changer (CH1) / Amp Sim (CH2)
• Comp, EQ
• Reverb, Delay
• Ducker
• Maximizer

Channel 1 features a new voice changer effect that can transform your voice into that of a different gender, a robot, and more, while Channel 2 offers an amp simulator for a more authentic guitar or bass amp sound. These, along with Comp, EQ, Reverb, and the newly added Delay, can be set independently on each channel, allowing you to dial in the optimal setting for each.

Ducker: The Ducker function can be used to automatically attenuate Channels 3/4, 5/6, and 7/8 playback sound relative to audio input from Channels 1 and 2, so you can easily set up a streaming system where Channels 1 and 2 signals are always heard clearly.

Maximizer: Finally, the Maximizer is a simple yet powerful mastering function that can add a level boost to your mix for extra polish and professionalism, as well as attenuating peaking signals to give your listeners and viewers a more comfortable and pleasant audio experience.

Six Sound Pads: The AG08 comes equipped with six customizable sound pads that allow you to easily add sound effects in real time to liven up your broadcasts. Using the "AG08 Controller" dedicated app you can simply import existing sound files and assign them to the pad of your choice, or record your own samples via the AG08 inputs and trim them to their desired length within the app.

"AG08 Controller" Provides Precise Control: AG08 Controller software allows users to easily and precisely check and configure the DSP audio processing, sound pads and flexible routing option. Offering two modes of operation, "Simple" and "Detail", AG08 Controller gives users of varying music production experience detailed management of their audio from Windows/Mac or iPadOS device connected to the AG08 via USB.

Convenient Power Supply: The new console also comes equipped with a new PA-150B power adapter for more stable operation and to accommodate a wider range of application setups along with the onboard USB 1.5 A bus power supplier.

Powerful Bundled Software: The AG08 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG08 is also compatible with Cubasis LE applications for iOS devices which are available free of charge from Steinberg to support and inspire your audio content creation.

Our Take

The Yamaha AG08 Live Streaming Mixer stands out as the flagship model in Yamaha's second-generation AG series, offering a robust all-in-one solution for live streaming and audio content creation. Designed to cater to diverse applications, from solo gaming and ASMR to multi-person variety shows, the AG08 integrates advanced features like flexible USB routing, expanded footswitch functionality, and high-quality DSP effects. It includes two condenser mic inputs with phantom power, dual headphone outputs, and assignable faders for seamless control of multiple audio sources. Additionally, six sound pads and real-time effect controls enhance user creativity, while the bundled "AG08 Controller" app ensures precise configuration of audio settings. Its inclusion of Cubase AI and WaveLab Cast software further supports professional-grade audio production, making the AG08 a versatile powerhouse for content creators.
