About The WiiM CI MOD S Custom Install Network Music Player
The WiiM CI MOD S is a versatile network music player meticulously tailored for the Custom Installation (CI) industry. This pioneering product boasts exceptional features, including a trigger out, and a sleekly designed rack-mountable form factor, optimizing space usage and perfectly aligning with the needs of modern integrators.
Compatible with Google Chromecast Audio, and more, it serves as your gateway to Hi-Res streaming. Transform your system into an intelligent hub, effortlessly accessing your preferred music app, the WiiM Home App, or control it with your voice via Alexa or Google Assistant.
Experience great quality audio with the inclusion of the AKM AK4493SEQ DAC, a standard in digital-to-analogue conversion technology. This top-tier component ensures that every musical nuance is reproduced with unmatched precision and pristine clarity, promising an auditory journey that will redefine your expectations in this class of product.
Prepare to embark on a sonic adventure that transcends the confines of traditional audio quality with the WiiM Cl MOD S - where innovation seamlessly converges with excellence in custom installation audio solutions.
High-Quality DAC: Incorporates the AKM AK4493SEQ DAC for superior digital-to-analog conversion and pristine audio clarity.

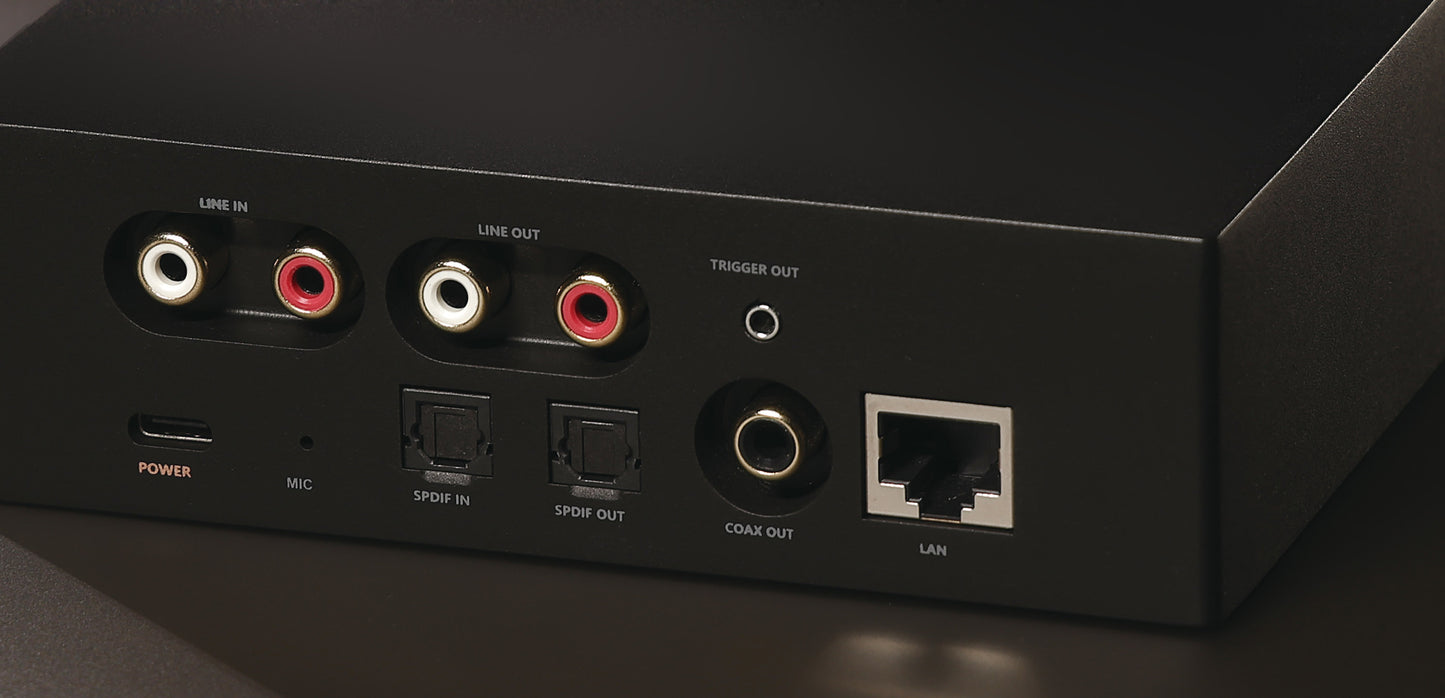

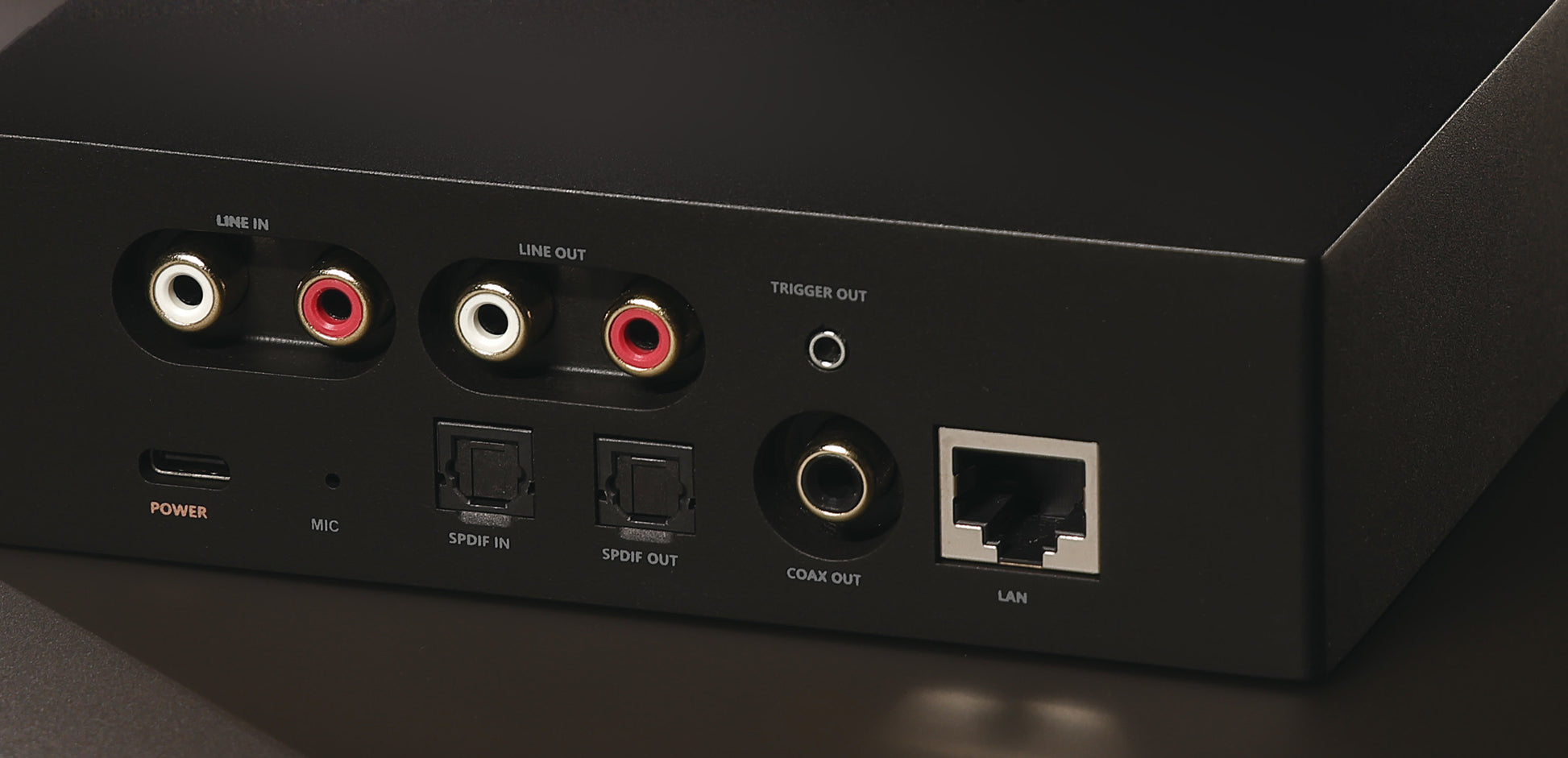

Comprehensive Inputs and Outputs: Offers Line-In, Optical inputs, and Line-Out, Optical, Coax outputs, plus a 3.5mm trigger out.
Rack-Mountable: Efficient design suitable for space-saving professional installations.
Multi-Room Streaming: Compatible with Amazon Echo, Google Home, and other WiiM devices.
Advanced Streaming Services: Supports Chromecast Audio, Spotify, TIDAL Connect, Alexa Cast, and DLNA.
Hi-Res Audio Playback: Allows gapless playback of Hi-Res music up to 24-bit/192 kHz.
Dual Band Wi-Fi and Bluetooth 5.0: Provides reliable wireless connectivity.
Single Zone Control: Designed for single-zone audio management with ease.
Our Take
The WiiM CI MOD S is a highly adaptable network music player crafted for the Custom Installation (CI) sector, offering cutting-edge features that cater to modern integrators. With its rack-mountable design and trigger out, it optimises space while providing seamless integration into audio setups. Supporting Hi-Res streaming and compatible with Google Chromecast Audio, this player turns any system into an intelligent hub, easily controlled via the WiiM Home App or voice commands through Alexa or Google Assistant. Equipped with the renowned AKM AK4493SEQ DAC, the WiiM CI MOD S delivers exceptional sound fidelity, capturing every detail with stunning precision. This player redefines what's possible in CI audio at this price point, blending innovation with excellence for an elevated listening experience.
Main Features & Specifications
- Design: Compact Network Music Streamer designed for Custom Install situations
- Power Input: USB Type-C, requires 5V, 1.5A or higher, bundled 5V, 2A adapter
- Digital Audio Output: Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output
- Network: 802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi 10/100M Ethernet
- Bluetooth Version: 5.1
- Audio Inputs
- 1 x Analogue RCA Line Level Input,
- 1 x Digital Optical Input, up to 192kHz/24-bit
- Audio Outputs
- 1 x Analogue RCA Line Output
- 1 x Digital Optical Output
- 1 x Digital Coaxial Output, up to 192kHz/32-bit
- DAC: AKM AK4493SEQ
- Trigger Out: 3.5mm Trigger out
- Signal to Noise Ratio (SNR): 120 dB
- Total Harmonic Distortion + Noise (THD+N): 0.00032% (-110 dB)
- Audio Codecs: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
- Equalizer
- 24 Preset EQ settings for different music genres
- 10-Band Graphic EQ that can adjust to optimize sound performance for every audio source (Line in, BT or
- Network)
- 10-Band Parametric R/L EQ that can adjust to optimize the sound performance based on your room characteristics, allowing more fine granular adjustment
- Bass Management
- Built-In Room Correction
- Protocols: Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon
- Streaming Services in WiiM Home App: Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, iHeartRadio, vTuner, Napster, SoundMachine, BBC Radio, Calm Radio, Radio Paradise, Sound Track Your Brand, more to come. Availability may vary by region.
- Supported Control Platforms: Control 4, RTI, URC, Josh.ai

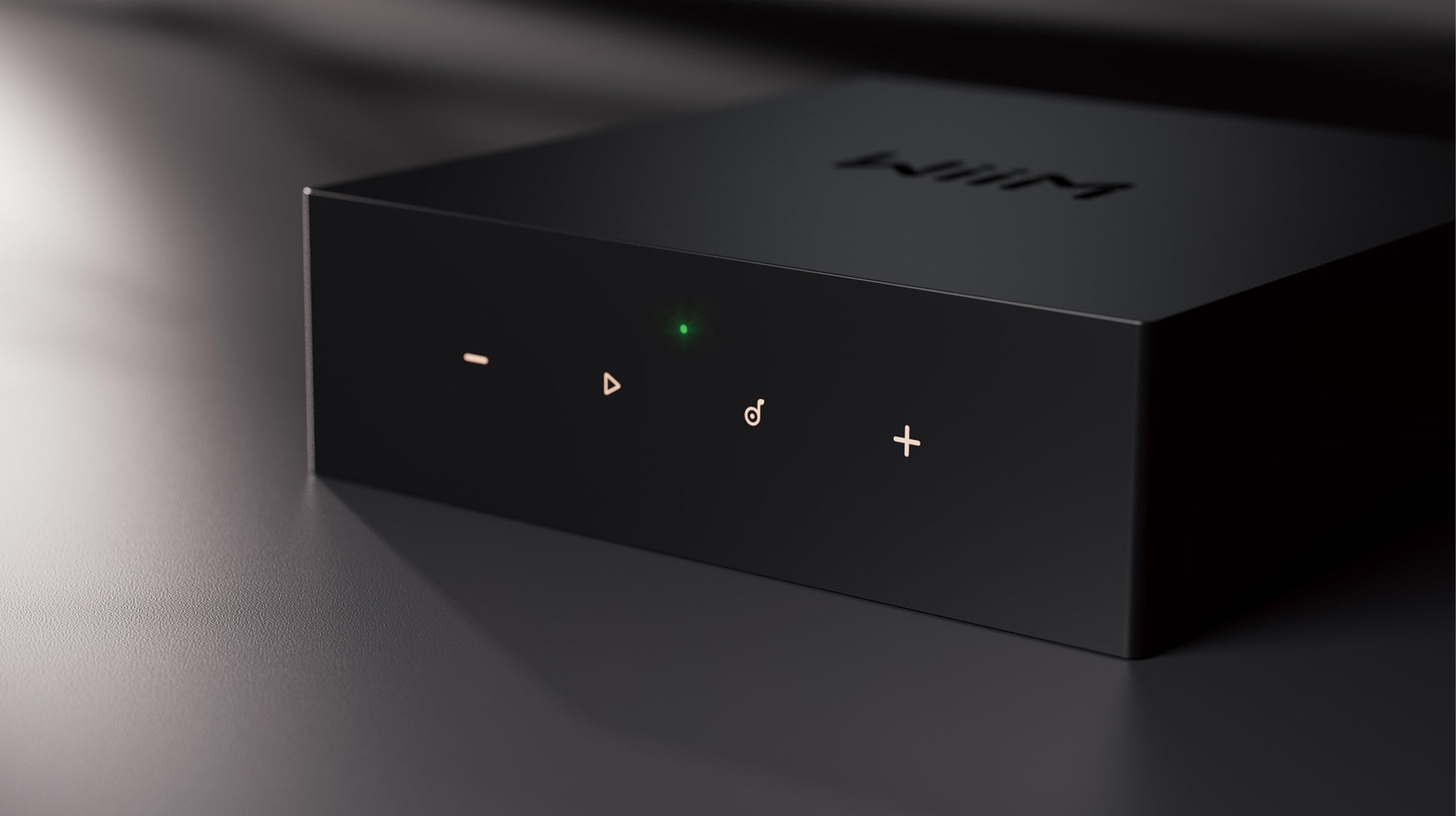

- Buttons Touch Buttons: Play/Pause/Setup, Volume +, Volume -, Preset
- Included Accessories: Optical Cable, Stereo RCA Cable, Type C Power Cable, Power Adapter, 3 x Screws
- Dimensions (WxHxD): 140 x 42 x 140mm
- Weight: 330 g
- Manufacturer's Warranty: 1 Year
Note: All specifications subject to change without notice. E&OE.
