WiiM Amp Ultra Streaming Amplifier

About The WiiM Amp Ultra Streaming Amplifier

The WiiM Amp Ultra is a sleek, powerhouse streaming amplifier built for serious listening and modern lifestyles. With class-leading Class‑D amplification, a high‑end DAC, touchscreen control, room calibration, cinematic HDMI ARC functionality, and rich smart integration - it checks just about every box. Whether you're chasing silent background ambiance or full-on movie immersion, it's a beautifully crafted, future-ready all-in-one that truly delivers.

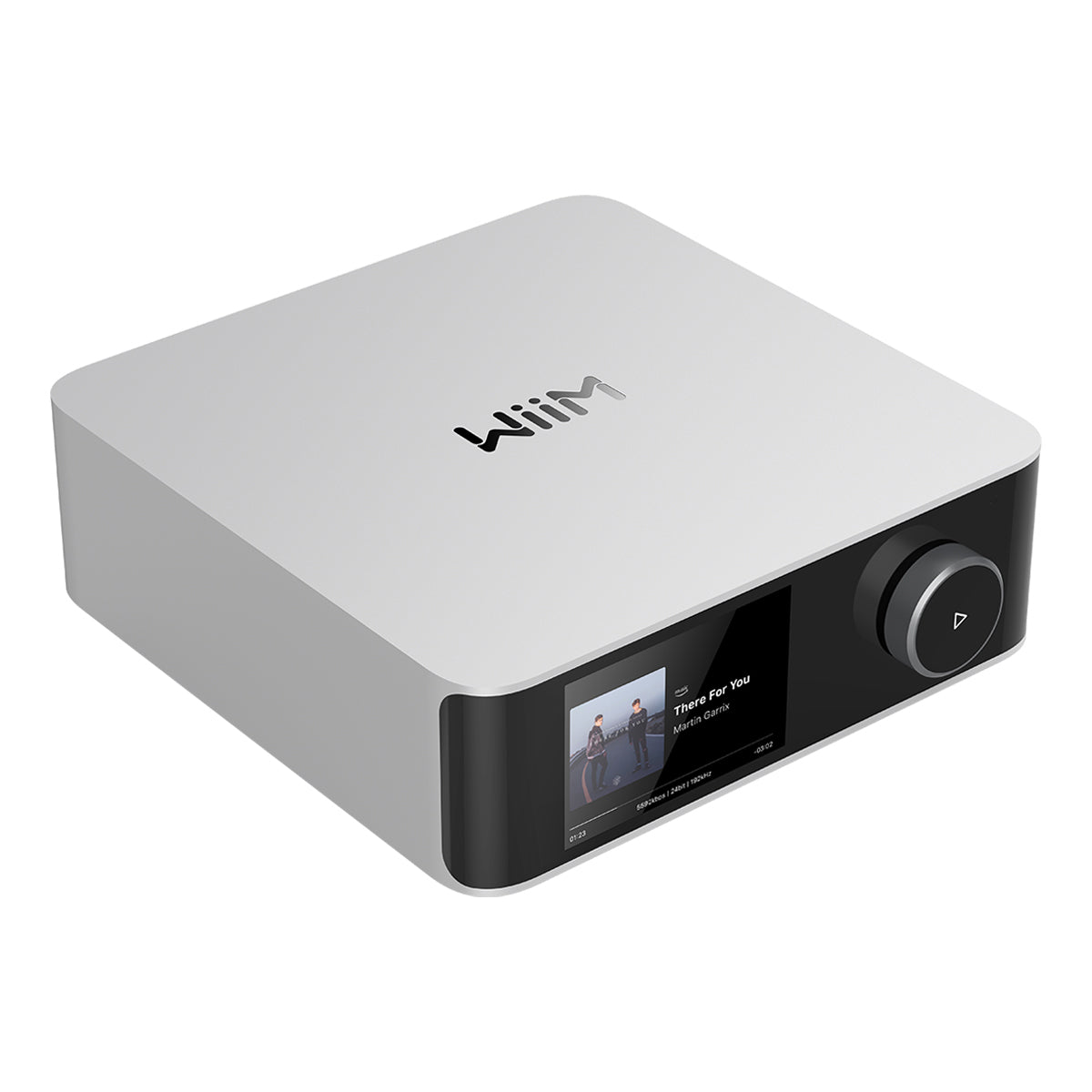

Built for music lovers, home theatre buffs, and smart home fans, it delivers a stunning 100W per channel @ 8Ω with ultra-low distortion, pushing high-fidelity audio to every corner of your listening space. Designed to stand out but also fit in, the Amp Ultra features a sleek unibody aluminium chassis and a vibrant 3.5" glass-covered colour touchscreen. Easily control playback, switch sources, view album art, and more - all at your fingertips.

Flagship Components, Flawless Fidelity: Under the hood, the Amp Ultra is powered by top-tier components including the ESS ES9039 Q2M Sabre DAC, dual TI TPA3255 Class-D Amplifiers and six TI OPA1612 Op-Amps

Combined with Post Filter Feedback (PFFB) technology, it delivers clean, detailed sound with consistent performance across all speaker loads - perfect for bookshelf, floorstanding, or in-wall/in-ceiling speakers.

Post Filter Feedback Technology: At the core of the WiiM Amp Ultra's superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimises distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result is a wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.

Advanced Thermal Management: High-power amplification generates heat, but the WiiM Amp Ultra stays cool under pressure with advanced thermal management:

• Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume.
• Large Aluminium Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.
• Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.

Next-Gen Wireless Streaming: Stay connected with the latest in wireless tech including Wi-Fi 6 (Tri-Band) and Bluetooth 5.3 with SBC and AAC support. Stream ultra-high-resolution audio with near-zero latency - no dropouts, no lag, just music.

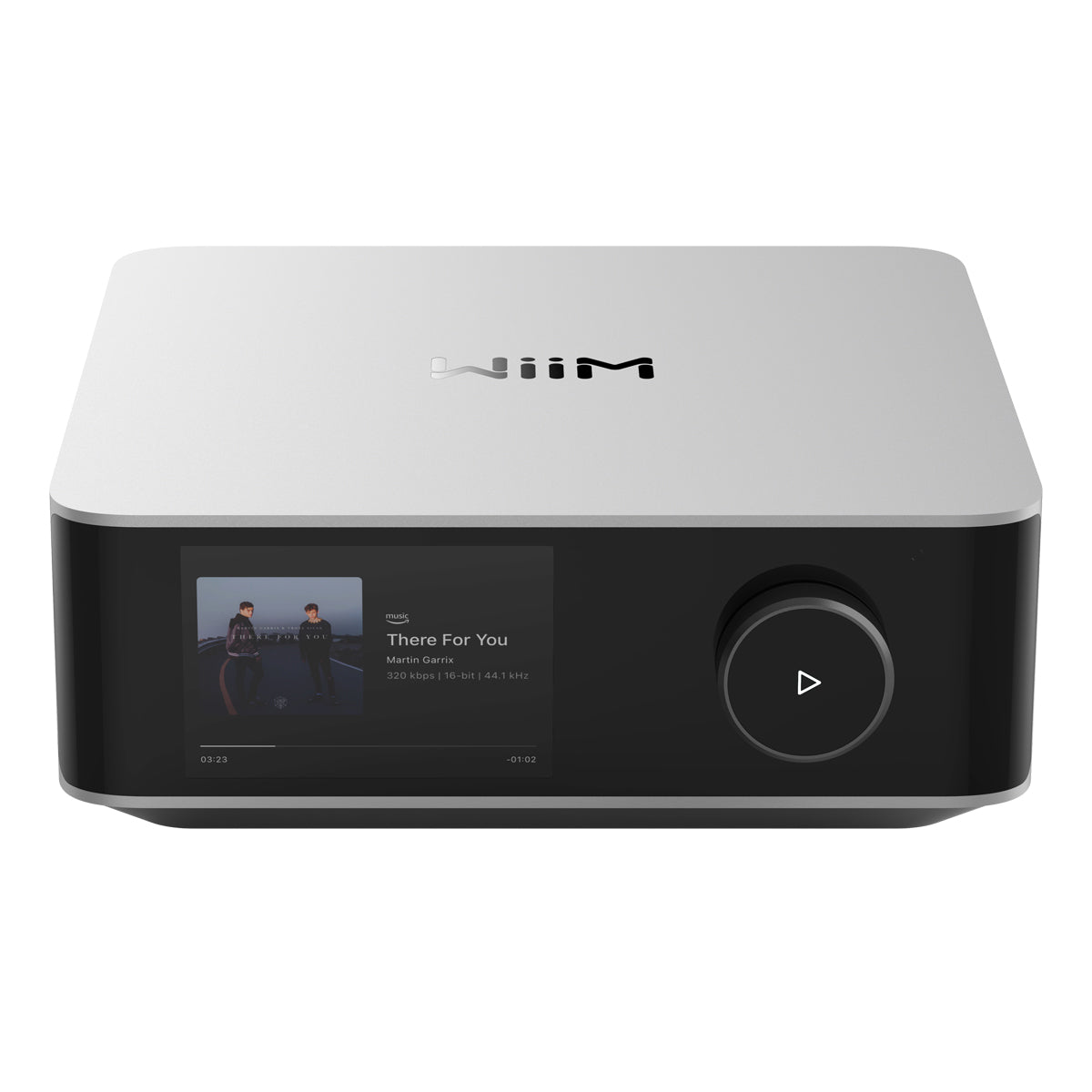

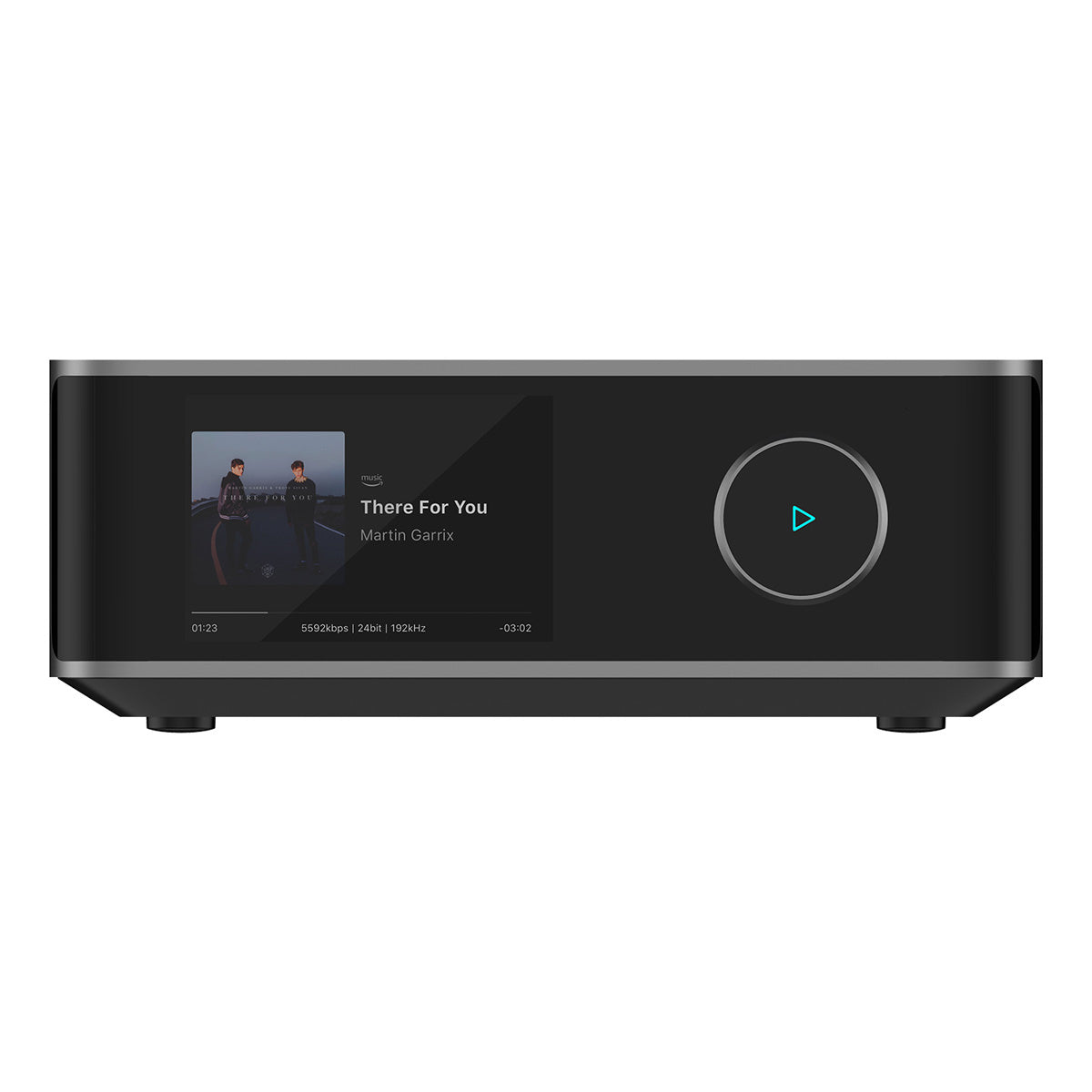

See Your Sound: A vivid 3.5″ glass touchscreen puts album art, VU meters, and one-tap controls front and centre - making input switching, setting tweaks, and playback navigation effortless, with instant visual feedback.

Built-In RoomFit™ Room Correction: Every room is different - WiiM Amp Ultra adapts. Using built-in acoustic measurement and correction, it tunes your setup to match your environment, optimizing for speaker type, distance, and room acoustics.

All the Music You Love, All in One Place: Stream directly from your favourite platforms: Spotify, Amazon Music, TIDAL, Qobuz, Deezer, TuneIn, SoundCloud, and more. Prefer using your own apps? No problem - Amp Ultra supports: Chromecast, Alexa Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, DLNA, SqueezeLite, and Roon (pending certification).

Tailor Your Sound: Dial in the perfect tone with a plethora of equalization options. You have 24 Preset EQ Profiles, a 10-Band Graphic and Parametric EQ, the convenience of per-input EQ settings and a Subwoofer crossover control.

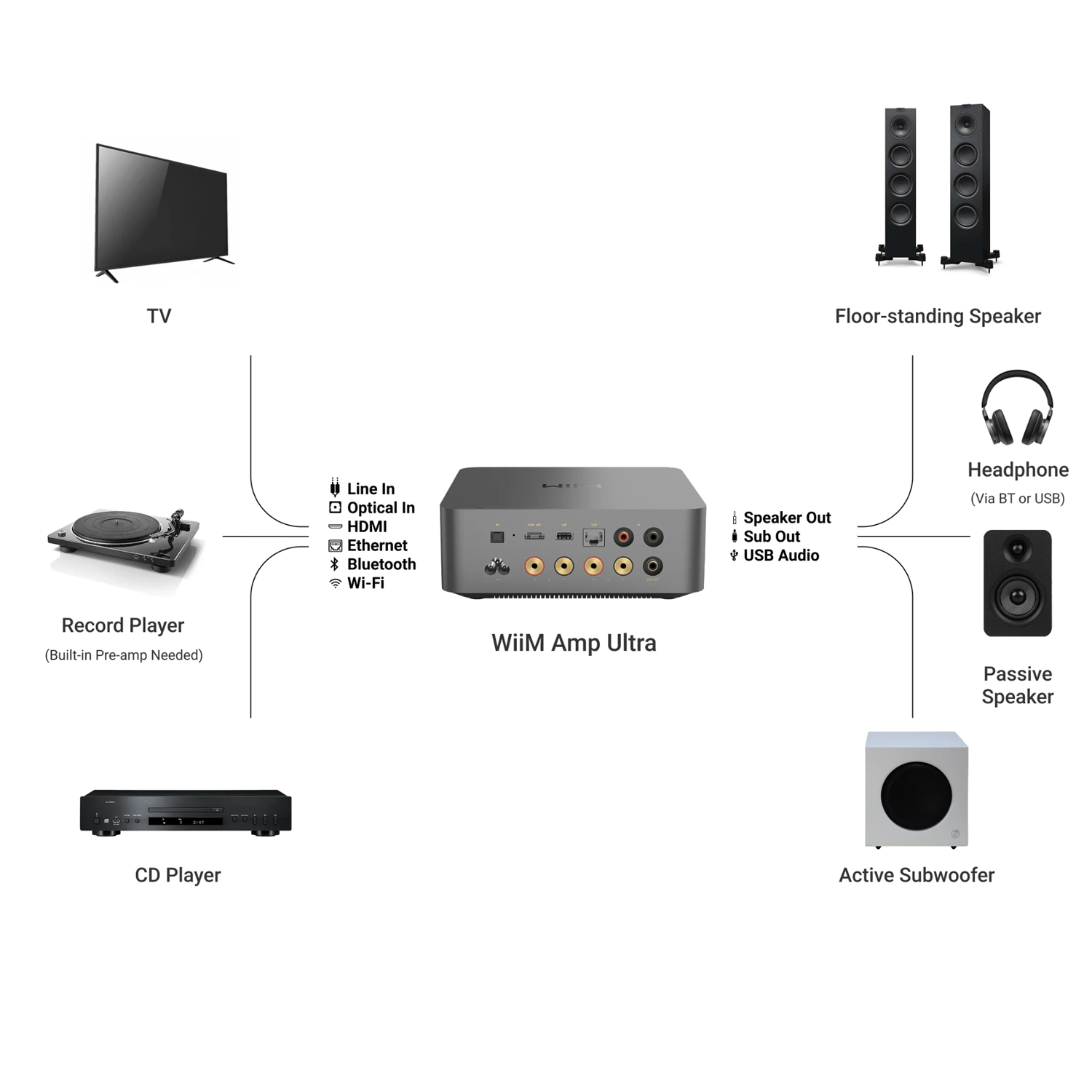

Versatile Connectivity: Easily integrate turntables, TVs, CD players, or stream to any WiiM or Bluetooth-enabled device.

Control Everything with the WiiM Home App: One App, total control, just what you’ve always wanted. Stream music, adjust EQ, group rooms, set alarms, or update firmware with ease - right from your phone or tablet.

Take Full Control with the WiiM Voice Remote 2: WiiM Voice Remote 2 is crafted with a sleek aluminium body, rechargeable battery, and intuitive Push-to-Talk voice commands - plus smart presets and dedicated playback buttons for a seamless, intuitive experience.

Smarter Listening

• Multi-Room Audio with WiiM, Google Home, and Alexa systems
• Home Theatre Mode with HDMI ARC and Dolby Digital support
• Smart Presets & Alarm Clock to simplify your routine
• Voice Control via Alexa, Google Assistant, Siri, or the included WiiM Voice Remote

Future-Proof by Design: WiiM are constantly improving. With regular over the air (OTA) firmware updates, your Amp Ultra only gets better over time - with new features, streaming services, and optimizations.

Our Review

The WiiM Amp Ultra is a seriously slick streaming amplifier that brings together power, polish, and smart design in one compact, beautifully machined package. Pumping out 100 Watts per channel into 8 Ohms, it’s built for everything from immersive movie nights to relaxed background listening - all with remarkable clarity thanks to its high-end ESS Sabre DAC, dual Class-D amps, and cutting-edge Post Filter Feedback tech. The vivid 3.5" touchscreen isn’t just eye candy either - it puts album art, settings, and control at your fingertips. Add in room correction via RoomFit™, Dolby Digital support over HDMI ARC, next-gen wireless streaming, and a whole suite of smart home features, and you’ve got a future-ready amp that doesn’t just sound exceptional - it makes your whole setup smarter, smoother, and more enjoyable to live with.

Main Features & Specifications

• Design: Compact All-In-One Streaming Amplifier
• WiiM Amp Ultra Improvements over the WiiM Amp Pro
  • Touchscreen: 3.5” Glass-Covered Capacitive Touchscreen
  • Higher Power: 100 Watts per Channel @ 8 Ohms, 200 Watts per Channel @ 4 Ohms
  • Updated DAC: ESS ES9039 Q2M Sabre DAC
  • WiiM Voice Remote 2 supplied standard
• High-Performance 32-bit/384kHz ES9039 Q2M Sabre DAC
• Works with Amazon Alexa, Siri (Apple), and Google Assistant voice control devices (sold separately)
• Control with free WiiM Home app for Apple and Android devices
• Play Music from Qobuz, Amazon Music, TIDAL, Deezer, TuneIn, and more
• Control and Group with other WiiM devices (sold separately) on your network
• Supports Spotify Connect, TIDAL Connect, Qobuz Connect, Chromecast, Alexa Cast, DLNA, SqueezeLite, and Roon (pending certification)
• Two-Way Bluetooth 5.3 for streaming from your compatible device to the amp or from the amp to Bluetooth speakers or headphones
• Tone Controls: 10-band Graphic EQ, 10-band Parametric EQ, 24 Presets, per Input EQ Settings
• WiiM Voice Remote 2
• Multi-Room Audio with WiiM, Google Home, and Alexa systems
• Home Theatre Mode with HDMI ARC and Dolby Digital support
• Smart Presets & Alarm Clock to simplify your routine
• Voice Control via Alexa, Google Assistant, Siri, or the included WiiM Voice Remote

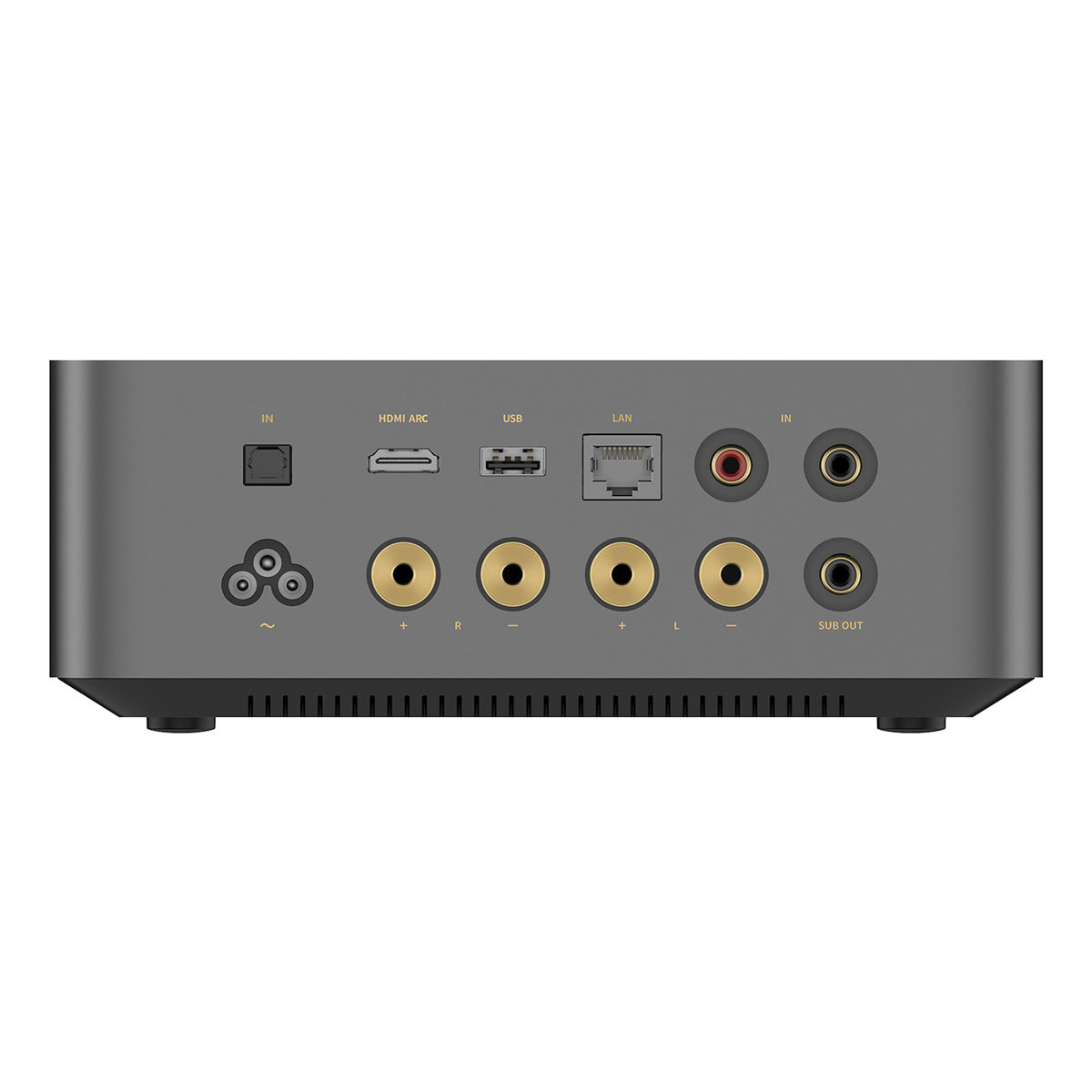

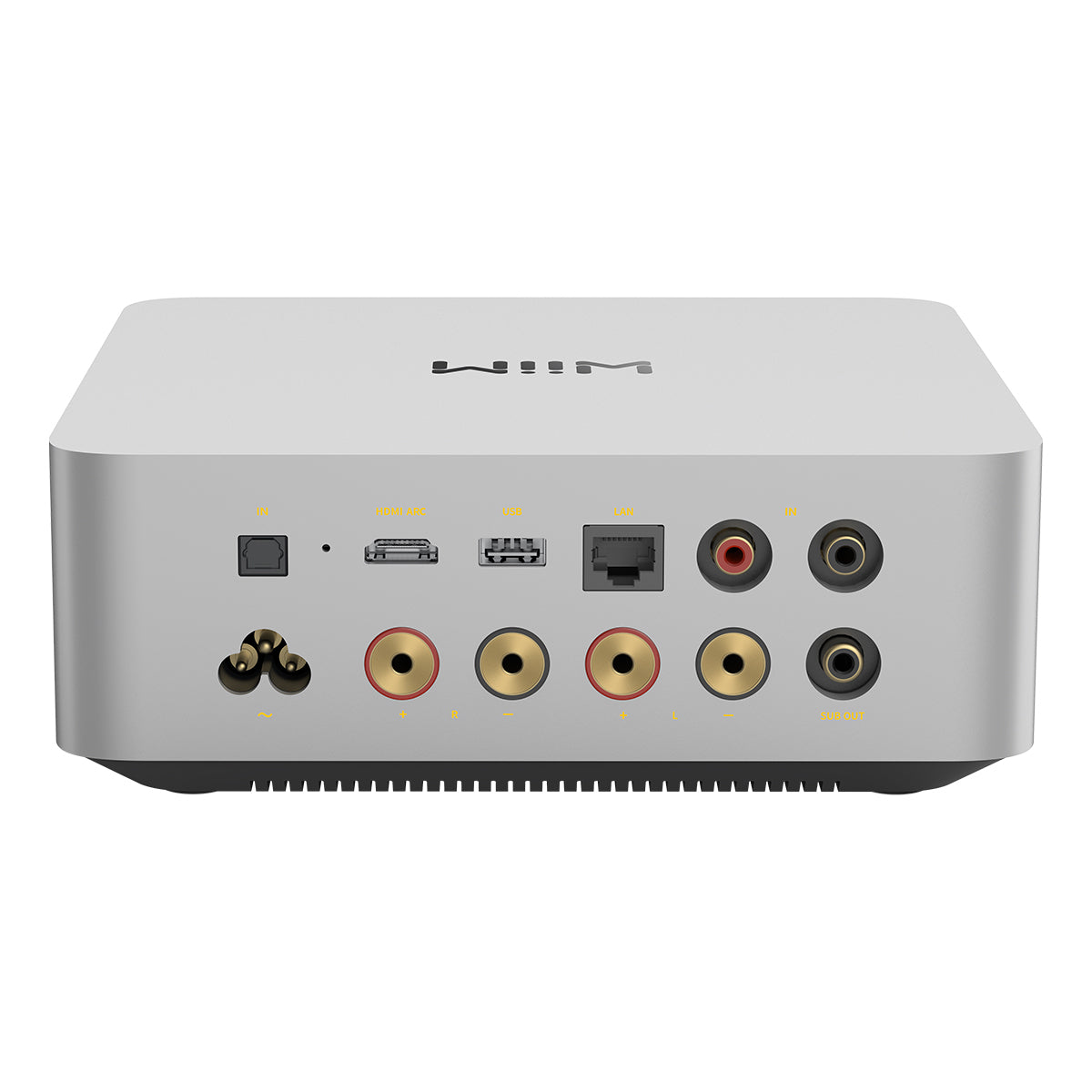

Connections

• Analogue stereo line-level RCA input
• Optical Digital input
• HDMI ARC port for a compatible TV
• USB Type-A input for connecting an external drive loaded with music
• Gold-Plated Sockets for connecting a pair of passive speakers (Banana Plugs supplied in the box)
• Mono RCA output with bass management for connecting a powered subwoofer
• Ethernet port for a wired connection to your home network

Audio Performance

• Power Output (THD = 0.08%, two channels driven): 100 W per Channel @ 8Ω, 200 W per Channel @ 4Ω
• Amplifier Technology: Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR): ≥120dB
• Damping Factor: 94
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedance Range: 2 – 8Ω

Audio Processing

• Premium Audio Components: ESS 9039 Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound
• Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
• Dynamic Range: ≥120dB for high-resolution sound

Wireless & Network Connectivity

• Wireless Connectivity
  • Bluetooth 5.3: Supports A2DP Receiver and Transmitter, AVRCP, HID, and works with the WiiM Voice Remote
  • Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
• Wired Network: Ethernet (100Mbps): Standard RJ45 port

EQ & Sound Customization

• Input-Specific EQ: Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
• EQ Tools
  • 24 Preset EQ Profiles
  • 10-Band Graphic & Parametric EQ
  • Built-in Room Correction with mic-guided acoustic tuning

Streaming & Smart Features

• Streaming Protocols: WiiM Home App, Chromecast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, DLNA, LMS, Roon Ready (Certification Pending)
• Multi-Room Audio: Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing: Supports L/R speaker setup for enhanced stereo imaging

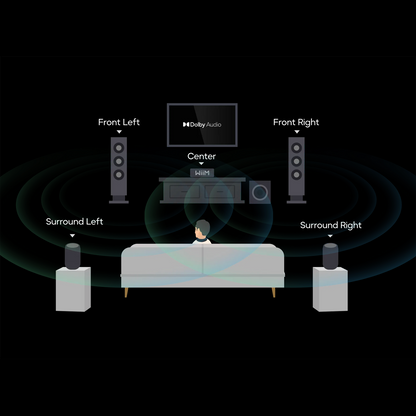

• Home Theatre Mode: Functions as front, centre, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets: Quick access to favourite playlists, sources, or routines
• Alarm Clock: Configurable time, repeat schedule, and music source

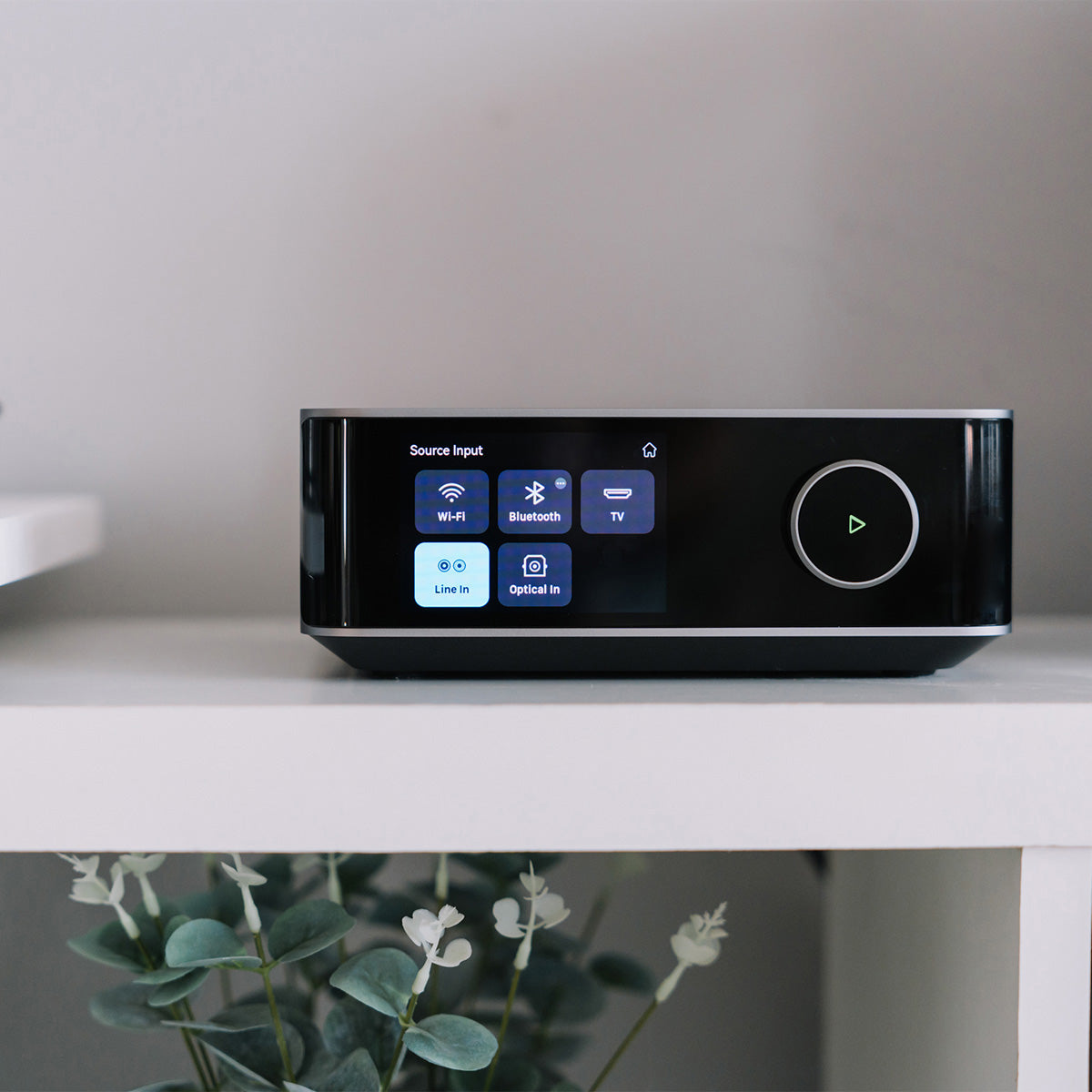

Touch Display

• Screen: 3.5” Glass-Covered Capacitive Touchscreen
• Functions
  • Playback controls, album art, EQ adjustment, input switching
  • Queue view, preset access, VU meters, time/date in standby
  • Custom wallpapers and onboarding setup (OOBE)
  • Supports firmware updates directly via screen

Design & Controls

• Chassis: Precision-machined aluminium unibody for durability & heat dissipation
• Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)

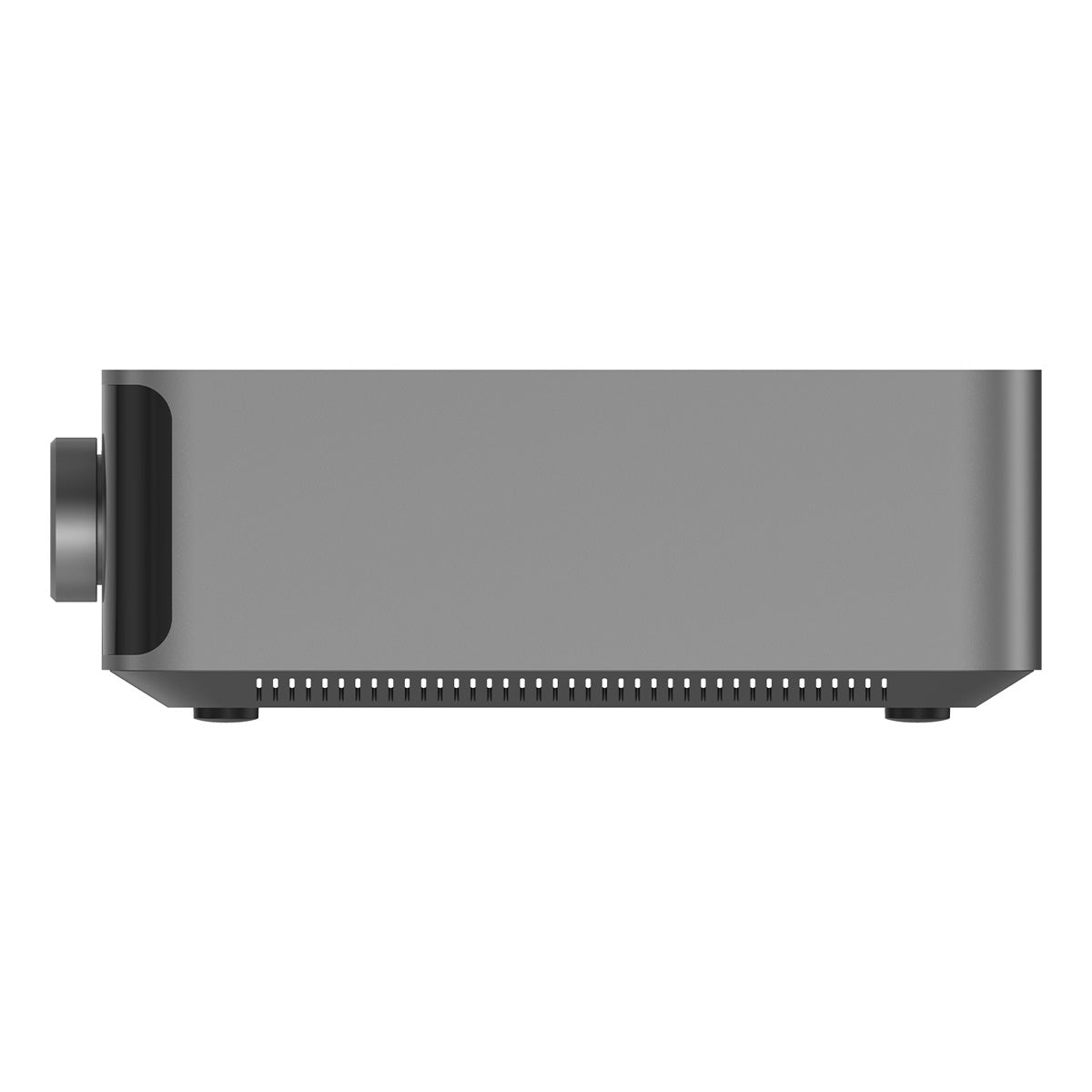

• Thermal Management: Copper heat pipe, large aluminium heatsink, unibody aluminium case, and precision PID thermal control
• Cooling System: Passive, silent operation

General

• Included Accessories: User Guide, Power Cable, RCA Cable, Optical Cable, HDMI Cable, Voice Remote 2, Banana Plugs x 4
• Finish: Space Grey
• Dimensions (WxHxD): 200 x 75 x 200mm
• Weight: 2.45 kg
• Manufacturer’s Warranty: 1 Year

Note: All specifications subject to change without notice. E&OE.
