Wharfedale

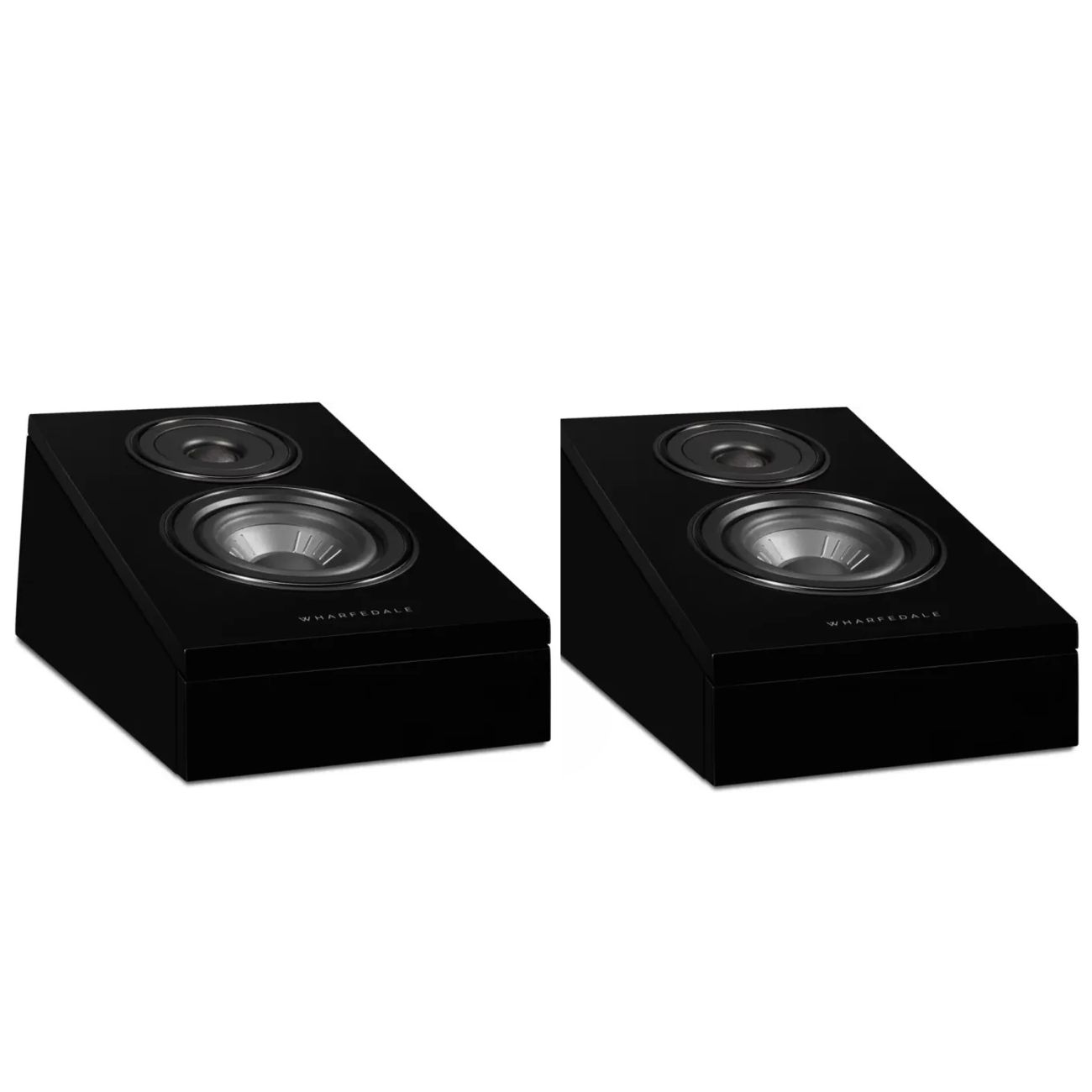

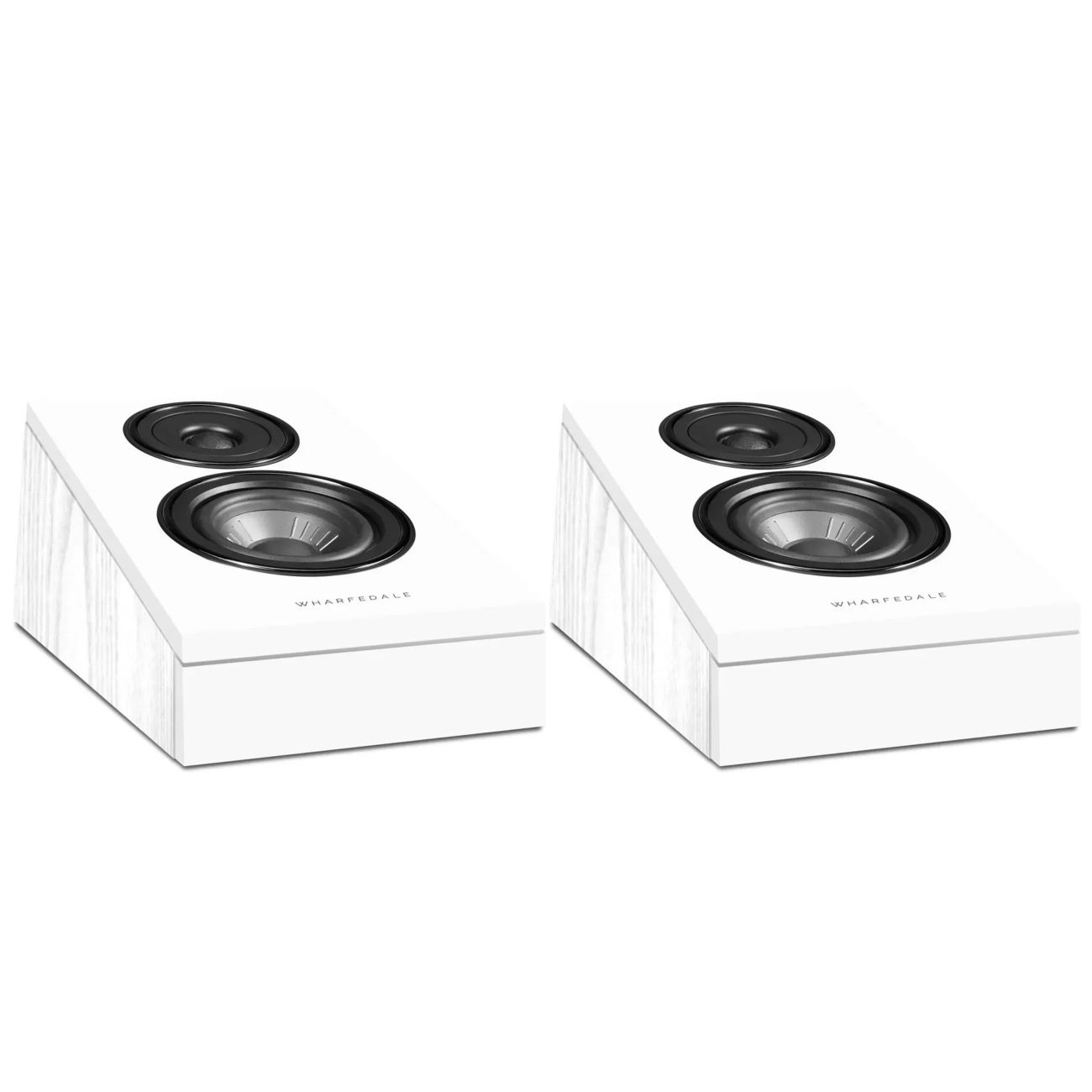

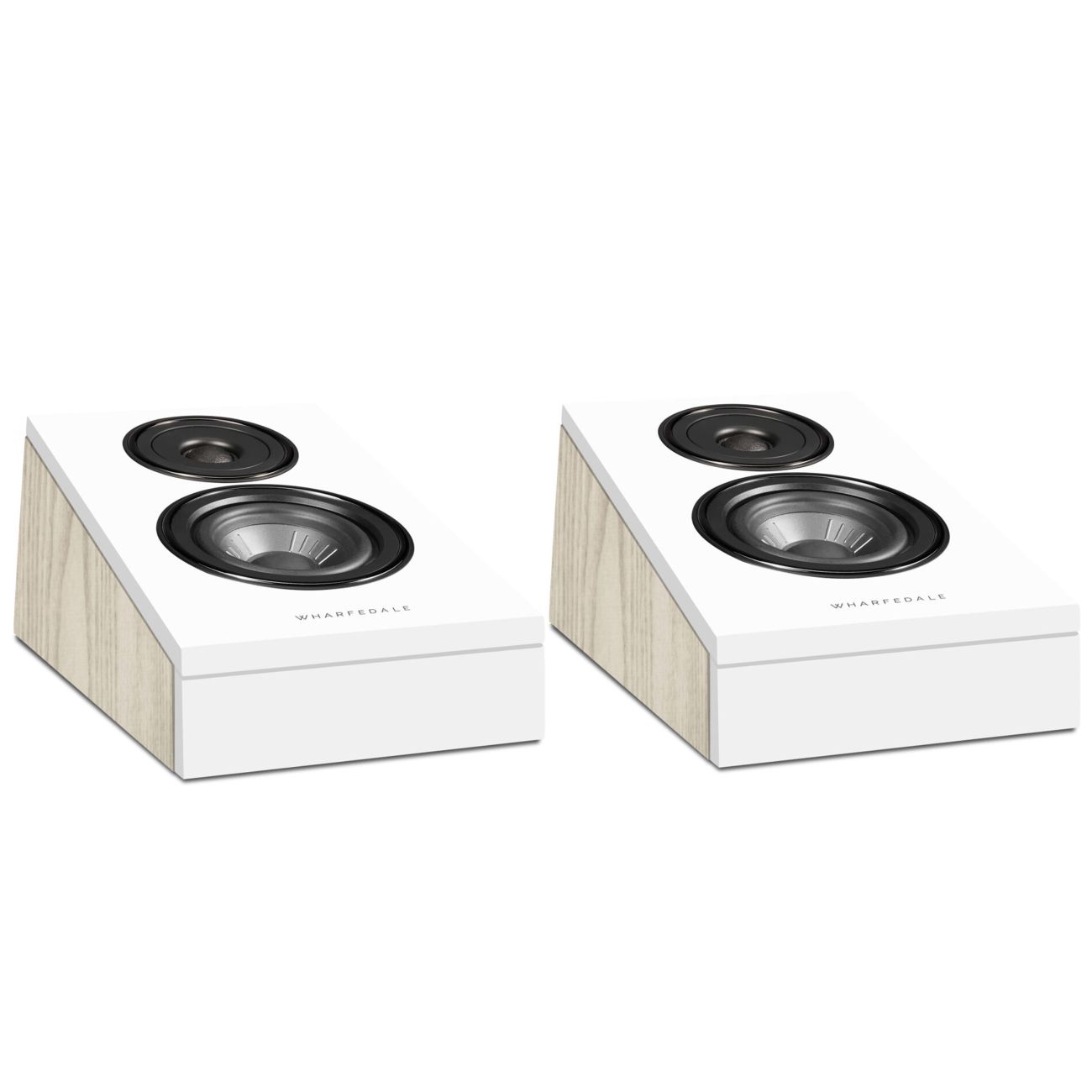

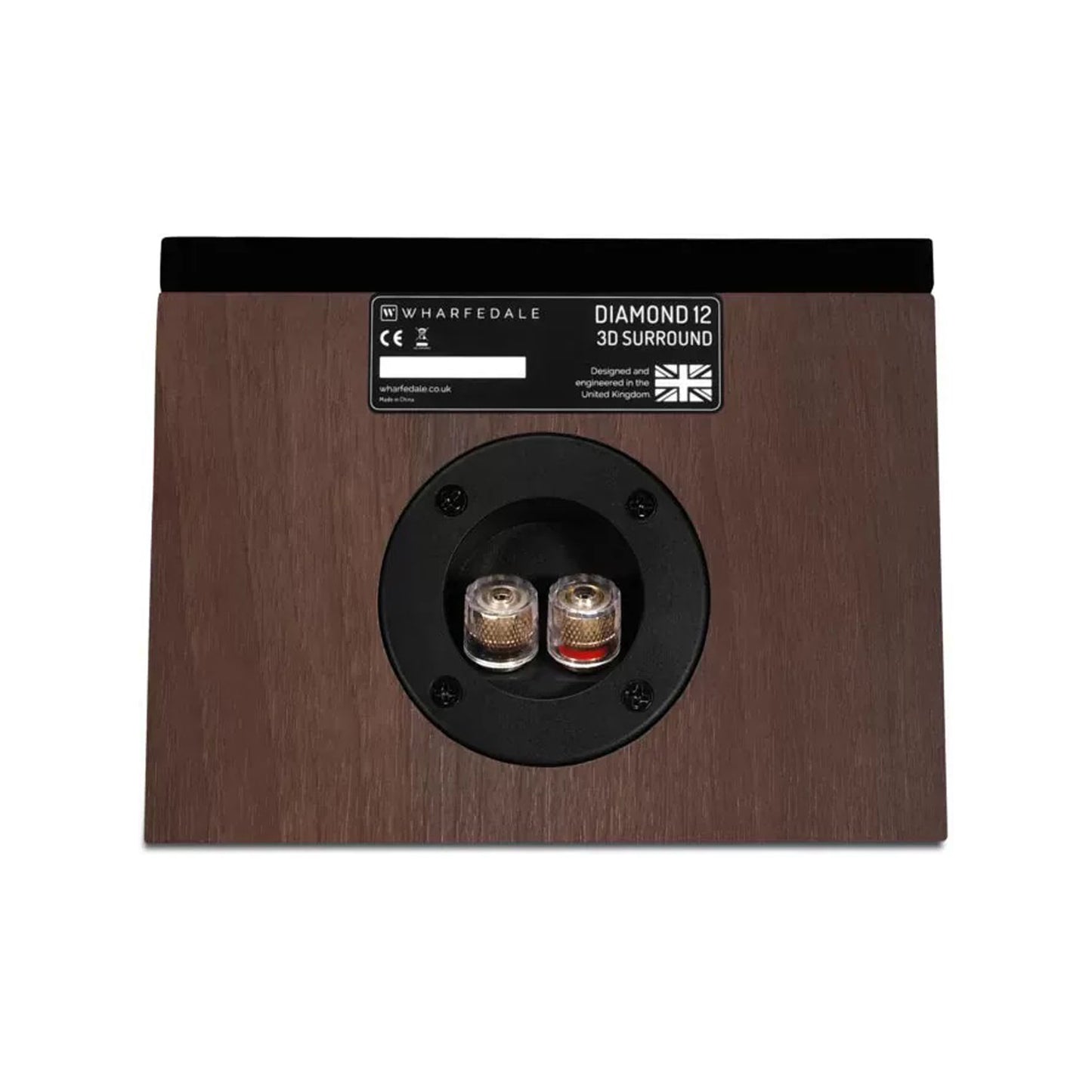

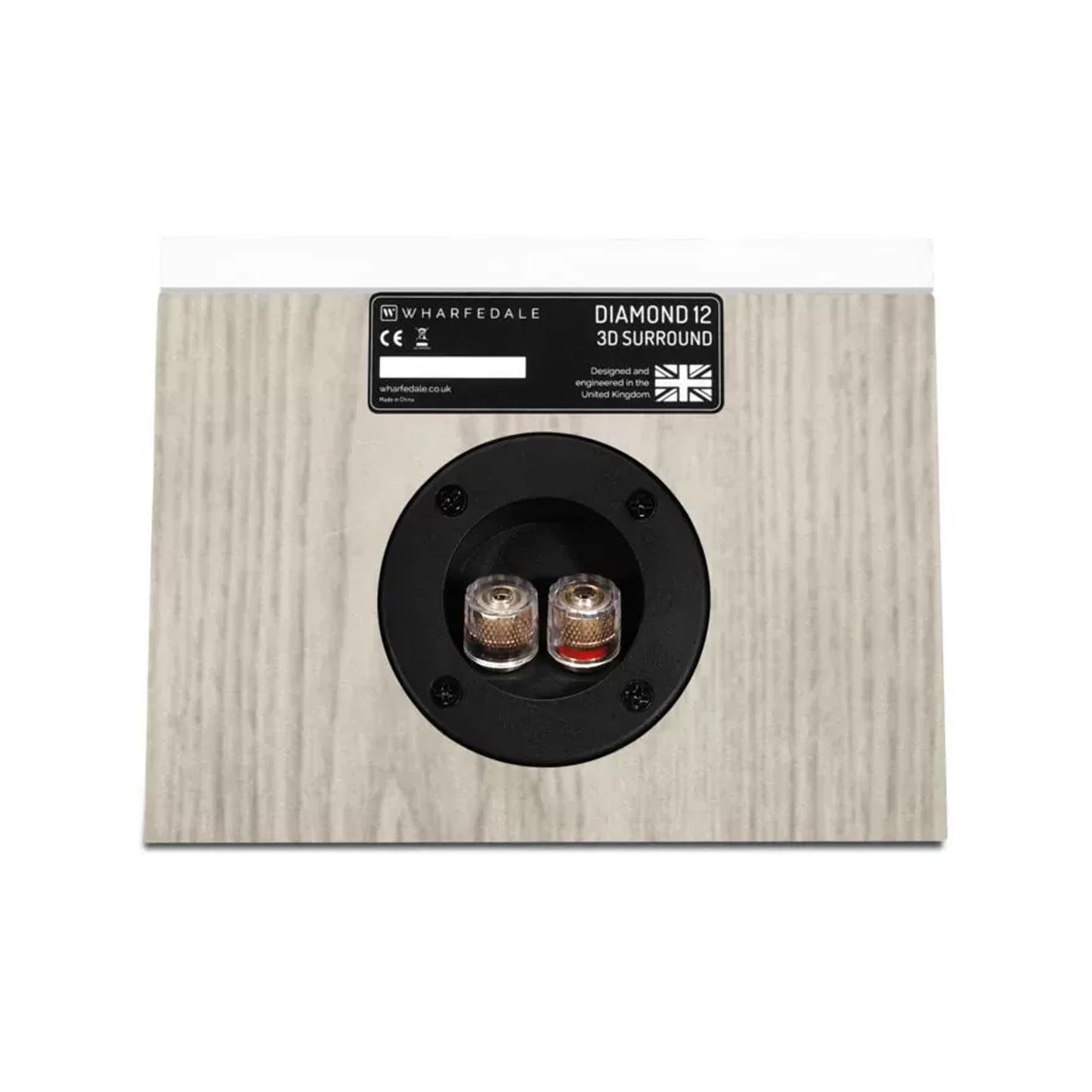

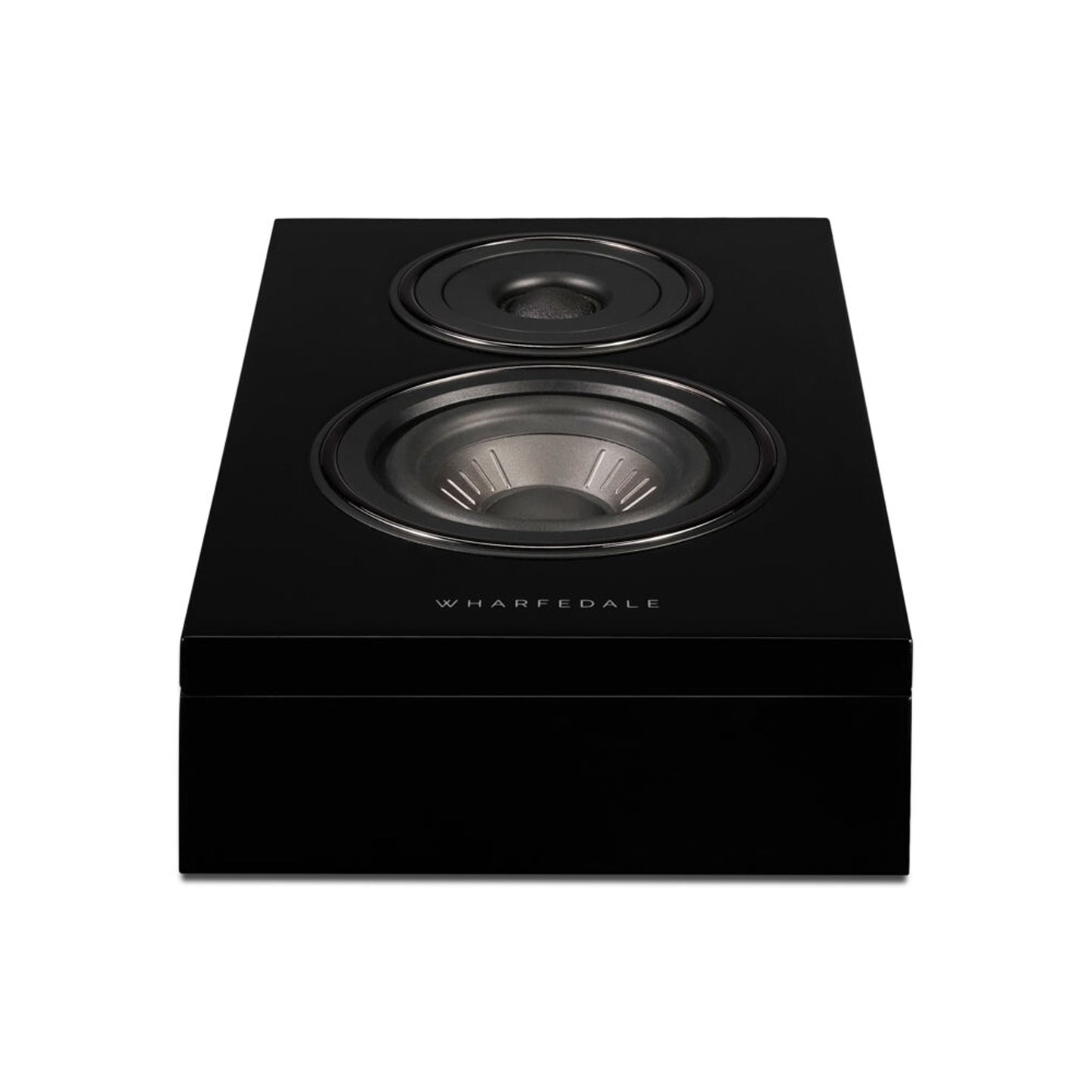

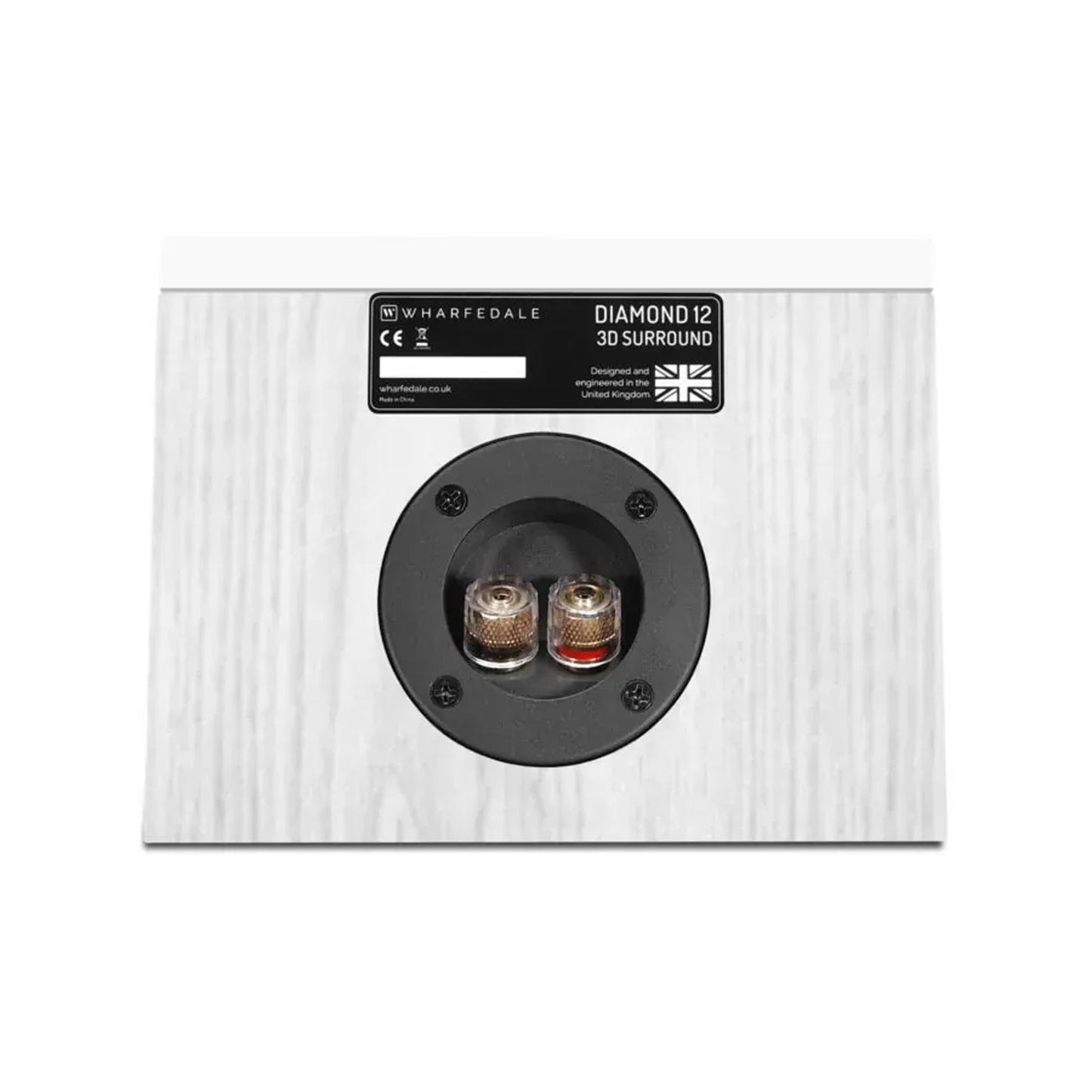

Wharfedale Diamond 12.3D Surround Speakers

Wharfedale Diamond 12.3D Surround Speakers

Regular price $764.00
Regular price $849.00 Sale price $764.00
Sale Sold out
including GST Shipping calculated at checkout.
Colour

Despatched In 1 - 2 Days

This product is in stock at our supplier's warehouse and will be ready for pickup or immediate despatch within 1-2 days

Quick Info

2-Way Dolby Atmos Surround Speakers that Sit on Top of your Existing Speakers

Bounce Sound off the Ceiling for Enhanced Surround Effects

4" Klarity™ Polypropylene Cone Mid/Bass Driver & 1" Textile Dome Tweeter

Sonically & Aesthetically Matched to the Wharfedale Diamond 12 Range

View full details

About The Wharfedale Diamond 12.3D Surround Speakers

Since 1982, Wharfedale's famous Diamond speakers have served as the classic entry point to true high-fidelity sound, their exceptional sonic value for money earning numerous 'product of the year' accolades in the UK and around the world. With this newest addition to the record-breaking, award-winning Diamond 12 series, Wharfedale takes surround sound to the next level with the Diamond 12.3D surround speaker.

Covering the audience in a dome of sound, following Wharfedale's long history in cinematic and home theatre solutions, you can now have a 3D cinema-audio listening experience at home with your Diamond 12 series configuration.

Klarity Affords Focus: As with all Diamond 12 models, the Diamond 12.3D uses the famed Klarity™ polypropylene cones that are renowned for their characteristically low distortion and controlled 'breakup'.

Low Colour & Expression: To make Klarity™, Wharfedale adds mica to the formulation. This increases stiffness compared to polypropylene alone, reducing flexing and enabling a lightweight cone with high rigidity, low colouration and a lightning-fast response – ideal characteristics to deliver both accuracy and excitement.

A Magnet of Forces: The Klarity™ diaphragms are driven by a substantial, precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the motor system.

A Voice Coil Beyond This Class: The voice coil is wound on a high-power epoxy/glass fibre bobbin – highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type.

Diamond Highs: The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible, with a short duct to balance the acoustic load and improve the SPL (sound pressure level) measurement.

Brace Yourself: Inside the cabinet, Intelligent Spot Bracing connects opposing walls with a specific form of wood brace to achieve optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace 'figure of eight' brace, which can have the effect of transferring resonance from one wall to another.

Main Features & Specifications

  • Design: 2-Driver, 2-Way Dolby Atmos Surround Speakers
  • Enclosure Type: Sealed Box
  • Bass Driver: 4" (102mm) Advanced PP Cone
  • Treble Driver: 1" (25mm) Textile Dome
  • AV Shielding: No
  • Sensitivity (2.83V @ 1M): 85dB
  • Recommended Amplifier Power: 20-100W
  • Peak SPL: 95dB
  • Nominal Impedance: 8Ω Compatible
  • Minimum Impedance: 4.3Ω
  • Frequency Response (+/-3dB): 110Hz - 20kHz
  • Bass Extension (-6dB): 90Hz
  • Crossover Frequency: 3kHz

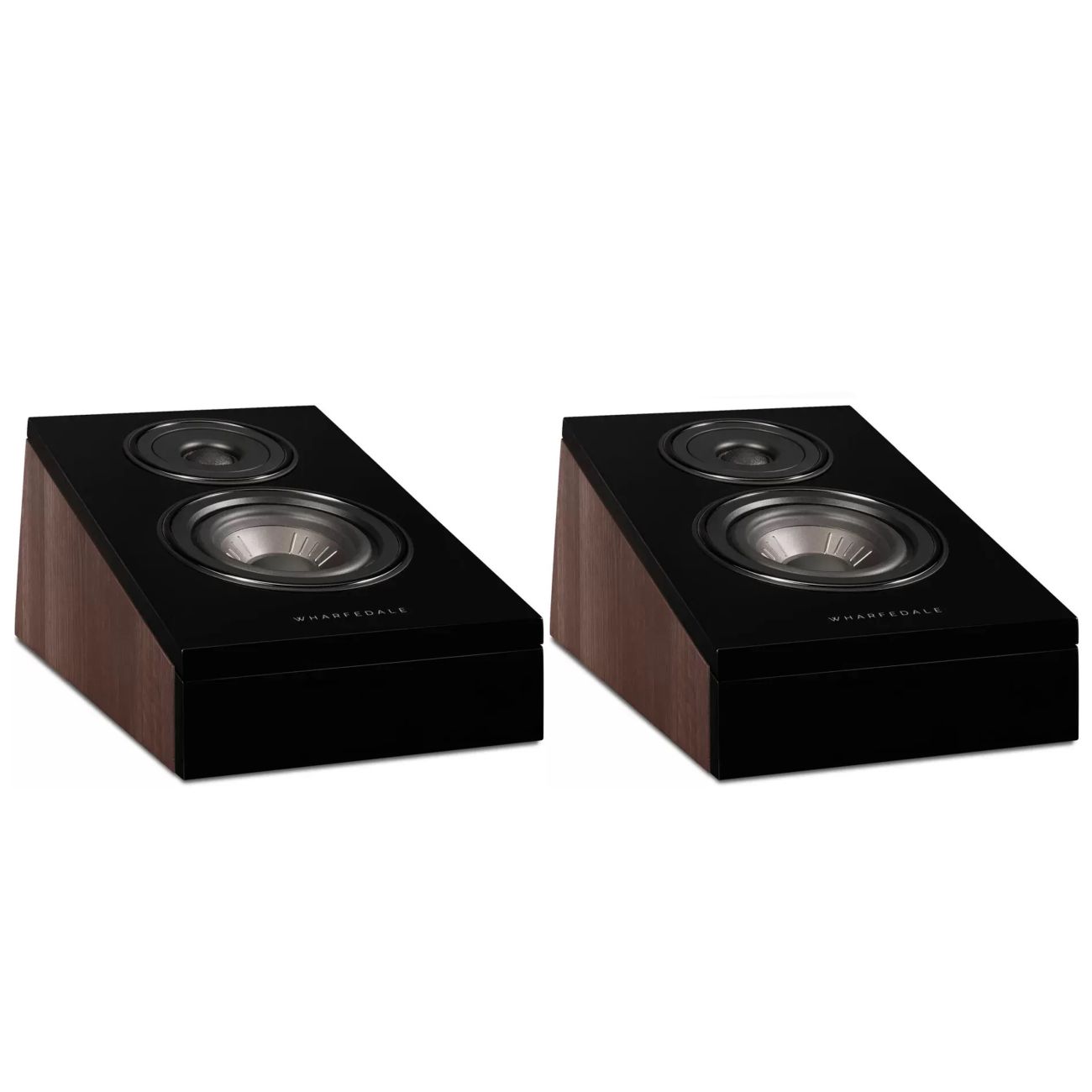

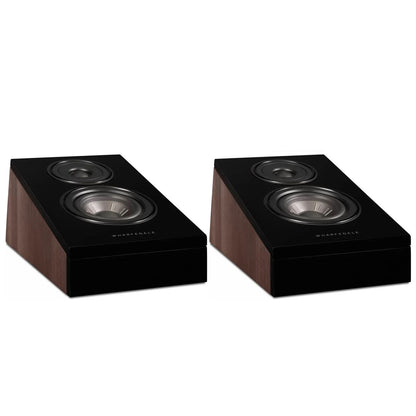

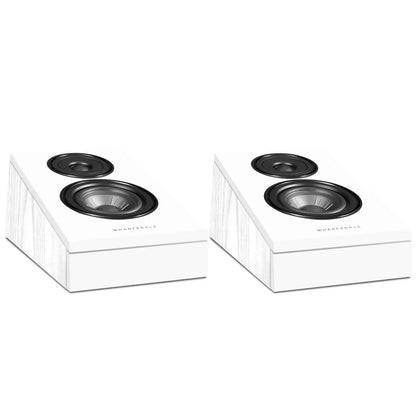

  • Available Finishes: Black, Light Oak, Walnut or White
  • Dimensions (WxHxD): 180 x 145 x 310mm
  • Net Weight: 3.2 kg each
  • Manufacturer's Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
