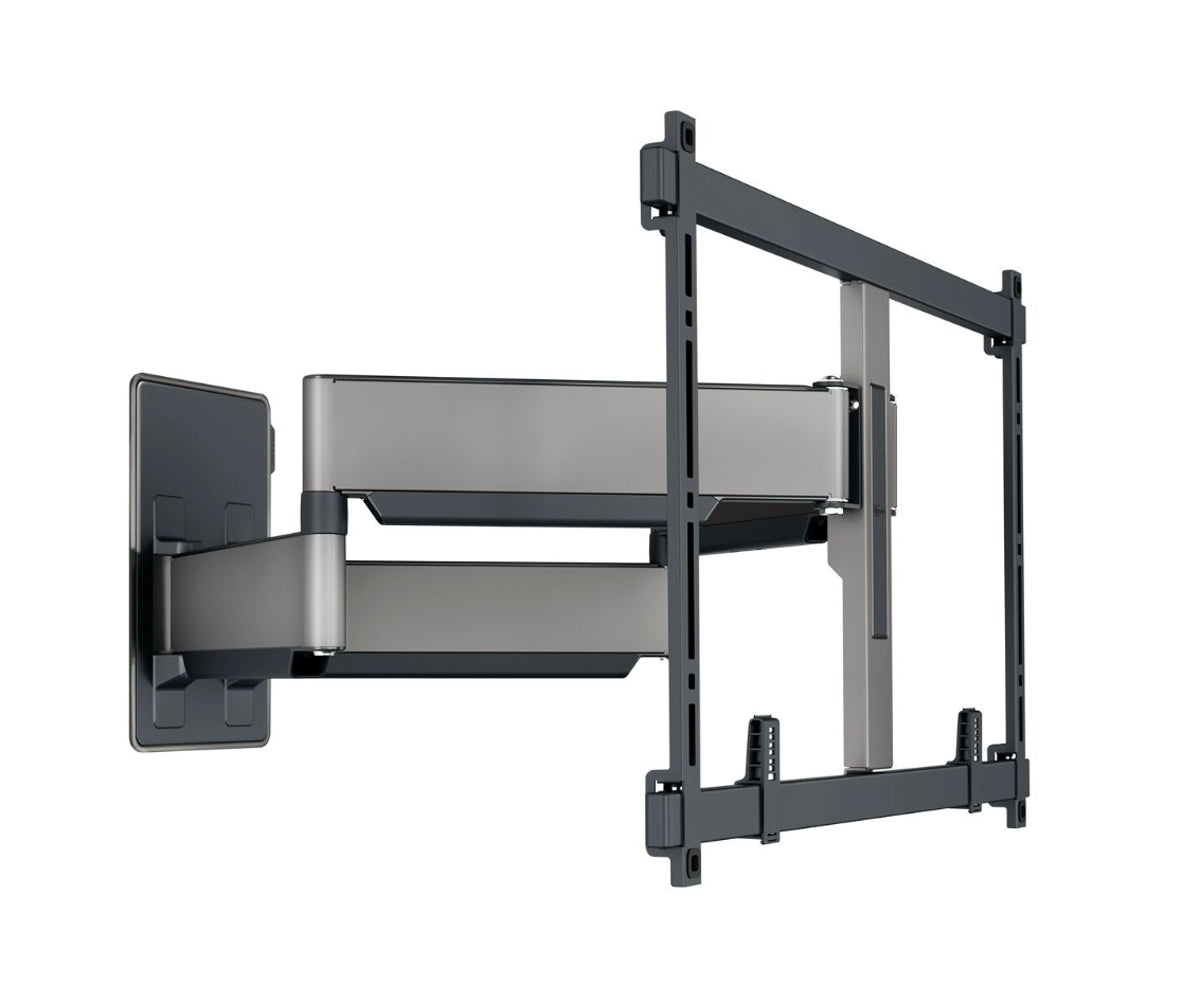

About The Vogel's TVM 5855 Full Motion TV Wall Mount
This Elite Forward Motion TV wall mount is a special, extra-strong wall mount, suitable for TVs from 55 to 100 inches and weighing up to 75 kg - ideal for your large OLED or QLED TV. The Elite Forward Motion rotates up to 120°, so you can enjoy your TV from virtually any angle. Besides being ultra-strong, the wall mount is also ultra-slim, mounting your TV just 45mm from the wall.
Turn Your TV With Just One Finger: The Elite Forward Motion TV wall mount features an ingenious 4-arm mechanism to turn your TV, up to 60° both the left and right. Thanks to Vogel's One-Finger™ Movement technology, the wall mount turns so smoothly that you only need to use one finger.
Thanks to the 690mm long support arms, the wall mount has a long forward reach, which makes the Elite Forward Motion TV wall mount perfect for cabinets and alcoves. A tilt function has been deliberately omitted to protect large, fragile screens. Of course, the advantage of large displays is that you don't have to tilt for a great viewing experience.

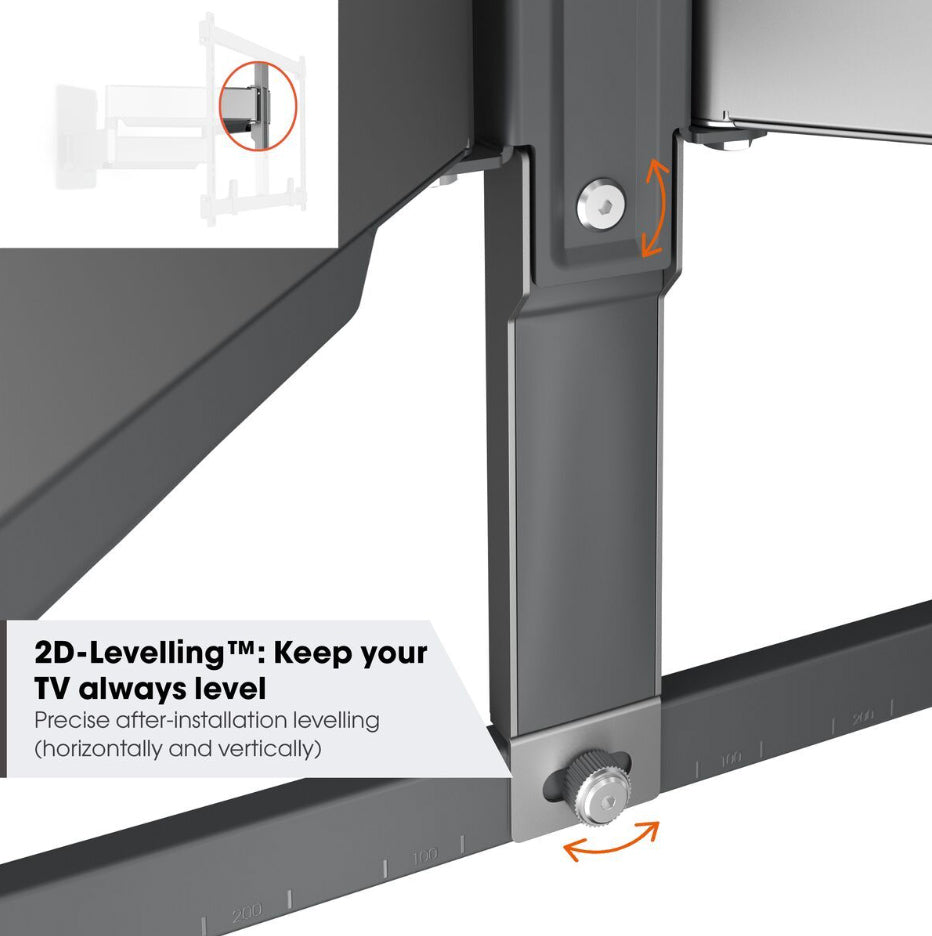

2D Levelling™ For Perfectly Straight Mounting: Elite Forward Motion TV wall mounts are equipped with 2D Levelling™, hanging perfectly level, both horizontally and vertically. You can even adjust it after installation, if your TV is already mounted on the wall.
Your Cables Neatly Concealed: With a TV that is mounted beautifully tight to the wall, you'd rather not see any cables. With the Elite Forward Motion TV wall mount, the unique Cable Inlay System (CIS®) guides cables through the support arms and neatly hides everything at the back of the TV, with special cable holders.
Safety First: As the proud owner of a large, premium TV, you want to be absolutely sure that it is mounted securely. The Elite Forward Motion TV wall mount gives you that assurance. It is TUV-certified and tested at three times its maximum weight capacity, meeting the highest safety requirements.

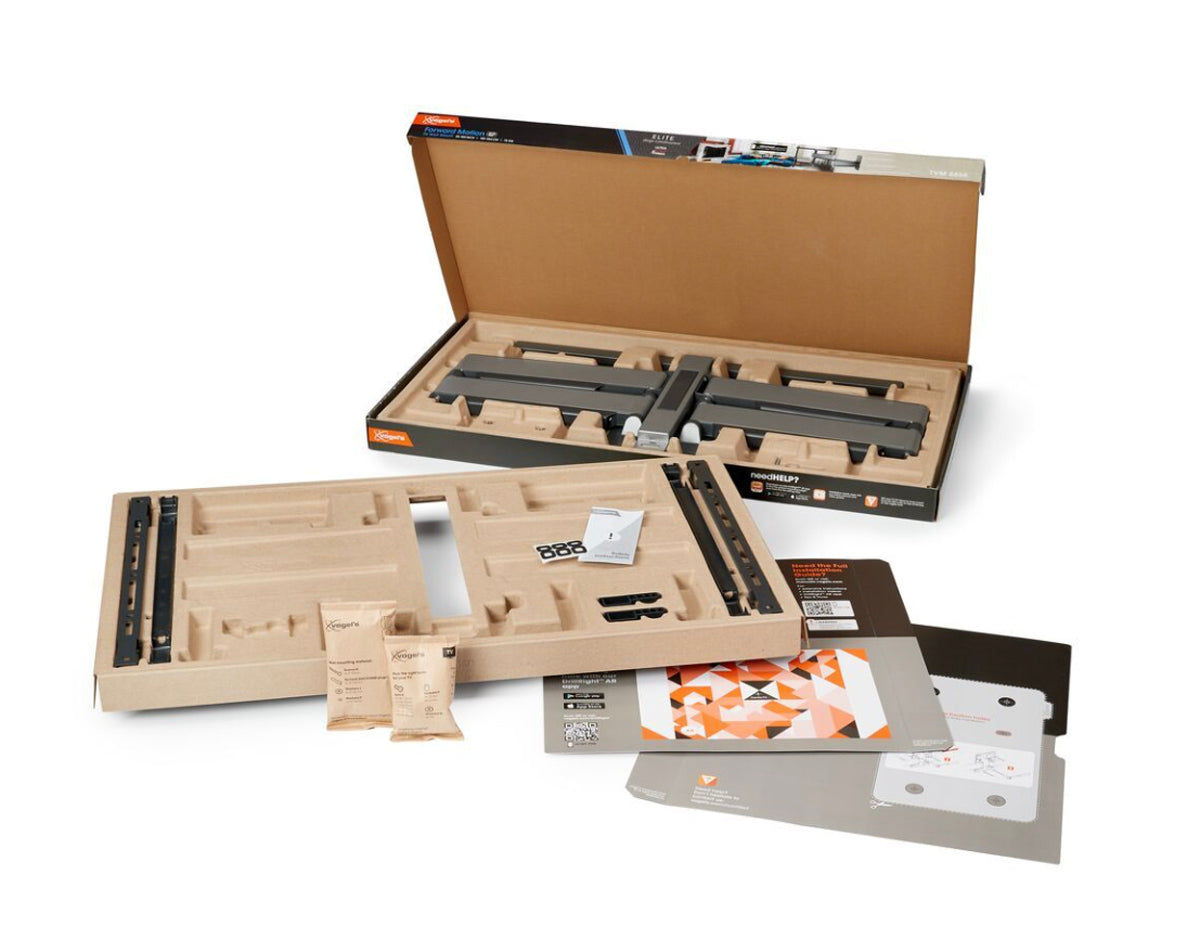

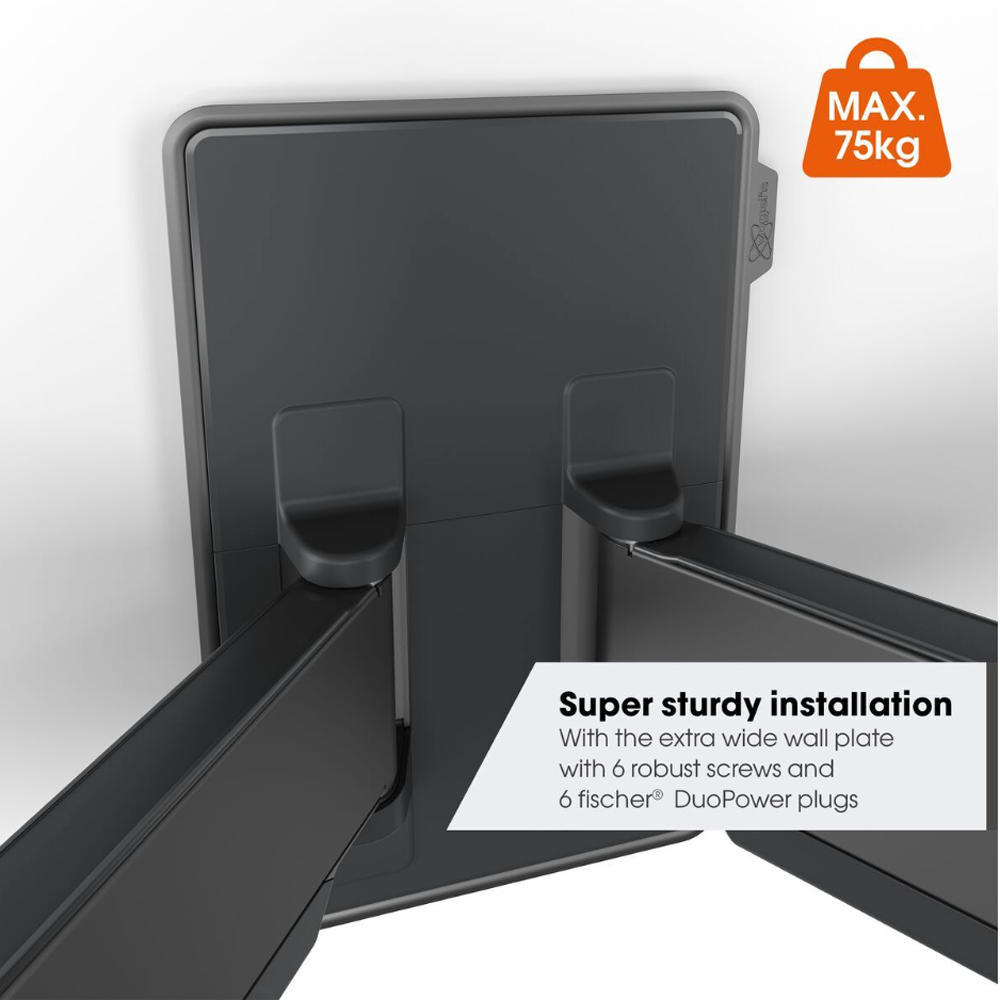

Installation? Vogel's Makes It Easy: The Elite Forward Motion TV wall mount is easy to install, with a Quick Install Guide included and a detailed manual and installation video available online. All of the necessary installation materials are included: a spirit level, drilling template, extra-wide wall plate, screws and Fischer® DuoPower plugs. With Vogel's free DrillRight app, you can easily mark out the first drill hole. Comforting detail: soft patches on the wall mount prevent you from scratching the back of your TV during mounting.
Main Features & Specifications
- Design: Full-Motion, Ultra-Slim TV Wall Mount for High-End TVs up to 100 inches

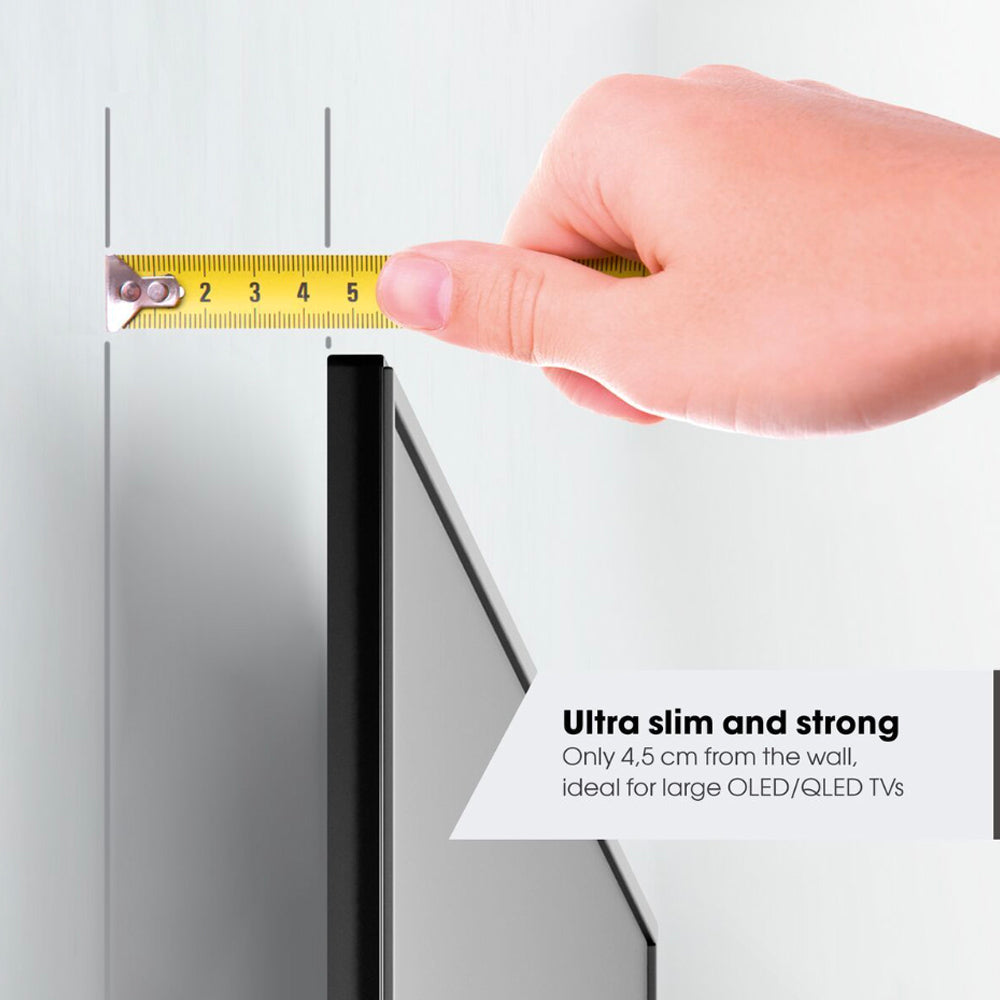

- Ultra slim and strong - Only 45mm from the wall, ideal for large OLED/QLED TVs
- Vogel's toughest and strongest hero bears up to 75 kg - Mount the heaviest TVs, close to the wall, just 45mm
- Smooth OneFinger™ Movement - Thanks to coated bearings and precision steel shafts
- Perfectly level installation - Free spirit level included
- 2D-Levelling: Keep your TV always level - Precise after-installation levelling (horizontally and vertically)
- Protective TV patches - Protect the rear of your TV with soft protective patches
- Supports max VESA Hole Patterns of 600 x 400mm
- Ultra slim (45mm from wall) and strong, supporting max 75 kg
- Minimum Screen Size: 55"
- Maximum Screen Size: 100"
- Maximum Weight Load: 75 kg
- Maximum Rotation: Full Motion up to 120°
- VESA Hole Patterns: 200mm x 200mm, 200mm x 300mm, 300mm x 200mm, 300mm x 300 mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 500mm x 200mm, 500mm x 300mm, 500mm x 400mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm

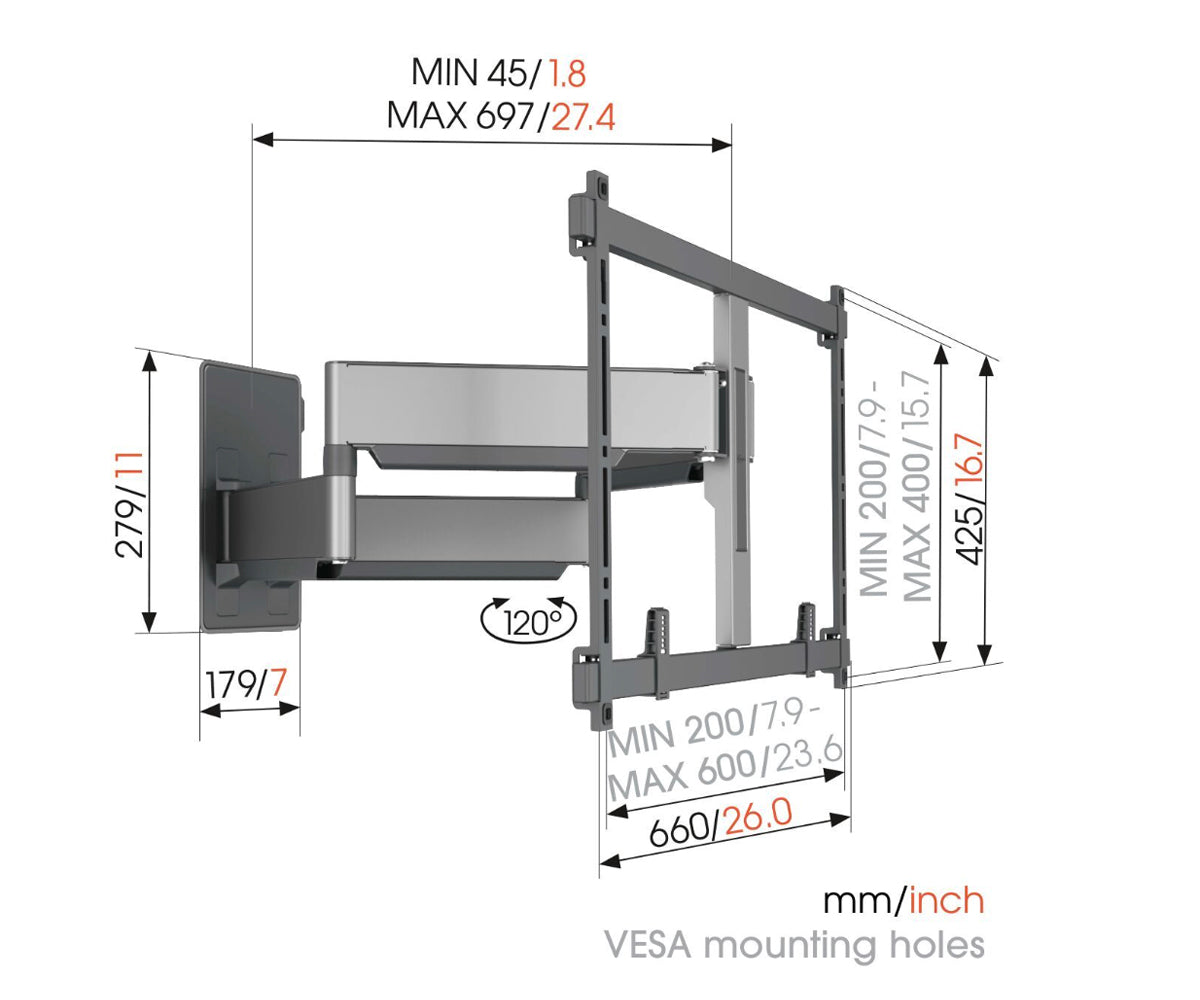

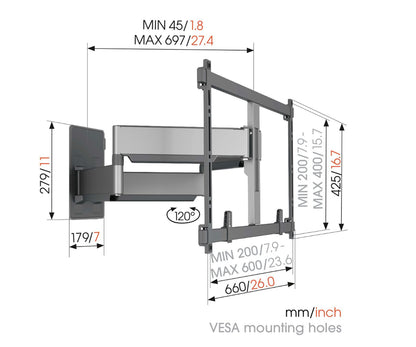

- Minimum Distance to the Wall: 45mm
- Maximum Distance to the Wall: 697mm
- Number of Pivot Points: 4

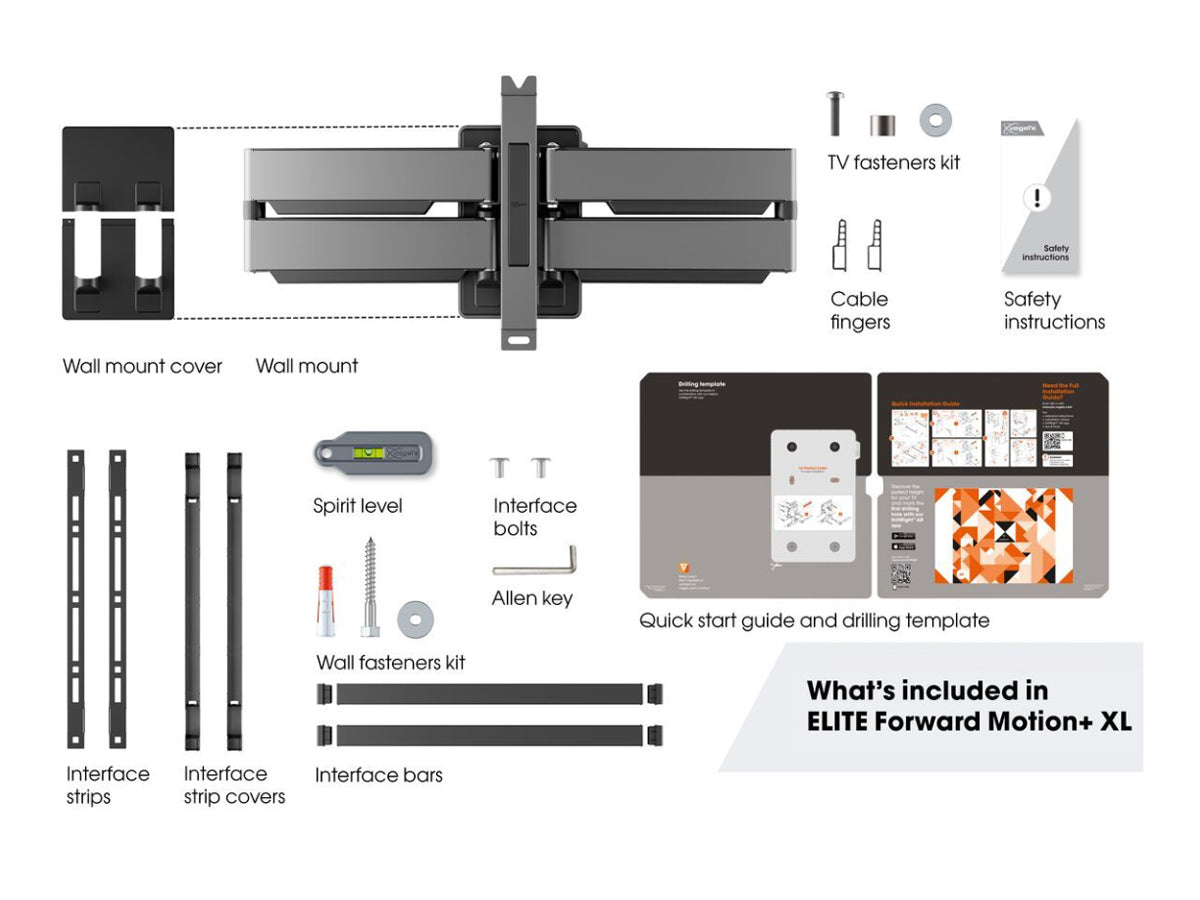

- Included Accessories: Wall Mounting Kit with Fischer® Duo Power Plugs, TV Fasteners Kit, Spirit Level, Quick Installation Guide, DrillRight App, Drilling Template
- Finish: Platinum Grey
- Manufacturer's Warranty: 15 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
