About Vogel's TVM 5645 Full Motion TV Wall Mount

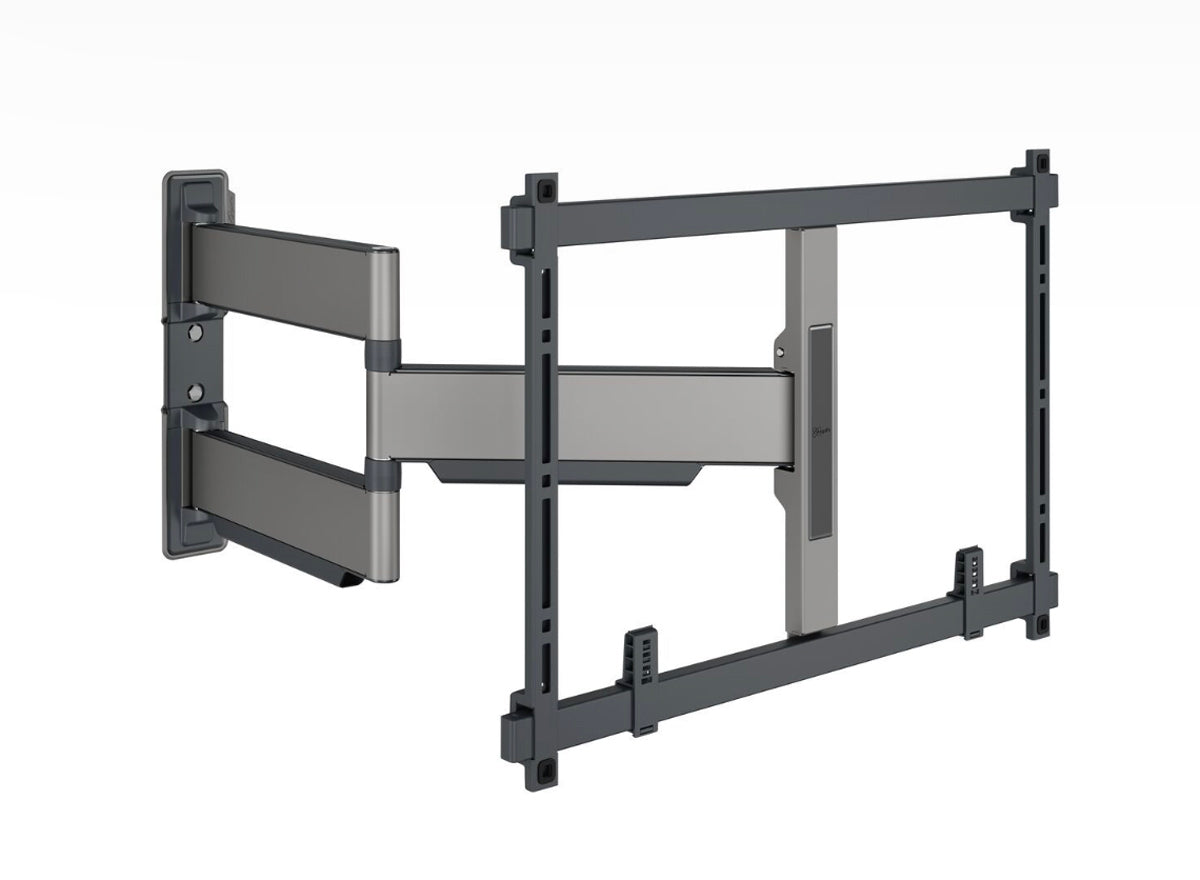

This Elite Full-Motion+ TV wall mount combines minimalistic design with great performance. The wall mount is not only ultra-slim, but also ultra-strong and can be turned up to 180°. In short, the ultimate wall mount for large high-end TVs, such as OLED and QLED TVs. The TV wall mount is suitable for displays from 40 to 77 inches in size and weighing up to 45 kg. In the starting position, your TV is mounted just 40mm from the wall. Available in the colours White and Platinum Grey.
Watch TV Comfortably From Any Angle: The Elite Full-Motion+ TV wall mount has extra-long support arms of 650 mm. This makes it possible to turn your TV up to 90° to the left and right, depending on your display size, enabling you to enjoy your TV optimally from any corner in the room. Turning your TV is extremely smooth, thanks to OneFinger™ Movement, you can move the display to the desired viewing angle with just one finger. Because it's best not to tilt thin, fragile displays, the tilt function has been omitted.

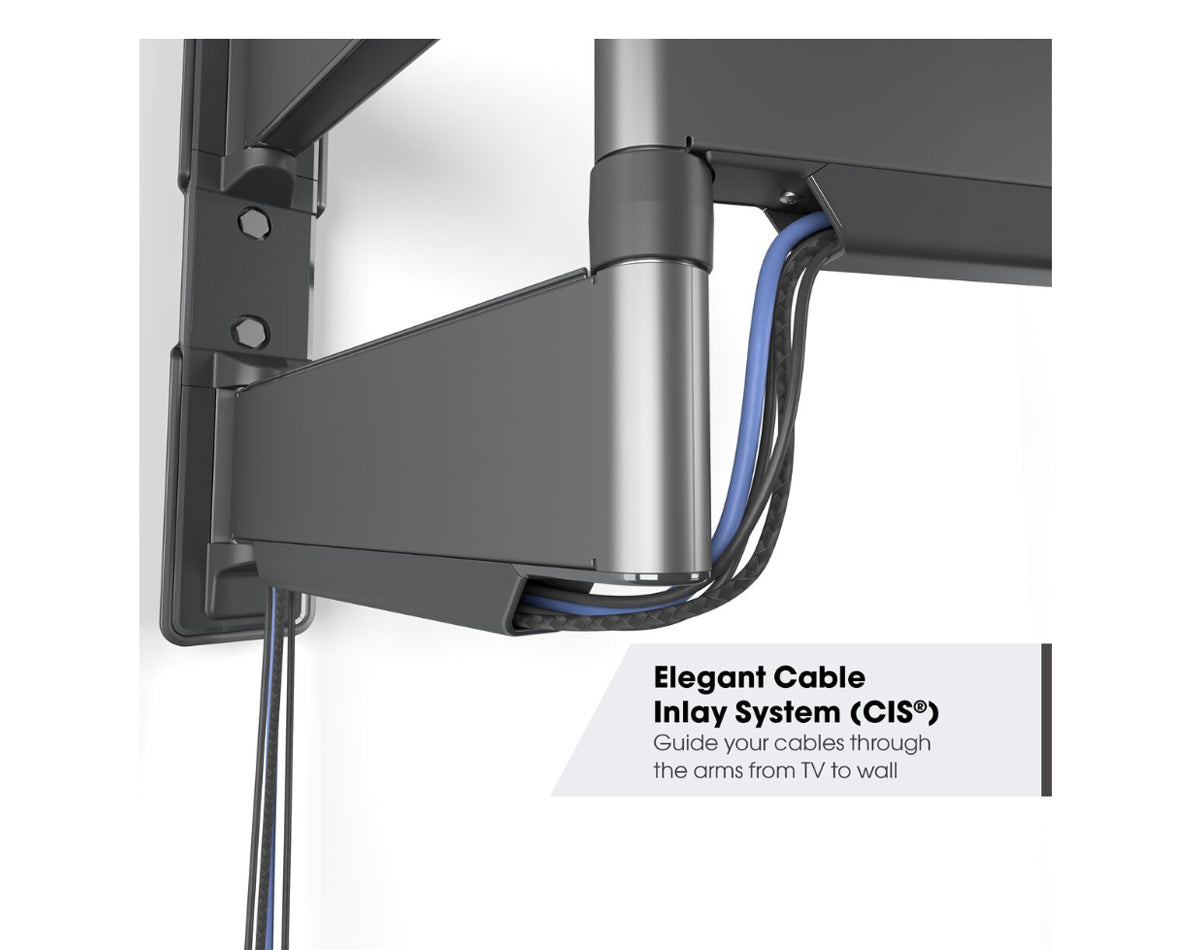

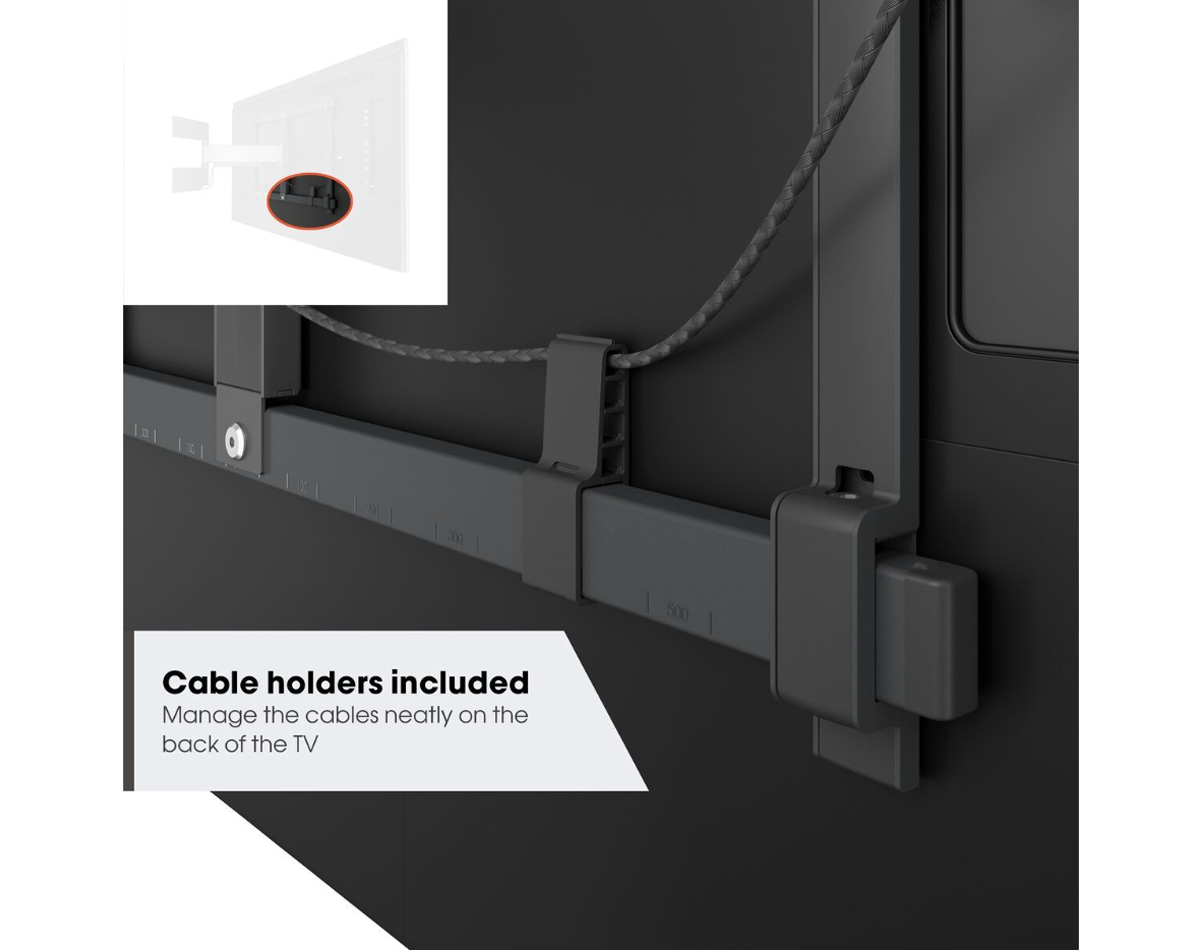

Refined Perfection: Elite Full-Motion+ TV wall mounts excel in perfection. The TV wall mount features 2D Leveling™, making it easy to mount your TV perfectly straight, both horizontally and vertically, even after installation. The cables run – out of sight – through the support arms thanks to the unique Cable Inlay System (CIS®). You can neatly conceal the cables at the back of your TV using the special cable holders. All technical details of the TV wall mount are nicely hidden behind elegant cover plates.
Safety Guaranteed: Elite Full-Motion+ TV wall mounts meet the most stringent safety requirements. Each TV wall mount is TüV certified and tested to three times its maximum weight capacity.

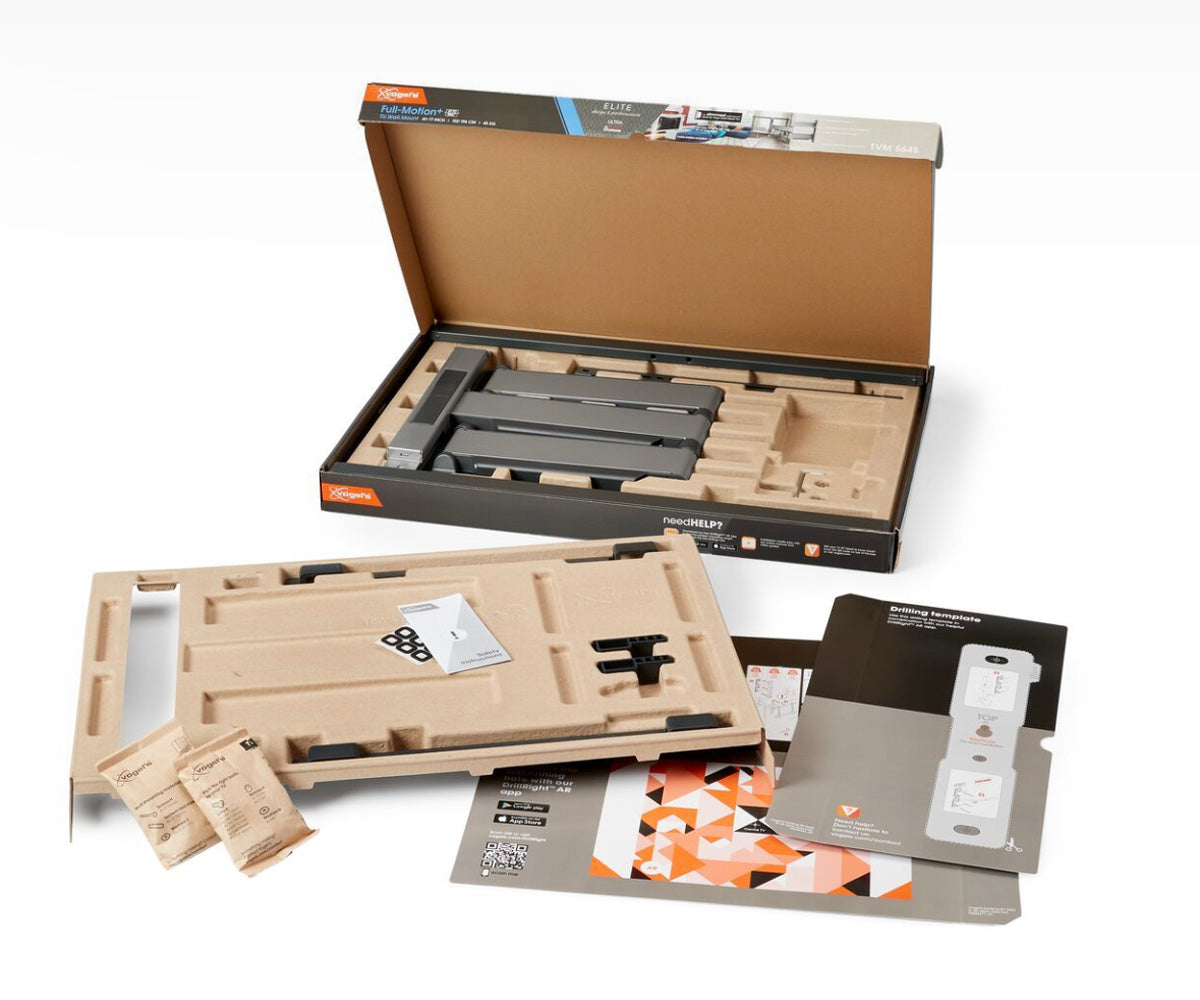

Easy To Install: The Elite Full-Motion+ TV wall mount is easy to install. It comes with a Quick Install Guide, which explains everything clearly. You'll find even more help online, including a detailed manual and the installation video. A spirit level, drilling template, screws and fischer® DuoPower plugs are included. With the free DrillRight app, you can easily mark the first drill hole. To protect the back of your TV during mounting, soft wall mount patches are included.
Main Features & Specifications
- Design: Full-Motion, Ultra-Slim TV Wall Mount for High-End TVs from 40 to 77 inches
- Ultra slim and strong - Only 40mm from the wall, ideal for large OLED/QLED TVs

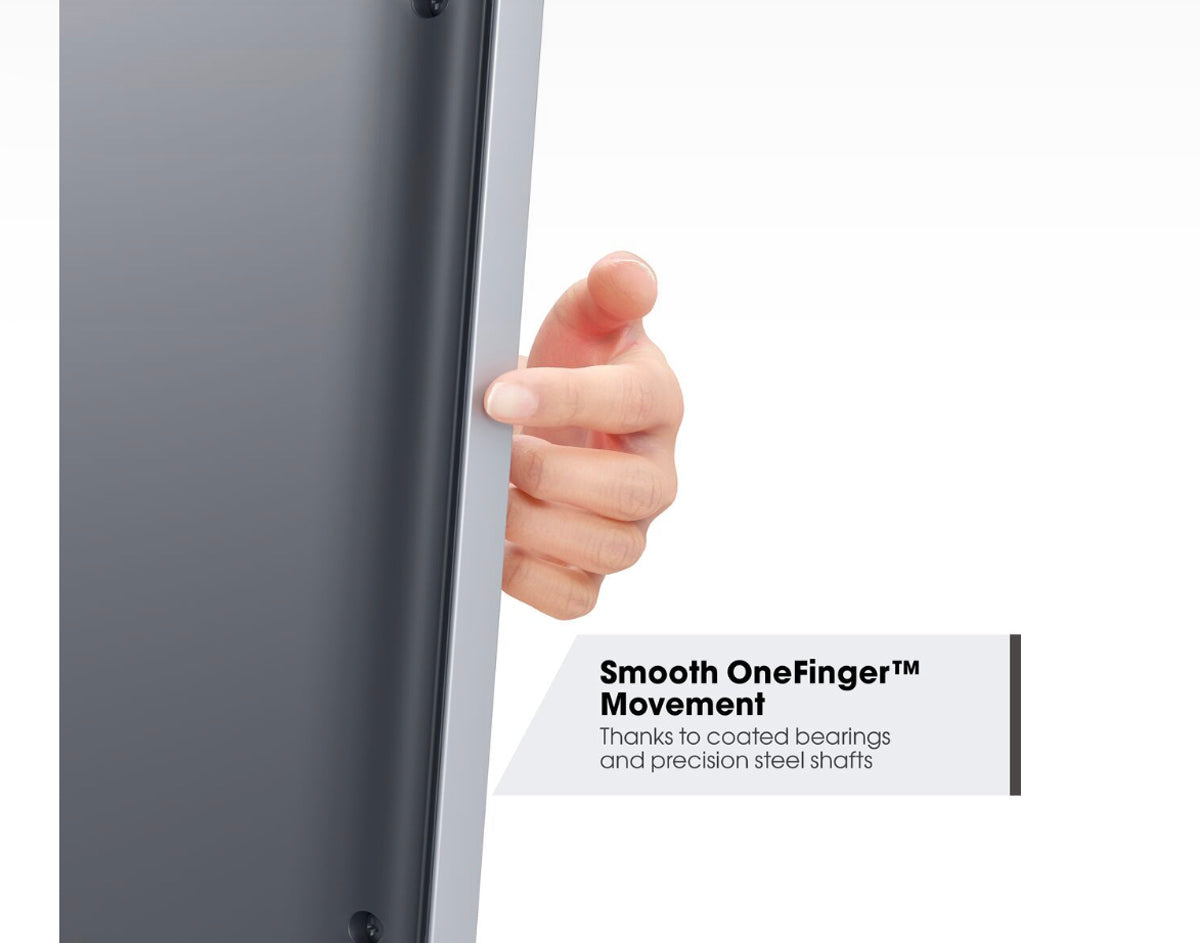

- Smooth OneFinger™ Movement - Thanks to coated bearings and precision steel shafts
- Perfectly level installation - Free spirit level included

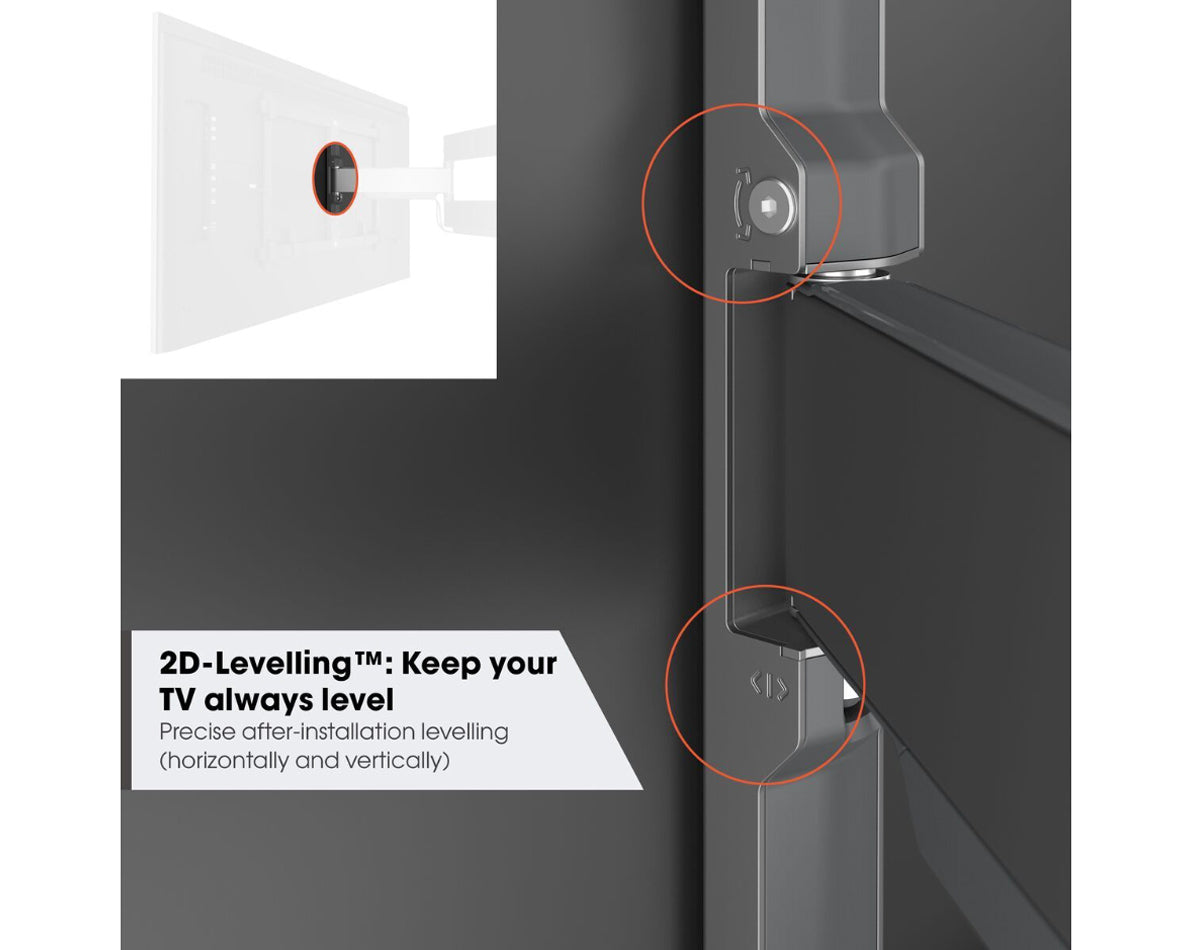

- 2D-Levelling: Keep your TV always level - Precise after-installation levelling (horizontally and vertically)
- Protective TV patches - Protect the rear of your TV with soft protective patches
- Up to 180° Swivel
- Supports max VESA Hole Patterns of 600 x 400mm
- Ultra slim (40mm from wall) and strong, supporting max 45kg
- Minimum Screen Size: 40"
- Maximum Screen Size: 77"
- Maximum Weight Load: 45 kg
- Maximum Rotation: Full Motion up to 180°

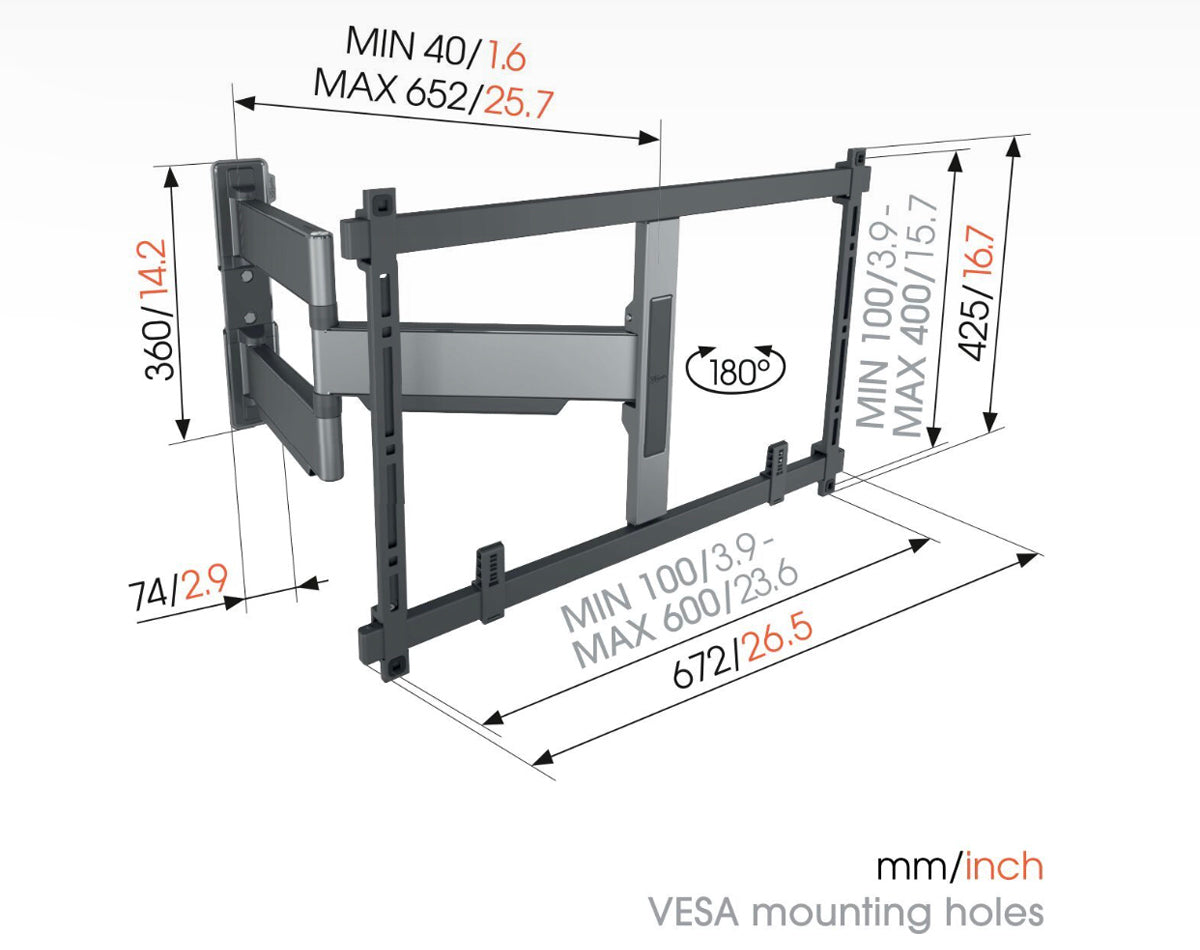

- VESA Hole Patterns: 100mm x 100mm, 100mm x 200mm, 200mm x 100mm, 200mm x 200mm, 200mm x 300mm, 300mm x 200mm, 300mm x 300mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 500mm x 200mm, 500 mm x 300mm, 500mm x 400mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm
- Minimum Distance to the Wall: 40mm
- Maximum Distance to the Wall: 652mm
- Number of Pivot Points: 3

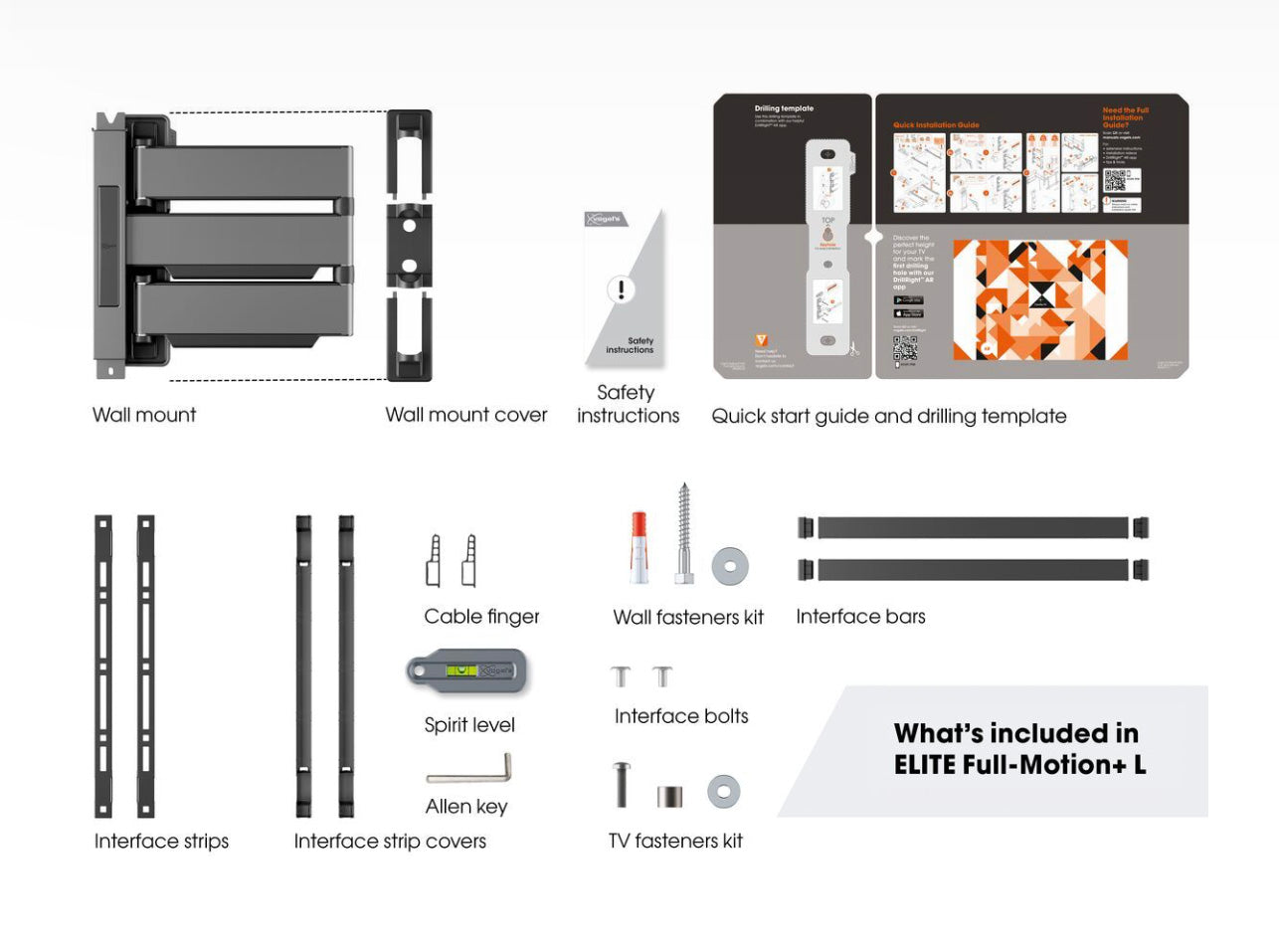

- Included Accessories: Wall Mounting Kit with Fischer® Duo Power Plugs, TV Fasteners Kit, Spirit Level, Quick Installation Guide, DrillRight App, Drilling Template

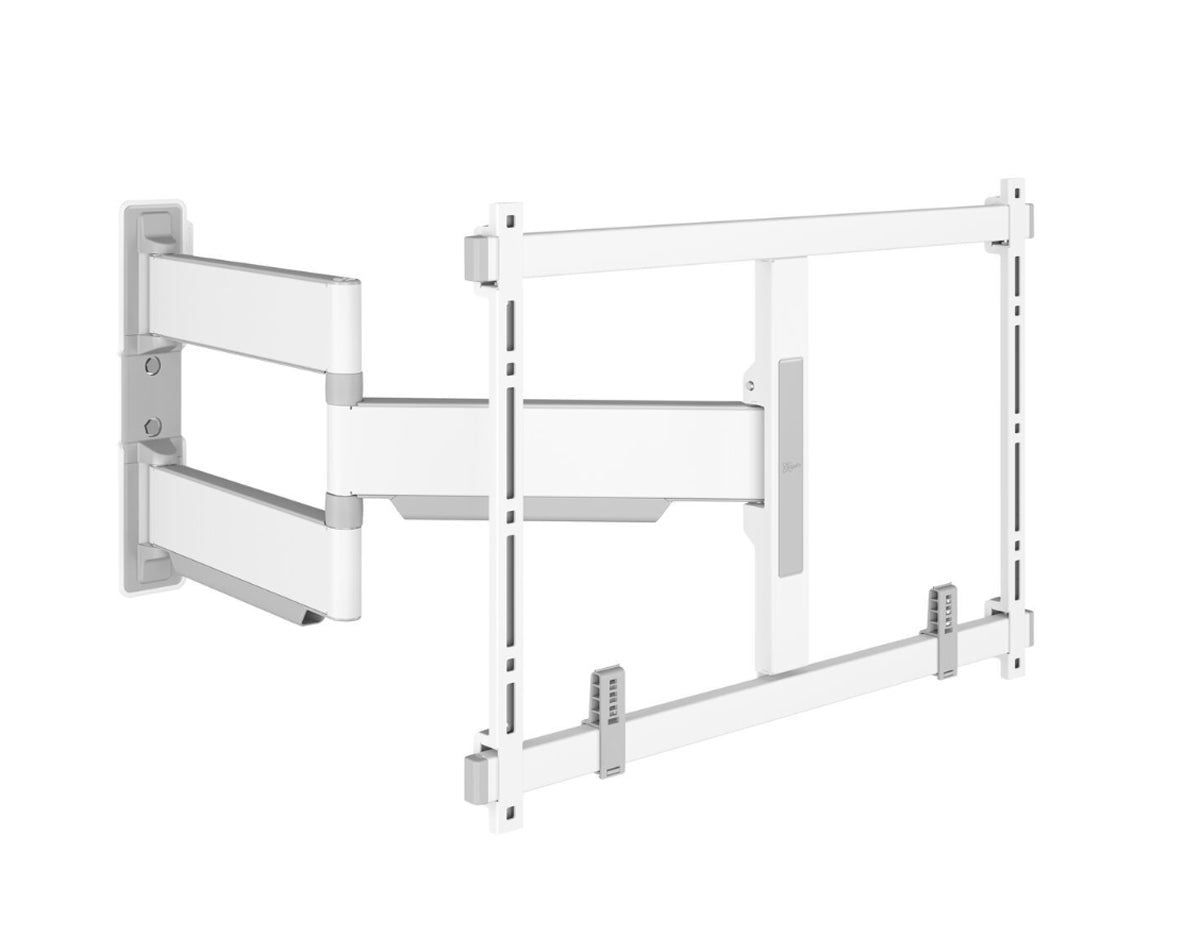

- Available Finishes: White or Platinum Grey
- Manufacturer's Warranty: 15 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
