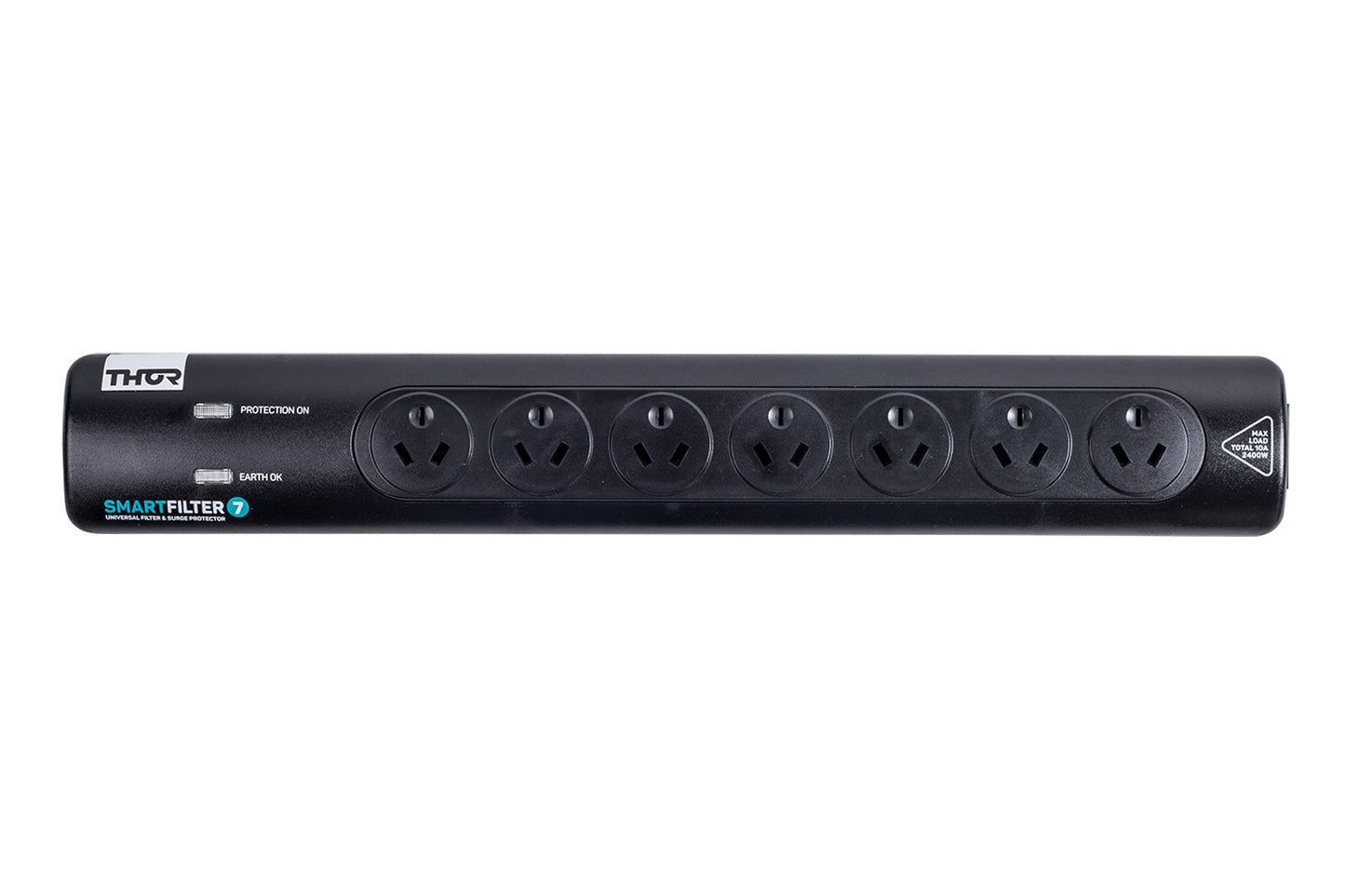

About The Thor D1/45B Power Board
The Thor D1/45B or commonly known as the SmartFilter 7 because of it's number of power outlets is a very economically priced power board that is designed to give you a number of important functions including surge protection.
The Thor SmartFilter 7 is a popular power board because of its slimline profile and reasonable price. The SmartBrain passive filter adds to the industry leading protection capability offering an all round solution. The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you excellent sound and video quality. It can also improve performance in all types of domestic computers.
Inside The Brain: This SmartBrain entry level filter uses passive technology. It manages to cover a more comprehensive range of shielding than many competitors by "cleaning" a wide or wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices' noise contaminating power.
Main Features & Specifications
- Supply Voltage: 220- 240/V AC 50/Hz
- Maximum Current Rating: 10amps/2400 W (VA)
- Clamping Voltage: 275 V AC
- Reaction Time: Less than 1 nanosecond
- Maximum transient spike impulse current: 156,000 amps (equivalent to 39,000 amps using UL1449 standard)
- Maximum energy dissipation: 4588 Joules (equivalent to 1550 Joules using UL1449 standard)
- Protection modes: (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
- EMI/RFI Noise Reduction: Filter type
- Total number of protected AC outlets: 7

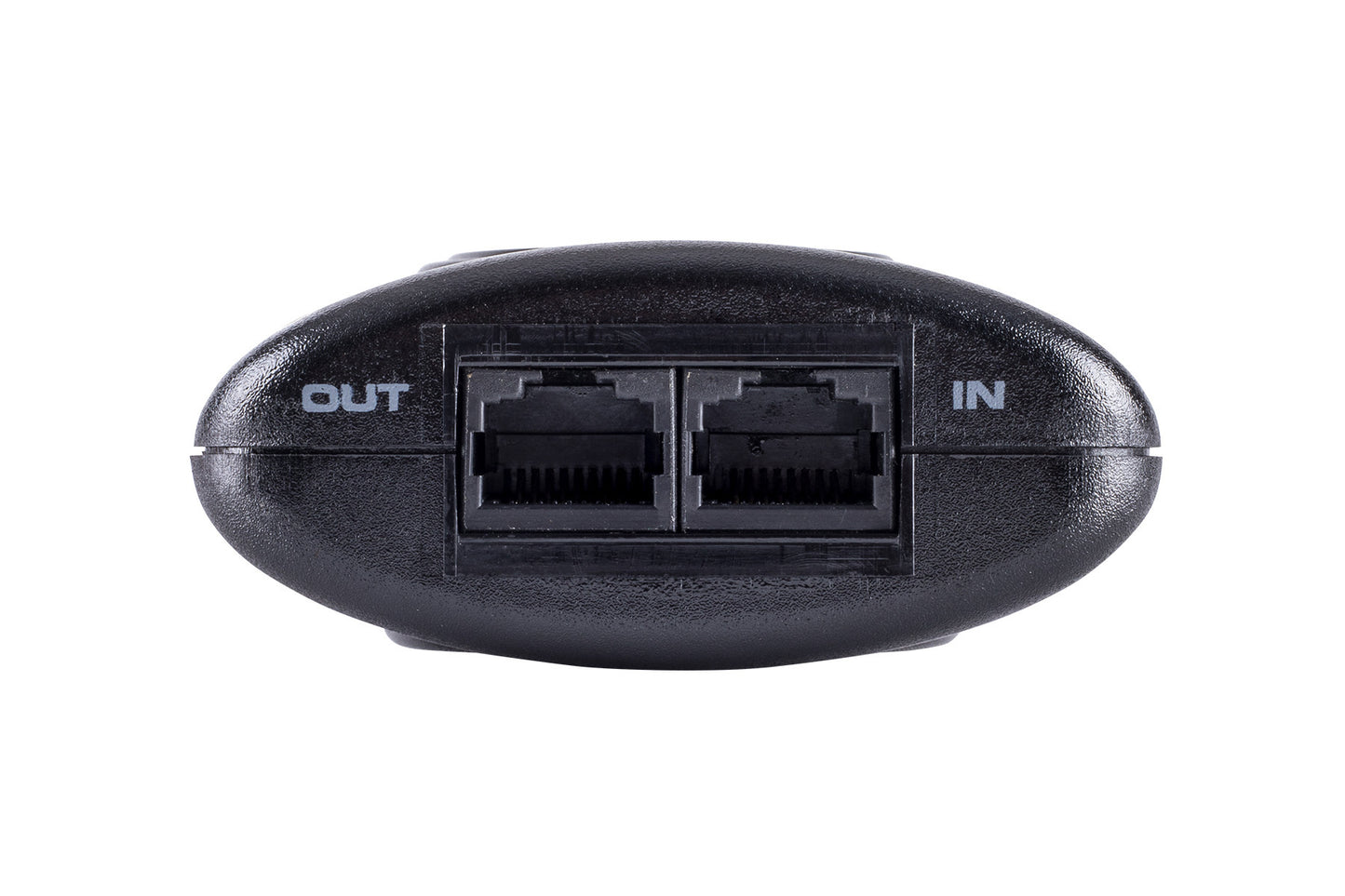

- RJ 45 data protection: 1 in and 1 out
- Earth Potential Rise Protection: Yes
- Earth Leakage Range. Less than 1 milli amp
- Operating Temperatures: -10C/+60C
- Cable Length: 1.2metre
- Dimensions: (LxHxW) 470mm x 33mm x 75mm
Note: Features & Specifications Subject To Change Without Notice. E&OE. White version in illustration no longer available.
