Theory Audio Design sb25 Universal Mount Adapter

About The Theory Audio Design sb25 Universal Mount Adapter

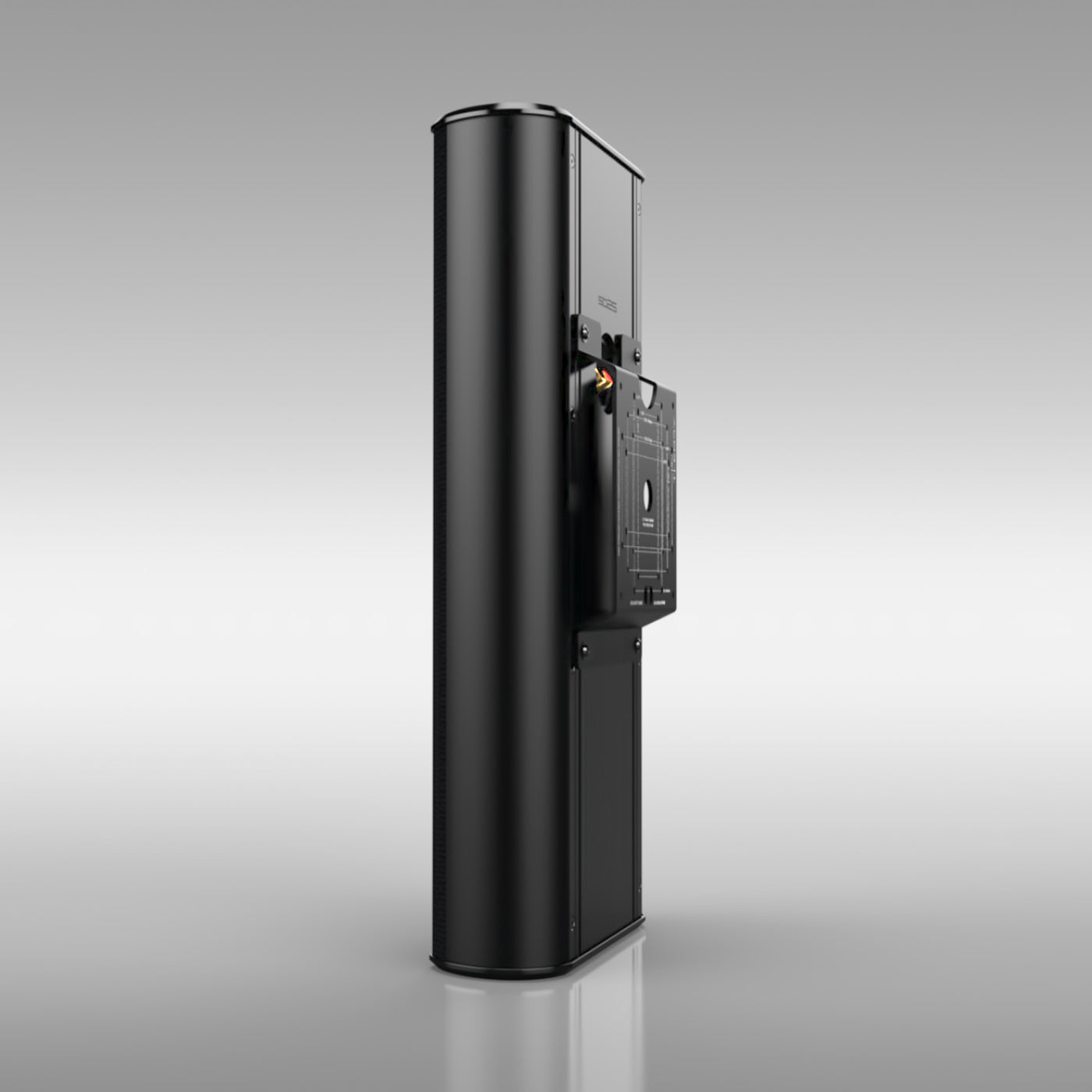

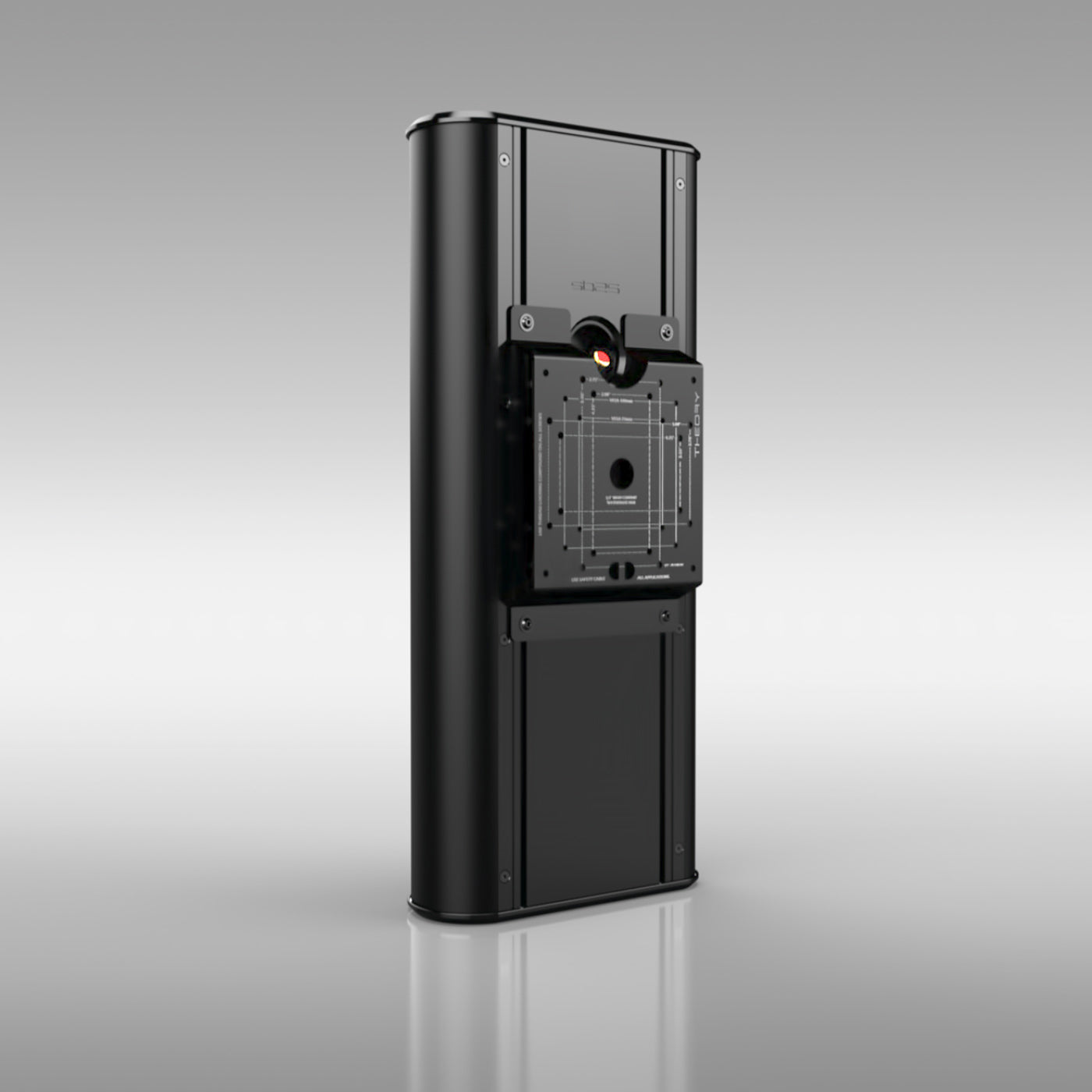

This is a Mounting Adapter for the Theory sb25 and sb25aw Surface Mount Loudspeakers. It is typically used to mount the sb25 almost anywhere and look sleek and unobtrusive while doing it.

The sb25 Universal Mount Adapter optional accessory facilitates the mounting of the sb25 in almost any scenario: pole from ceiling, pole from ground, onto any 75mm or 100mm VESA mount, and a number of pan-and-tilt and ball mounts for wall and ceiling mounting from Adaptive Technologies and Omnimount.

The Theory of Everything: Theory is genuinely unique - their products have completely changed the level of performance attainable from small to medium size installed sound systems. Part of the way they attain this level of performance is by employing proprietary DSP techniques to process the signal for their loudspeakers and subwoof­ers with a very high degree of precision.

As such, the Theory ecosystem of products is a little different than what you're used to as all The­ory loudspeaker models require the application of Theory High Resolution Digital Loudspeaker Processing. For this reason, it is best to think of Theory loudspeakers as "active" or "powered" speakers - Theory have just elected to place the electronics, normally installed inside the loudspeaker itself, in rack-mountable chasses, outside the harsh environment of the loudspeaker, and where wiring and service of the electronics can be accomplished painlessly.

So, when configuring system designs, always pair your chosen Theory loudspeakers with appropriate Theory Amplified Loudspeaker Controllers. These highly powerful and flexible units will make deploying Theory systems simple and painless and will guaranty the best performance available for your application.

Applications: Pole from ceiling, pole from ground, onto any 75mm or 100mm VESA mount, and a number of pan-and-tilt and ball mounts for wall and ceiling mounting from Adaptive Technologies and Omnimount.

Main Features & Specifications

• Design: Mounting Adapter for Theory sb25 and sb25aw Surface Mount Loudspeakers - Sold Individually
• Mount Hole Patterns
  • 75mm VESA Square
  • 100mm VESA Square
  • 0” x 4.25” 1/4”-20 Threads
  • 75” x 5.0” 1/4”-20 Threads
  • Mount Hole for 1/2" Rigid Conduit Hub (1/2" Conduit Mount)
• Compatible Third Party Mounts
  • Omnimount
    • 0W Wall Ball Mount
    • 0C Ceiling Ball Mount
  • Adaptive Technologies
    • Multimount MM-016-BT Wall Multi-Mount
    • Multimount MM-017 Wall Pan-Tilt
    • Multimount MM-018 Ceiling Pan-Tilt
• Colour: Black
• Dimensions (WxHxD): 152 x 229 x 29mm

• Weight: 0.8 kg
• Manufacturer's Warranty: 5 Years. Does not include misuse.

Note: Features & Specifications Subject To Change Without Notice. E&OE.
