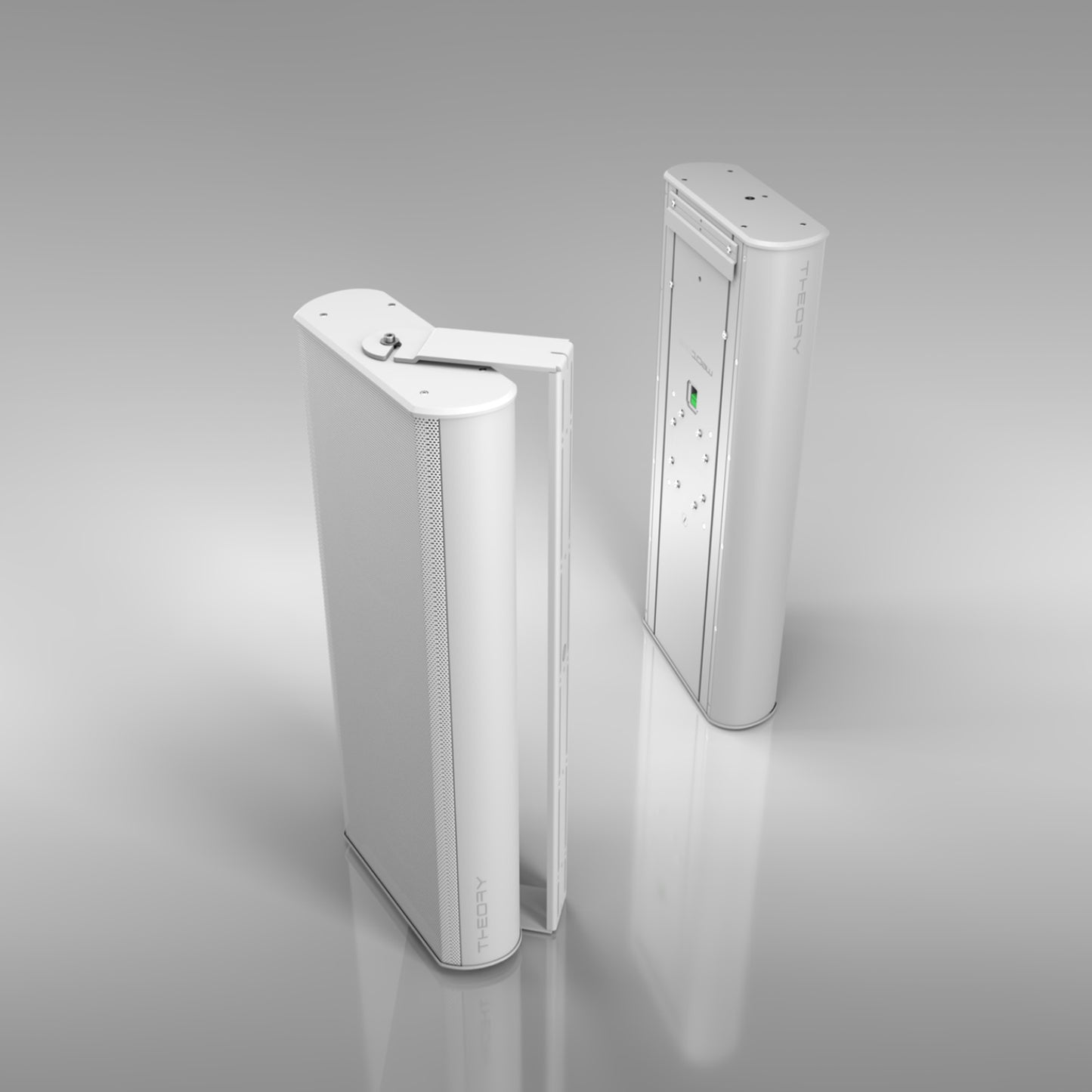

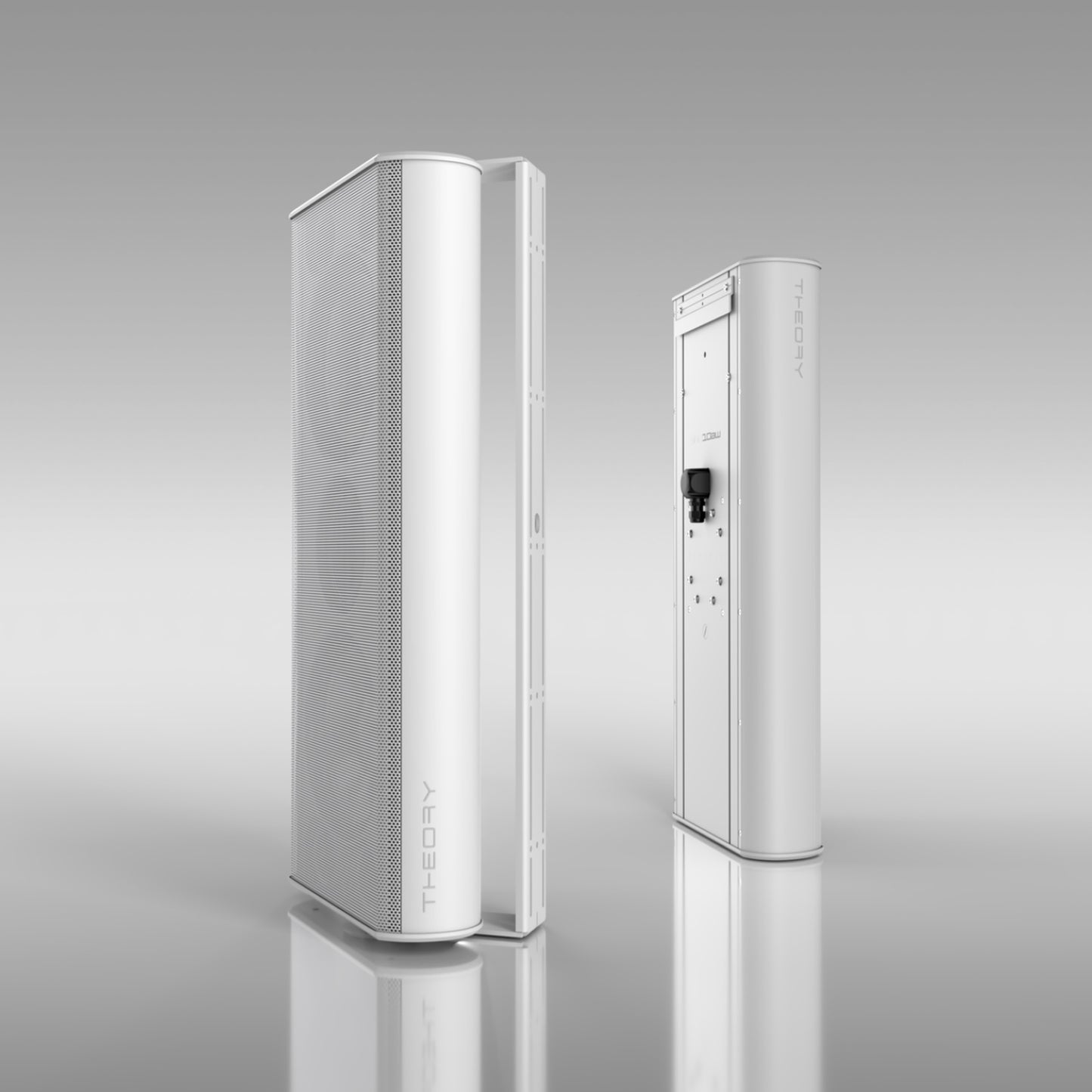

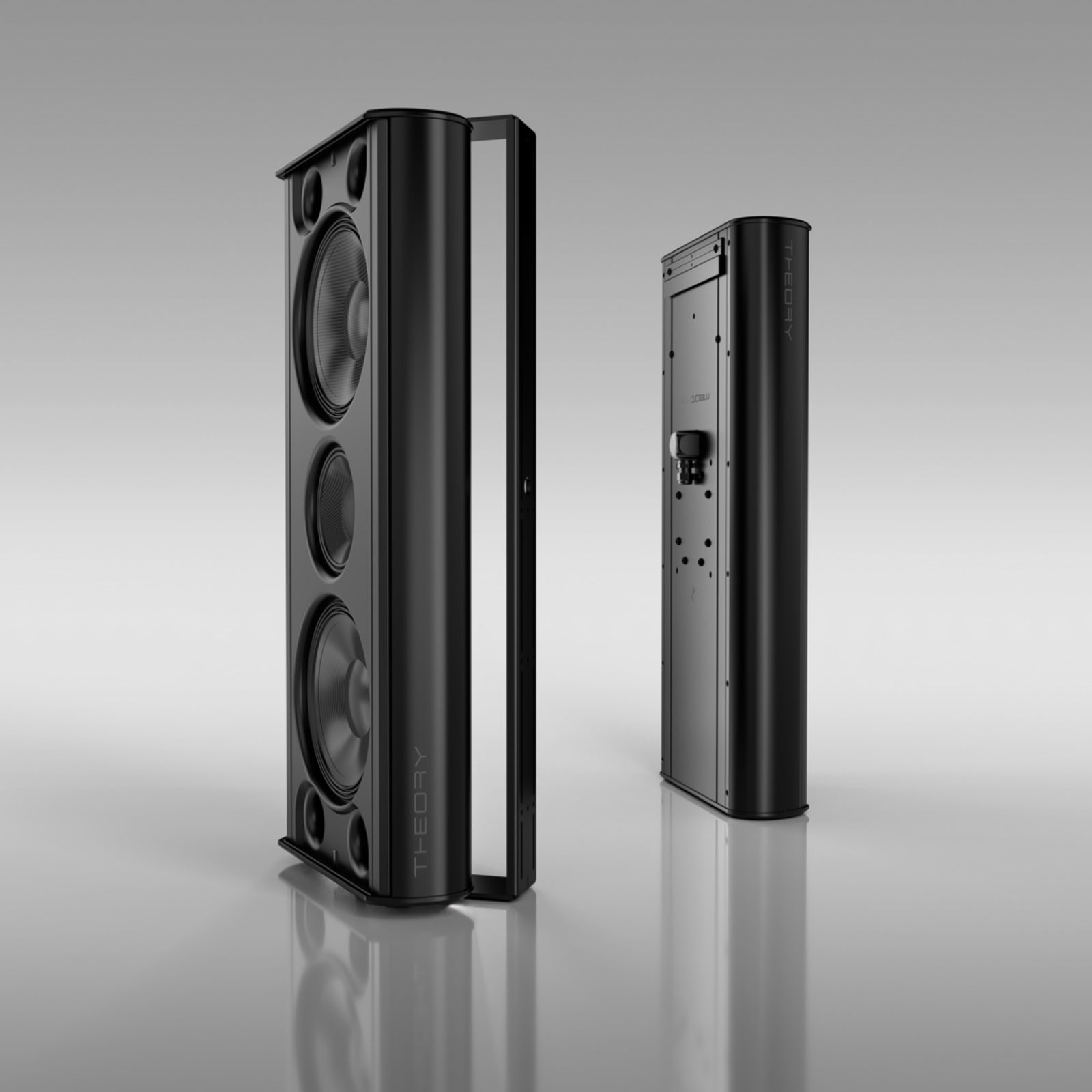

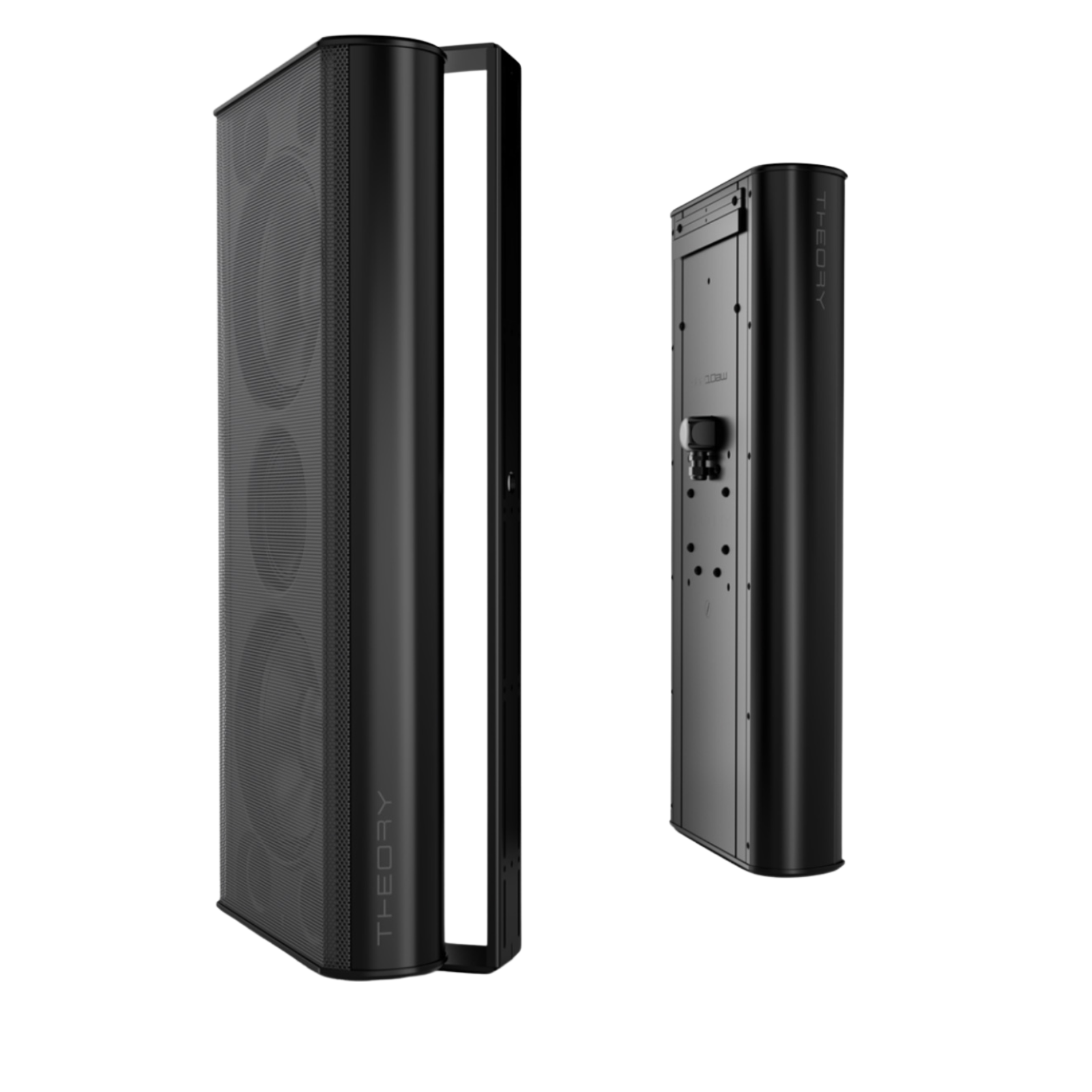

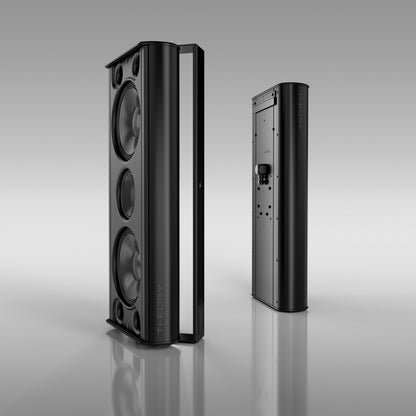

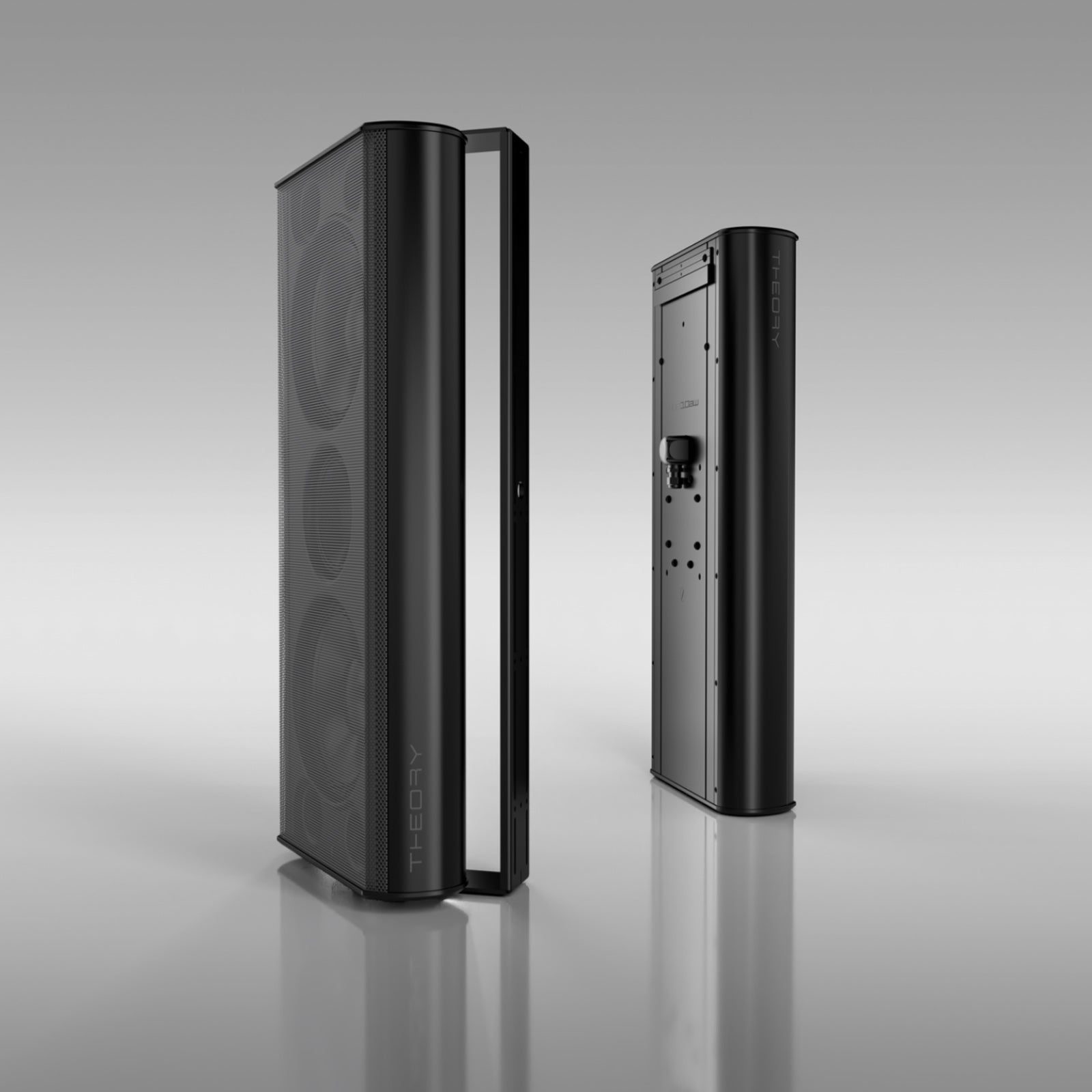

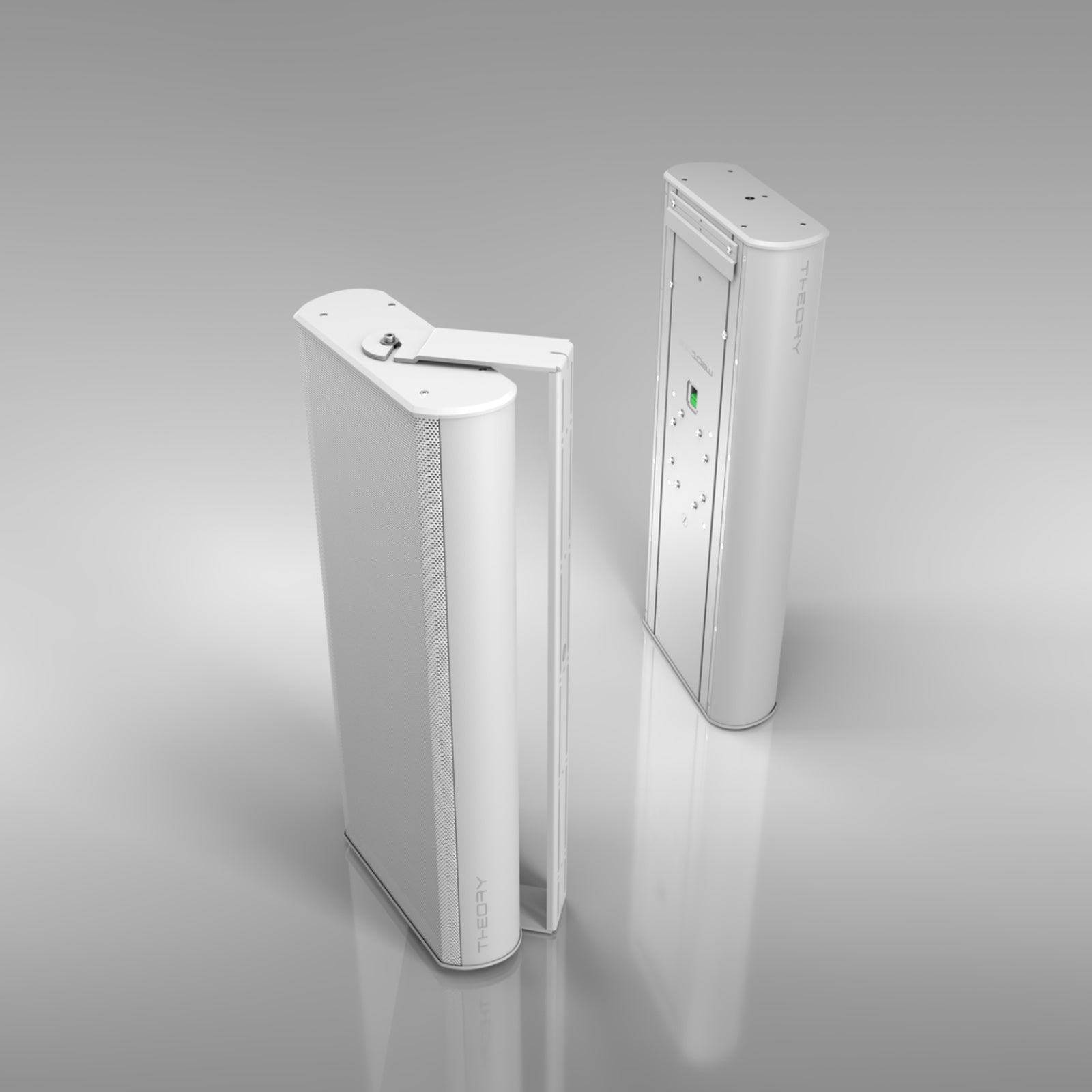

Theory Audio Design sb210aw Outdoor Speaker

About The Theory Audio Design sb210aw Outdoor Speaker

The Theory sb210aw is an all-weather, 4 Ohm or 70V/100V surface mount loudspeaker with dual 10” (254mm) carbon fibre bass drivers and a 6.5” (165mm) coaxial mid/treble driver.

Big brother to the remarkable sb25aw, the sb210aw offers wide-bandwidth, all-aluminium and stainless steel construction with mounting options to meet every possible installation need, including amusement parks, porches, patios, pool decks, backyards, restaurants, bars, hotels, houses of worship, marine, and anywhere broad, high-resolution, high-fidelity background or foreground sound is needed.

Available in black or white, the sb210aw incorporates a durable perforated stainless steel grille, water-tight loudspeaker wire entry point, selectable hi-z or low-z operating modes, and has an optional yoke mounting bracket available.

You have never had such a capable, slender, high-output loudspeaker in your system design toolbox before. Capable of astonishing range and output, the less than 6” (152 mm) deep, sb210aw will have you rethinking how you incorporate sound in your next high-value project.

The Theory of Everything

Theory is genuinely unique - their products have completely changed the level of performance attainable from small to medium size installed sound systems. Part of the way they attain this level of performance is by employing proprietary DSP techniques to process the signal for their loudspeakers and subwoof­ers with a very high degree of precision.

As such, the Theory ecosystem of products is a little different than what you're used to as all The­ory loudspeaker models require the application of Theory High Resolution Digital Loudspeaker Processing. For this reason, it is best to think of Theory loudspeakers as "active" or "powered" speakers - Theory have just elected to place the electronics, normally installed inside the loudspeaker itself, in rack-mountable chasses, outside the harsh environment of the loudspeaker, and where wiring and service of the electronics can be accomplished painlessly.

So, when configuring system designs, always pair your chosen Theory loudspeakers with appropriate Theory Amplified Loudspeaker Controllers. These highly powerful and flexible units will make deploying Theory systems simple and painless and will guaranty the best performance available for your application.

Background and Foreground Business Music Systems

Bars and sports bars, restaurants, hotel pool decks, outdoor shopping centres, courtyards, amusement parks, etc

Open Air Surround Sound Systems

Outdoor entertainment-focused residential and commercial spaces, backyards, drive-ins, sports entertainment complexes

Premium Outdoor and Marine

High-end courtyards, gardens, patios, and yachts – where premium sound is desired and architectural speakers are not an option.

Our Review

The Theory sb210aw is the kind of outdoor speaker that makes music feel effortless, no matter where you are. Slim and stylish yet incredibly powerful, it’s built to deliver rich, detailed sound that can easily fill a backyard, pool deck, or even a bustling bar or hotel courtyard. Whether you’re after subtle background ambience or a system that really makes a space come alive, the sb210aw combines durability with impressive fidelity, making it a standout choice for premium outdoor sound.

Main Features & Specifications

• Design: Very High-Output Weather Resistant Outdoor Loudspeaker – Sold Individually
• Operation: Passive, Requires 1 Theory Loudspeaker Controller Amp Channel, 4-Ohm or 70V/100V Operation, Selectable
• DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
• Drivers
  • 2 x 10" (254mm) Theory Carbon Fibre Low Frequency Drivers
  • 1 x 6.5” (165mm) Theory Coaxial Driver
    • 5” (165mm) Carbon Fibre Low Frequency Driver
    • 4” (35.5mm) Theory AdvancedPoly™ High Frequency Compression Driver
• Enclosure: Powder Coated Extruded and Machined Aluminium, Perforated Aluminium Grille
• Terminals: Euroblock Connector with Parallel Output
• Outdoor Capability: Indoor and Outdoor Use
• Mounting Points: Two Theory VersaSlot™ T-Slots Running Full Height with 4 x M6 Captive Nuts
  • Included Z-Clips
  • Optional Yoke Mount Bracket
• Bandwidth
  • 60Hz - 23kHz, -3dB
  • 53Hz - 23kHz, -6dB
  • 45Hz - 24kHz, -10dB
• Coverage: 125° Conical; 140° Conical @ 12kHz, -12dB
• Sensitivity: 98dB (LF); 108dB (HF) SPL/2.83V/1m
• Power Handling:
  • 400W (AES)
  • 800W (Continuous)
  • 1,600W (Peak)
• Minimum Recommended Power: 125W RMS
• Maximum Output
  • 124dB SPL / 1m (based on AES power rating, LF sensitivity)
  • 130dB SPL / 1m (peak)
• Nominal Impedance: 4 Ohms; Hi-Z (70V/100V) Selectable
• Transformer Taps: 150W, 75W, 37.5W, (18W, 70V)
• Included Accessories
  • Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting
  • sb210aw Waterproof Terminal Cover
• Optional Accessories
  • sb210aw Yoke Bracket
  • Mount Hole Patterns: 2.75” (70mm) x 5.0” (127mm) Horizontal and Vertical
• Compatible Third Party Mounts
  • Adaptive Technologies Multimount MM-022-BT Wall Multi-Mount
  • Adaptive Technologies Multimount MM-024 Wall Pan and Tilt Mount
  • Adaptive Technologies Multimount WM-0-15-60 Wall Extendable Pan and Tilt Mount
  • Adaptive Technologies Multimount MM-018 Ceiling Pan and Tilt Mount
  • Adaptive Technologies Multimount MM-3RDX-18 Ceiling Pan and Tilt Mount
• Colour: Black or White
• Dimensions (WxHxD): 364 x 825 x 125mm
• Total Installed Depth: 130 mm Including Z-Clip Mounting Brackets
• Weight: 22.5 kg
• Manufacturer's Warranty: 5 Years. Does not include misuse.

Note: Features & Specifications Subject To Change Without Notice. E&OE.
