SVS PB-5000 R|Evolution Subwoofer

About The SVS PB-5000 R|Evolution Subwoofer

Featuring reference SVS subwoofer technology, PB-5000 R|Evolution delivers earth-shaking output with extreme low-frequency extension rendered with pinpoint control and accuracy. This performance demolishes all benchmarks for ported subwoofers in its class.

Featuring a triple-ported cabinet design, PB-5000 R|Evolution pressurizes your listening room with heart-pounding sound that extends down to 13Hz, all without sacrificing refinement and musicality. Suspends your sense of disbelief with seismic power and fathomless extension you can feel from head to toe.

Effortless low-frequency output and extreme SPLs without a hint of distortion are rendered by a formidable 15” (381mm) driver with dual edge-wound voice coils driven by a 2,000 Watt Continuous, 5,000+ Watts Peak power dual monoblock amplifier.

There are also brains to match the brawn. A 295MHz Analog Devices DSP, the most powerful processor ever deployed in a home audio subwoofer, ensures pinpoint accurate frequency response and optimal performance under any conditions.

PB-5000 R|Evolution demolishes all performance benchmarks for subwoofers in its class. With trickle-down technology from the 17-Ultra R|Evolution Series, named the top subwoofers in the world by nearly every reviewer and industry group, it obliterates expectations, making reference experiences possible for more people than ever.

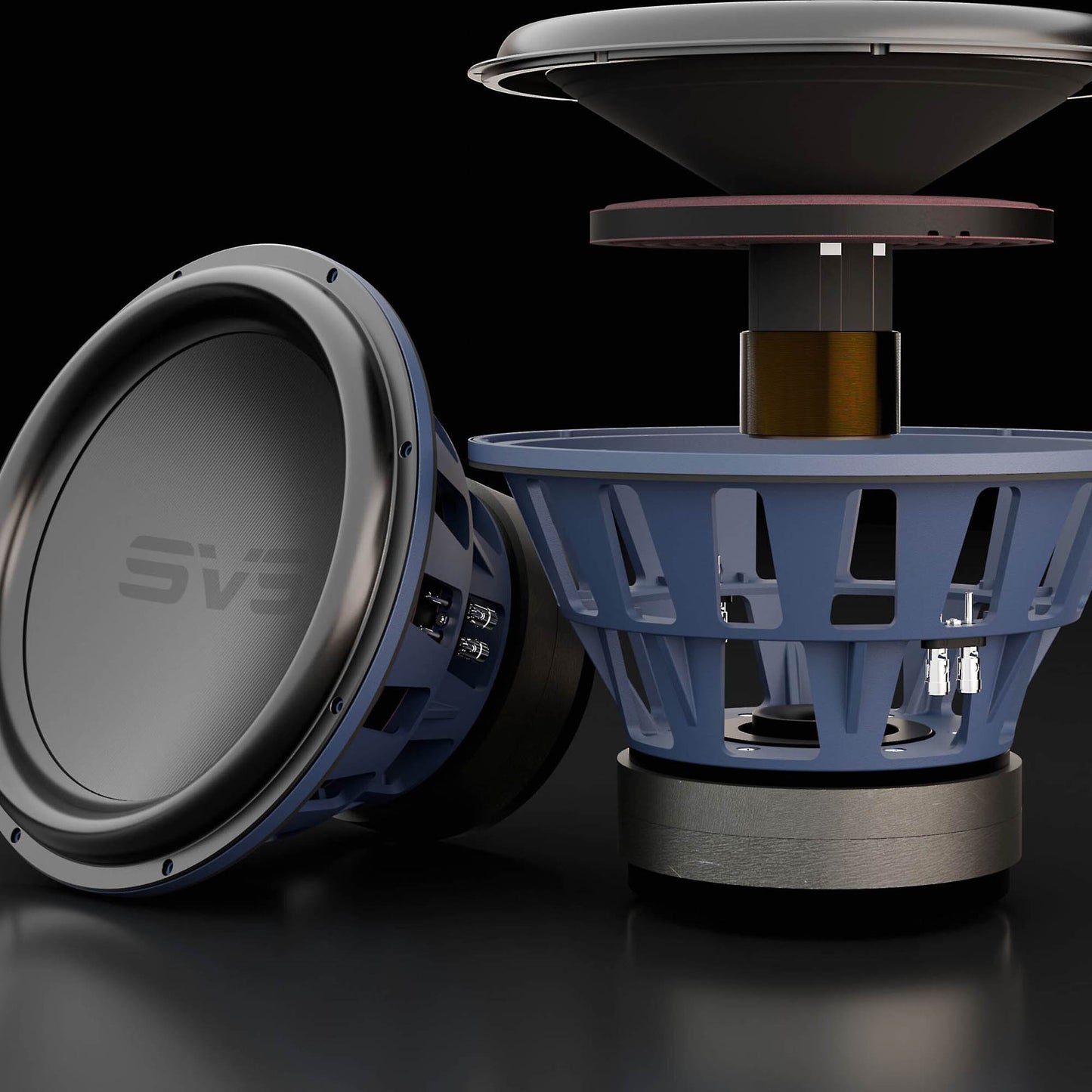

High-Excursion 5000 R|Evolution Driver: 15-inch glass fibre composite cone with 17.46 kg toroidal ferrite magnet motor assembly render massive low frequency output down to 13Hz with pinpoint accuracy and control.

Dual Edge Wound Voice Coils: Dual voice coil design ensures stable and consistent transfer of motor electro-magnetic energy to the 15-inch cone to maintain precise driver control with maximum efficiency.

Dual Mono Amplifier: Each of the two Class-D mono-block amplifiers with MOSFET output stages drives one of the dual voice coils to double the amount of current being fed to the driver achieving effortless output with lower continuous current demand from a home’s AC circuit.

Switch Mode Power Supply: Time aligns the AC voltage to the AC current while filtering and stabilising incoming voltage to optimise signal quality and audio performance.

295 MHz Analog Devices DSP: The most advanced processor ever used in a consumer subwoofer optimises every aspect of subwoofer output and usability to maintain flawless performance and intuitive control.

SVS Subwoofer Control Smartphone App: Most convenient way to control all DSP functions, including: volume, 6-band parametric equaliser, low pass filter, phase, polarity, room gain, port tuning, system settings, custom presets, and auto room EQ.

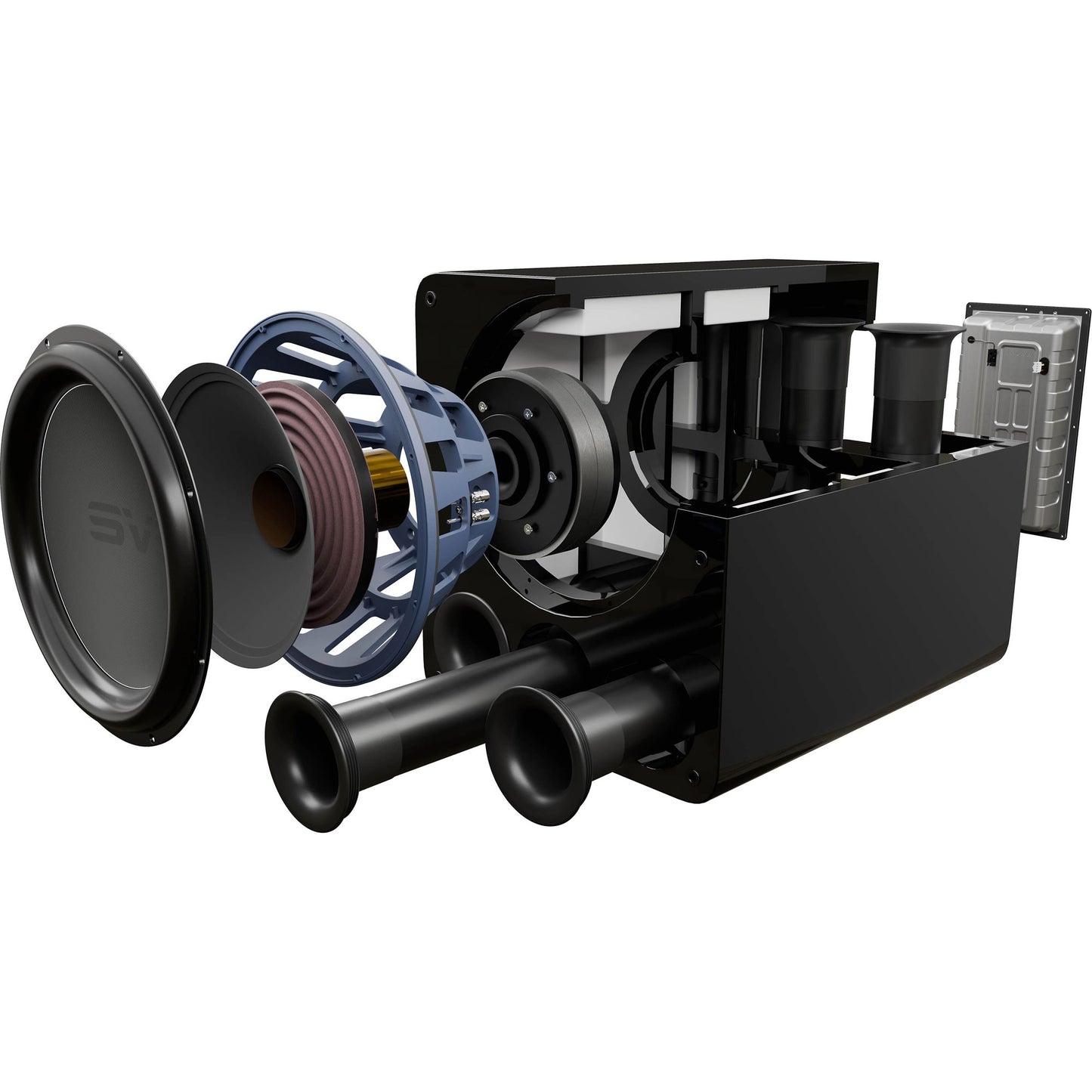

Acoustically Tuned Ported Cabinet Design: Triple-ported cabinet with double thick MDF and rigid internal bracing creates a resonance-free environment for pitch-perfect accuracy free from resonances and coloration.

Our Review

The SVS PB-5000 R|Evolution is your go to subwoofer for anyone chasing deep, controlled bass in their home setup. With its triple-ported cabinet and hefty 15-inch driver, it delivers low-end grunt right down to 13Hz, all while keeping things tight and musical. You’re not just getting brute force either - this sub’s packing smarts with a 295MHz DSP that keeps everything in check, no matter what you're throwing at it. The dual monoblock amps and switch-mode power supply help it push big sound without taxing your power too hard. Whether you’re watching a blockbuster or spinning vinyl, the PB-5000 holds its own - no fuss, no flab, just rock-solid performance. Keen to dial it in? The SVS app makes tweaking the settings a breeze from the couch. The PB-5000 R|Evolution ticks all the boxes and offers a compelling proposition for home theatre fans and audiophiles alike.

Main Features & Specifications

• Design: Front Firing 15” Triple Ported High Power Subwoofer

Frequency Response / Acoustic Data

• 15Hz to 180Hz +/- 3dB (standard mode – all ports open)
• 13Hz to 180Hz +/- 3dB (extended mode – 2 ports open)
• 16Hz to 270Hz +/- 3dB (sealed mode – all ports sealed)
• Expect 2-3Hz deeper extension in small to mid-size rooms
• Roll-off slope specifically optimized to take maximum advantage of available room gain
• 2 metre ground plane away from reflective structures (quasi-anechoic)

Driver

• All-new proprietary 15” (381mm) long-throw driver with high-precision tuned overhung motor configuration
• 21 kg Woofer with 17.46 kg motor
• 77.44 mm Xmech precision aligned excursion
• 3” (76 mm) diameter Voice Coil with high current 6-layer bifilar flat edge wound aluminium wire windings
• Dual Voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output

Amplifier

• Massively powerful 2,000 Watts continuous Class D design with over 5,000 Watts of Peak Power
• High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering, with over 5x the processing power of previous SVS subwoofers
• DSP monitors every function of the amplifier ensuring precisely regulated clean voltage is delivered to and from the switch mode power supply and maximum current is pushed to the driver’s voice coils
• DSP Continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems to optimize AC voltage delivery to the power supply for continuous peak performance with maximum performance and greatest efficiency

SVS App

• Compatible with Apple iOS, Google Android, and Amazon Fire platforms, the industry leading SVS Subwoofer Control Smartphone app allows convenient and intuitive management of all subwoofer controls
• The Analog Devices DSP supports a comprehensive menu of functions, including volume, fully adjustable low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more
• Includes three convenient memory presets for fast and easy global system adjustments to match listener preferences
• Subwoofer Auto Room Equalization (coming soon) will use your mobile device built-in microphone, or an accessory microphone (coming soon) to measure the acoustic performance of your subwoofer in your room and automatically calculate precision equalization filters to optimize the subwoofer and room combined performance at your listening position.
• Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface
• Easy-to-follow tutorial provides clear guidance for all functions

General

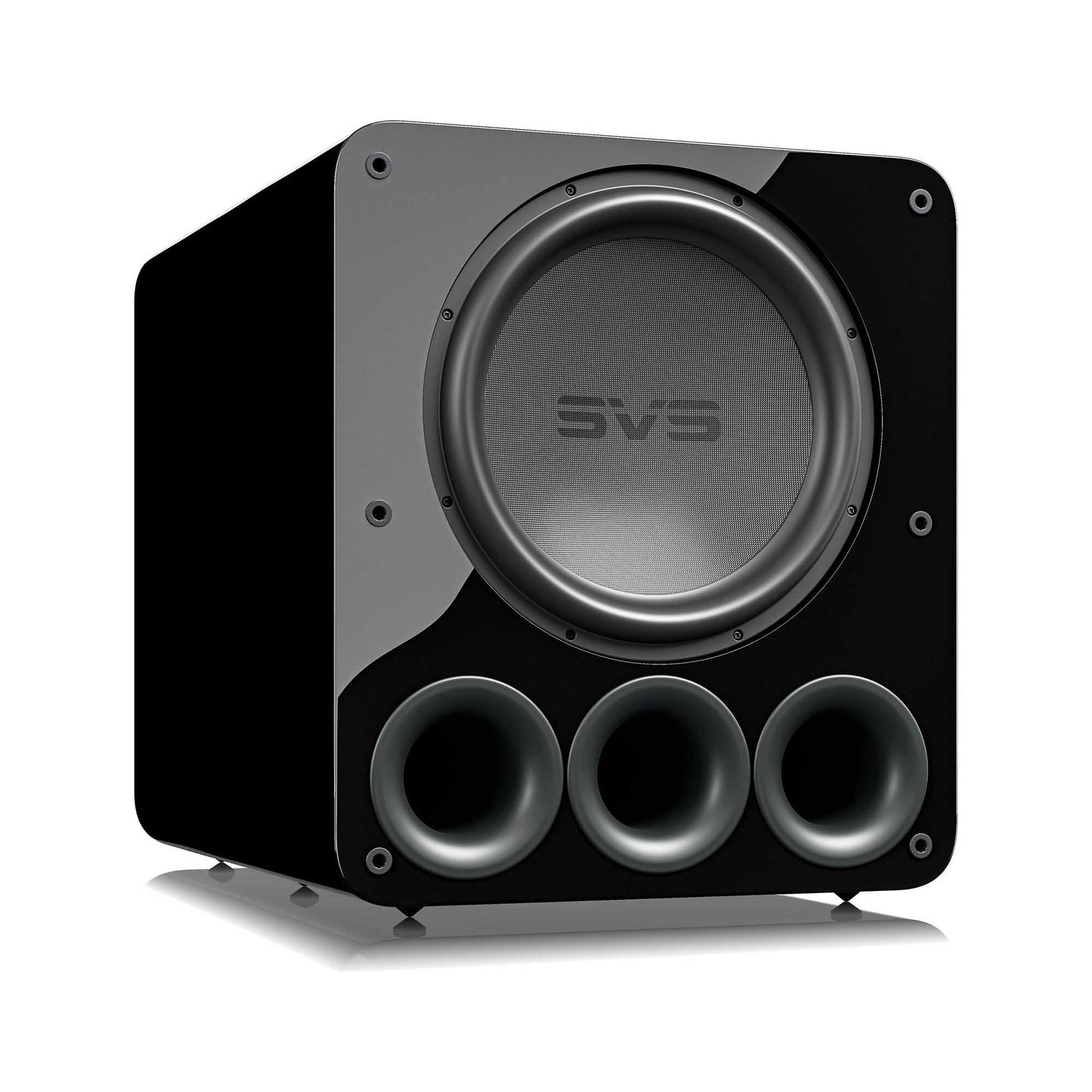

• Triple High-Flow 3.5” (89 mm) Ports

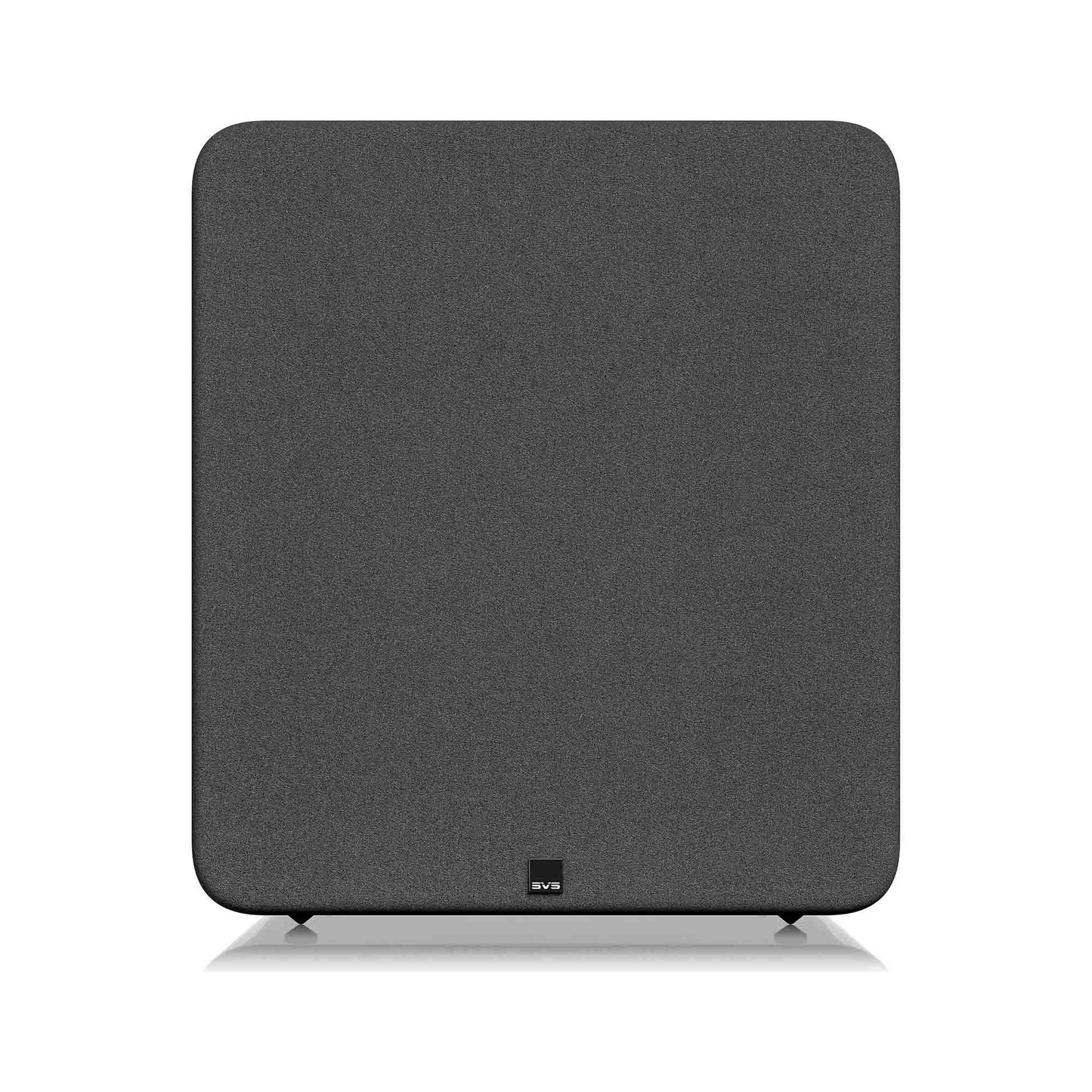

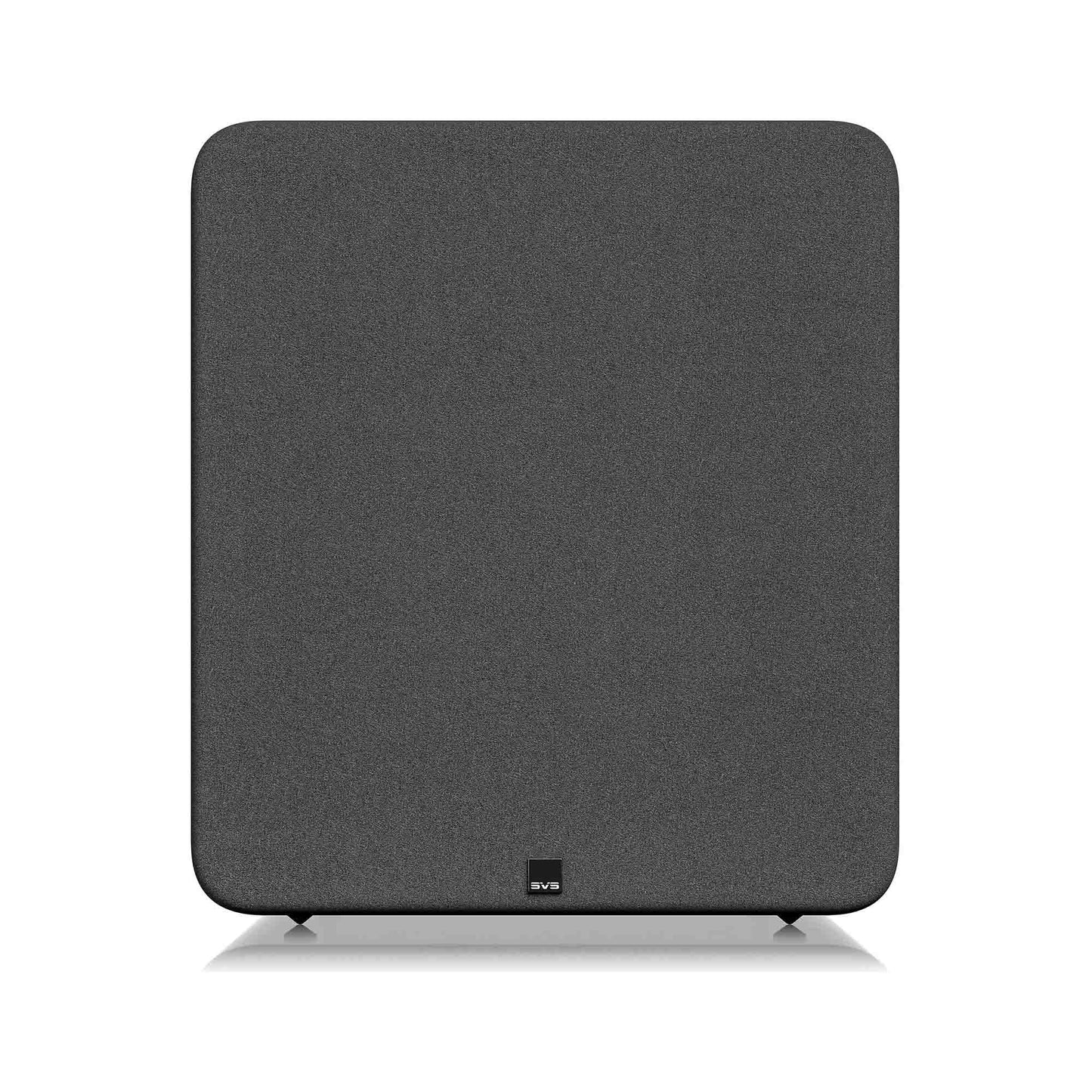

• Included Accessories: Protective Non-Resonant Extra-Thick ABS Grille Frame with Fabric Mesh Cover, Iso-Elastomer Feet, 3 Foam Port Tuning Plugs, Extra Heavy-Duty, High Current 1.8m Power Cable, Quick Start Guide
• Removable Power Cable: Upgrade to a Premium Power Cable for better performance

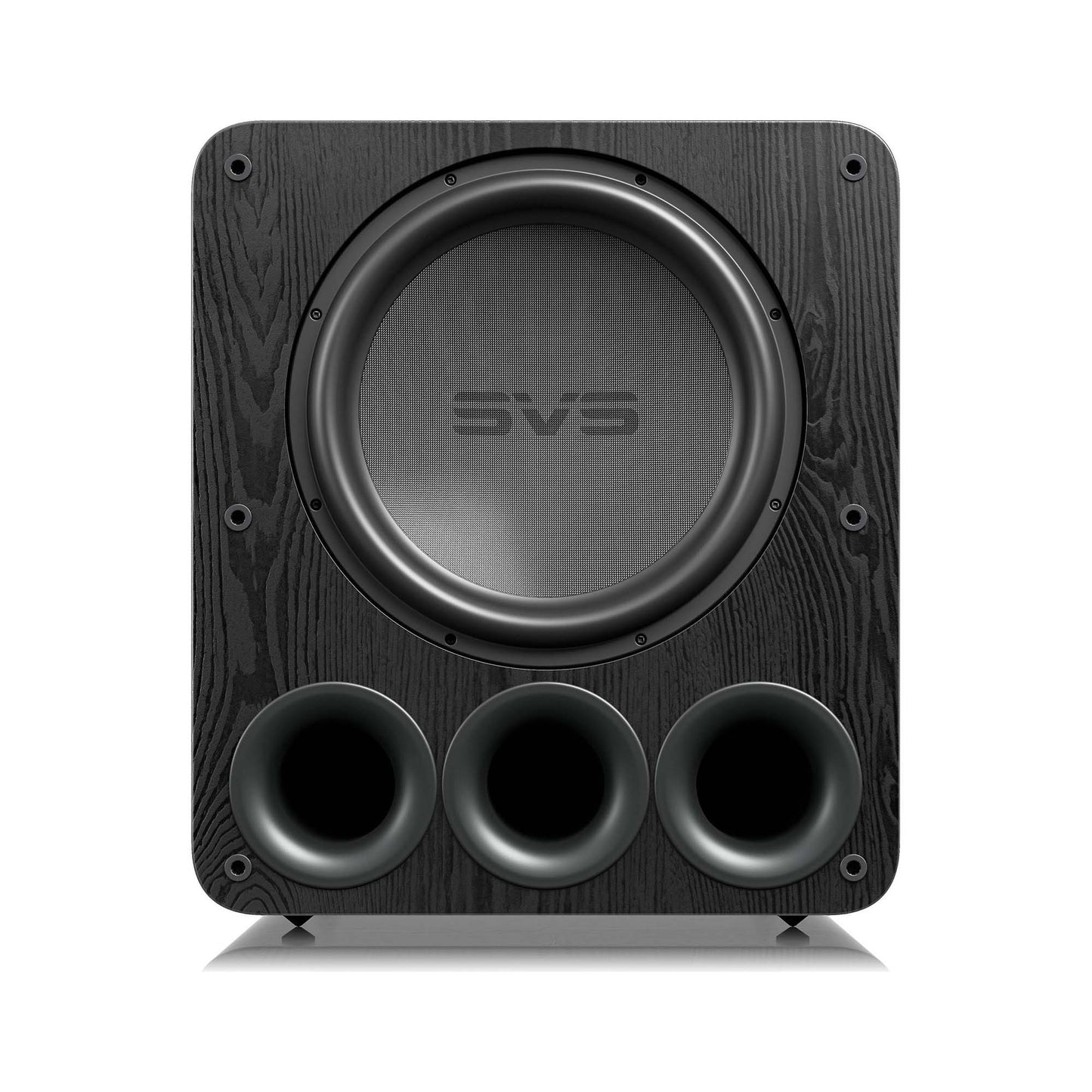

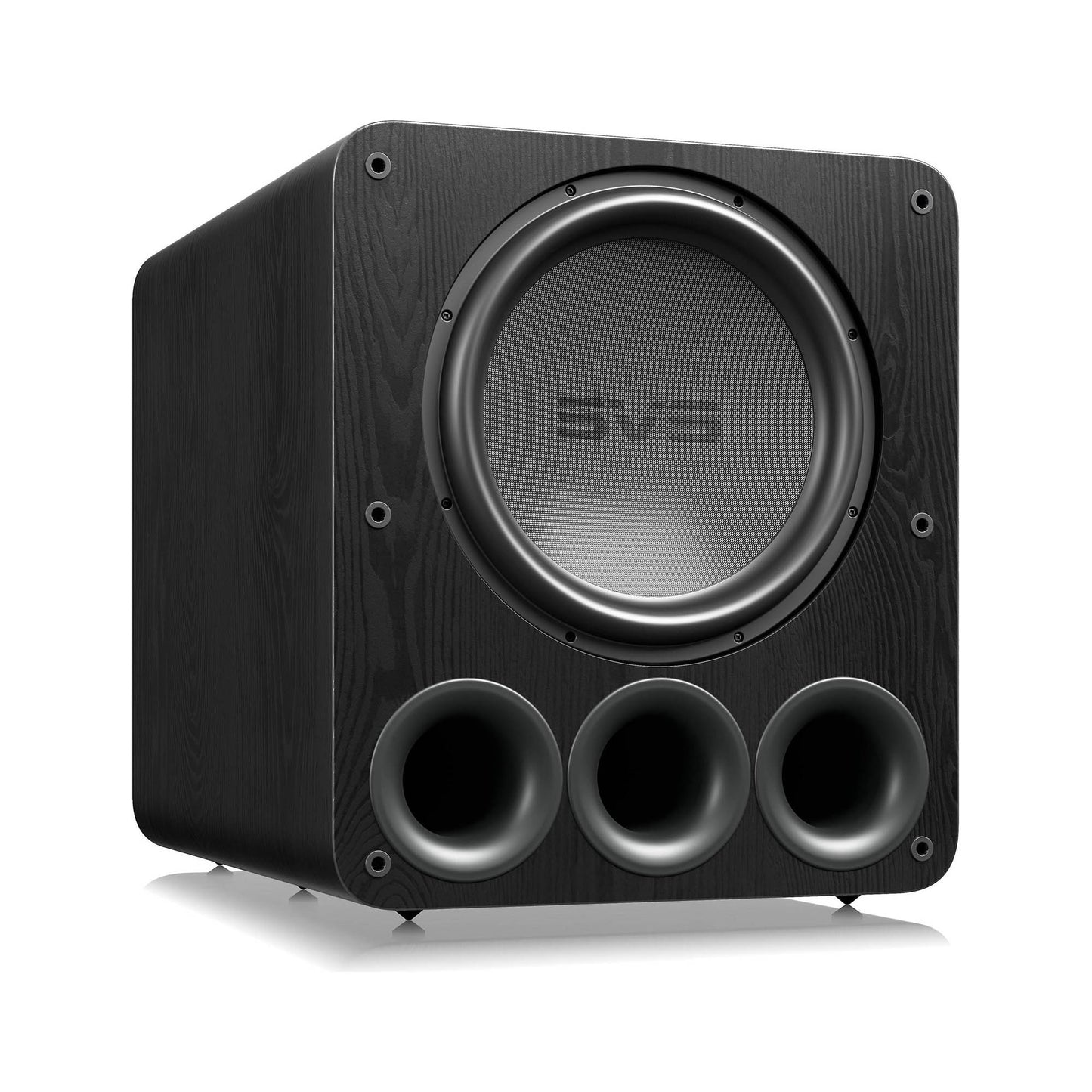

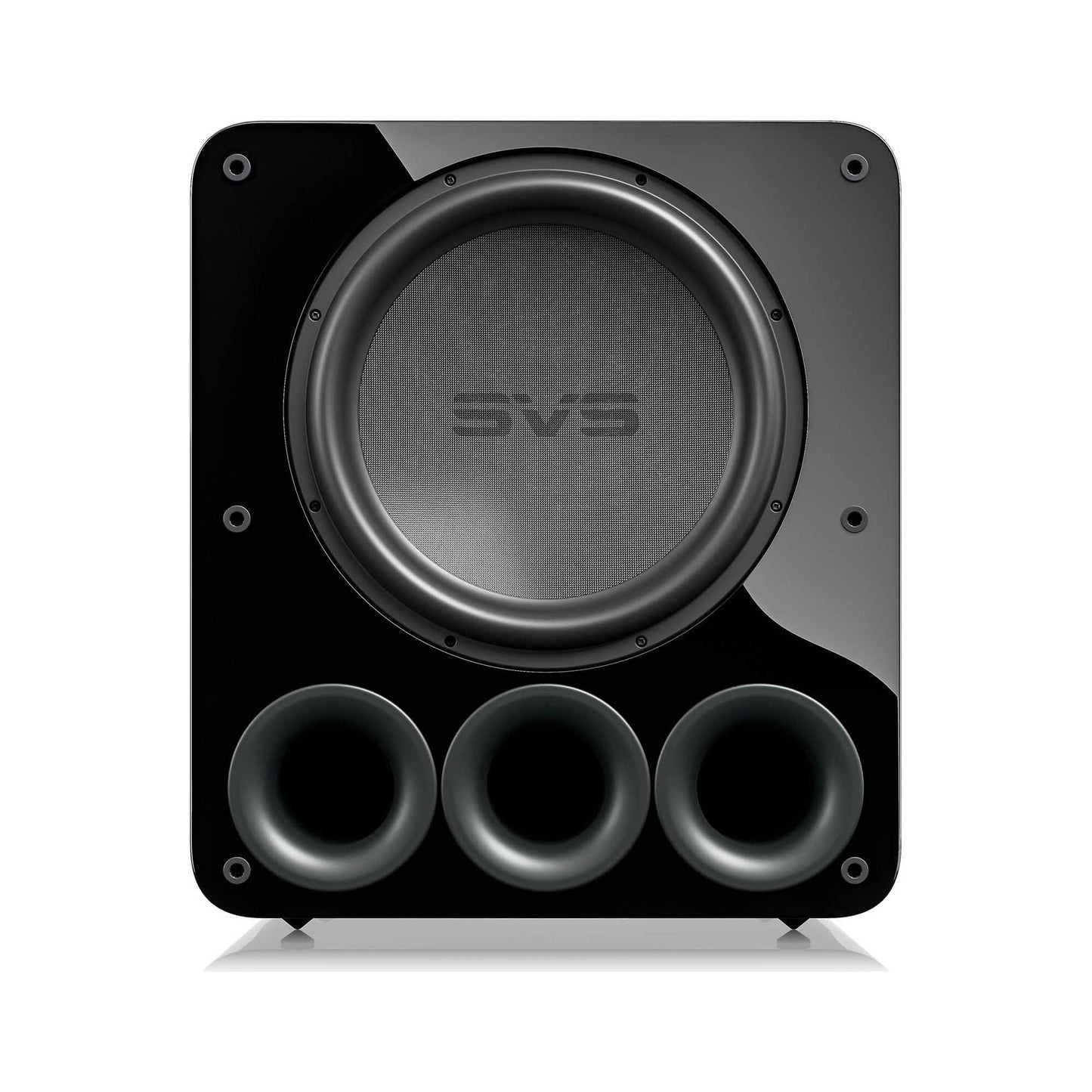

• Available Finishes: Gloss Black and Black Ash
• Dimensions (WxHxD) with Grille: 520 x 595 x 727mm
• Dimensions (WxHxD) without Grille: 520 x 595 x 701mm
• Weight: 69.8 kg
• Manufacturer's Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
