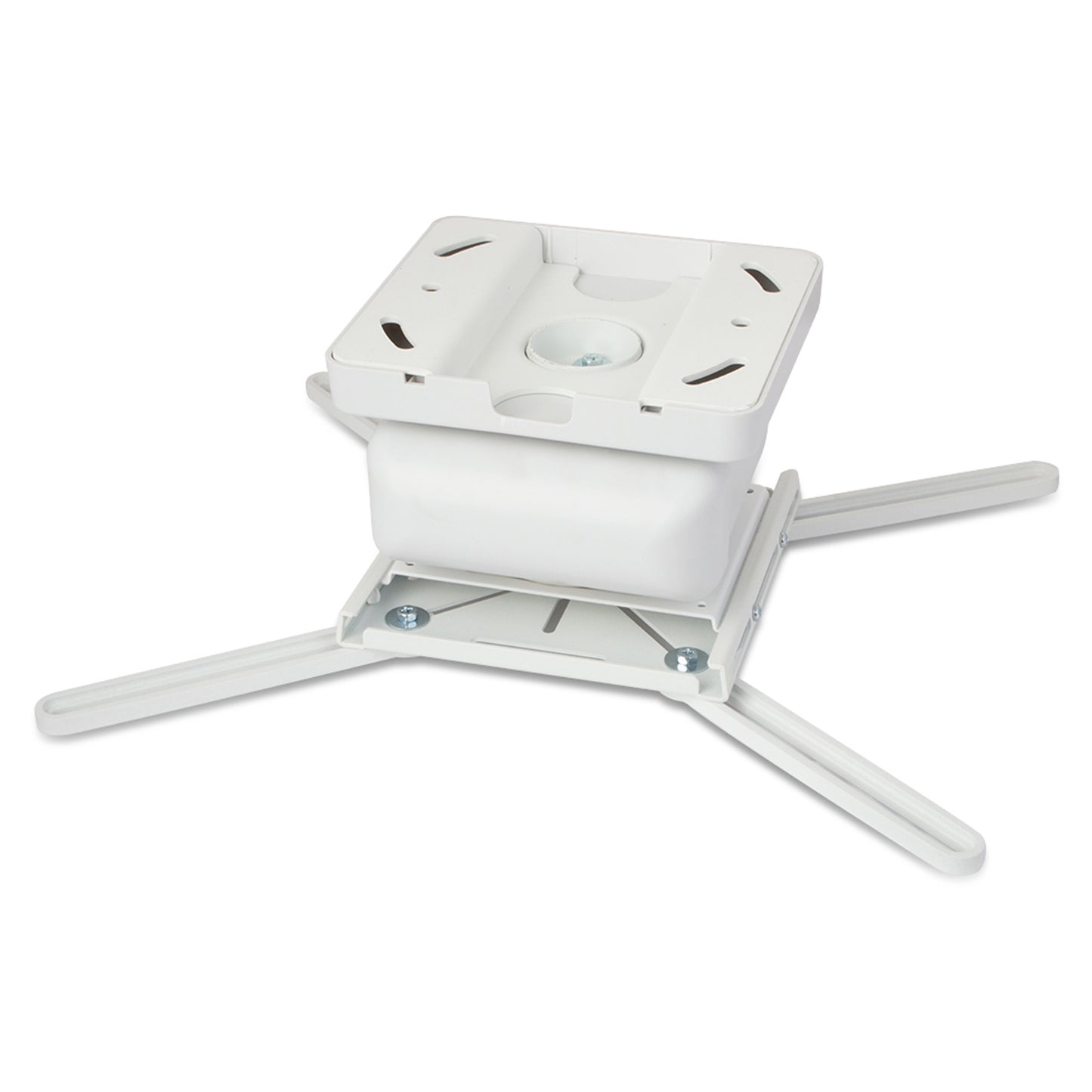

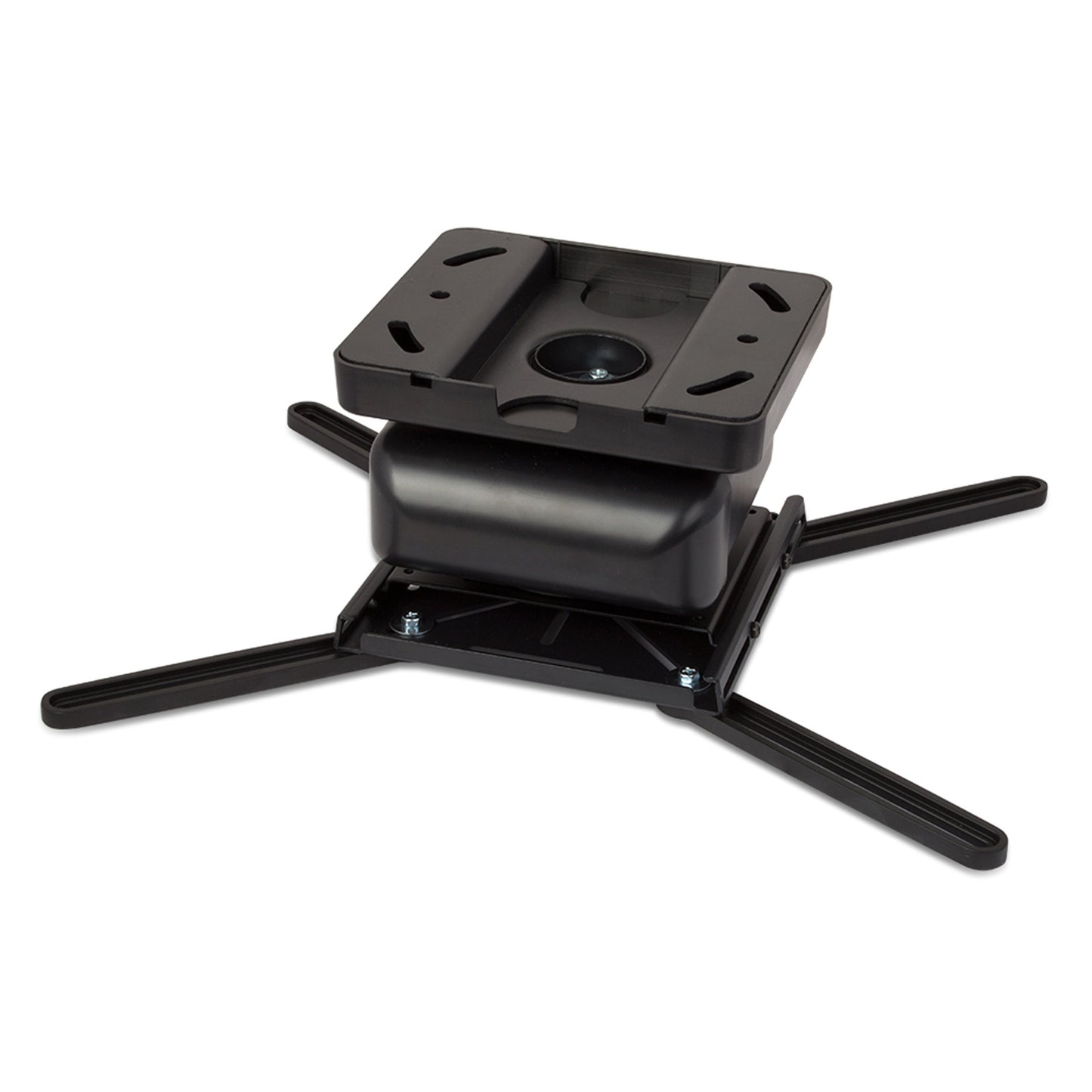

Strong SM-PROJ-XL Fine Adjust Projector Ceiling Bracket
Equipped with longer mounting arms and security screw holes, this projector mount is specifically designed to handle oversized models up to 22.6 kg, while offering maximum installation flexibility. It features tool-less adjustments - so getting the ideal alignment is a breeze - and has a simple three-piece design that minimizes time spent at the top of the ladder.

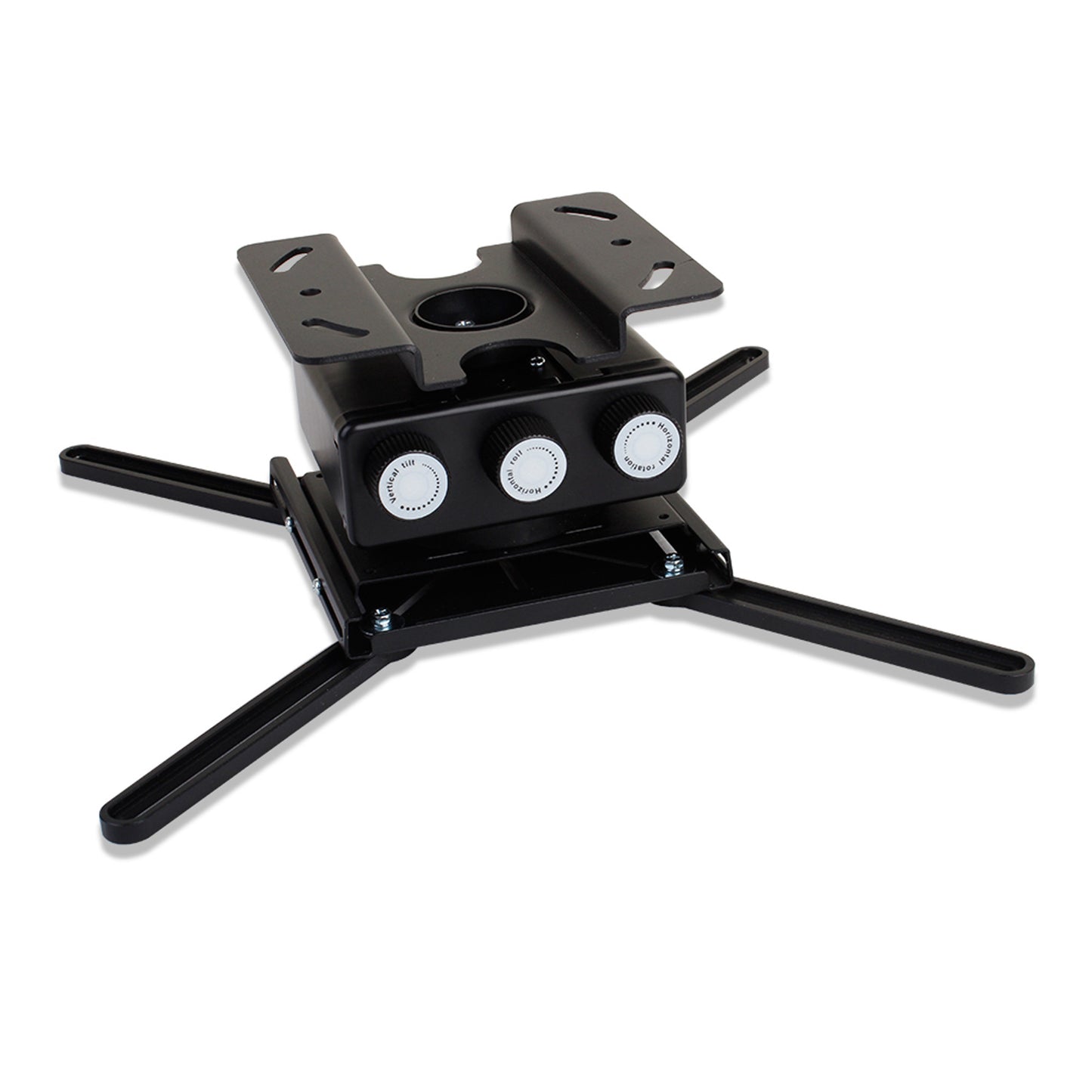

Tool-Less Adjustments: Getting a projector image to perfectly align with a screen is easier said than done. Thankfully this mount simplifies the process with easy-to-use vertical tilt, horizontal roll and yaw adjustments. Just pop off the cover and use the tool-less dials to make micro adjustments until the ideal alignment is achieved - no tightening or loosening of the screws required.
Maximum Mounting Flexibility: For the most versatility in your next installation, this projector mount features longer arms that extend for up to 450 mm diameter mounting. Plus it has a series of slots on the arms and the bottom plate that provide almost limitless placement options, so it's easy to get the projector perfectly positioned.
Easy To Install: A smart three-piece design makes it easy to get this projector securely installed. The top plate attaches to the ceiling and screws into the mount assembly body, while the bottom plate (with attached projector) simply slides and locks into place. It makes installing the product fast and easy.
Security Screws: This mount features multiple security screws for projector attachment, as well as screws on each side of the mounting base - which all help to lock things in place. Move the mount around until you get the perfect centre of gravity for the projector, then tighten down the screws and you're good to go!
Extension Capability: The SM-PROJ-XL projector mount and all Strong mounting accessories utilize 1.5" NPT threads for attachment of mount parts, accessories, and extensions. These optional parts allow for mounting to a variety of ceiling types and heights.
Main Features & Specifications
- Universal Projector Mount for projectors up to 22 kg
- Tool-Less vertical tilt, horizontal roll & yaw adjustments
- Up to 450mm diameter long mounting arms
- Multiple security screws for secure attachment
- Minimum Mounting Pattern: 50mm x 50mm
- Maximum Mounting Pattern: 450mm x 450mm
- Maximum Load: 22.6 kg
- Distance from the Ceiling: 132mm
- Fine Adjustment Angle - Pitch: +/- 5°
- Fine Adjustment Angle - Roll: +/- 5°
- Fine Adjustment Angle - Yaw: +/- 5°
- In The Box: Ceiling Plate, Projector Mount, Mounting Base, Mounting Arms, Hardware Kit, Installation Manual
- Construction: Plastic & Steel
- Available Finishes: Black or White Powder Coating
- Product Weight: 2.5 kg
- Manufacturer's Warranty: Limited Lifetime Warranty
Note: Features & Specifications Subject To Change Without Notice. E&OE.
