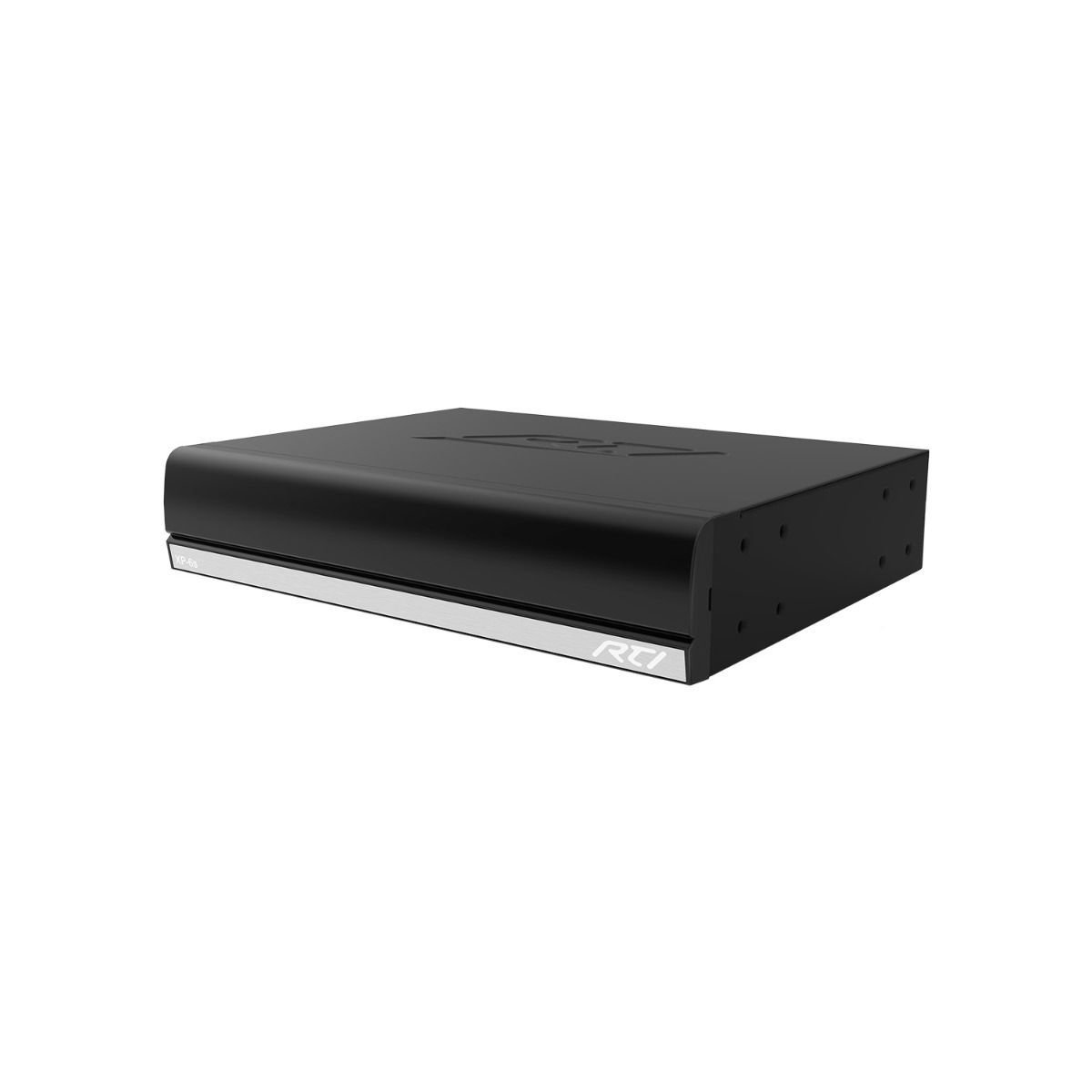

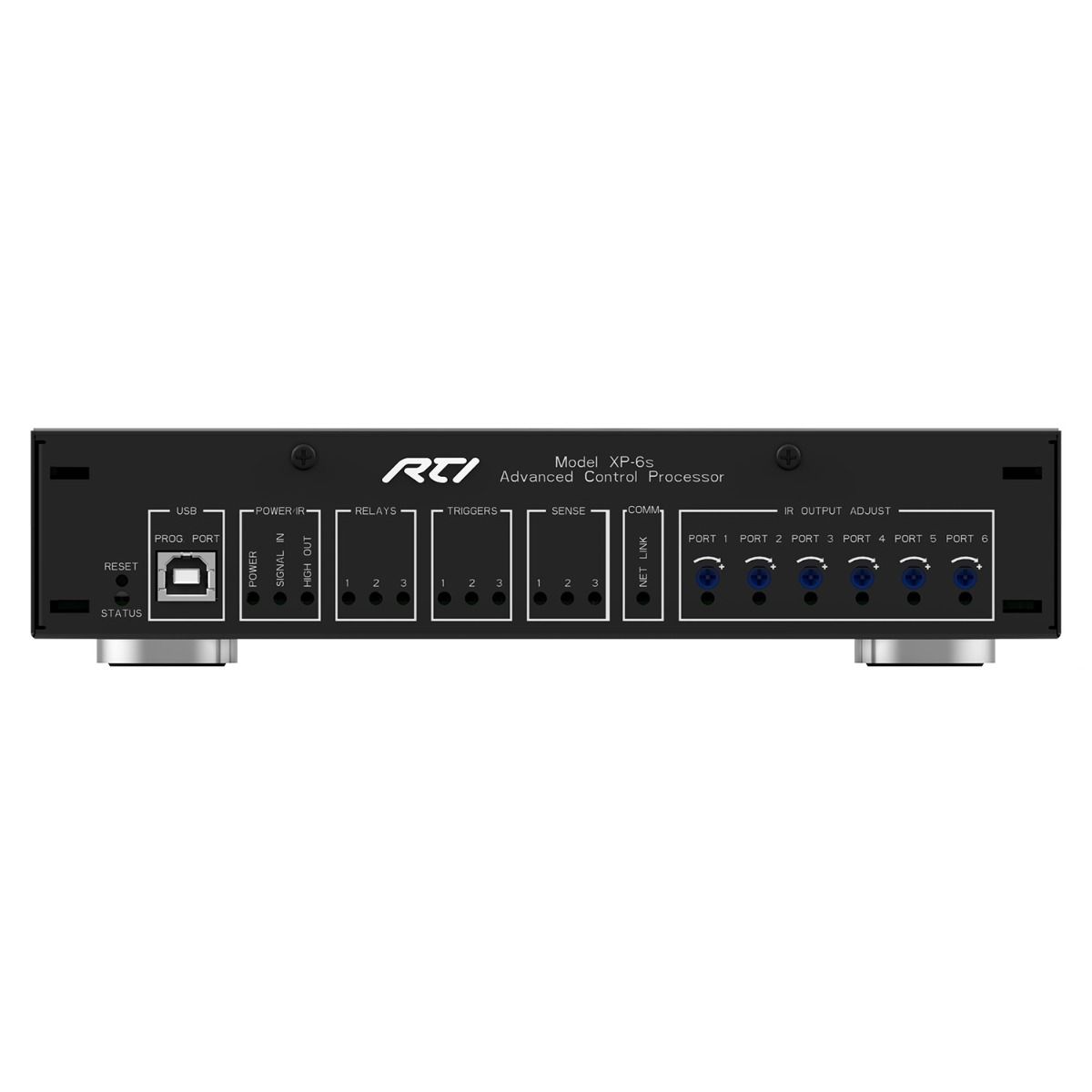

RTI XP-6s Control Processor

RTI XP-6s Control Processor

The RTI XP-6s control processor is the perfect centrepiece for any professionally installed control and automation system.

The XP-6s delivers robust and reliable performance for custom technology integrators in commercial, residential, hospitality, and other settings. This professional control processor leverages the extensive RTI driver database to integrate third-party devices across intelligent office and smart home environments, including lighting control integration, automated shades, security systems, audio and video distribution, and HVAC automation.

With exceptional processing power optimized for custom control programming, the XP-6s delivers outstanding performance for residential and commercial control applications and programs efficiently with Integration Designer software.

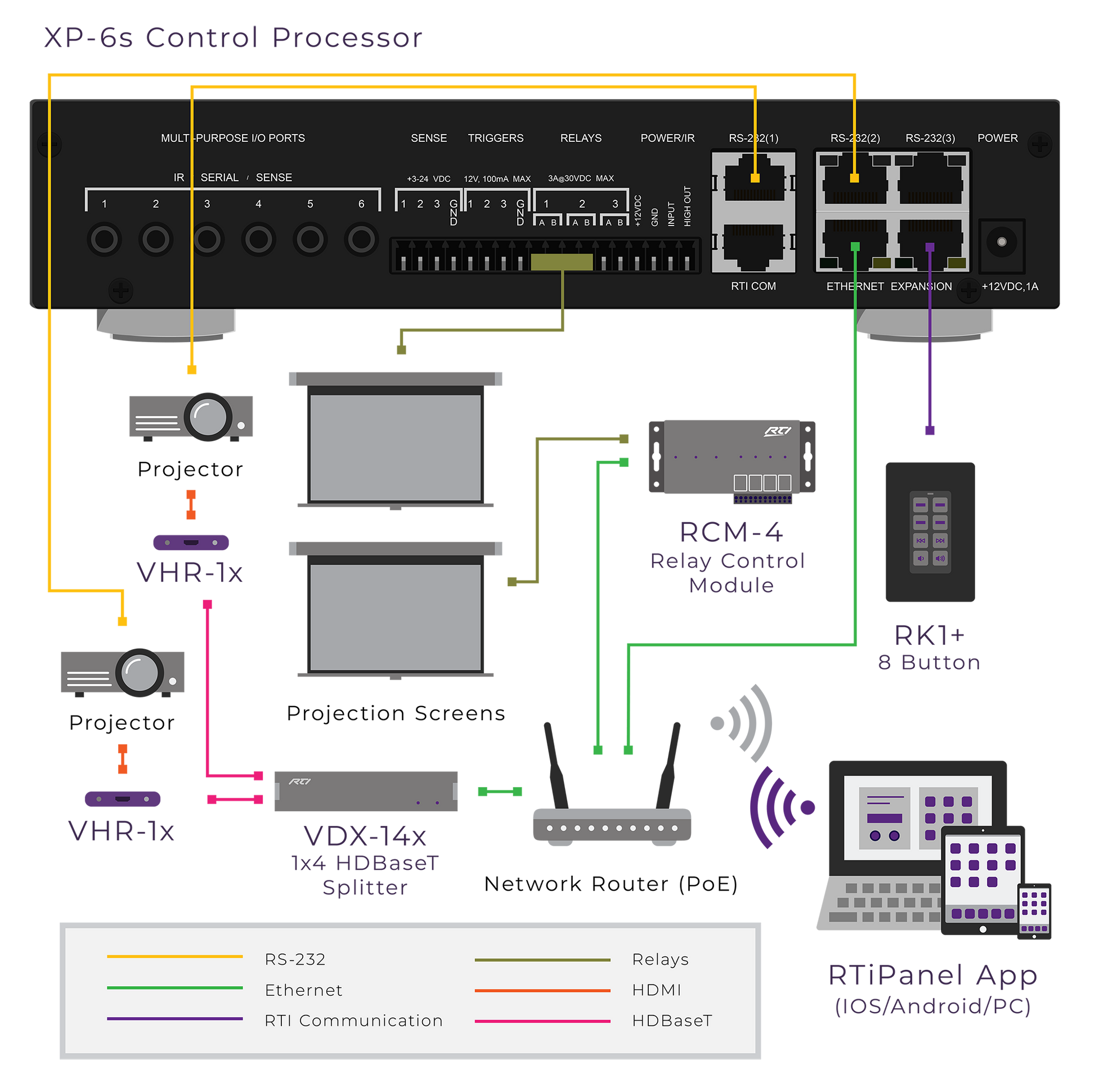

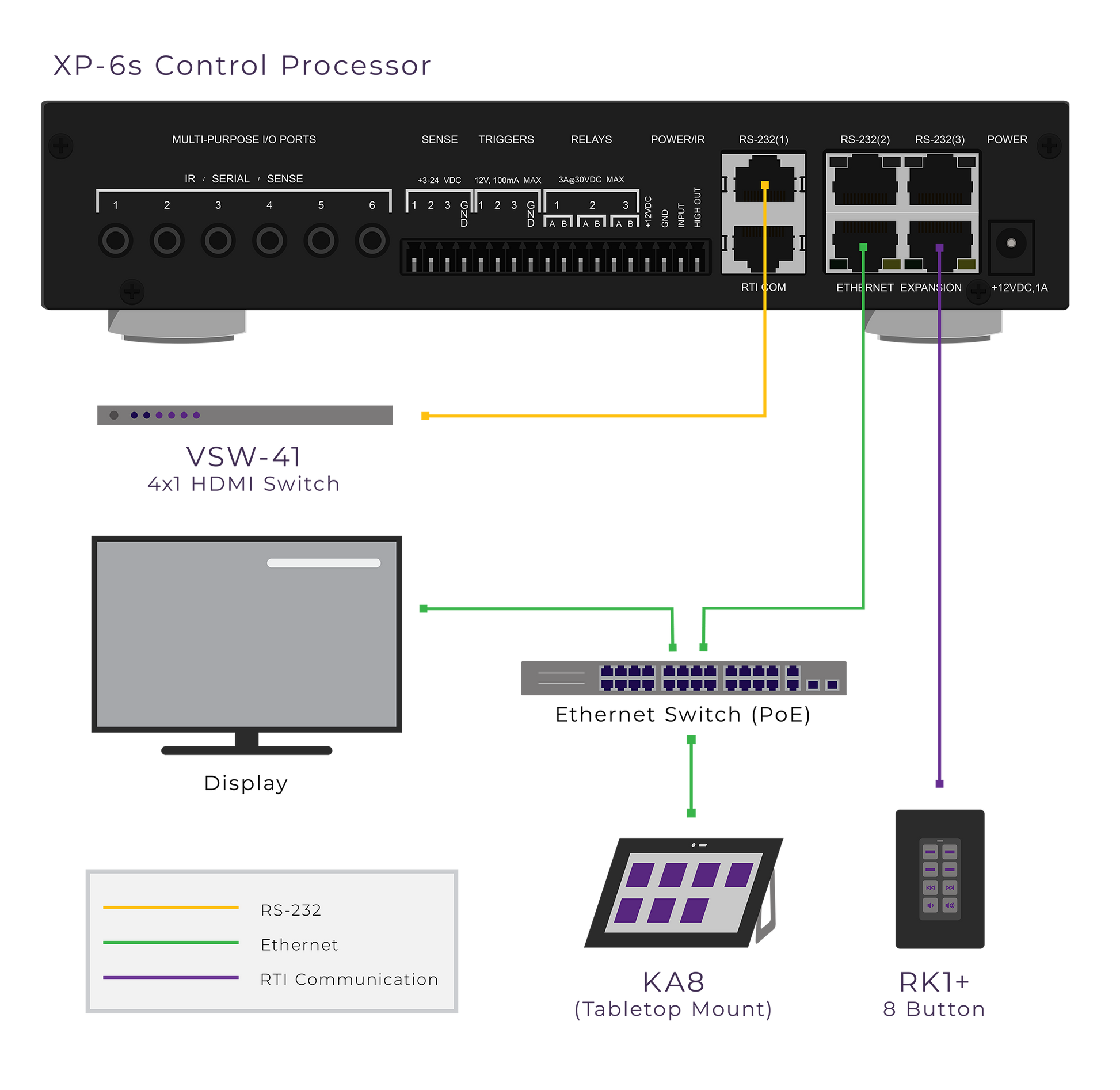

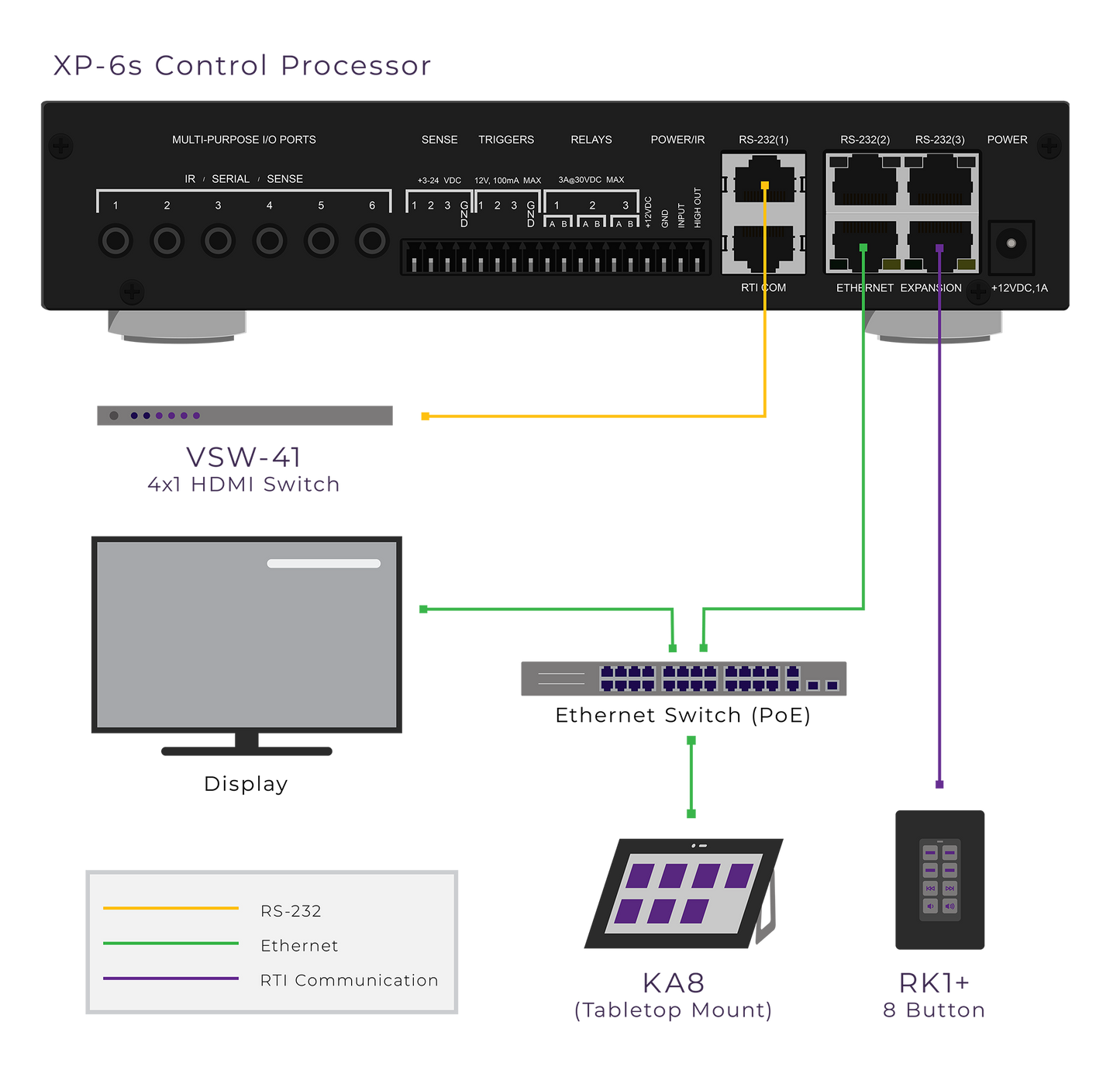

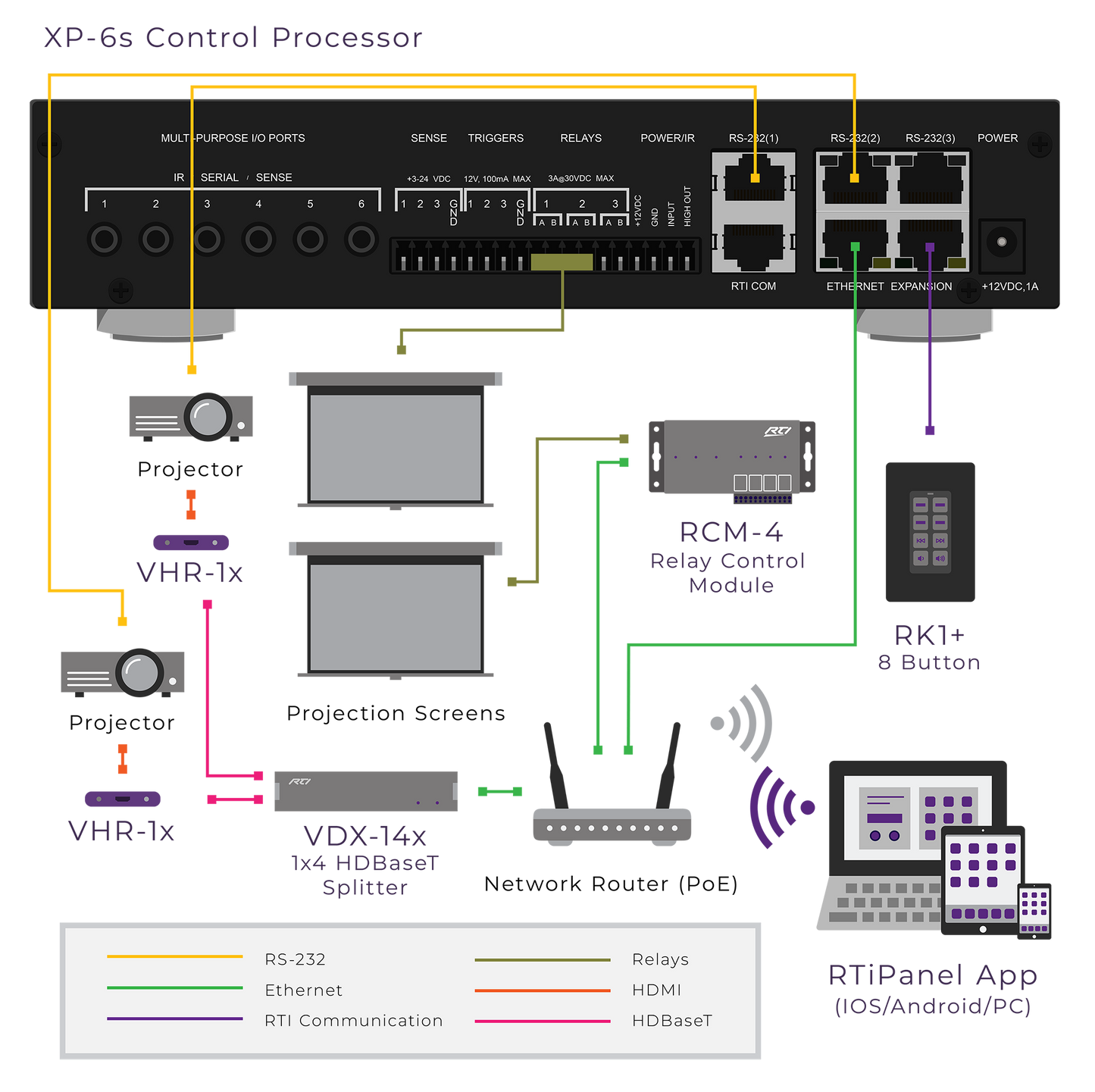

Comprehensive control connectivity via IP, RS-232, infrared, relays, and sensing supports the entire RTI ecosystem and connected subsystems. The rack-mountable design allows for seamless expansion using multiple processors and the complete line of RTI accessory devices.

2-Way Communication

Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.

RS-232 Control

Three control ports for 3-wire connection with the capability of polling status feedback from controlled devices or systems.

Relay Switching

Three built-in low voltage dry contacts that provide contact closure or switching control for loads up to 3A/30VDC (external power supply required).

Multi-Purpose Input/Output

Six Multi-Purpose Input/Output control ports that allows for infrared control with infrared emitters, blasters and repeaters and connecting voltage sensors or RS-232 communication modules.

Sense Input / Voltage Trigger Outputs

Three programmable 100mA/2VDC outputs to control and high voltage external relay in amplifiers or other devices to turn them on or off when a sense input detects contact closure from switches, windows or doors. Sense inputs can also be used to trigger a programmed control command or macro.

Expansion Port

Proprietary communication port that allows bidirectional control communication with RTI touch panels and keypads.

10/100 BaseT Ethernet Port

Standard 10/100 BaseT network connection for bidirectional control communication with RTI remotes, touch panels and devices that are controlled over IP network.

Zigbee Connection

Standard wireless Zigbee connection for bidirectional control communication with RTI remotes via ZM-24 Zigbee transceiver module.

RF 433 MHz Communication

Wireless RF communication on the 433 MHz band for unidirectional control communication with RTI remotes.

Astronomical Clock

Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.

Rack-Mountable

Allows for mounting the unit into a standard 19” wide rack or placing on any surface using the included feet.

Why Choose the RTI XP-6s?

The RTI XP-6s Control Processor is the kind of behind-the-scenes powerhouse that makes a smart home or commercial space feel effortless. Designed as the nerve centre of a professionally installed automation system, it delivers rock-solid reliability and serious processing muscle, letting integrators tie together everything from lighting, shades, and HVAC to security and full audio-video distribution. It speaks just about every language the control world cares about - IP, RS-232, infrared, relays, sensing - and taps into RTI’s huge driver library to bring third-party devices into one smooth, responsive ecosystem. With proper two-way feedback, flexible control ports, wireless Zigbee and RF connectivity, and even an onboard astronomical clock for time-based automation, the XP-6s keeps everything ticking along with precision. Rack-mountable and expandable, it’s built to scale, but more importantly, it’s built to make the experience feel seamless - press a button and the room simply does what you want, exactly when you want it.
