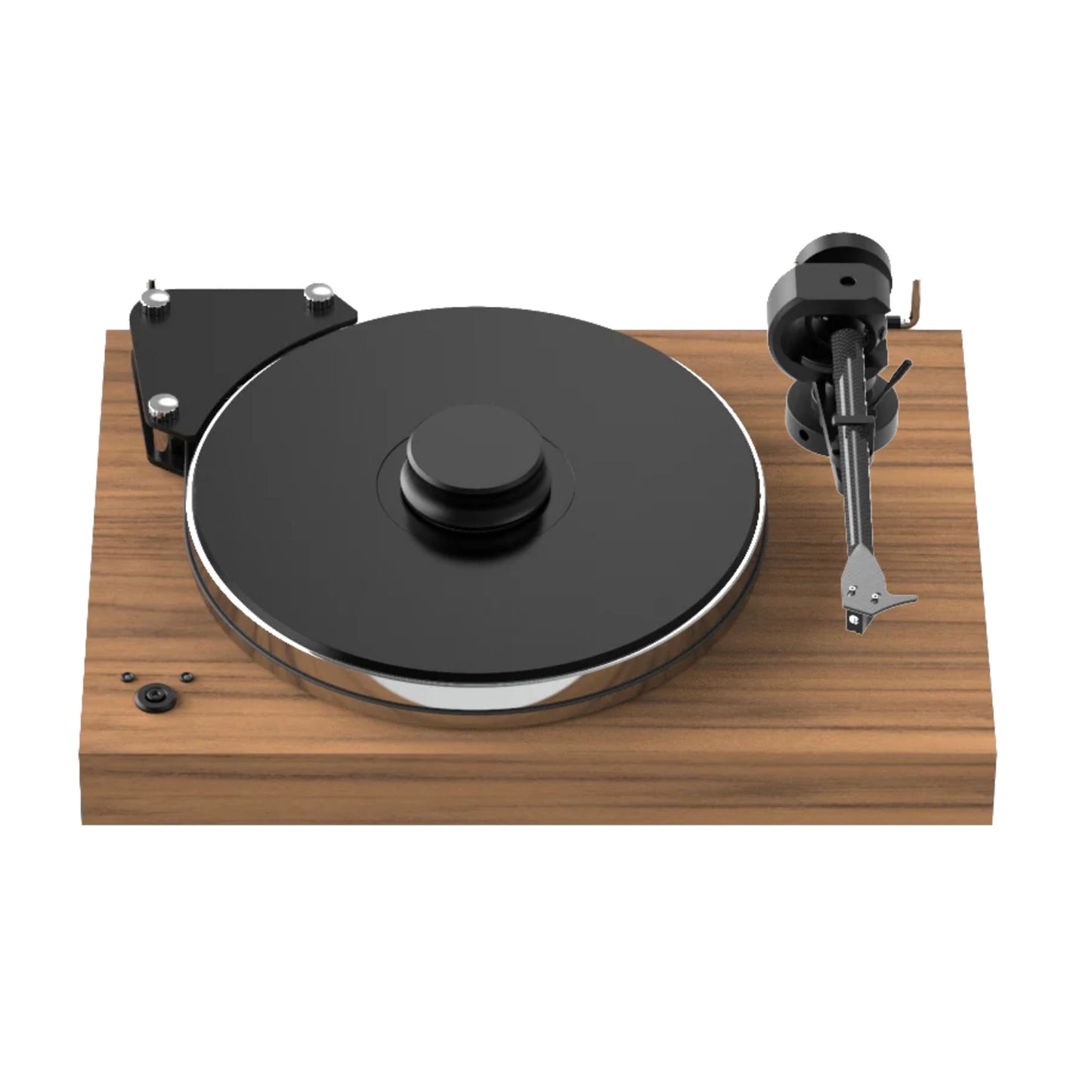

About The Project Xtension 9 Evolution Turntable
The Xtension 9 Evolution is considered quite an achievement. Pro-Ject's engineers have managed to incorporate all their turntable design experience from more than 20 years into a high end, slim-line size to fit standard audio racks. The Xtension 9 chassis is made from MDF filled with metal granulate for high mass that virtually nulls resonance. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16 kg total turntable mass. The result is a unique combination of 'mass loaded' and 'floating turntable' design principles.
Instead of pure metal for the main platter, Pro-Ject have found a perfect alloy which they've damped with thermo plastic elastomers (TPE). Additionally, they've glued recycled Vinyl records to the top (which act as a perfect mat) and baked this 'sandwich' before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. The Xtension 9 Evolution includes a top-class 9cc Evolution tonearm and comes complete with a dustcover.
Magnetic Main Bearing: To ensure stable speeds a proper platter bearing is needed. The Xtension 9 Evolution uses a special technology. The heavyweight platter spins on an inverted ceramic ball bearing with a magnetic support to reduce bearing noise and resonance to an absolute minimum. This solution relieves the main bearing and ensures that the platter runs ultra-silently.
High End Magnetic Suspension Feet: Many turntable manufacturers forget that the feet are one of the most important parts of a turntable. Therefore, Pro-Ject wanted the best possible solution for the premium Xtension 9 Evolution. With its superlative magnetic feet, this heavy turntable literally floats over the surface. These powerful magnets effectively decouple the turntable from the base it's sitting on.
Precision Motor Control: The precision DC-driven AC generator powers the motor for enhanced speed stability. Easily change 33⅓/45 RPM speeds with the push of a button.
High Precision Tonearm: The EVO 9" CC Black High precision tonearm with carbon fibre arm tube incorporates a cardanic bearing, high-purity copper wiring and a TPE damped counterweight.
Record Puck: The included heavy 800 g brass record puck helps reduce unwanted vibrations.
Our Take
The Pro-Ject Xtension 9 Evolution turntable is a remarkable fusion of mass-loaded and floating turntable principles, embodying over two decades of engineering expertise. Its MDF chassis, filled with metal granulate, minimises resonance, while the 16 kg total mass and magnetic suspension feet ensure superior isolation. The heavy platter, crafted from a damped alloy and topped with recycled vinyl, runs ultra-silently on an inverted ceramic ball bearing with magnetic support, reducing noise to an absolute minimum. A precision DC-driven AC generator maintains stable speeds, easily adjustable between 33⅓ and 45 RPM. The included 9cc Evolution carbon fibre tonearm and 800 g brass record puck further enhance playback quality, making the Xtension 9 Evolution a top-tier turntable for discerning audiophiles.
Main Features & Specifications
- Design: Premium Quality Manual Belt Drive Turntable
- We can supply the Xtension 9 Evolution turntable with the Pro-Ject Pick It DS2, Ortofon Quintet Black S, Cadenza Red, Cadenza Blue or Cadenza Bronze moving coil cartridges preinstalled at a special bundle discount price. Please enquire.
- Heavy mass loaded 16 kg belt drive turntable
- Pro-Ject 9cc Evolution carbon fibre tonearm
- Inverted ABEC 7 quality tonearm bearings
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- MDF chassis filled with metal granulate with low levels of resonance and high mass
- Electronic speed control and 33/45rpm switching
- Dust cover included
- Handmade in Europe
General
- Speeds: 33⅓ & 45 RPM (electronic speed change)
- Principle: Belt Drive
- Included Phono Cable: Connect It Phono E 5 Pin Din to RCA, 1.23m
- Aluminium Feet: Height adjustable & TPE damped
- Platter Weight: 4 kg
- Speed Variance: ± 0.09%
- Wow and Flutter: ± 0.1%
- Signal to Noise: 73dB
- Tonearm: 9" one-piece carbon-fibre tonearm
- Effective Arm Length / overhang: 230 mm / 18 mm
- Effective Tonearm Mass: 8.5 g
- Tracking Force Range: 0-25mN
- Cartridge Weight Range: 4 – 14 g
- External Power Supply: 220-240V/50Hz / 15V/1600mA DC
- Power Consumption: 4W (max.) / < 1 watt standby
- Included Accessories: Record Puck, Connect It E 5P to RCA Phono Cable, Dustcover, Power Supply

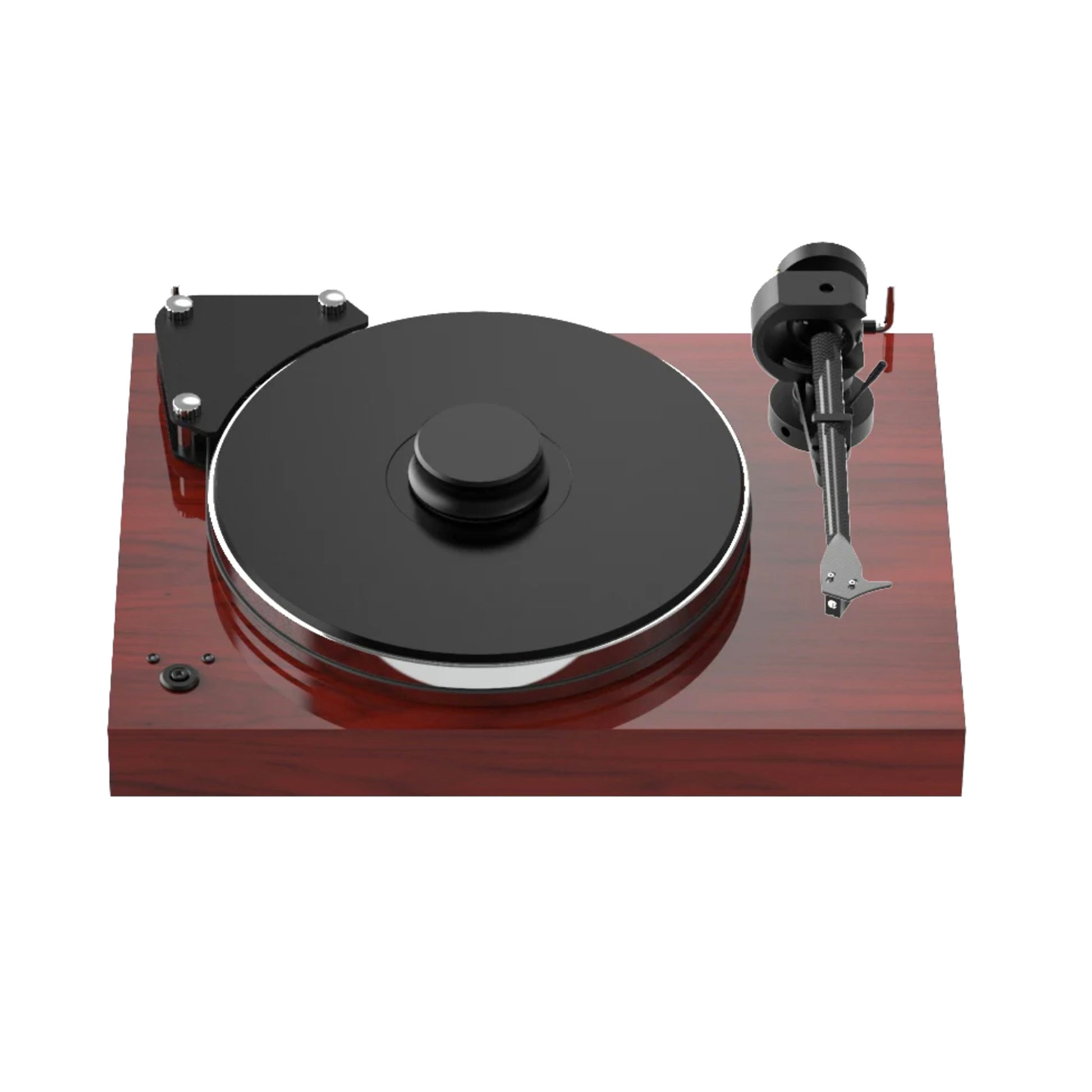

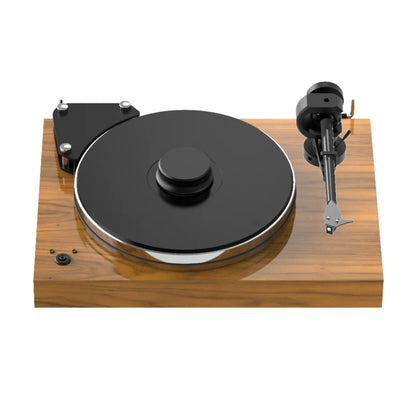

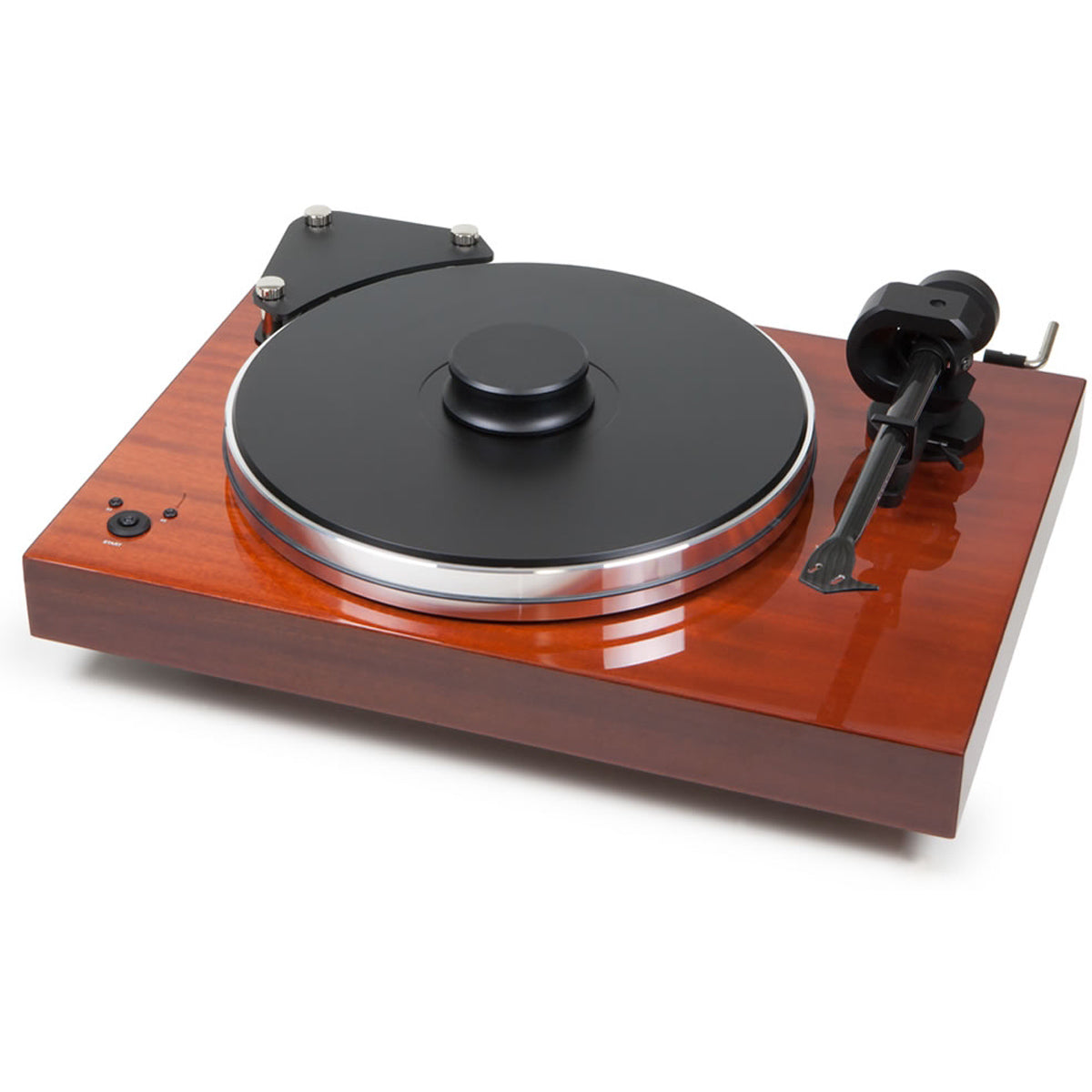

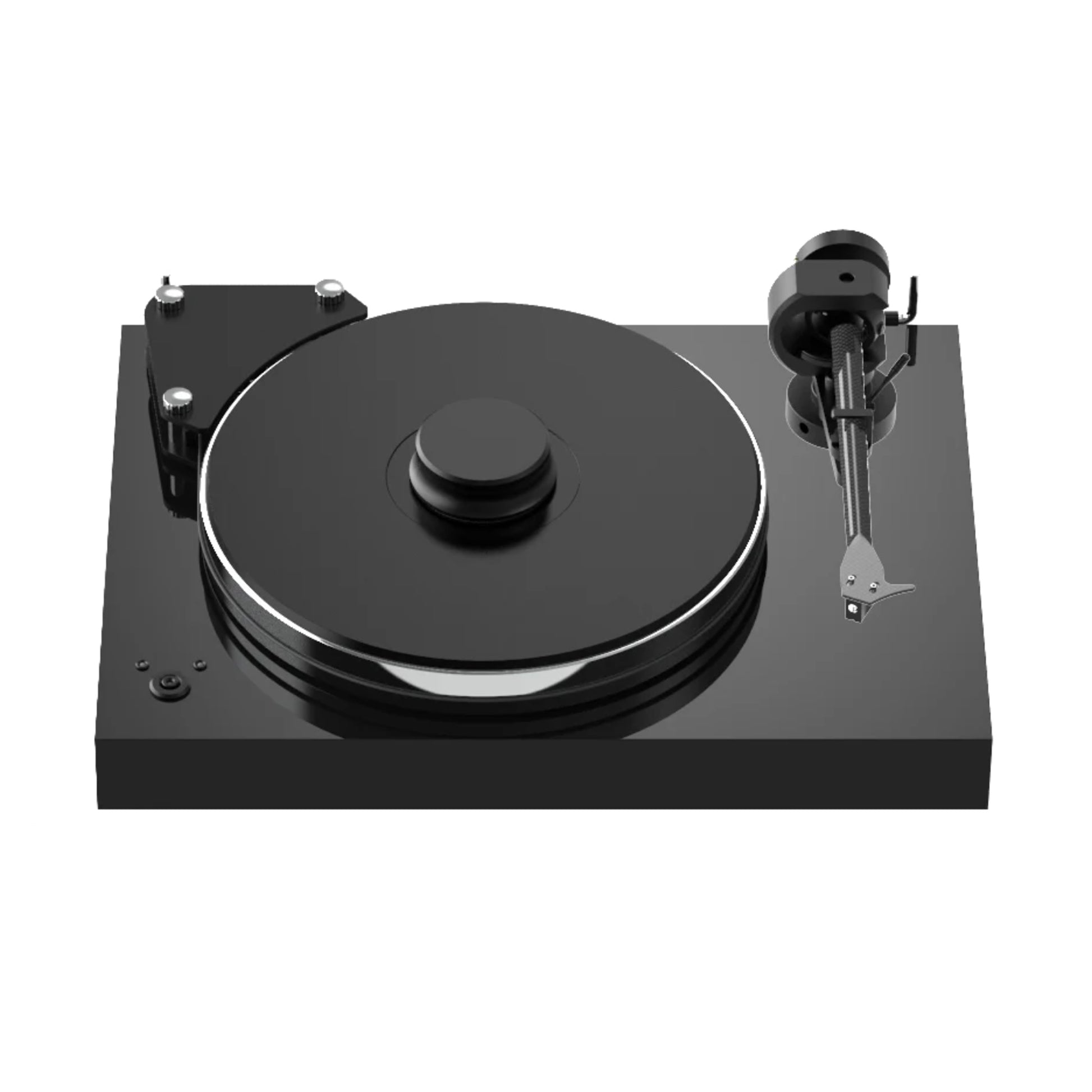

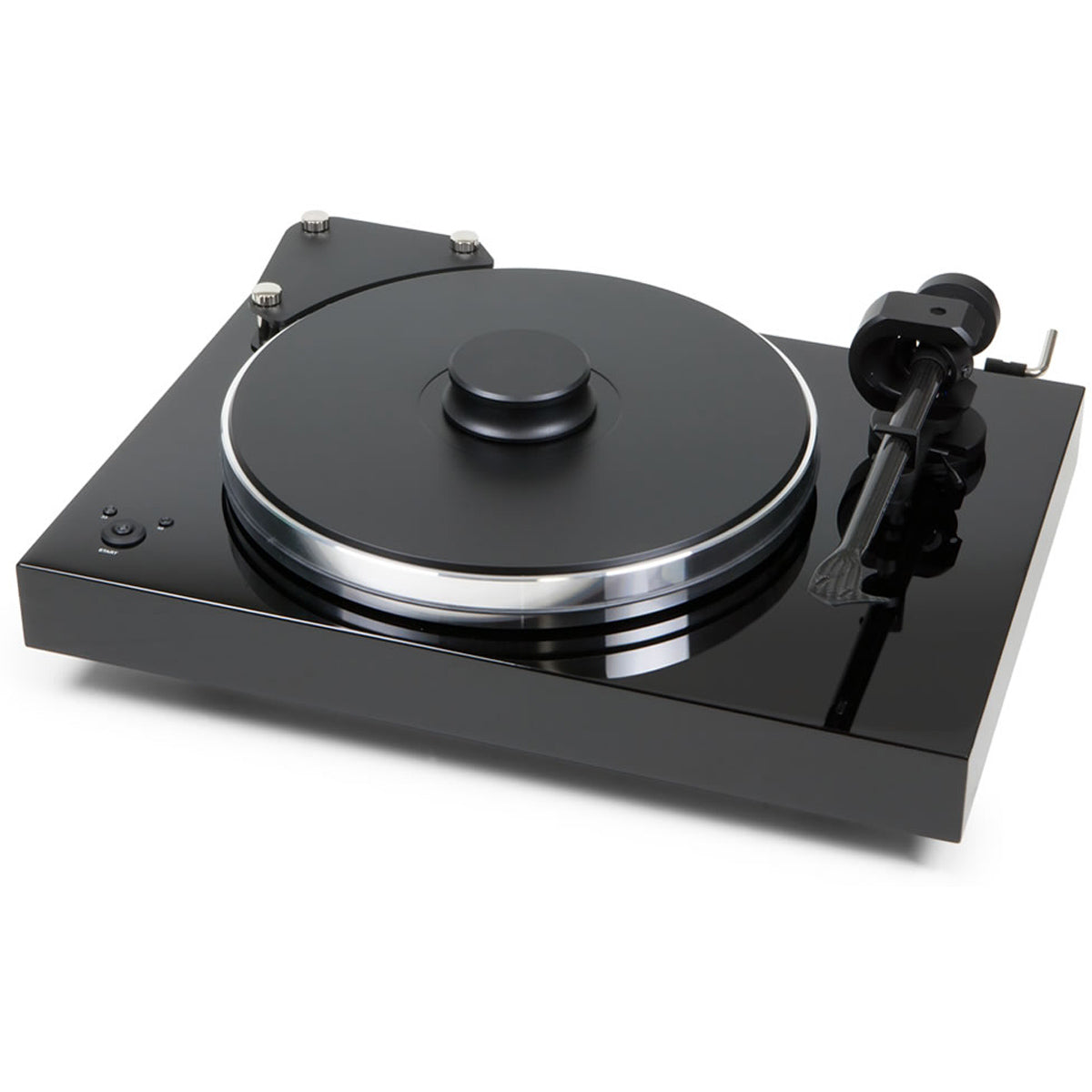

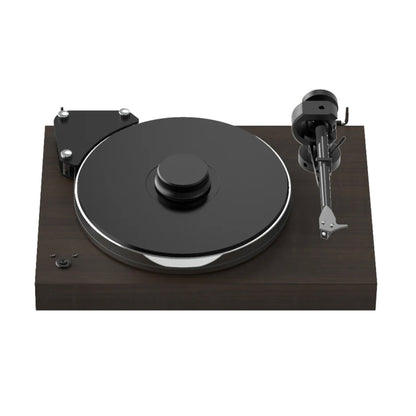

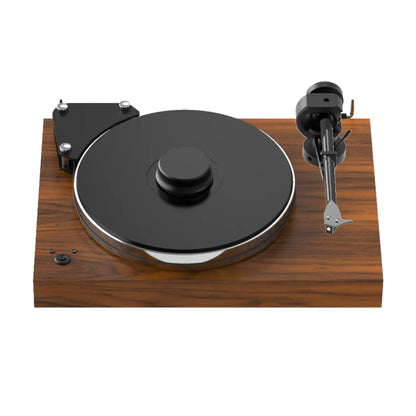

- Available Finishes: Gloss Black, Gloss White, Mahogany, Eucalyptus, Palisander, Olive, Walnut
- Dimensions (WxHxD): 465 x 185 x 350 mm lid closed
- Weight: 16 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
