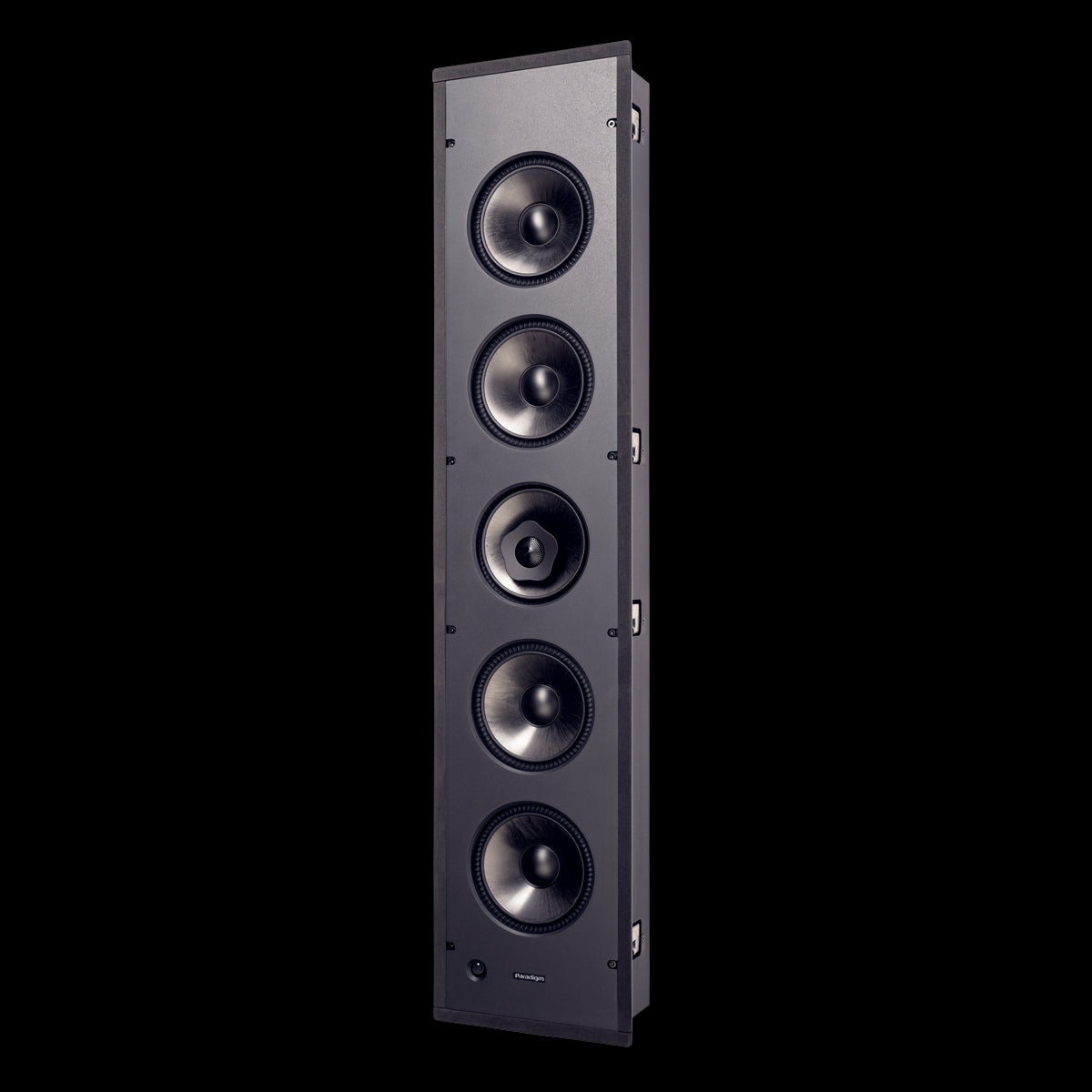

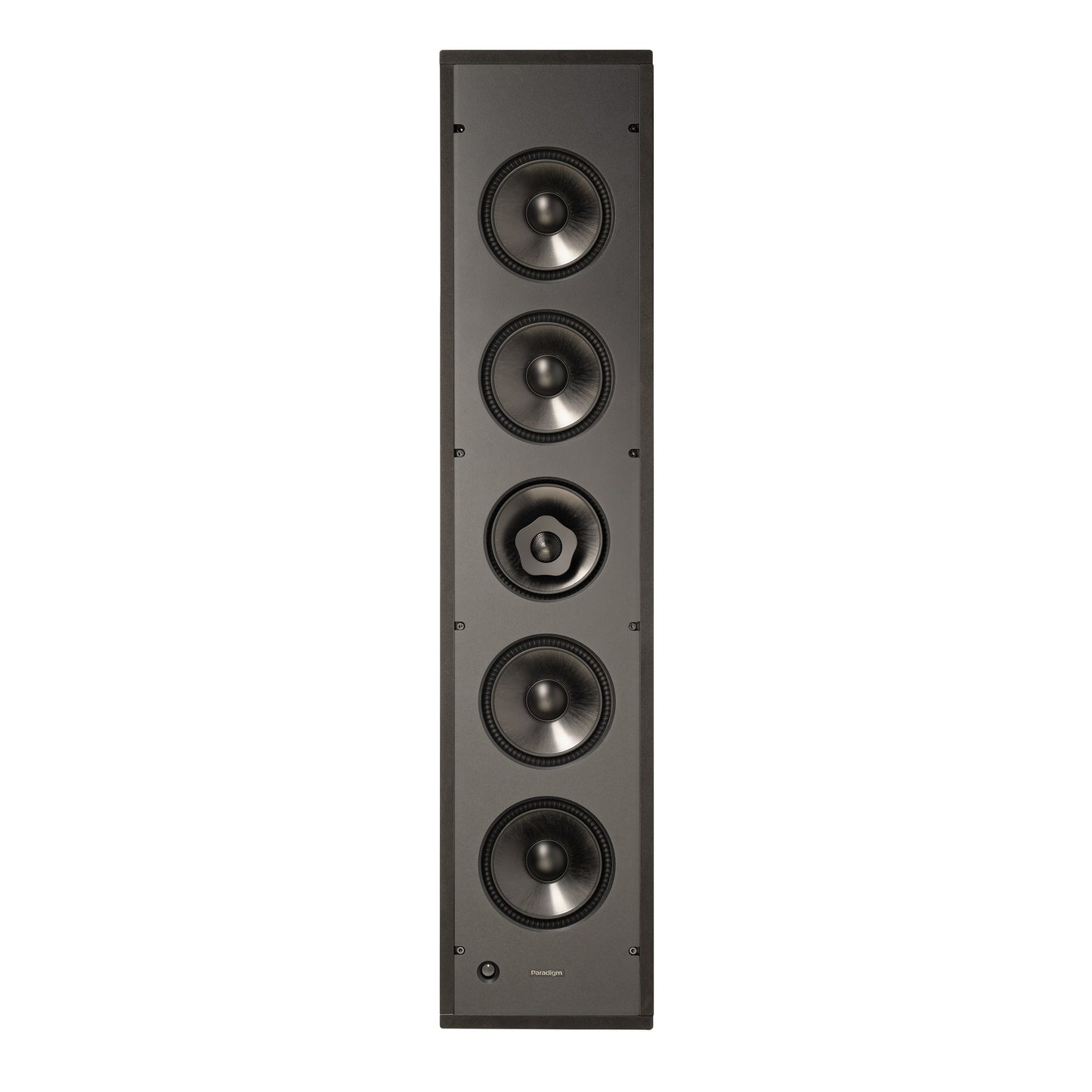

About The Paradigm CI Pro P5 LCR V2 In-Wall Speaker
The P5 V2 is the largest LCR speaker in the Pro Series and is packed with quality innovations and smart technology plus four drivers and dual passive radiators. The CI Pro series is hand crafted in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality, plus a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Featuring innovative technology and superb performance, the CI Pro P5 LCR V2 is the smarter choice for customers wanting the architectural look with high-end sound. Installation? No problems. The Audio Trends custom installation team can do everything for you or your builder.
High Performance High Frequencies: V2 offers an Aluminium Magnesium Ceramic (AL-MACT) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens shared with the CI Elite series; this new tweeter platform elevates performance and allows for even greater flexibility when paired with Paradigm's in-room counterparts such as the Founder Series.
CARBON-X™ Cones: Paradigm's exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncoloured frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.
Advanced Shock-Mount™ System: Like the CI Elite Series, Paradigm have added the same great Advanced Shock-Mount™ System to mechanically decouple the basket from the chassis. This significantly reduces performance-robbing vibrations and resonances between the acoustic platform and the rest of the speaker. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
Aluminium Baskets: FEA-Optimized Ultra Rigid Cast-Aluminium Baskets feature integrated heat sinks for higher power handling, better bass, better dynamics, and less power compression.

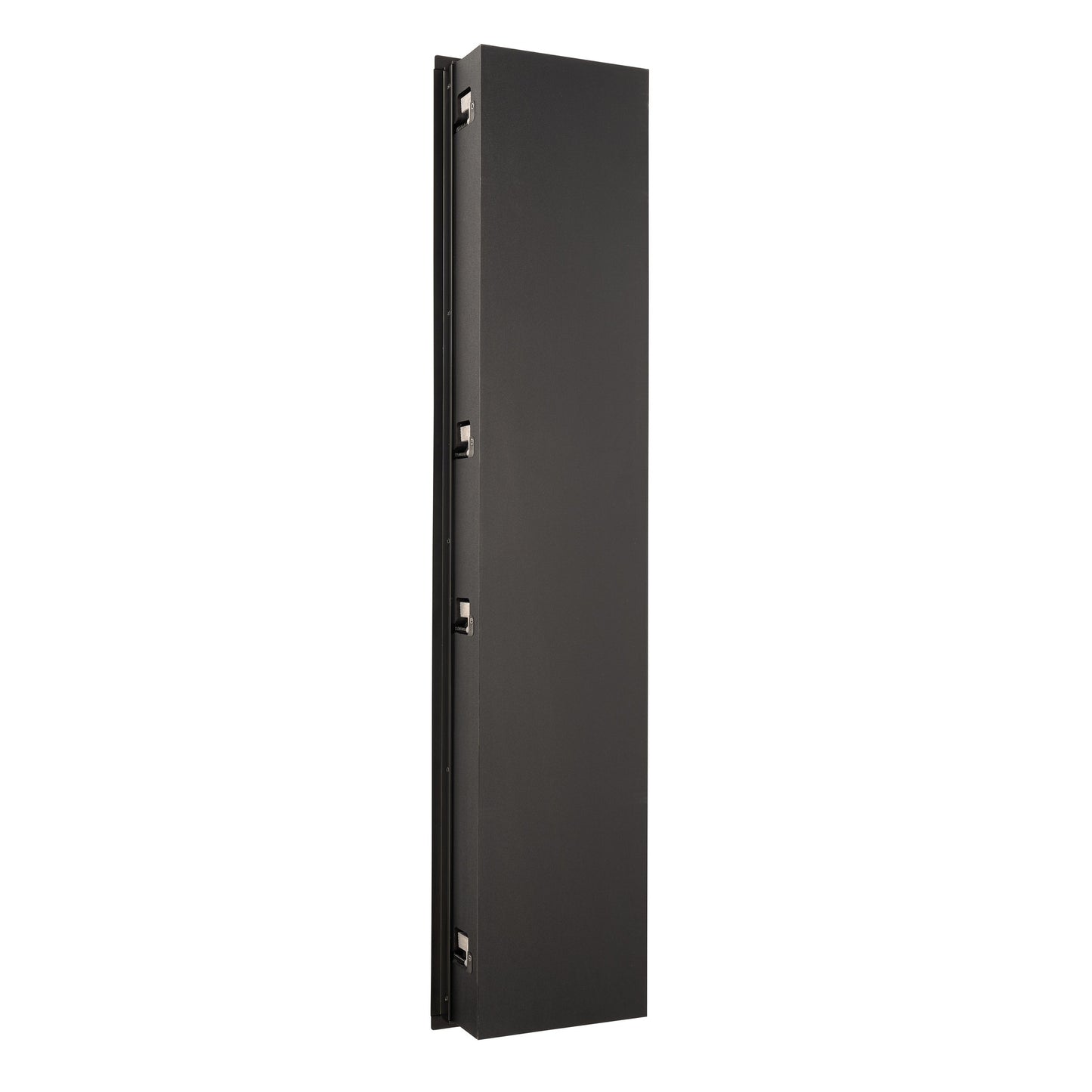

Integrated Enclosure: Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound 'spillage' to adjacent rooms. It also ensures consistent and reliable performance from application to application.
Screen Compensation Mode: Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens.
Cable Capture: Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.
Driver Surrounds: Patented Active Ridge Technology (ART™) surrounds, made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds.

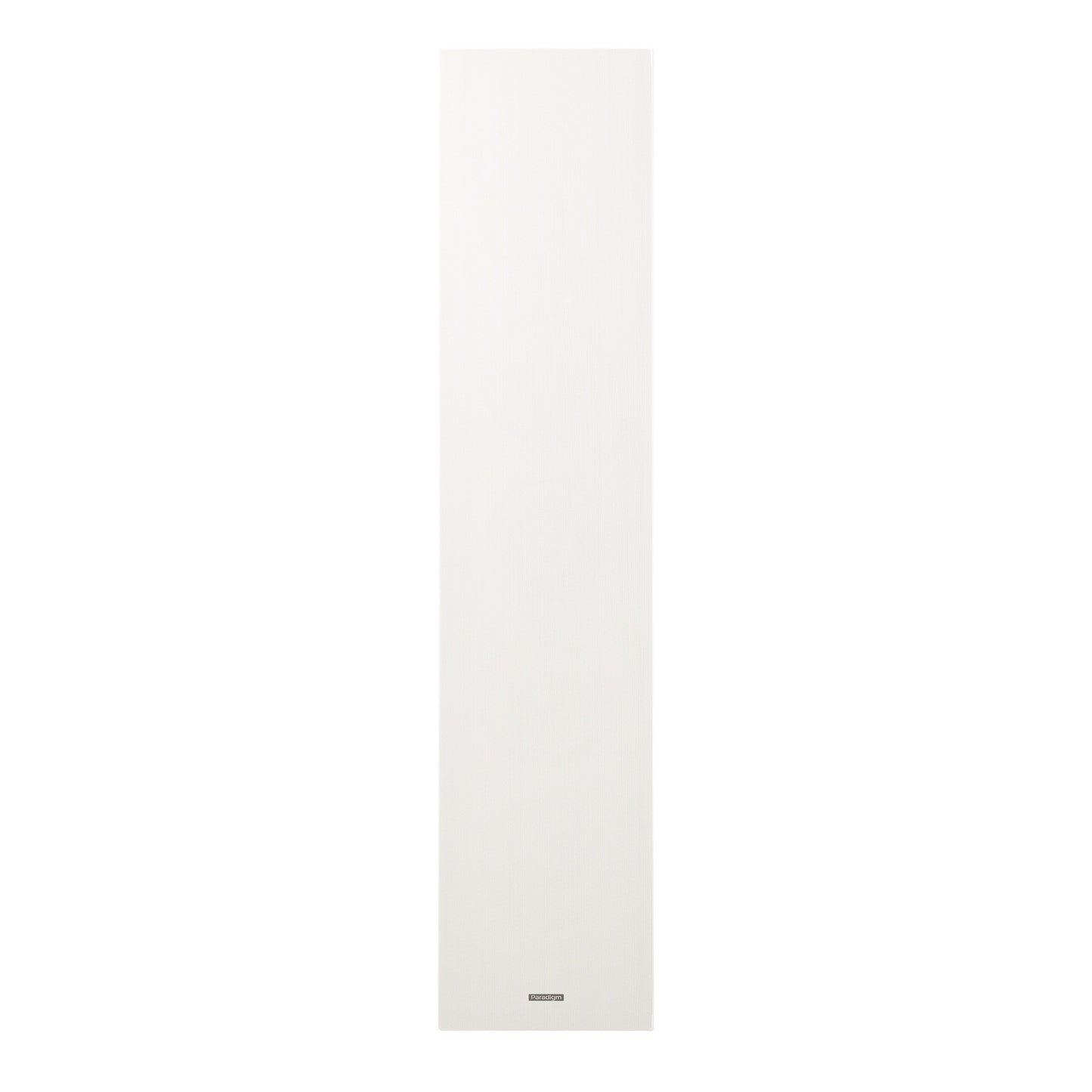

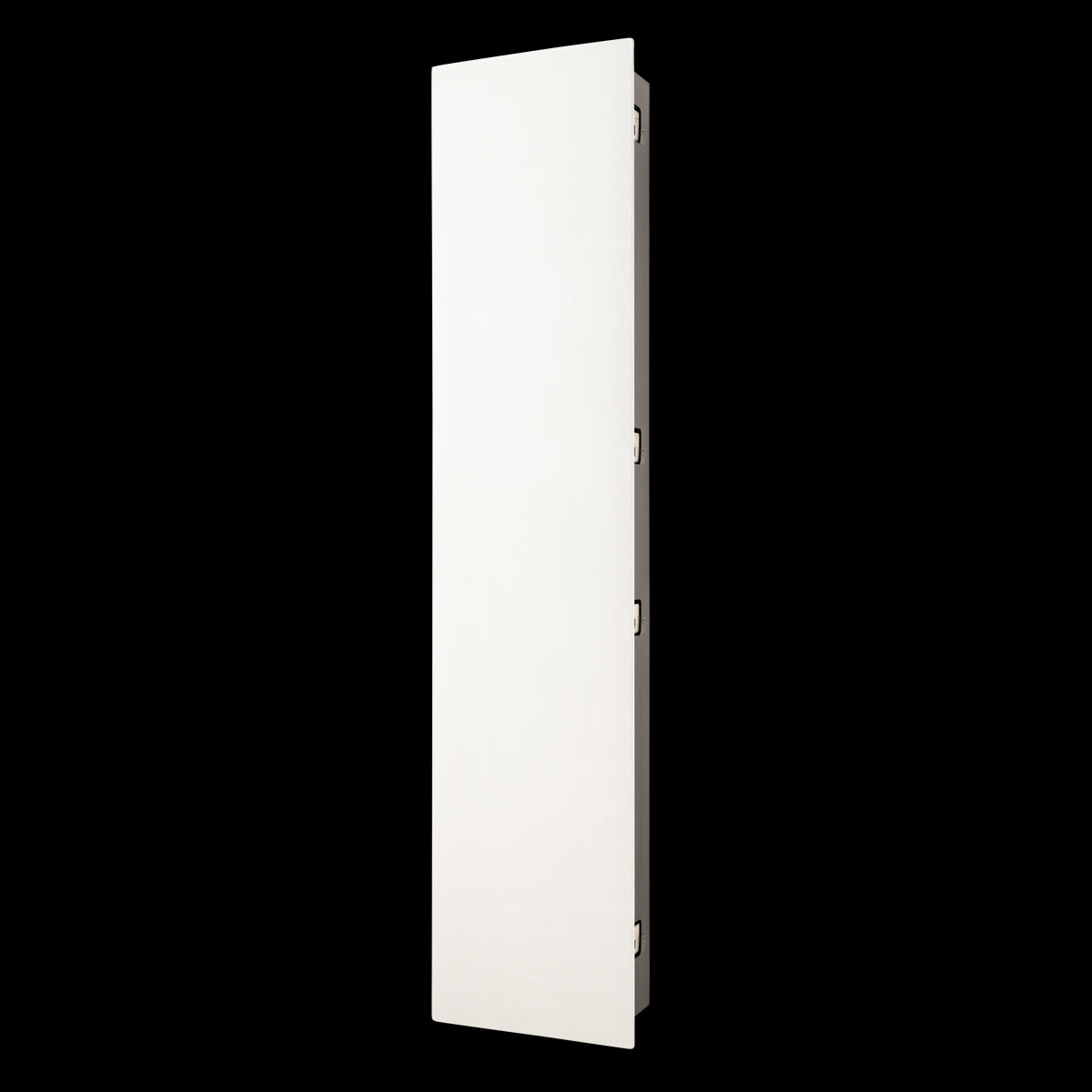

Mix & Match: Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!
Main Features & Specifications
- Design: 6-Driver (4 Active, 2 Passive), 3-Way Shallow Enclosure In-Wall LCR (Left, Centre, Right) Speaker – Sold Individually
- Use three P5 LCR V2's, one horizontally in the centre under the screen and two vertically either side of the screen, for a consistent spread of sound
- Advanced Shock-Mount™ System
- High Frequency Driver: 1" (25mm) Aluminium Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
- Midrange Driver: 6.5" (165mm) Coaxial AL-MAG™ Cone with Shock-Mount™ Isolation Mounting System, a 1" high-temp multi-layered voice coil with Apical™ former
- Bass Drivers: Two 6.5" (165mm) CARBON-X™ Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
- Passive Bass Radiators: Two 6.5" (165mm) CARBON-X™ Cones with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
- Crossover: 3rd-order electro-acoustic at 2.8 kHz, 2nd-order electro-acoustic at 500 Hz
- Low Frequency Extension: 65 Hz
- Frequency Response (On Axis): ±3 dB from 84 Hz - 22 kHz
- Frequency Response (30° Off Axis): ±3 dB from 84 Hz - 19 kHz
- Sensitivity Room: 94 dB
- Sensitivity Anechoic: 91 dB
- Suitable Amplifier Power Range: 15-200 Watts
- Maximum Input Power: 130 Watts
- Impedance: Compatible with 8 ohms
- Finish: White Grille, Black Speaker
- Supplied Grille: Paintable Rectangular Grille
- Overall Dimensions (WxHxD): 241 x 1,092 x 105mm
- Cut-Out Dimensions (WxH): 216 x 1,066mm
- Weight: 13.2 kg
- Manufacturer's Warranty: 5 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
