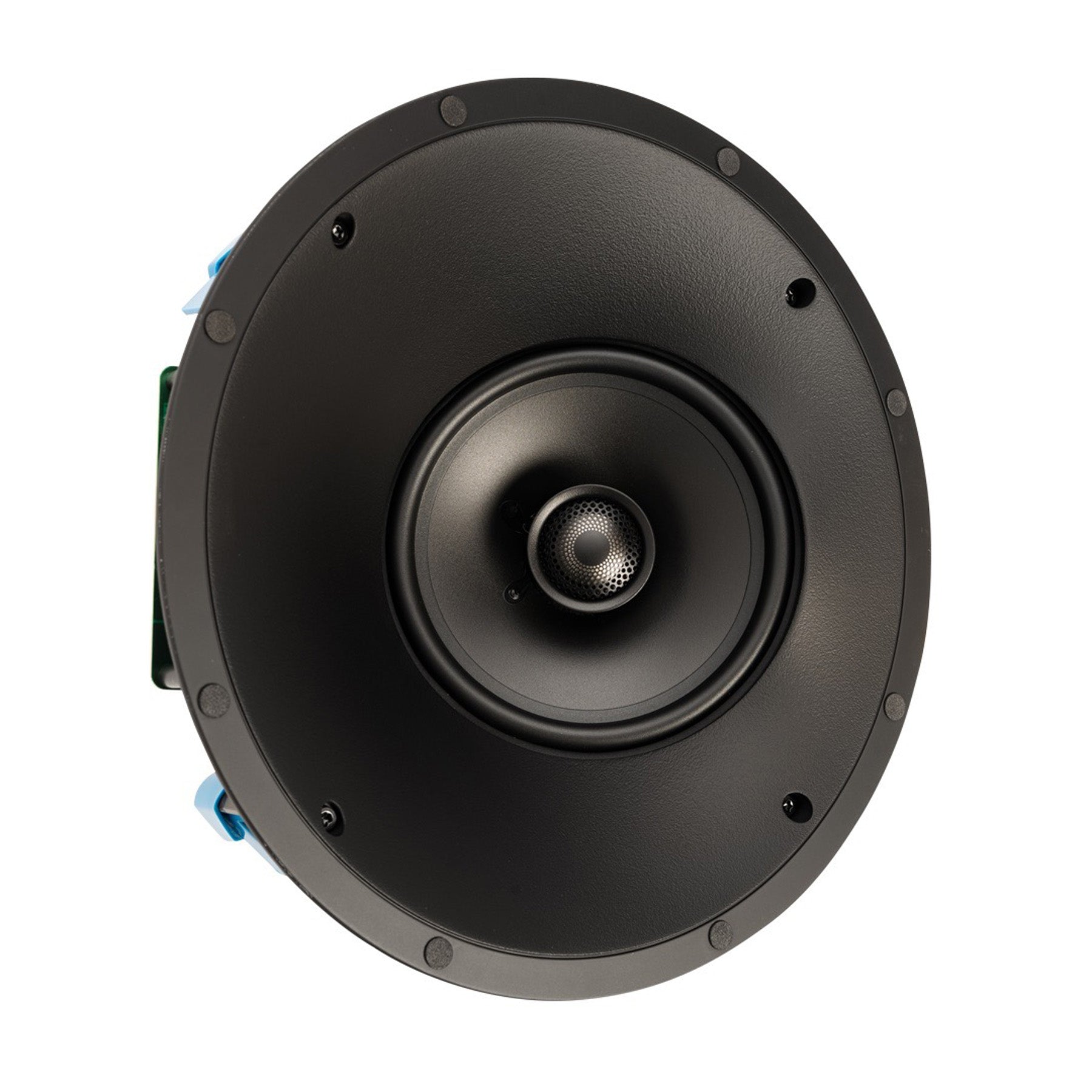

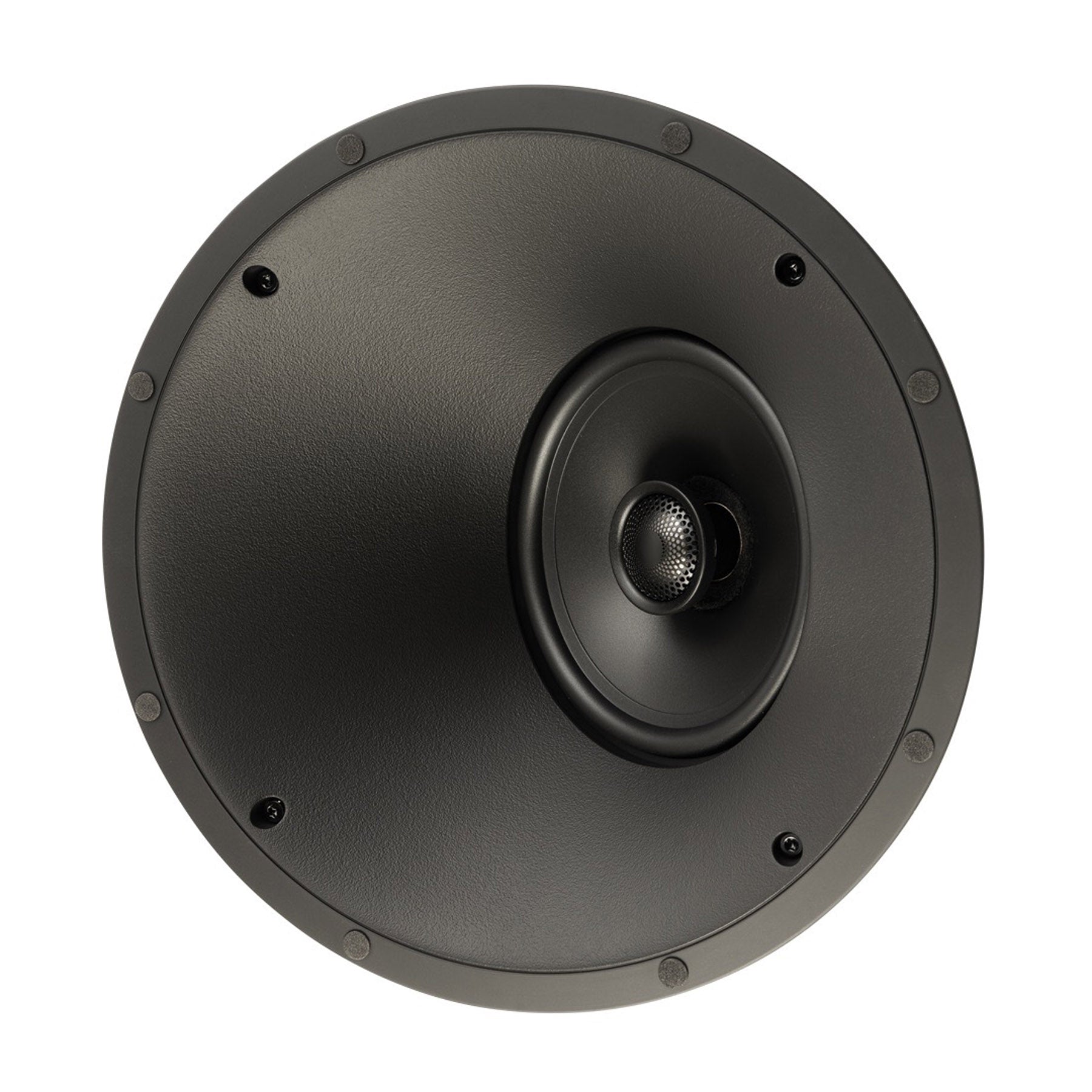

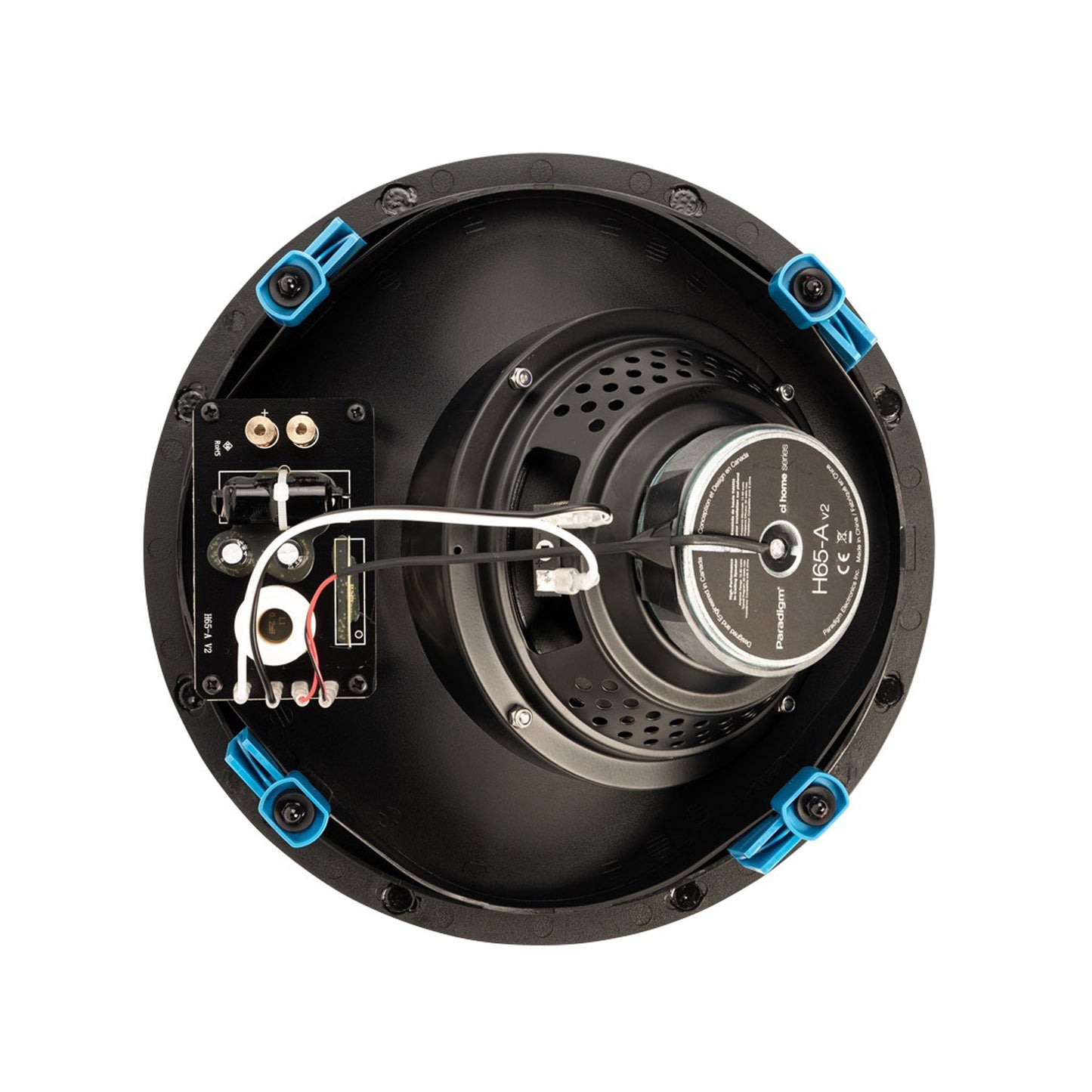

About The Paradigm CI Home H65-A V2 In-Ceiling Speaker
The Paradigm H65-A V2 is a 30° Angled In-ceiling speaker which is part of Paradigm's CI Home Series. The CI Home series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Perforated Phase-Aligning Tweeter Lens Technology: The V2 features Paradigm's exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens technology. It acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output, all while protecting the delicate dome tweeter. CI Home tweeters are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Pure-Titanium Tweeter (PTD™) Domes: Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Superior Mineral-filled Polypropylene Bass/Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialogue is incredibly clean and clear.
Rigid ABS Clamps: Simplify and reduce installation time.
Pocketed Screw Holes: Help to hold the drill steady, making installation a snap.

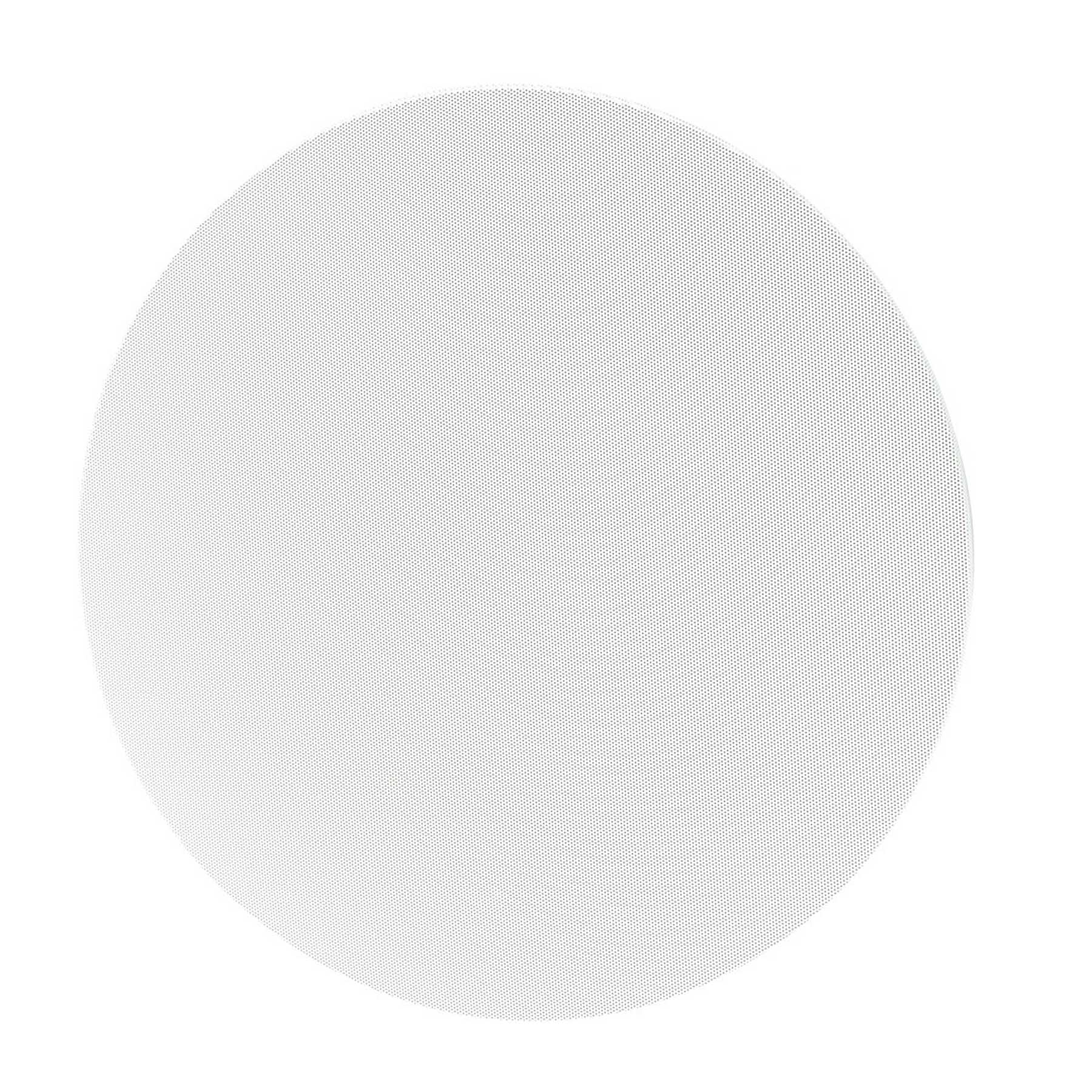

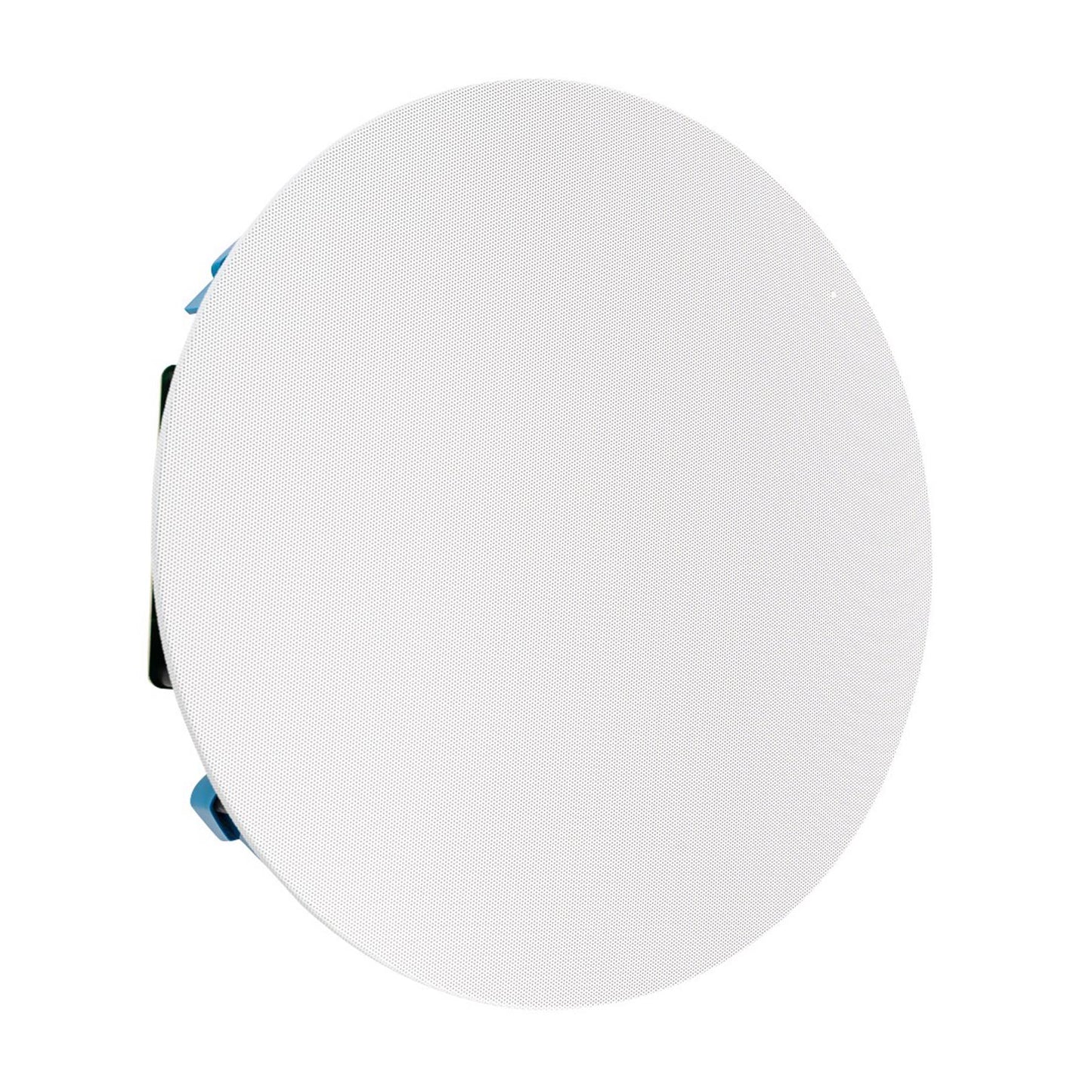

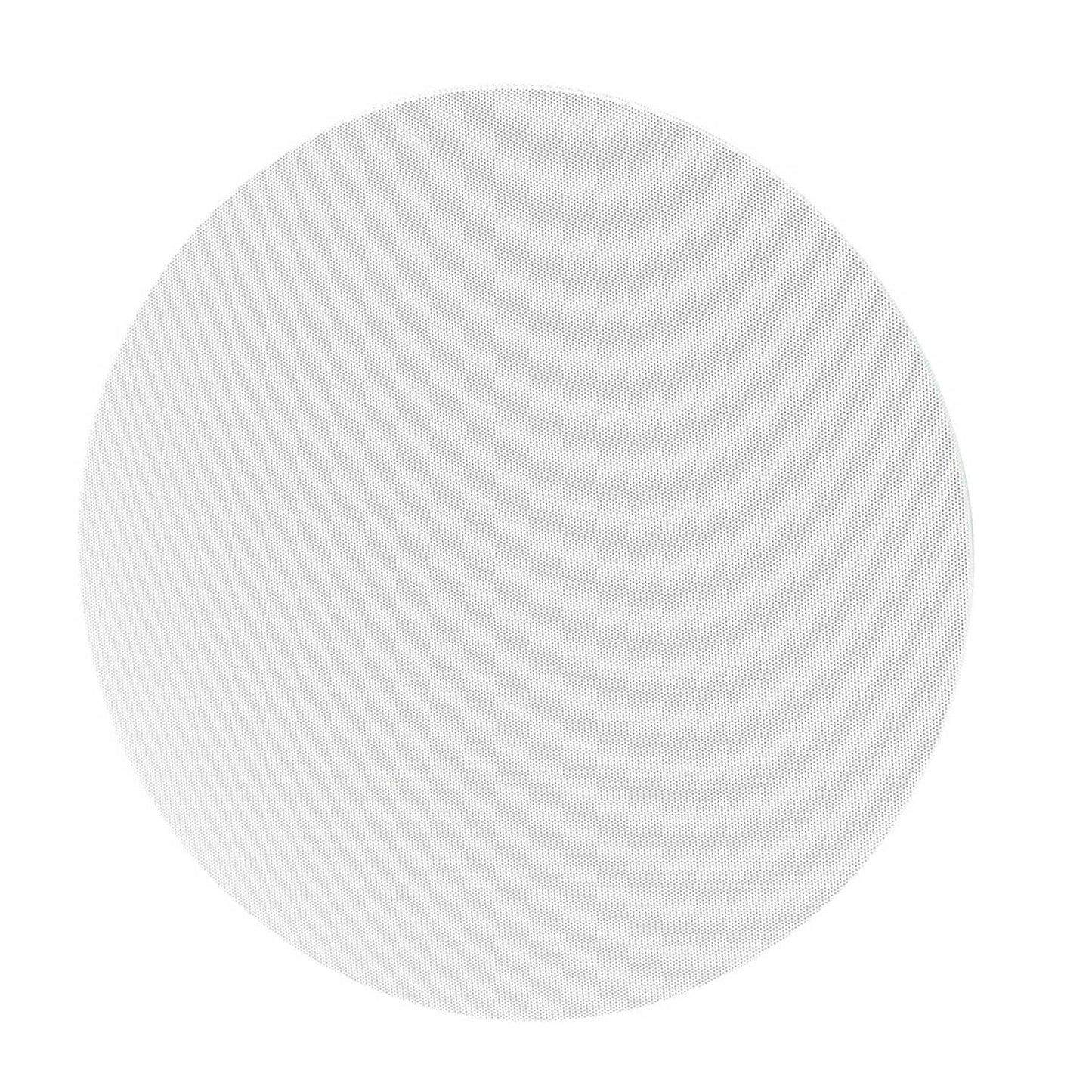

Grilles: Bezel-Free Micro-Perf Grilles.
Magnetically Attached Grilles: neodymium magnets hold grilles firmly in place.
Painting Grilles: No masking required—this makes the grilles faster and easier to paint, if painting is desired.
Easy-Access Binding Posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

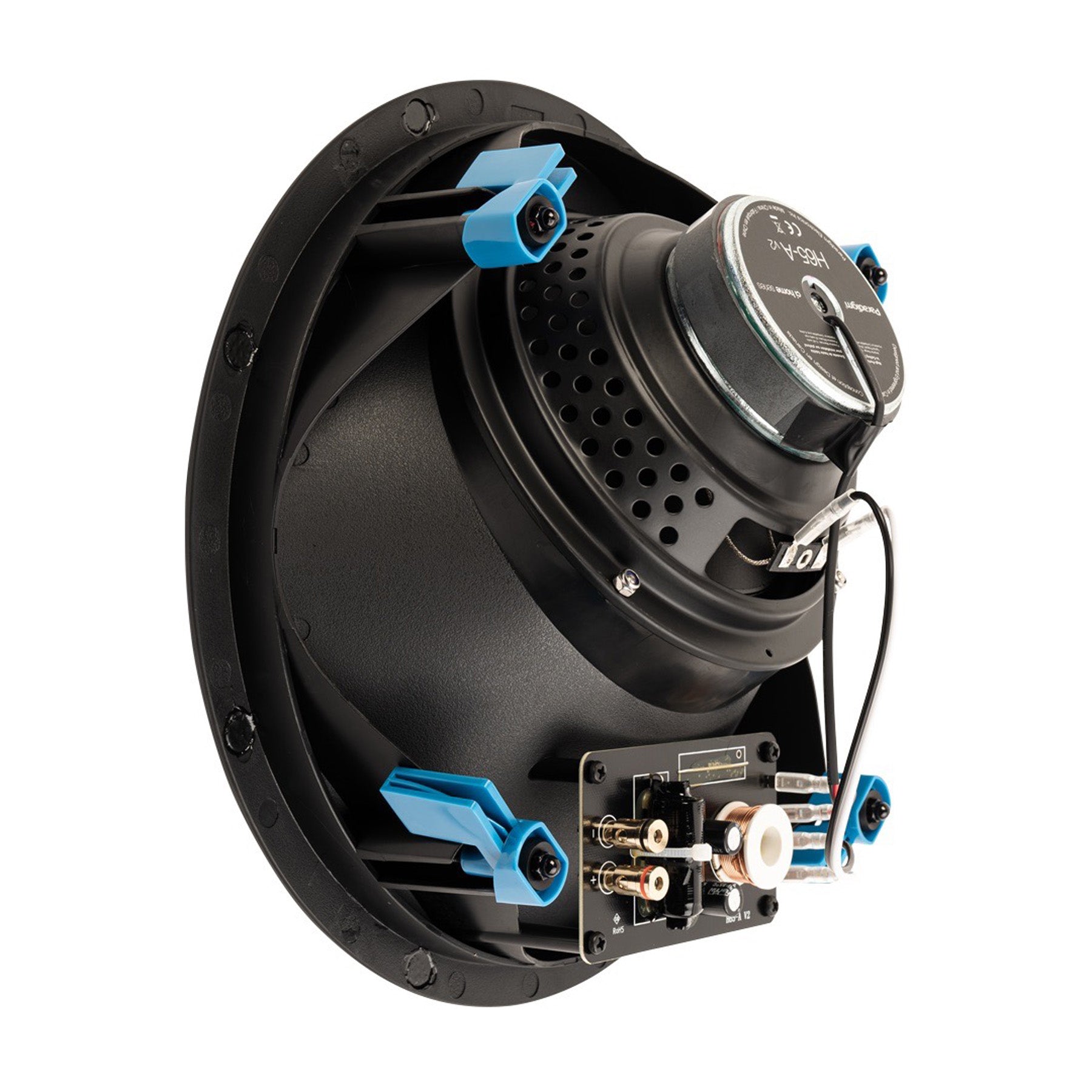

A Behind-the-Ceiling Look at Paradigm ABS Clamps: Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!
A Solid Installation: Paradigm's High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer's job easier and faster!
Main Features & Specifications
- Design: 2-Driver, 2-Way In-Ceiling Speaker with 30°-Angled Guided Soundfield™ system - Sold Individually
- ABS chassis & mounting clamps
- Crossover: 2nd-order, electro-acoustic at 2.5 kHz
- High Frequency Driver: 1" (25mm) Pure Titanium Dome (PTD™) Tweeter
- Bass/Midrange: 6.5" (165mm) Mineral-Filled Polypropylene Cone
- Low Frequency Extension: 55 Hz
- Frequency Response (On Axis): ±2 dB from 70 Hz - 20 kHz
- Frequency Response (30˚ Off Axis): ±2 dB from 70 Hz - 15 kHz
- Sensitivity-Room: 89 dB
- Sensitivity- Anechoic 85 dB
- Suitable Amplifier Power Range: 15-80 Watts RMS
- Maximum Input Power: 50 Watts RMS
- Impedance: Compatible with 8 Ohms
- Finish: White, paintable grille
- Overall Dimensions: 289mm Diameter x 133mm Depth
- Cutout Diameter: 264mm
- Weight: 1.8 kg
- Manufacturer's Warranty: 5 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE
