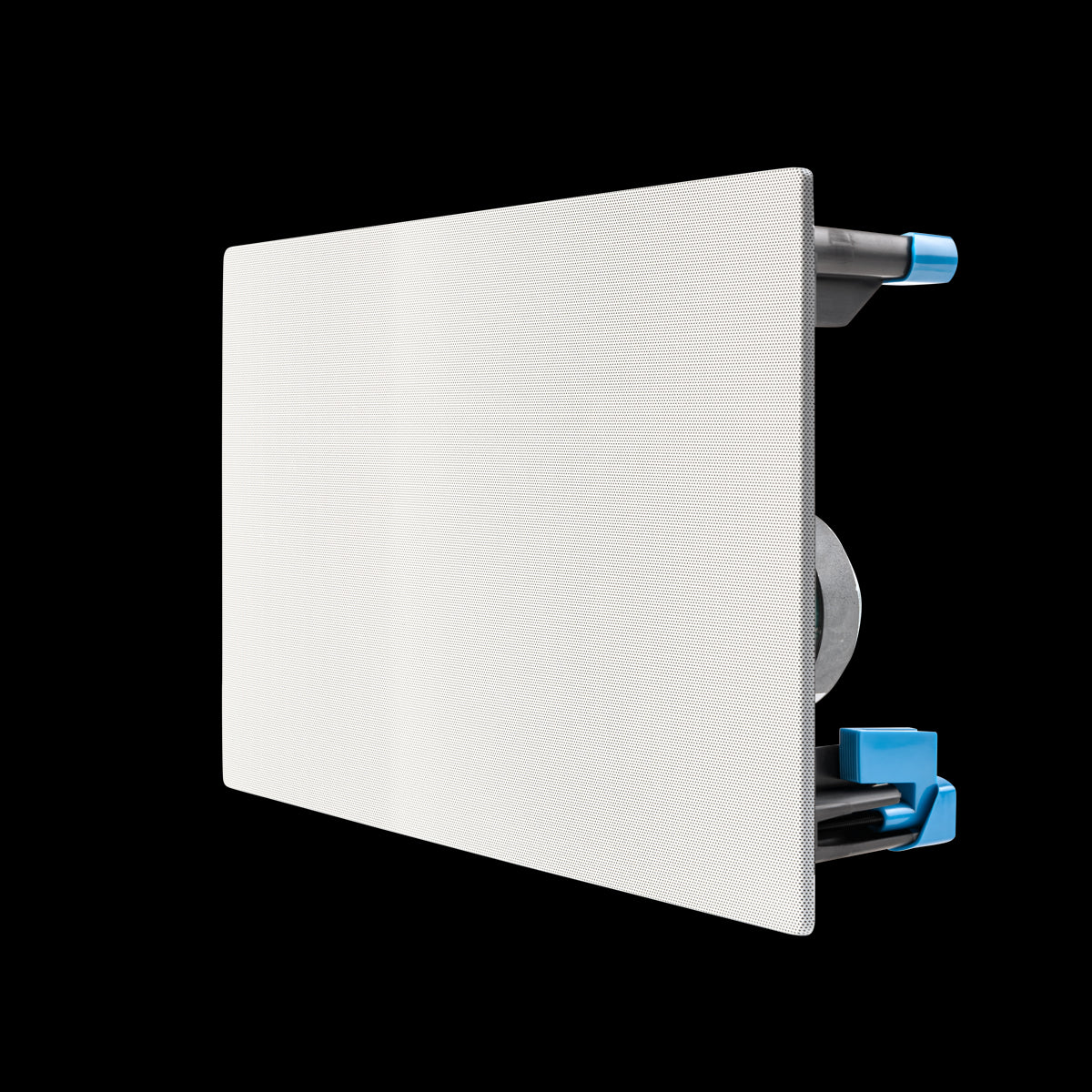

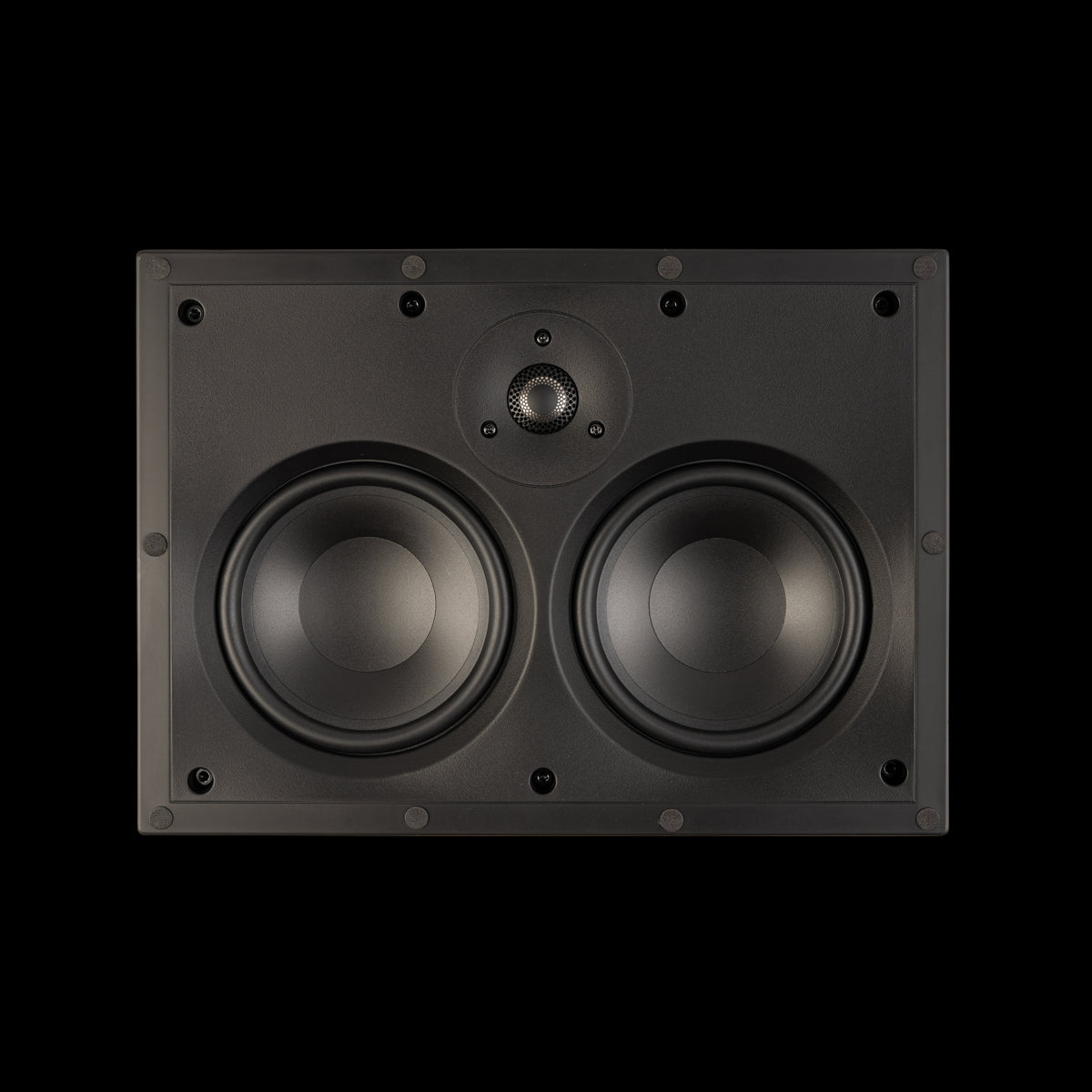

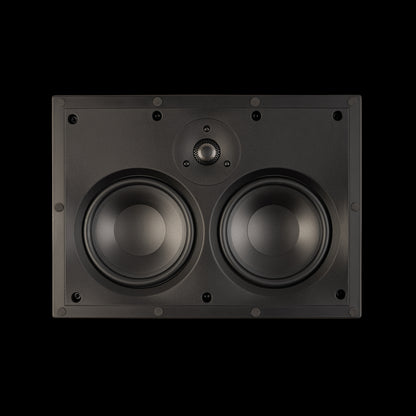

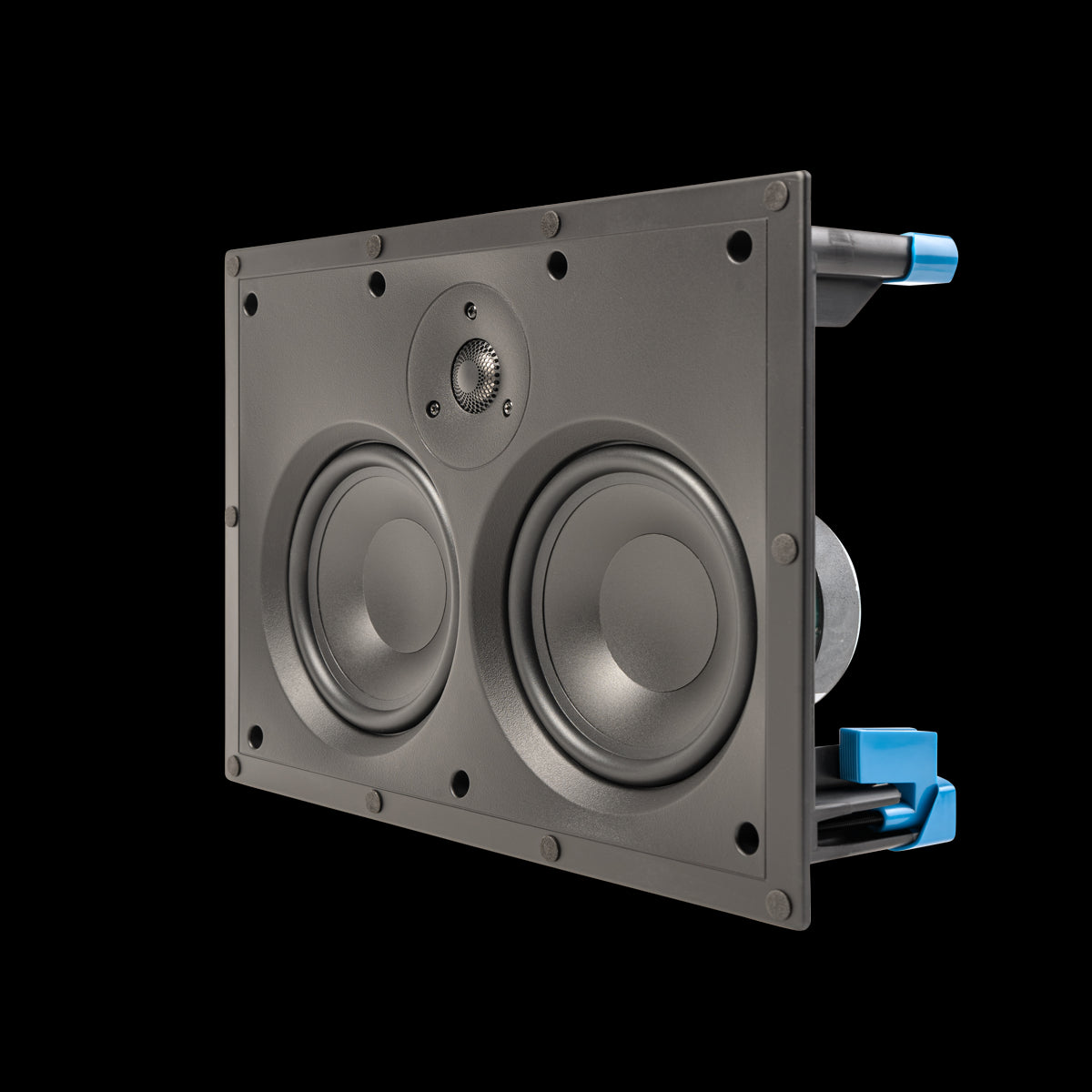

About The Paradigm CI Home H55-LCR V2
The Paradigm H55-LCR V2 In-Wall speaker is part of Paradigm's CI Home Series. The CI Home series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Perforated Phase-Aligning Tweeter Lens Technology: The V2 features Paradigm's exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens technology. It acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output, all while protecting the delicate dome tweeter. CI Home tweeters are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Pure-Titanium Tweeter (PTD) Domes: Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Superior Mineral-Filled Polypropylene Bass/Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

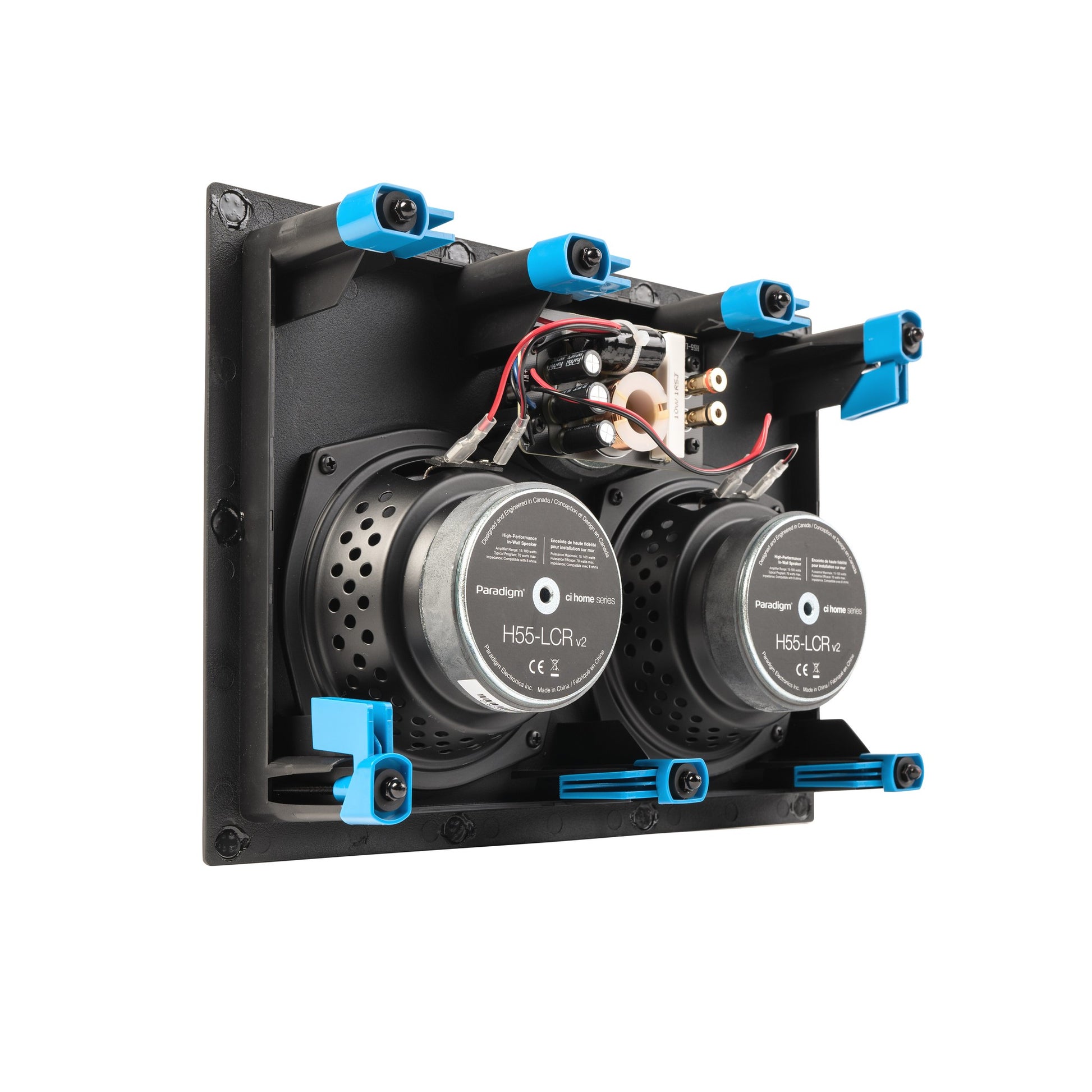

Rigid ABS Clamps: Simplify and reduce installation time.
Pocketed Screw Holes: Help to hold the drill steady, making installation a snap.

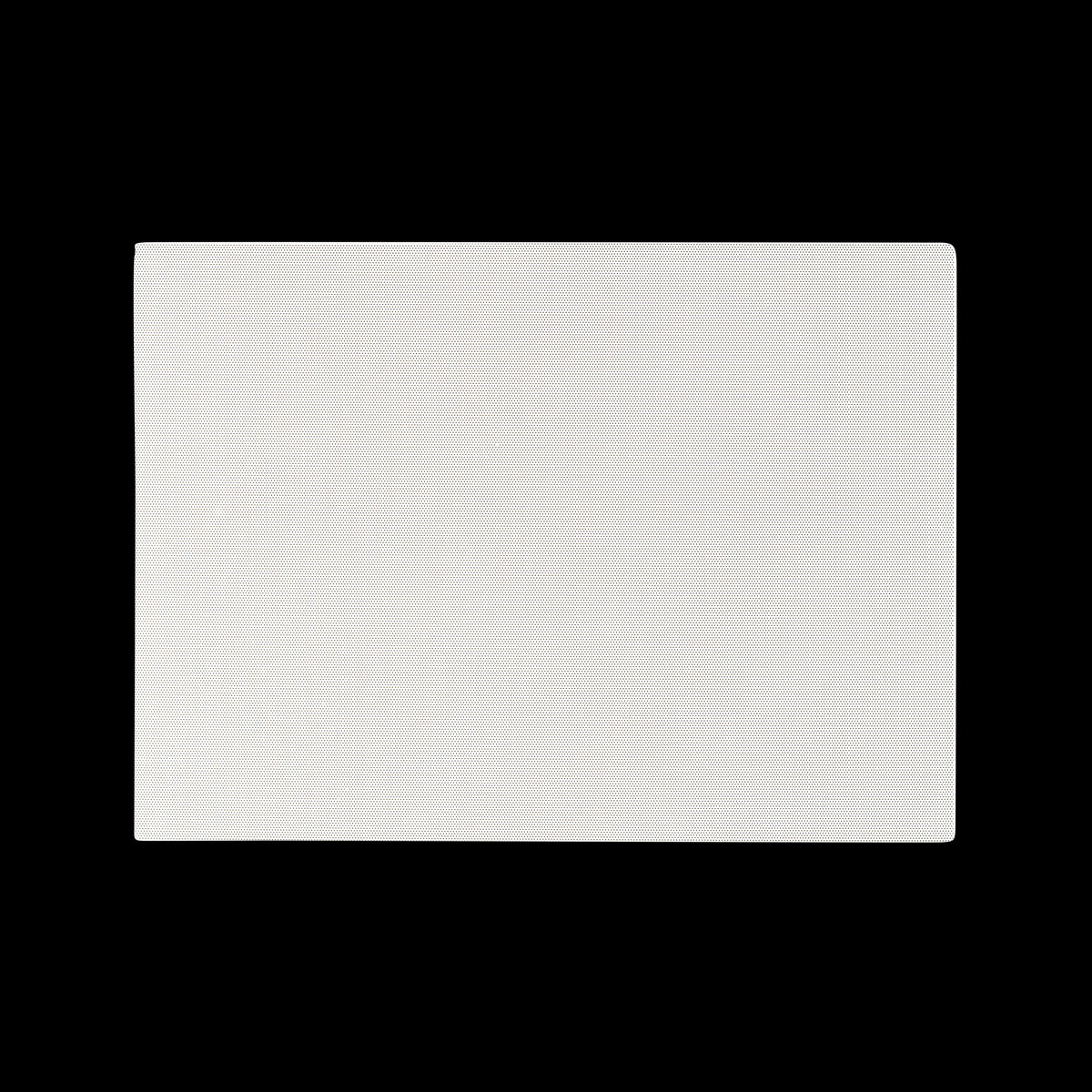

Magnetically Attached Grilles: neodymium magnets hold grilles firmly in place.

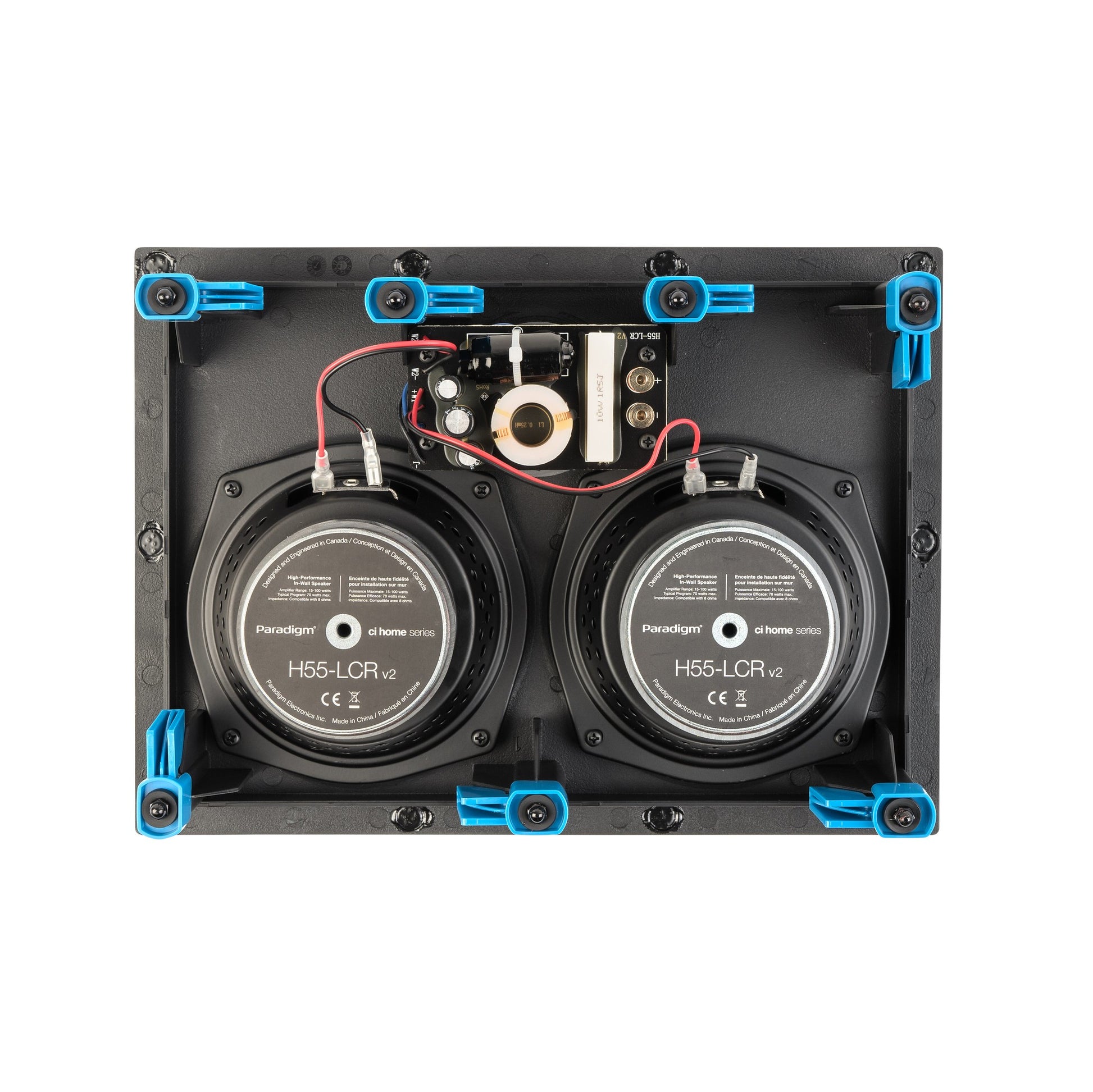

Easy-Access Binding Posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
Main Features & Specifications
- Design: 3-Driver, 2-Way In-Wall LCR (left/centre/right) Speaker - Sold Individually
- ABS chassis & mounting clamps
- Crossover: 2nd-order, electro-acoustic at 2.5 kHz
- High Frequency Driver: 19mm (3/4") PTD (Pure Titanium Dome) Tweeter
- Bass/Midrange: 2 x 140mm (5.5") mineral-filled polypropylene cones
- Low Frequency Extension: 60 Hz
- Frequency Response (On Axis): ±2 dB from 75 Hz - 20 kHz
- Frequency Response (30° Off Axis): ±2 dB from 75 Hz - 18 kHz
- Sensitivity-Room: 89 dB
- Sensitivity-Anechoic 85 dB
- Suitable Amplifier Power Range: 15-100 Watts
- Maximum Input Power: 70 Watts
- Impedance: Compatible with 8 Ohms
- Finish: White, paintable grille
- Overall Dimensions (WxHxD): 235 x 321 x 89mm
- Cutout Dimensions (WxH): 295 x 210mm
- Weight: 2.7 kg
- Manufacturer's Warranty: 5 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE
