Paradigm CI Home H55-IW V2

Paradigm CI Home H55-IW V2

Regular price $279.00
Regular price Sale price $279.00
Sale Sold out
including GST Shipping calculated at checkout.

Despatched In 2 - 3 Days

This product is in stock at our supplier's warehouse and can be ready for pickup or immediate despatch within 2-3 days

Quick Info

Rectangular, 2-Way In-Wall Speaker - Sold Individually

19mm Pure Titanium Dome Tweeter

140mm Mineral-Filled Polypropylene Mid/Bass Driver

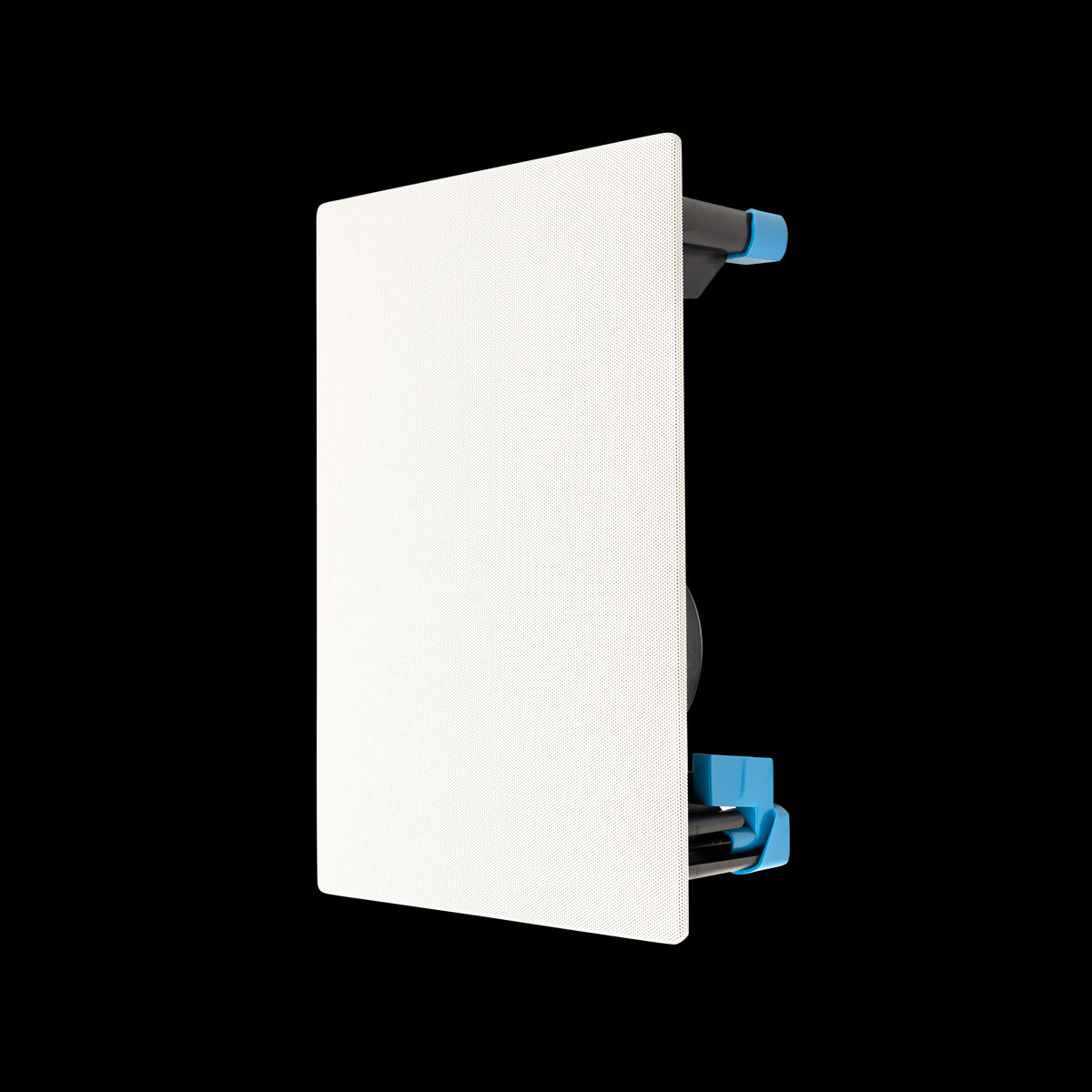

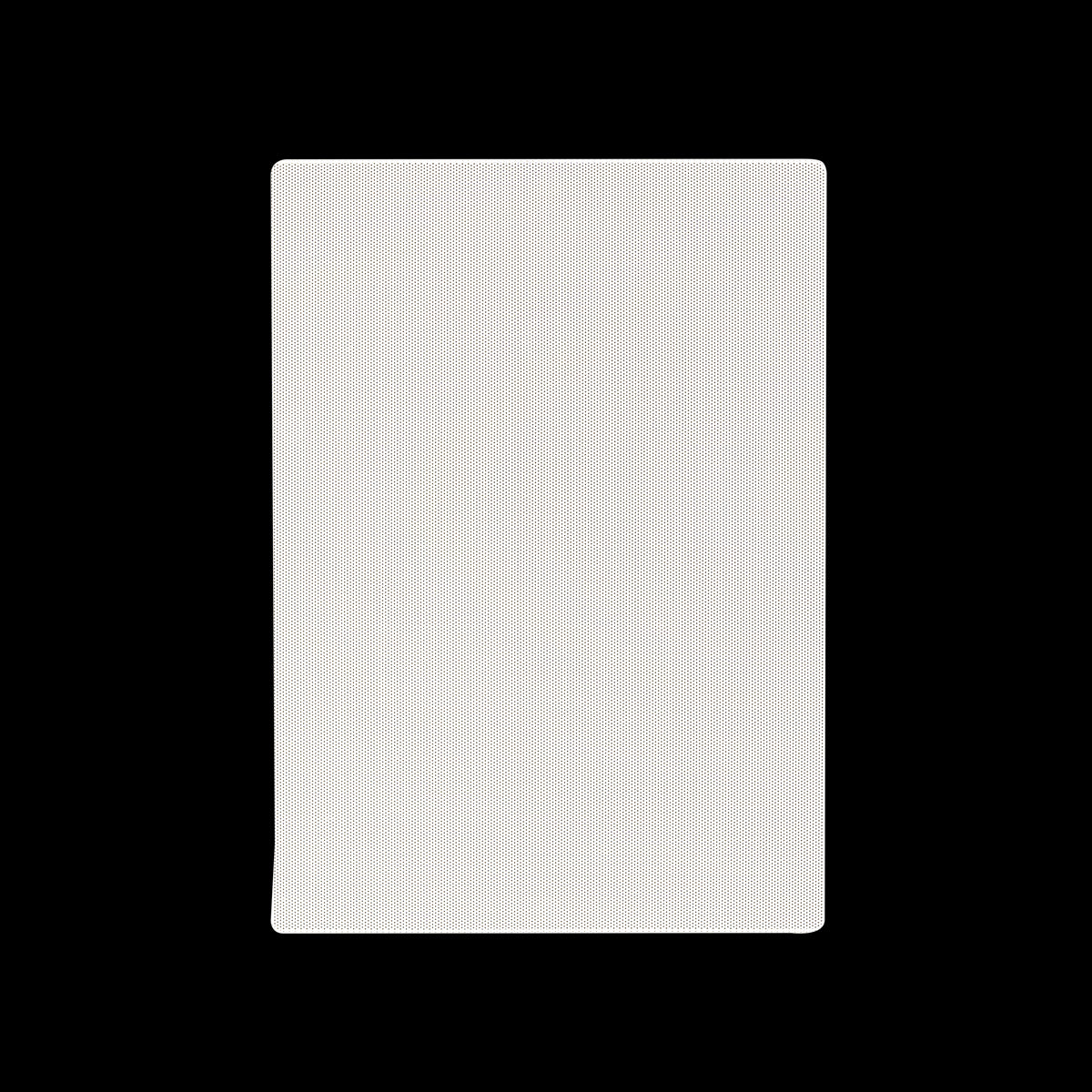

Discreet Paintable Bezel Free Grille

View full details

About The Paradigm CI Home H55-IW V2

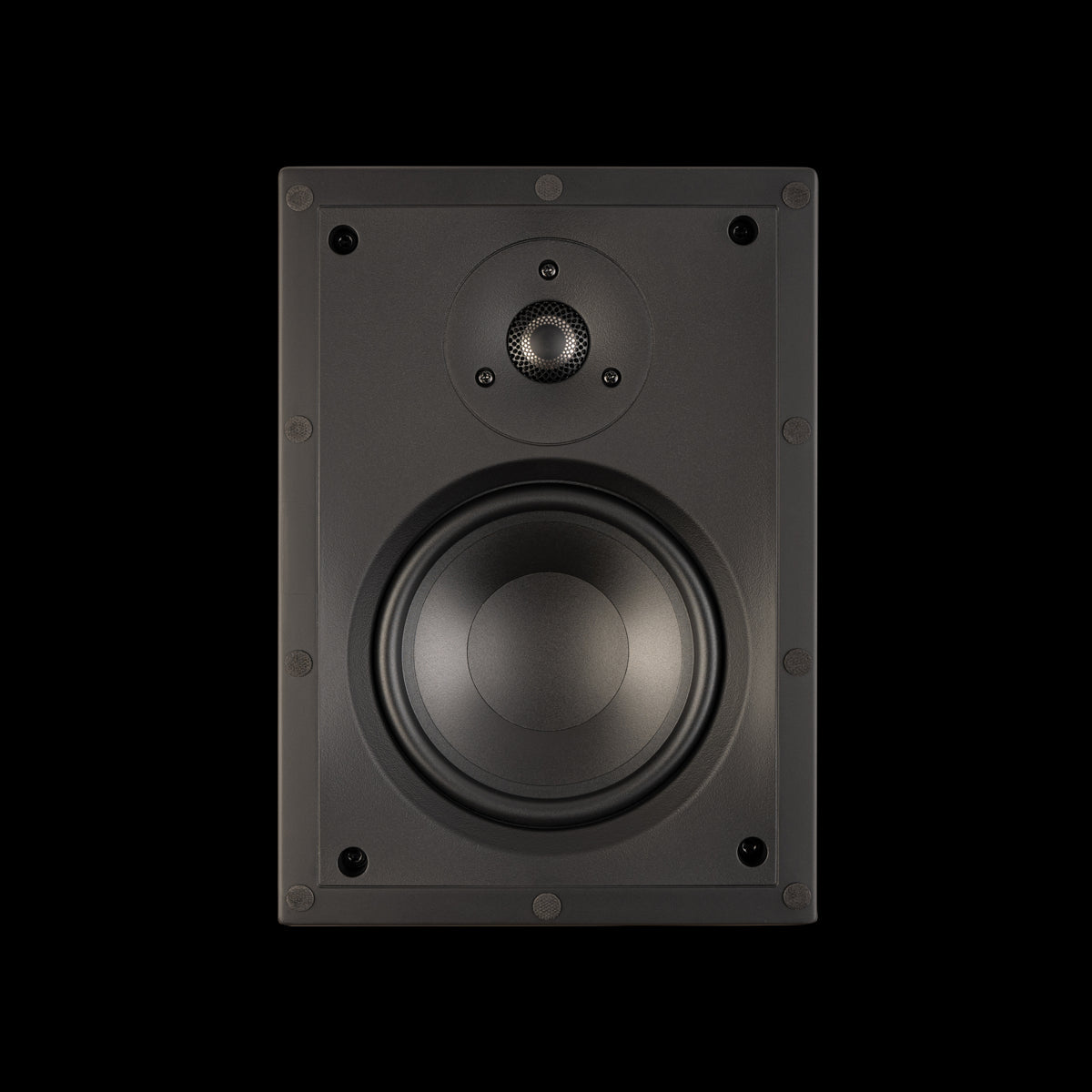

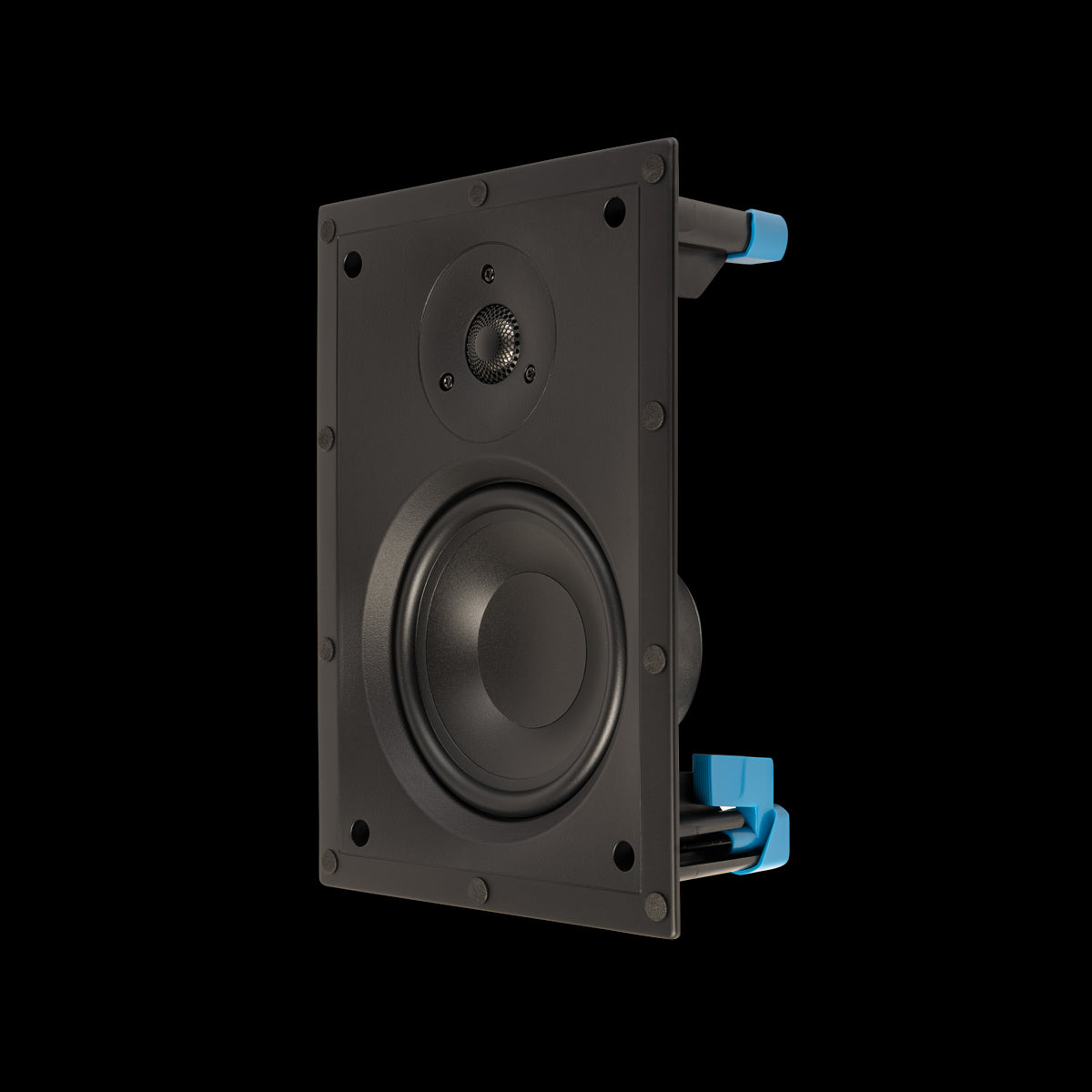

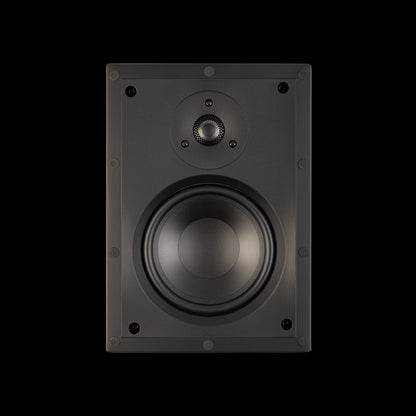

The H55-IW V2 In-Wall speaker is part of Paradigm's CI Home Series. The CI Home series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

Perforated Phase-Aligning Tweeter Lens Technology: The V2 features Paradigm's exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens technology. It acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output, all while protecting the delicate dome tweeter. CI Home tweeters are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Pure-Titanium Tweeter (PTD) Domes: Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Superior Mineral-Filled Polypropylene Bass/Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

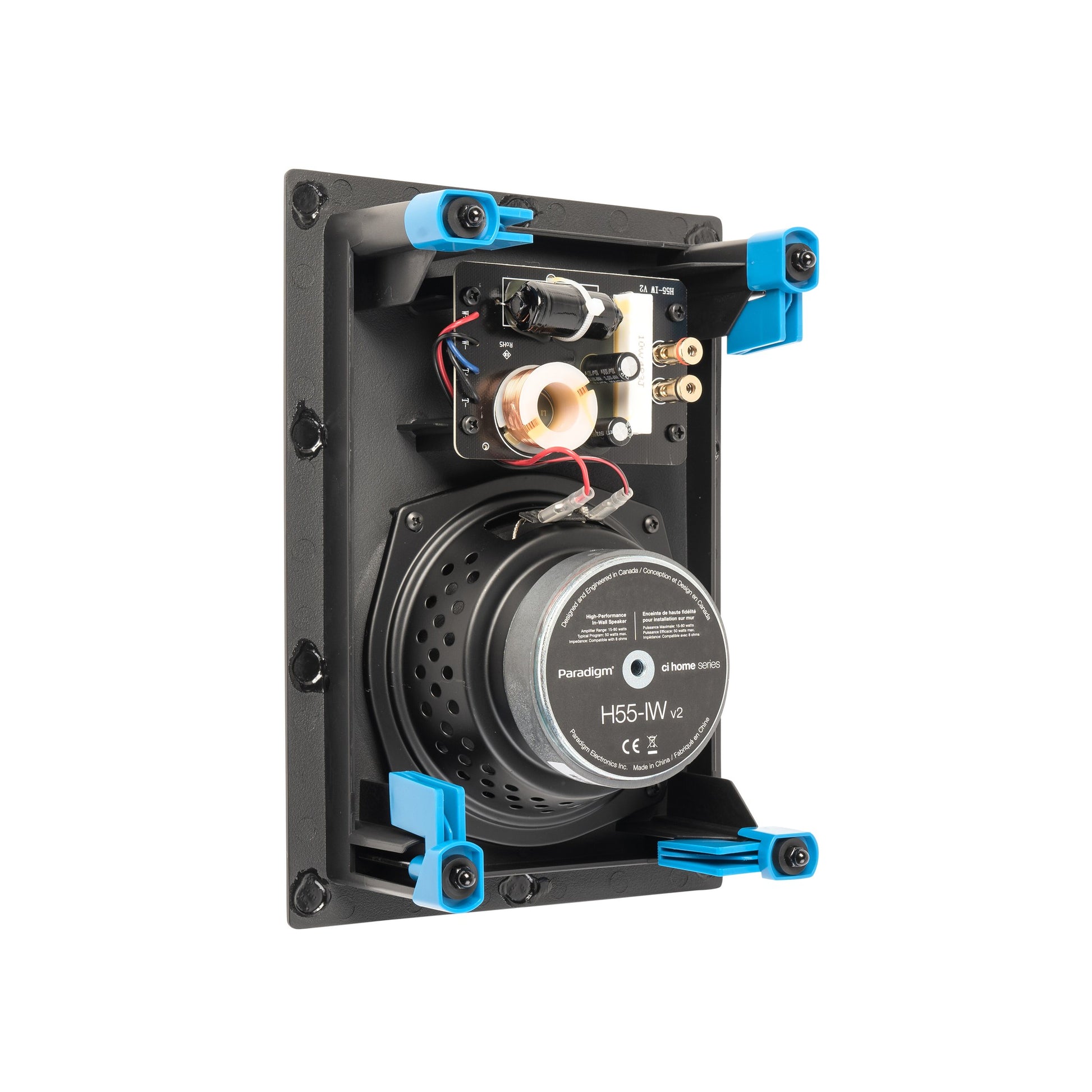

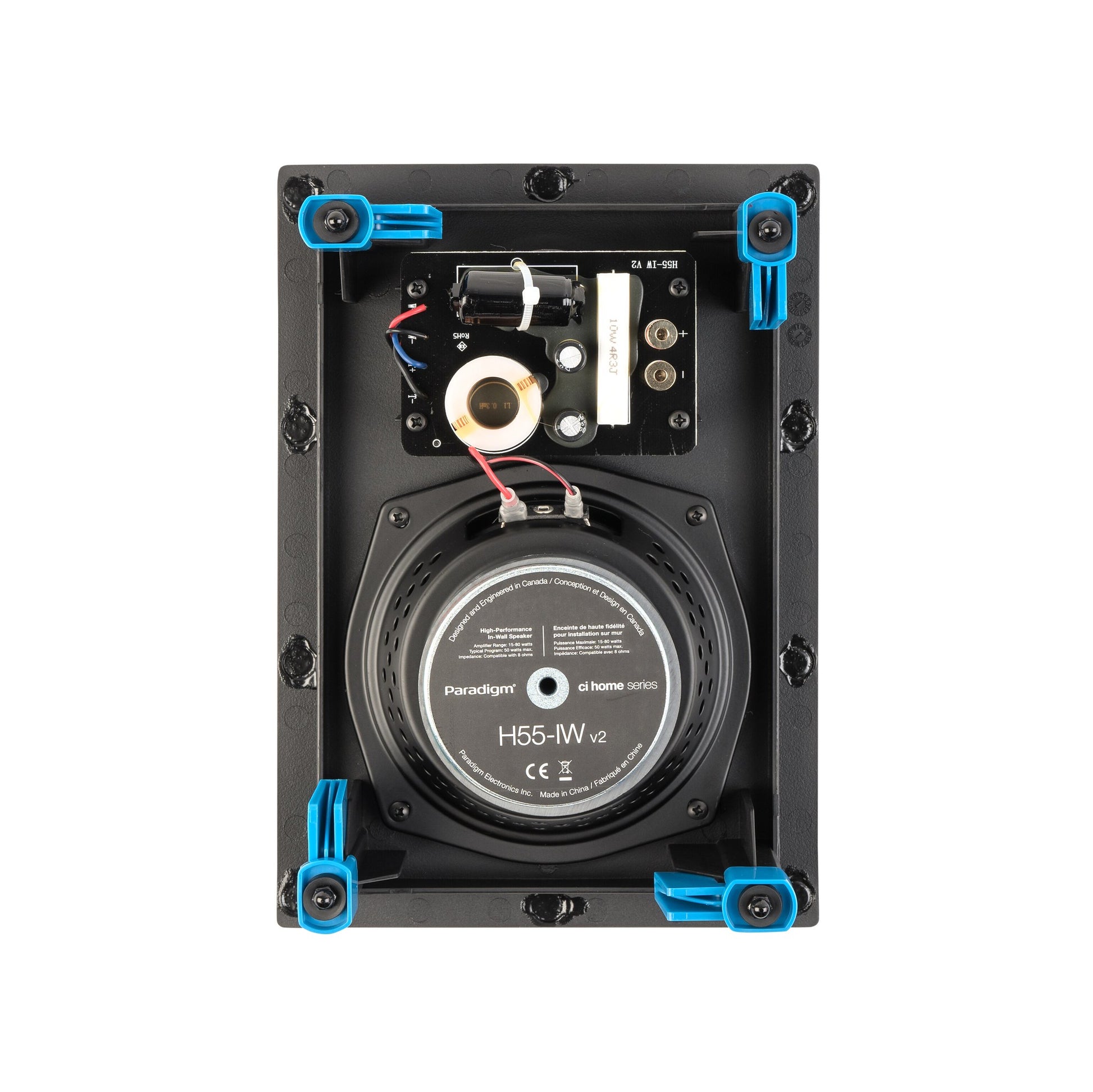

Rigid ABS Clamps: Simplify and reduce installation time.

Pocketed Screw Holes: Help to hold the drill steady, making installation a snap.

Magnetically Attached Grilles: neodymium magnets hold grilles firmly in place.

Easy-Access Binding Posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

Main Features & Specifications

  • Design: 2-Driver, 2-Way In-Wall Speaker - Sold Individually
  • ABS chassis & mounting clamps
  • Crossover: 2nd-order, electro-acoustic at 2.5 kHz
  • High Frequency Driver: 0.75" (19mm) PTD™ domes
  • Bass/Midrange: 5.5" (140mm) mineral-filled polypropylene cone, dual voice-coil
  • Low Frequency Extension: 60 Hz
  • Frequency Response (On Axis): ±2 dB from 75 Hz - 20 kHz
  • Frequency Response (30˚ Off Axis): ±2 dB from 75 Hz - 18 kHz
  • Sensitivity-Room: 88 dB
  • Sensitivity-Anechoic 84 dB
  • Suitable Amplifier Power Range: 15-80 Watts
  • Maximum Input Power: 50 W
  • Impedance: Compatible with 8 ohms
  • Finish: White, paintable grille
  • Overall Dimensions (WxHxD): 181 x 260 x 86mm
  • Cutout Dimensions (WxH): 156 x 233mm
  • Weight: 1.2 kg
  • Manufacturer's Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE
