Ortofon

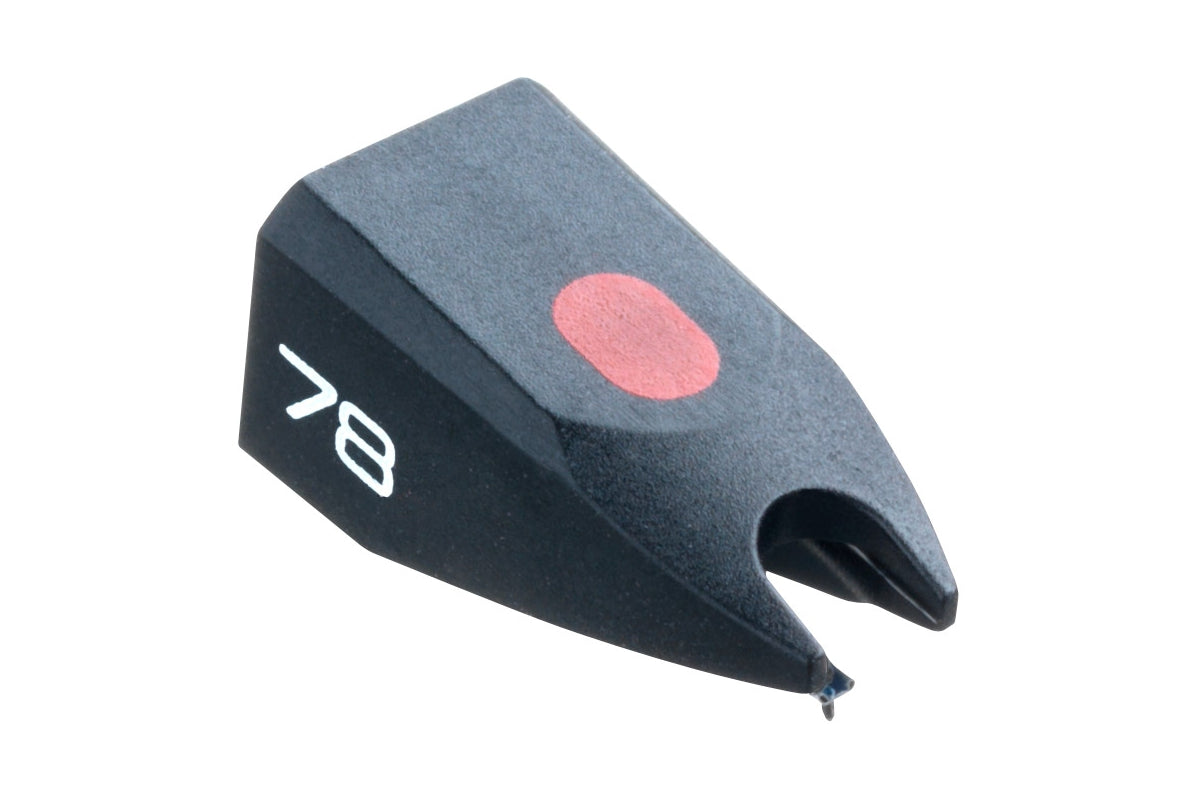

Ortofon Stylus 78

Ortofon Stylus 78

Regular price $139.00
Regular price Sale price $139.00
Sale Sold out
including GST Shipping calculated at checkout.

Despatched In 2 - 3 Days

This product is in stock at our supplier's warehouse and can be ready for pickup or immediate despatch within 2-3 days

Quick Info

Genuine Ortofon Replacement Stylus Suits a Large Number of OM-Series Cartridges

Spherical Tip, Designed to Play 78 RPM Records

Made In Denmark

View full details

About The Ortofon Stylus 78

Ortofon has always been working with sound reproduction. It was founded in Copenhagen, Denmark in 1918 and initially made soundtracks for movies. In 1948 Ortofon developed its first moving coil cartridge, since then more than 300 different cartridges have been developed and manufactured.

The Ortofon Stylus 78 is designed to play 78 RPM records. It will fit many many late model Ortofon cartridges including Super OM, OM, OMB, OMP, TM and Concorde models. This stylus features a polished spherical diamond tip for long playing life, excellent tracing of record grooves and superb rendition of voice and music. The stylus is an original Made in Denmark by one of the largest and most popular world brands. So don't spoil the performance of your Ortofon Cartridge with anything less than an original Ortofon replacement stylus.

Compatability: Ortofon Super OM, OM, OMB, OMP, TM and Concorde Cartridges

Main Features & Specifications

  • Frequency Range: 20-15,000 Hz
  • Frequency Response: 20-12,000 Hz +2/-3 dB
  • Tracking ability at 315Hz at recommended tracking force: 60 µm
  • Compliance, dynamic, lateral: 15 µm/mN
  • Stylus type: Sperical
  • Stylus tip radius: 65 µm
  • Equivalent stylus tip mass: 0.5 mg
  • Tracking force range 1.75 - 2.25 grams (17.5-22.5 mN)
  • Tracking force, recommended: 2.0 grams (20 mN)
  • Tracking angle: 20°
  • Stylus colour: Black
  • Warranty: 90 days - does not include mishandling or abuse

Ortofon OM Stylus History Chart

Below is a chart that denotes which Ortofon stylii were sold with which Ortofon cartridges, past and present. However, keep in mind that all these stylii are interchangeable. For example, if you have an old Ortofon TM 7U cartridge, you can order an Ortofon Stylus 20 or Stylus 30 and they will fit perfectly. Yes, there are differences in the respective anatomies of these cartridges, but upgrading the stylus will yield better sonic results.

Stylus Ortofon Cartridge Compatibility
40 OM 40; OM 40 Gold
30 Super OM 30; OM 30; OMP 30; OMB 30; LM 30; Concorde 30; SME 30H; LM 30H; TM 30H
20 Super OM 20; OM 20; OMP 20; OMB 20; LM 20; Concorde 20; LM 20H; TM 20U; TM 20H
14 TM 14U
10 Super OM 10; OM 10; OMP 10; OMB 10; OMT 10; LM 10; Concorde 10; Concorde EC 10; TM10H; LMB 12; SMB 12
 7 TM 7U
5E OM 5E; OMB 5E; OMP 5E; OMT 5E
 5 OM 5; OMB 5; LMA 5; SMB 5
3E OM 3E; OMP 3E
78 All Super OM; OM; OMP; TM; Concorde Cartridges For Playing 78rpm records
D25M All Super OM; OM; OMP; TM; Concorde Cartridges For Playing Micro-Groove records
