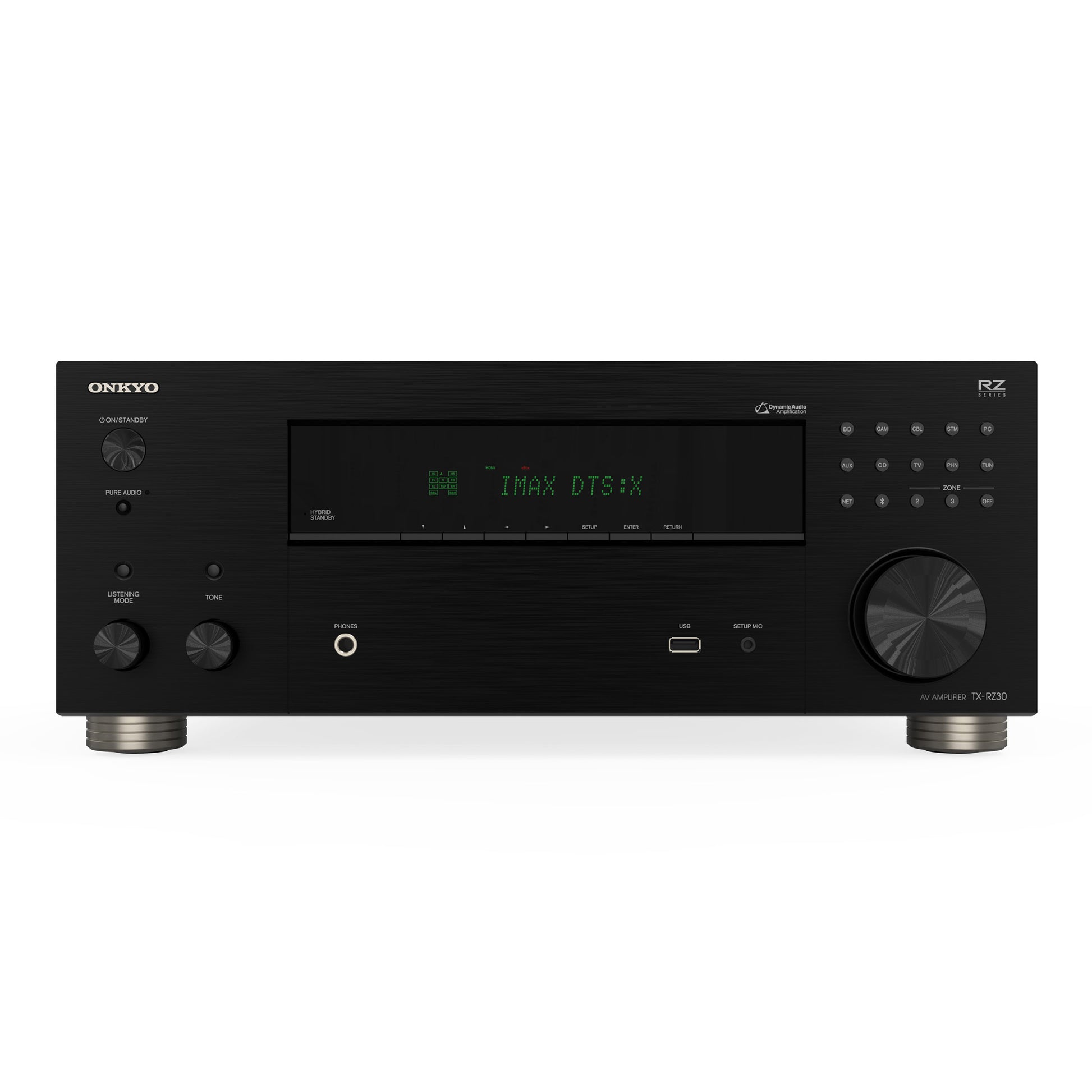

About The Onkyo TX-RZ30 Home Theatre Receiver
The Onkyo TX-RZ30 AV receiver delivers ultra-wide bandwidth and is packed with the latest technology for the home theatre of your dreams.
For nearly 80 years, Onkyo has been providing audiophiles with sounds that no other company can match. Thanks to unique analogue circuitry and high-end amplifier technology, the 9.2-channel Onkyo TX-RZ30 delivers your favourite content with out-of-this-world sound – with soaring highs and deeper bass. Fan favourite features like Dirac Live, Dolby Atmos, and IMAX Enhanced come standard with the Onkyo RZ Series AVRs to make it the heartbeat of your entertainment system.
Ultra-Wide Bandwidth via Custom High-Current Circuitry: Thanks to custom low-noise power transformers and smoothing capacitors, the TX-RZ30 hits rumbling lows (5 Hz) and stunning highs (100 kHz) for an expansive audio experience the competitors just can't match.
Perfectly Calibrated to your Space with Dirac Live: Dirac Live is an essential part of building an impressive home entertainment system. With a Dirac Live Room Correction Full Bandwidth license included right out of the box – and optional Bass Control upgrade available – you will experience user-friendly, perfectly calibrated audio from the get-go. Dirac Live Room Correction Full Bandwidth is capable of calibrating the full frequency range (20 Hz to 20 kHz) of music and movie sound. With optional Bass Control, subwoofer output is calibrated with all your other speakers to provide additional bass refinement and fine details, while enhancing mid and high frequencies that were previously inaudible.
IMAX Enhanced for a Vibrant, Lifelike Experience: IMAX Enhanced is a vital part of the premium home theatre experience, delivering object-based audio for precisely placed sound and movement in 3D space. Meanwhile their exceptional video quality comes from a proprietary algorithm that optimizes colour accuracy, contrast, and detail for a more vibrant and lifelike visual experience.
Immersive AV with Dolby Technology: Dolby Atmos transports you into the heart of the action by creating a 3D sound environment via object-based audio, allowing sounds to move freely in space, including overhead, for a truly immersive experience. Dolby Vision enhances every frame by dynamically adjusting brightness, contrast, and colour levels on a scene-by-scene basis. This ensures that every detail is rendered with astonishing accuracy, from the deepest shadows to the brightest highlights.

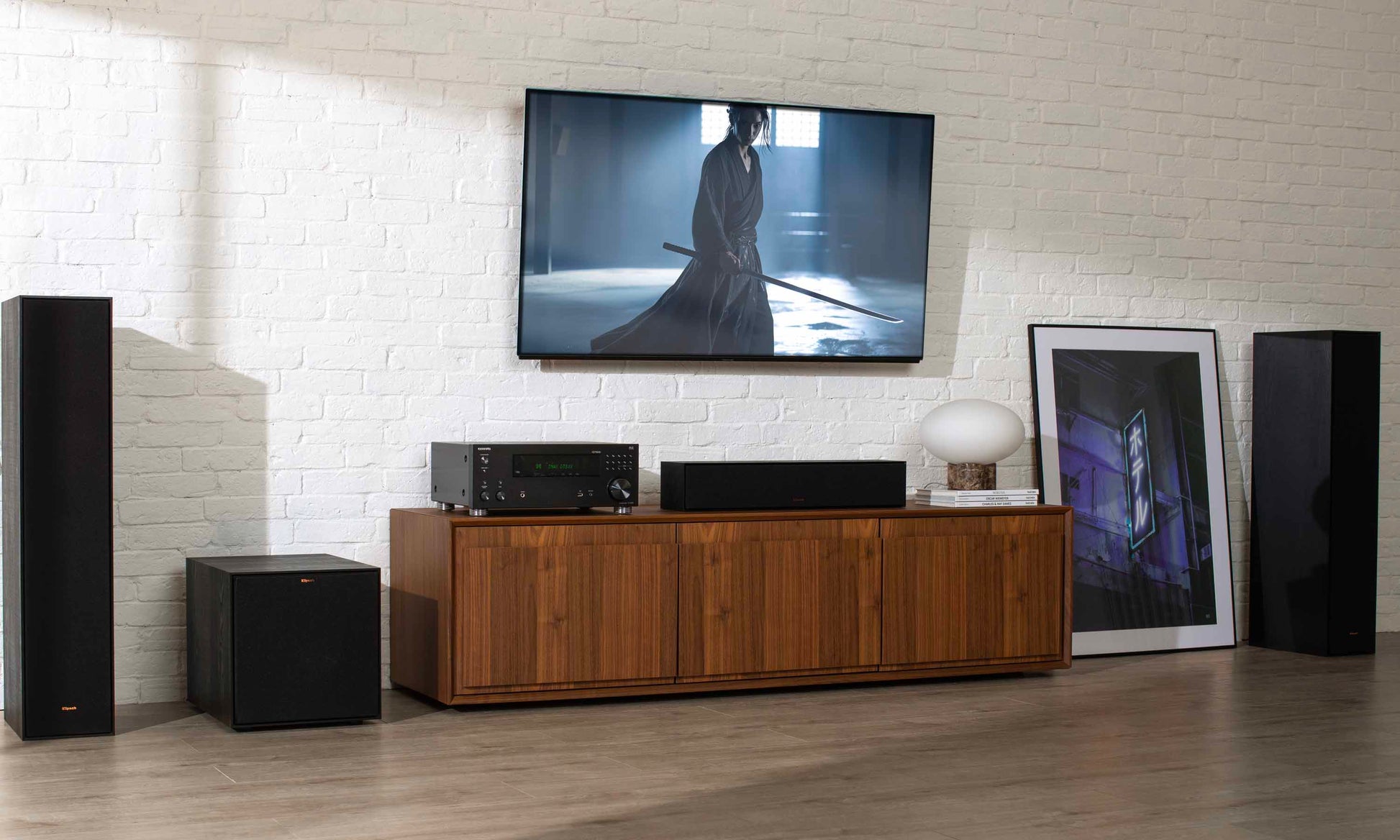

Home Theatre-Approved With 9.2-Channels: Onkyo's 9.2-Channel TX-RZ30 allows you to create the home theatre of your dreams with plenty of inputs for all your speakers.

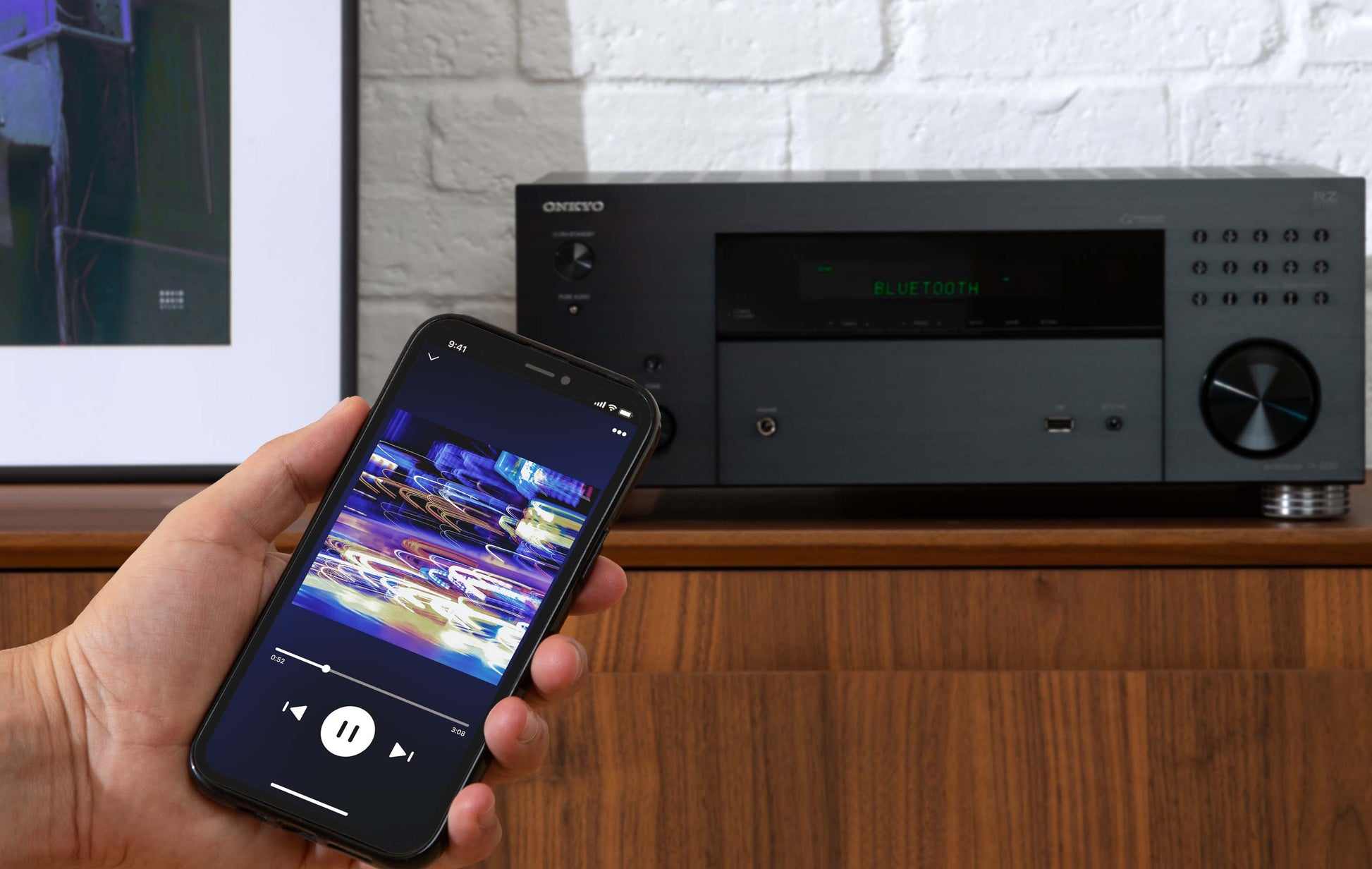

Built-In Streaming Works With Sonos®: The Onkyo TX-RZ30 includes all your favourite streaming apps for seamless playback of digital content through all 9.2 channels. Plus, with the addition of a Sonos port, high quality sound can be distribution through your Sonos wireless network.
Better Sound With Klipsch Optimize Mode: Klipsch and Onkyo teamed up to implement the precise crossover values for specific Reference Premiere speakers, allowing you to easily integrate their legendary products with your TX-RZ30.
Our Take
The Onkyo TX-RZ30 Home Theatre Receiver delivers an ultra-wide bandwidth and cutting-edge technology for an exceptional home entertainment experience. This 9.2-channel powerhouse is designed with unique analogue circuitry and high-end amplifier technology, producing soaring highs and deep bass that bring your favourite content to life. Equipped with advanced features like Dirac Live Room Correction for perfect audio calibration, Dolby Atmos for immersive 3D sound, and IMAX Enhanced for vibrant, lifelike visuals, the TX-RZ30 sets a new standard in home theatre in its class. With built-in streaming compatibility, including integration with Sonos®, and Klipsch Optimize Mode for seamless speaker pairing, the TX-RZ30 is a versatile and powerful hub for any premium audio setup.
Main Features & Specifications
- Design: Surround Sound Home Theatre Receiver with Dolby Atmos
- 100 W (8 Ohms, 20Hz-20kHz, THD0.08%, 2ch Driven)
- 9.2 Channel Processing
- 9 Channels of Amplification
- Class AB Amplifier Design
- Frequency Response: 5Hz-100kHz (+1/-3dB)

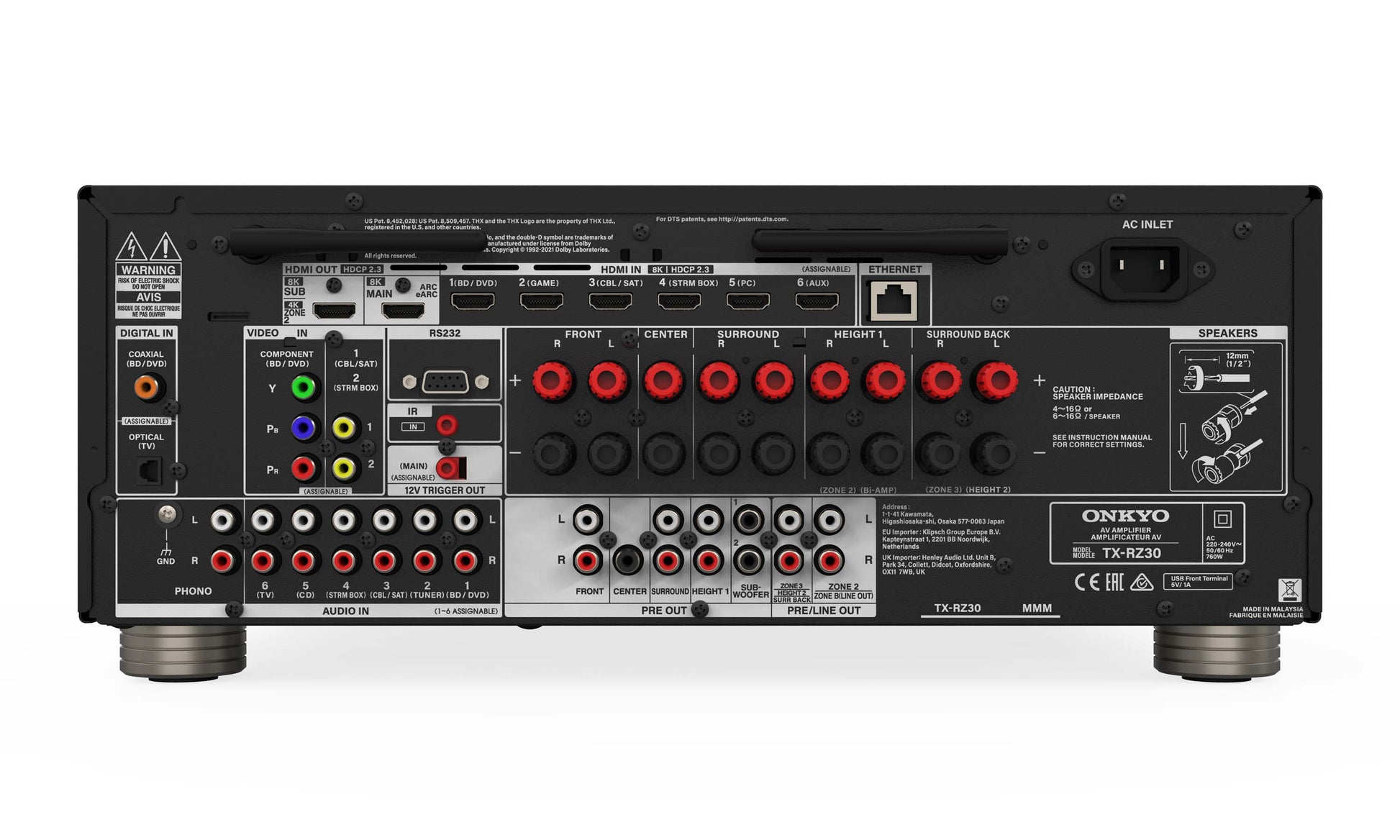

HDMI & Video Inputs
- HDMI: 6 In / 2 Out (eARC)
- 8K/4K Ultra HD
- Dolby Vision, HDR10+, HDCP 2.3, HDMI 2.1a VRR, QFT, ALLM, SBTM
- 1 Component, 2 Composite
Audio In/Out
- 6 RCA, 1 RCA Phono
- 1 Optical Digital, 1 Coaxial Digital
- 2 Channel Pre Outs (2 Independent subwoofer outputs)
- Zone 2 Stereo RCA
Surround Modes
- Dolby Atmos, Dolby Surround
- DTS:X, Neural:X
- IMAX Enhanced
Streaming
- Roon Tested
- Chromecast built-in
- AirPlay 2
- Spotify
- Amazon Music HD
- Tidal
- Deezer
- TuneIn
Technical Features
- Wi-Fi/Bluetooth®
- Dirac Live® Room Correction Full Bandwidth License Included
- Optional Dirac Live® Bass Control
- Works with Sonos – w/Volume Pass-Through
- THX® Certified for Theatre Reference Sound
- Klipsch Optimized Mode
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance
General
- Power Consumption: 760W (50W Idle, <2W Network standby)
- Dimension (WxHxD): 435 x 177.5 x 382.5mm
- Weight: 11.5 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
