About The Klipsch KDA-1000 DSP Power Amplifier
For outdoor systems requiring more output, the Klipsch KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single-rack unit solution - all completely customizable through the web-based DSP menu.
The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA-1000 offers 1000W of class G/H power, for clean, dynamic power in any type of install.
70V / 100V / Low Impedance Compatibility: From small residential systems to massive commercial installs, the Klipsch KDA-1000 is designed for maximum install flexibility – offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independent from channel to channel – so an installer can run one channel low impedance with another channel 70V/100V for full customization and optimization of their system.

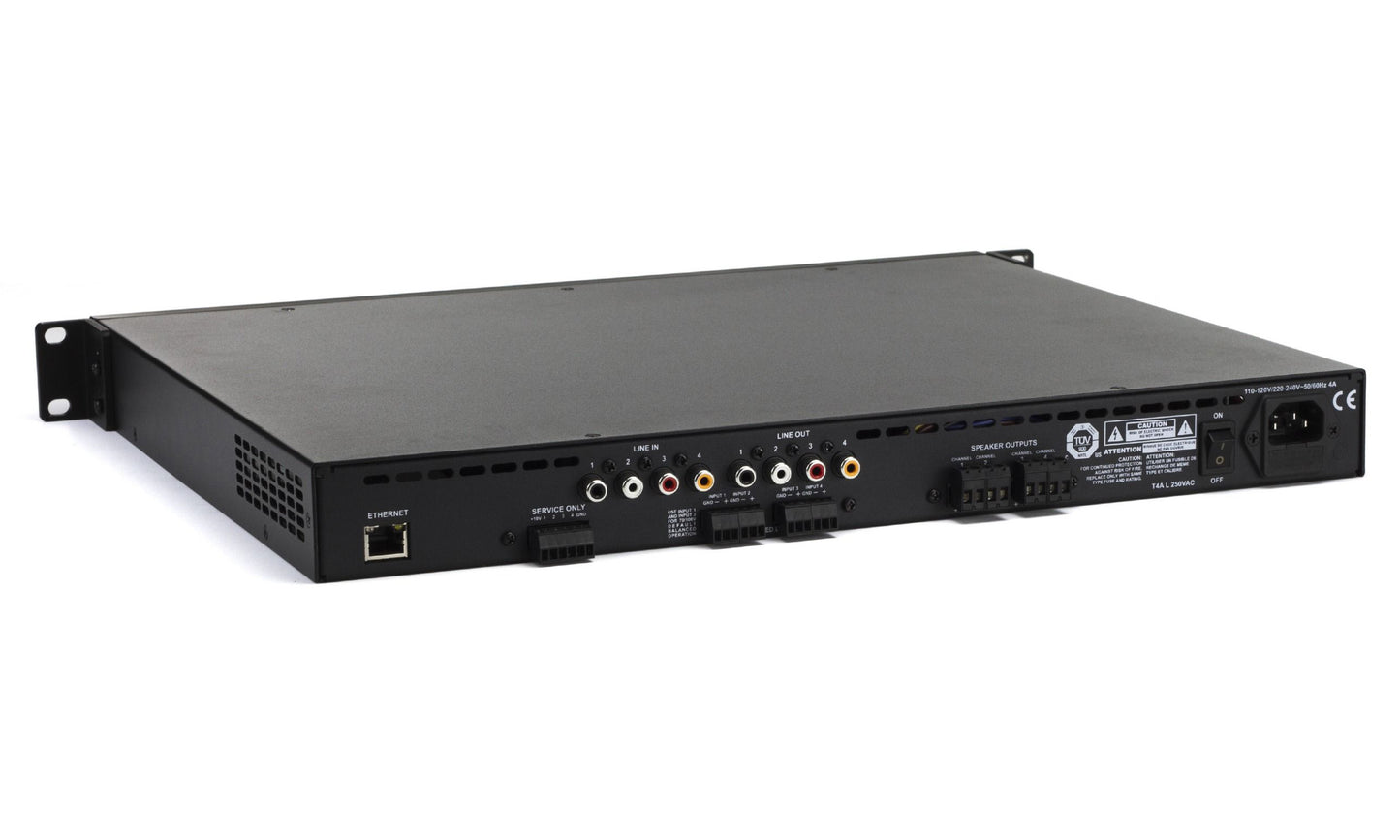

Flexible Inputs/Outputs (I/O): The KDA-1000 boasts fully matrixed 4x4 I/O with fully balanced Phoenix connector inputs and Phoenix speaker outputs capable of connecting up to 12 gauge wire. For non-balanced connections, RCA inputs and outputs (throughs) are also built-in, making the KDA-1000 one of the most flexible power solutions on the market today.
State-Of-The-Art DSP Control & Set-Up: The myriad of I/O, impedance, and acoustic settings are fully matrixed and customizable through the web-based DSP menu - simply plug in a laptop computer to the RJ-45 port on the back panel of the amplifier, enter the assigned IP address into your favourite web browser to pull up the easy-to-use, streamlined menu page. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Klipsch speaker on the market – optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when the KDA amplifier is plugged into the network's wireless router.
Main Features & Specifications
- Design: Professional Power Amplifier
- Amplifier Type: High Efficiency Class G/H
- Amplifier Power
- 1000W Total System Power
- 4 x 250W Per Channel
- Inputs
- Balanced: 4 x Phoenix Line Level (up to 12 AWG wire)
- Unbalanced: 4 x RCA Line Level
- Outputs
- 4 x Phoenix Speaker Level (up to 12 AWG wire)
- 4 x RCA Line Level (Throughs)
- Input Sensitivity: 750mV Balanced, 0dBU
- Input Impedance: Balanced 40k
- THD: <1% @ Rated Output
- Signal-To-Noise: -100dB Below Rated Output
- Enclosure Material
- Front Face: ABS Plastic
- Case: Machine Formed Steel
- Rack Unit: 1RU
- Mounting: Removable 1RU Rack Ears, Removable Rubber Feet
- Dimensions (WxHxD): 483 x 44 x 363mm
- Weight: 6.82 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
