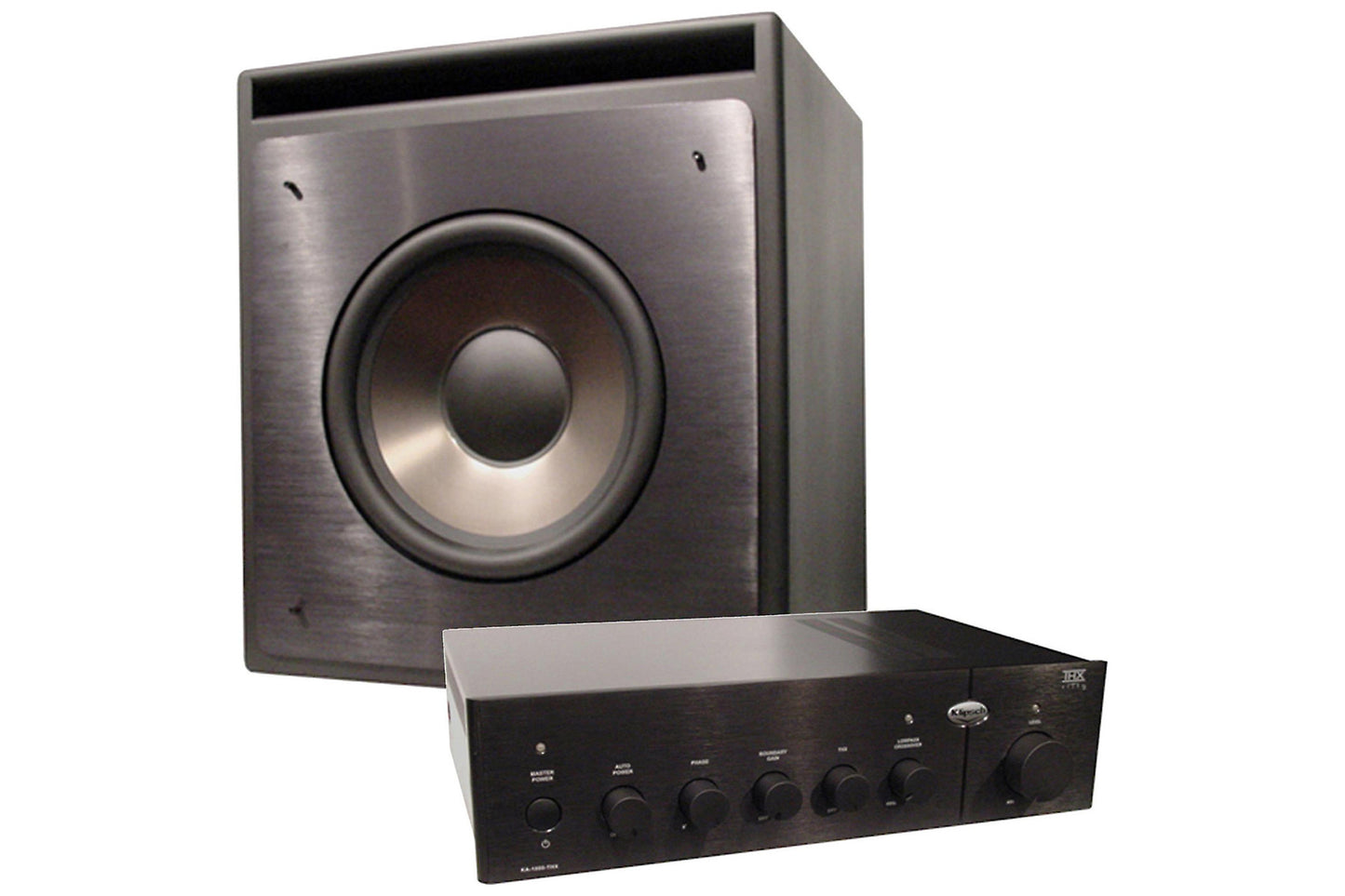

About The KA-1000-THX Subwoofer Amplifier
The KA-1000-THX subwoofer amplifier is the powerful driving force behind the new Klipsch THX Ultra2 system. This model offers rock-solid dependability under the most demanding conditions and allows listeners to experience all the power, detail and emotion of their favourite music and movies.
This full-featured Class D amplifier, which can be conveniently located near the rest of the installation's electronics, has a built-in, defeatable, low-pass crossover and level control, boundary-gain compensation switch, completely variable phase control, and an auto power function. This high-performance amplifier has a massive toroidal power supply that is capable of delivering 1000-watts into a 4 ohm load. It can also support two high performance subwoofers and has a left and right RCA pass-through.

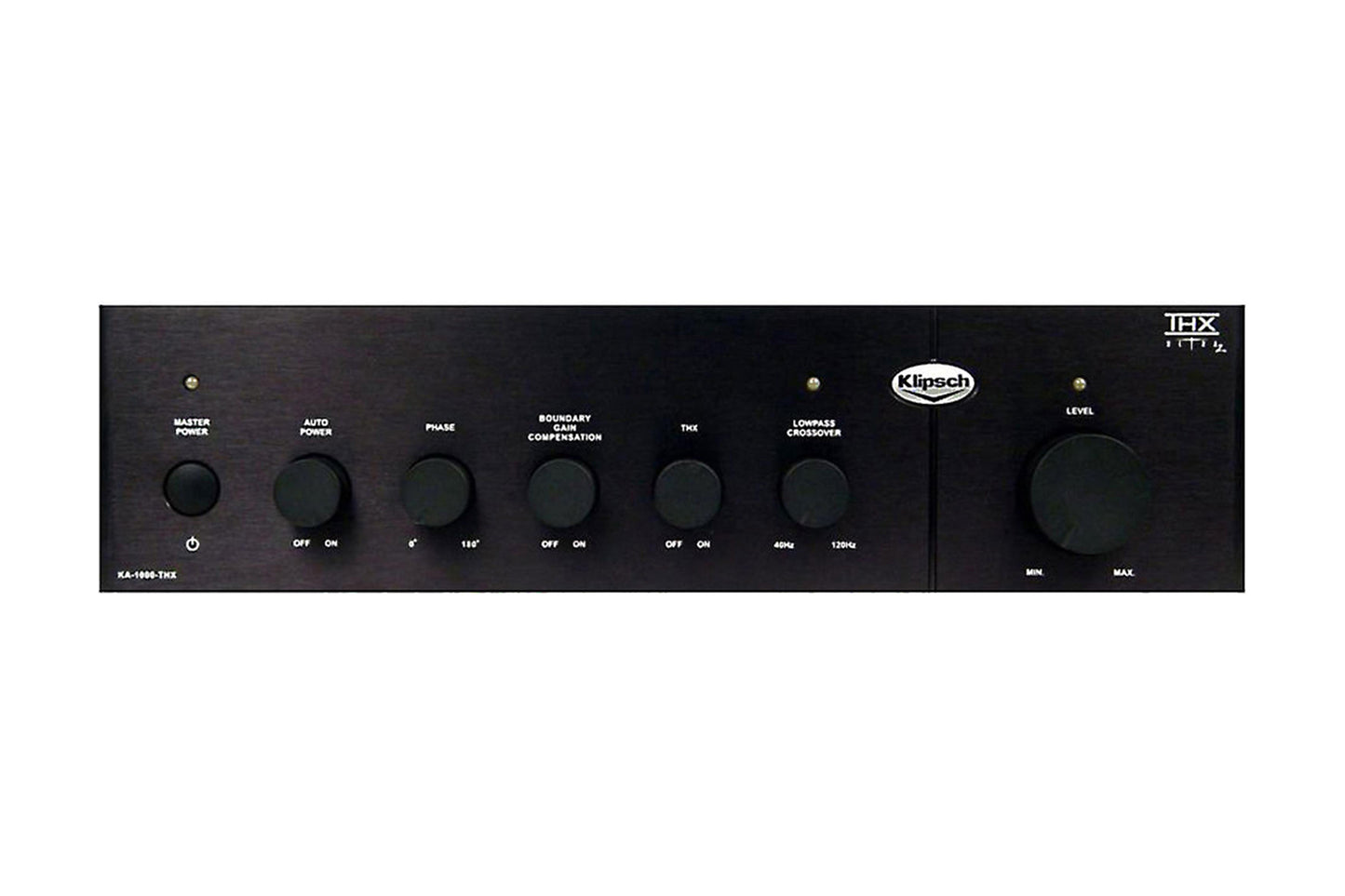

Convenience features include a selectable signal-sensing auto-on/off circuit, a front-panel main power switch and LED status indicators for crossover and level control operation. Matching the look of Aragon home-theatre components, the KA-1000-THX has a black anodized, grained-aluminium front panel with aluminium control knobs. Premium electronic components are used throughout for sonic purity and reliability.
Main Features & Specifications
- Design: THX Ultra2 Certified Subwoofer Amplifier
- Frequency Response: 20Hz-1kHz +0/-3dB
- Amplifier: High-Efficiency Class D
- FTC Rated Power: 500W into 8 ohms, 1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
- Dynamic Power: 2050W into 8 ohms, 3025W into 4 ohms @ 5% THD
- Low Pass Crossover: Continuously variable from 40-120Hz, 24dB/octave slope above 120Hz (non-THX mode)
- Inputs: 2 Gold-plated RCA phono jacks
- Outputs: 2 Gold-plated RCA phono jacks (unfiltered) / 2 Speakon NL2 jacks
- Phase: Continuously variable from 0 to 180 degrees
- Dimensions (WxHxD): 445 x 121 x 311mm
- Weight: 12.3kg
- Manufacturers Warranty: 1 Year
Note: Features & Specifications Subject To Change Without Notice. E&OE
