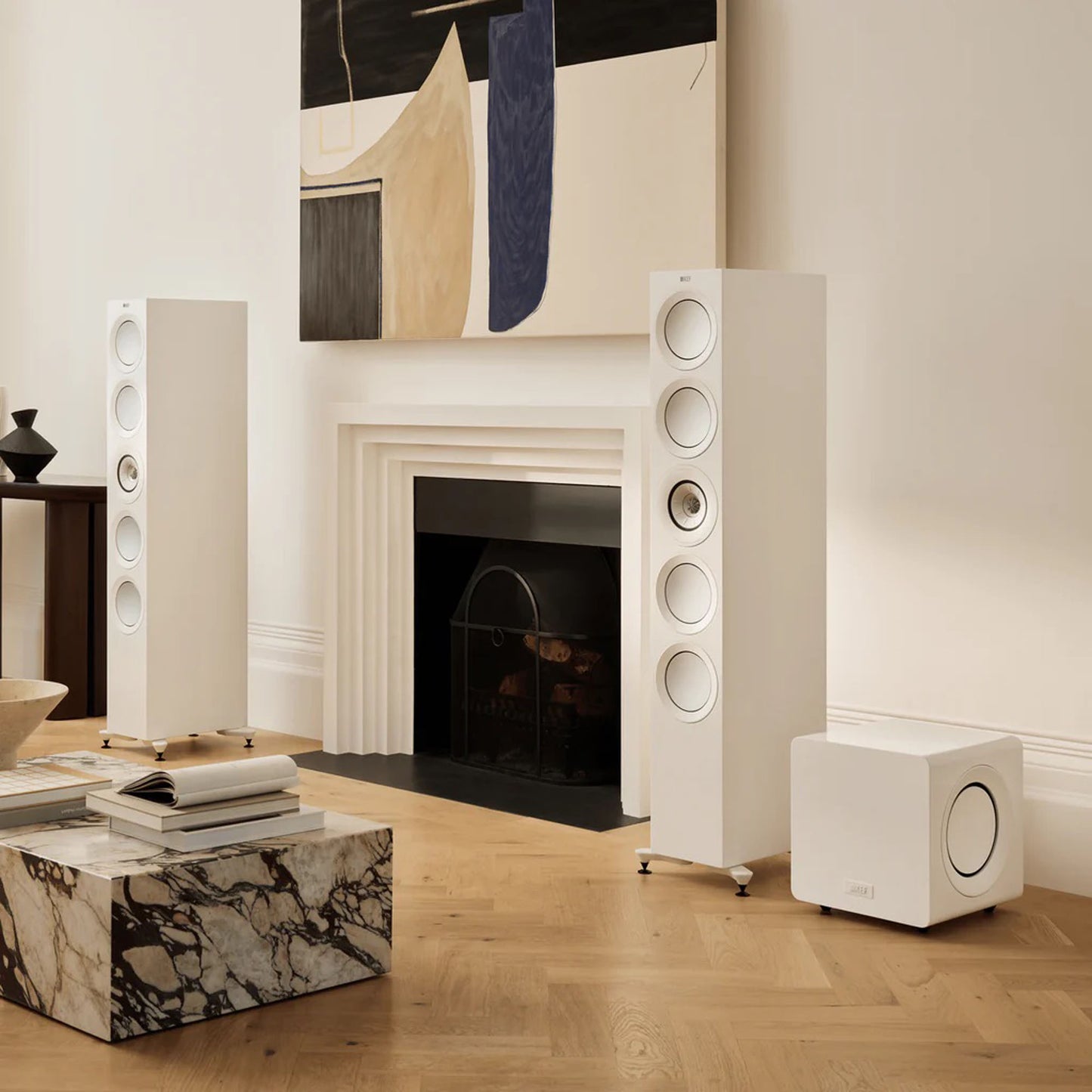

About The KEF KC92 Subwoofer
When it comes to bringing the bass, the KC92 subwoofer excels. Compact and robust, its optimised performance now propelled by the Music Integrity Engine® (MIE) for even cleaner, more detailed sound. Surpassing expectations for its size the KC92 achieves powerful, quick articulation through a dual driver in a force-cancelling configuration, cutting edge technologies from KEF's award-winning loudspeakers. An immersive, ultra-dynamic listening experience for both music and movies, the KC92 sound goes beyond sensation.
Music Integrity Engine® (MIE) – KEF's Proprietary DSP Algorithm: When it comes to speakers, accuracy is everything. Thanks to KEF's proprietary Music Integrity Engine, KC92 delivers more depth, greater output and increased dynamism than ever. KEF's Music Integrity Engine is a proprietary suite of in-house written DSP (Digital Signal Processing) algorithms, serving as the mastermind behind the detailed and accurate sound that characterises KEF's wireless speakers and subwoofers. Tailored for each model, this ensures that every component works in perfect harmony to an even higher level than would otherwise be possible.
iBX Intelligent Bass Extension: iBX Intelligent Bass Extension creates an extended depth that unlocks the full potential of the custom driver. By analysing your input signal, iBX allows the subwoofer to play louder and remain dynamic at any listening level.
P-Flex Surround: Incorporating the patent-pending P-Flex Surround, inspired by the Japanese art of Origami, this unique design resists acoustic pressure without compromising sensitivity. The pleated structure, akin to Origami folds, resists internal air pressure, allowing the driver to move precisely as dictated by the audio signal. The result is deeper bass extension and more accurate, detailed bass reproduction.
Distortion-Free Depth: The KC92 features two 9-inch (229 mm) drivers. Their hybrid structure, with a shallow, concave aluminium skin atop a paper cone, boasts a substantial motor system and a vented design in the voice coil. This design achieves linearity and vanishingly low distortion, ensuring every detail is uncovered regardless of volume. With optimised excursion characteristics, the KC92 achieves depths of 11Hz with fluidity and scale.
Power and Precision in Tandem: The two drivers in the KC92 are positioned back-to-back in a force-cancelling configuration. This design neutralises out reactive forces, minimising cabinet vibration and maximising accuracy and detail. This ingenious configuration enables an immense volume capacity, facilitating sound pressure levels of 110 dB from a compact, sealed cabinet – a perfect balance of form and function.
Turn Up The Power: In a subwoofer, power goes beyond mere volume. The KC92 possesses immense power that fills almost any domestic space, with audiophile-quality 1000W of Class D amplification (a dedicated 500W amplifier for each driver). With great power comes incredible control, improving timing accuracy and dynamic response for a more detailed sound and the ability to deliver sudden bursts of power precisely when needed.
Well Connected: With a diverse range of connection options, the KC92 adapts effortlessly to almost any audio system. Featuring line level and speaker level inputs, it can be connected to any amplifier. KEF SmartConnect intelligently determines whether a mono or stereo input is being used, optimising the gain for optimum performance. The line output with High Pass Filter (HPF) allows for exceptional fine-tuned integration. Additionally, it is compatible with the KW1 for simple wireless integration.
Tailored Soundscapes: The Five Preset Room Placements: Thanks to the Music Integrity Engine (MIE), the KC92 features a powerful placement-dependent EQ setting. Easily fitting into any environment or listening room, the five pre-set Room Placement Equalisation feature ensures consistent performance, whether placed in free space, next to the wall, in a corner, snug within a cabinet, or using the dedicated apartment mode.
Power Tailored to Your Preference: Select from three power modes to suit any system with the KC92. The 12V trigger provides automatic wake-up when connected devices are turned on, music sense allows the KC92 to wake up from standby when an audio signal is detected, and 'always on' mode ensures the subwoofer is primed and ready to play immediately. This flexibility offers a choice of power-on modes to suit the system requirements.
Easy Firmware Update: The KC92 features a USB-C input, enabling convenient firmware updates for future enhancements. Users can easily bring the KC92 up to the latest specifications from the comfort of their own homes, fully utilising its capabilities for the best possible experience.
As Beautiful on the Outside as Within: Sounding good is only part of the deal. The KC92 also looks the part with its compact, sealed box construction, improving flexibility of positioning, speed, and clarity of performance. The low-profile heatsink, inspired by the award-winning LS50 Wireless II, assists with positioning while ensuring that high-performance electronics are kept in optimum conditions. With a minimal and timeless design, the KC92 is easy to match with any speakers, available in Black Gloss and White Gloss to work beautifully with any interior.
Our Take
The KEF KC92 Subwoofer sets a new standard in delivering exceptional bass performance in a compact and robust design. Enhanced by the Music Integrity Engine® (MIE), this subwoofer goes beyond expectations, providing a powerful and articulate sound experience for both music and movies. The proprietary DSP algorithm, MIE, ensures accuracy and depth in sound reproduction, while the iBX Intelligent Bass Extension unlocks the full potential of the custom drivers. The proprietary P-Flex Surround, inspired by Origami, resists acoustic pressure without compromising sensitivity, resulting in deeper bass extension and more accurate reproduction. With two 9-inch drivers featuring a hybrid structure, distortion-free depth is achieved, reaching depths as low as 11Hz with fluidity and scale. The force-cancelling configuration of the drivers maximizes accuracy and detail while minimizing cabinet vibration. Boasting 1000W of Class D amplification, the KC92 combines immense power with precision, offering three power modes to suit any system. With versatile connectivity options, tailored EQ settings, and a sleek design, the KC92 is not just a powerhouse of sound but also an aesthetic addition to any audio system.
Main Features & Specifications
- Design: Powered Subwoofer
- Acoustic Design: Force Cancelling
- Drive Units: 2 x 9" (229mm) Drivers
- Frequency Response (±3dB): 11Hz – 200Hz
- Max Output: 110dB
- Amplifier Type: Built-In Class D
- Amplifier Power: 1,000 Watts RMS (2 x 500W RMS)
- Variable Low Pass Filter: 40Hz – 140Hz, LFE
- Inputs
- Expansion Port for KW1
- RCA Sockets
- Speaker Level Inputs
- Power Requirements: 100 - 240 V ~ 50/60 Hz
- Power Consumption
- 1,000W (operating power)
- <0.5W (standby power)
- Connect to your system wirelessly with the optional KEF KW1 Wireless Subwoofer Adapter Kit (sold separately)
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance
- Available Finishes: Gloss Black or Gloss White
- Dimensions (WxHxD): 330 x 352.5 x 360.5 with rear panel and feet
- Weight: 20 kg
- Manufacturer's Warranty: 5 Years on Passive Components & Cabinets, 2 Years on Electronics + 1 Extended Year When Registered at KEF
Note: Features & Specifications Subject To Change Without Notice. E&OE.
