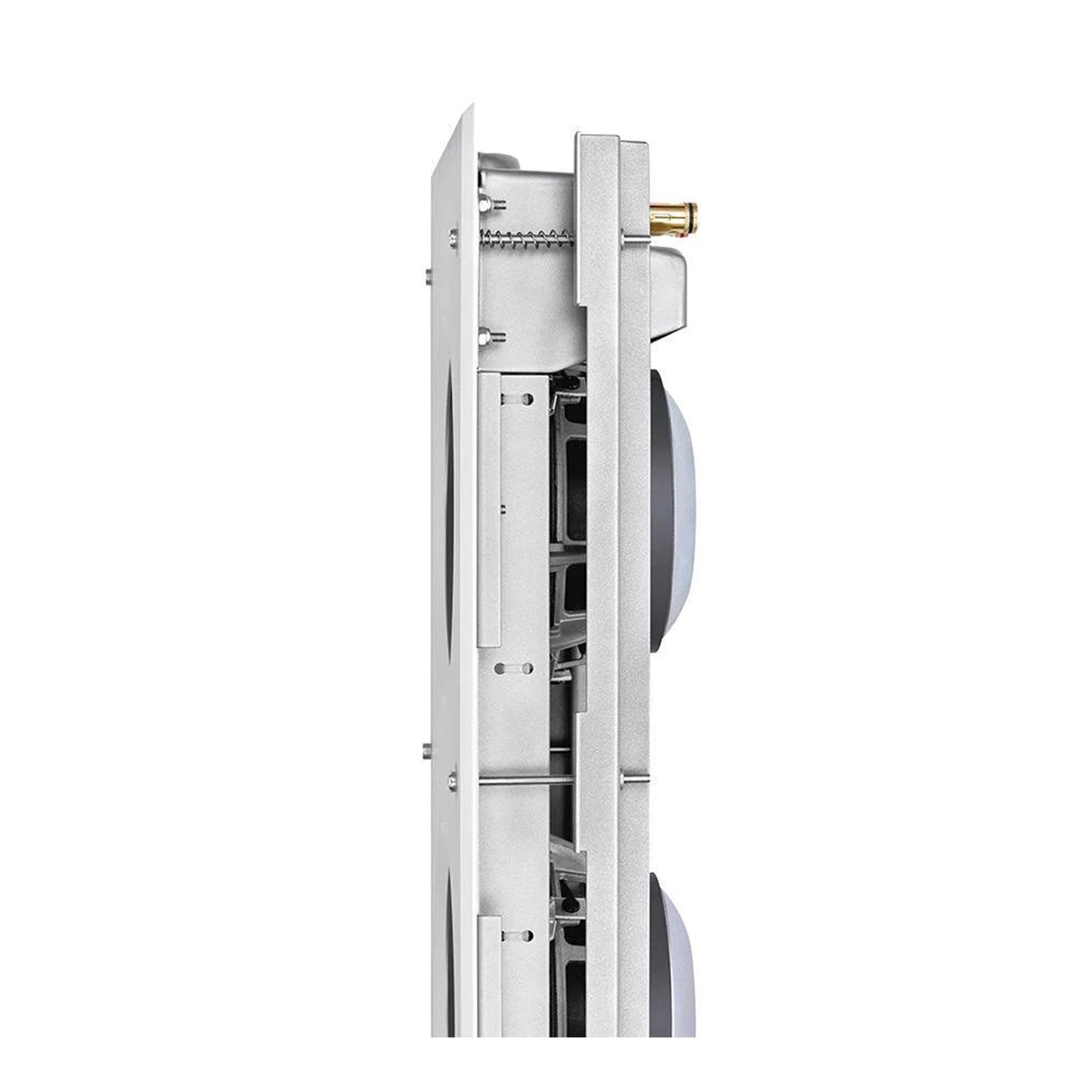

KEF Ci3160RLb-THX In-Wall Subwoofer

About The KEF Ci3160RLb-THX In-Wall Subwoofer

For the ultimate in Extreme Home Theatre, THX Certified to the level of Ultra and Select, the formidable KEF Ci-R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.

With three high-output 6.5" (165 mm) sub-bass drivers mounted to a massive aluminium baffle the Ci3160RLb-THX needs to be matched with KEF's powerful KASA500 system amplifier. Each KASA500 can power up to two of the Ci3160RLb-THX subwoofers for even the most demanding theatre installations.

Since 1961, KEF has been dedicated to faithfully reproducing sound in its purest form – just as the artist intended. Decades of experience in acoustic innovation on the quest for music perfection now combine in the Ci-R Series: delivering sound with unrivalled detail and depth that consistently sparks excitement with every encounter.

Ci-R series speakers are built to the same exacting standards as R Series, which is a direct beneficiary of the technological innovations developed for The Reference, the class-leading series that continually set the benchmark for loudspeakers and sound reproduction.

THX Certified: Ci3160RLb-THX is a THX Certified Ultra in-wall subwoofer. A deep understanding of the filmmaking process and surround sound is at the very heart of every THX® certified speaker system. Engineered with design characteristics of professional studio speakers, THX® recreates the tonal balance of the filmmaker's final mix in your living room. The results? Action sequences are impactful, and dialogue-driven moments are natural and engaging.

THX® certified subwoofers deliver the appropriate frequency response and high output and imaging quality of a traditional box speaker. This provides the best of both worlds - THX® surround sound performance from components that blend harmoniously with any interior.

Total Attention To Detail: Ci3160RLb-THX is designed to be both acoustically and visually exceptional, meticulously refined and engineered to KEF's unparalleled standards.

The 5.5mm thick, precision-machined aluminium baffle of Ci3160RLb-THX is not only a mark of quality and aesthetic excellence, but also eliminates vibration and provides a stoic platform for the drivers to perform at their best.

Hide Your Speakers, Not Your Sound: 'Hide your speakers, not your sound' is the concept behind KEF's comprehensive range of architectural speakers. Ci3160RLb-THX is engineered with best-in-class acoustic performance and designed to be discreet in appearance with its paintable magnetic metal grille, delivering an immersive soundscape via speakers that blend into the interior design. Available in Aluminium Silver, a black cloth magnetic grille is also available as an accessory.

Our Take

KEF's Ci3160RLb-THX installed subwoofer offers incredible sonic performance whilst remaining visually discreet, and it is engineered to partner any of KEF's architectural speaker ranges. Plus, when powered by KEF's DSP-driven KASA500 install audio system amplifier, the Ci3160RLb-THX, subwoofer achieves the intense bass performance levels required for THX Certified Select and THX Certified Ultra (dependent on configuration).

For the consummate handy man or woman, installing the Ci3160RLb-THX is a relatively straight forward DIY job. Alternatively, if this sounds like the sort of job you'd prefer a professional to take care of, please email us at shop@audiotrends.com.au for a quote on delivery and installation in Metropolitan Melbourne.

Main Features & Specifications

• Design: 3-Driver In-Wall Subwoofer – Sold Individually
• Three Hybrid Aluminium Bass Drivers for tight, deep, controlled bass
• THX® Certified Ultra for high impact cinema sound
• Discreet design allows for easy blending into the room
• Supplied with an Aluminium Silver paintable magnetic metal grille that fits effortlessly into any interior
• Optional black cloth grille available

Technical

• Nominal Impedance: 4Ω
• Sensitivity (2.83V/1m): 92dB
• Frequency Response (±6dB) Open-Backed: 20Hz - 140Hz
• Max SPL (dB): 110dB
• Crossover Frequencies: 640Hz, 2.6kHz
• Drive Units: 3 x 165mm (6.5") Hybrid Aluminium Bass Drivers
• Amplifier Requirements: KEF KASA500
• THX Certification: THX® Certified Ultra
• Optional Rough In Frame: RIF3160L
• Wall Thickness (Maximum): 40mm
• Wall Thickness (Minimum): 6mm
• Mounting Depth from Surface: 88.5mm
• Product External Dimensions (WxHxD)
  • Without Grille: 230 x 680 x 96mm
  • With Grille: 242 x 683 x 102.7mm
• Cut-Out Dimensions (WxH): 209 x 660mm
• Weight: 10.9 kg
• Manufacturer's Warranty: 5 Years + 1 Extended Year when Registered at KEF.com

Note: Features & Specifications Subject To Change Without Notice. E&OE.
