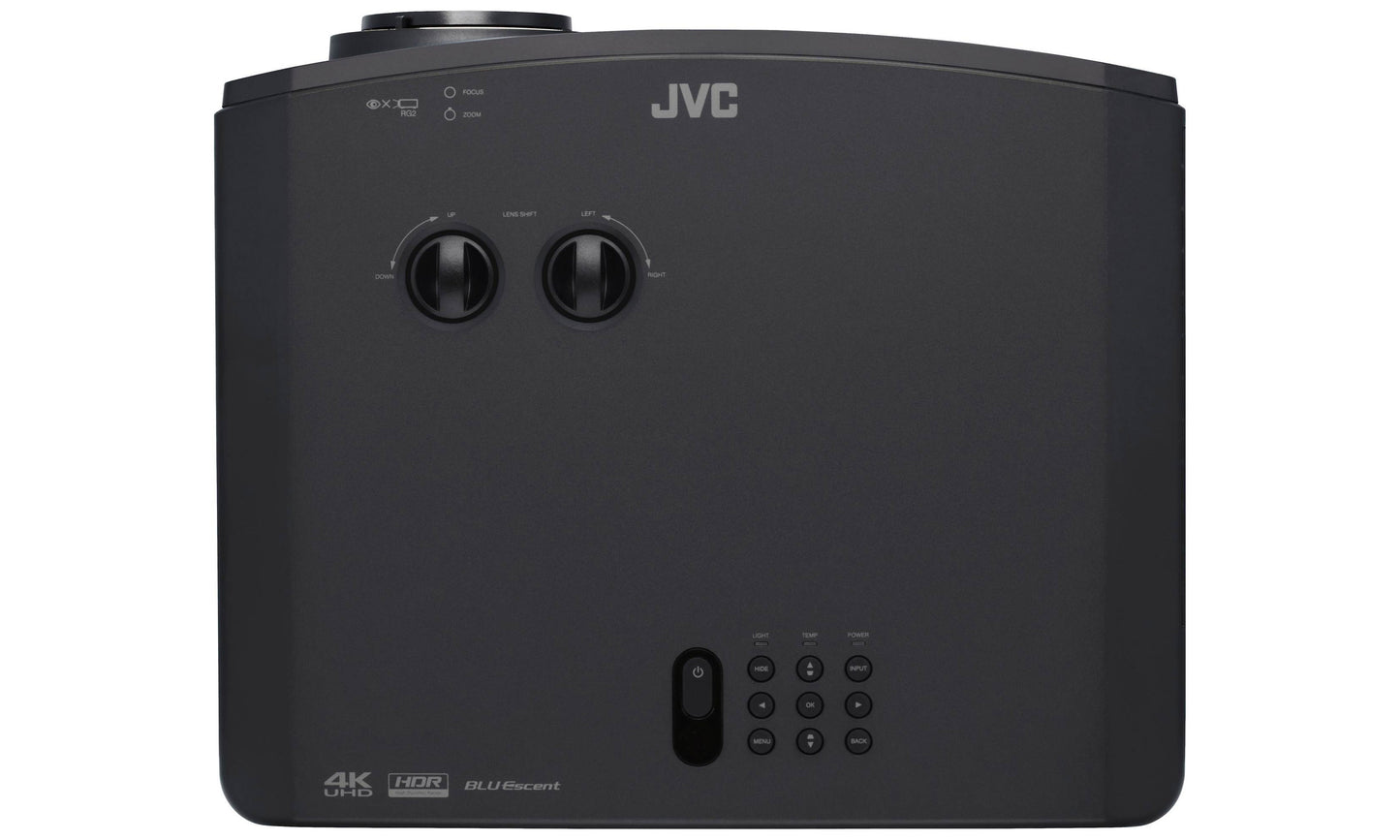

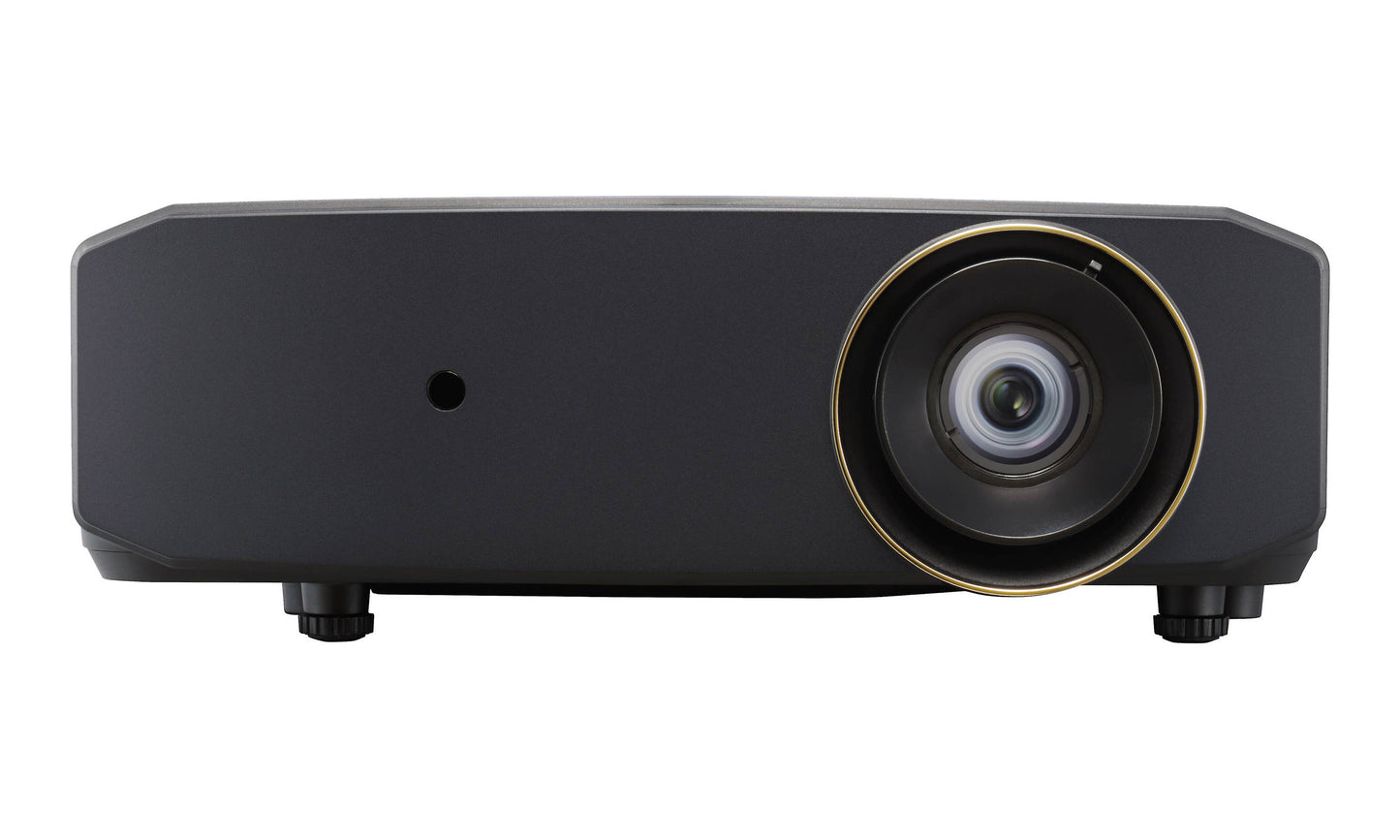

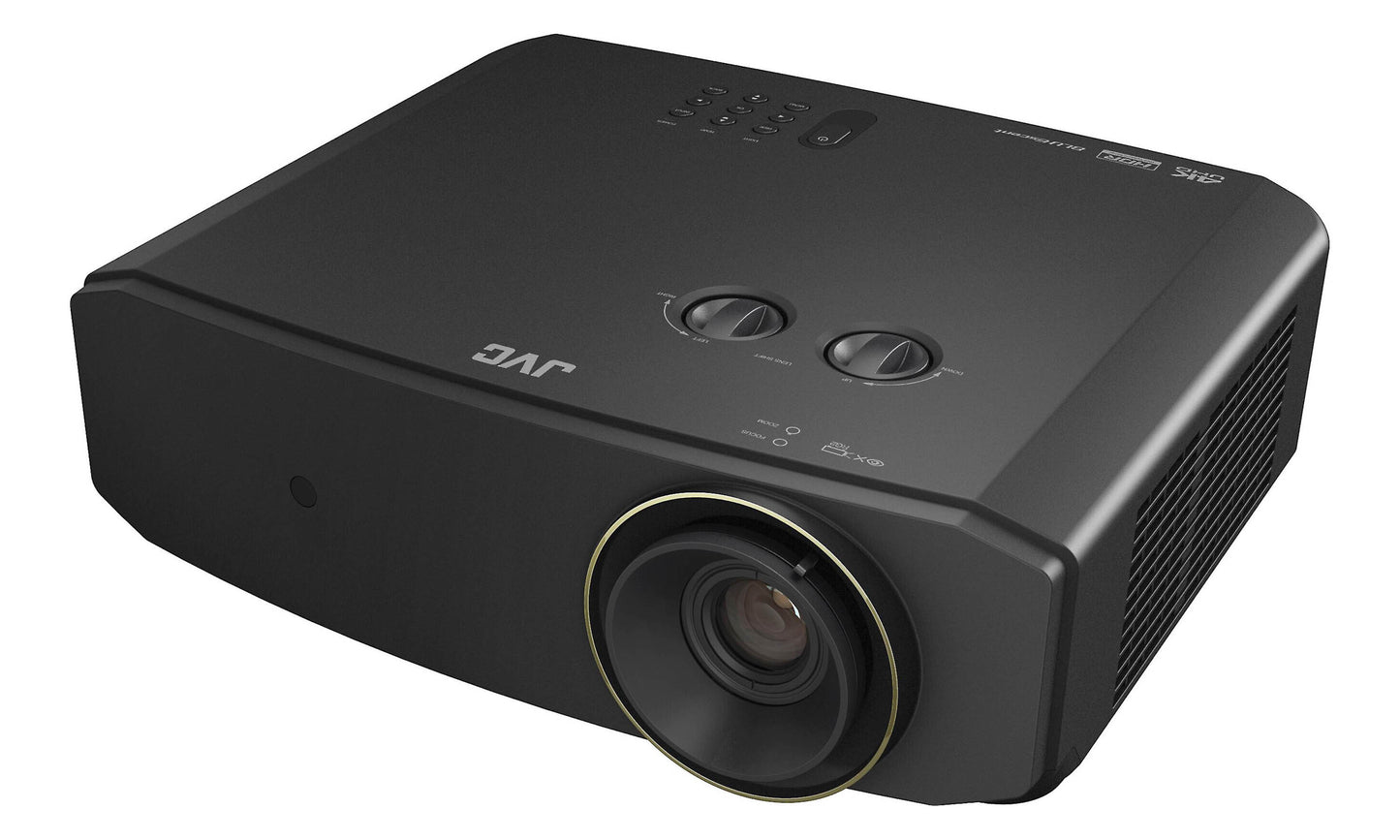

About The JVC LX-NZ30 4K Laser Projector
The JVC LX-NZ30 4K Laser HDR DLP Projector features an ultra-bright 3,300 lumen laser light source, and a compact design, making it ideal for a wide range of viewing environments. An ultra low latency design that supports 1080p/240Hz with DisplayPort 1.2 makes it ideal for gaming.
BLU-Escent Laser Phosphor Light Source: The LX-NZ series has always delivered high-quality images even in environments where light cannot be completely shut out, but the LX-NZ30 features an even brighter blue laser diode light source, BLU-Escent which combines high brightness of 3,300 lumens with a long life of 20,000 hours to enable enjoyment of 4K images even in brighter environments. This brighter light source also improves peak brightness when projecting HDR content, allowing users to enjoy more realistic images with a wider range of sensations.
Dynamic Light Source Control for Realistic Image Reproduction: Laser light sources can control light output instantaneously, enabling dynamic brightness adjustment with minimal delay. The BLU-Escent laser light source enables control of laser output optimized according to the brightness of each scene, reproducing images that resemble human perception.
Bright & Colourful 4K Images: The bright DLP projection system featured on the LX-NZ30 uses a 0.47-inch DMD device to display 4K resolution (3840 x 2160), which is four times higher than Full HD (1080P), in full detail. The bright, vividly coloured, high-definition 4K images allow viewers to enjoy a sense of presence and depth as if actually being there in the same place.
High Frame Rate and Low Latency: To support high frame rate content beyond conventional 60Hz, the system supports up to 2K 240Hz input. What's more, when the projector is set to the low latency mode, latency is less than 1.5 frames (at 4K60Hz). This enables smooth, low-lag images even on screens much larger than 100 inches, offering large-screen gaming as a new way to enjoy home theatre. In addition, the DisplayPort port allows for direct connection from a compatible PC.
Geometric Distortion Correction Further Enhances Ease of Installation: The LX-NZ30's lens shift and zoom functions enhance ease of installation, and it is now equipped with a new geometric correction function that corrects geometric distortions. In addition to trapezoidal correction for horizontal, vertical, and tilt adjustment, the LX-NZ30 is also equipped with corner adjustment for four-corner adjustment and warping correction for distortion correction that can be moved arbitrarily at cross points, enabling an even higher degree of flexibility in installation.
The warping function allows projection of natural-looking images that match the form of the screen by moving the cross points of vertical and horizontal lines to correct distortions of the image when projected onto an uneven screen surface, as well as cylindrical or spherical surfaces.
Automatic Detection of HDR Signals to Deliver Realistic and Dynamic High-Definition Images: In addition to the HDR10 format used in Ultra HD Blu-ray™ and streaming services, the LX-NZ30 also supports the HLG (Hybrid Log Gamma) format used in broadcasting and other applications. When each of these signals is detected, the projector automatically switches to the optimal picture quality mode to project high-quality, realistic, dynamic images.
Installation Wherever You Want - Let the Wide Lens Shift and 1.6x Zoom Do the Work: Even in a room with limited space, the LX-NZ30 can be installed with a minimal footprint and maximum flexibility, from the ceiling to the shelf and just about anywhere in between. In addition to a wide lens shift range of 60% vertical and 23% horizontal, this projector is equipped with a 1.6x zoom that enables a projection distance of 3 to 4.8 m at 100 inches, making it flexible for a variety of installation environments without sacrificing image quality.
2nd Generation .47" XPR DMD Device: DMD (digital micromirror device) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, the DMD displays a very crisp, high resolution image or video.
Advanced Gaming Capabilities: The LX-NZ30 impresses with 1080p240Hz support and 6.25ms low latency. DisplayPort 1.2 connection is ideal for gaming PC's, while warping adds flexibility for use with curved projection screens.
Our Take
The JVC LX-NZ30 4K Laser Projector is a marvel of home entertainment technology, combining stunning visuals with unparalleled convenience. Boasting 4K resolution and utilizing laser light source technology, it delivers vibrant colours, deep blacks, and exceptional brightness. Its compact design makes it suitable for various room sizes, while its zoom and wide vertical and horizontal lens shift offer flexible installation options. With its high-quality projection capabilities and user-friendly features, the LX-NZ30 promises an immersive cinematic experience right in the comfort of your home.
Main Features & Specifications
- Design: 4K Laser Projector
- BLU-Escent laser light source: brightness of 3,300 lumen and long life of approx. 20,000 hours
- Full of big-screen gaming features: Low latency, 4K60Hz/2K240Hz signal support and more
- Rich input terminals: HDMI (HDCP2.3 compliant) x 2, DisplayPort, USB
- Highly flexible installation is possible with wide lens shift (60% vertical, 23% horizontal) and zoom (1.6x)
- Geometric correction functions realize easy and flexible installation
- Device: 0.47 in DMD (1920 x 1080)
- Resolution: 3840 x 2160
- Lens: 1.6x Manual Zoom & Focus Lens, f=14.3 ~ 9mm, F 1.809
- Manual Lens Shift: Vertical ±60%, Horizontal ±23%
- Projection Display Size: 60 inch - 200 inch diagonal
- Light Source: BLU-Escent (laser diode), Life: approx. 20,000 hours
- Brightness: 3,300 lumens
- HDR: Compatible (HDR10 / HLG)

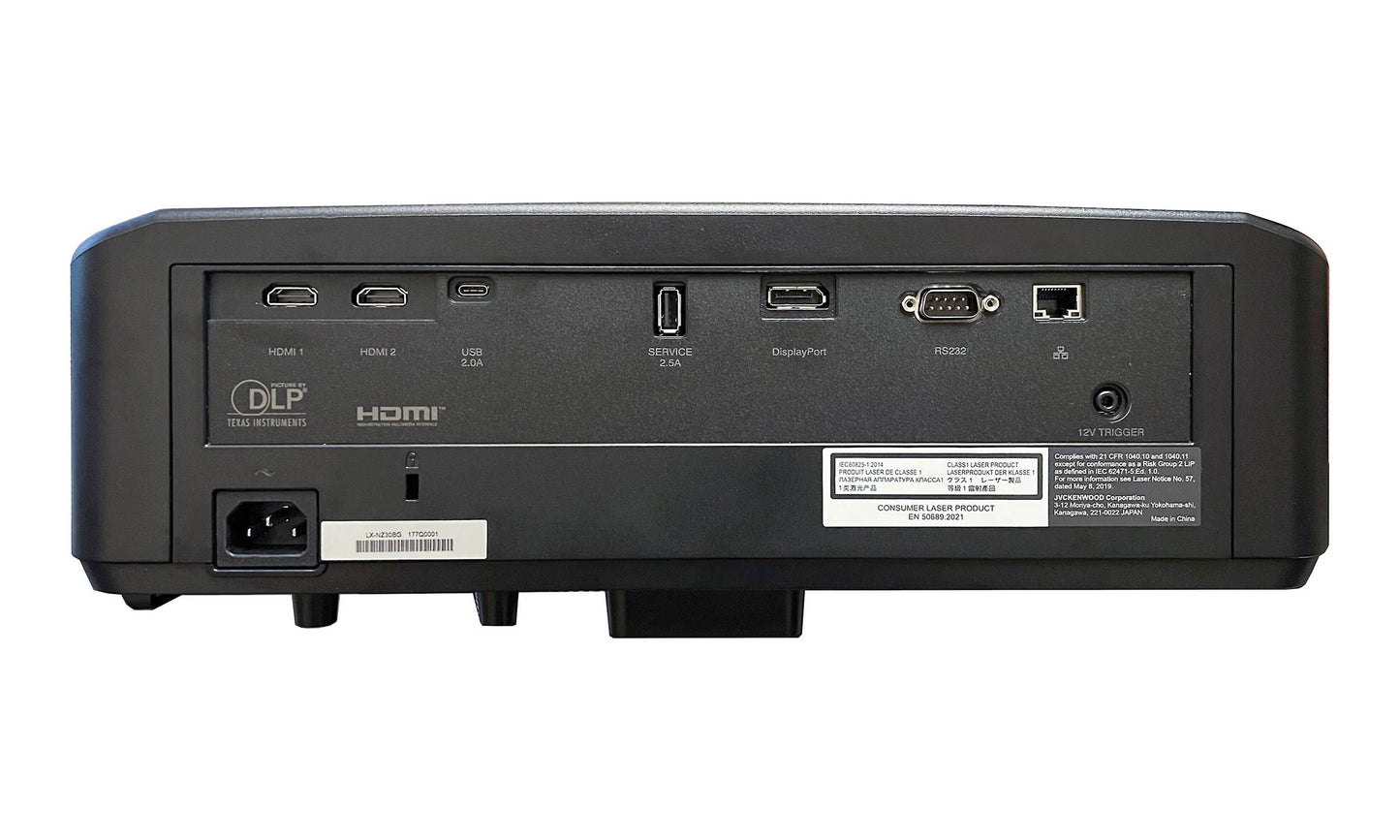

- Input Terminals
- HDMI: 2 (HDCP2.3 compatibility)
- DisplayPort: 1
- USB Type C: 1
- Output Terminals
- USB Type A: 1 (Power supply 5V/1.5A)
- Trigger: 1 (Mini Jack, DC12V/100mA)
- Control Terminals
- RS-232C: 1 (Dsub 9pin)
- 1 LAN (RJ-45, 10BASE-T / 100BASE-TX)
- Power Consumption:
- Projector In Use: 360 W
- Standby: 0.5 W
- Fan Noise: 29 dB / 34 dB (Eco / Normal)
- Power Requirement: AC 100-240 V, 50/60 Hz

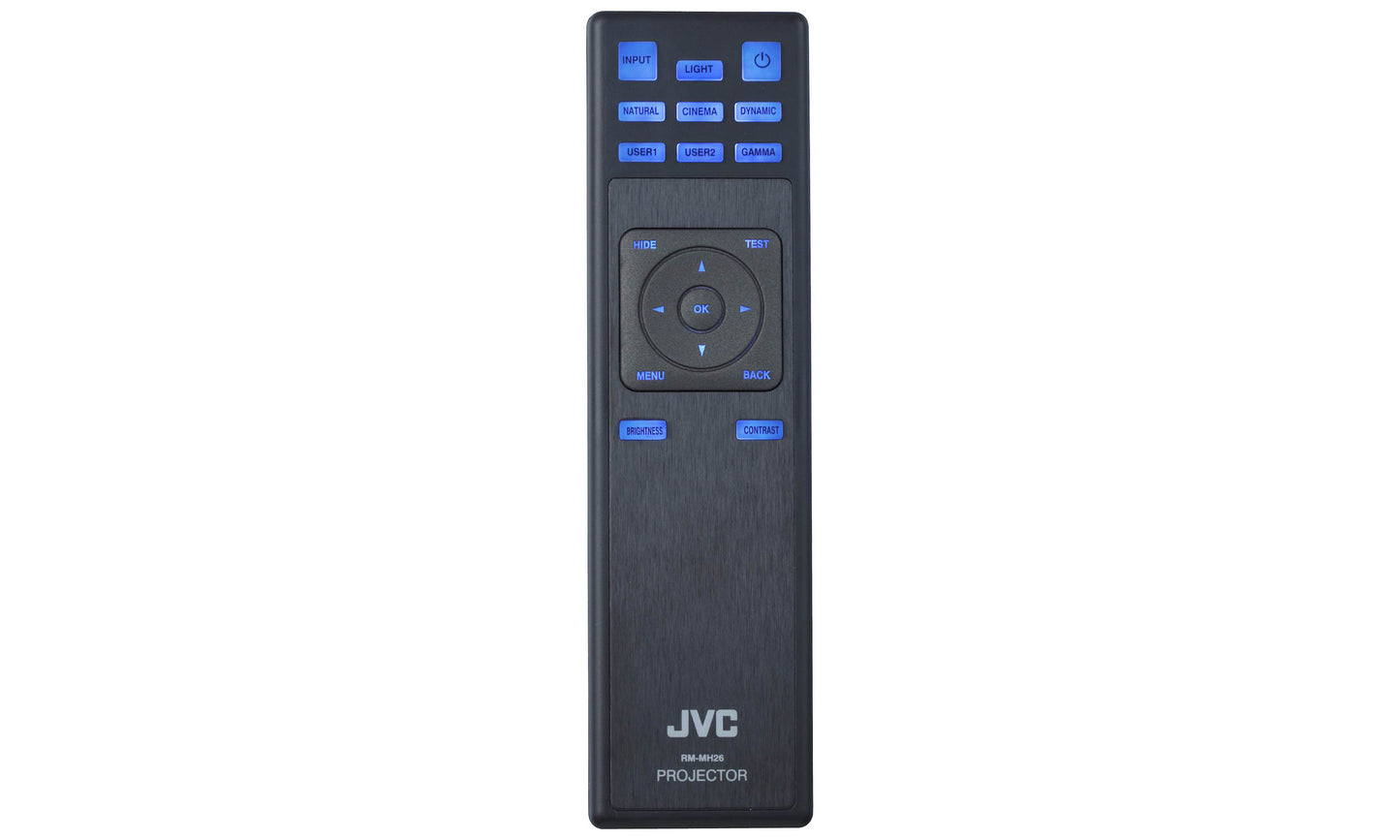

- Included Accessories: Remote Control, Batteries, Power Cable, User Manual

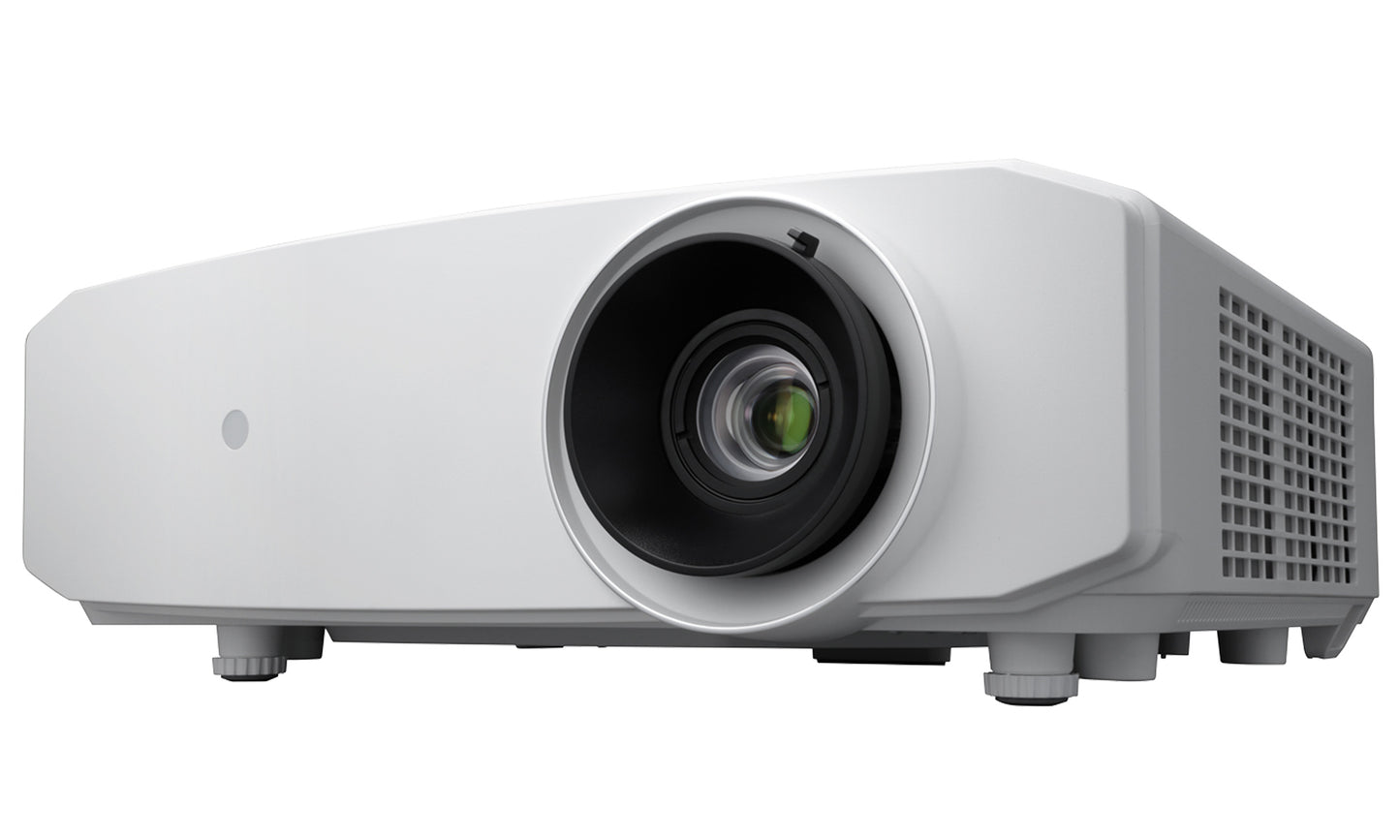

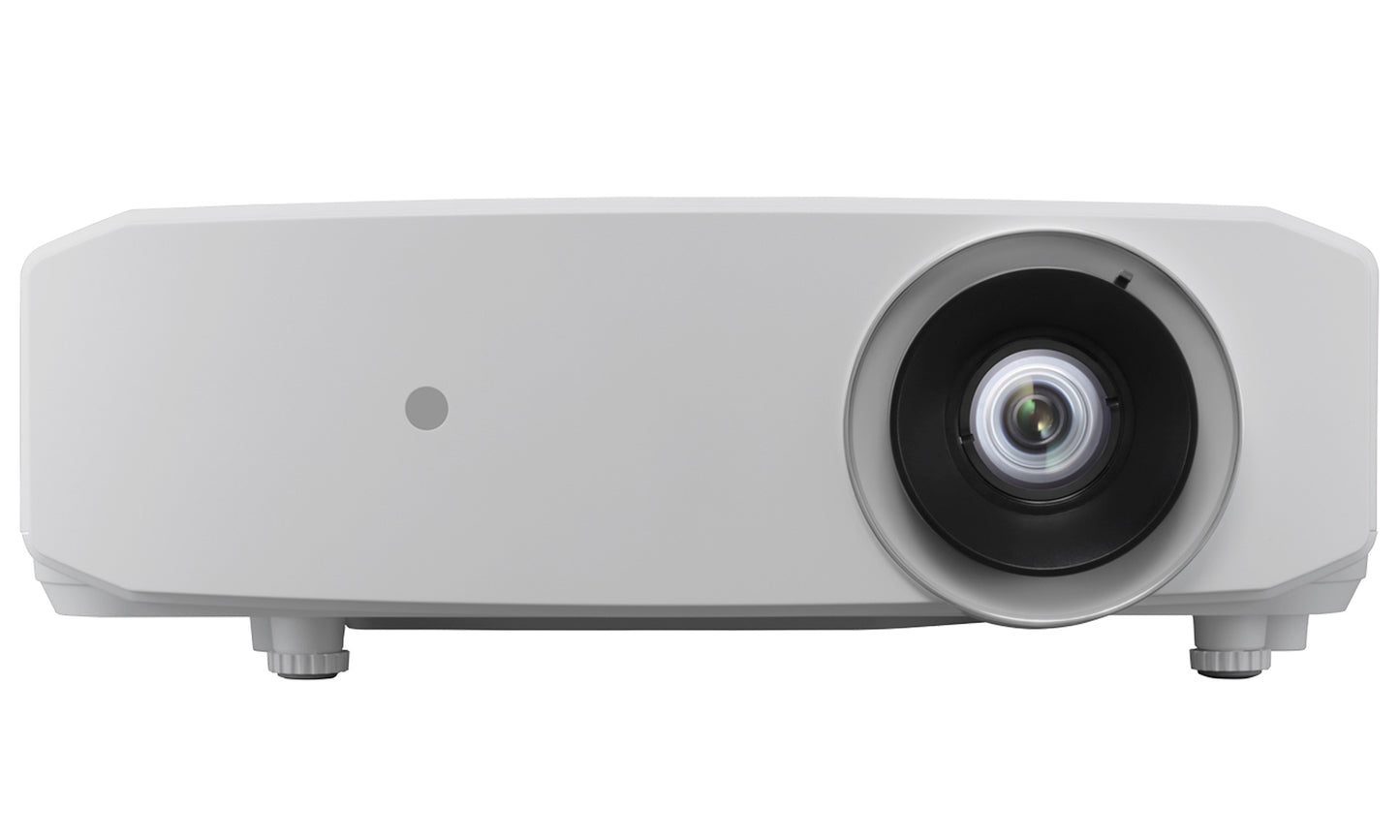

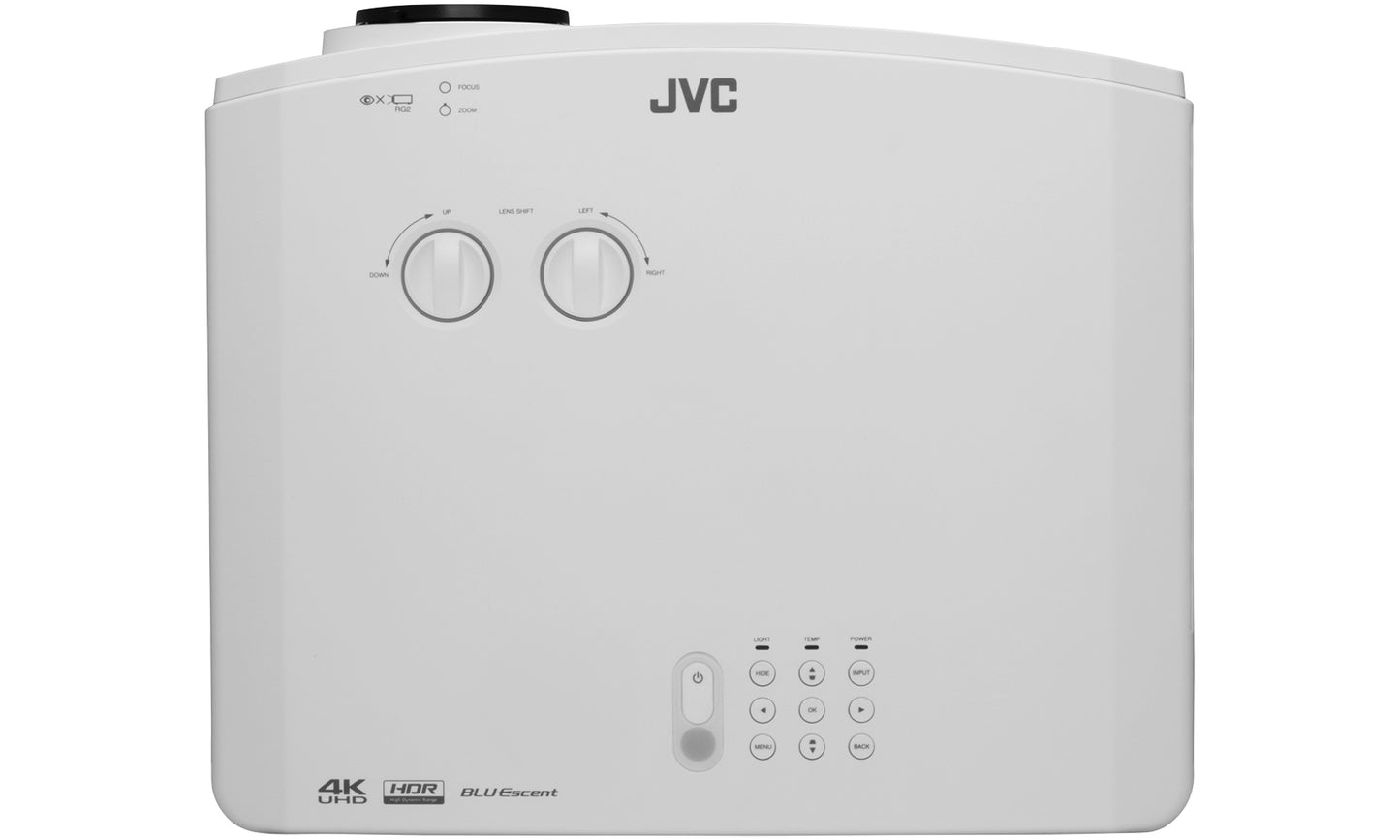

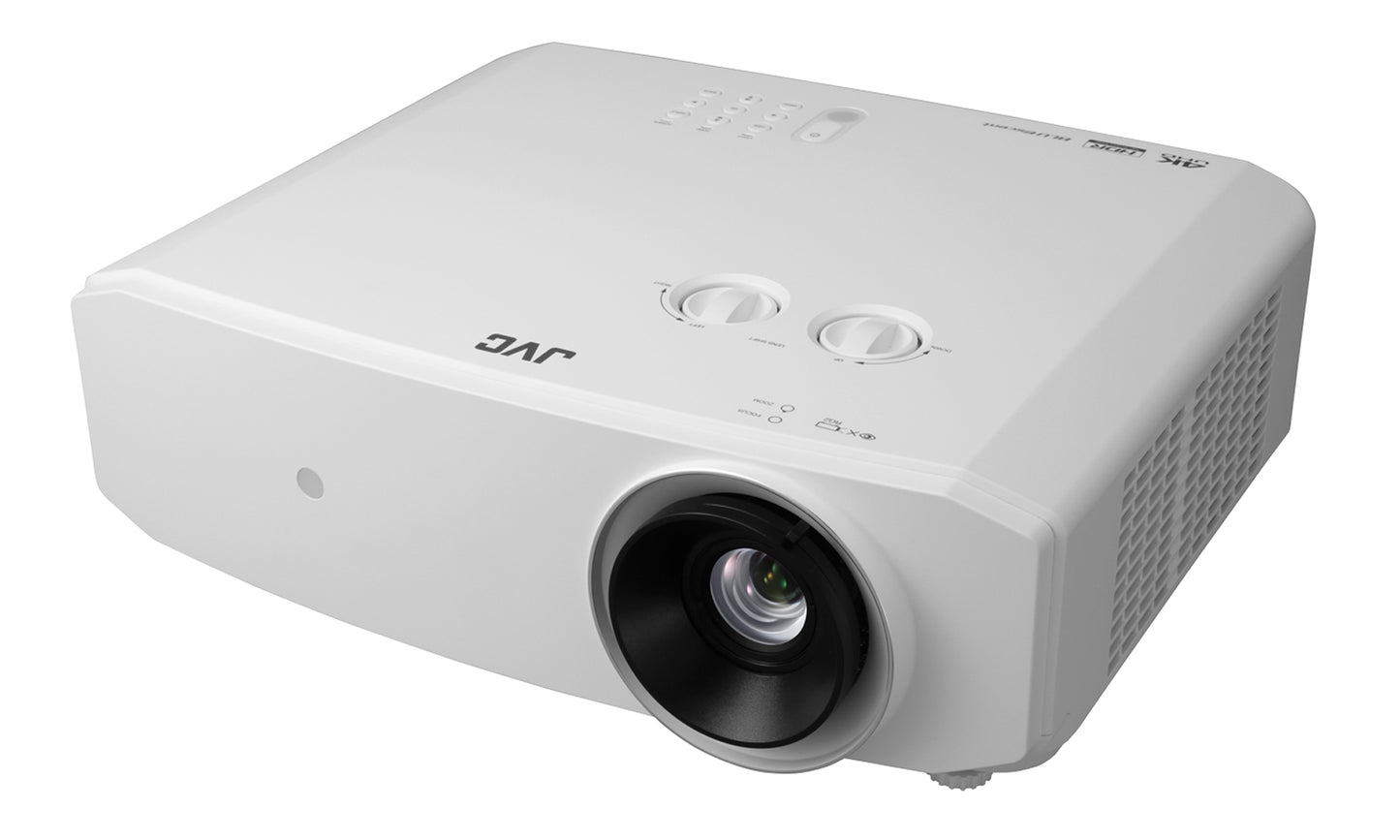

- Available Finishes: Black or White
- Dimensions (WxHxD): 405 x 146 x 341mm
- Weight: 5.9 kg
- Manufacturer's Warranty: 1 Year
Note: Features & Specifications Subject To Change Without Notice. E&OE.
