About The JL Audio E-Sub e110 Subwoofer

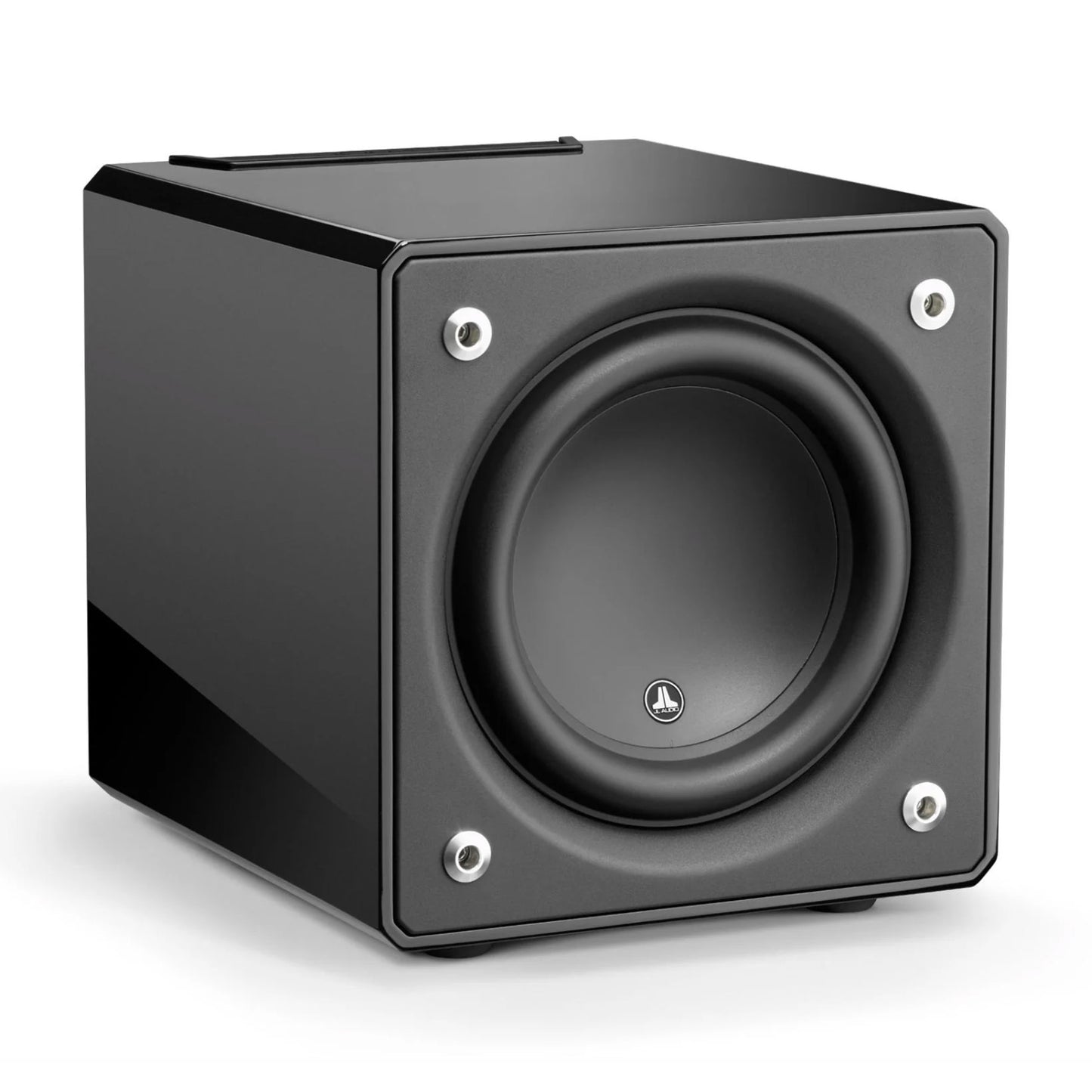

The e110 is a powered subwoofer with a 10" (254mm) Bass Driver and 1,200 Watts of Power.
Applying a series of key technologies, E-Sub powered subwoofers deliver exceptional sound quality, power and value in a wide range of demanding applications.
E-Sub drivers employ JL Audio's exclusive DMA technology to optimise the drivers' motor strength, ensuring linear behaviour over a very long excursion range. Unlike typical steady-state modelling systems, DMA takes into account the dynamic shifts created by current flow and back EMF under real power conditions, with real program material.
The payoff offered by DMA optimisation is a driver that faithfully tracks its input signal, at all listening levels, leading to superior bass definition and dynamics.

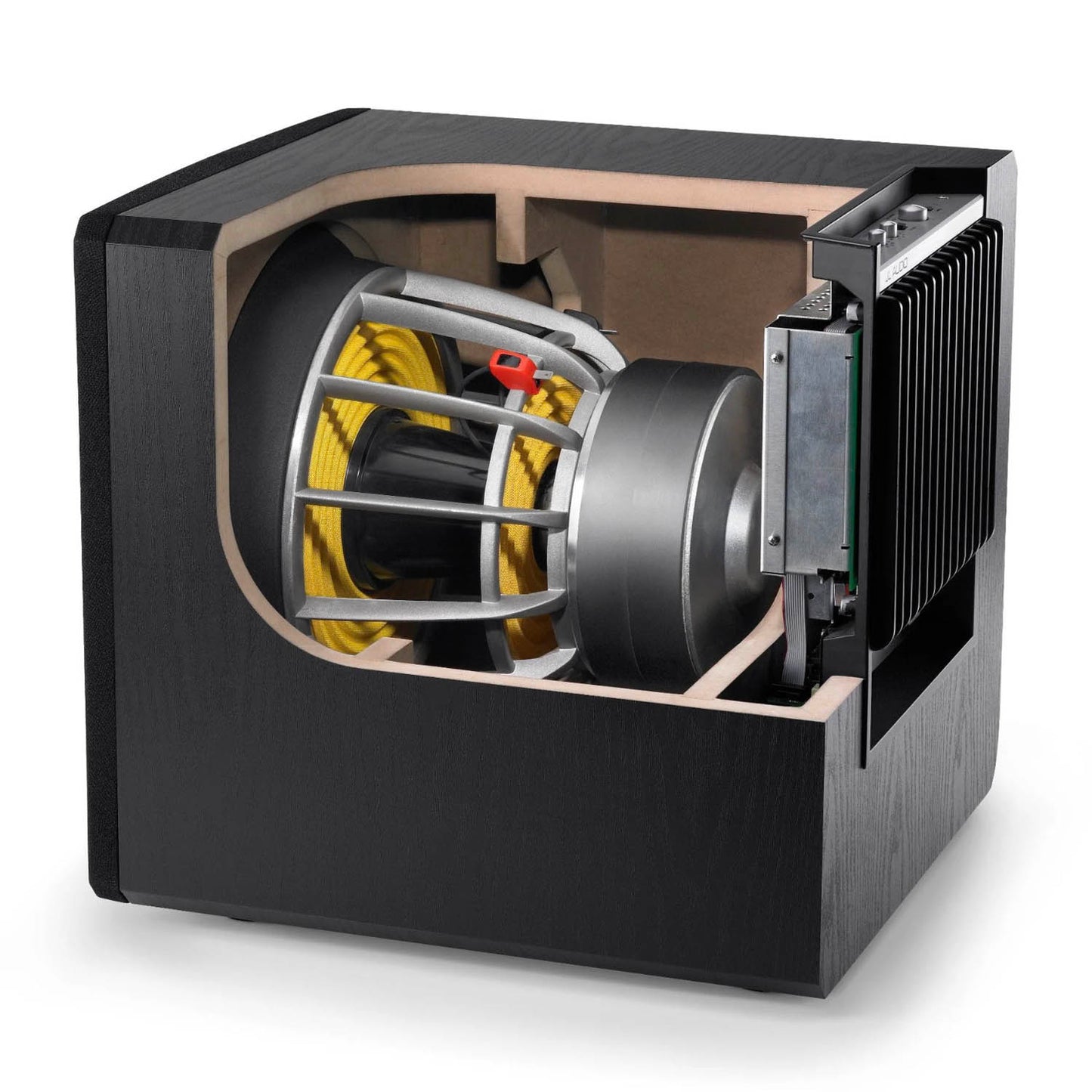

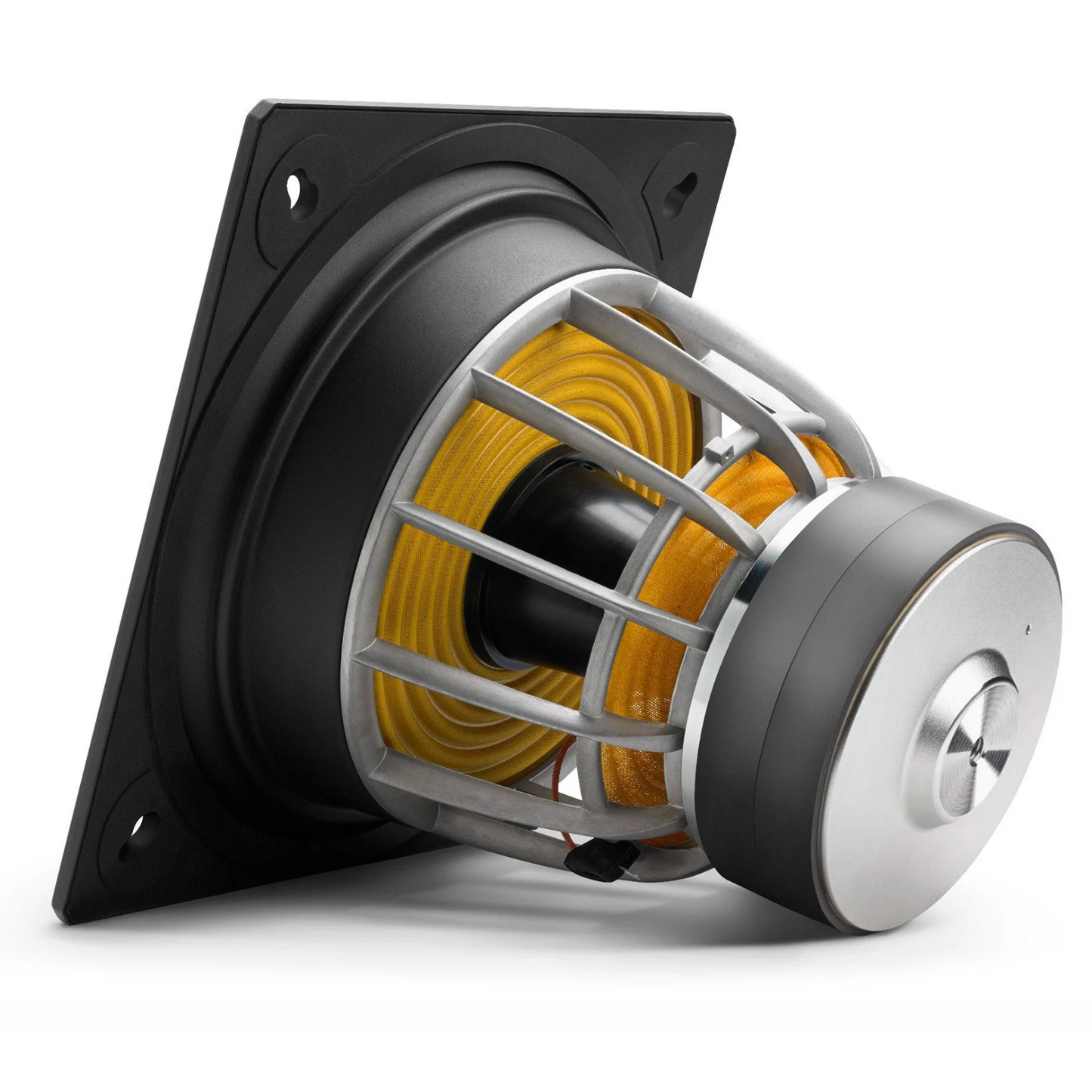

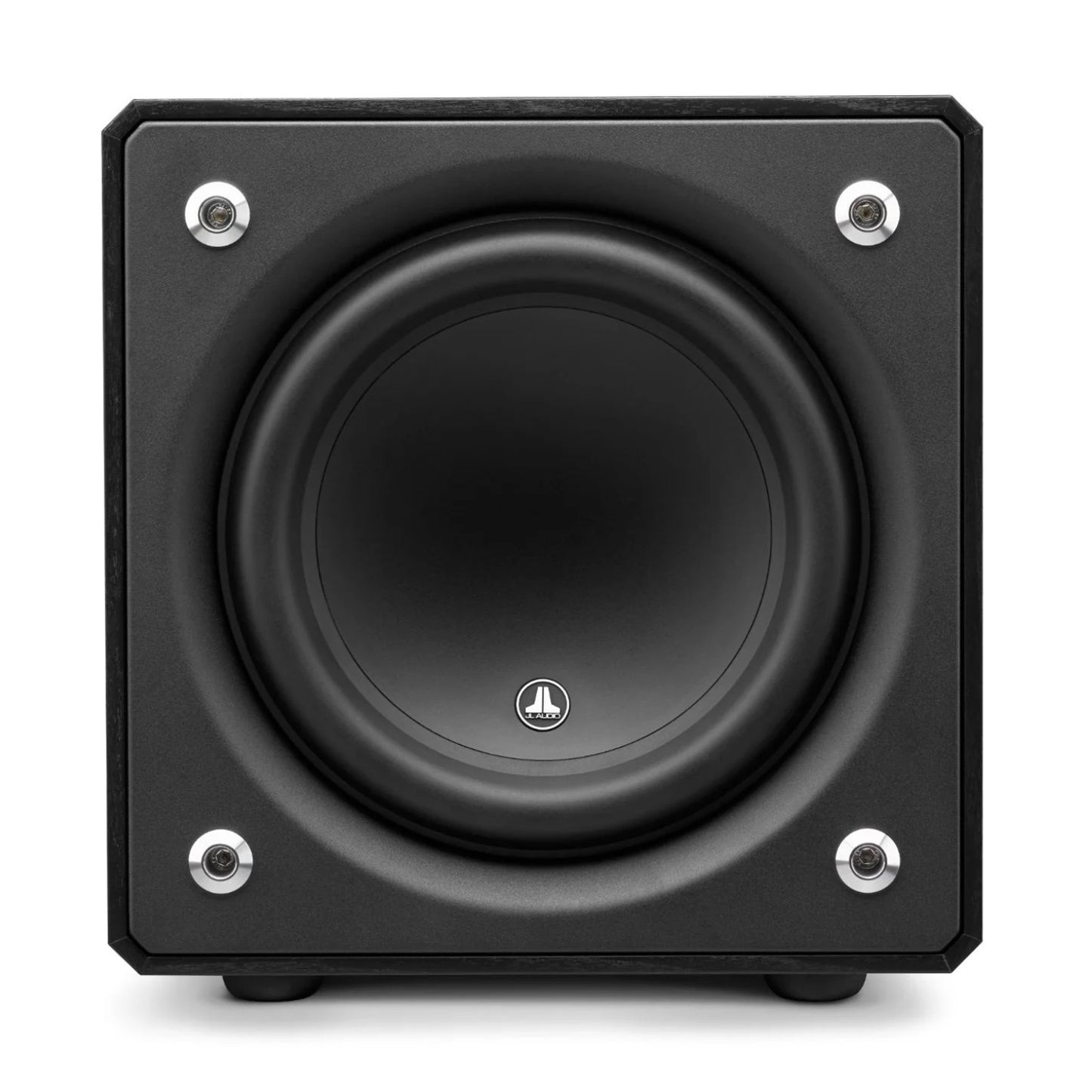

The extreme mounting depth of the E-Sub driver is very deliberate. It allows wide gaps to exist between the three suspension elements (the rubber surround and the dual spiders), imparting exceptional mechanical stability over the driver's full excursion range. This further improves linearity, reduces distortion and enhances long-term reliability. In a stroke of engineering elegance, the E-Sub's steel front mounting flange forms the entire front baffle of the finished product, while the driver's back-plate is threaded and bolted to the rear wall of its enclosure for support.
To power these innovative drivers, JL Audio engineered a completely new switching amplifier with a regulated, switching power supply, making its chassis more compact, lightweight and efficient, while still delivering ample, clean power to fully exercise the E-Sub driver's performance envelope.
Conveniently controlled from the E-Sub cabinet's top panel, the amplifier incorporates studio-grade signal processing to make adjustments a much more enjoyable experience than rear–mounted controls found on most powered subwoofers. An attractive cover hides and protects the controls during normal use.

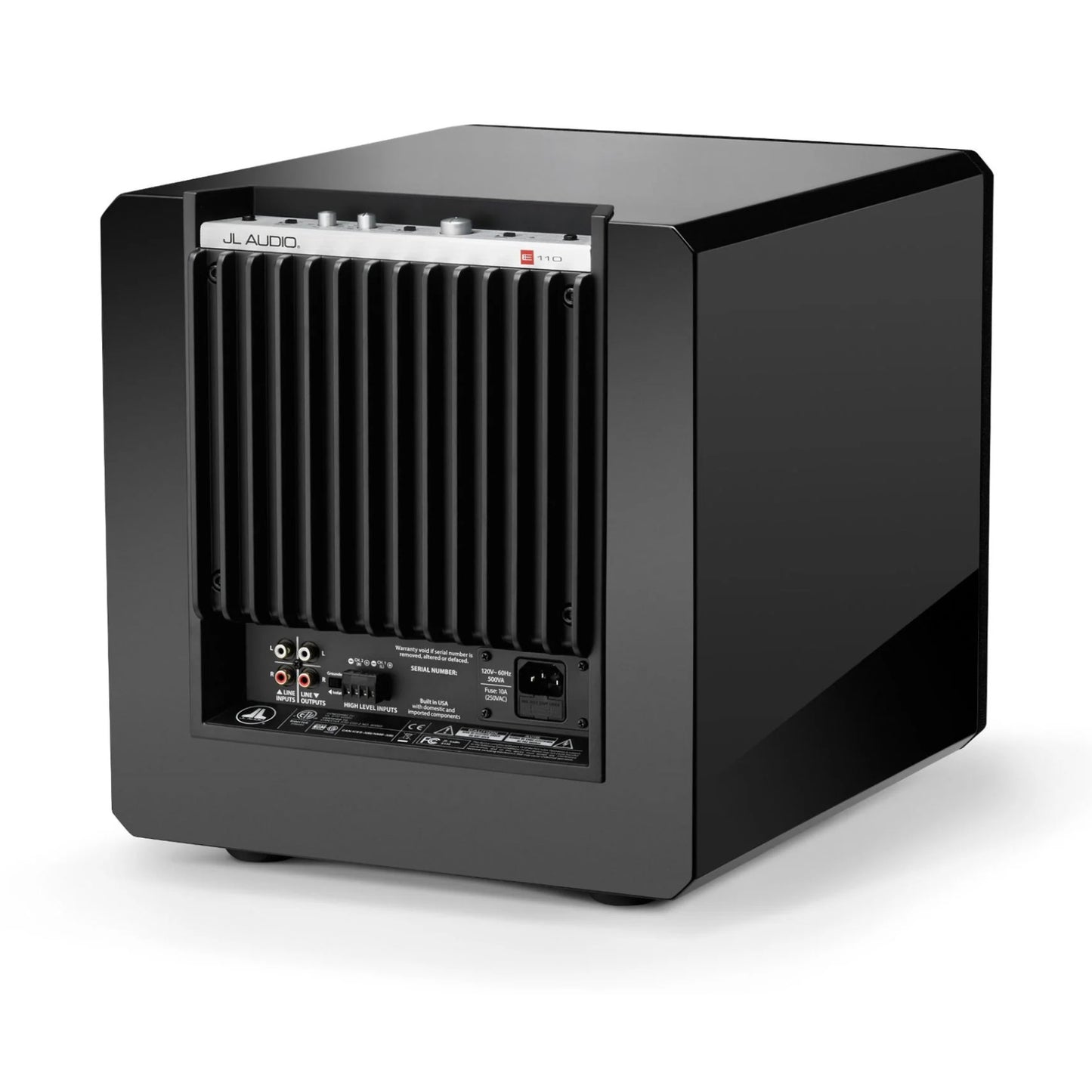

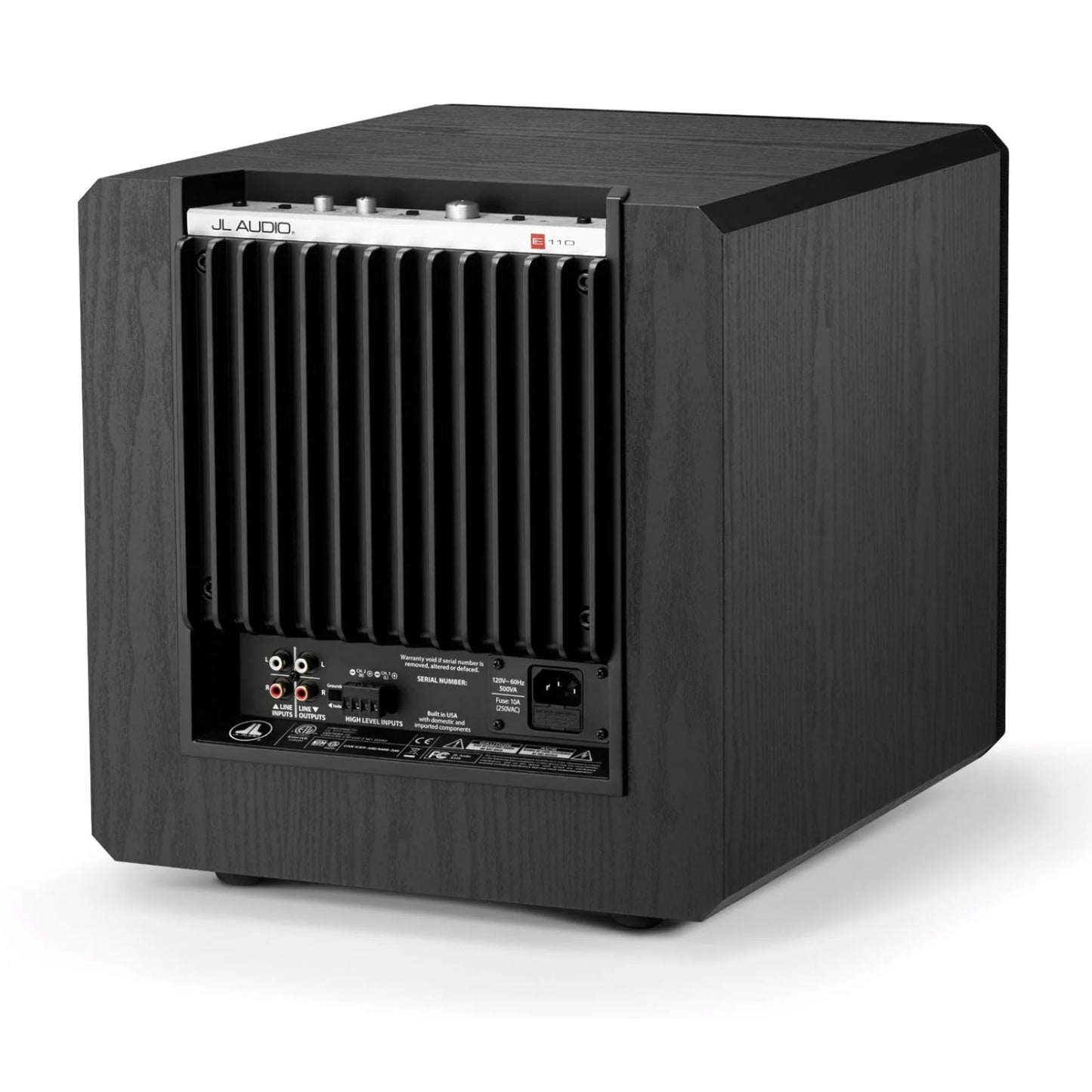

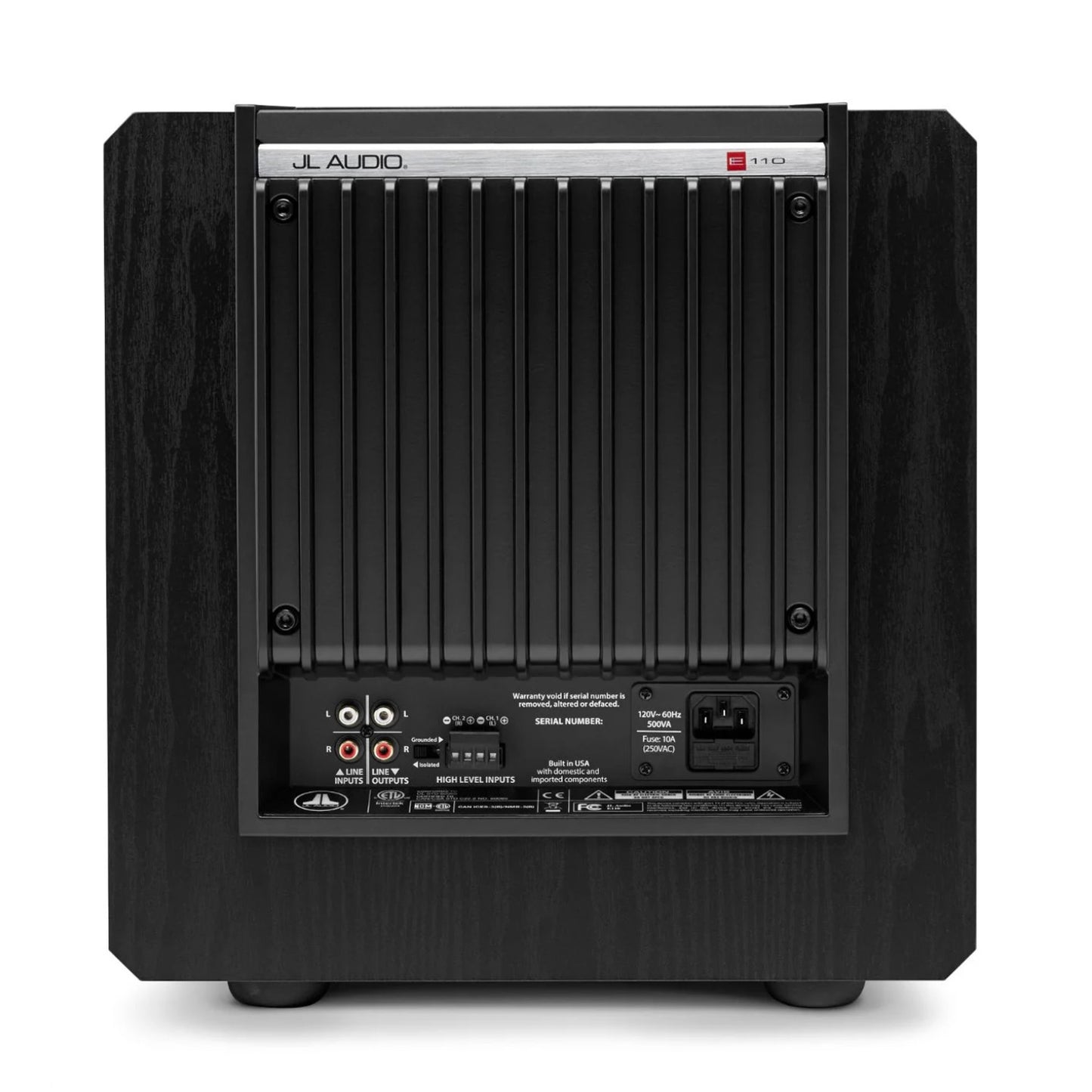

The feature set has been designed to allow the use of E-Subs in a wide range of applications, from full home theatre systems to dedicated two-channel music systems, to desktop audio workstations. Analogue inputs are provided for unbalanced line-level signals or speaker level signals. Dedicated line outputs are included to make a bi-amped system arrangement with no additional hardware required. Useful in combating ground-related noise problems, a rear panel switch configures the line level inputs as grounded or isolated.
The E-Sub's active crossover is a true two-way, 4th order Linkwitz-Riley design, with a low-pass filter feeding the subwoofer's amplifier and a high-pass filtered signal exiting its line outputs. When the on-board crossover is defeated, as is typical in a home theatre installation, the line outputs deliver a pass-through, buffered signal identical to its line inputs, easily permitting multiple E-Subs to be interconnected in a 'daisy-chain' arrangement.
Switchable polarity and a fully variable phase control round out the signal processing section. All signal processing is performed in the analogue domain, ensuring very low latency in critical applications.
Precision-built in JL Audio's U.S. factory, all E-Sub are individually performance-verified and tested to deliver years of listening enjoyment in your home audio or home theatre system.
About E-Sub™: E-Sub™ powered subwoofers apply a series of JL Audio's key technologies to deliver exceptional sound quality, power and value in a wide range of demanding applications. Inside each E-Sub™, a state-of-the-art, long excursion JL Audio driver combines with a highly efficient, proprietary switching amplifier to deliver astonishing performance from a very compact subwoofer cabinet.
Built Like No Other: The E-Sub™ driver is an unconventional design, requiring very specific production fixtures and procedures. As one of JL Audio's highest technology subwoofer drivers, it is built by the same team that assembles the flagship W7-HT drivers, and is tested to the same quality standards. Final assembly of every E-Sub™ takes place in JL Audio's Miramar, Florida factory, where skilled technicians bring together the driver, enclosure, and electronics package. A full acoustical and electrical test takes place at the end of the production line, to verify the performance of each finished subwoofer.
Technology: JL Audio's engineering department is at the forefront of research into fundamental loudspeaker behaviour. They have developed proprietary electromagnetic and suspension analysis systems and invested heavily in state-of-the-art manufacturing and testing. This has produced subwoofer drivers widely considered as reference standards for linear displacement and dynamic stability. It has also resulted in numerous U.S. and International Patents issued for technologies that refine and extend the performance envelope of the dynamic driver.
Our Take
The JL Audio E-Sub e110 Subwoofer is a high-performance powered subwoofer featuring a 10-inch bass driver and a powerful 1,200-watt amplifier. Utilizing a series of innovative technologies, the E-Sub e110 delivers exceptional sound quality and performance across a wide range of applications. The subwoofer's driver incorporates JL Audio's exclusive DMA (Dynamic Motor Analysis) technology, optimizing motor strength to maintain linearity over extended excursions. This results in superior bass definition and dynamics at all listening levels. The driver's design includes an extreme mounting depth, allowing for wide gaps between the rubber surround and dual spiders, enhancing mechanical stability and reducing distortion. The E-Sub's amplifier features a new switching design with a regulated power supply, making it compact and efficient while delivering ample power. Top-mounted controls provide user-friendly adjustments, protected by an attractive cover during regular use. Versatile in its applications, the E-Sub e110 supports both home theatre and dedicated music systems, with options for line-level or speaker-level inputs and a two-way, 4th order Linkwitz-Riley crossover design. Precision-built in JL Audio's U.S. factory, each E-Sub is performance-verified to ensure years of reliable listening enjoyment.
Main Features & Specifications
- Design: High Power, High Performance Subwoofer
- Unbalanced Inputs: Stereo or Mono (two RCA jacks)
- High-Level Inputs: Stereo or Mono (removable plug)
- Line Outputs
- Unbalanced (two RCA jacks):
- High-Pass (set by crossover) or Pass-Through
- Input Grounding: Selectable (Isolated or Grounded)
- Level Control: Variable: Full mute to +15 dB over reference gain
- Power On/Off: Automatic Signal-Sensing only
- Crossover Filter: 24 dB per octave with Linkwitz-Riley alignment
- Crossover Frequency Range: Variable: 25 Hz – 130 Hz
- Polarity: 0 or 180 degrees
- Phase: Variable from 0 – 280 degrees, referenced to 80 Hz
- Enclosure Type: Sealed
- Drivers: Single 10" (254 mm) nominal diameter
- Frequency Response (anechoic)
- 25 – 116 Hz (±1.5dB)
- –3 dB at 23 Hz / 120 Hz
- –10 dB at 18 Hz / 165 Hz
- Input Impedance
- Line Inputs: 10 kΩ
- High-Level Inputs: 4.3 kΩ
- Effective Piston Area: 58.78 sq. in. (0.0379 sq. m)
- Effective Displacement: 2.1 litres
- Amplifier Power: 1,200 Watts RMS
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance

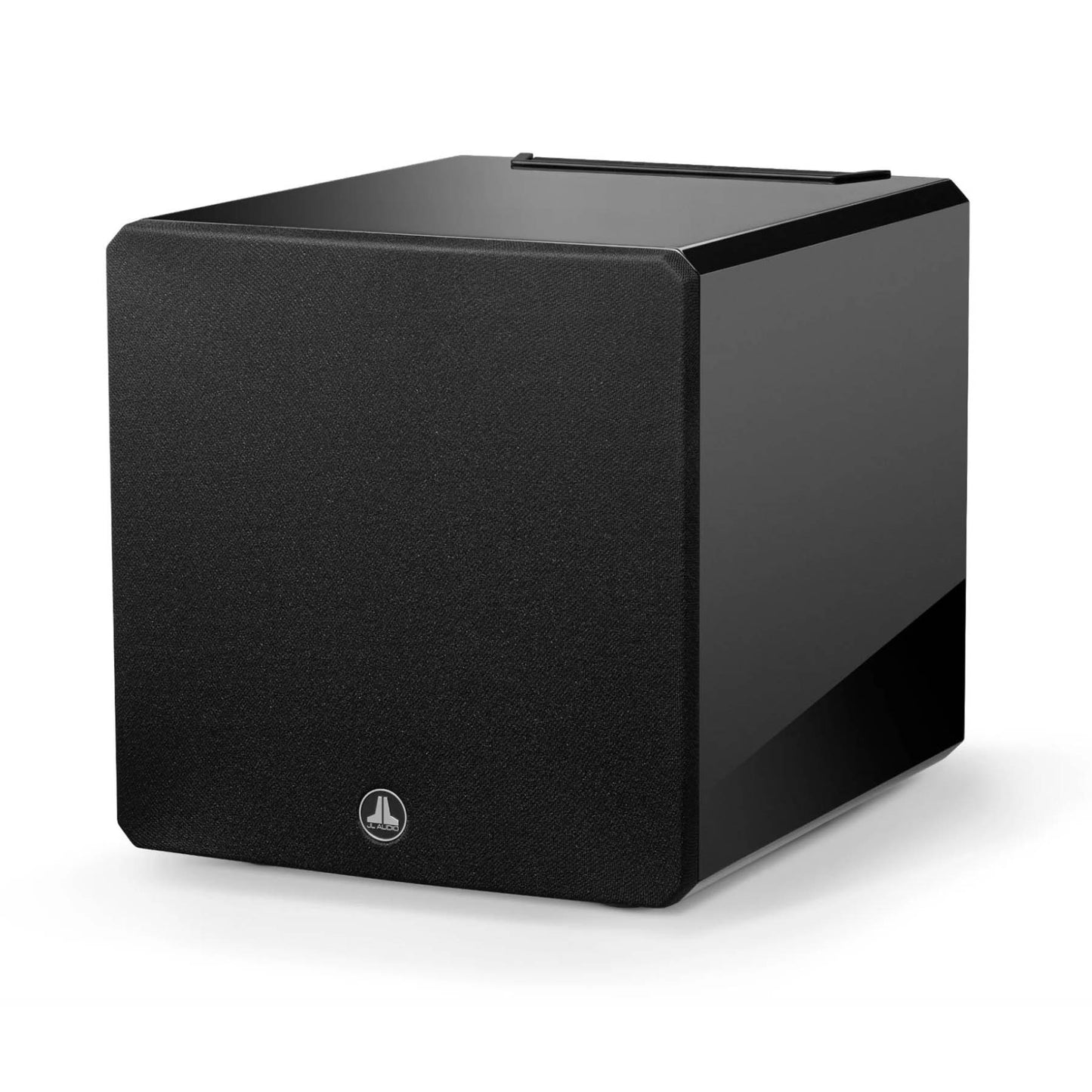

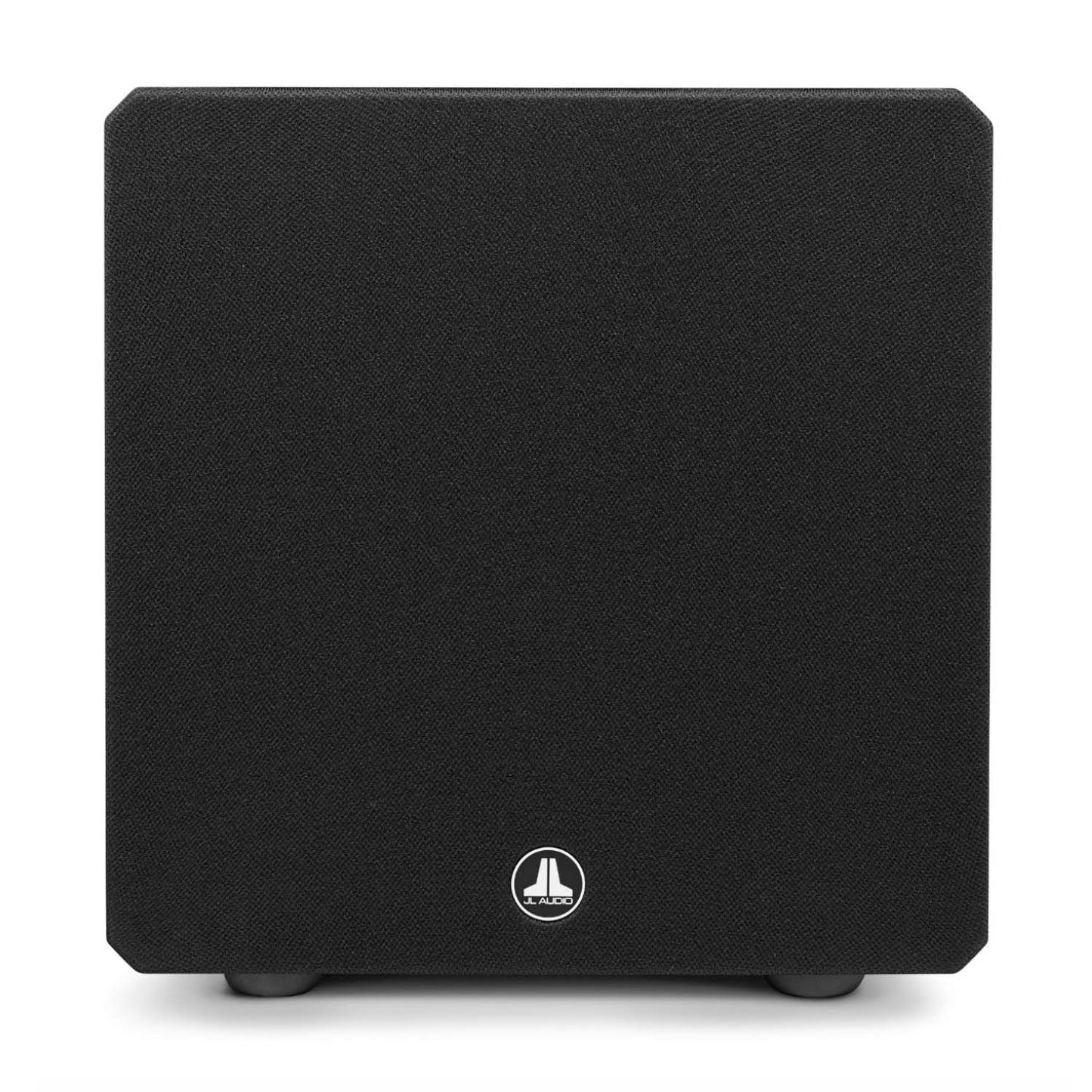

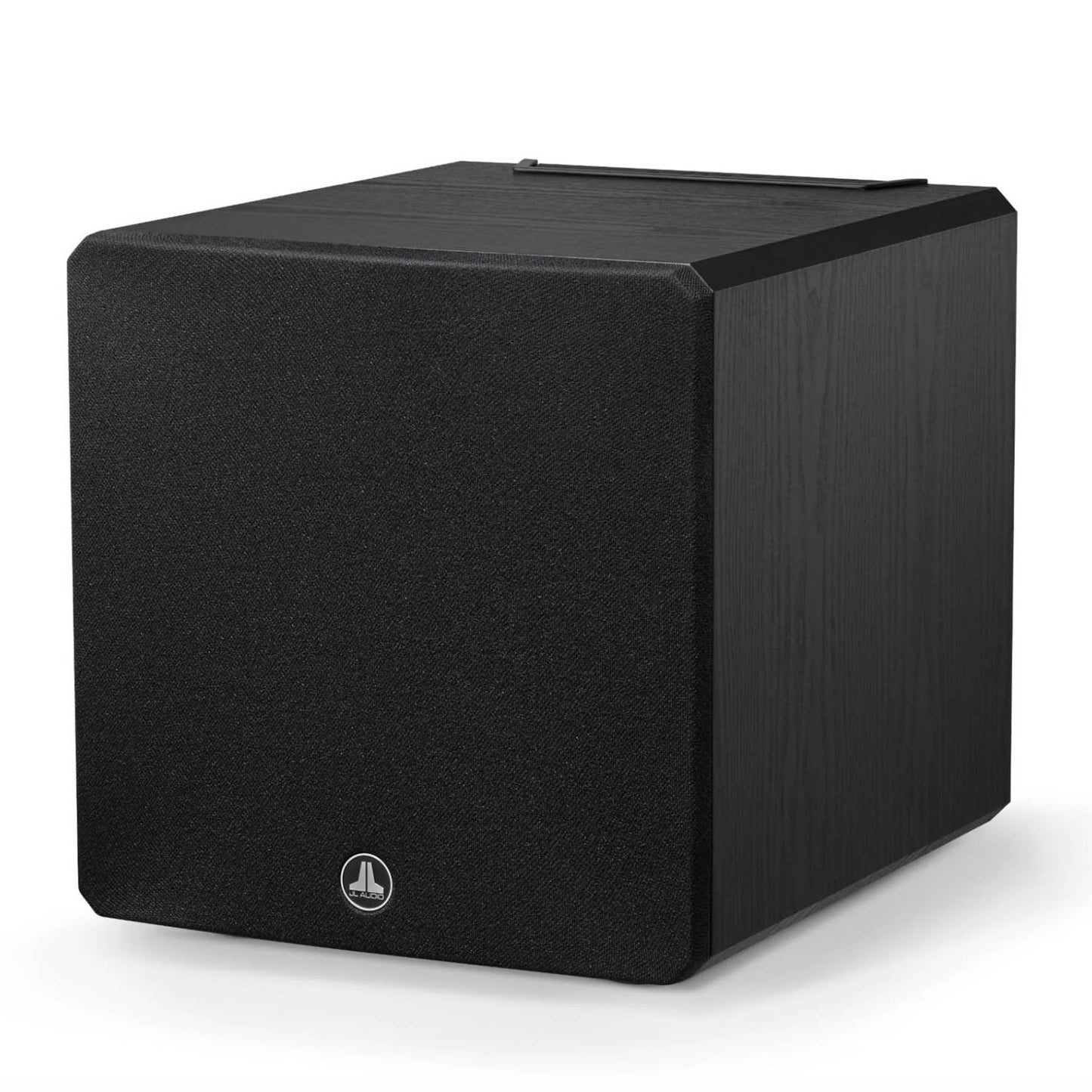

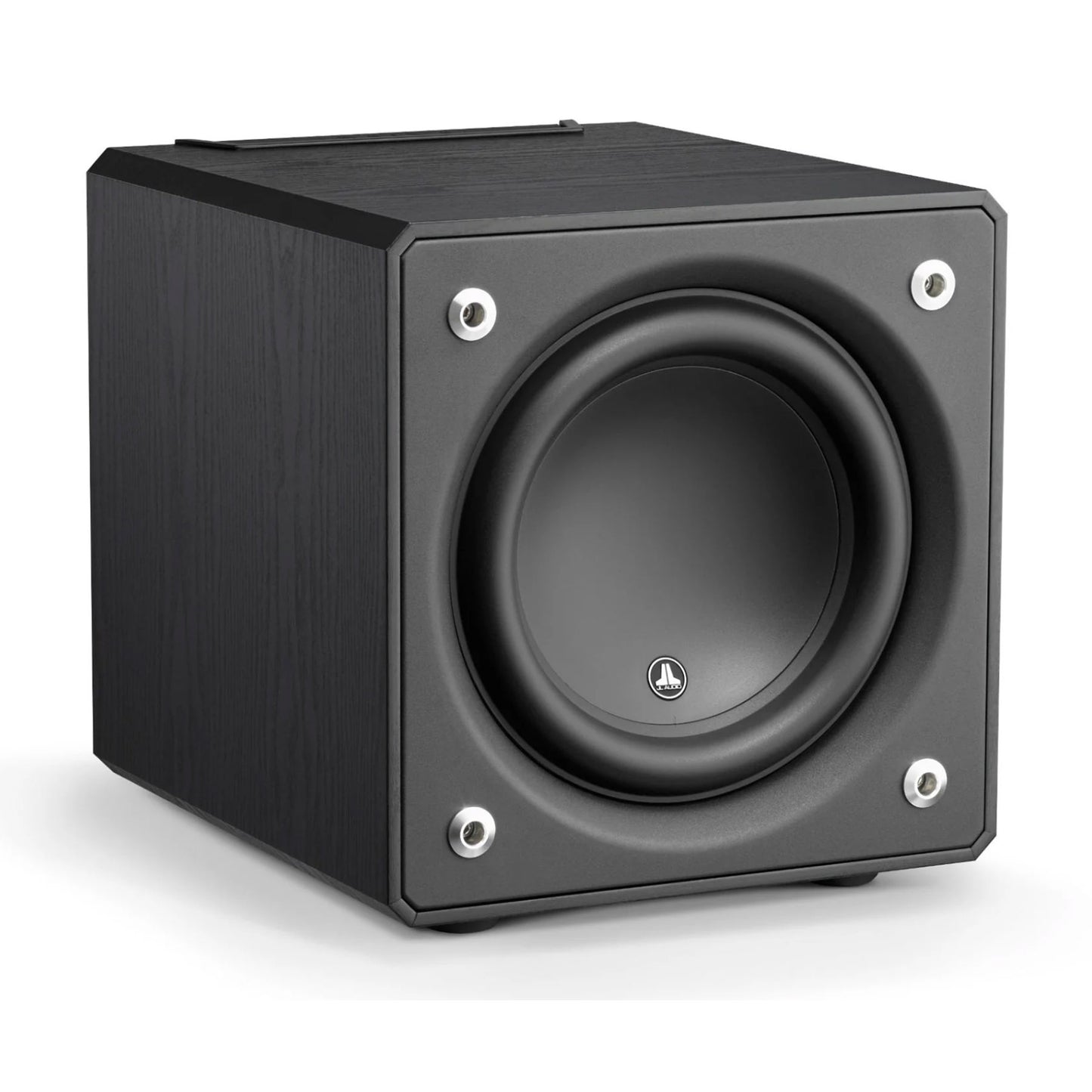

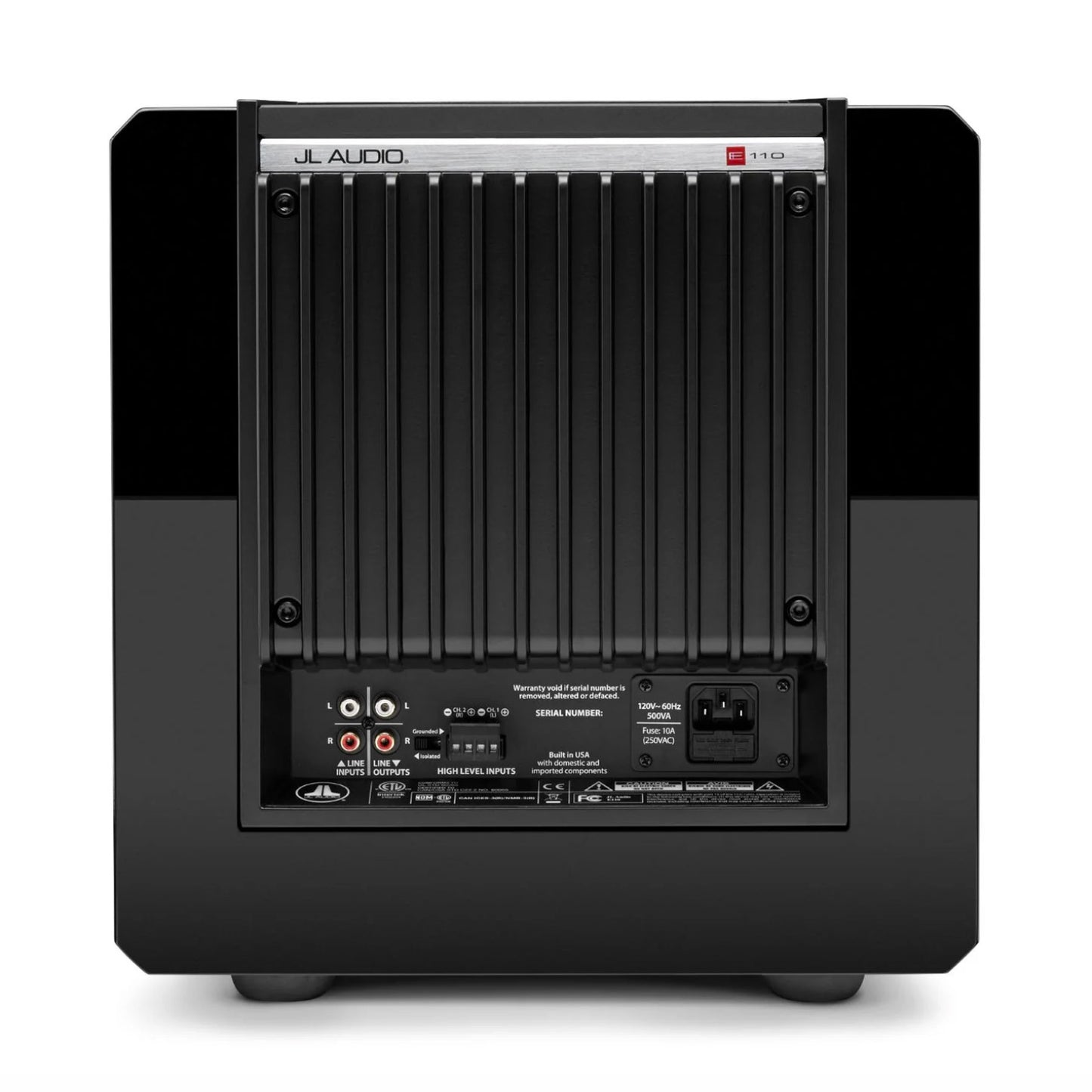

- Available Finishes: Gloss Black or Black Ash Vinyl Veneer
- Dimensions (WxHxD): 343 x 362 x 419mm
- Weight: 23.9 kg
- Manufacturer's Warranty: 3 Years
- Built in the USA with Global Components
Note: Features & Specifications Subject To Change Without Notice. E&OE.
