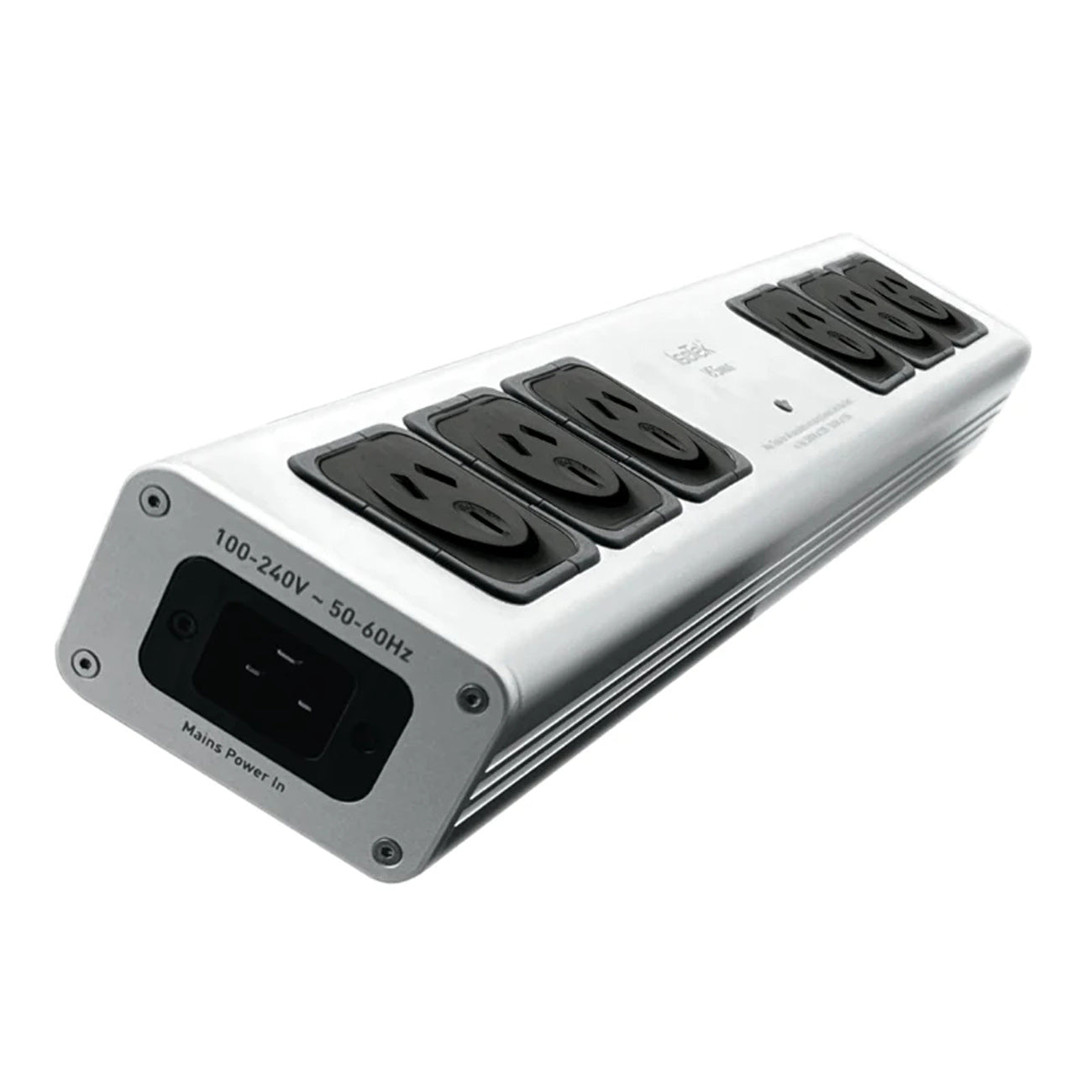

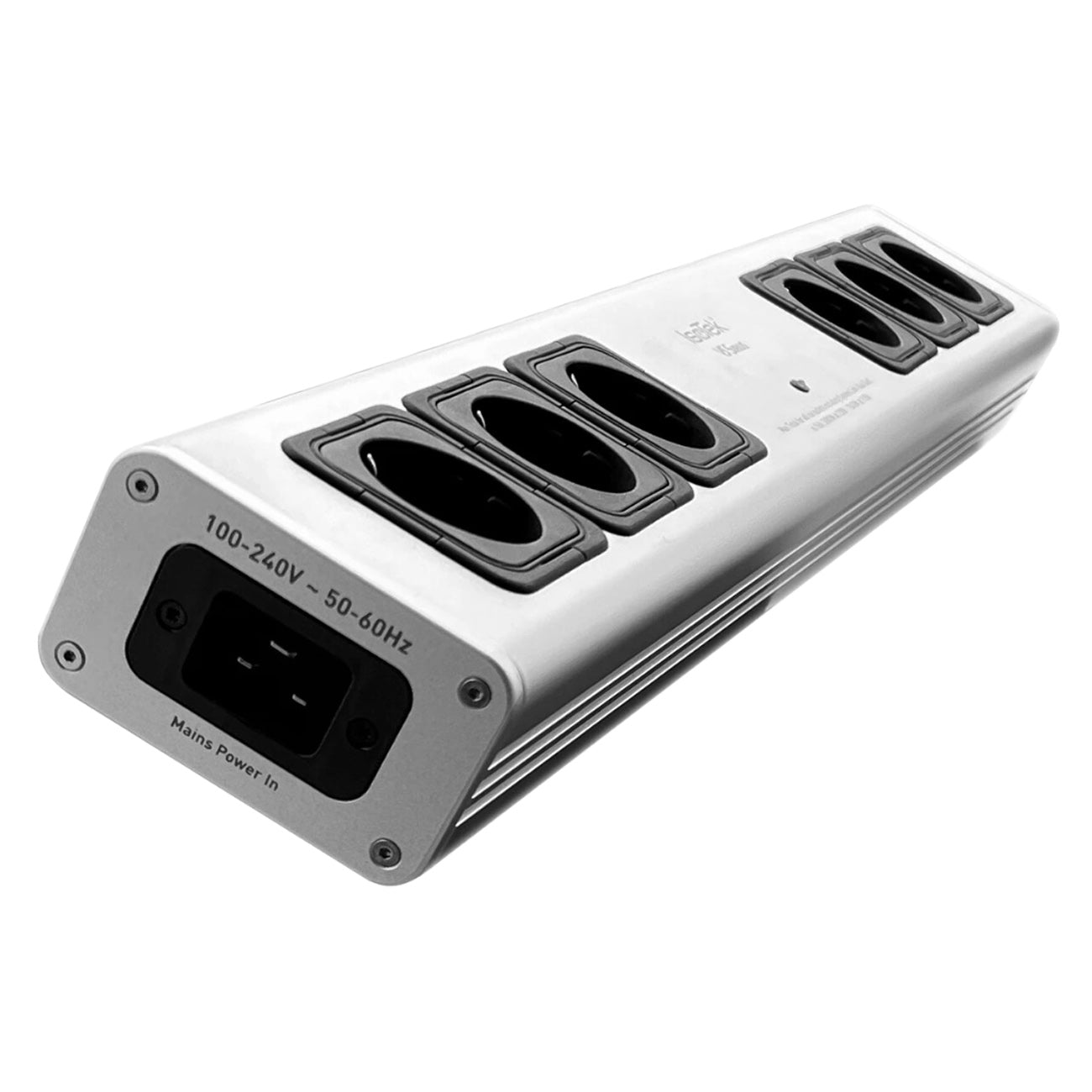

About The IsoTek V5 Sirius Power Board

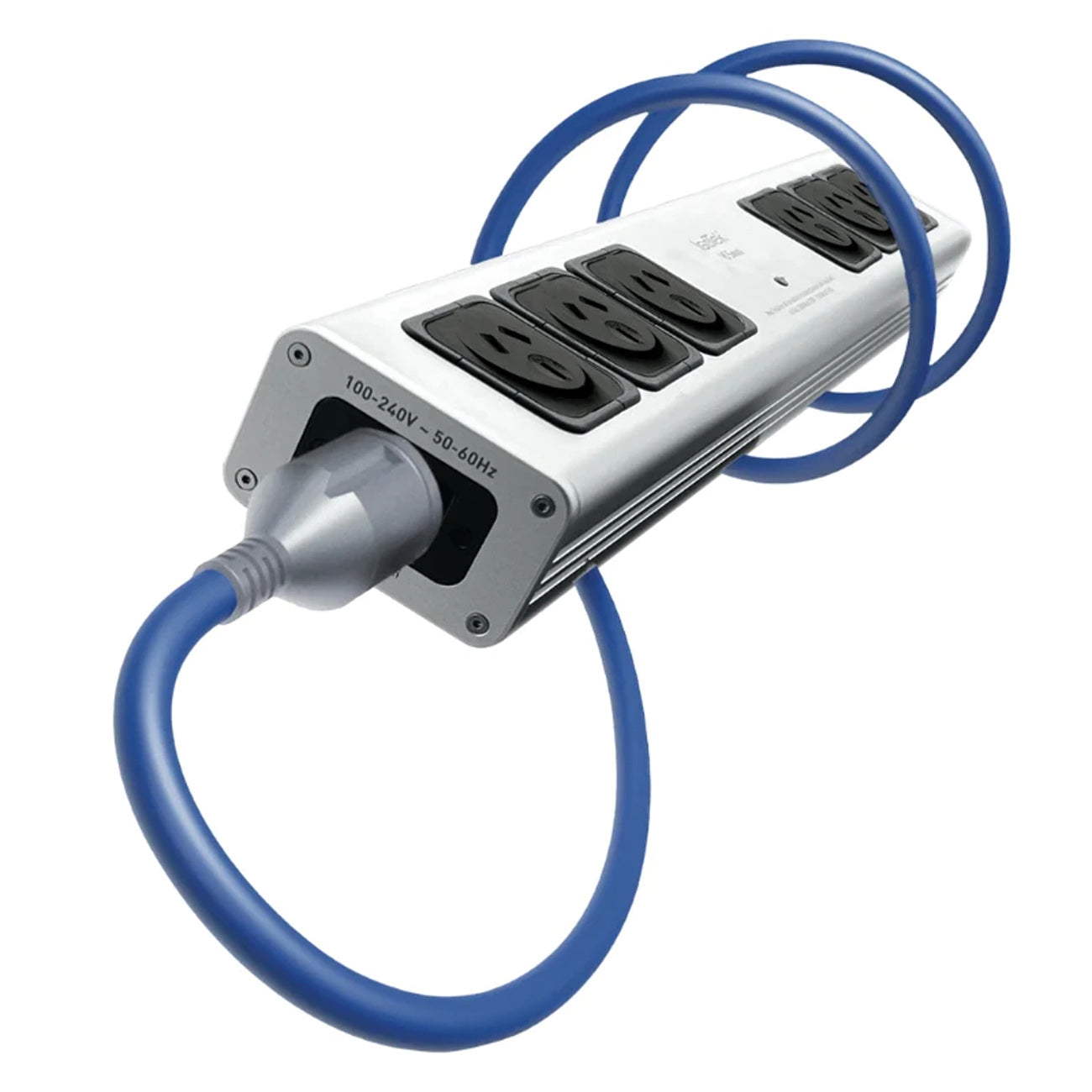

IsoTek, the world leader in power optimisation devices for audio and AV systems, introduces the newest edition of its power bar cleaners for the V5 series – the V5 Sirius. Housed in an extruded aluminium chassis, Sirius is a sturdy, durable power bar that can easily be wall mounted behind audio systems or placed discreetly behind audio racks. A special wall bracket system is supplied, along with IsoTek's multi award-winning EVO3 Premier power cable.
V5 Sirius is an ultra-high performance power bar, harnessing IsoTek's latest mains power cleaning technology, which both protects and improves your system's performance. Its compact and elegant design measures 555mm in length, 88mm wide and is just 55mm high. It features 6 independent outlets, each one referencing back to the central PCB to dramatically reduce Differential Mode cross-contamination of connected components. Most power filters of this style join output sockets together, running each in series. A filter's effectiveness suffers under this design as Differential Mode Noise created by your connected electronics will cross-contaminate from one output socket to the next. The electrical architecture and design of Sirius avoids this, rendering a wider, more clearly-defined stereo image.
The V5 Sirius features a unique high grade and high amperage choke system combined with high frequency delta filters to ensure class-leading power cleaning of both Common Mode and Differential Mode mains noise across a wide frequency range. This is combined with IsoTek's unique Inductive Resonance Gate which further optimises the isolation between each of the six output sockets. Clean power is then delivered to all six output sockets – each one independently isolated to prevent cross-contamination of mains noise. KERP (Kirchoff's Equal Resistance Path) ensures equal resistance and equal power delivery to all outlets.
The internal wiring is unique to Sirius, composed of pure 6n oxygen-free copper conductor strands with silver plating, offering low resistance and high amperage. An FEP dielectric is then used to protect the conductors, this also offers the ultimate low resistance power delivery system. Furthermore, a 54,000A instantaneous yet transient protection system enhances sound quality as well as protecting precious audio components from dangerous power surges and voltage spikes. This unique safeguarding system features IsoTek's sequential cascading VDR protection method which offers superior safety without dynamic audio or sound restrictions. The internal wiring of IsoTek products synergises with the range of IsoTek power cables.
Our Take
The V5 Sirius features six independent outlets, each one referencing back to the central PCB to dramatically reduce Differential Mode cross-contamination of connected components, ensuring pitch black silences and sweeping dynamics. Coupled with a System Link outlet which allows multiple IsoTek devices to be connected by referencing back to a single wall socket, the V5 Sirius comes packaged with an EVO3 Premier Cable and is a superb investment for anyone looking to upgrade their entire sound system without the need to replace any of the components they love.
Main Features & Specifications
- Design: High performance, 6 outlet Power Board – Supplied with IsoTek EVO3 Premier Power Cable

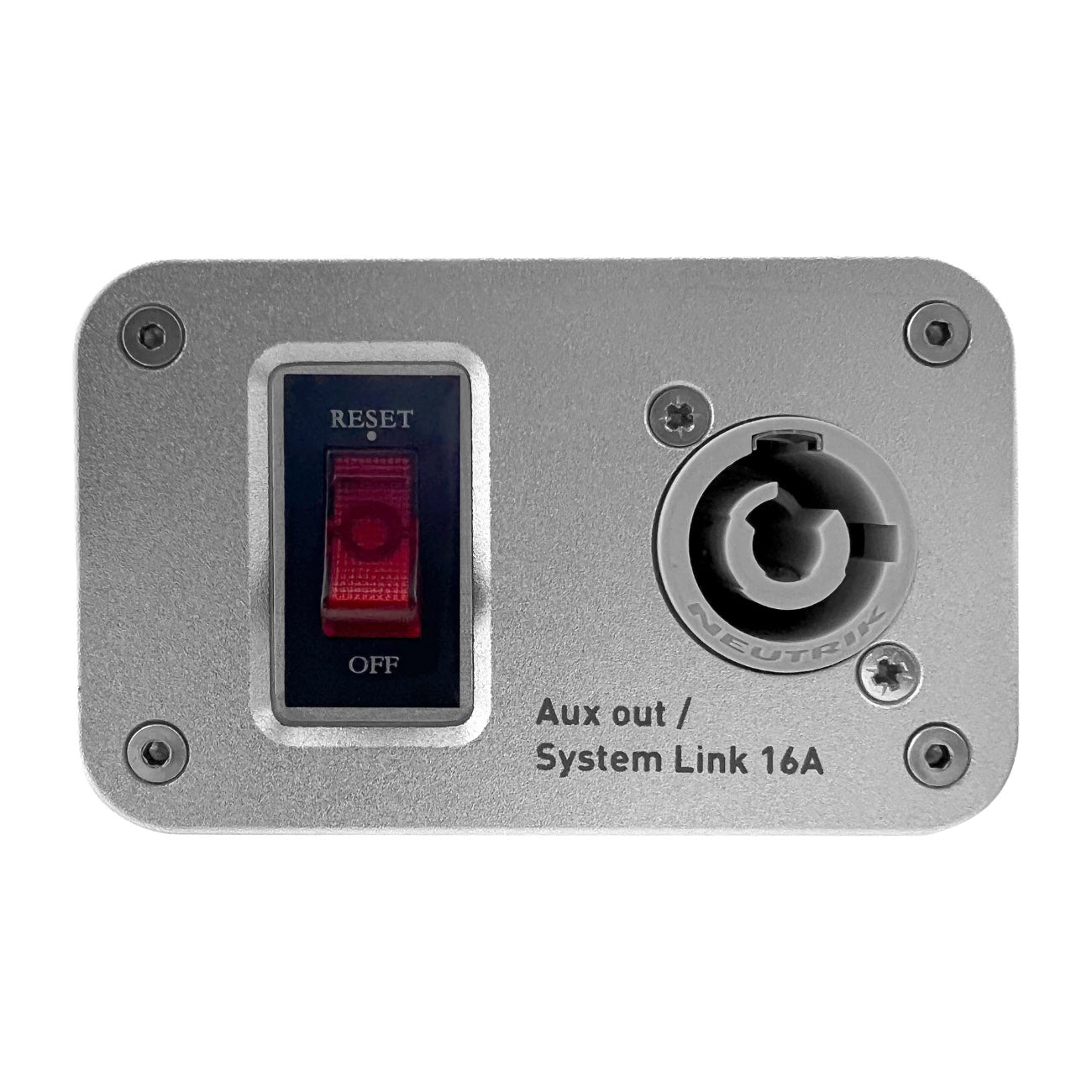

- System Link outlet for extending the outlets and maintaining a starred earth reference
- Suitable for all audio, AV, or network based systems
- RFI reduction up to 60dB
- Central clean power network removes Common and Differential Mode mains noise
- 6 independent outlets stop Differential Mode cross contamination (16A)
- KERP (Kirchoff's Equal Resistance Path) ensures equal resistance and equal power delivery to all outlets
- Fully star-earthed network
- Multi-strand 6N OFC silver-plated internal wiring with FEP dielectric
- Easy reset fusing system
- Wall mounting bracket kit included
- Supplied with an IsoTek EVO3 Premier Power Cable
- Mains Inlet: 16A IEC C20
- Mains Voltage 100-240V / 50-60Hz
- Maximum Current: 16A HRC
- Total Wattage: 3,680W @230V
- Instantaneous Surge Protection: 54,000A

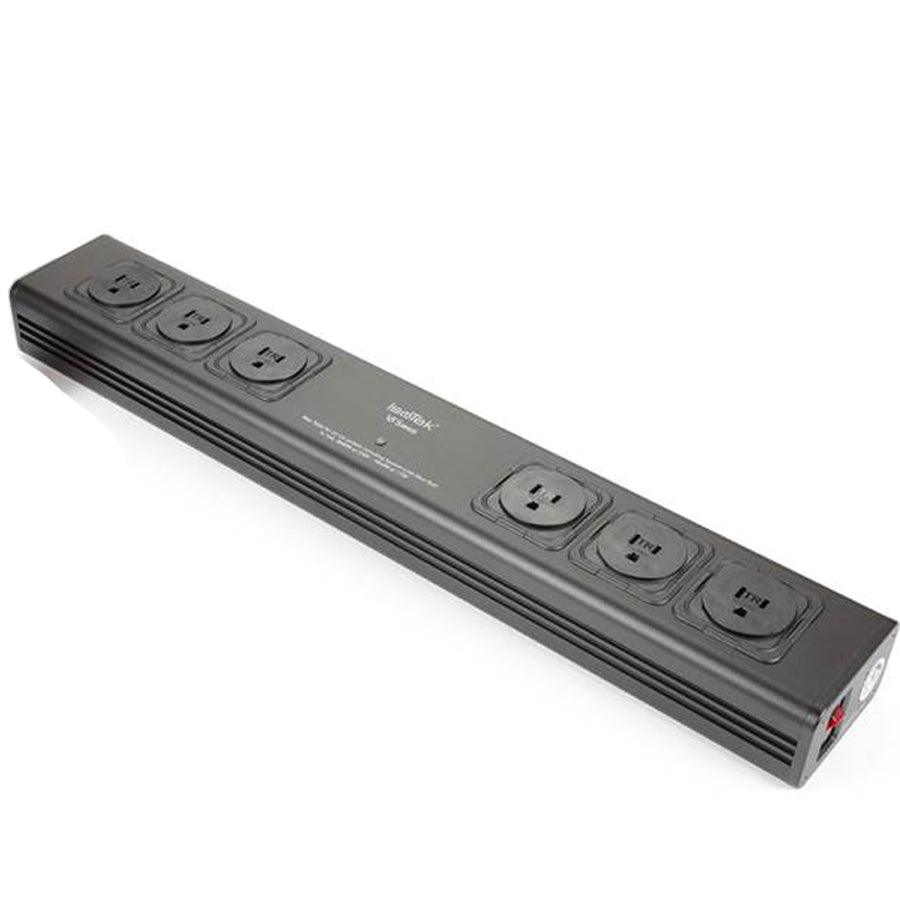

- Available Finishes: Silver & Black
- Dimensions (WxHxD): 88 x 55 x 555mm
- Weight: 2 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
