About The Episode Radiance MB-1 Outdoor Audio & Lighting Processor
Episode Radiance is the ultimate all-in-one outdoor music and lighting system. This sleek all-in-one solution delivers high-performance sound that's easy to install - using just one wire for both audio and lighting! The IP66 certified, UV-protected components can be buried, mounted, or placed anywhere that suits your install. From pathway to poolside, deliver space-filling sound and beautiful lighting with Episode Radiance.
The Episode Radiance MB-1 is where the magic really happens. With patent pending ACE Technology designed by Swarm, the MB-1 combines the audio signal from a 70V amplifier and lighting from an off-the-shelf lighting transformer onto a single 2-conductor wire.
Up to 500W of Audio & 300W of Lighting: The MB-1 combines up to 500W of audio and up to 300W of lighting in one small footprint when driven by an Episode Hybrid 1000 Amplifier.
Please Note: Episode Landscape Hybrid 1000 Amplifier with Episode Radiance DSP is recommended for installation
Compatible with Popular Lighting Transformers: The MB-1 accepts a 12V or 15V AC or DC input from a standard non-dimmable lighting transformer.
Please Note: A lighting transformer is required for installation

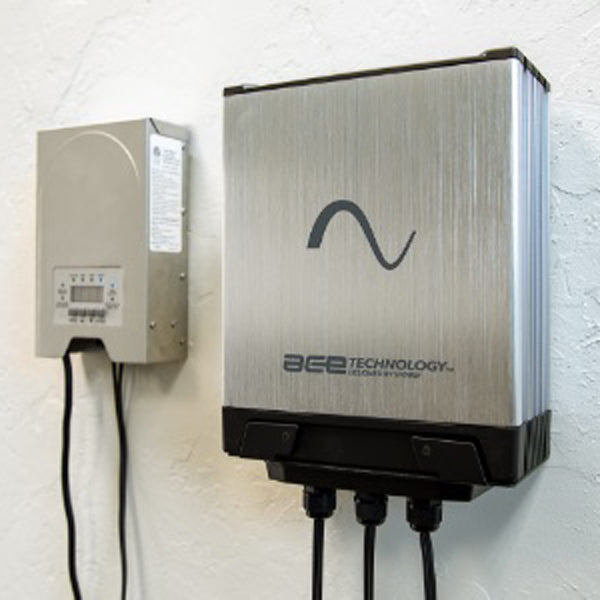

IP Rated for Outdoor Use: The MB-1 is IP66 rated for use outdoors. Conveniently place the MB-1 near your lighting transformer for easy integration.

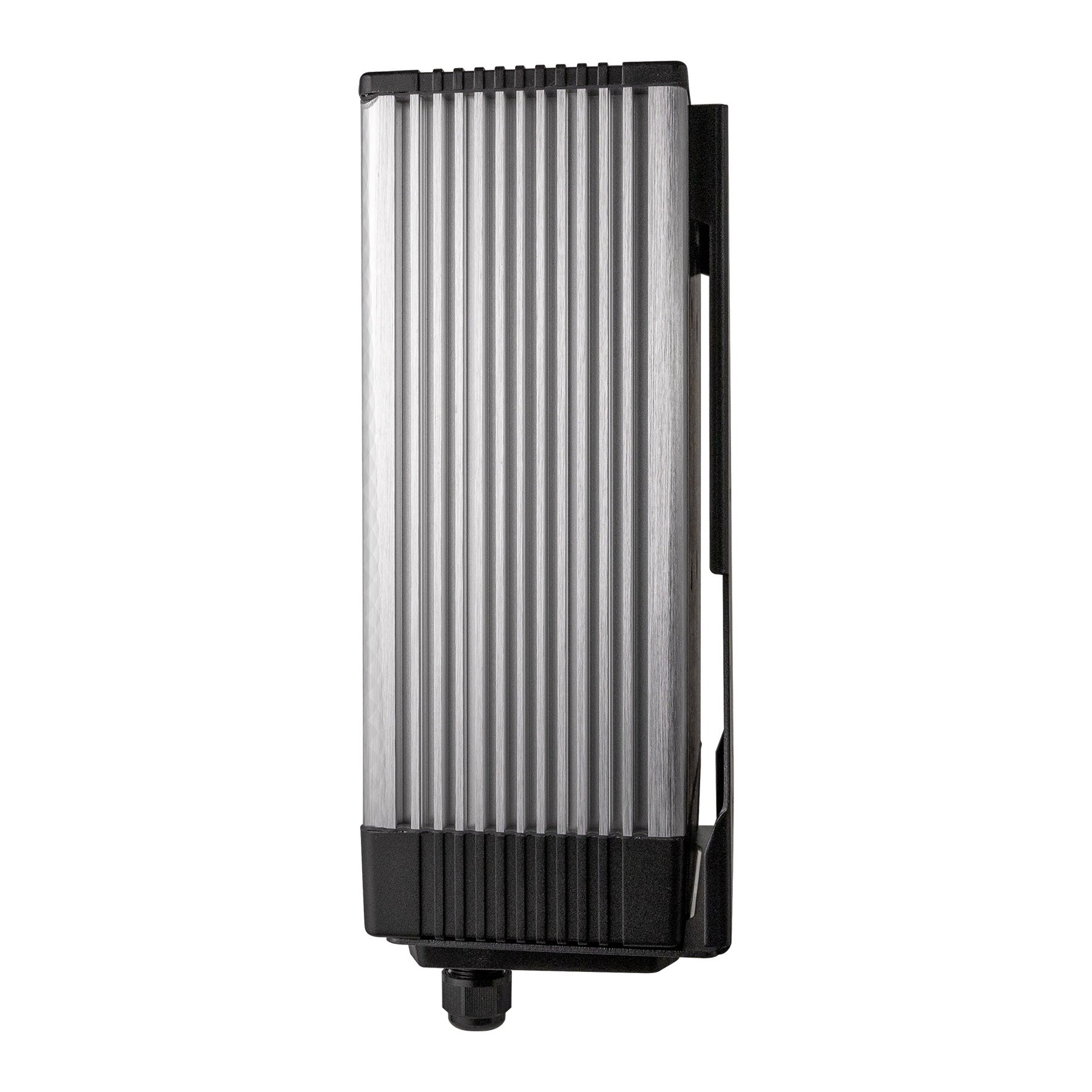

Mount Anywhere with Fuse Protection: The MB-1 mounting bracket allows for flexible, secure mounting to any surface and has fuse protection to prevent damage from improper wiring.
Our Take
This is the product that combines Audio and Lighting onto a Single 2-Conductor Wire and enables the Episode Radiance Bollard Speakers with the optional Light Module to do their thing. The MB1 combines up to 500W of audio & 300W of lighting in a simple one box solution. This is pretty amazing technology and is unique to Episode.
Main Features & Specifications
- Design: Outdoor Audio & Lighting Processor
- Use with Episode Radiance Bollard Speakers and Light Modules
- Combines audio and lighting onto a single 2-conductor wire

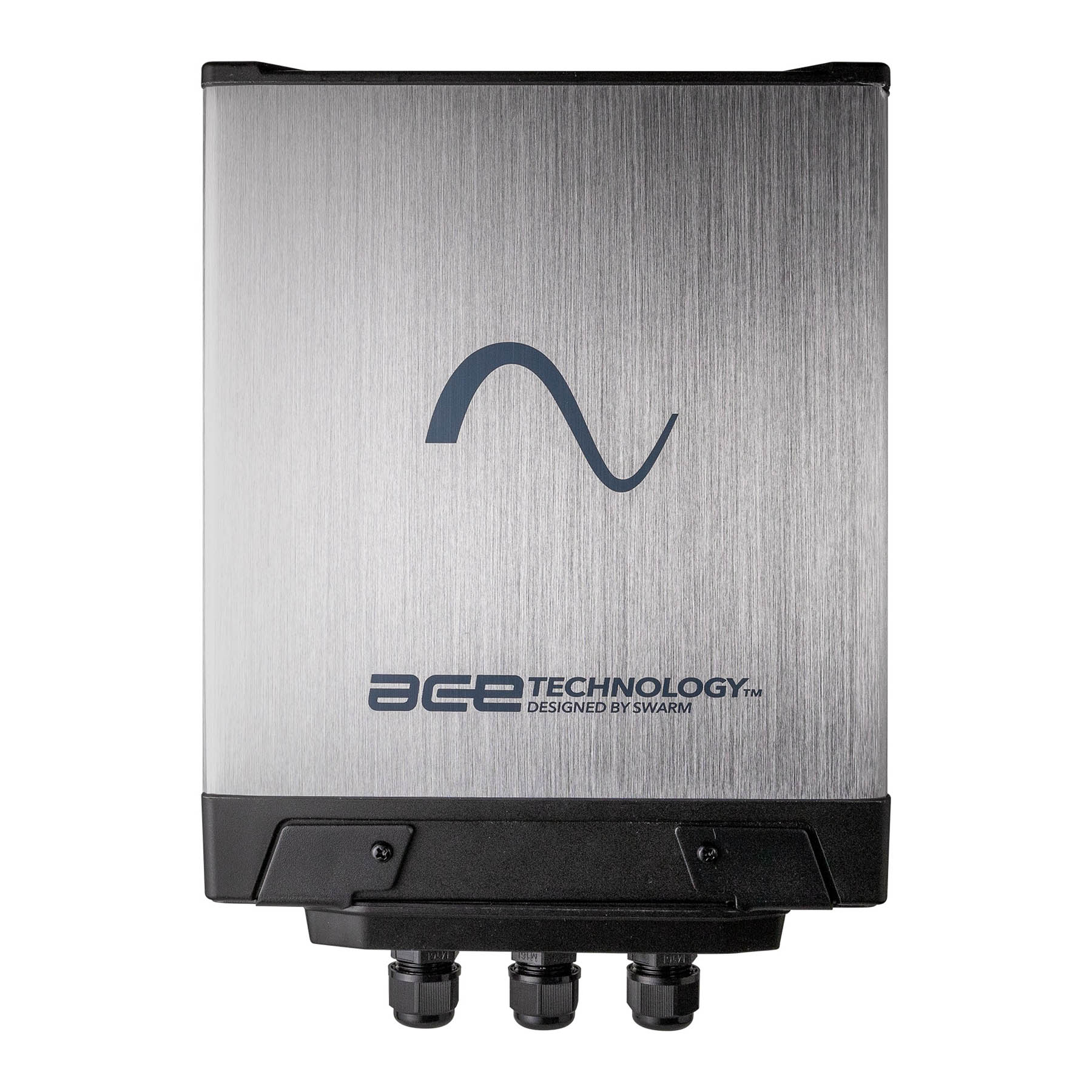

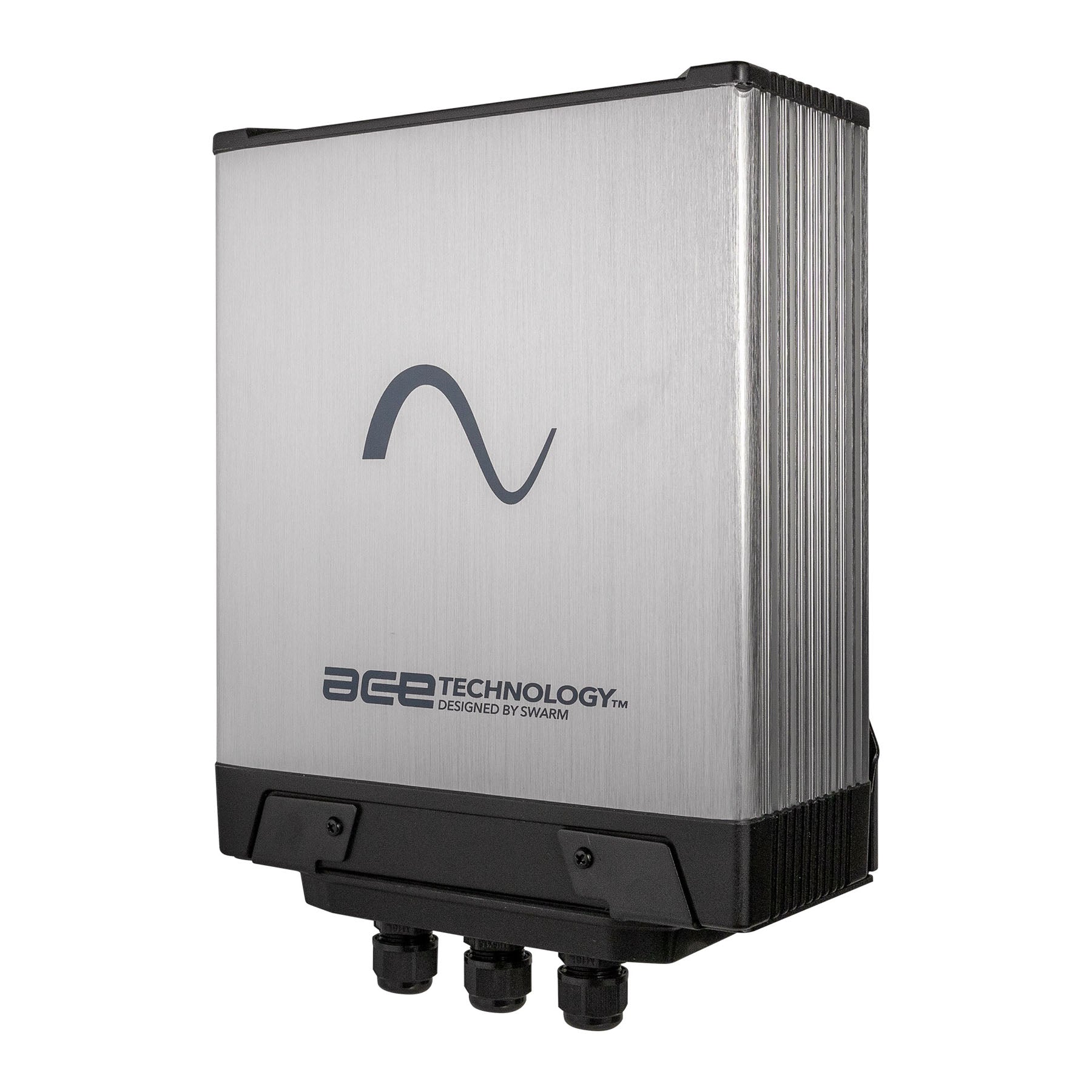

- Patent pending ACE Technology designed by Swarm
- IP66 certified, UV-protected components
- Compatible with 12V or 15V AC or DC input lighting transformer
- Can be buried, mounted, or placed anywhere that suits your installation
- Combines up to 500W of Audio & 300W of Lighting in a one box solution

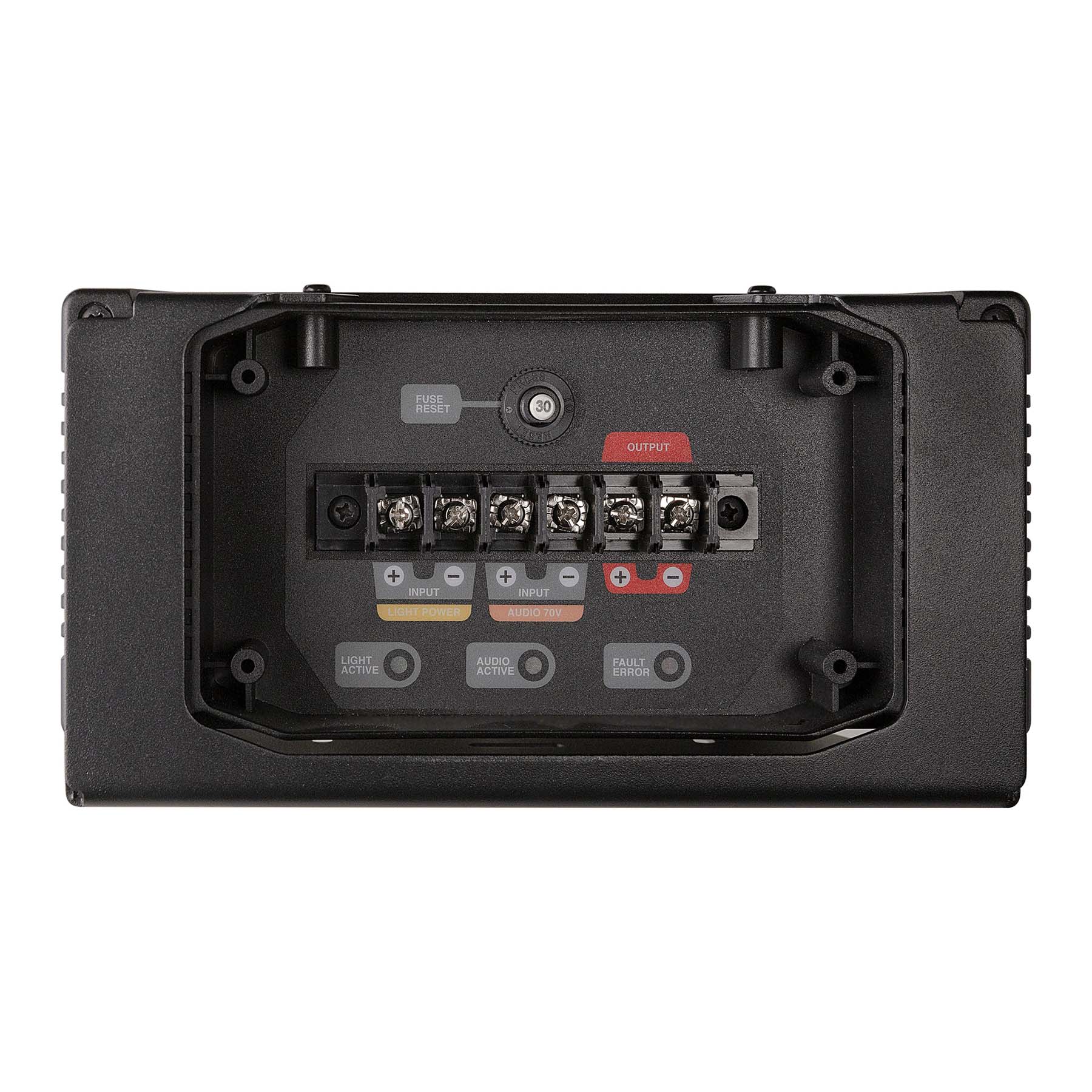

- Connector Type: 6 screw terminal block
- Dimensions (WxHxD): 103.8 x 222.5 x 230mm
- Weight 95 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
