About The Episode Landscape Hybrid 1000 Amplifier
Get premium performance for even the largest outdoor speaker systems with an IP-enabled Episode Amplifier. Its ultra-compact form factor makes it easy to store, but don't let its size fool you – it has enough power to keep your speakers rocking.
This high-power hybrid 70V/8-ohm digital amplifier with IP control comes with OvrC cloud management, versatile inputs/outputs, and a compact form factor. This amp packs some serious punch and has the build quality to last years in your rack. You'll find this amp is right at home in so many applications, including churches, gyms, restaurants, landscape, and large distributed audio systems.
Control System Integration: Designed for the custom integrator, this amp is unique in that it easily integrates with control systems. Equipped with options for serial, IP, IR, and OvrC cloud control options, this amp is not only a breeze to automate, it's also easily configured during the install. And with a full set of pre-built drivers, it's just a matter of dropping in a file to integrate the amp with the control system of your choice.
Adjustable Inputs & Outputs: Balanced and unbalanced analogue inputs plus digital inputs allow you to use this amp in almost any situation. The adjustable input gain settings let you input a wide range of source levels, including mic level, line level, and pro audio - simply adjust the input level in the UI to match the source. Plus, with loop outs, you always have the option to stack these amps to gain more power and easily loop the wiring.
Compact 1U Design: Get tons of features in an ultra-compact form factor. The sleek 1U design takes up little of your valuable rack space, and included rack ears make the amp easy to install.

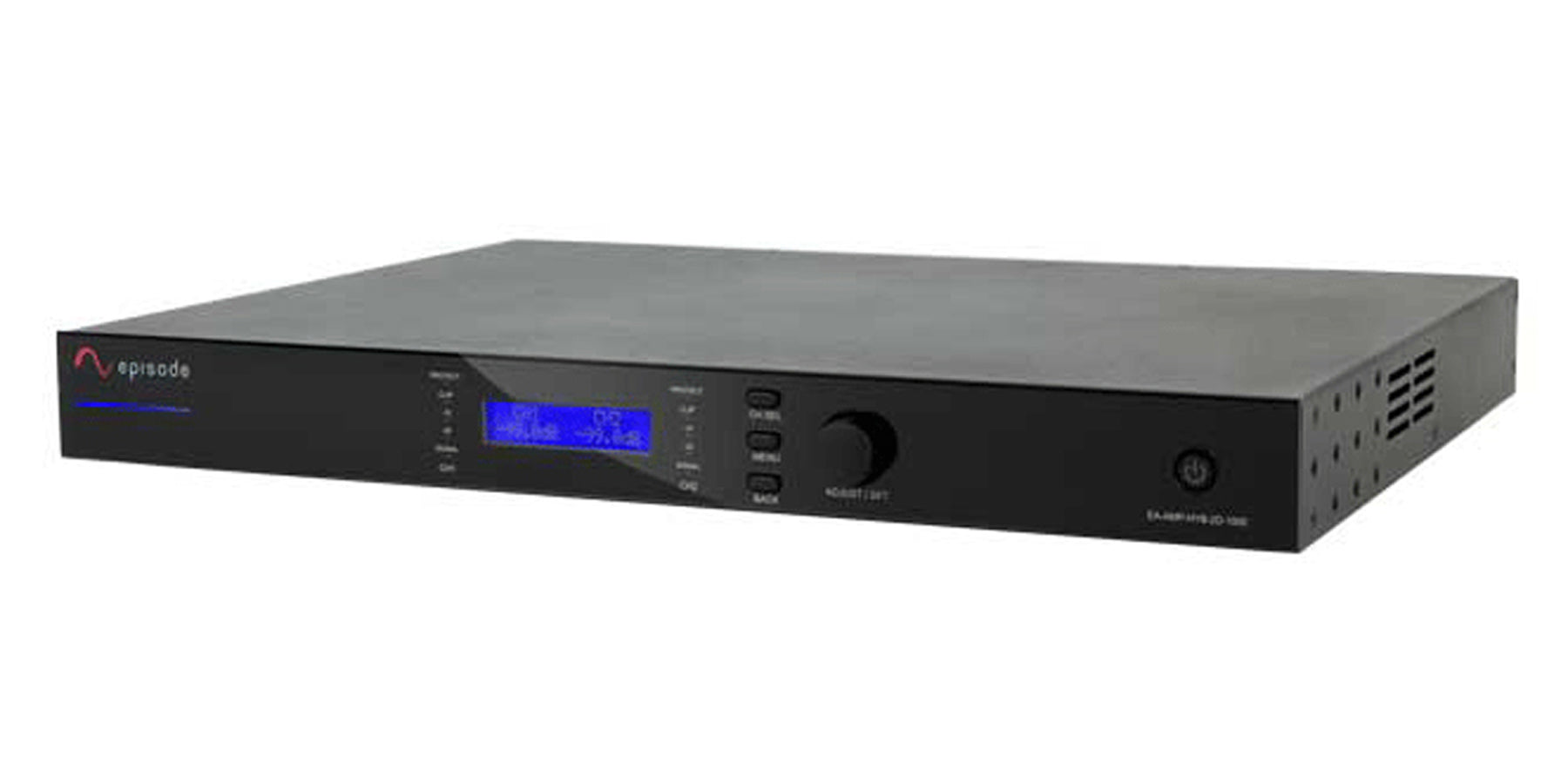

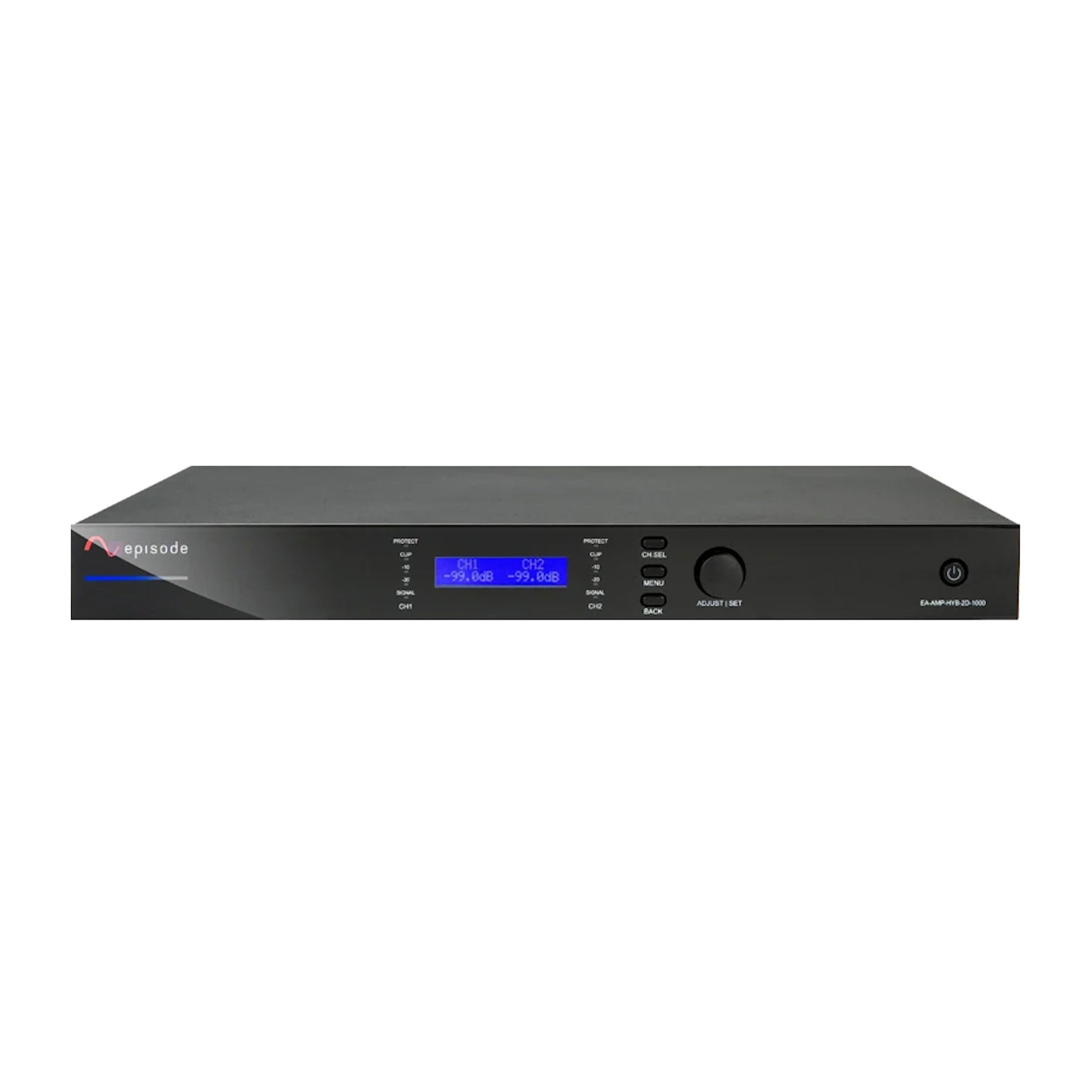

Pre-Loaded DSP Settings: To ensure this amp works perfectly with Episode's landscape speaker systems, it's pre-loaded with a host of DSP settings. Plus, the new UI and front panel allows for easy recall, so the system will sound amazing in a matter of minutes.
Versatile Configurations: This professional amplifier delivers premium performance for even the largest speaker systems. Install high-powered versatility, with two configurable output channels to support 70V, 8 Ohm, and hybrid configurations (2 Ohm minimum).

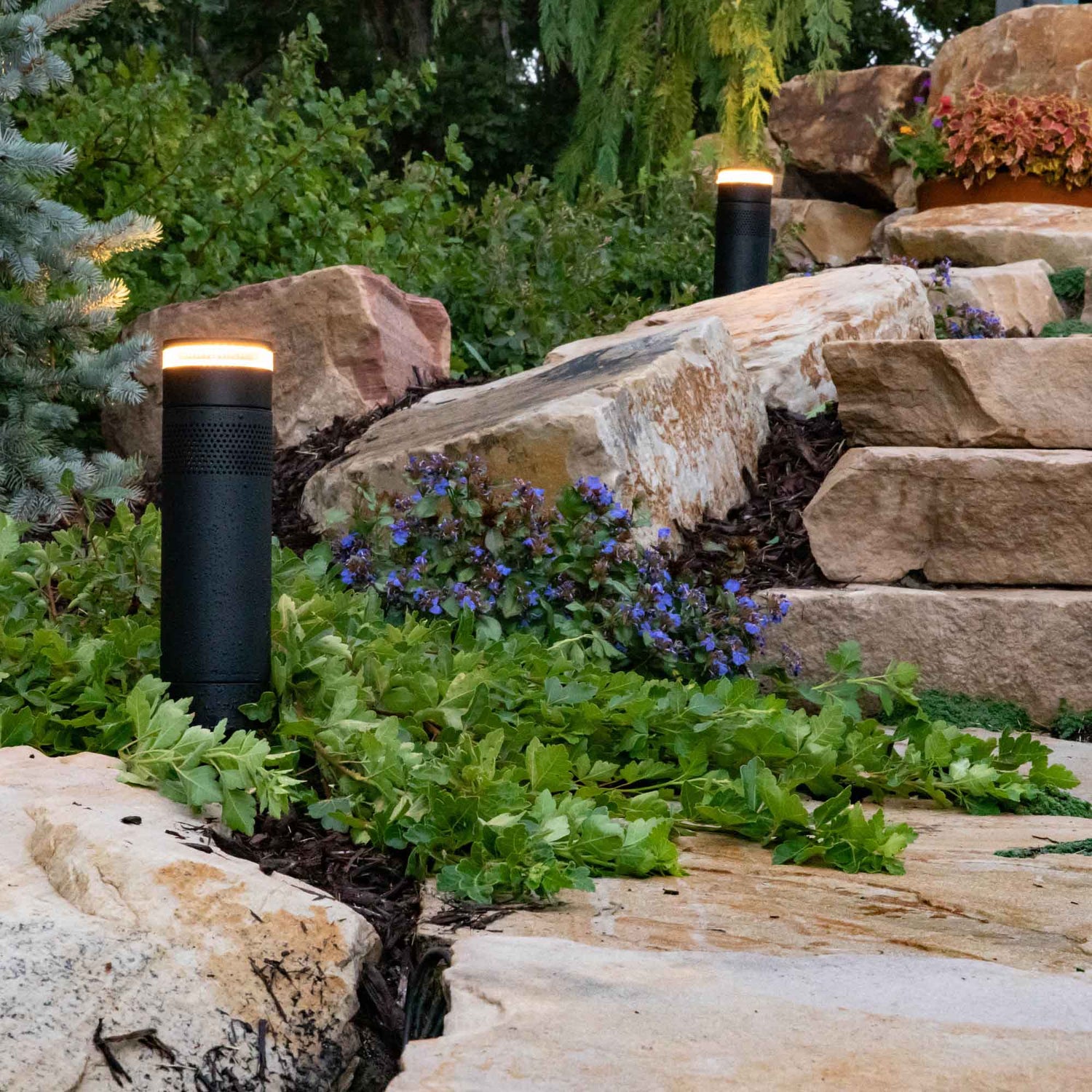

Bring The Bass: The 2-channel configuration of this amp allows for simultaneously powering a large number of 70V speakers and high-powered subs, like the Episode® Radiance Outdoor Bollard Speakers and Episode® Radiance Outdoor Subwoofers. The detailed install instructions make integrating an amp with the subwoofers easy, giving you increased performance and earth-shattering low notes with zero hassle.
Audio Sense & 12V Trigger Audio-sense is perfect for connecting to an audio source or mixer – when the source turns off, the amplifier will gracefully go into a power-saving standby mode. The 12V trigger inputs allows you to use a mixer or control system to turn the amp on or off, or have it "wake up" another device when the amp is activated.
Perfect For Landscape: If you're installing an outdoor landscape system, then this Episode amp is a must-have. It's pre-programmed to work with Episode Landscape Speakers and Subwoofers, and fits perfectly with both 70V and 8-ohm systems.
Our Take
If you're installing an outdoor landscape system, then this Episode amp is a must have. It's pre-programmed to work with Episode Radiance Outdoor Bollard Speakers and Radiance Outdoor Subwoofers, and fits perfectly with both 70V and 8 Ohm systems. With 2 x 500 Watts this amplifier has plenty of grunt to power even the most ambitious outdoor speaker system.
Main Features & Specifications
- Design: IP Enabled 2 Channel Amplifier for 70V & 8 Ohm Outdoor Speakers
- Model No.: EA-AMP-HYB-2D-1000
- Use with Episode Radiance Bollard Speakers and Radiance Outdoor Subwoofers
- OvrC configuration & remote access management system
- Audio-Sensing & 12V Trigger Turn-On
- Power Output
- 300W per channel @ 8 ohm (1000W bridged)
- 500W per channel @ 4 ohm (2000W bridged)
- 700W per channel @ 2 ohm
- 500W per channel @ 70V
- 500W per channel @ 100V (230VAC only)
- Power Consumption
- 230W Typical
- 1,100W Max
- Input Sensitivity: 1.4Vrms, max power
- Impedance Input
- RCA Analogue input: 10kΩ
- Balanced Analogue input: 20kΩ
- Signal to Noise Ratio: 101dB A-weighted @ 1.4Vrms & 4Vrms input max
- Total Harmonic Distortion (THD): Less than 1%
- Frequency Response: ± 2dB at 1/8th power (20Hz to 20kHz)
- Network: RJ-45 jack, 10/100Mbps

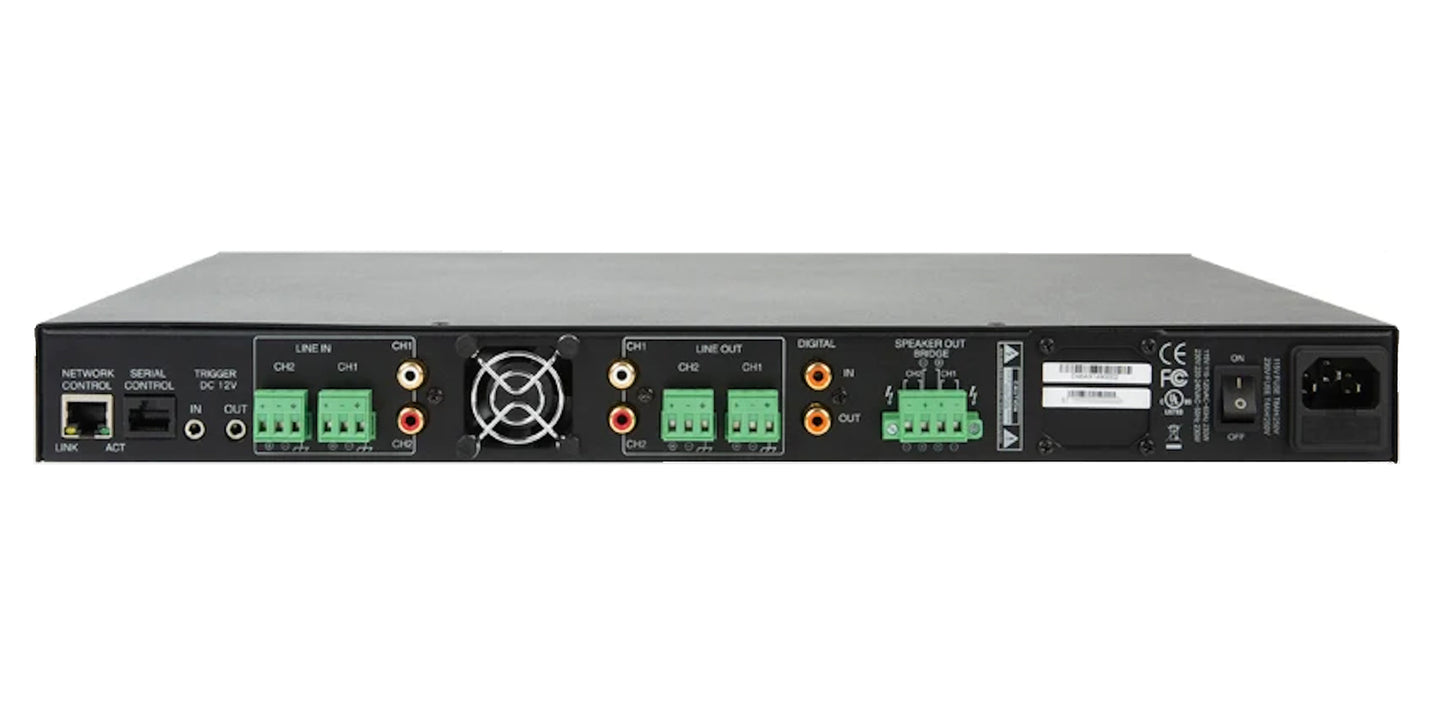

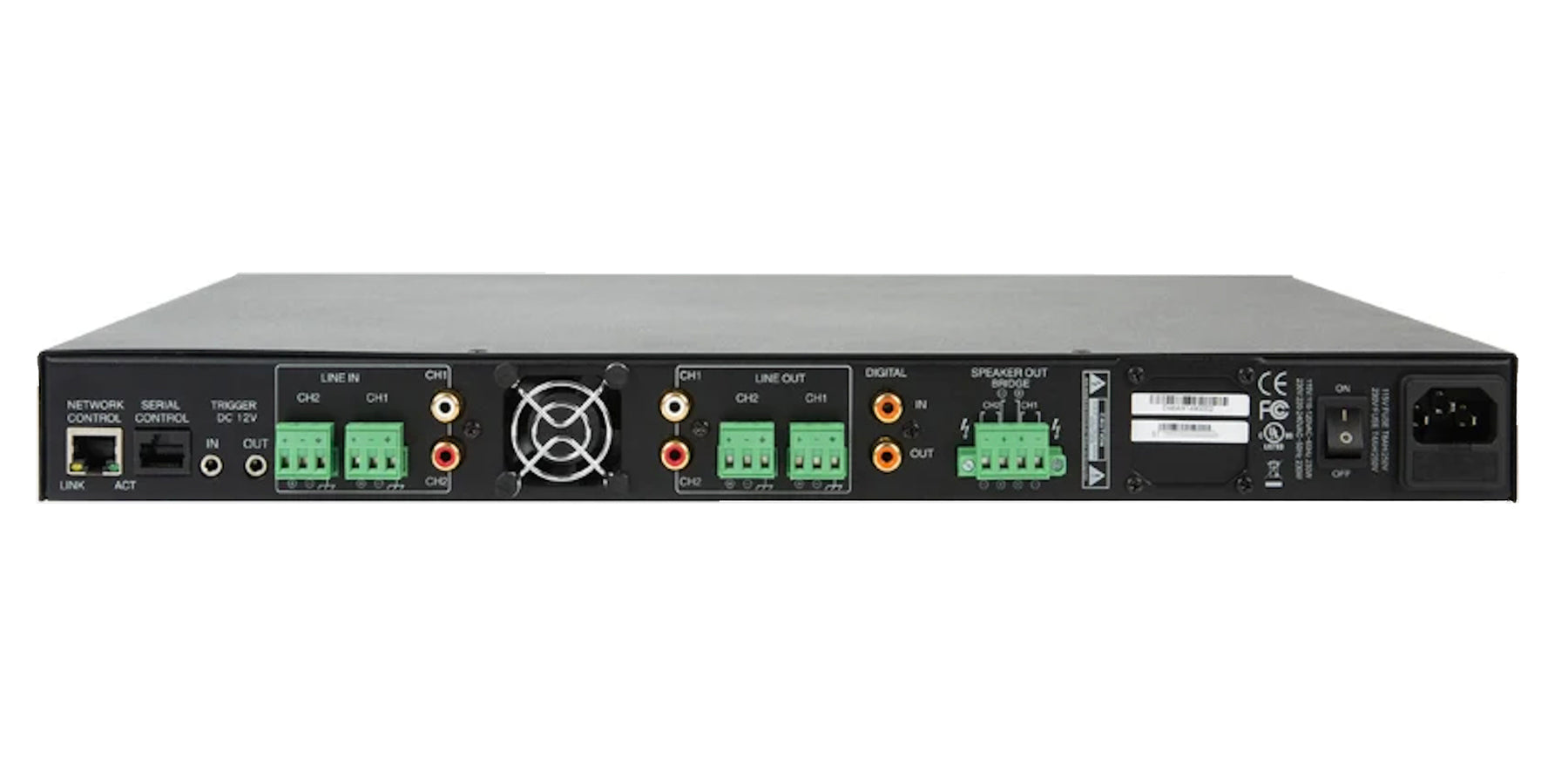

- Audio Inputs / Outputs
- Balanced Analogue Audio: 2 x 3 position Phoenix-style pluggable screw termination block
- Single Ended Analogue Audio: Left & Right RCA
- Speaker Outputs: 2 x 3 position Phoenix-style pluggable screw termination block (12-18 AWG)
- 12V Trigger: 3.5mm mono jack
- Rack Spacing: 1U
- Dimensions (WxHxD): 432 x 44.5 x 305mm
- Weight: 5.45 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE
