About the Blustream SW41AB-V2
Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists with over 30 years experience in the custom field alone. Add to this the experience of senior management and you can be assured of the highest level of commitment.

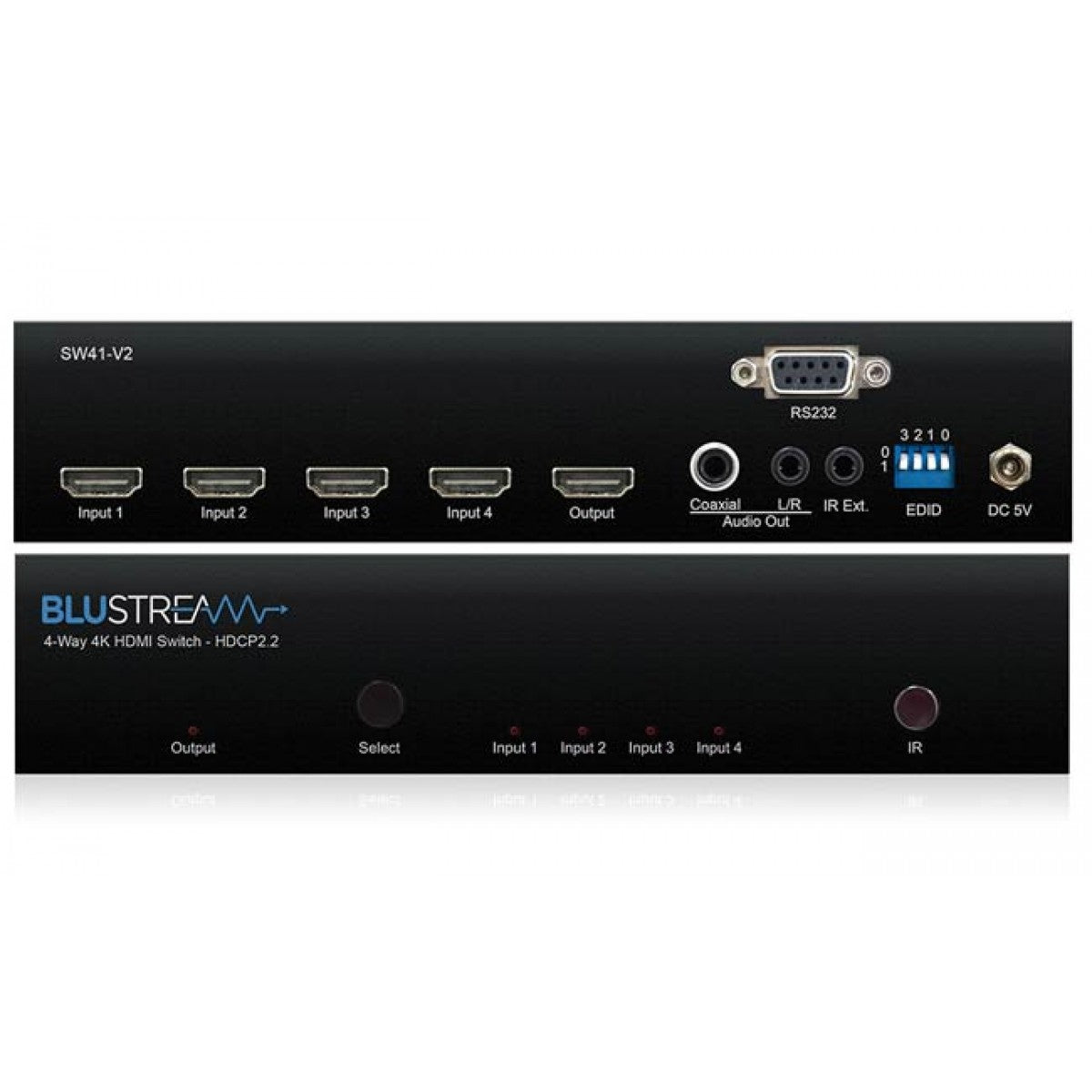

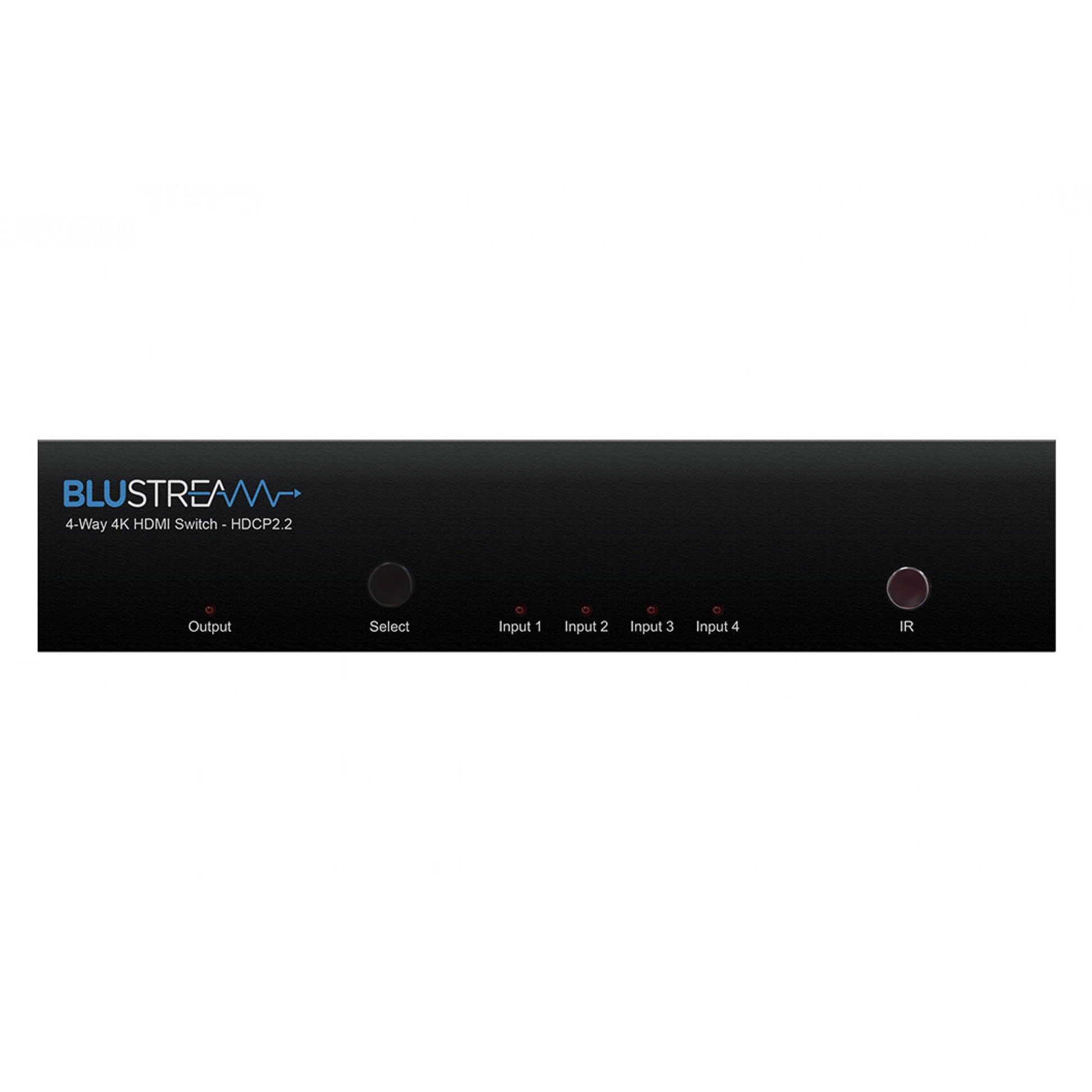

The SW41AB-V2 is a 4-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2
with video resolutions up to and including 4K @ 60Hz 4:4:4.
Main Features & Specifications
- Features 4 x HDMI inputs which can be switched to single HDMI output
- Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
- HDCP2.2 compliant
- Supports 3D signal display
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Control via front panel, RS-232 and IR
- Advanced EDID management
- Video Input Connectors: 4 x HDMI Type A
- Video Output Connectors: 1 x HDMI Type A
- Audio Output Connectors:1 x RCA (S/PDIF) & 1 x Analogue audio L/R (3.5mm stereo Jack)
- IR Input Ports: 1 x 3.5mm stereo Jack
- RS-232 serial port: 1 x DB-9, female
- Casing Dimensions (WxHxD): 196mm x 41mm x 94mm
- Dimensions including connections (WxHxD): 196mm x 41mm x 104mm
- Shipping Weight: 0.9 kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/2A DC
Note: Features & Specifications Subject To Change Without Notice. E&OE.
