About The Blustream SW21AB-V2
Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists with over 30 years experience in the custom field alone. Add to this the experience of senior management and you can be assured of the highest level of commitment.

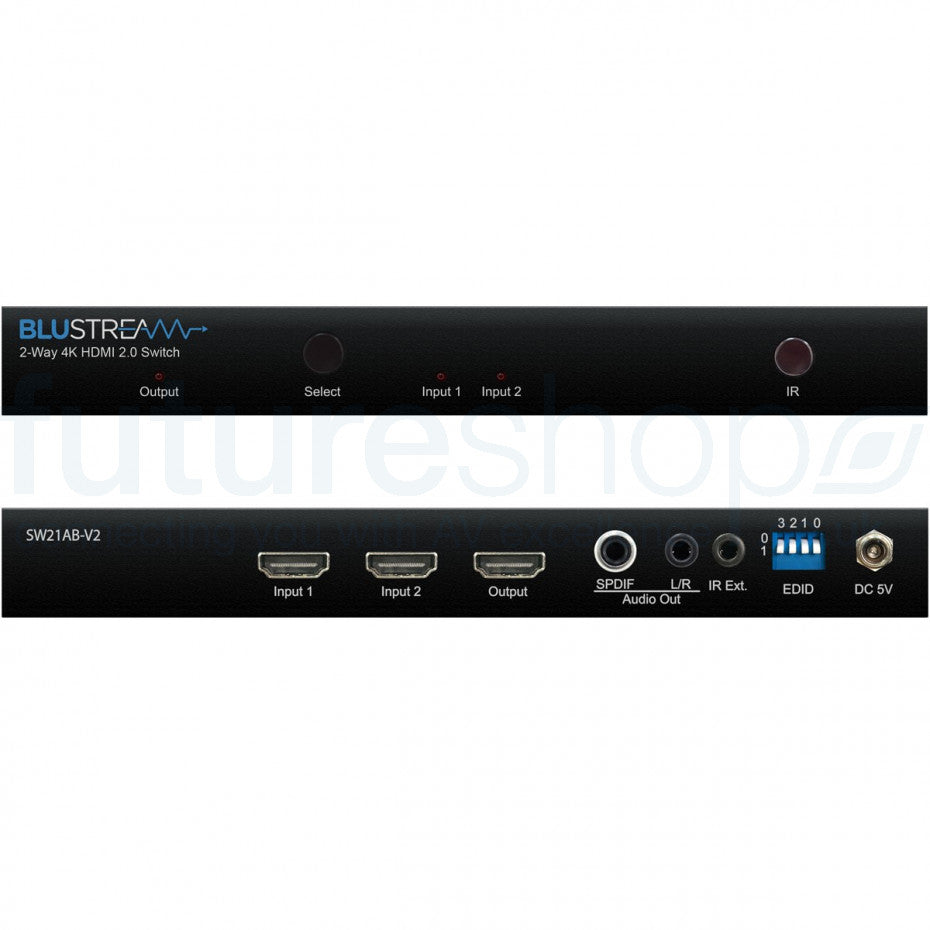

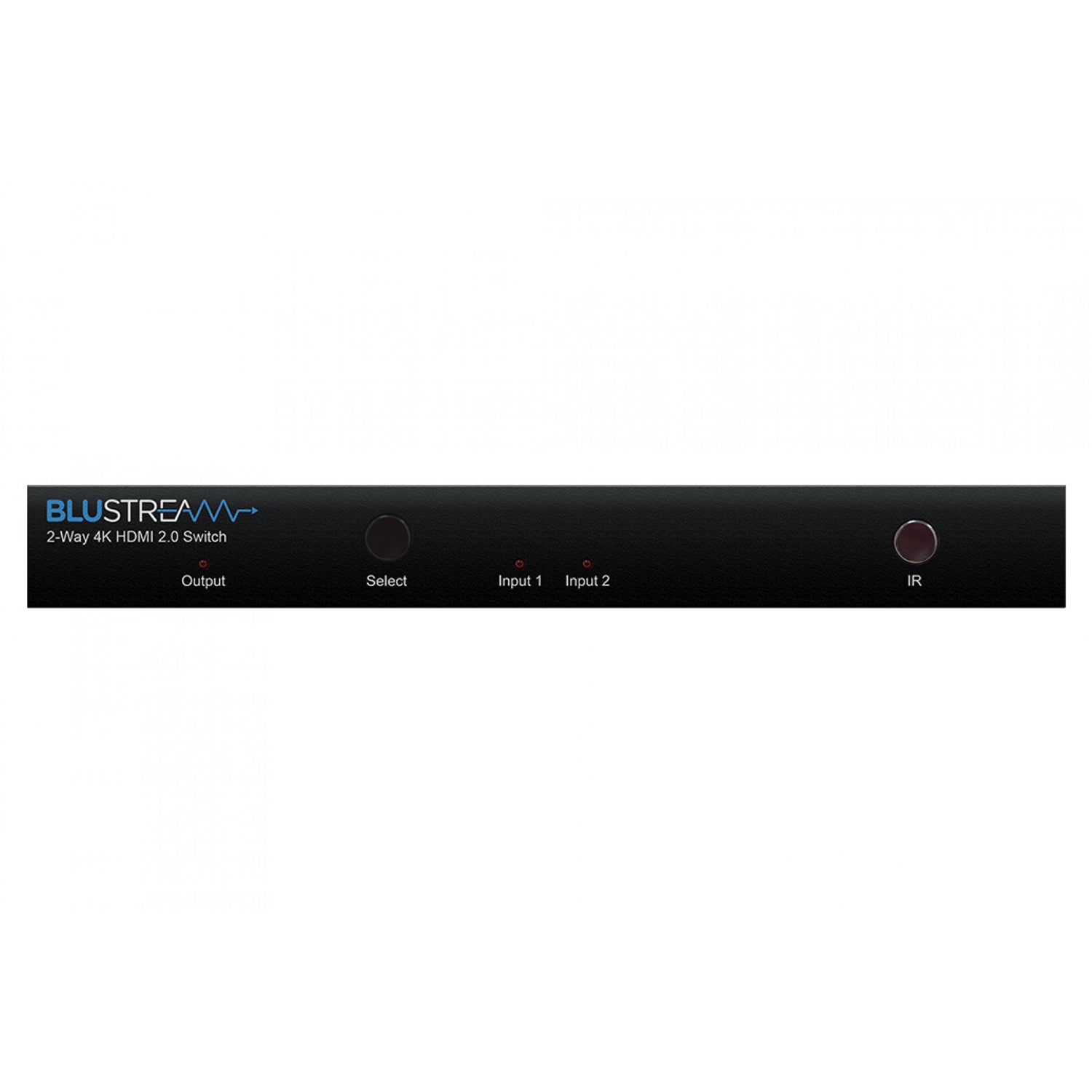

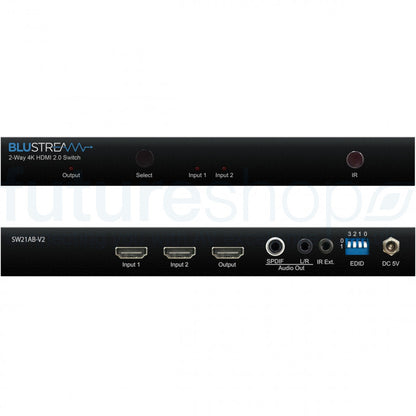

The SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2
with video resolutions up to and including 4K @ 60Hz 4:4:4.
Main Features & Specifications
- Features 2 x HDMI inputs which can be switched to a single HDMI output *
- Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
- HDCP2.2 compliant
- Supports 3D signal display
- Supports CEC bypass (Consumer Electronics Control)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently
- Control via front panel and IR (remote control included)
- Advanced EDID management
- * Please note: this unit is not auto signal sensing / switching
- Video Input Connectors: 2 x HDMI Type A
- Video Output Connectors: 1 x HDMI Type A
- Audio Output Connectors: 1 x RCA (SPDIF) & 1 x Analogue audio L/R (3.5mm stereo Jack)
- IR Input Ports: 1 x 3.5mm stereo Jack
- Product Dimensions (WxDxH): 196 x 104 x 32mm (with connections)
- Product Dimensions (WxDxH): 196 x 94 x 23mm (without connections)
- Product Weight: 0.45 kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): 295 x 155 x 80mm
- Shipping Weight: 0.8 kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/2A DC
Note: Features & Specifications Subject To Change Without Notice. E&OE.
