Quick Info

HDMI 4K HDCP 2.2 Splitter with In-Built Scaler, Audio Breakout and EDID Management

View full details

About The Blustream SC12SP V2

Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists with over 30 years experience in the custom field alone. Add to this the experience of senior management and you can be assured of the highest level of commitment.

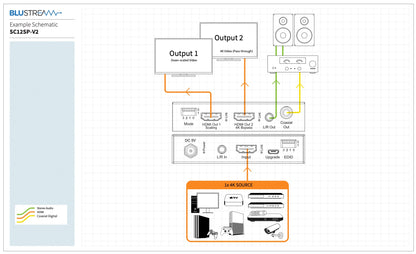

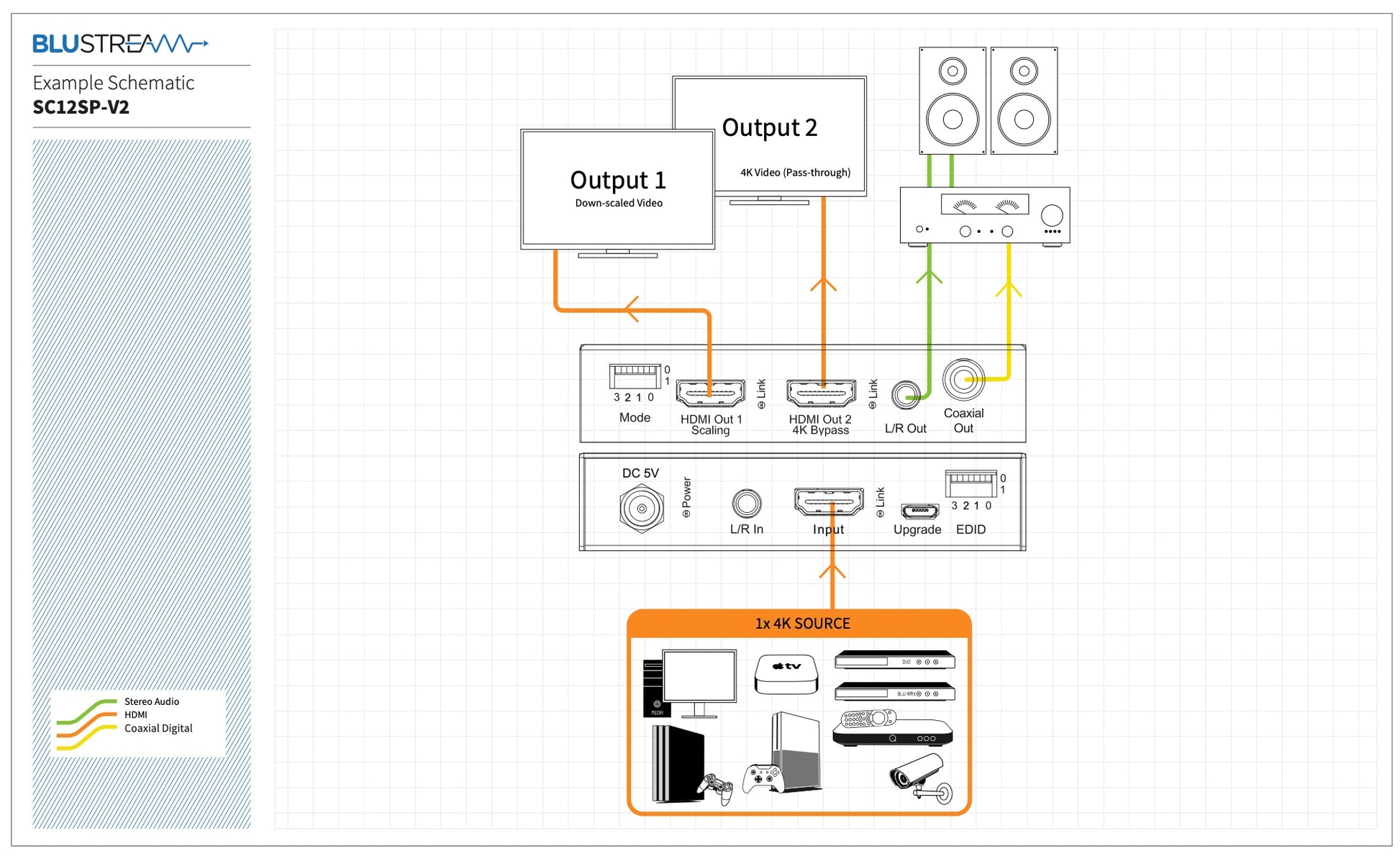

The Blustream SC12SP-V2 is a 4K HDMI 2.0 splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions. The SC12SP-V2 supports down-scaling of up to 4K 60Hz 4:4:4 video to various lower resolution video formats. The SC12SP-V2 also includes audio breakout, advanced EDID management and supports HDCP2.2.

Main Features & Specifications

  • Features 1 x HDMI input that is replicated to 2 x HDMI outputs
  • Supports HDMI 2.0 18 Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • HDMI output 2 supports 4K UHD video pass-through
  • HDMI output 1 will down-scale the video input to the following formats:
    - 1080p @24/25/30/50/60Hz* (for screens that do not support 4K)
  • - 4K @50/60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD
  • Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Advanced EDID management
  • HDCP 2.2 support
  • * Frame rate will always match the input signal

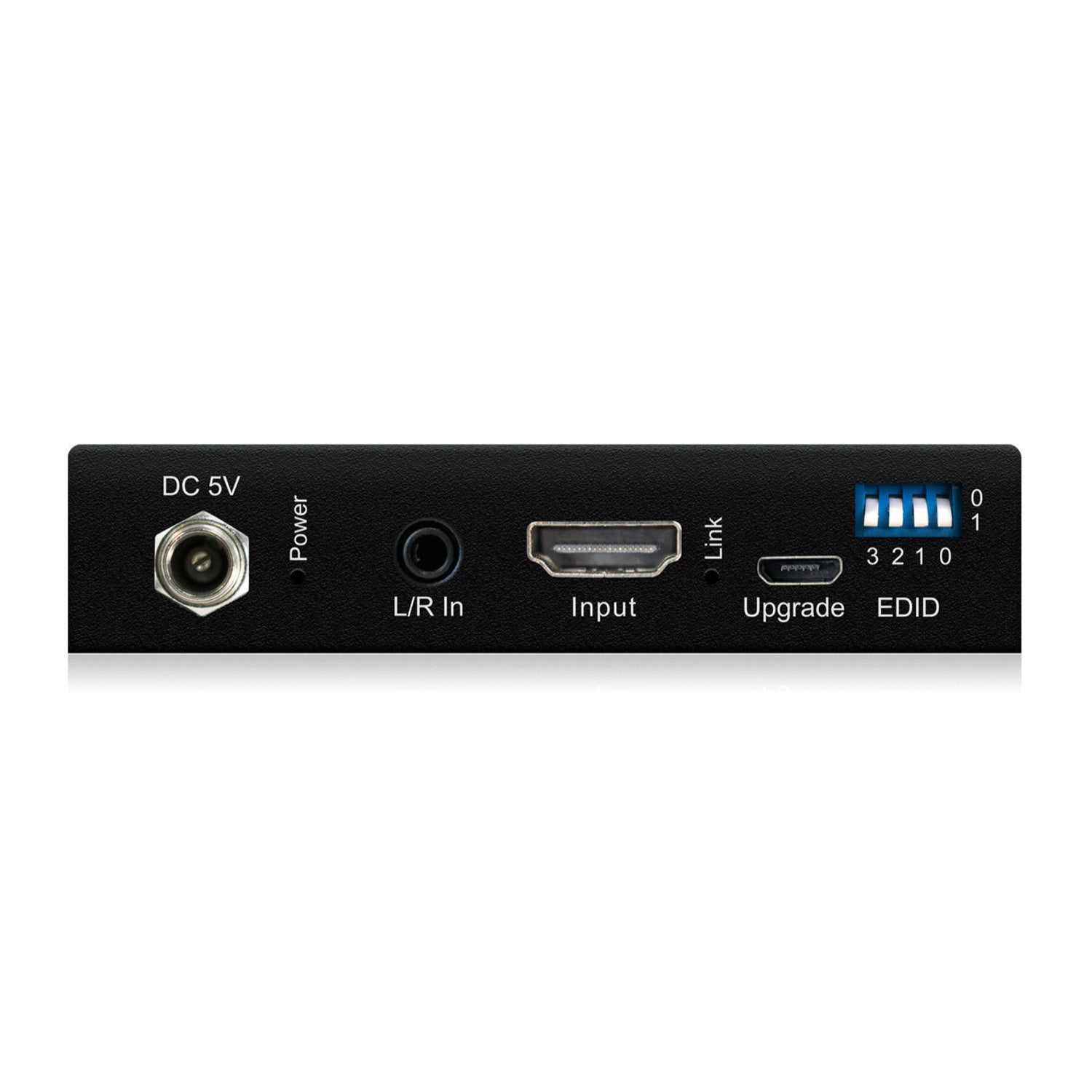

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

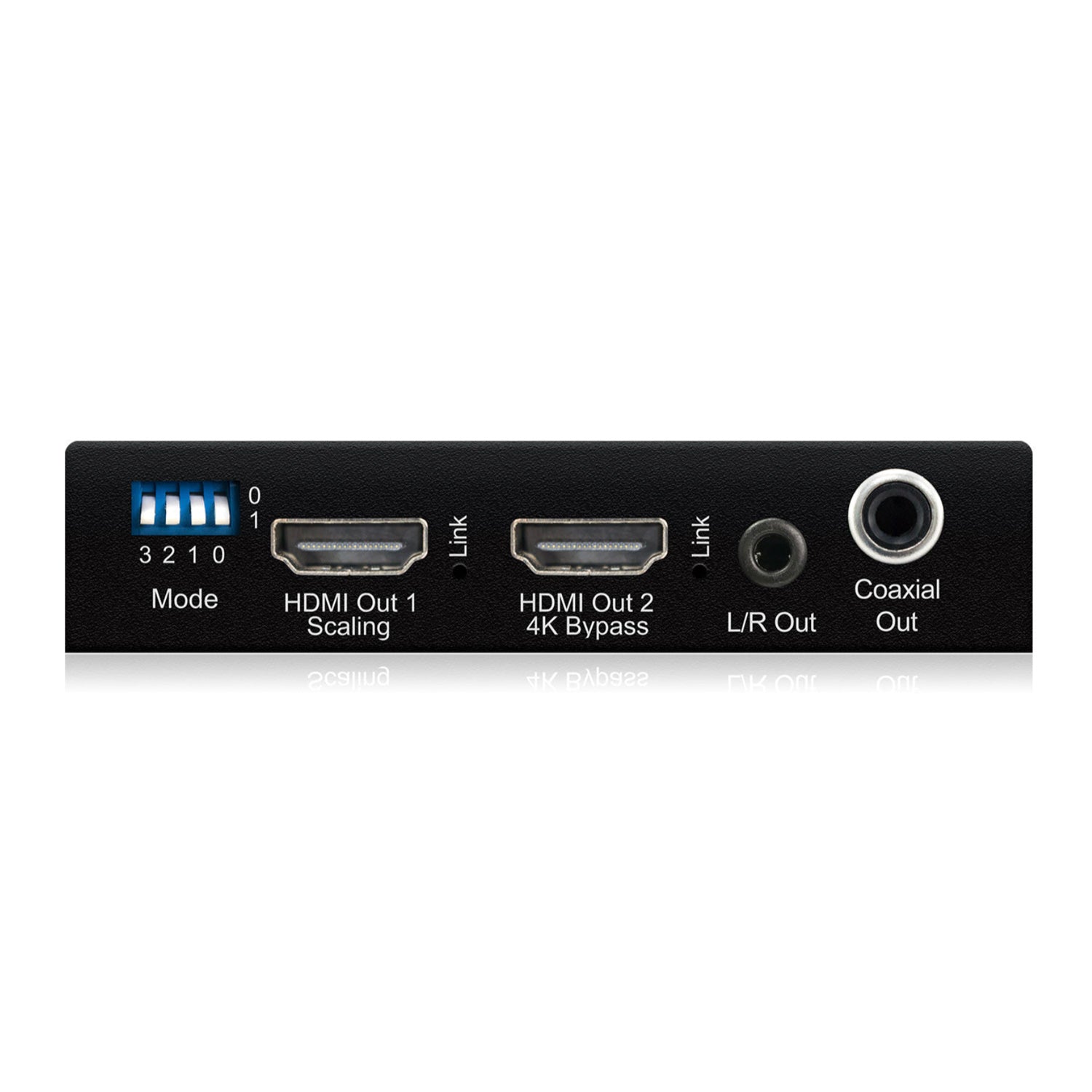

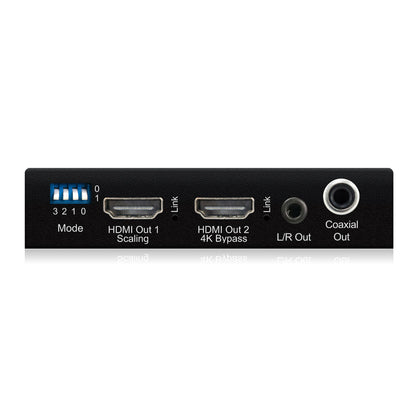

  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x RCA (S/PDIF), 1 x 3.5mm stereo jack (L/R)
  • EDID: 4-PIN DIP switch
  • Product upgrade: 1 x 3-Pin Phoenix connector & 1 x Type A USB female
  • Dimensions (WxHxD): 122mm x 23mm x 135mm
  • Shipping Weight: 0.8 kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC

Note: Features & Specifications Subject To Change Without Notice. E&OE.
