Blustream

Blustream HEX70CS-KIT

Blustream HEX70CS-KIT

Regular price $899.00
Regular price Sale price $899.00
Sale Sold out
including GST Shipping calculated at checkout.

Despatched In 3 - 4 Days

This product is in stock at our supplier's warehouse and available for pickup or immediate despatch within 3-4 days

Quick Info

4K Up To 40 metres

Bi-Directional IR & RS-232

EDID Management, HDMI Loop-Out, Bi-Directional PoH (PoE)

View full details

About The Blustream HEX70CS-KIT

The HEX70CS-KIT HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.

Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists - including some from Australia - who together have had decades of experience. Research highlighted the market need for an AV distribution brand that could deliver both industry leading performance and most importantly reliability. This has resulted in Blustream developing a range of HDBaseT, Video over IP and HDMI solutions that deliver seamless AV integration within any installation environment. As an official HDBaseT adopter and alliance member, Blustream is firmly positioned at the forefront of this advanced technology. Through integration of the latest pioneering HDBaseT and Video over IP chipsets our engineers have developed the world's most innovative range of AV distribution products.

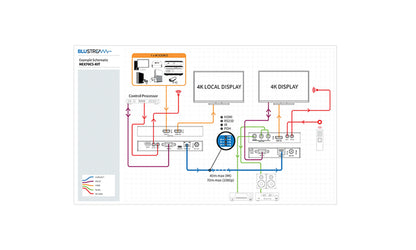

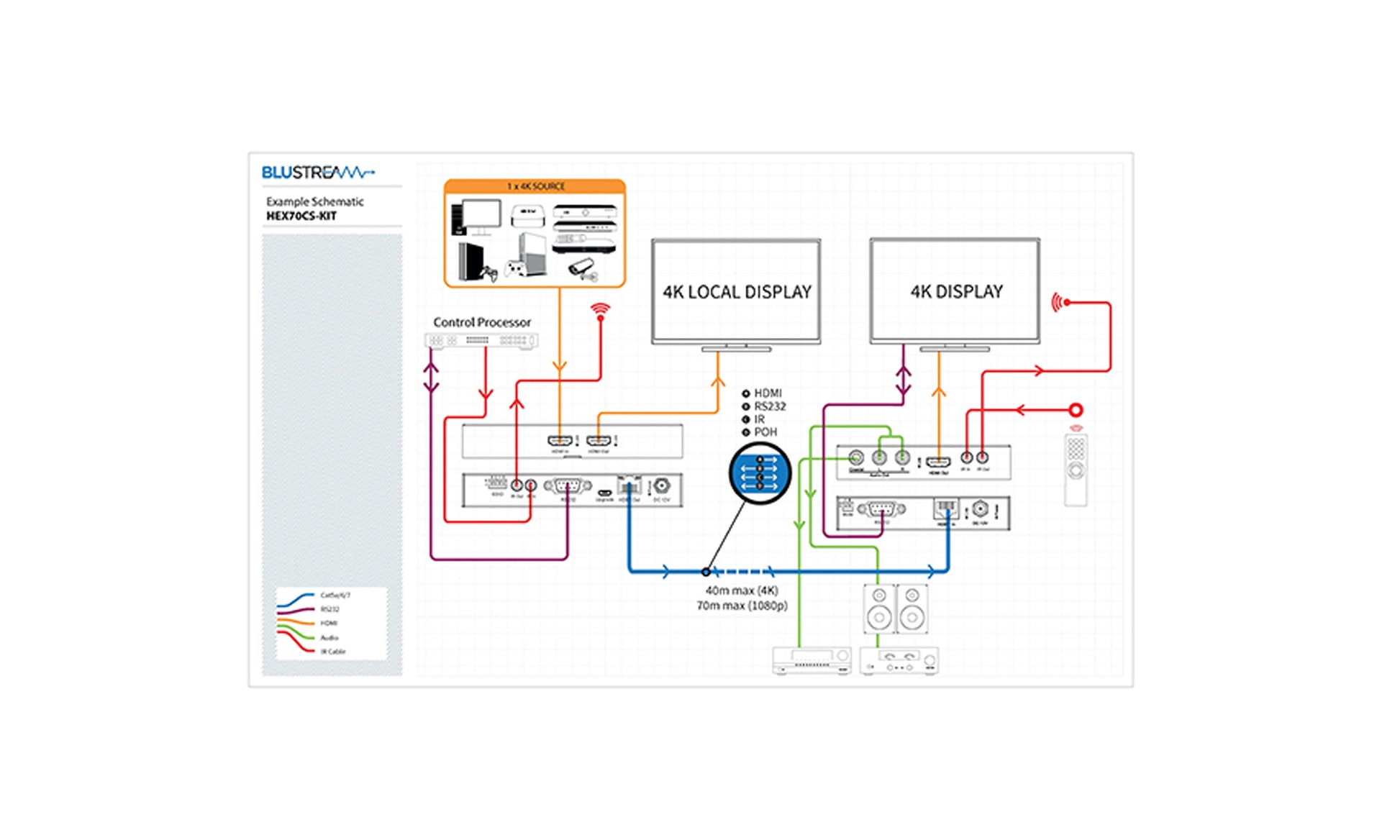

The HEX70CS-KIT extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K to 40m). The Transmitter includes an HDMI loop-out for integrating local displays or cascading to multiple devices. The Receiver features simultaneous analogue stereo and digital coax audio breakout.

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR pass through
  • Supplied with Blustream 5V IR receiver and emitter
  • Advanced EDID management
  • HDCP2.2 compliant

Main Features & Specifications

HEX70CS-TX Transmitter

  • Video Input Connectors: 1x HDMI Type A, female
  • Video Output Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
  • RS-232 serial port: 1x DB-9 female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • EDID DIP switch: 4-pin

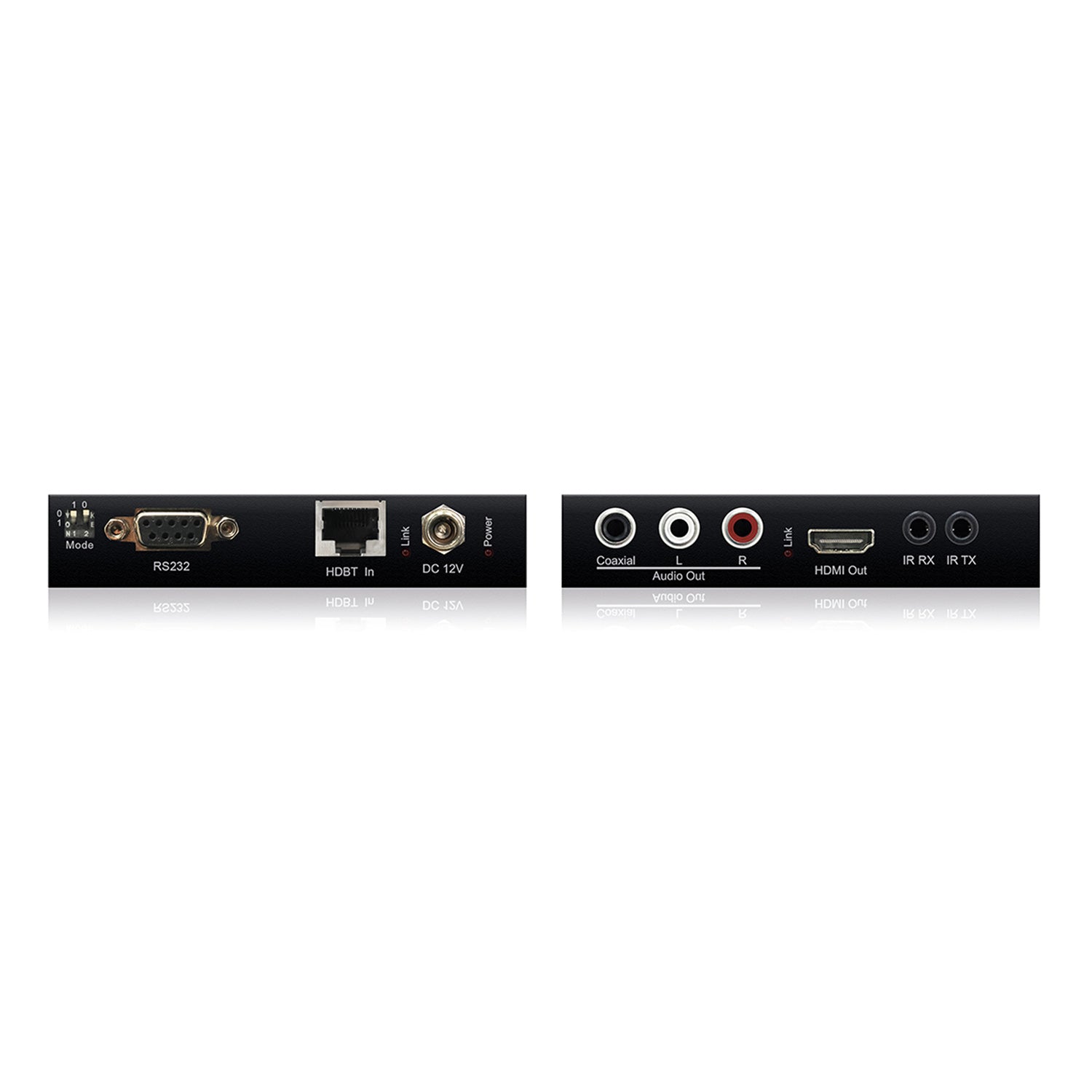

HEX70CS-RX Receiver

  • Video Input Connectors: 1x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1x HDMI Type A, female
  • RS-232 serial port: 1x DB-9 female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)

Box Contents

  • 1x HEX70CS-TX
  • 1x HEX70CS-RX
  • 2x Mounting brackets
  • 1x 12V / 2A power supply
  • 1x IR emitter
  • 1x IR receiver
  • 1x Quick Reference Guide

General

  • Power Supply: 12V / 2A DC, screw type connector
  • Power Consumption: 12.7W
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kits included Transmitter Dimensions (WxDxH): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (WxDxH): 143 x 141 x 22mm (with connections)
  • Receiver Dimensions (WxDxH): 113 x 124 x 22mm (without connections)
  • Receiver Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Shipping Weight: 1.4kg

Note: Features & Specifications Subject To Change Without Notice. E&OE.
