About the Blustream HEX150CS-KIT
Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists with over 30 years experience in the custom field alone. Add to this the experience of senior management and you can be assured of the highest level of commitment.
The Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion. The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoH (PoE) up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.
Main Features & Specifications
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 100m
- Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI, HDCP, compatibility, and handshaking issues
- Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
- Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Bi-directional 10/100BaseT Ethernet pass through
- Bi-directional IR & RS-232 pass through
- Supplied with Blustream 5V IR receiver and emitter
- Bi-directional PoH (Power over HDBaseT™) to power extenders from either transmitter or receiver end
- Advanced EDID management
- HDCP 2.2 support

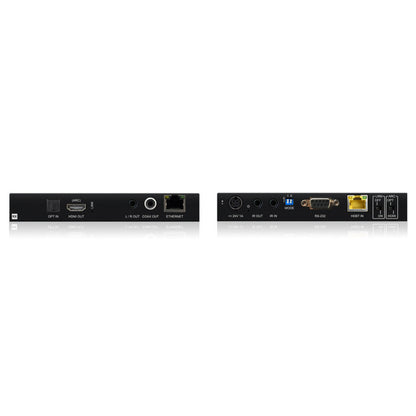

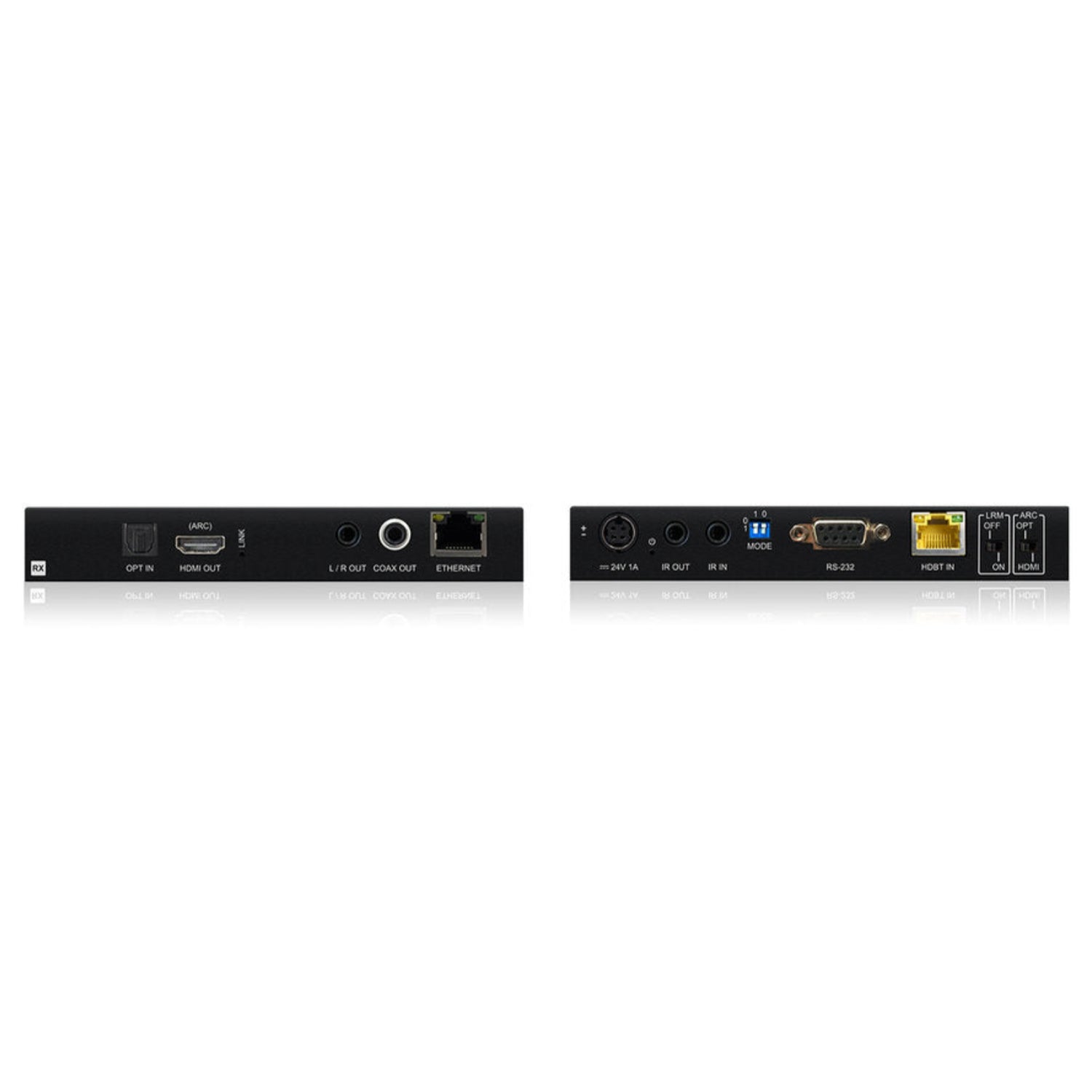

- HEX150CS-TX Transmitter- Video Input Connectors: 1 x HDMI Type A, female- Video Output Connectors: 1 x HDBaseT™ RJ45 connector- Audio Output Connectors: 2 x RCA (L/R), 1 x Optical (SPDIF)- Ethernet port: 1 x RJ45 connector- RS-232 serial port: 1 x DB-9 female- IR Input ports: 1 x 3.5mm stereo jack- IR Output ports: 1 x 3.5mm mono jack- EDID: 4-PIN DIP switch- Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
- HEX150CS-RX Receiver- Video Input Connectors: 1 x HDBaseT™ RJ45 connector,- Video Output Connectors: 1 x HDMI Type A, female- Audio Input Connectors: 1 x Optical (SPDIF)- Ethernet port: 1 x RJ45 connector,- RS-232 serial port: 1 x DB-9 female- IR Input ports: 1 x 3.5mm stereo jack- IR Output ports: 1 x 3.5mm mono jack- Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
- Casing Dimensions (W x D x H ): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)
- Dimensions including connections (W x D x H ): 148mm x 153mm x 22mm (RX), 156mm x 135mm x 23mm (TX)
- Shipping Weight (Kit): 1.6 kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
- Power Supply: 1 x 24V/1A DC, screw connector
Note: Features & Specifications Subject To Change Without Notice. E&OE.
