About The Blustreamn CAT100AU
Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists with over 30 years experience in the custom field alone. Add to this the experience of senior management and you can be assured of the highest level of commitment.
The CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m). This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.
Main Features & Specifications
- Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
- Both optical and coaxial digital can be distributed at the same time
- Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left / right audio output (source selected on receiver unit)
- Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
- Ultra low jitter and high fidelity design
- *CAT100AU supports distances of up to: 192kHz - 100m, 96kHz - 150m, < 48kHz - 300m
Specifications
- CAT100AU-TX - Transmitter
- - Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
- - Connectors: 1 x RJ45

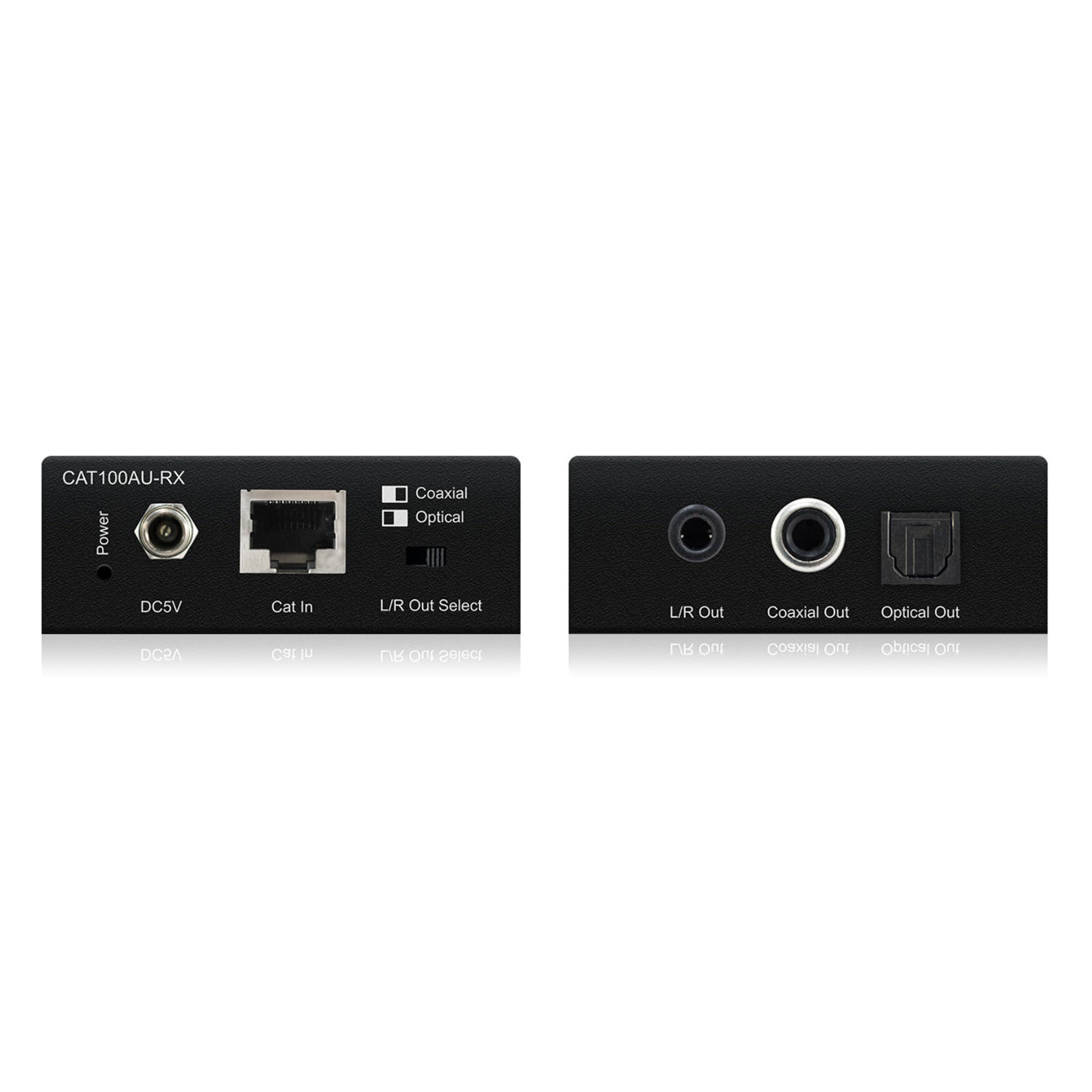

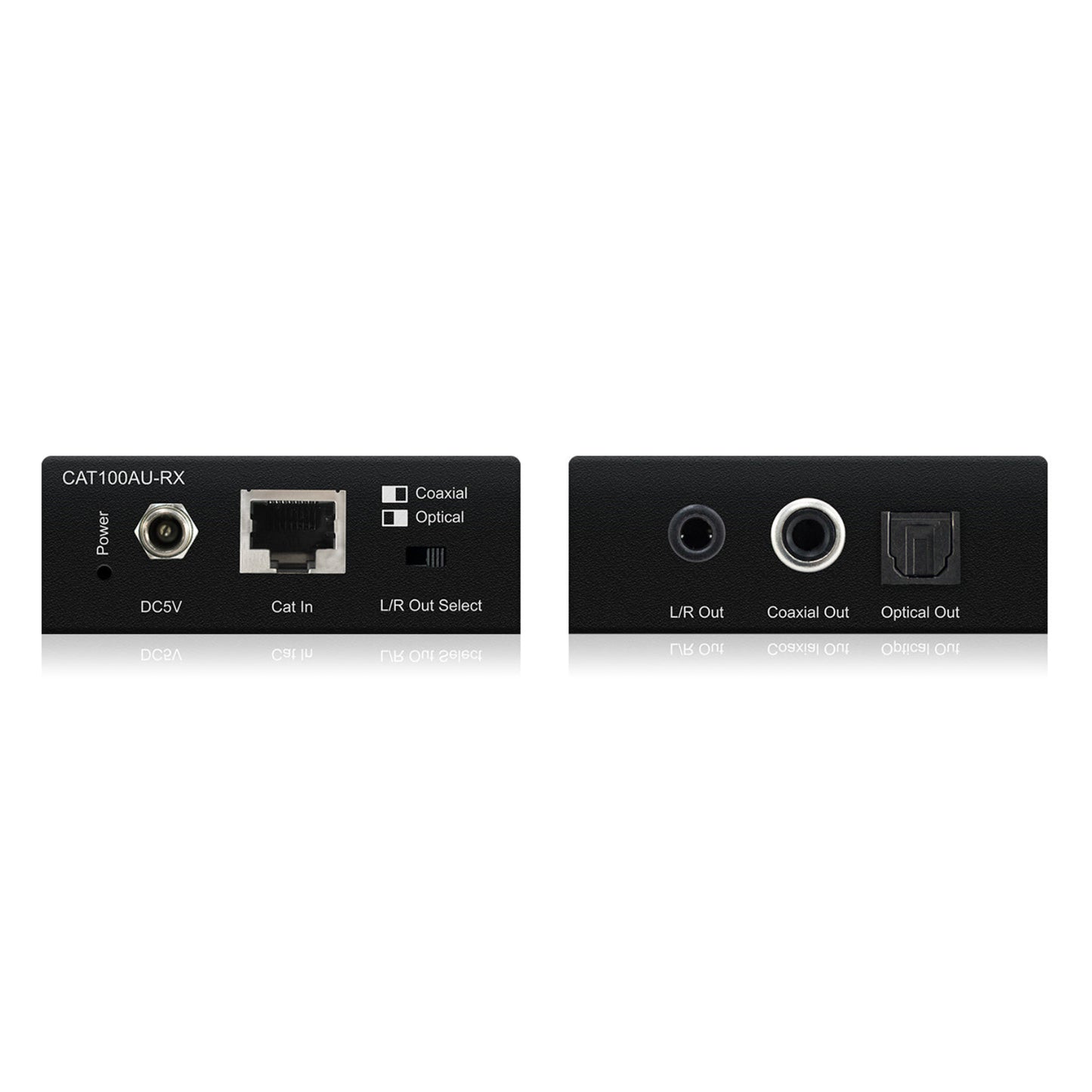

- CAT100AU-RX - Receiver
- Input Connectors: 1 x RJ45 & 5V/1A DC
- Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue left / right - 3.5mm stereo audio jack
- Balun Dimensions (WxDxH): 65 x 80 x 25mm (with connections)
- Balun Dimensions (WxDxH): 65 x 70 x 25mm (without connections)
- Ind. Balun Weight: 0.13 kg (excluding accessories)
- Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm
- Shipping Weight: 0.6 kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/1A DC, barrel type connector
- Power supplied to the Transmitter unit from the Receiver
Note: Features & Specifications Subject To Change Without Notice. E&OE.
