Bluesound Professional CP300 Wall Mount Control Panel

About The Bluesound Professional CP300 Wall Mount Control Panel

The Bluesound Professional CP300 is a sleek, low-profile wall-mount control panel designed for seamless integration into any environment. Featuring an 8-inch glass touchscreen, the CP300 offers intuitive control over Bluesound Professional players. Powered by Android 13, the pre-loaded BluOS controller app provides a familiar user interface.

The control panel is a low-profile, wall-mounted unit equipped with an easy-to-clean glass touchscreen. It operates using the pre-installed BluOS controller app. Power and network connectivity is established via an RJ45 Ethernet connection supporting Power over Ethernet (PoE+).

Our Review

The Bluesound Professional CP300 is a sleek, low-profile wall-mount control panel that blends effortlessly into any space while giving you complete command over your Bluesound Professional players. Its crisp 8-inch glass touchscreen makes navigating system functions a breeze, with Android 13 and the pre-loaded BluOS controller app delivering a familiar, responsive experience. Designed for both style and practicality, the CP300 offers PoE+ connectivity for simple installation and a clutter-free setup, while built-in security options like a PIN code help keep settings safe. Whether used solo or as part of a multi-zone system, it’s a smart, modern solution for intuitive, centralised audio control.

Main Features & Specifications

• Design: Bluesound Professional Wall Mount Control Panel
• Sleek Design: The CP300’s minimalist aesthetic complements a variety of interior styles
• Touchscreen Control: Navigate system functions effortlessly with the 8-inch touchscreen
• Android-Based: Leveraging the Android operating system for a familiar user experience
• Wall-Mountable: Designed for discreet installation with included mounting hardware
• Security: Protect the device with a customizable PIN code
• Power Over Ethernet (PoE+): Simplifies installation and power supply
• Multi-Zone Compatibility: Integrate multiple CP300 units into a single system for comprehensive control

System

• CPU: RK3566 Quad-Core CORTEX A17
• Operation System: Android 13
• RAM: 2GB
• ROM: 16GB

Interface

• Touch Screen: 5-Point Capacitive Touch
• Power over Ethernet: Ethernet interface IEEE802.3at, POE+, class 4, 25.5W
• Wi-Fi: 802.11b/g/n
• Bluetooth: Bluetooth 4.0

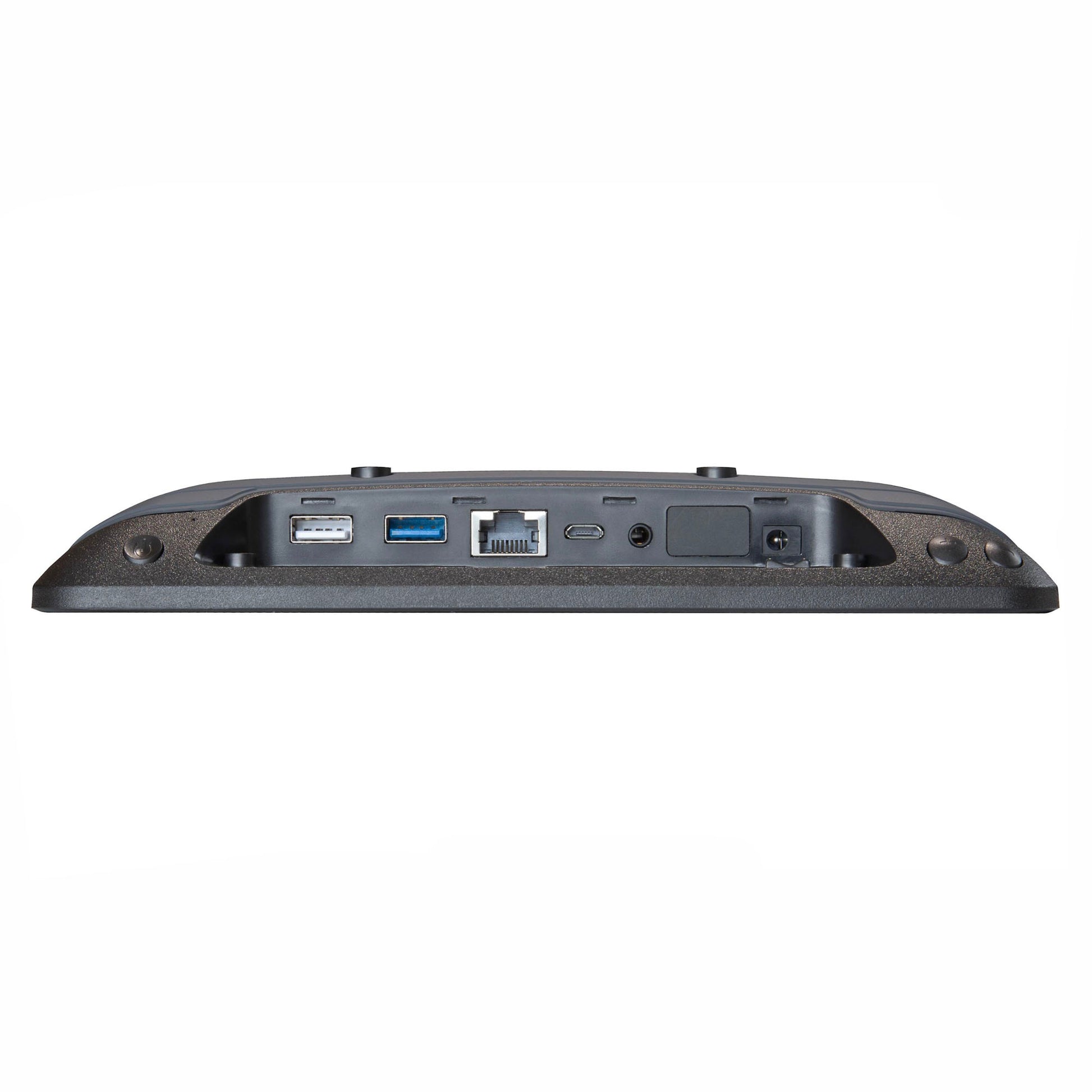

• USB: USB Host x 2, Micro USB x 1
• Power Jack: DC Power Input (not required when using PoE+ power input)
• Earphone: 3.5mm Earphone
• Screen Resolution: 1280 x 800 Eight-Inch Display (173.22mm by 108.64mm)
• Manufacturer's Warranty: 2 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
