Audiolab 8300XP Stereo Power Amplifier

About The AudioLab 8300XP Stereo Power Amplifier

The Audiolab 8300XP offers 140 Watts per channel as a stereo power amplifier or 480 Watts when bridged into mono and paired with a second 8300XP. It is a natural partner for the Audiolab 8300CDQ CD Player, DAC, Preamp but can be used in many different scenarios where a high quality power amp is required.

The 8300XP is a classic Audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior. Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining Audiolab's class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

The 8300XP is a classic Audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior. Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining Audiolab's class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

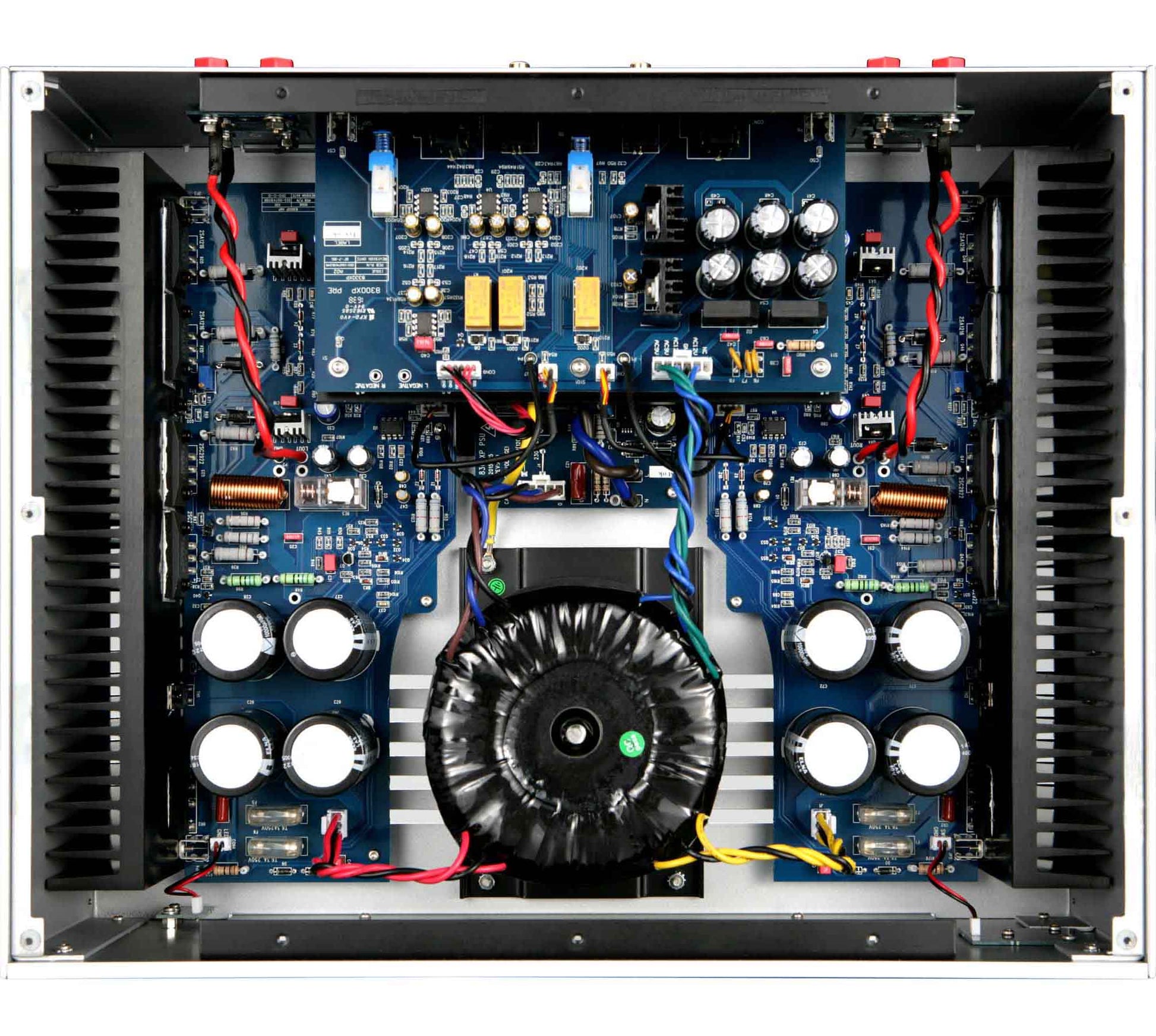

Exemplary build quality and reliability ensure that this is a power amp for all seasons. Its versatility is increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.

Bridge To Mono For 480 Watts: Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, which increases the power output to a staggering 480W per channel into 8 Ohms. All Audiolab amplifiers are gain-matched, ensuring perfect integration with other Audiolab components.

Massive reserves of power are available for high current drive capability, meaning that you can to power and control the mightiest of speakers. Just like its larger brother, the 8300XP features a fully balanced power stage making the most of the balanced XLR inputs and the 8300XP's full power output is delivered into any loudspeaker load – unconditionally.

Our Take On The Audiolab 8300XP Power Amplifier

The 8300XP is a power house of an amplifier with 140 Watts per channel in stereo and a whopping 480W of pure, balanced amplification in bridged mode. Thrilling to listen to and utterly dependable, the 8300XP is a genuine audio thoroughbred – the perfect partner for Audiolab's 8300CDQ CD Player, DAC, Preamp. Why not try an Audiolab system today?

Main Features & Specifications

• Design: Stereo Power Amplifier that can also be bridged into Mono for more power

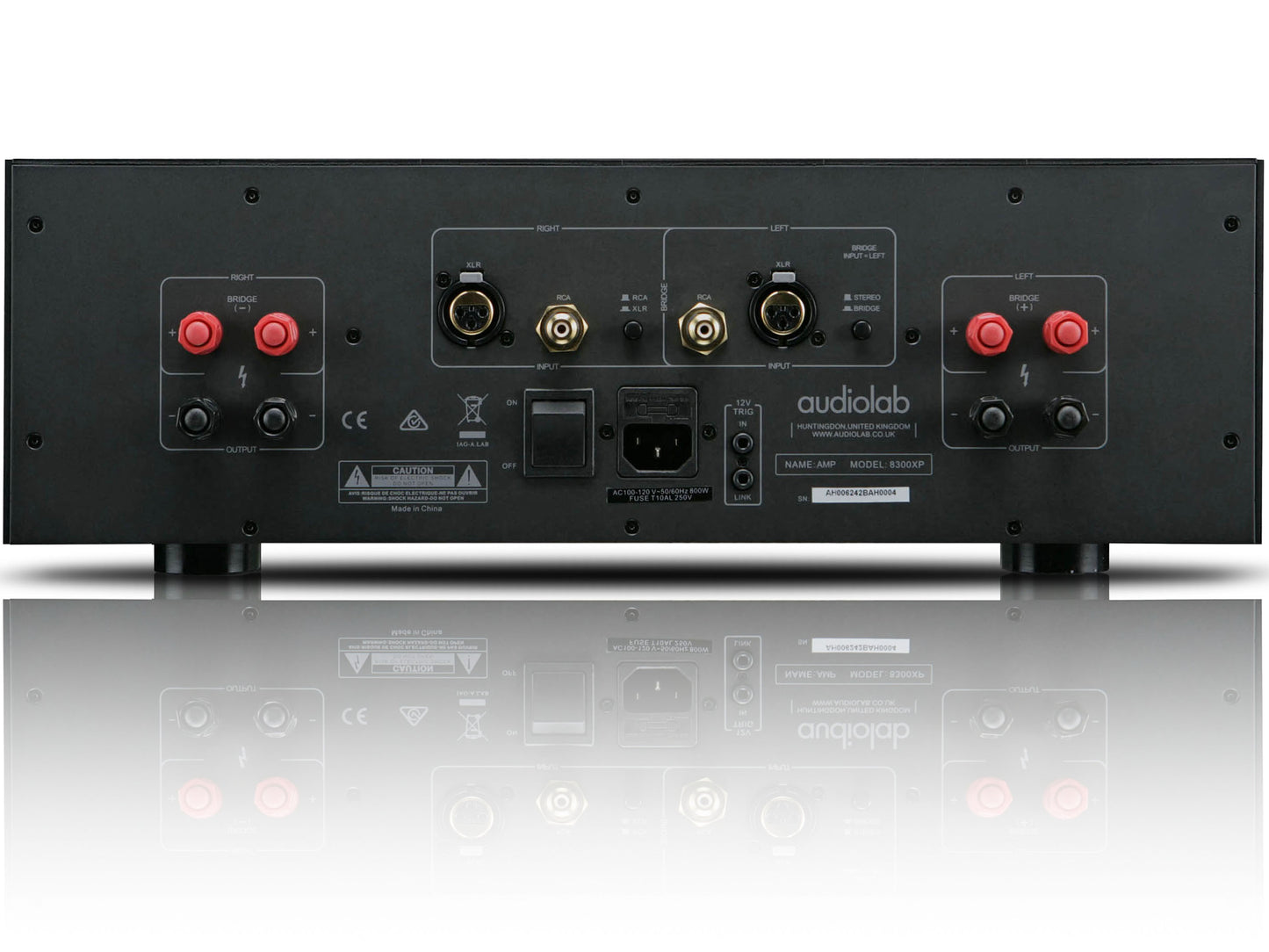

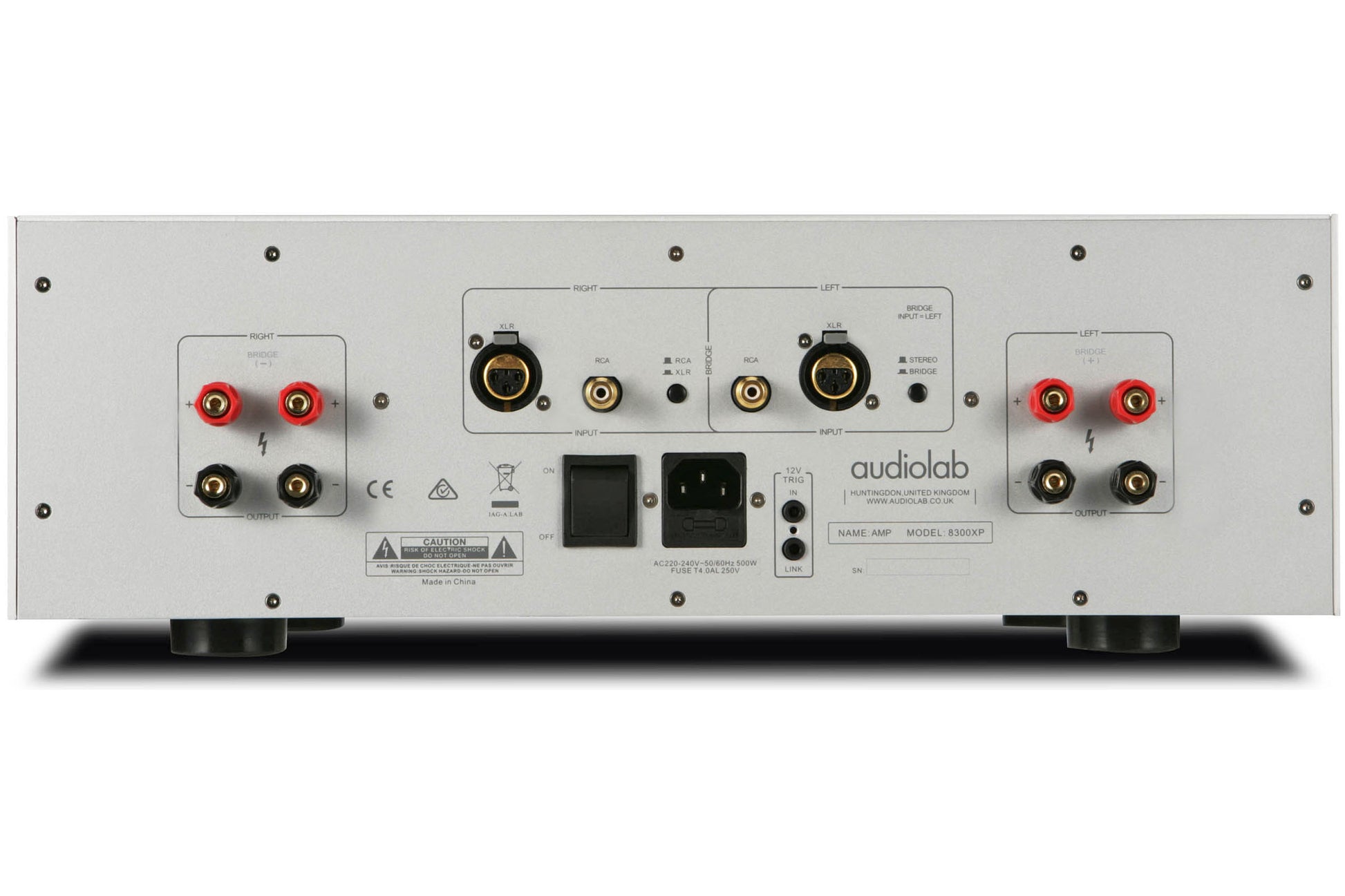

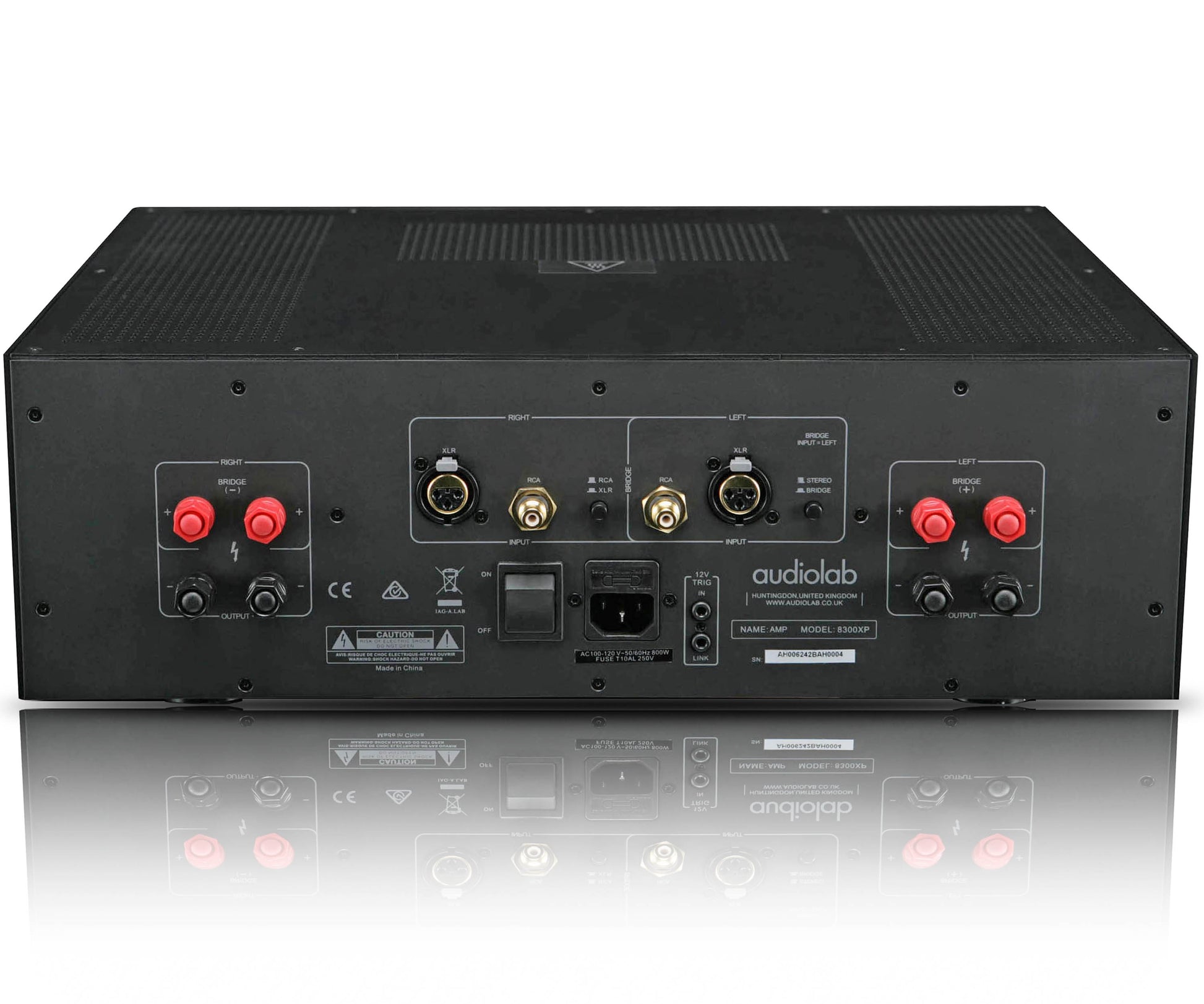

• Connections

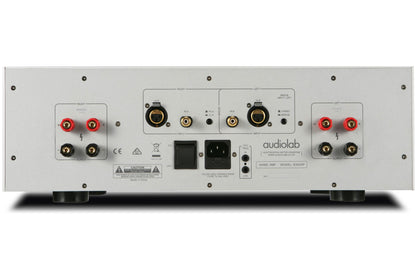

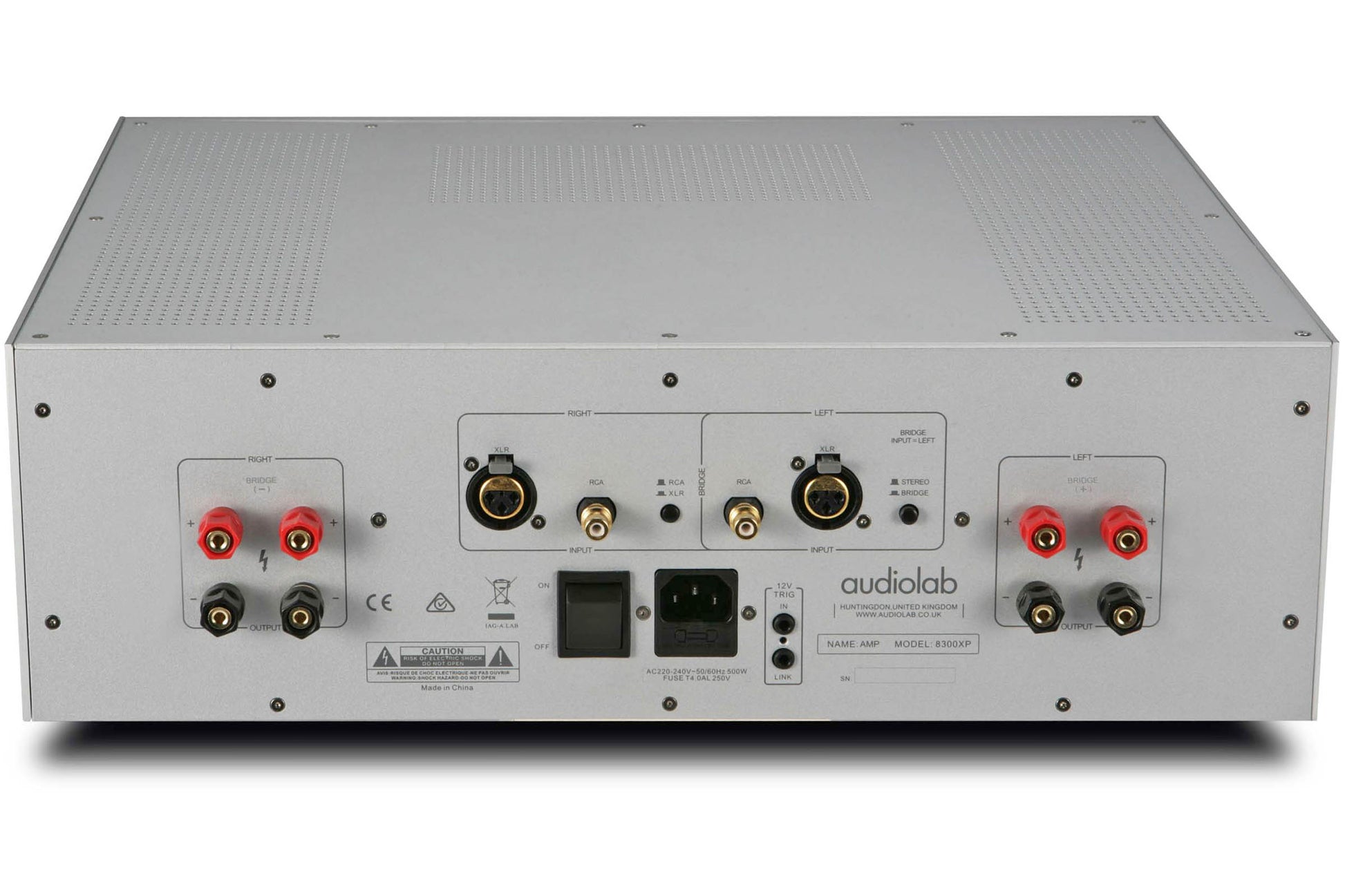

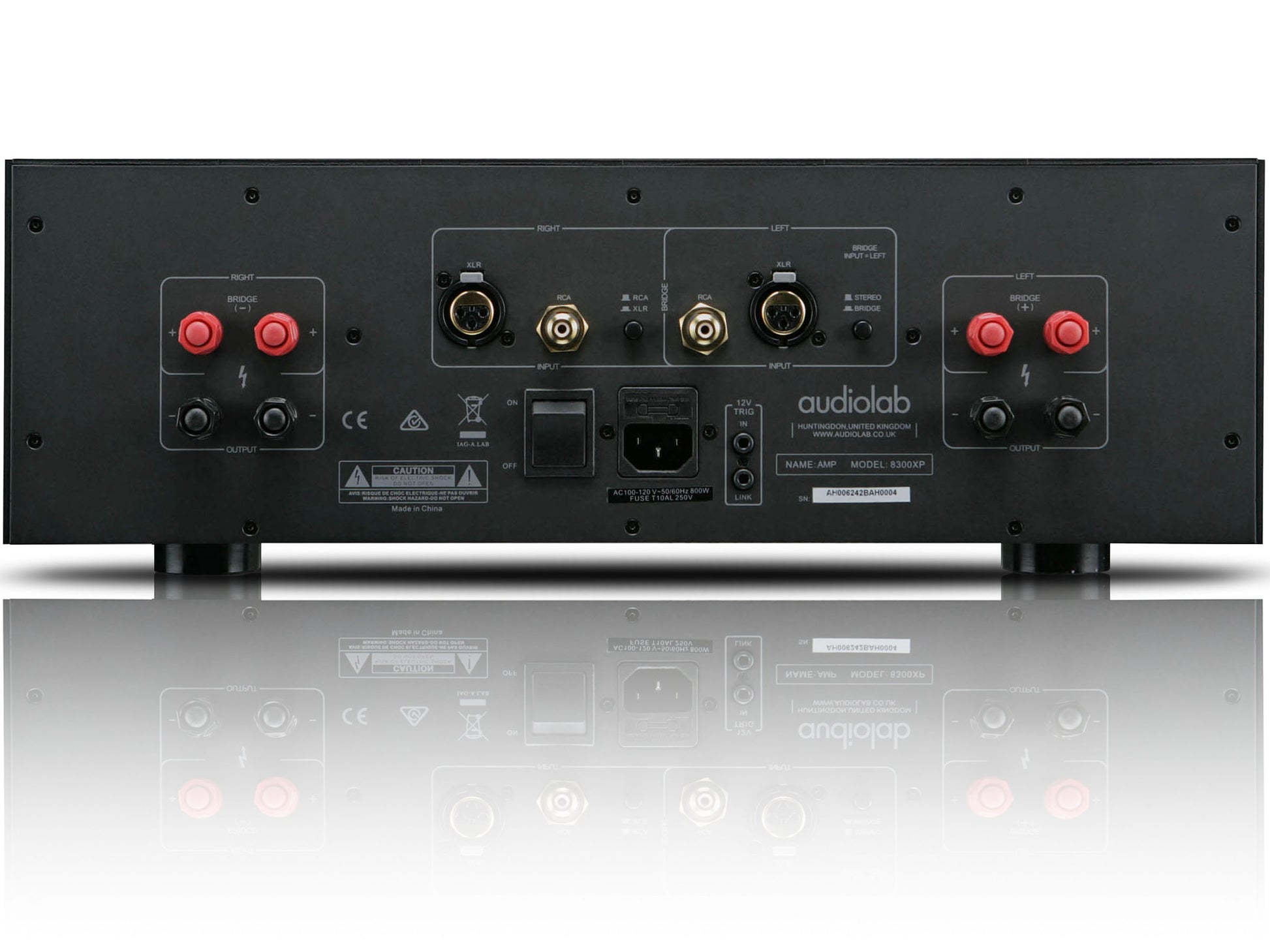

• Inputs: Stereo RCA, Stereo Balanced XLR
• Outputs: Dual Sets of Binding Posts – perfect for bi-wiring
• Triggers: 12V Trigger In & Link
• Rated Power Output
• 140W RMS (8Ω <1% THD, 1kHz stereo)
• 230W RMS (4Ω <1% THD, 1kHz stereo)
• 480W RMS (8Ω <1% THD, 1kHz bridged)
• Gain
• 29dB @ 1kHz (stereo)
• 36dB @ 1kHz (bridge)
• Input Sensitivity: 1100mV
• Input Impedance: 15k (balanced) 10k (unbalanced)
• Frequency Response
• -3dB: 20Hz - 80kHz
• +/-1dB: 20Hz - 30kHz
• Total Harmonic Distortion (THD): 0.004% (20W, ref. 1kHZ)
• Intermodulation Distortion (IM): 0.004% (20W, ref. 7kHz + 60Hz)
• Transient Intermodulation Distortion (TID): 113dB (A Weighted, ref. 140W)
• Signal-To-Noise Ratio (S/N): 140W / 113dB
• Damping Factor: 160

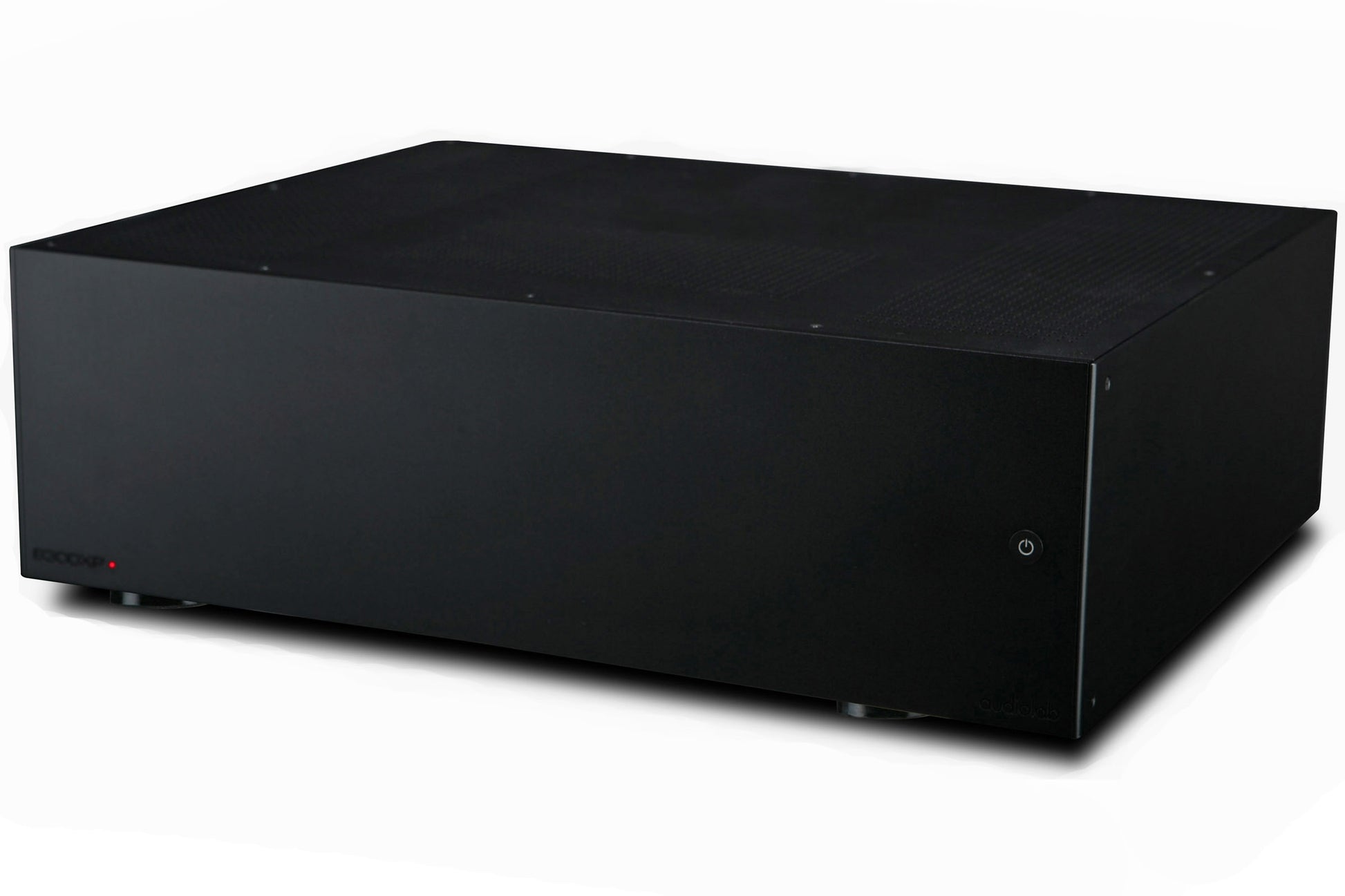

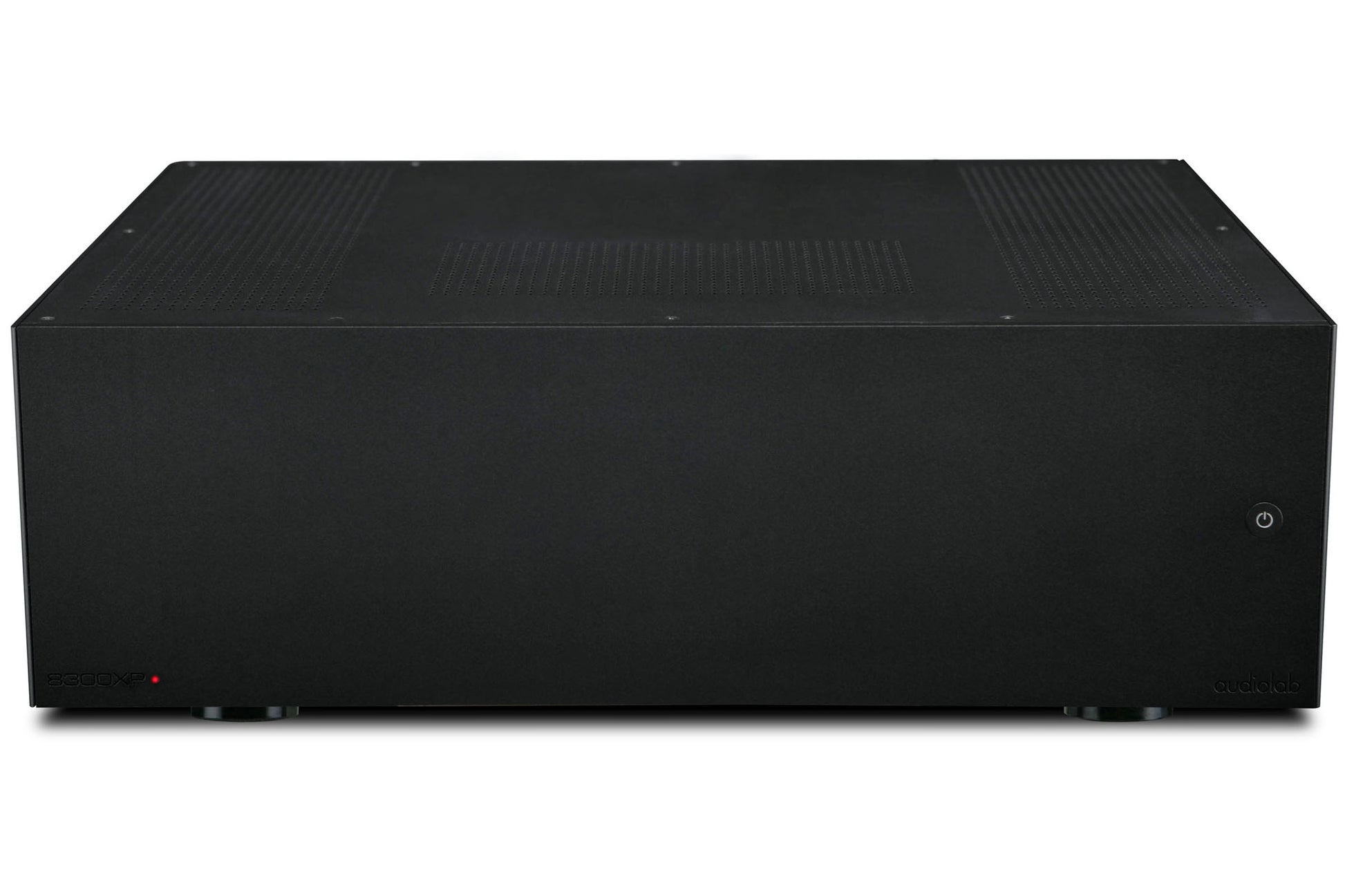

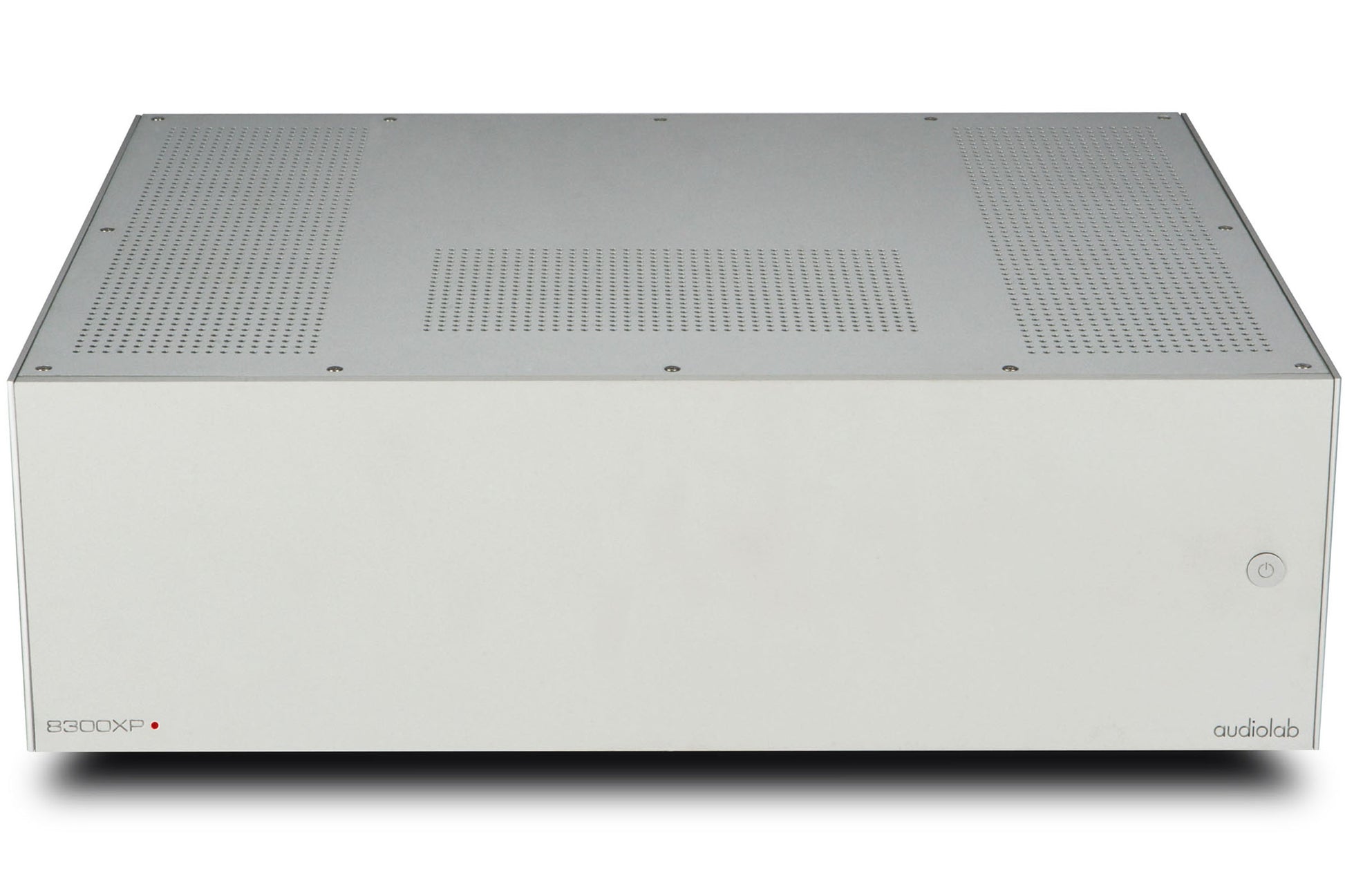

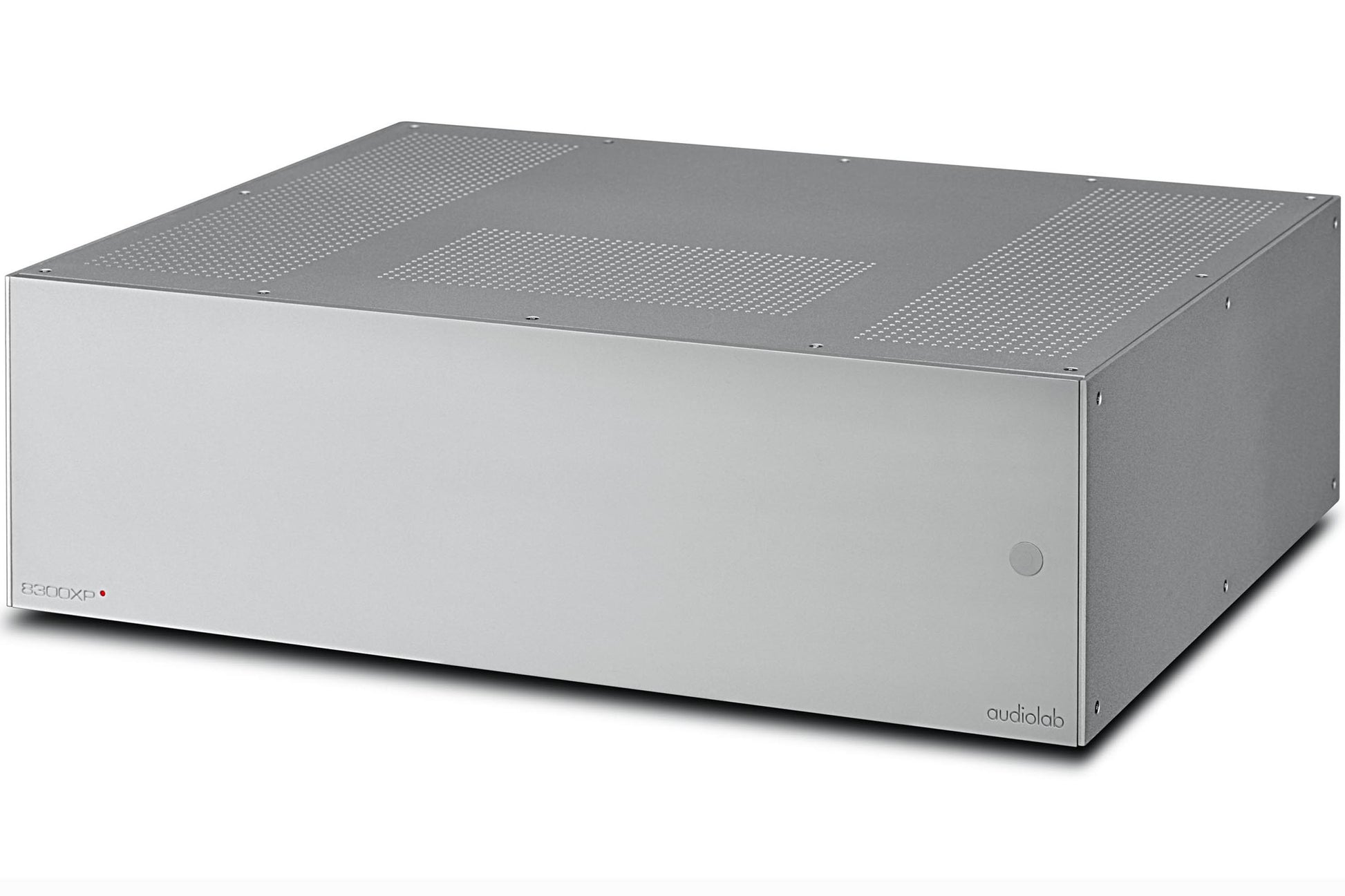

• Available Finishes: Black & Silver
• Dimension (WxHxD): 444 x 149 x 367mm
• Weight: 16kg
• Manufacturer's Warranty: 2 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE
