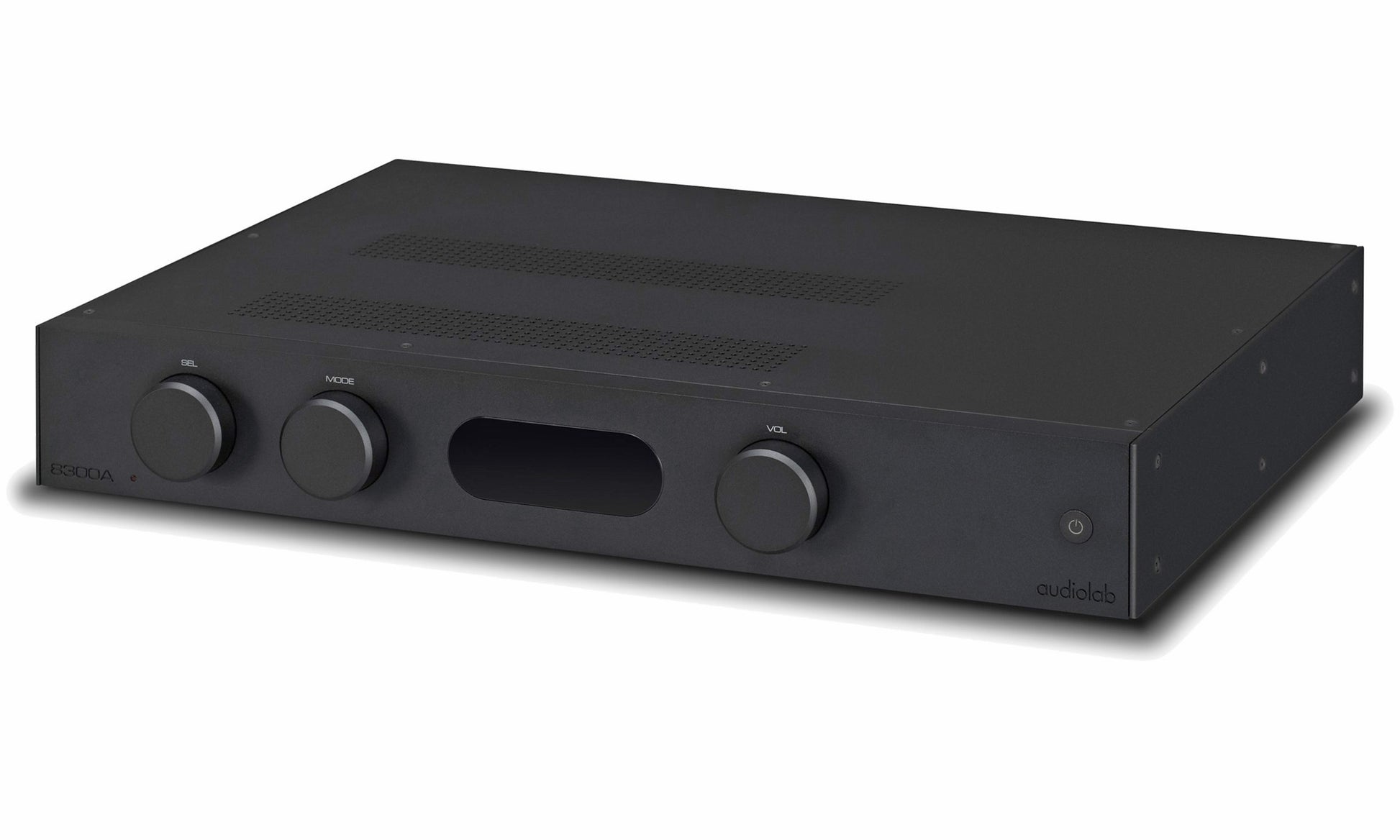

Audiolab 8300A Stereo Amplifier

The Audiolab 8300A stereo amplifier is the latest model in a long line of integrated amplifiers with a pedigree that stretches back to the very first 8000A that made Audiolab an overnight sensation.

Completely redesigned from scratch, the 8300A replaces the venerable 8200A and is miles ahead of what was already an industry-leader. Higher power, an additional phono stage and new Audiolab styling means the amplifier is more stylish and more versatile than ever. Most importantly it's new, ultra-efficient circuitry and streamlined components create a listening experience which brings new definition to your favourite music.

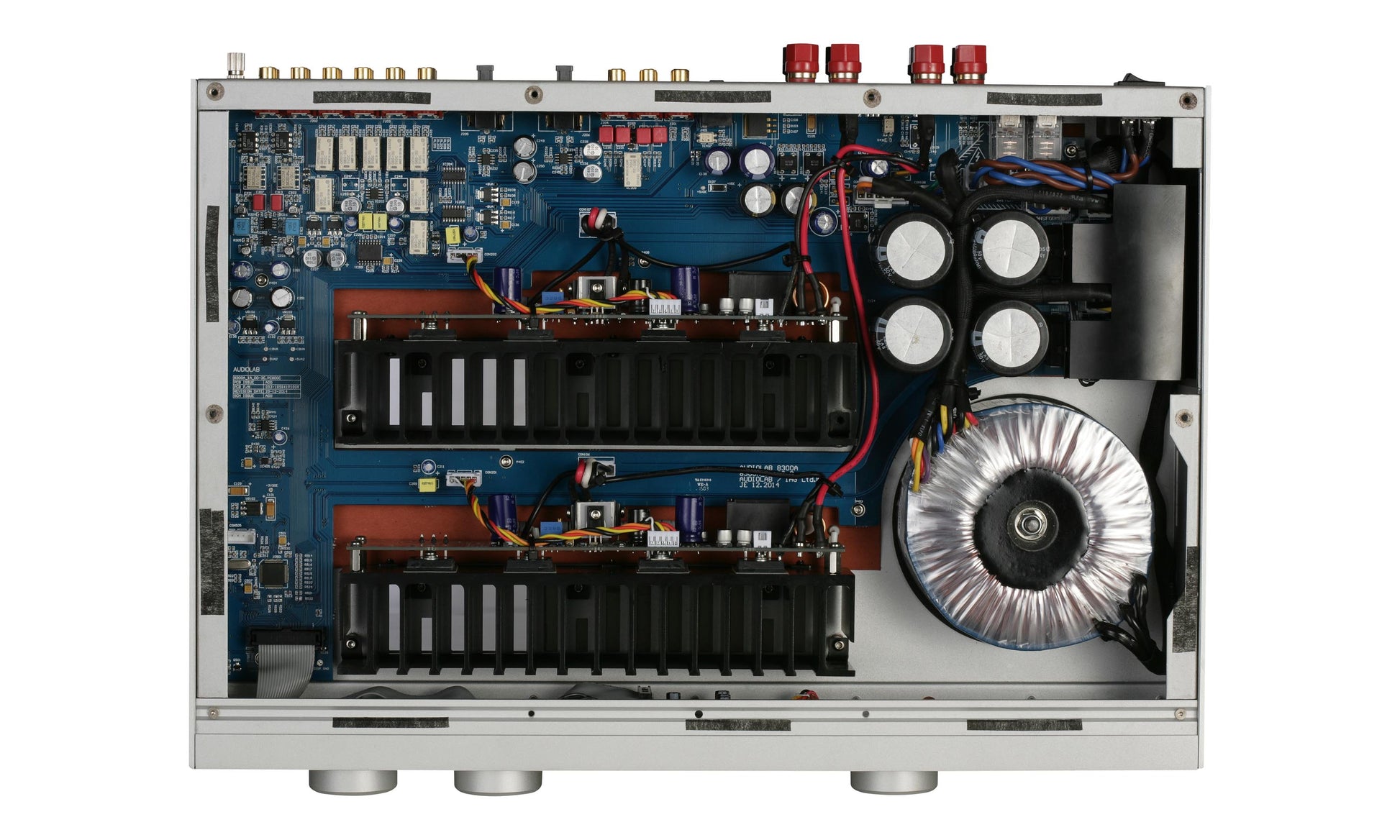

Inside the 8300A you'll find the latest discrete technology from designers that understand analogue circuitry inside out. Make sure to check out the picture with the cover removed. Delivering a balance of refined musical detail and powerful transient performance, 8300A packs far more weight than its svelte looks would indicate. The 8300A is designed to drive any loudspeaker load with absolute stability and finesse.

Brilliance Evolved: The 8300A's circuit design delivers all-new sound quality. The soundstage it produces is deeper and broader, with greater space and separation within. Instruments and voices are better defined and their character is vividly portrayed. Dynamic range is greater and frequency response is further extended, with greater bass definition and treble that is both crisper and sweeter. In short, it delivers an open window on the music being played, as all great Hi-Fi should, engaging the listener with natural, unforced energy that is fully reflective of the source material.

Versatile High End Integrated Amplifier: At this amplifier's heart is a powerful dual-mono amplifier delivering 75 Watts per channel into eight ohms. CFB or 'Complementary Feedback' topology offers superior linearity and ensures excellent thermal stability. ACD or 'Active Current Drive' means current limiting is under microprocessor control, programmed to allow the amplifier to supply high currents into complex loads, on par with amplifier that are bigger and more powerful on paper.

In The News

"Anyone searching for a fully-featured integrated amplifier for less than $2,500 needs to place the Audiolab 8300A at the very top of their list. It has power, poise and precision in equivalent measure and is a joy to listen to. Highly recommended." Hi-Fi Review

"A cracking amplifier from Audiolab that has sound quality that belies its price. Could show a thing or two to amplifiers costing a great deal more" Hi-Fi World

Main Features & Specifications

• Design: Integrated Stereo Amplifier
• Operating Features:
• Maintains absolute fidelity with the straightest possible signal path
• Separate Pre-Power sections for flexibility of operation
• Dedicated high performance MC and MM Phono Input (selectable via the menu)
• Automatic equipment activation via 12V trigger input and output
• Three display brightness available with on/off options
• Auto standby function with function on/off options
• Core Technology: Dual Mono Power Amp Design
• Display: OLED 128x64 pixels 2.7" (69mm)
• Controls: Logarithmic Ladder Volume Design
• Finish: Fine Textured Aluminium (Black / Silver)
• Standby Features:Yes
• 12V Trigger:Yes
• Phono: Moving Magnet (MM) & Moving Coil (MC) input options
• Balanced XLR Input: Yes

Preamplifier Section

• Inputs: CD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & Phono
• Outputs: 2 x RCA
• Input sensitivity (Phono RIAA): 50K // 100pF
• Input impedance (line inputs): 50K // 100pF
• Input impedance (phono inputs): 47K // 100pF (MM), 100R // 1.5nF (MC)
• Output voltage: 2.3V max. (< 0.02% THD)
• Output impedance: 120Ω
• Frequency response (Line):
• +/- 0.1dB (10Hz - 20kHz)
• +/- 3.0dB (1Hz - 100kHz)
• Frequency response (Phono RIAA): +/- 1.0dB (20Hz - 20kHz)
• Channel Imbalance: < 0.2dB (10Hz - 20kHz)
• Total harmonic distortion (THD):
• Line: <0.001%
• Phono: <0.002%
• Signal-to-noise ratio (Line):
• > 107dB
• >109dB(A-weighted)
• Signal-to-noise ratio Phono (MM):
• > 73dB
• > 78dB(A-weighted)
• Signal-to-noise ratio Phono (MC):
• > 68dB
• > 73dB(A-weighted)
• Crosstalk: < 80dB (L-> R & R->L @10kHz)

Power Amplifier Section

• Rated max power output THD < 1%: 2 x 75W RMS (8Ω) , 2 x 115W (4Ω)
• Peak output current: +/- 15A
• Gain: 29dB (20Hz-20kHz)
• Input Sensitivity: 840mV (Power Out = 70W into 8Ω)
• Input impedance: 15K // 100pF
• Frequency response:
• +/- 0.1dB (10Hz – 20kHz)
• +/- 3.0dB (1Hz – 100kHz)
• Channel Imbalance: < 0.2dB (10Hz – 20kHz)
• Total harmonic distortion (THD): <0.002% (Power Out= 50W @ 1kHz, BW = 20Hz – 20kHz)
• Signal-to-noise ratio:
• > 107dB (BW = 20 – 20kHz )
• >109dB(A-weighted BW = 20 – 20kHz)
• Damping factor: >100 (8Ω Load @ 1kHz)
• Inputs: Stereo RCA
• Speaker Wire Terminals: Binding post terminals accept bare wire and banana plugs

Other Features

• Finish: Black
• Dimensions (WxHxD): 444 x 80 x 330.3mm
• Net weight: 7.8kg
• Shipping weight: 9.0kg
• Manufacturer's Warranty: 2 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE
