ASCENDO

Ascendo The6 Pro Passive In-Ceiling Speaker

Ascendo The6 Pro Passive In-Ceiling Speaker

Quick Info

Shallow In-Ceiling Design For Challenging Installations

6.5-Inch Coaxial Point-Source Driver For Even Sound Coverage

Soft Dome Tweeter For Smooth High-Frequency Detail

Carbon Fibre Mid-Woofer For Rich, Dynamic Performance

View full details

About The Ascendo The6 Pro Passive In-Ceiling Speaker

Ascendo’s new The6 Pro Passive In-Ceiling Speaker time coherent coax point-source complements the famous on-wall speaker lines for living room home theaters and high-quality multiroom music systems. The highest audio quality is offered for this speaker category because of the much-increased high-frequency off-axis response. It is a shallow in-ceiling speaker fitting in challenging positions where depth is a concern, most others cannot offer a solution.

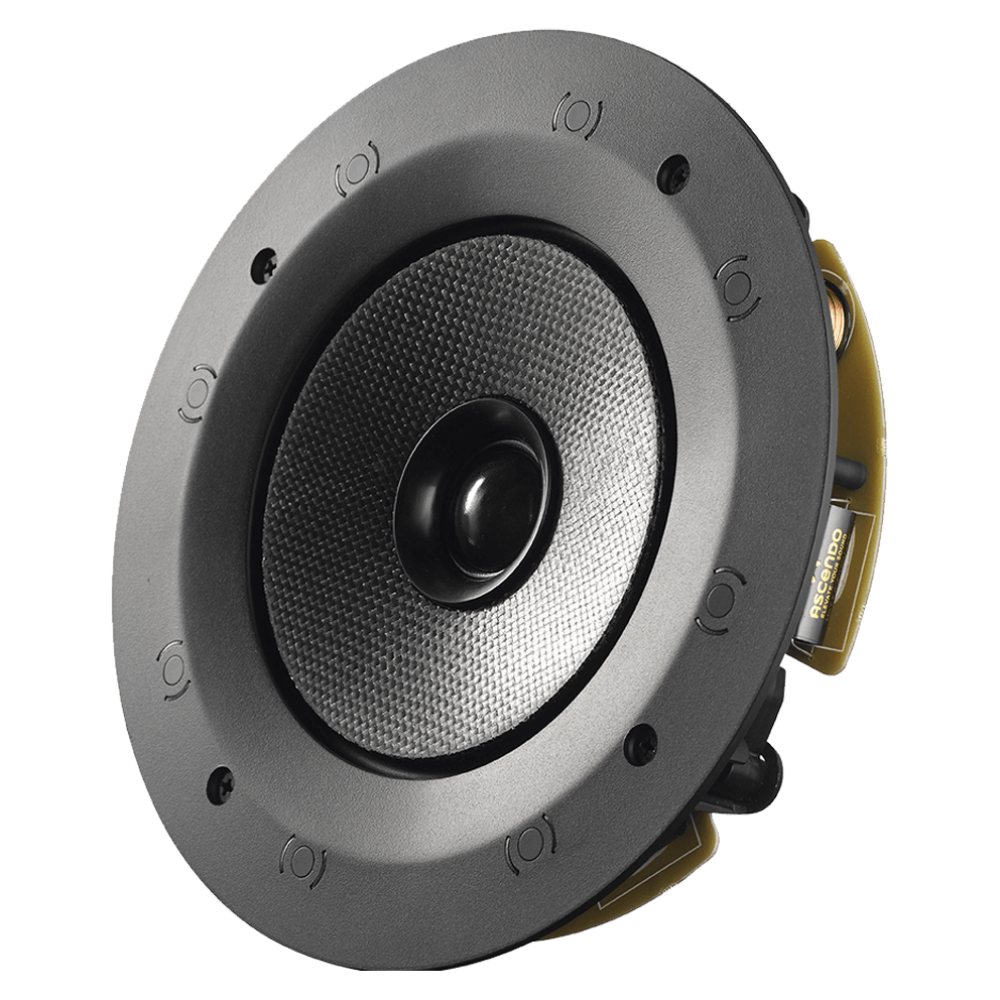

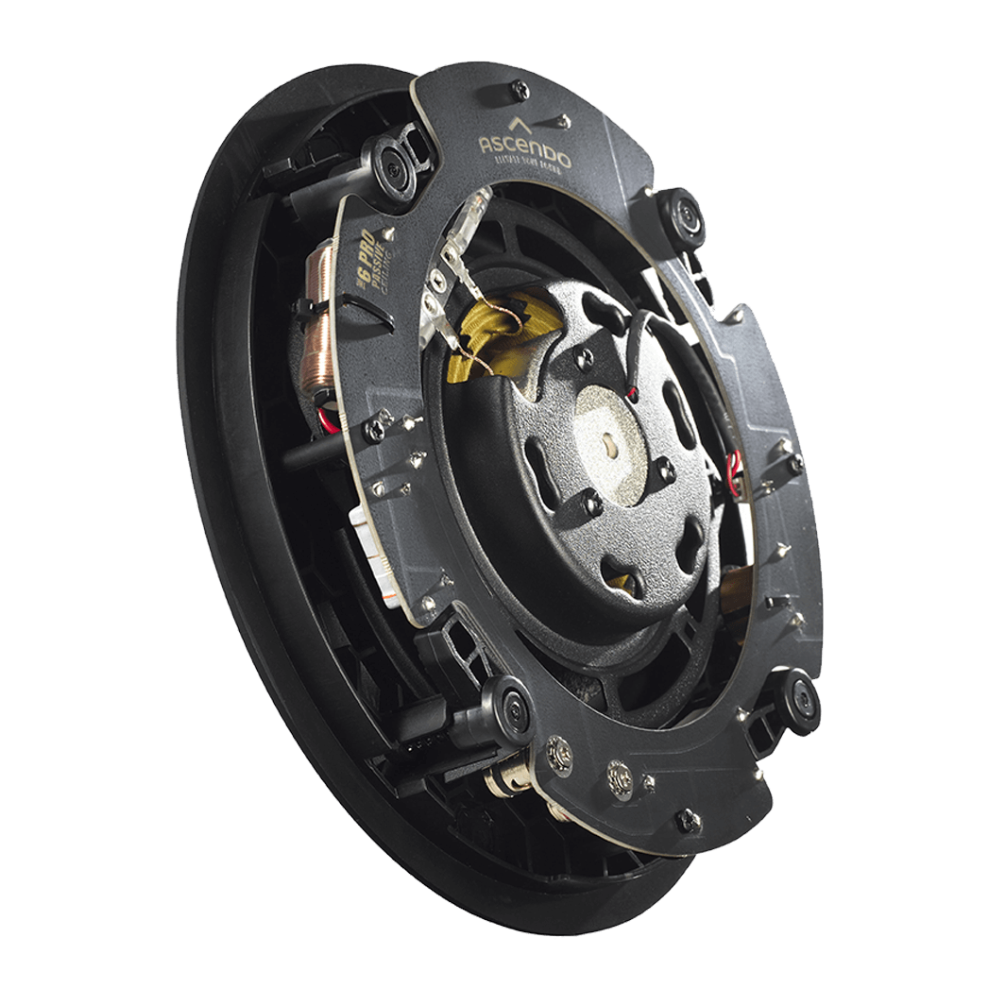

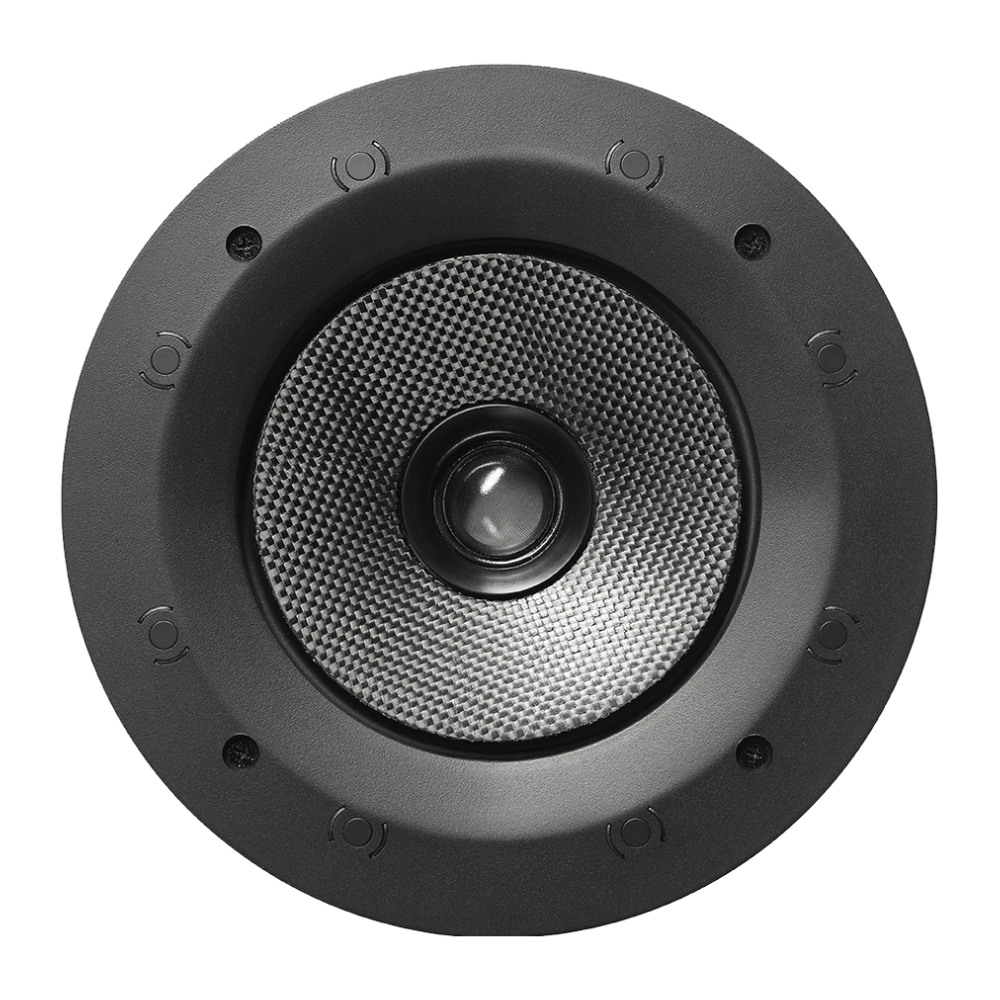

The new coax with Neodymium motor, 1,1” softdome tweeter and mid-woofer made of highly damped sandwich carbon fibre with foam core and rubber surround is capable of handling high power and reproduces rich transparent dynamic sound. The6 Pro Passive In-Ceiling Speaker also impresses with its silky high-frequency reproduction and perfect symmetrical dispersion.

The new coax with Neodymium motor, 1,1” softdome tweeter and mid-woofer made of highly damped sandwich carbon fibre with foam core and rubber surround is capable of handling high power and reproduces rich transparent dynamic sound. The6 Pro Passive In-Ceiling Speaker also impresses with its silky high-frequency reproduction and perfect symmetrical dispersion.

Why Choose The6 Pro Passive In-Ceiling Speaker?

The Ascendo The6 Pro Passive In-Ceiling Speaker is a great option when you want serious cinema or multiroom sound without taking up wall space. What we like is that it is shallow enough for more challenging ceiling installations, but still delivers the kind of rich, dynamic performance you would expect from Ascendo. Its coaxial point-source driver helps spread sound evenly across the room, while the soft dome tweeter and carbon fibre mid-woofer give it a clear, smooth and detailed sound. It is a smart choice for anyone wanting high-quality in-ceiling audio that feels powerful, refined and easy to integrate.

Main Features & Specifications

  • Design: Speaker Type: 6 ½” time-coherent point-source coaxial (Neodymium motor)
  • Principle: In-Ceiling
  • Passive | Active: Passive
  • Woofer: 6 ½” woofer (Carbon)
  • Tweeter: 1” soft dome
  • Recommended ASCENDO Amplifiers: AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004

Measured Data

  • SPL (Half Space 2pi): Measured Data - 103 dB (Cont.) / 115 dB (Peak)
  • Frequency Range: Measured Data (Without DSP) - 85 Hz - 20 kHz / -3 dB
  • Power Handling: 200 W
  • Efficiency: 91 dB / 1 W/m 2 pi
  • Impedance: 8 Ω
  • Directivity Horizontal x Vertical in deg°: 60° x 60°

Input

  • Input Terminal: Push on terminals 14 AWG (2.5 mm²)

Design & Mounting

  • Enclosure: N/A
  • Finish: White (can be painted)
  • Mounting: Doogfeet clamps

Dimensions & Weight

  • Dimensions (WxHxD) (Without Grille): Diameter 225 x Cut out dia. 205 cx 42.9mm
  • Packing Dimensions (WxHxD): 250 x 335 x 65mm
  • Weight: 1.2 kg
  • Price per speaker
  • Manufacturer’s Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
