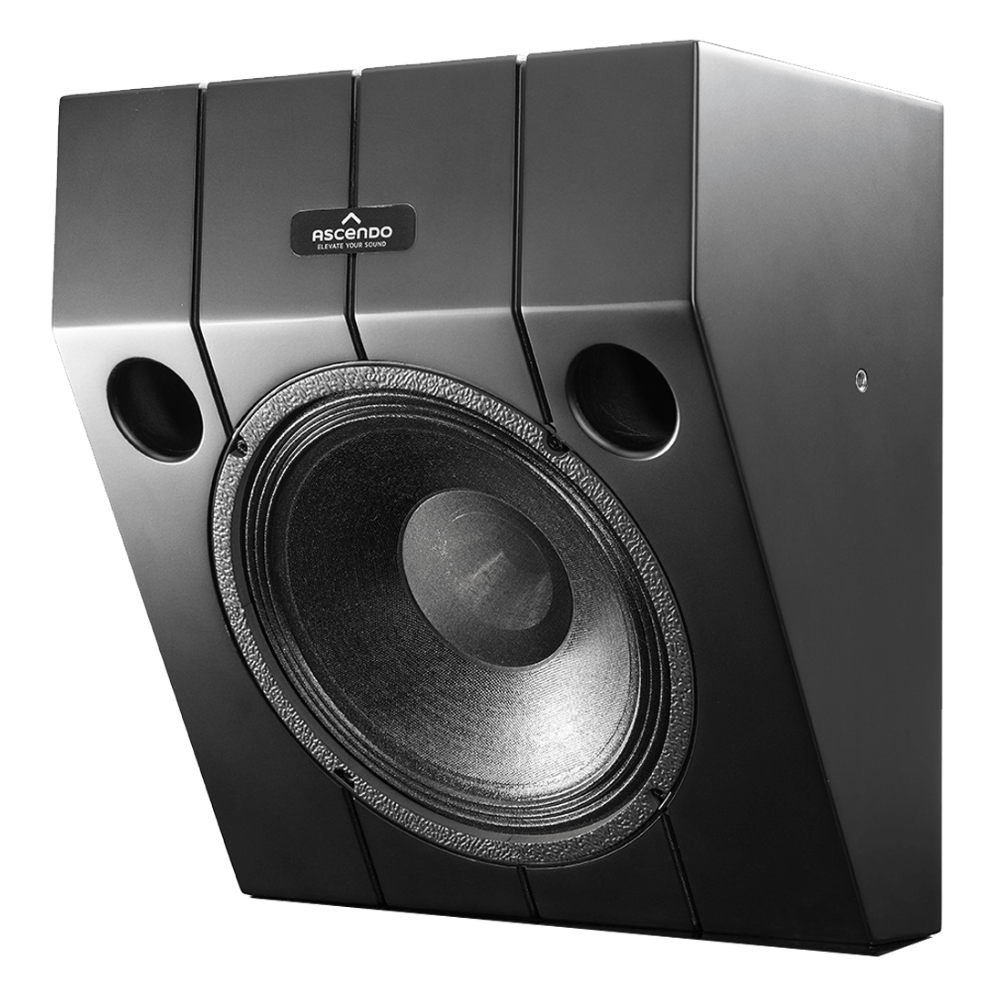

Ascendo The10 Passive Wedge 30 Speaker

Ascendo The10 Passive Wedge 30 Speaker

Color: Black

Quick Info

30-Degree Pre-Angled Design For Flexible Speaker Placement

Ideal For Atmos, DTS, Height And Surround Channels

Wide Sound Coverage For A More Immersive Listening Area

High Efficiency For Big Cinema Sound With Lower Amplifier Power

Sold Individually

View full details

Ascendo The10 Passive Wedge 30 Speaker

The design objective for this model was to offer a pre-angled version of The10 Passive On Wall that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

The10 Passive Wedge 30 is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Why Choose The Ascendo The10 Passive Wedge 30 Speaker?

The Ascendo The10 Passive Wedge 30 is a brilliant option when you need serious cinema sound in positions where a standard flat on-wall speaker simply will not work. What we like is that the built-in 30-degree angle makes it much easier to aim sound where it needs to go, whether used for Atmos, DTS, front wide, height or surround channels. It delivers the power and dynamics Ascendo is known for, while giving installers and home cinema owners more flexibility to create a convincing, immersive sound field across the whole room.

Main Features & Specifications

  • Design: Speaker Type: 10” time-coherent point-source coaxial
  • Principle: Vented
  • Passive | Active: Passive
  • Woofer: 10” woofer
  • Tweeter: 1 ⅜” voice coil diameter, compression driver
  • Recommended ASCENDO Amplifiers: AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004

Measured Data

  • SPL (Half Space 2pi): Measured Data - 120 dB (Cont.) / 130 dB (Peak)
  • Frequency Range: Measured Data (Without DSP) - 100 Hz - 20 kHz / -3 dB
  • Power Handling: 500 W
  • Efficiency: 97 dB / 1 W/m 2 pi
  • Impedance: 8 Ω
  • Directivity Horizontal x Vertical in deg°: 85° x 85°

Input

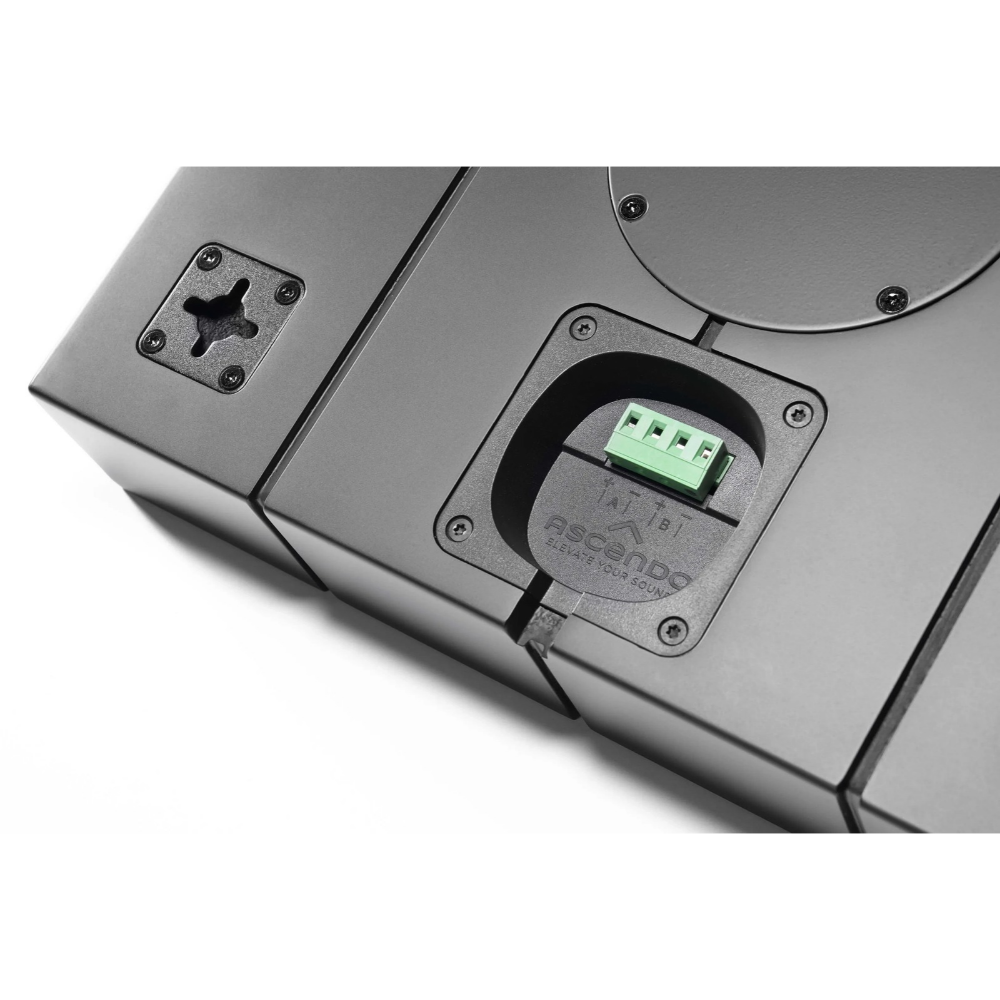

  • Input Terminal: 4-conductor Phoenix 12 AWG (3.3 mm²)

Design & Mounting

  • Enclosure: Internally braced MDF
  • Finish: Matte black/Gloss White

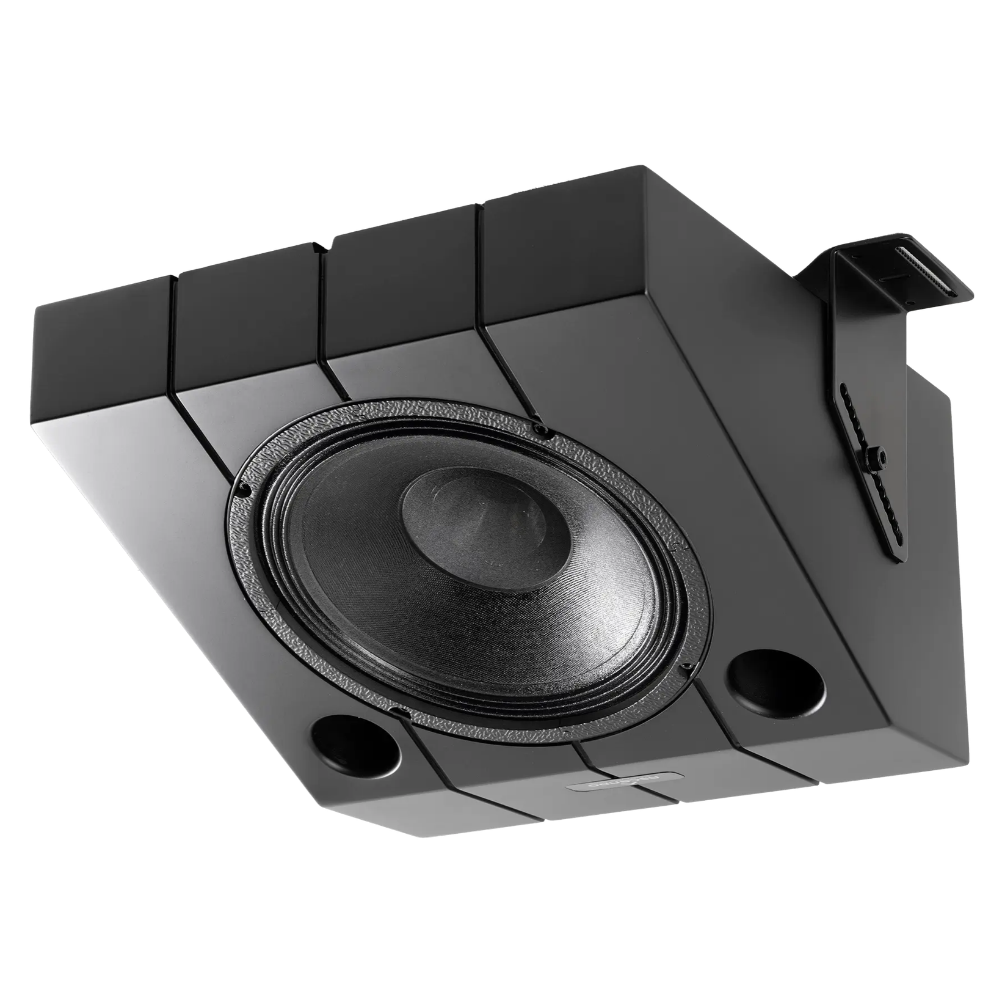

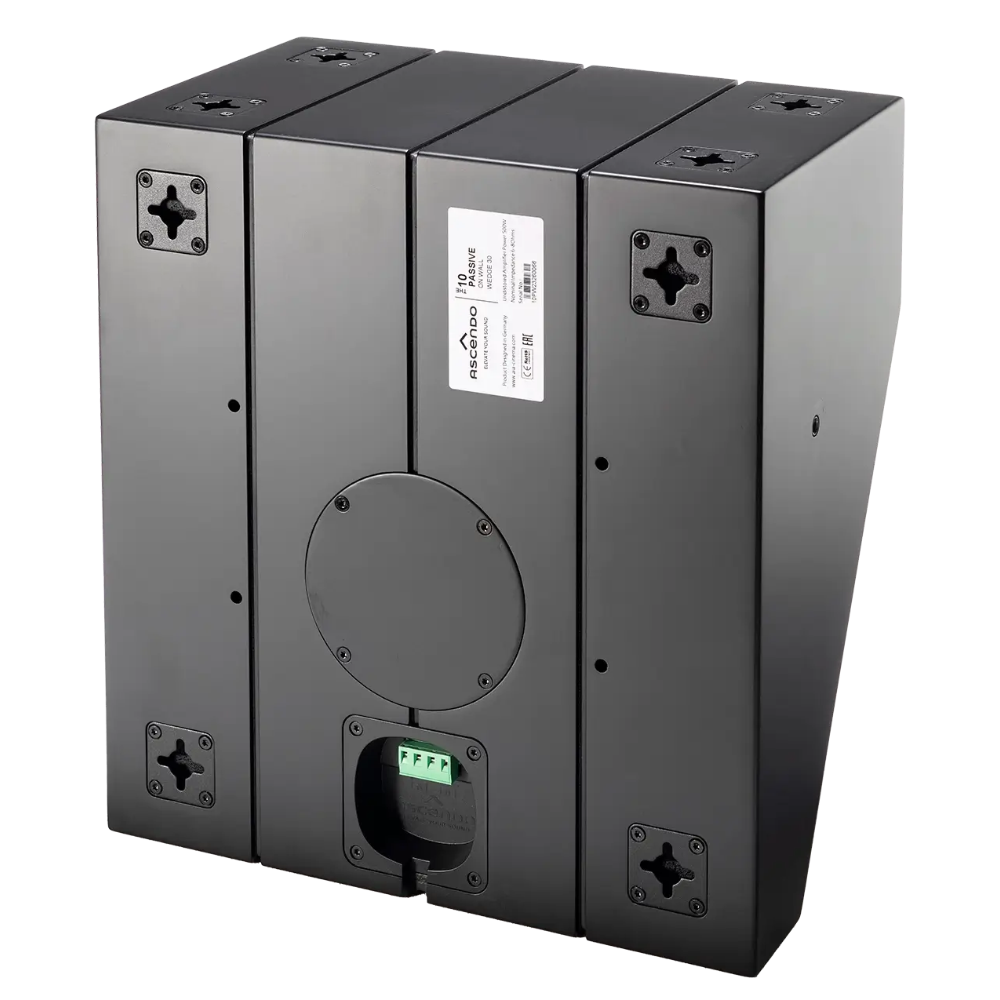

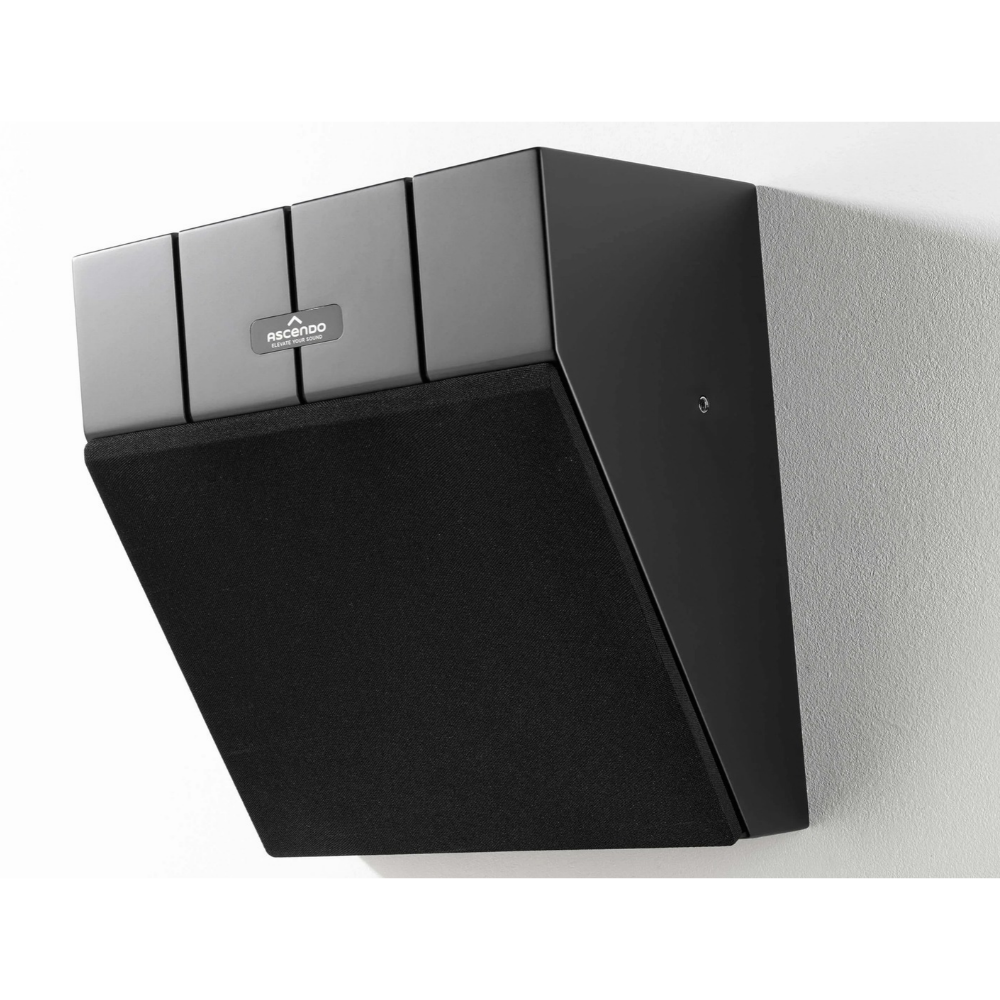

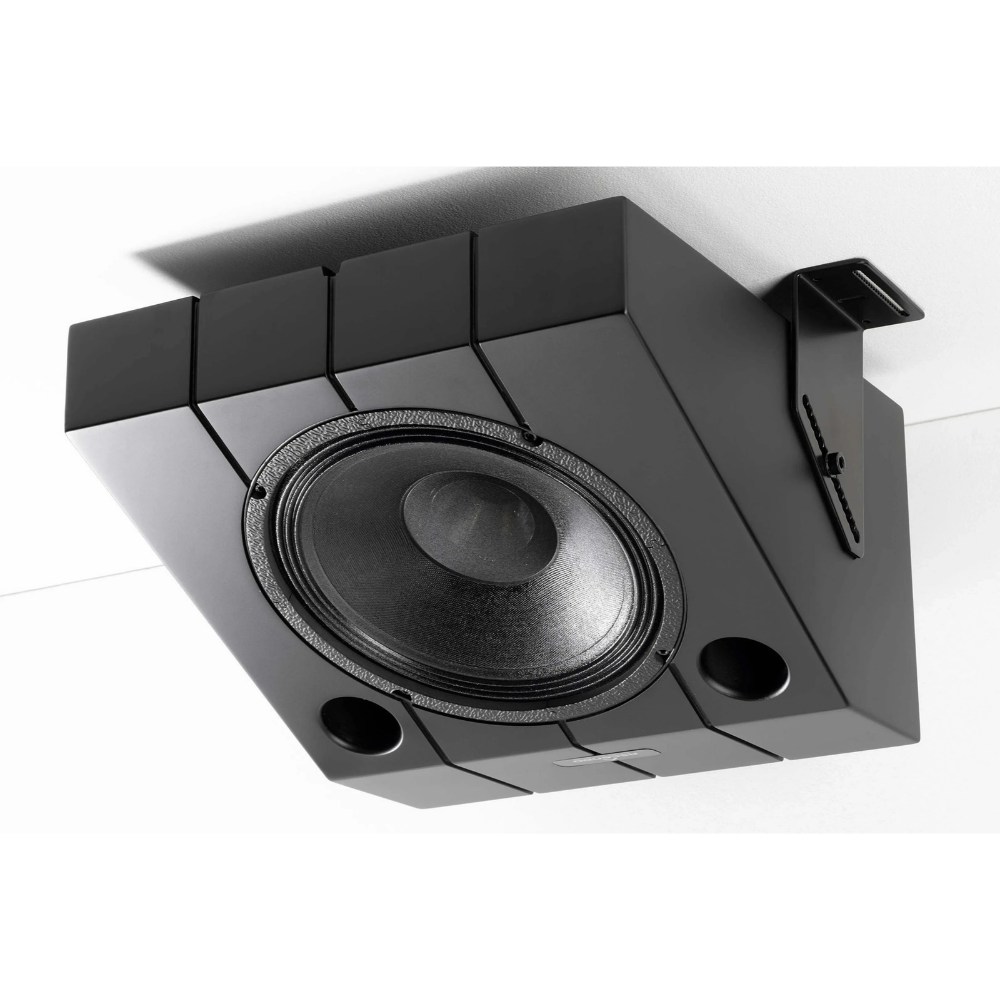

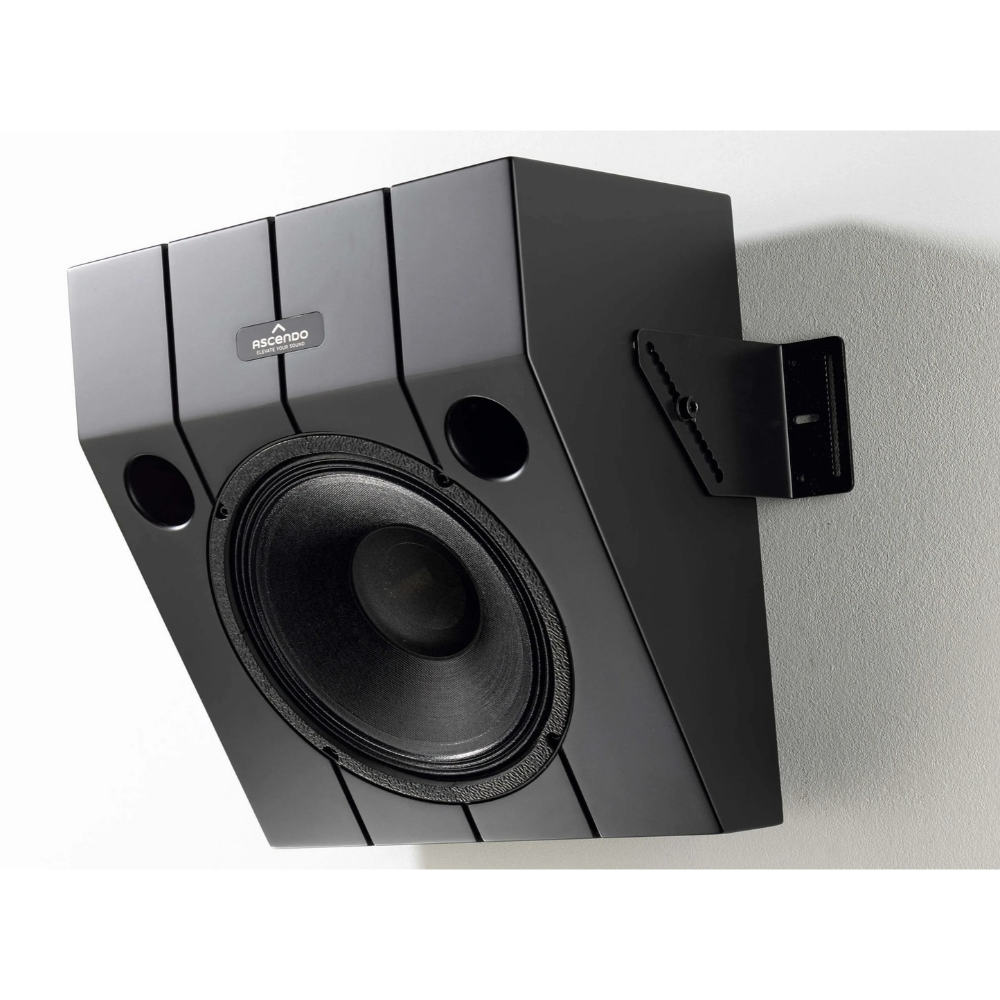

  • Mounting: Metal wall or ceiling mounting brackets allowing further angling in two axes, 8 x wall mount brackets for multiple hanging options, VESA 200 x 100 mounting points

Dimensions & Weight

  • Dimensions (WxHxD) (Without Grille): 360 x 382 x 218mm Verticle - 360 x 218 x 382mm Horizontal
  • Packing Dimensions (WxHxD): 510 x 510 x 350mm
  • Weight: 11.2 kg
  • Price per speaker
  • Manufacturer’s Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
