ASCENDO

Ascendo The10 Passive On-Wall Speaker

Ascendo The10 Passive On-Wall Speaker

Color: Black

Quick Info

Compact On-Wall Design For Living Room Home Theatre

10-Inch Coaxial Driver For Powerful, Focused Sound

Ideal For Front Speaker And Architectural Applications

Pairs With Ascendo Subwoofers For Greater Cinema Impact

Sold Individually

View full details

Ascendo The10 Passive On-Wall Speaker

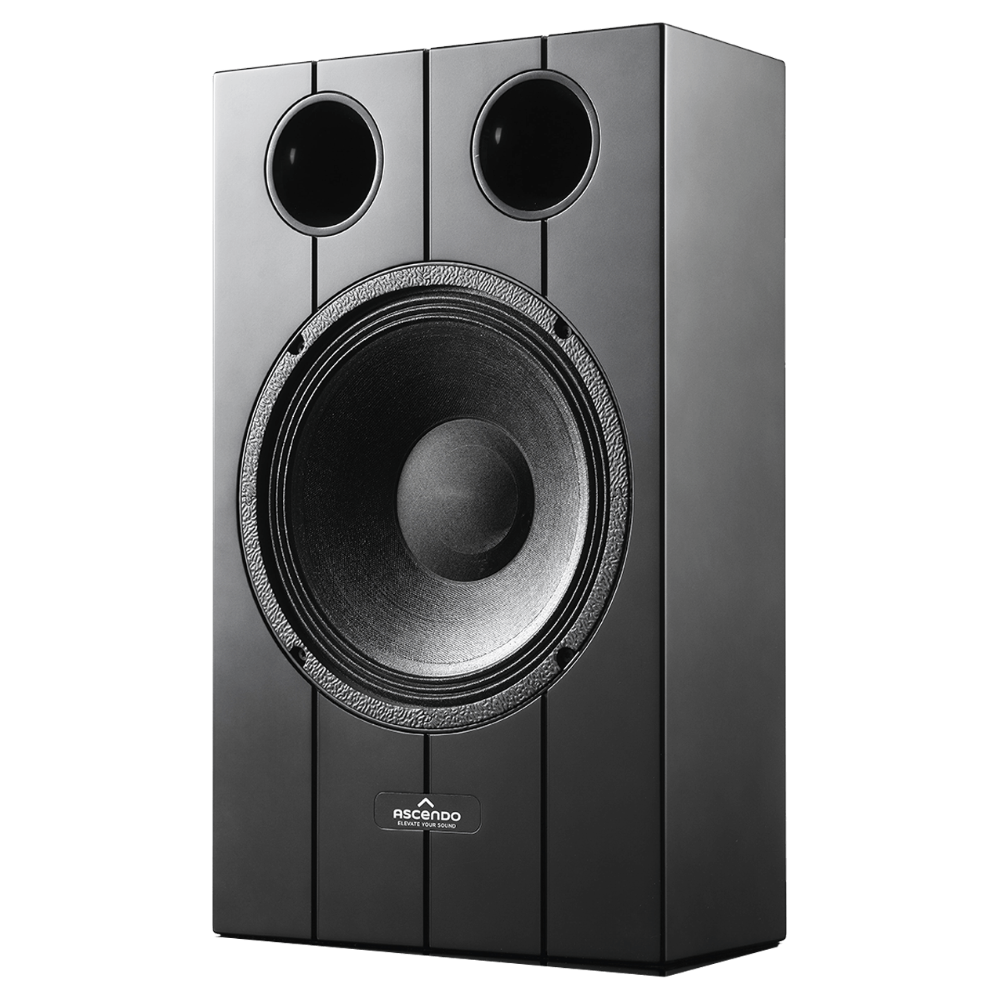

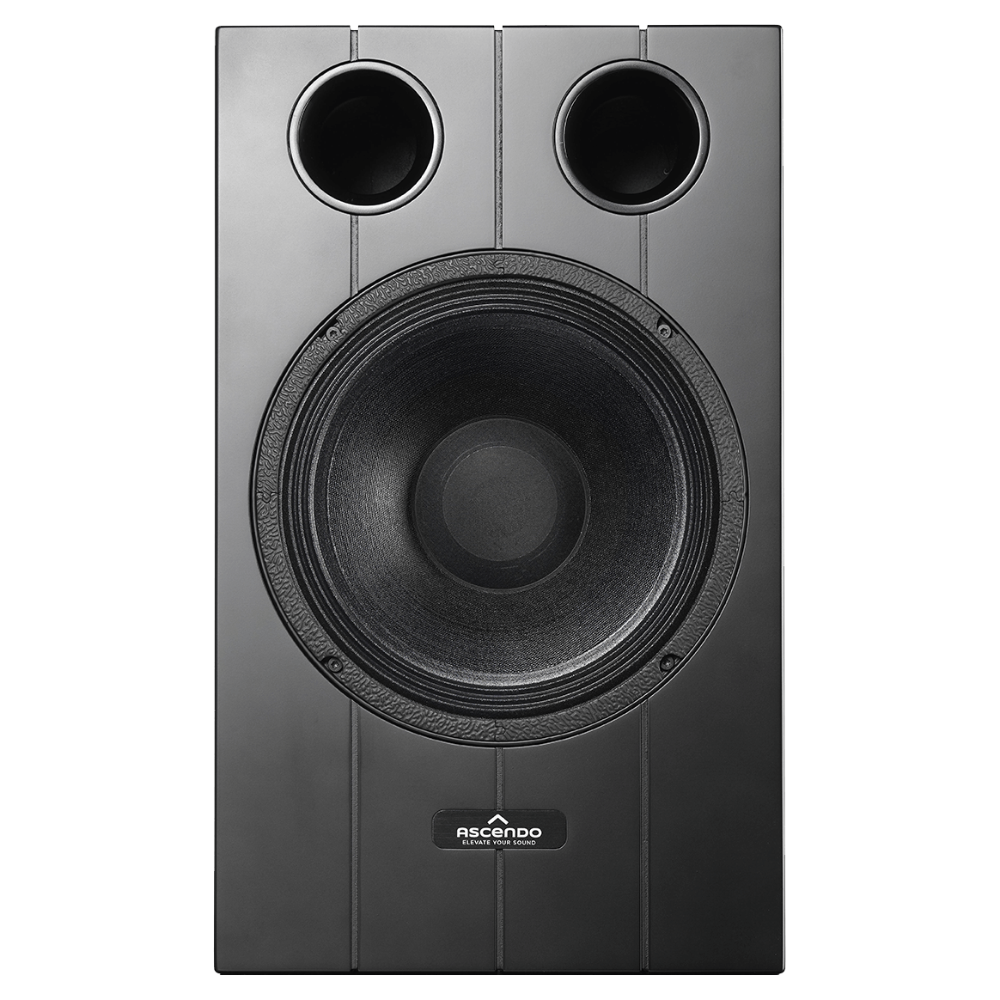

The10-P (Previous name: CCM10-P) is a very compact two-way passive loudspeaker system which utilizes a 10” (250mm) LF/1” (25mm) exit HF Coaxial driver. It is uniquely placed to meet the requirements of living room and high performance home theatre systems as front speakers, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure.

Use with Ascendo subwoofers will enable the The10-P to operate as small system that is remarkably powerful for its size.

Why Choose The Ascendo The10 Passive On-Wall Speakers?

The Ascendo The10 Passive On-Wall Speakers are a great choice when you want serious home theatre performance from a compact speaker that does not dominate the room. What we like is that they deliver the scale and impact needed for front speaker duties, while still being slim and practical enough for living rooms and architectural installations. With a 10-inch coaxial driver and strong output for their size, they offer a powerful, focused and cinematic sound, especially when paired with Ascendo subwoofers.

Main Features & Specifications

  • Design: Speaker Type: 10” time-coherent point-source coaxial
  • Principle: Vented
  • Passive | Active: Passive
  • Woofer: 10” woofer
  • Tweeter: 1 ⅜” voice coil diameter, compression driver
  • Recommended ASCENDO Amplifiers: AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004

Measured Data

  • SPL (Half Space 2pi): Measured Data - 120 dB (Cont.) / 130 dB (Peak)
  • Frequency Range: Measured Data (Without DSP) - 100 Hz - 20 kHz / -3 dB
  • Power Handling: 500 W
  • Efficiency: 97 dB / 1 W/m 2 pi
  • Impedance: 8 Ω
  • Directivity Horizontal x Vertical in deg°: 85° x 85°

Input

  • Input Terminal: 4-conductor Phoenix 12 AWG (3.3 mm²)

Design & Mounting

  • Enclosure: Internally braced MDF
  • Finish: Matte black/Gloss White

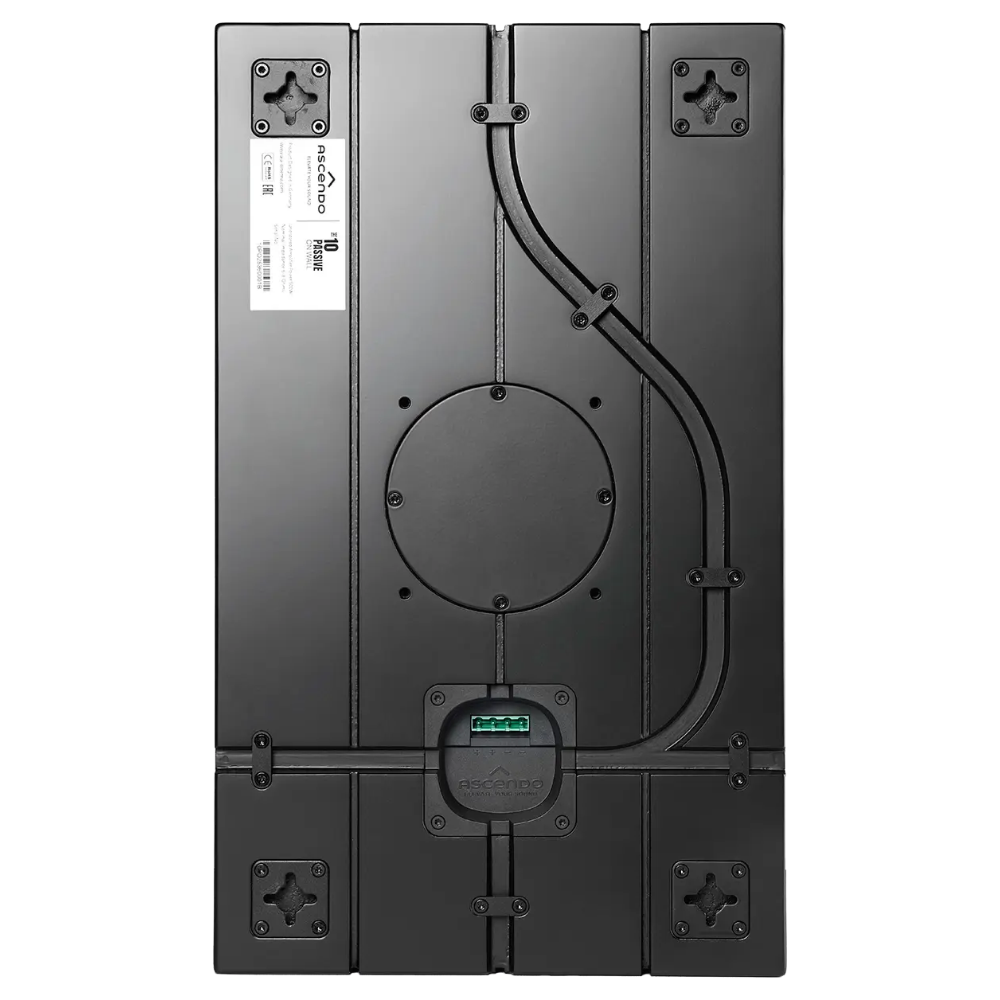

  • Mounting: 4 x wall brackets for horizontal and vertical installation, VESA 100 x 100 mounting points, 4 through-holes for direct wall or ceiling mounting

Dimensions & Weight

  • Dimensions (WxHxD) (Without Grille): 300 x 500 x 145mm (With grille: 154)
  • Packing Dimensions (WxHxD): 440 x 640 x 280mm
  • Weight: 12 kg
  • Price per speaker
  • Manufacturer’s Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
