Ascendo The10 Passive LED Phantom

Ascendo The10 Passive LED Phantom

Color: Black

Quick Info

12-Degree Wedge Design For One To Three Seating Rows

DSP Phantom Voice Control For Precise On-Screen Dialogue

Slim Form Factor For Wide, Height And Surround Channels

Flexible Mounting Options For Wall Or Ceiling Installation

Sold Individually

View full details

The10 Passive LED Phantom Voice Speaker

The10 Passive Led Phantom Voice speaker is a revolutionary solution designed to elevate your home theatre experience like never before. This versatile speaker is built to meet the growing demand for high-quality sound in shallow and narrow spaces, making it the perfect companion for LED screens from leading brands like Samsung, Quantum, Christie, Barco, as well as non-perforated or near-field projection screens.

Key Features at a Glance:

  • Advanced Design for Seamless Integration: The 12-degree wedge shape is expertly engineered to deliver impeccable sound coverage in theatres with one to three rows of seating. Whether you're setting up your home cinema or a professional screening room, this speaker ensures every seat is the best seat in the house.
  • Precision Sound Placement: The "Phantom" in its name isn't just for show – it refers to the stereo phantom image, which can be adjusted vertically using DSP (Digital Signal Processing) technology. This allows you to position the voice exactly where it belongs: at the center of the screen, creating an immersive audio experience.
  • Sleek and Versatile Form Factor: Its slender, narrow design opens up a world of possibilities. Whether you need a high-performance top speaker, wide speaker, or high speaker layer, the 10 Passive LED Phantom Voice adapts to your needs. It’s even ideal for regular surround sound setups, enhancing your audio experience from every angle.

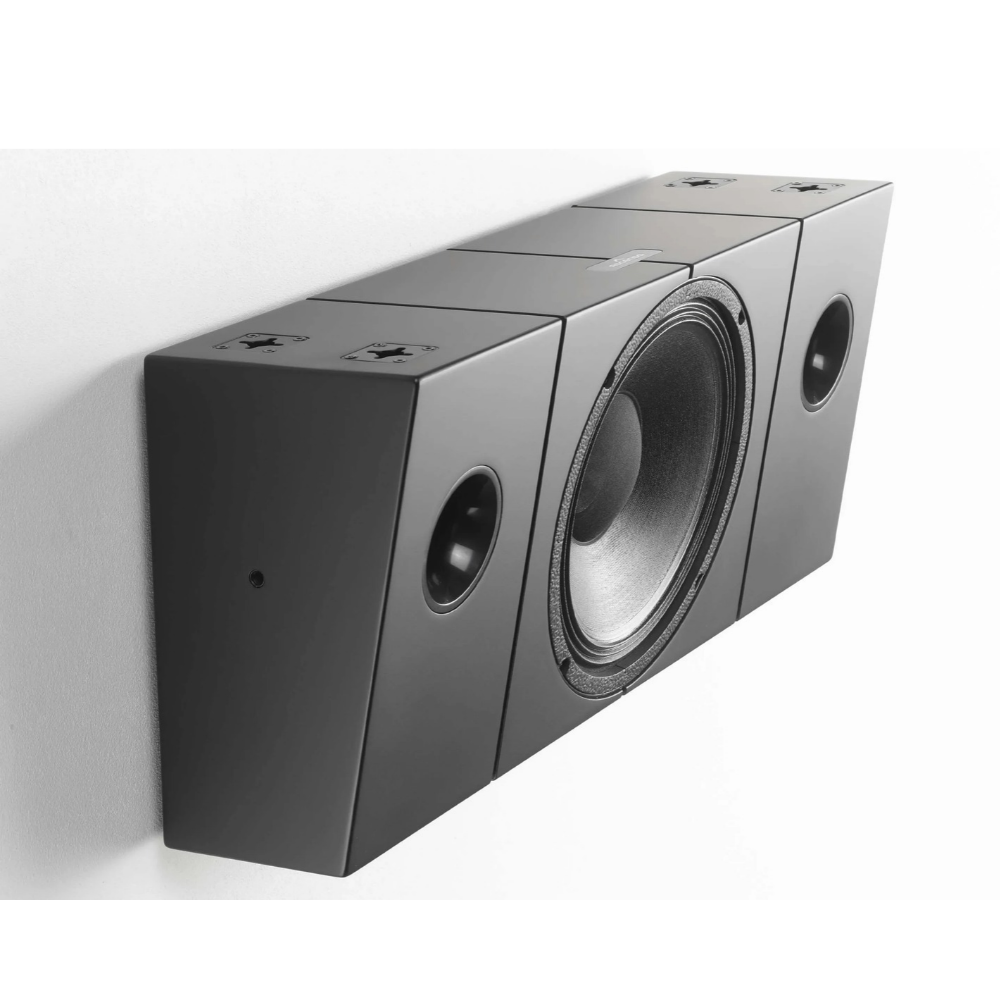

  • Flexible Mounting Options: Installation is a breeze with the included mounting brackets, allowing for ceiling or wall mounting at any desired angle. Additionally, keyhole wall mounts on the top and back of the speaker provide even more flexibility in positioning.

Why Choose The Ascendo The10 Passive LED Phantom?

This is more than just a speaker. It's the future of home theatre. The10 Passive Led Phantom Voice speaker promises to deliver unparalleled sound quality, perfect for any home theatre setup. Don't miss out on this cutting-edge audio solution; upgrade your sound system today and experience the difference for yourself.

Main Features & Specifications

  • Design: Speaker Type: 10” time-coherent point-source coaxial
  • Principle: Vented
  • Passive | Active: Passive
  • Woofer: 10” woofer
  • Tweeter: 1 ⅜” voice coil diameter, compression driver
  • Recommended ASCENDO Amplifiers: AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004

Measured Data

  • SPL (Half Space 2pi): Measured Data - 120 dB (Cont.) / 130 dB (Peak)
  • Frequency Range: Measured Data (Without DSP) - 100 Hz - 20 kHz / -3 dB
  • Power Handling: 500 W
  • Efficiency: 97 dB / 1 W/m 2 pi
  • Impedance: 8 Ω
  • Directivity Horizontal x Vertical in deg°: 85° x 85°

Input

  • Input Terminal: 4-conductor Phoenix 12 AWG (3.3 mm²)

Design & Mounting

  • Enclosure: Internally braced MDF
  • Finish: Matte black/Gloss White

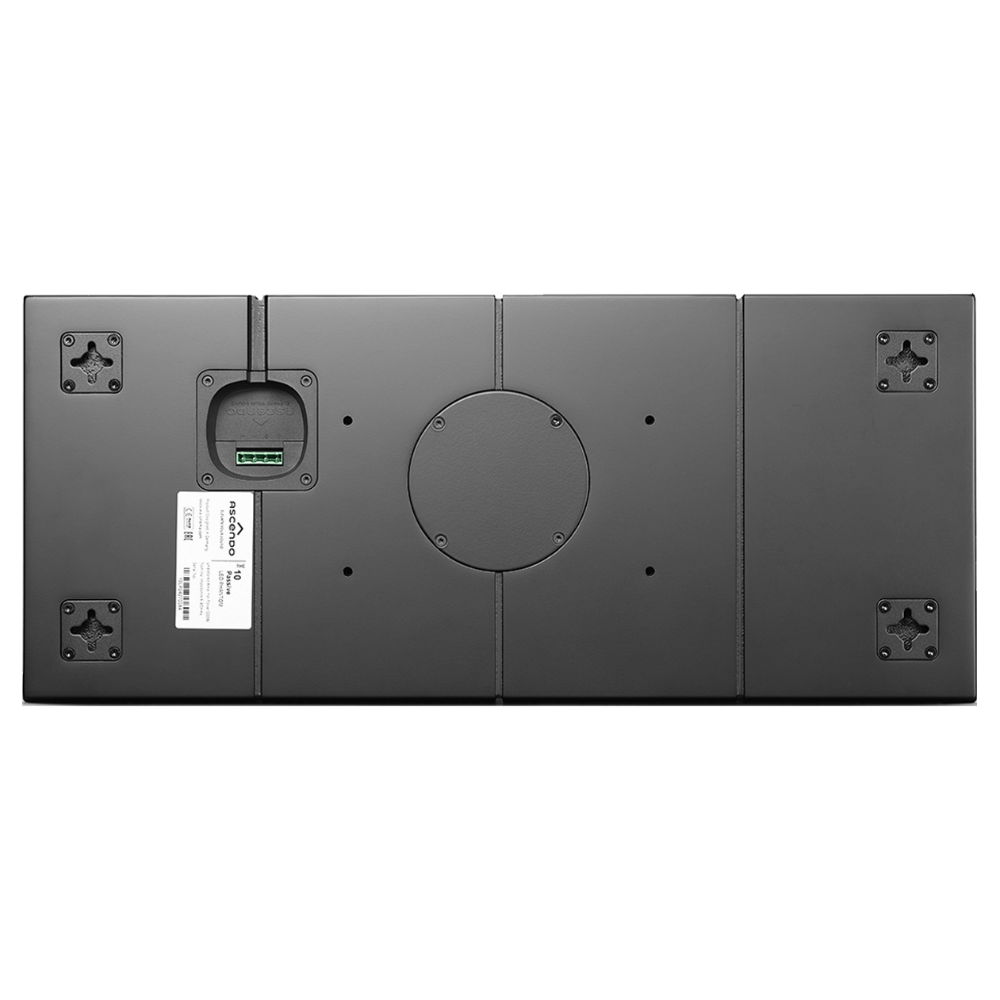

  • Mounting: Metal wall or ceiling mounting brackets allowing further angling in two axes, 8 x wall mount brackets for multiple hanging options, VESA 200 x 100 mounting points

Dimensions & Weight

  • Dimensions (WxHxD) (Without Grille): 630 x 270 x 171.3mm (178.2 with grille)
  • Packing Dimensions (WxHxD): 760 x 400 x 330mm
  • Weight: 13.5 kg
  • Price per speaker
  • Manufacturer’s Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
