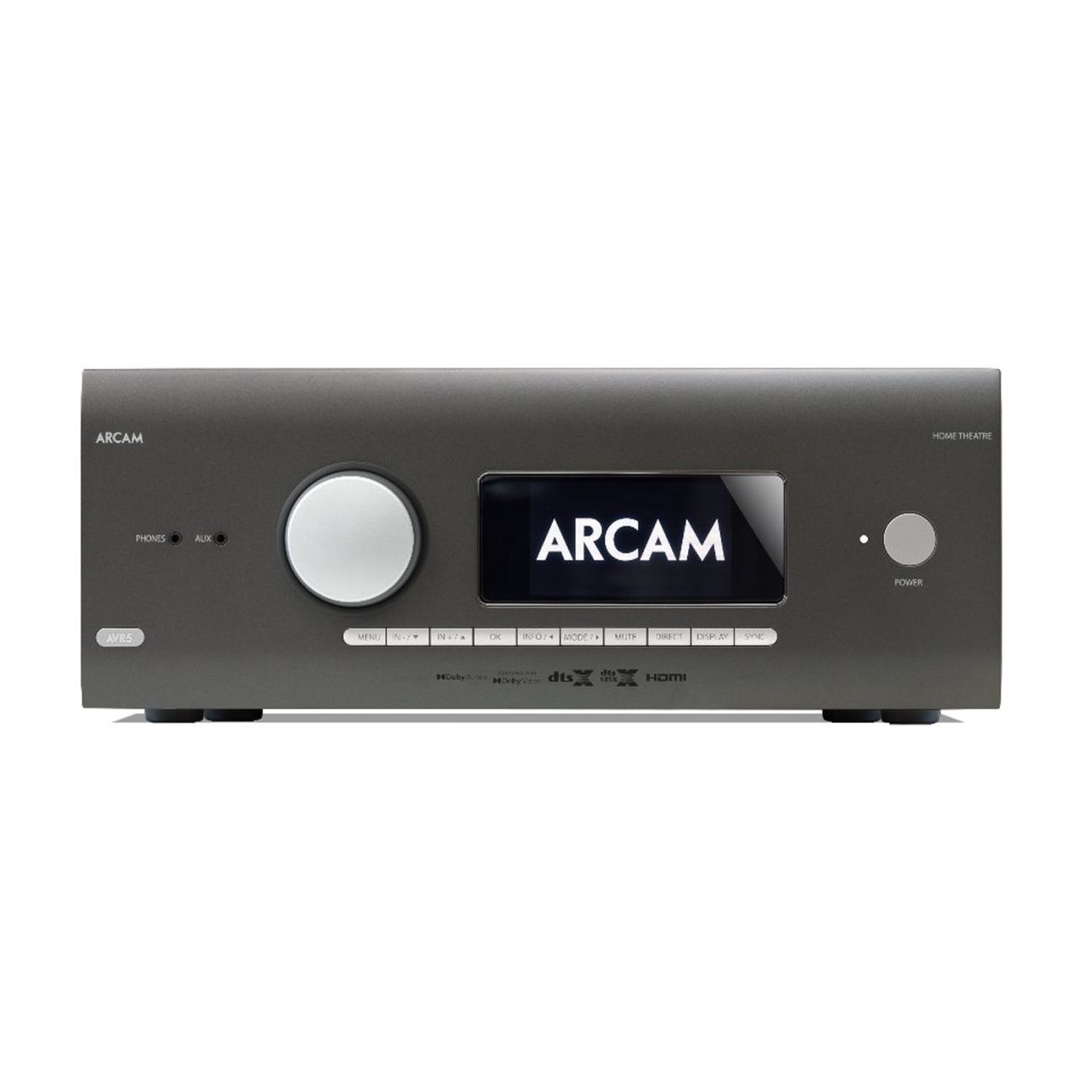

About The Arcam AVR5 4K Home Theatre Receiver
The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.
"With its sparkling clarity and agility, the AVR5 makes for an engaging listen across a range of content." 'What Hi-Fi?' – 5 Star Review.
Versatile AV Amp that puts Sound First: Arcam have a long heritage in premium audio and, with the AVR5, it's clear to hear. The Class A/B amplifier sounds every bit as good with music as it does with thumping soundtracks, making this a truly all-round entertainer. With a true 60 watts per (7) channels, the AVR5 is suitable for all but the largest rooms.
Enjoy Immersive Sound, with Dolby Atmos and DTS:X: Bringing the cinema home, Dolby Atmos and DTS:X decoders provide truly immersive sound through ceiling or up-firing speakers. The Arcam AVR5 offers both systems, giving a 5.2.2 system with twin ceiling or up-firing speakers.
Be Even More Immersed: With processing for 7.2.4 channels, you can add a 4-channel power amp (or two stereo power amps) and not only double the ceiling speaker count but also add additional effect speakers – giving total sound immersion. For the best results, match with the Arcam PA410 power amp.
Stream Your Way: Connect the AVR5 to your network via Wi-Fi or Ethernet and tap into a wide range of streaming options. These include Google Cast, Apple AirPlay 2 and UPnP (Universal Plug 'n Play). Link to your control app of choice and enjoy streaming music services, Internet Radio, Podcasts and even your stored music collection via UPnP.
MusicLife Control App: Take full control of streaming music to your Arcam device with the MusicLife control app (now available for Android and Apple iOS devices). Working with the wireless system, it lets you stream music directly from your device as well as servers or computers connected via UPnP (Universal Plug n' Play). The latest version brings Internet Radio, Podcasts plus streaming from TIDAL and Qobuz. Advanced features, such as library searching, sorting, shuffle and repeat playback are also catered for.
High Quality Bluetooth aptX HD for Quick and Easy Connectivity: Perfect for parties and when friends are over, Bluetooth provides quick and easy, wireless connectivity for your guests' smartphone. Simply pair the device and stream any audio from the smartphone or tablet. When used with a compatible source, Bluetooth aptX HD delivers premium sound quality that's the best yet from Bluetooth technology.
Internet, DAB and FM – all the Radio You Need: Internet radio opens up access to a choice of hundreds of radio stations from around the world. Backing this up, the built-in DAB and FM tuners give wide-ranging access to all your favourite stations, including popular digital only stations, such as BBC 6 Music and 4 Extra.

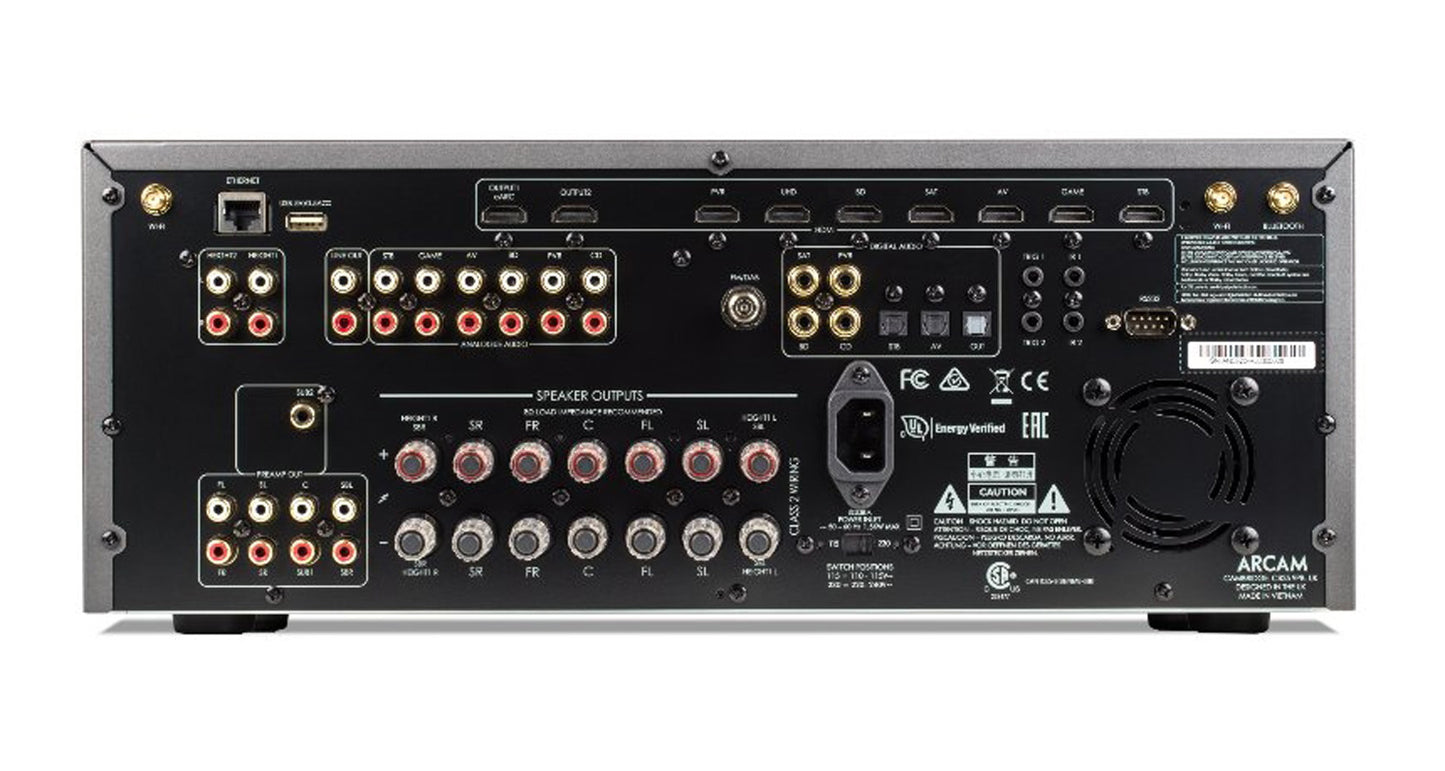

Wide Selection of Connections: With seven HDMI inputs and twin outputs, the AVR5 handles the most complex AV systems. The HDMI2.0b sockets are compatible with HDCP2.2 and eARC. Six digital and six analogue inputs are ample for a wide range of audio components – such as CD, streamer and pre-amp equipped turntable. There are also optical digital and analogue outputs – ideal for recording or looping sound through the Arcam.
Ready for Dirac Live: For the very best sound in your room, the AVR5 is ready for Dirac Live room correction. Simply go to the Dirac website and purchase a license to activate this powerful software. Dirac uses a microphone (available at additional cost) and dedicated software to take multiple readings around your room and feed the information back to the receiver for a completely bespoke response (professional set-up recommended).
Our Take
The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.
Hear the difference Arcam makes to your entire system, with the AVR5.
Main Features & Specifications
- Design: 7 Channel 4K Home Theatre Receiver
- 7 Channels of Class AB amplification
- Dolby Atmos & DTS:X 7.1.4 decoding
- 4K (UHD) HDMI2.0b with HDCP2.2
- 7 HDMI inputs, 2 HDMI outputs, eARC compatible
- Ready for Dirac Live® room correction (purchase a license to activate Dirac Live at www.dirac.com/online-store/arcam-avr5
- ESS 9026PRO audiophile DAC
- Uses frame-type transformer
- Wi-Fi / Ethernet, RS232 and IR control
- Apple Airplay2 and Google Cast for streaming audio
- Bluetooth aptX®HD
- Free MusicLife iOS and Android UPnP streaming app
- Supports MQA
- Roon Ready
- 2 Subwoofer Outs
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance
- Continuous Power Output, per Channel, 8Ω/4Ω
- 2 Channels Driven, 20Hz - 20kHz, <0.02% THD: 80W/100W
- 2 Channels Driven, 1kHz, 0.2% THD: 85W/120W
- 7 Channels Driven, 1kHz, 0.2% THD: 60W/85W
- Supplied accessories: Mains Cable, Remote Control, 2 x AAA Batteries, DAB/FM Aerial, 3 x Wi-Fi/Bluetooth Antennas, Quick Start Guide (full manual online)
- Dimensions (WxHxD): 433 x 171 x 425mm
- Weight: 16.5 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
