About The Acoustic Energy AE105² On-Wall LCR Speaker

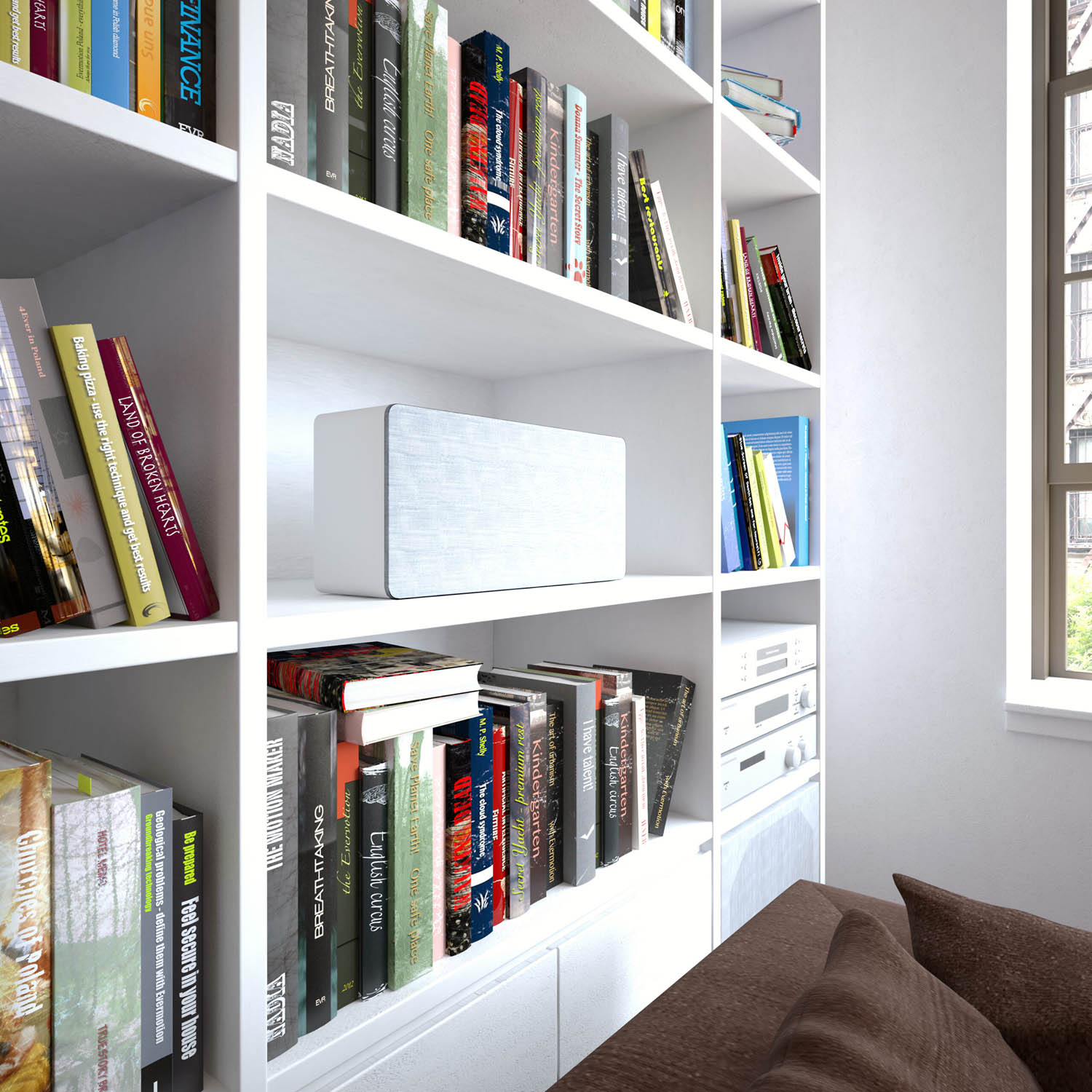

The AE105² is the latest addition to the all-new 100 Series. A versatile, 2-way loudspeaker primarily designed for wall mounting, the AE105² is equally suited to a bookcase or shelf position.

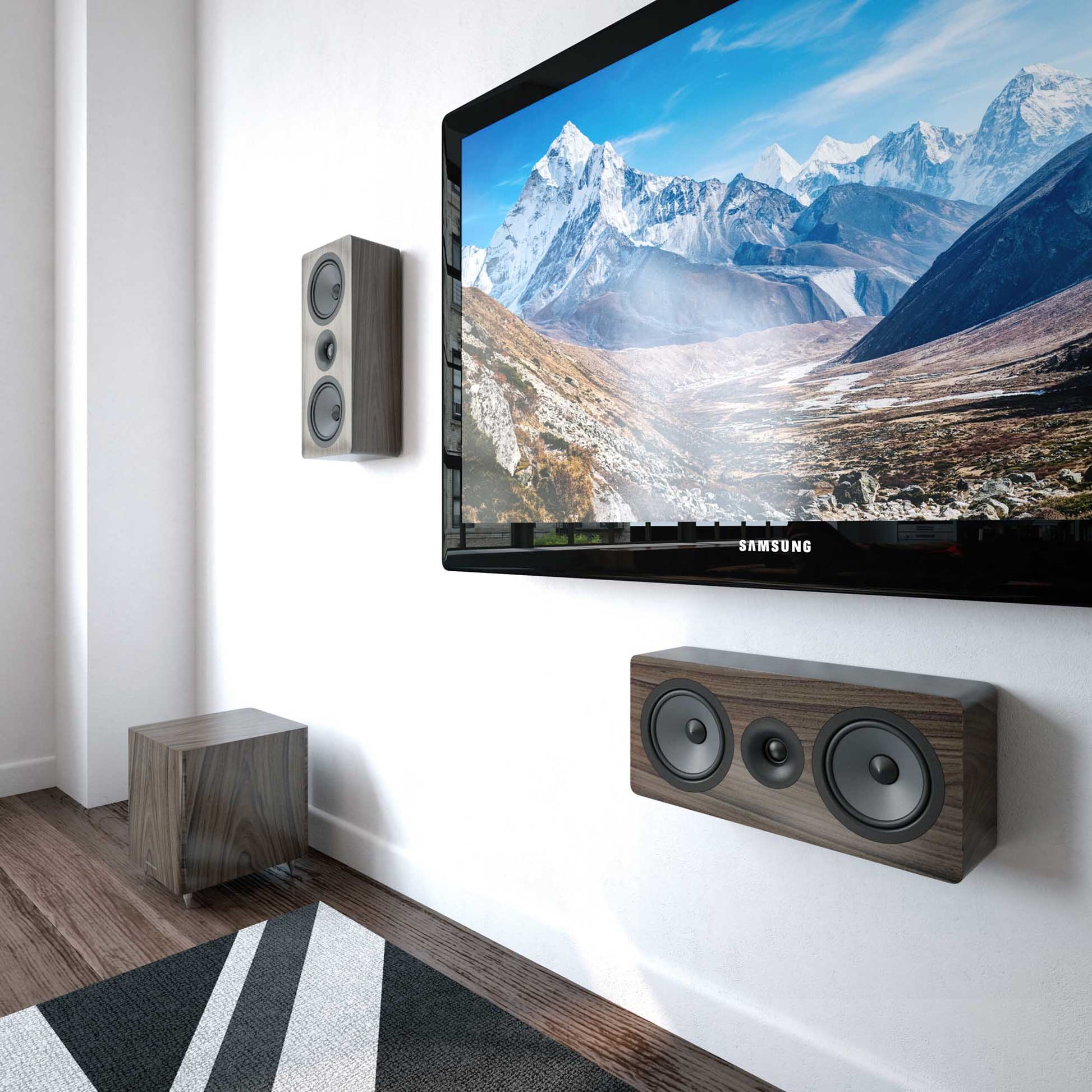

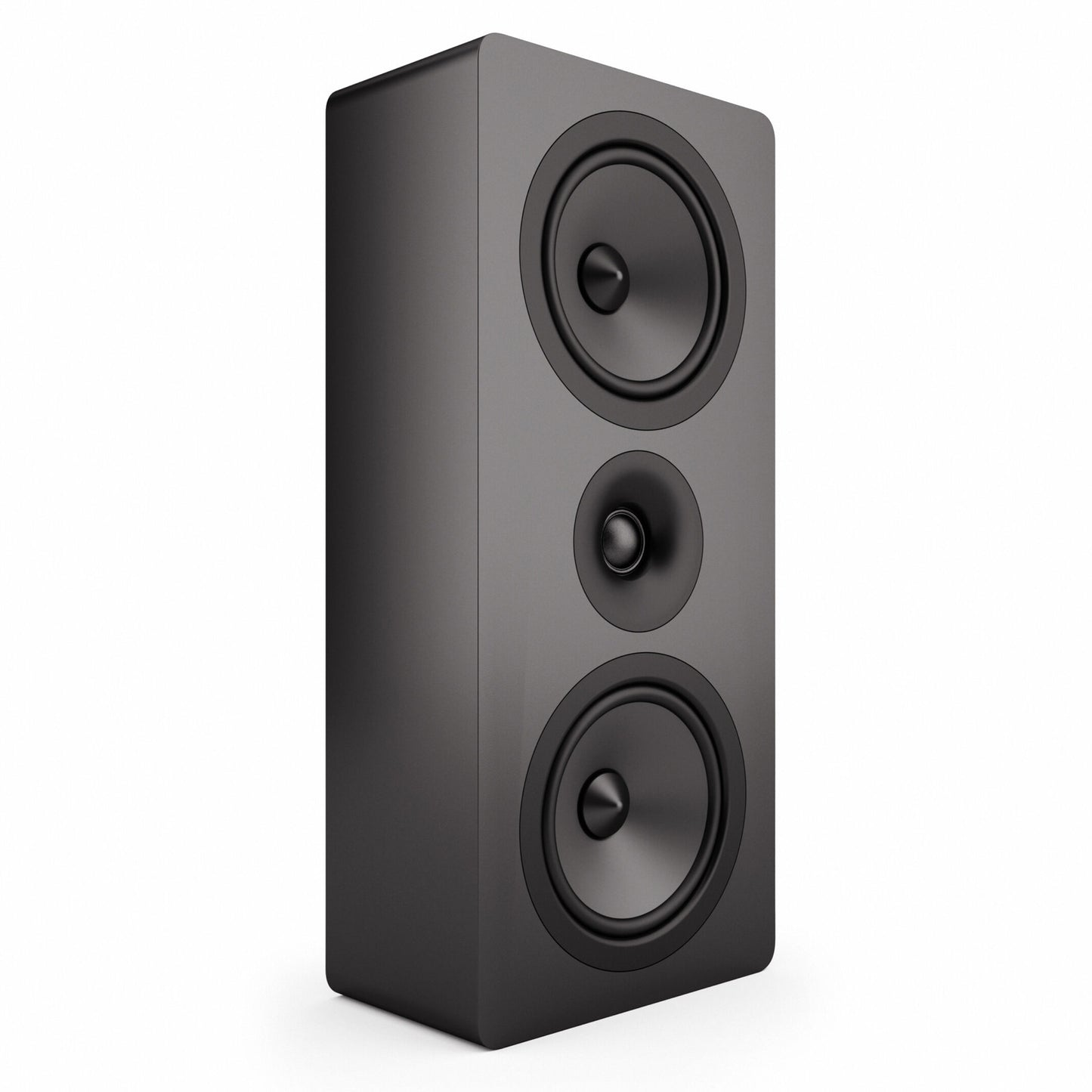

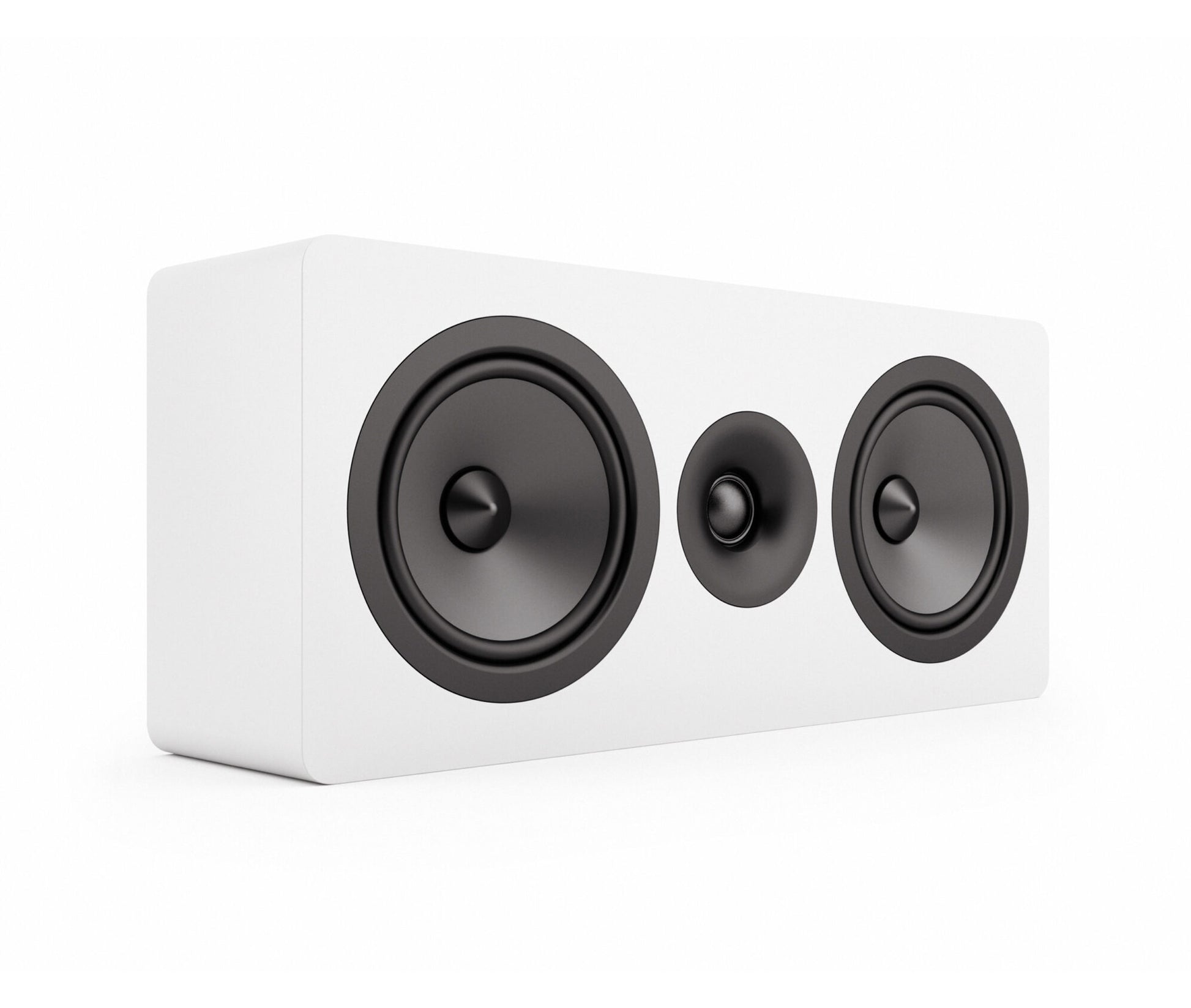

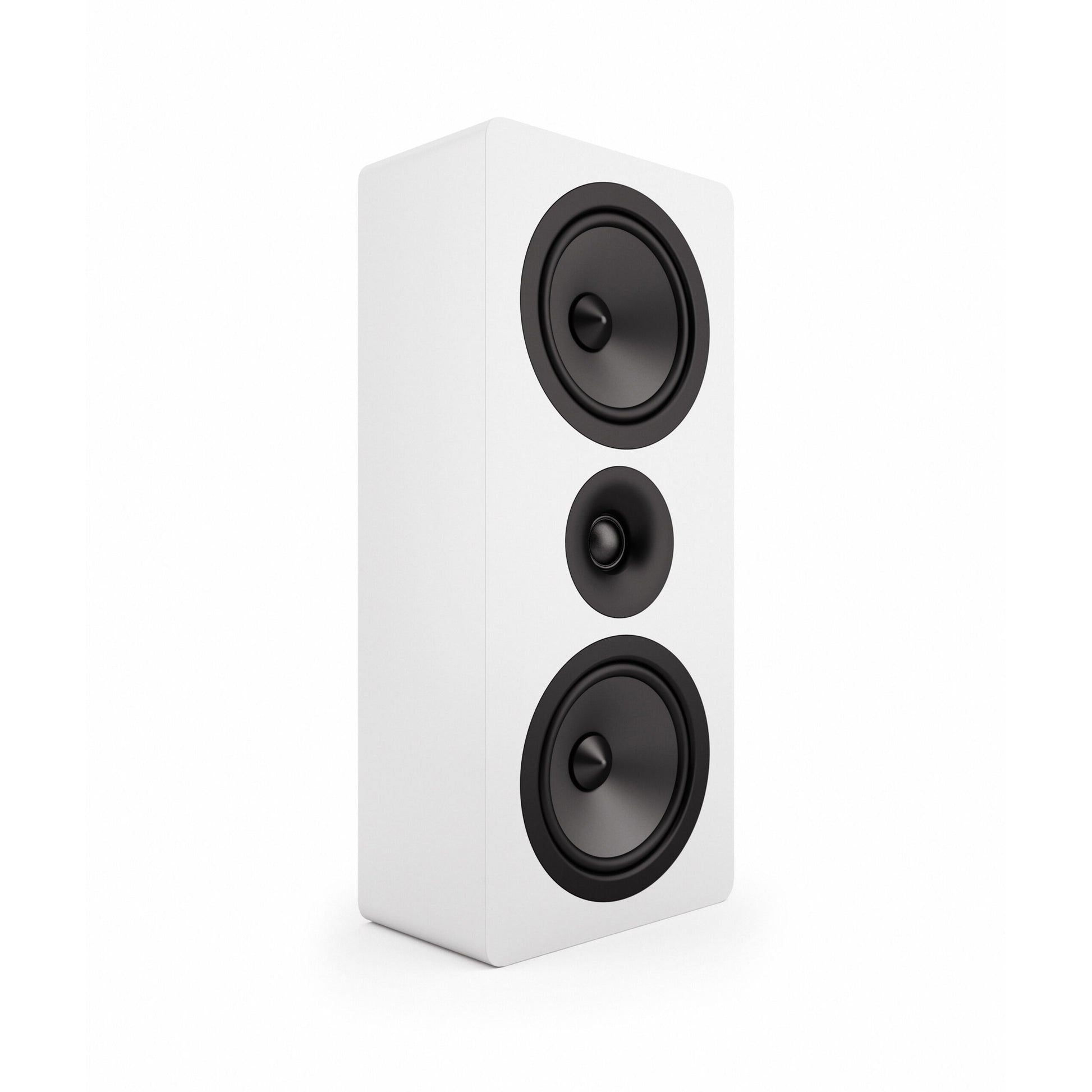

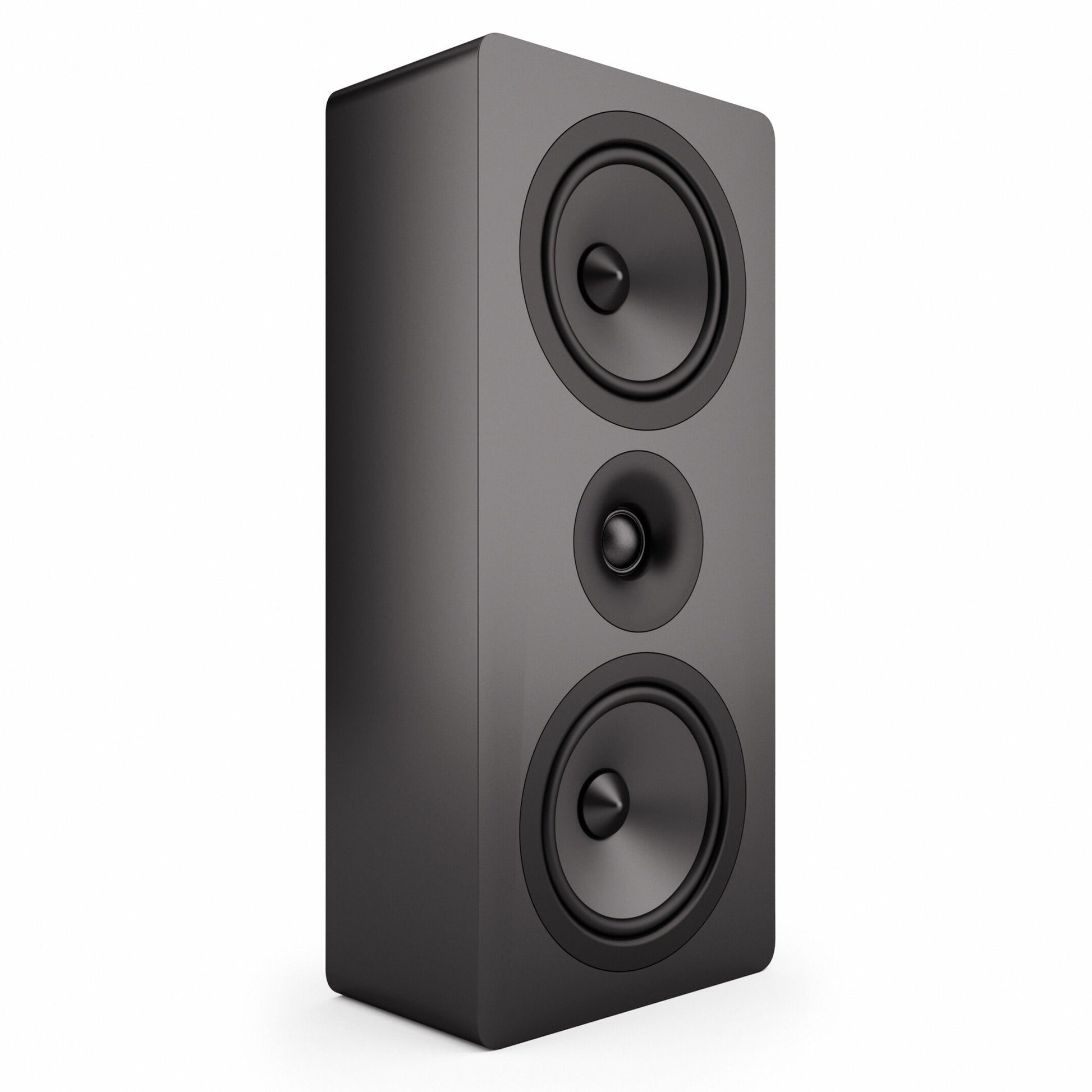

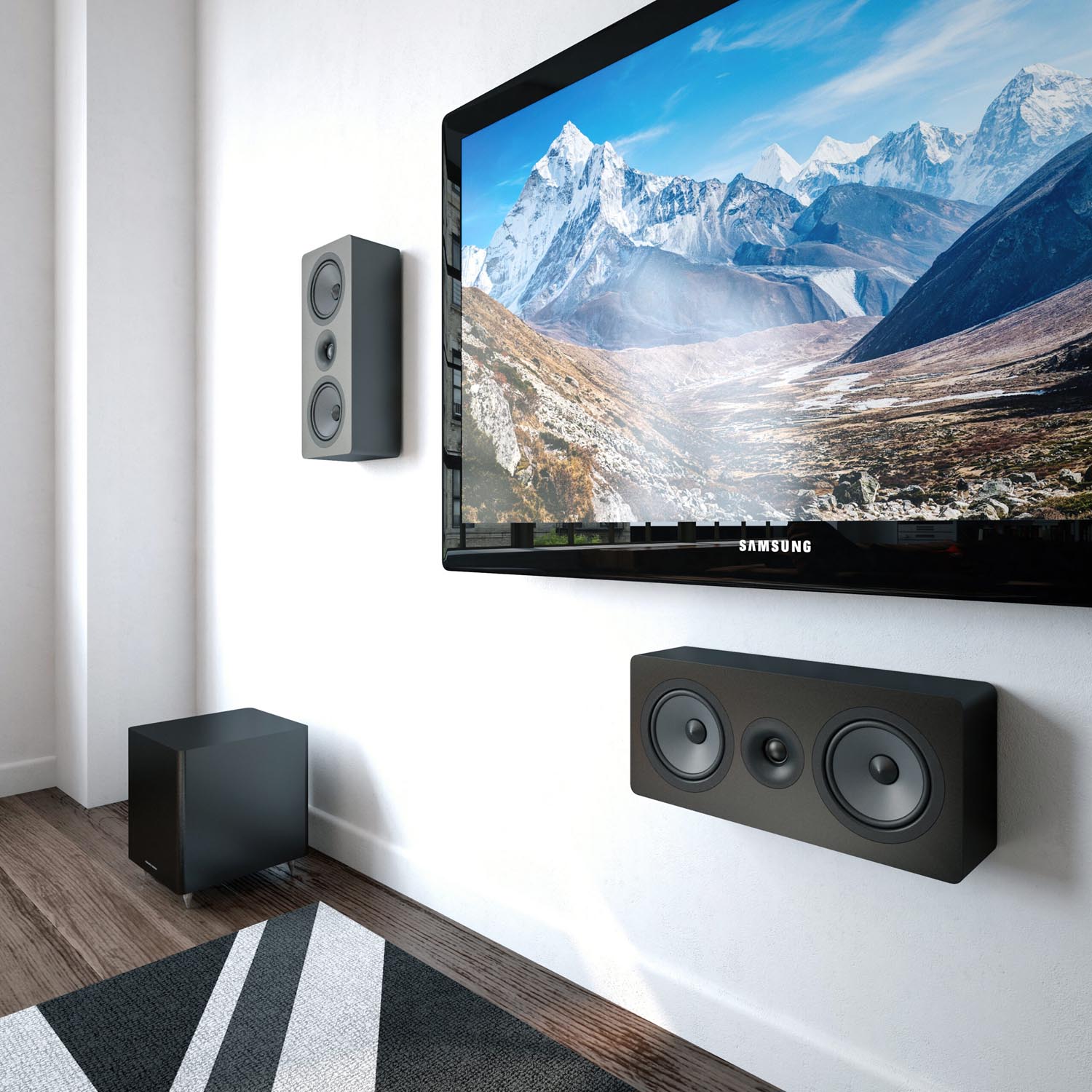

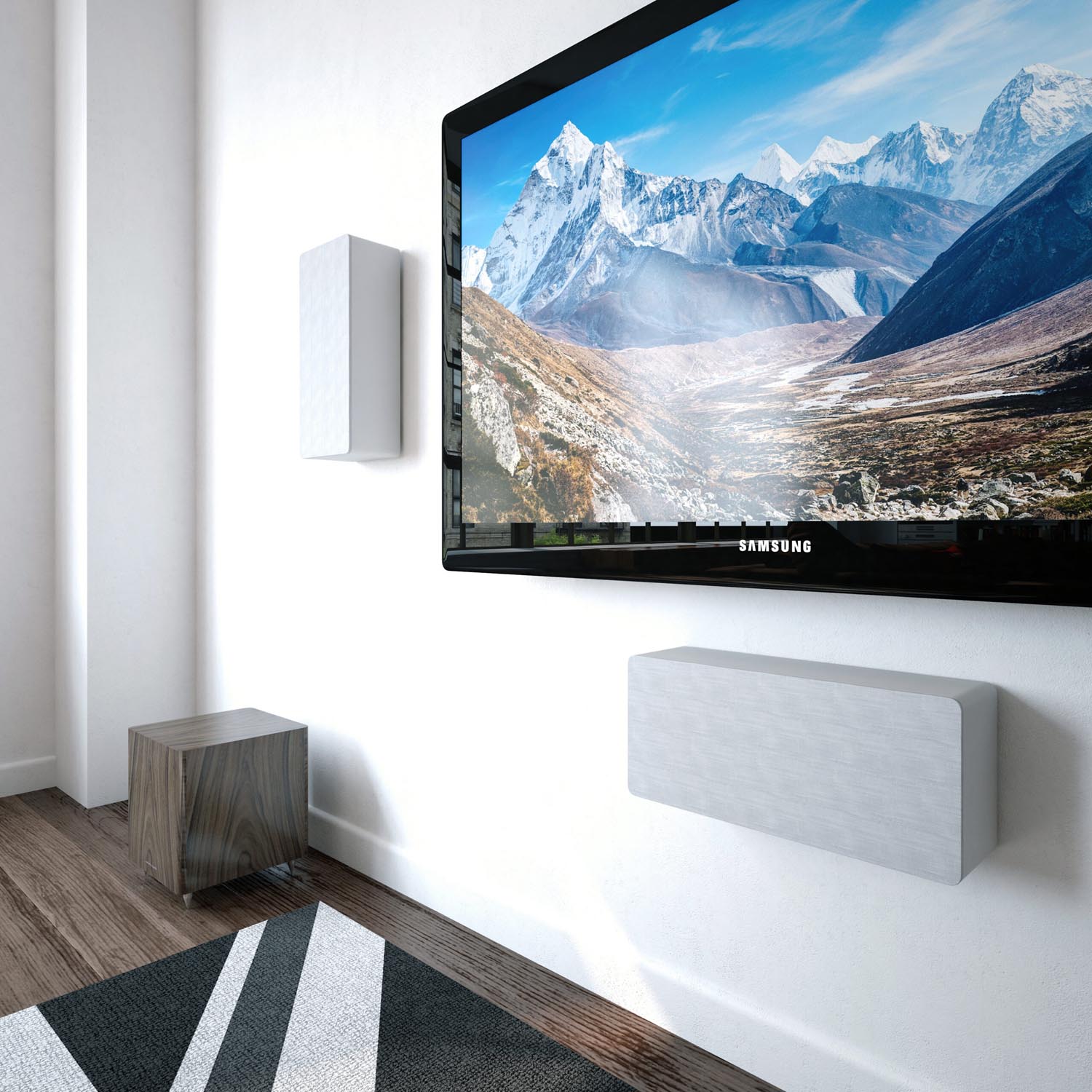

The AE105² utilises a soft dome tweeter with WDT wave guide along with two 130mm paper cone drivers, one acting as a passive radiator for improved bass performance. Optimised for vertical wall mounting with the listening position at or below the tweeter axis, the AE105² can be used to simply enhance the stereo sound from your TV, or as Front L/R, Centre and Surround channel speakers within multi-channel home cinema systems… whilst partnered with the matching AE108² compact sub-woofer.
Bespoke Tweeter: Acoustic Energy's bespoke 25mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching. Paired with AE's Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high-power neodymium motor assembly ensures reliable, distortion-free high-volume playback.
Mid/Bass Drivers: The 130mm bass/mid driver used in the AE105² have been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures. The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.

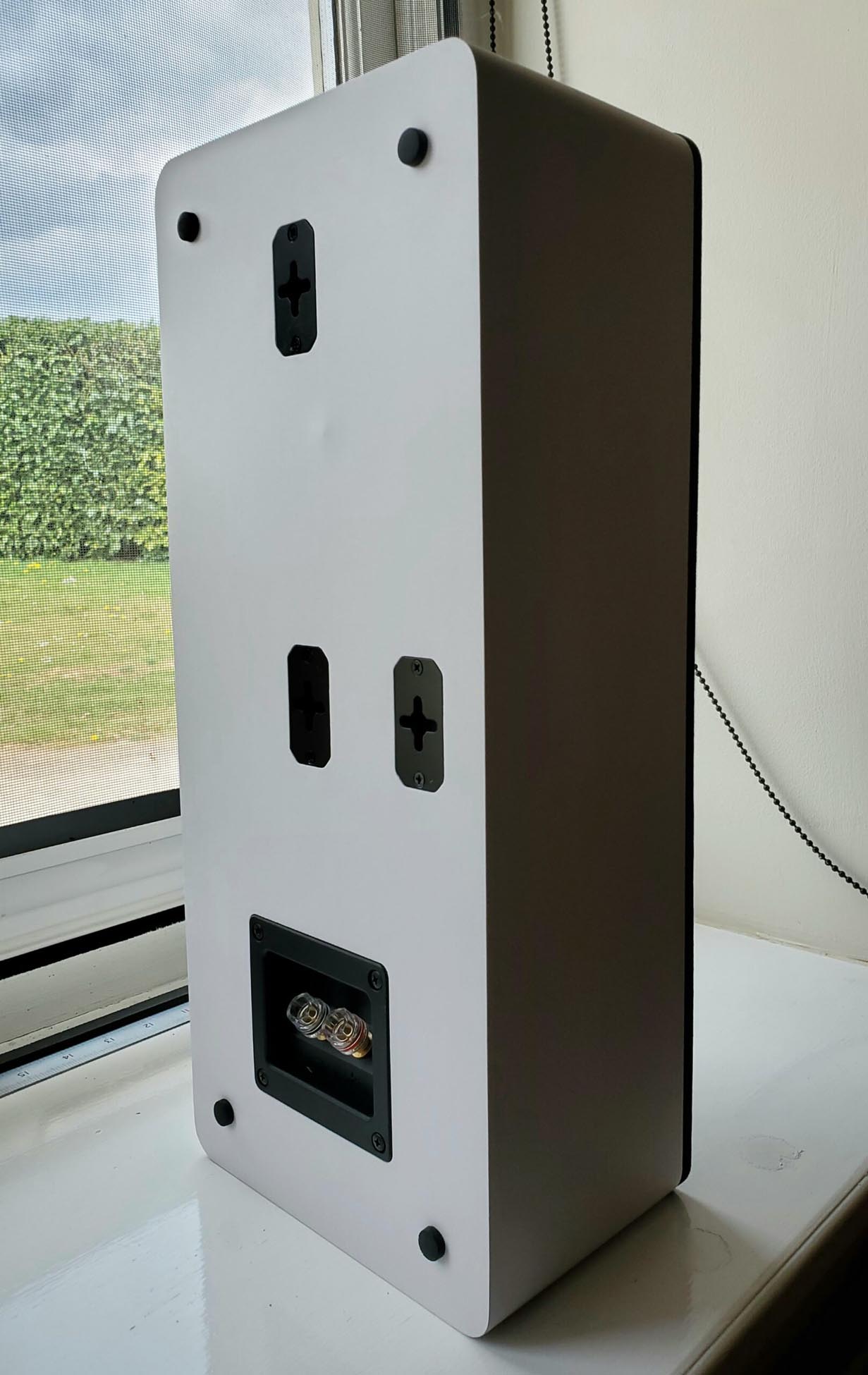

High Density Cabinet: The AE105² uses a thin, 15mm high density (HDF) enclosure with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets. The rear slot porting enhances smooth bass extension with minimal room impact, allowing easy placement. The AE105² comes with a slim magnetic grille.

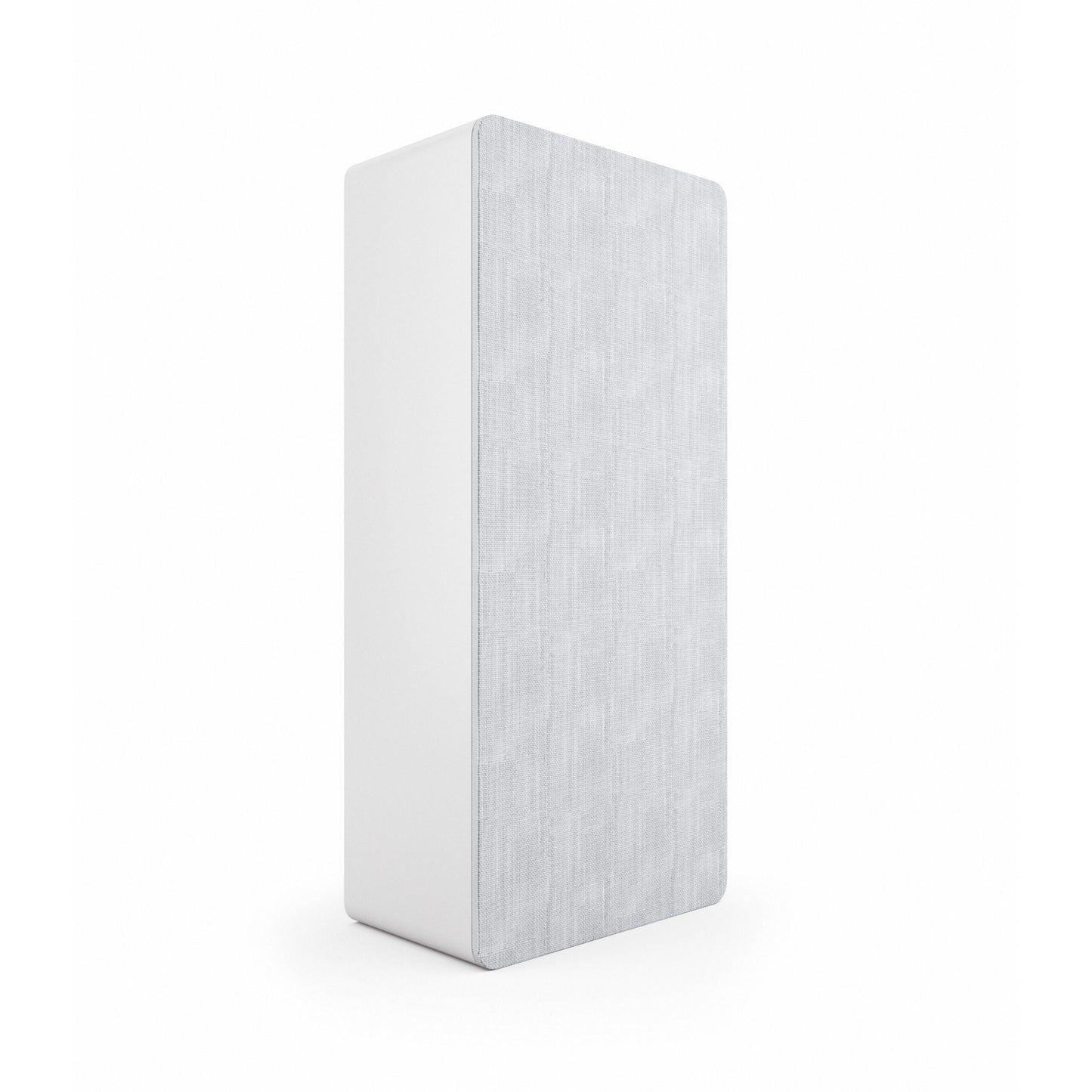

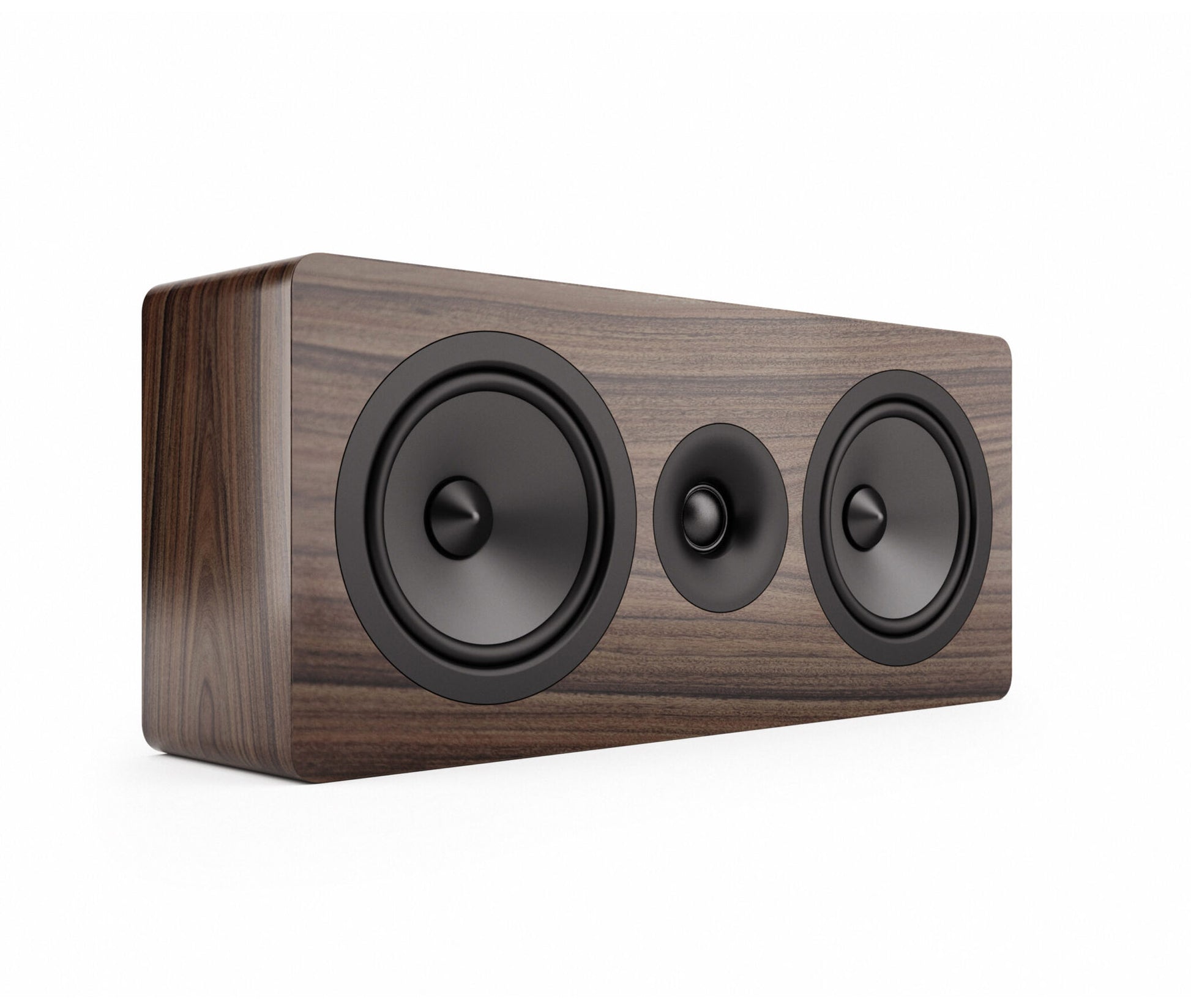

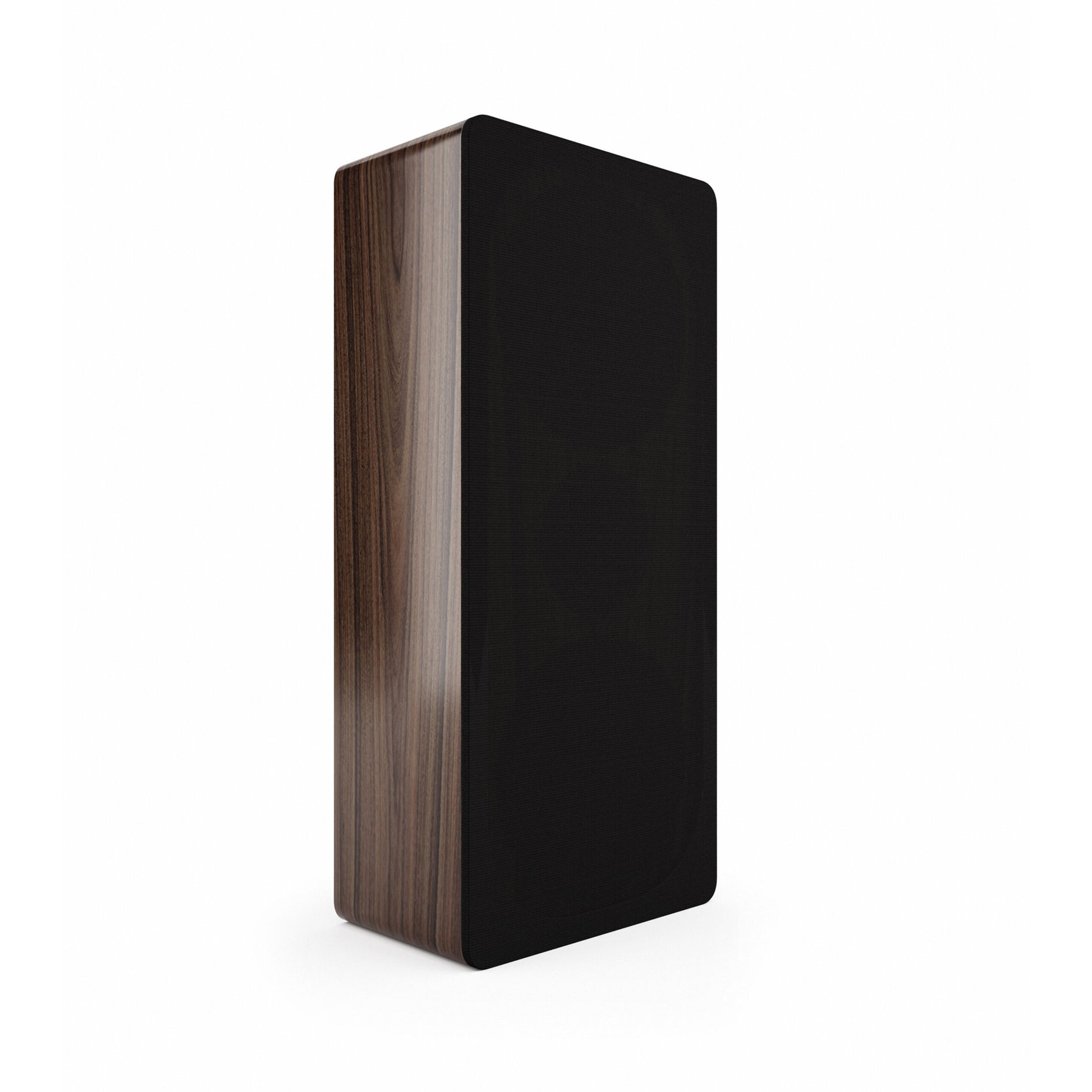

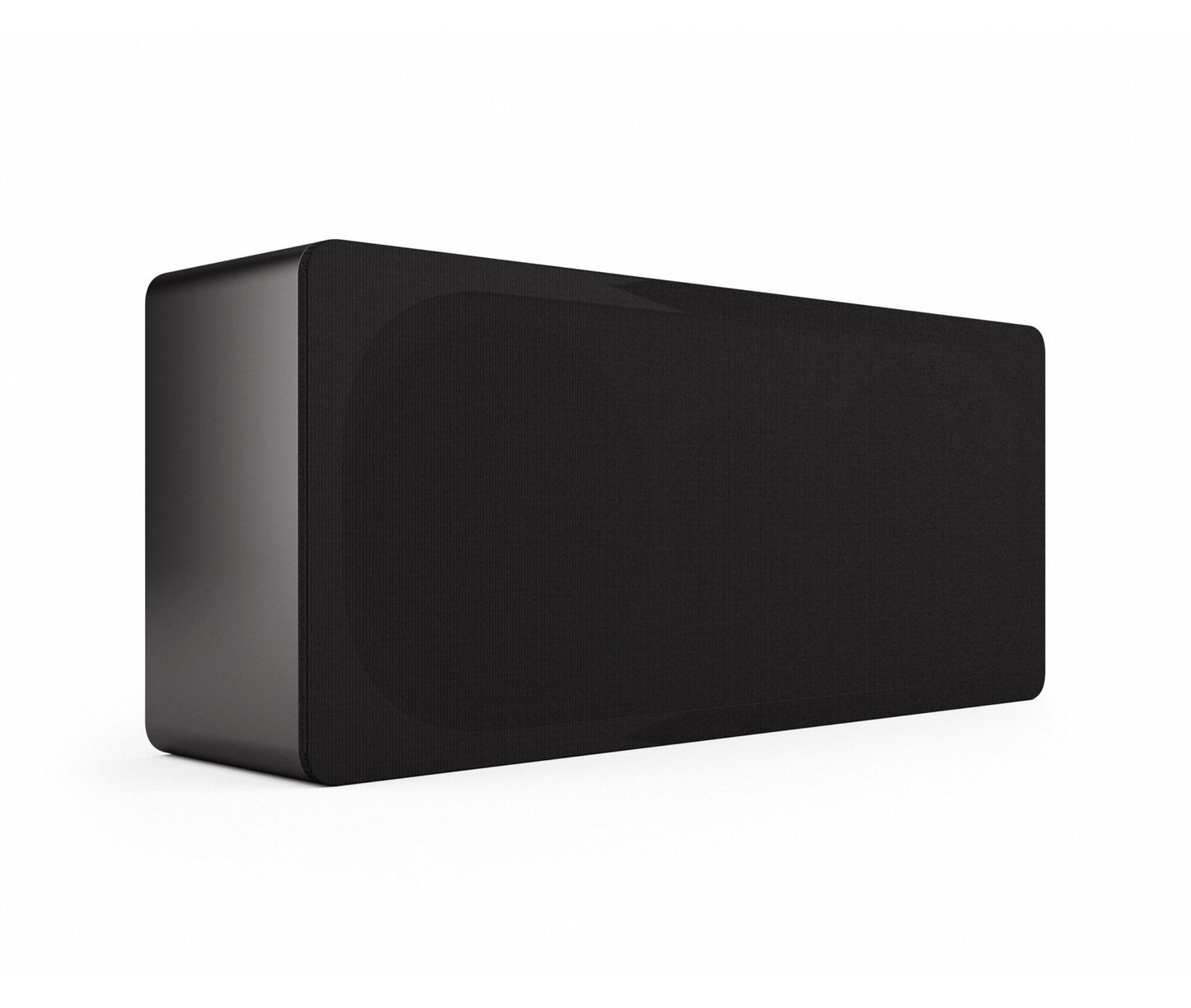

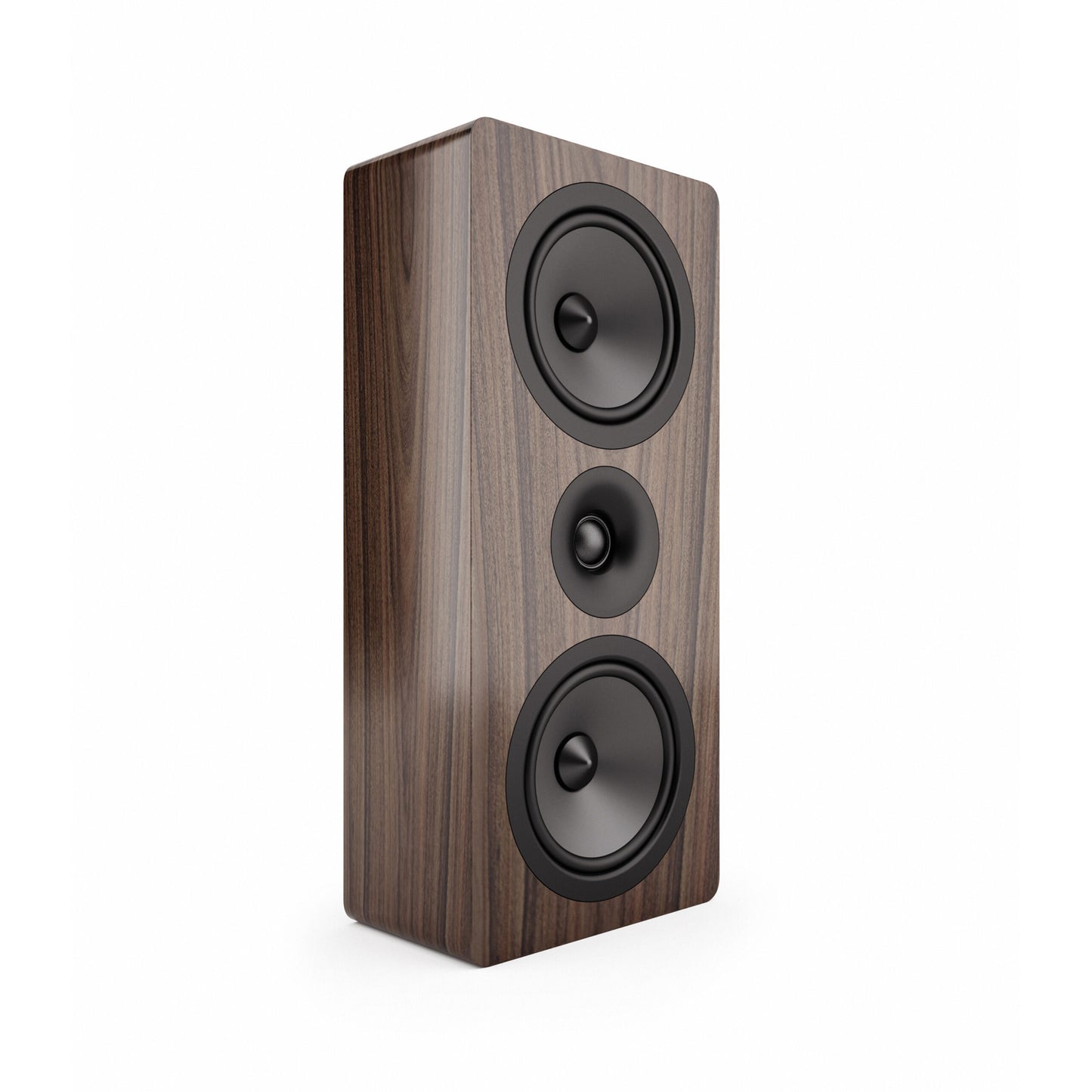

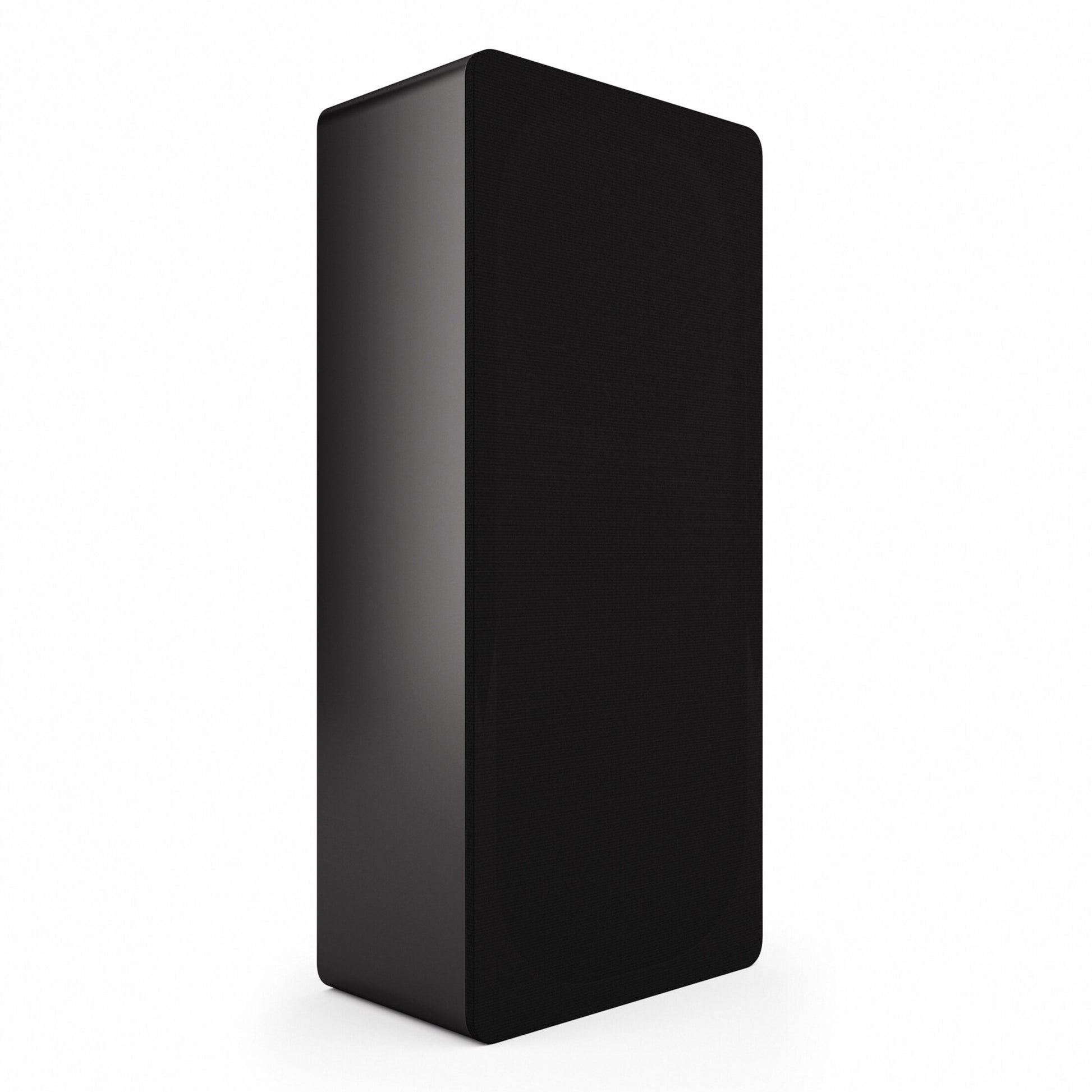

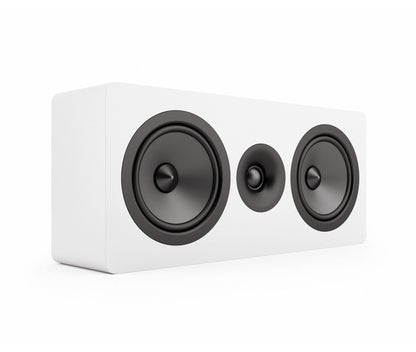

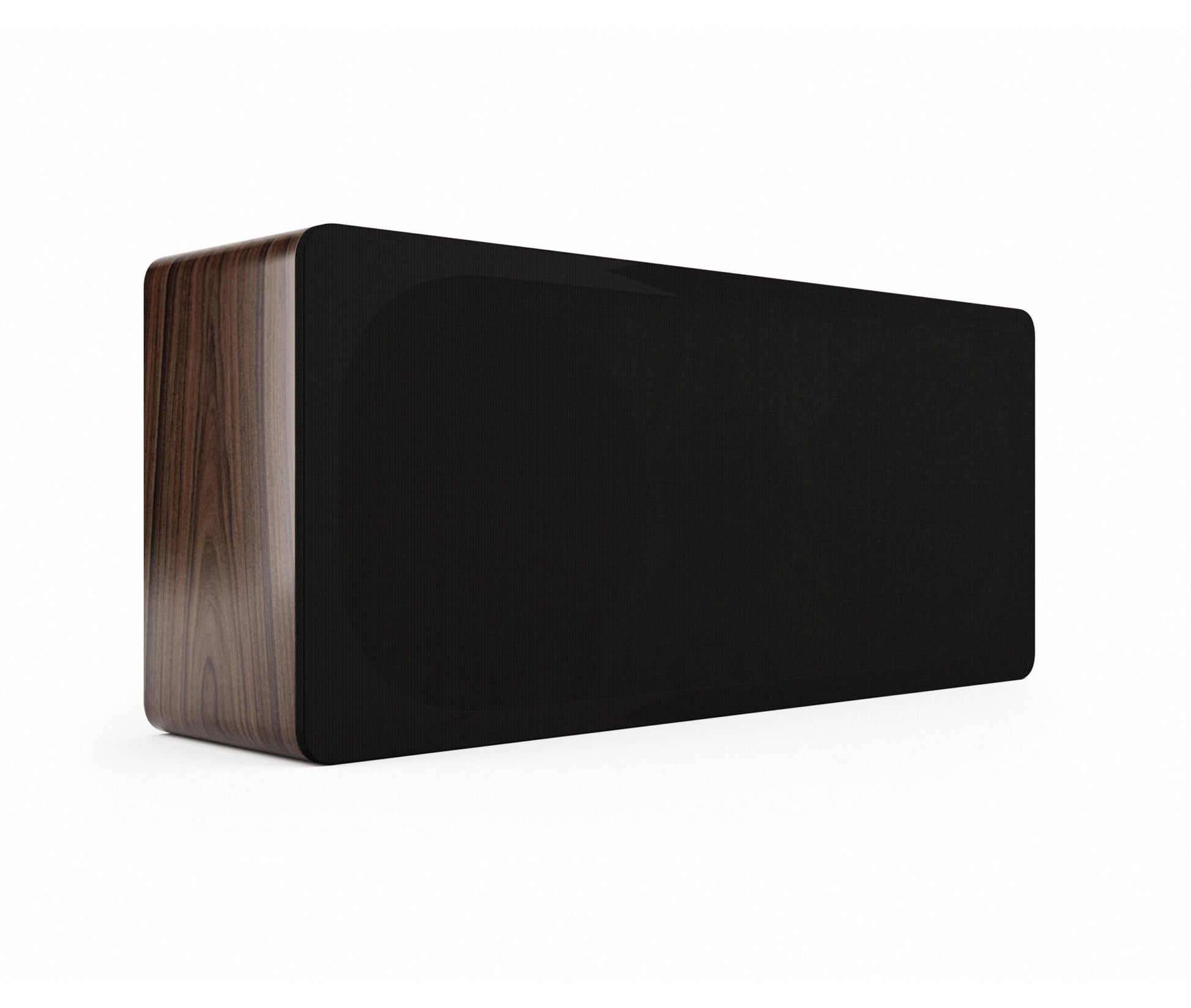

Finished in a choice of black, white or walnut vinyl veneers, the 105² is supplied with rear mounting plates, template, wall spacers and black or light grey grilles for easy integration within any room décor.
Our Take
The Acoustic Energy AE105² On-Wall LCR Speaker is a sophisticated and versatile addition to the all-new 100 Series. Designed primarily for wall mounting, it can also be positioned on a bookcase or shelf, offering flexibility in home audio setups. This 2-way loudspeaker features a 25mm bespoke soft dome tweeter with a WDT waveguide for seamless sound integration, coupled with two 130mm paper cone drivers, one acting as a passive radiator to enhance bass performance. Optimized for vertical wall placement, the AE105² is ideal for use in multi-channel home cinema systems, delivering clear, distortion-free sound, especially when paired with the AE108² sub-woofer. Its high-density cabinet with rear slot porting ensures smooth bass extension, making it an excellent choice for those seeking high fidelity and detailed audio.
Main Features & Specifications

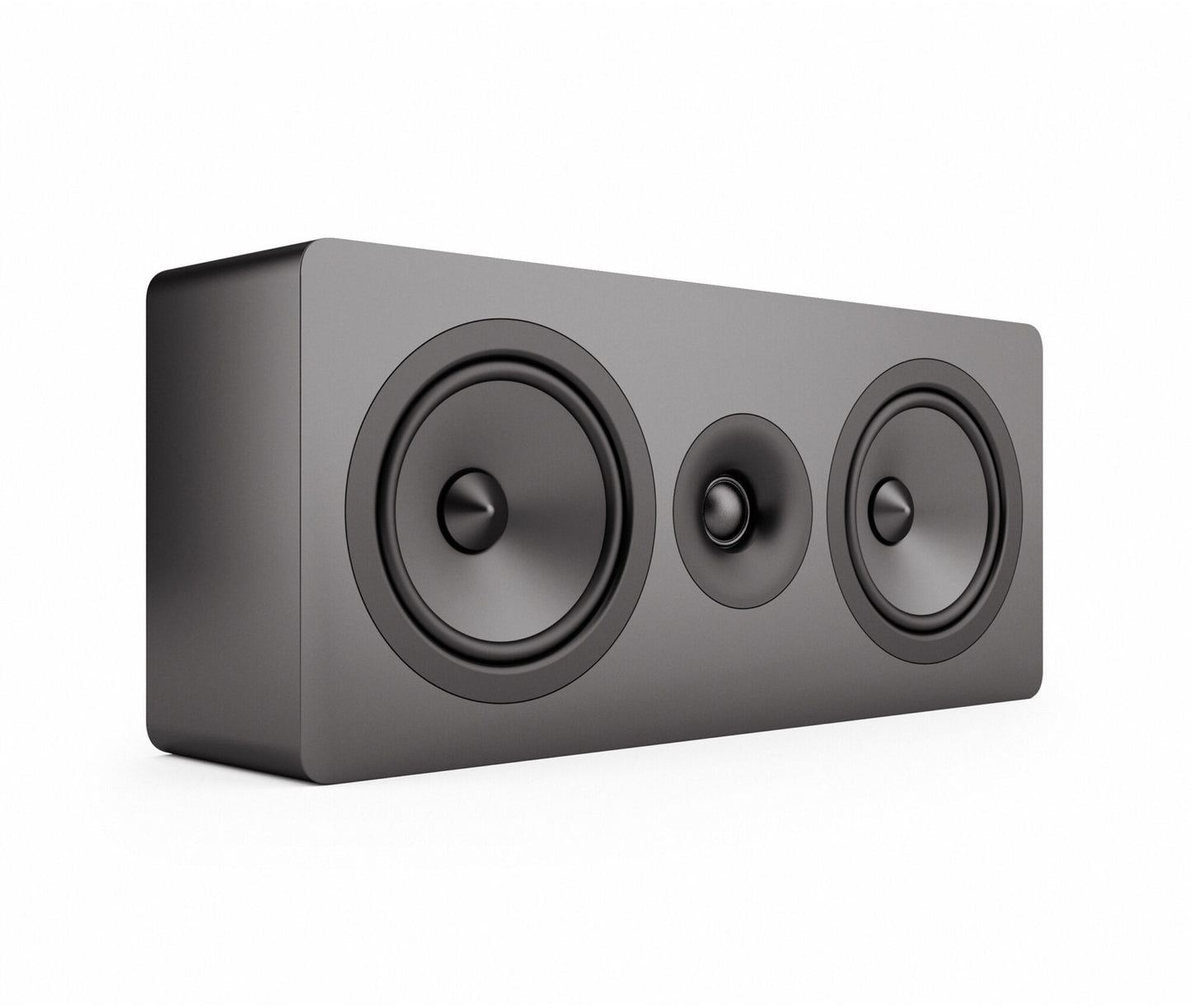

- Design: 2-Way, 3 Driver On-Wall LCR & Surround Speaker – Supplied Individually
- Mid/Bass Drive Units: 2 x 130mm Paper Cones (one passive)
- High Frequency Tweeter: 25mm Fabric Dome
- Frequency Range: 55 Hz – 26 kHz
- Sensitivity: 91 dB
- Power Handling: 120 Watts
- Crossover Frequency: 3 kHz
- Impedance: 6 Ohms

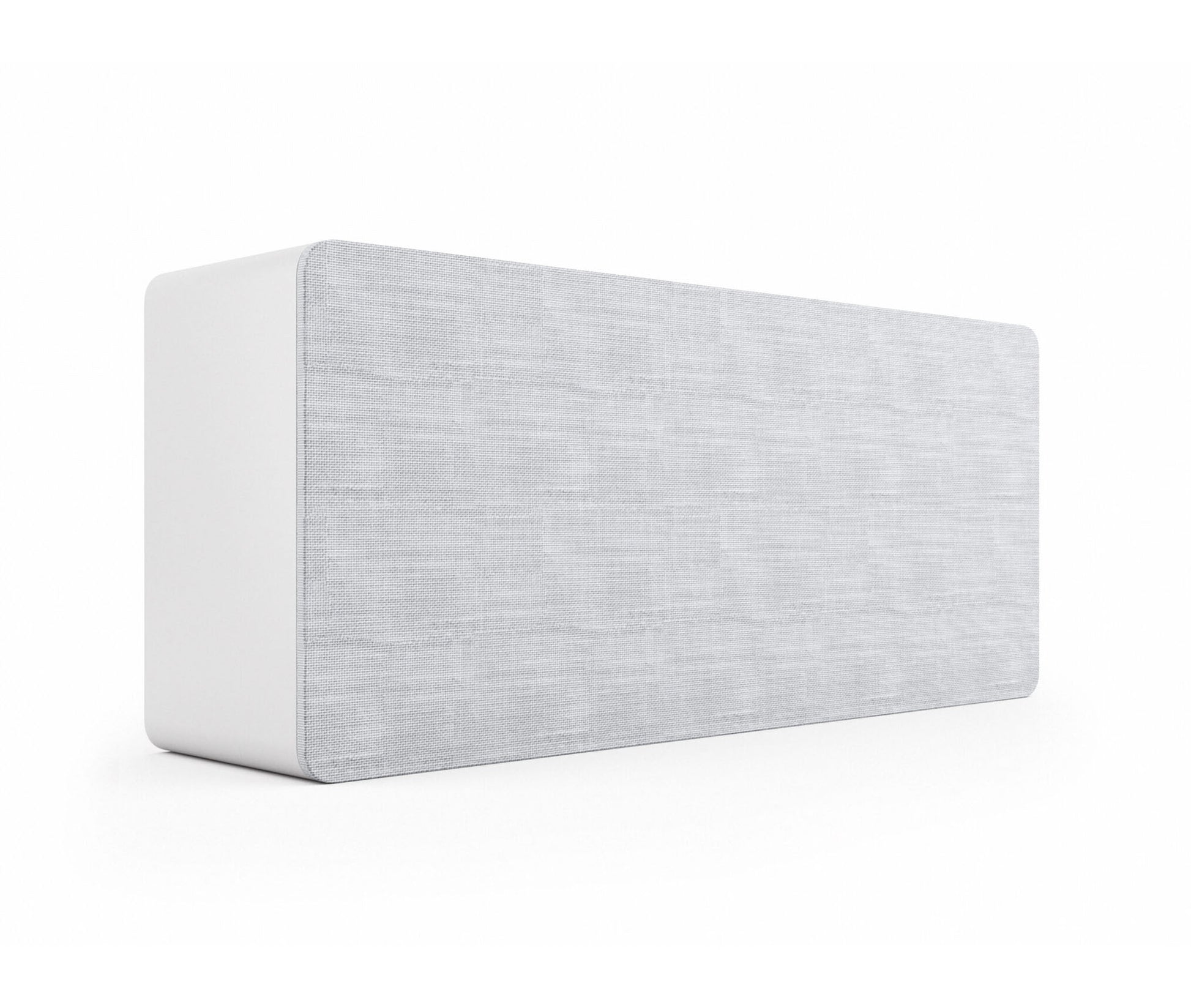

- Grille: Magnetic Fit Cloth Grille (Black Grille – Satin Black & Walnut Finishes, Light Grey Grille – Satin White Finishes)
- Available Finishes: Satin Black, Satin White or Walnut Vinyl Veneer
- Dimensions (WxHxD): 450 x 200 x 120mm
- Weight: 4.7 kg
- Manufacturer's Warranty: 5 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
