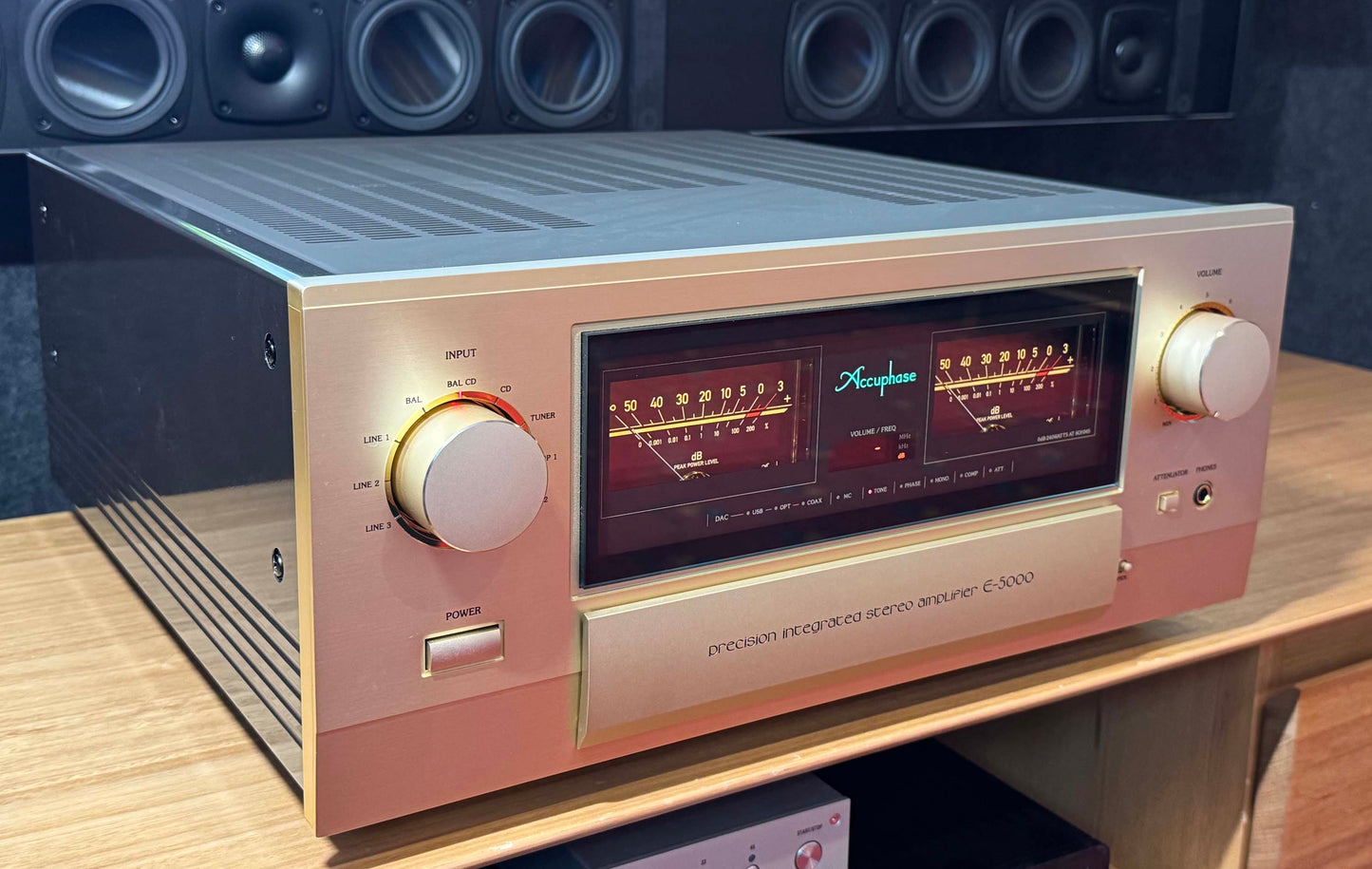

Accuphase E-5000 Integrated Amplifier

About The Accuphase E-5000 Integrated Amplifier

The E-5000 is the flagship high-power Class AB integrated amplifier developed to mark Accuphase’s 50-year anniversary. The preamplifier section features Their superior Balanced AAVA volume control, while the power amplifier section includes an instrumentation amp and power transistors in a five-fold push-pull arrangement driven in Class AB. These circuits create a balanced circuit from input to output. With its precisely balanced circuits and solidly built output stage, the E-5000 integrated amplifier presents every piece of music in exquisite detail.

Balanced AAVA Volume Control: Conventional preamplifiers use variable resistors to adjust volume, which causes contacts to deteriorate and create grit as well as increase noise at normal volume levels. AAVA, however, produces multiple, widely varying signals from the input signal and controls volume by changing the combination of those signals. This achieves minimum noise at all volume levels without any grit. The E-5000 with its balanced AAVA circuits delivers exceptional noise suppression performance.

Quiet and Smooth Volume Sensor Design: The AAVA controls the volume levels by using its volume sensor to detect the position of the volume knob and then changing the combination of those signals. Accuphase developed the volume sensor in-house, using robust and heavy materials and crafting it using an aluminium block extrusion process to achieve smooth operations, a solid operation feel, and precise position detection when rotating the knob. It also suppresses operation sounds when using the Remote Control to allow for quiet and pleasant volume adjustment.

Formidable Power Amplification Stage: The power amplification stage on both the left and right sides is equipped with a large heat sink and employs five-fold parallel push-pull power transistors driven in Class AB to provide rated, high-power output of 240 watts into 8 ohms and 320 watts into 4 ohms.

High Damping Factor Brings Out the Full Potential of Loudspeakers: The damping factor represents the amplifier’s ability to drive the speakers. A damping factor of 1,000 (guaranteed) extracts the maximum potential from the loudspeakers.

Power Supply Circuitry Designed for Optimum Stability: A strong power supply featuring a massive toroidal transformer and two high-voltage, large filtering capacitors (40,000 μF/100 V) offers a stable power supply at all times.

Our Review

The Accuphase E-5000 is a superbly engineered integrated amplifier that blends refined design with solid technical choices, created to mark the company’s 50th anniversary. Built around a Class AB power stage and Accuphase’s Balanced AAVA volume control, it offers a clean and consistent signal path from input to output. The volume control avoids the wear and noise issues of traditional resistors, instead using a clever signal combination method to keep things quiet and precise. Power-wise, the E-5000 delivers substantial output with ease, thanks to its robust five-fold push-pull transistor arrangement and a hefty toroidal transformer that keeps everything running smoothly. The damping factor of 1,000 ensures your speakers stay well-controlled, while the solid build and smoothly operating volume sensor give it a reassuring feel in use. It’s an amplifier that takes a measured, no-nonsense approach to getting the details right.

Main Features & Specifications

• Design: Class AB Integrated Amplifier
• Rated Output (20 to 20,000 Hz)
  • 240 Watts into 8 Ohms
  • 320 Watts into 4 Ohms
• Total Harmonic Distortion (20 to 20,000 Hz, at rated output): 0.05 %
• Intermodulation Distortion 0.01 %
• Frequency Response: 20 to 20,000 Hz (+0, –0.5 dB)
• Damping Factor 1,000
• Input Sensitivity
  • Input (Balanced/Line): 220 mV
  • Main In: 1.74 V
• Input Impedance
  • Input (Balanced): 40 kilohms
  • Input (Line): 20 kilohms
  • Main In (Balanced) 40 kilohms
  • Main In (Line): 20 kilohms
• Max. Input Voltage Input (Balanced/Line) 5.0 V
• Pre Output Voltage: 1.74 V
• Pre Output Impedance: 50 Ohms
• Gain
  • Input (Balanced/Line) to Pre Output: 18 dB
  • Main In to Speaker Output: 28 dB
• Tone Controls Turnover Frequency and Adjustment Range
  • Bass: 300 Hz ±10 dB
  • Treble: 3 kHz ±10 dB
• Loudness Compensator: +6 dB (100 Hz)
• Attenuator: –20 dB
• S/N Ratio
  • Input (Balanced/Line): 111 dB
  • Main In (Balanced/Line): 126 dB
• Power Meters: Logarithmic Peak Level Display of Output in dB or %
• Headphones Jack: Compatible Impedance 8 Ohms or Higher
• Power Consumption
  • Idle: 98 W
  • In accordance with IEC 62368-1: 570 W
  • Stand-by: 0.3 W
• Optional Upgrade Digital Input Board (DAC-60) Available
• Finish: Champagne
• Dimensions (WxHxD): 465 x 211 x 502mm
• Weight: 33.8 kg
• Manufacturer's Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
