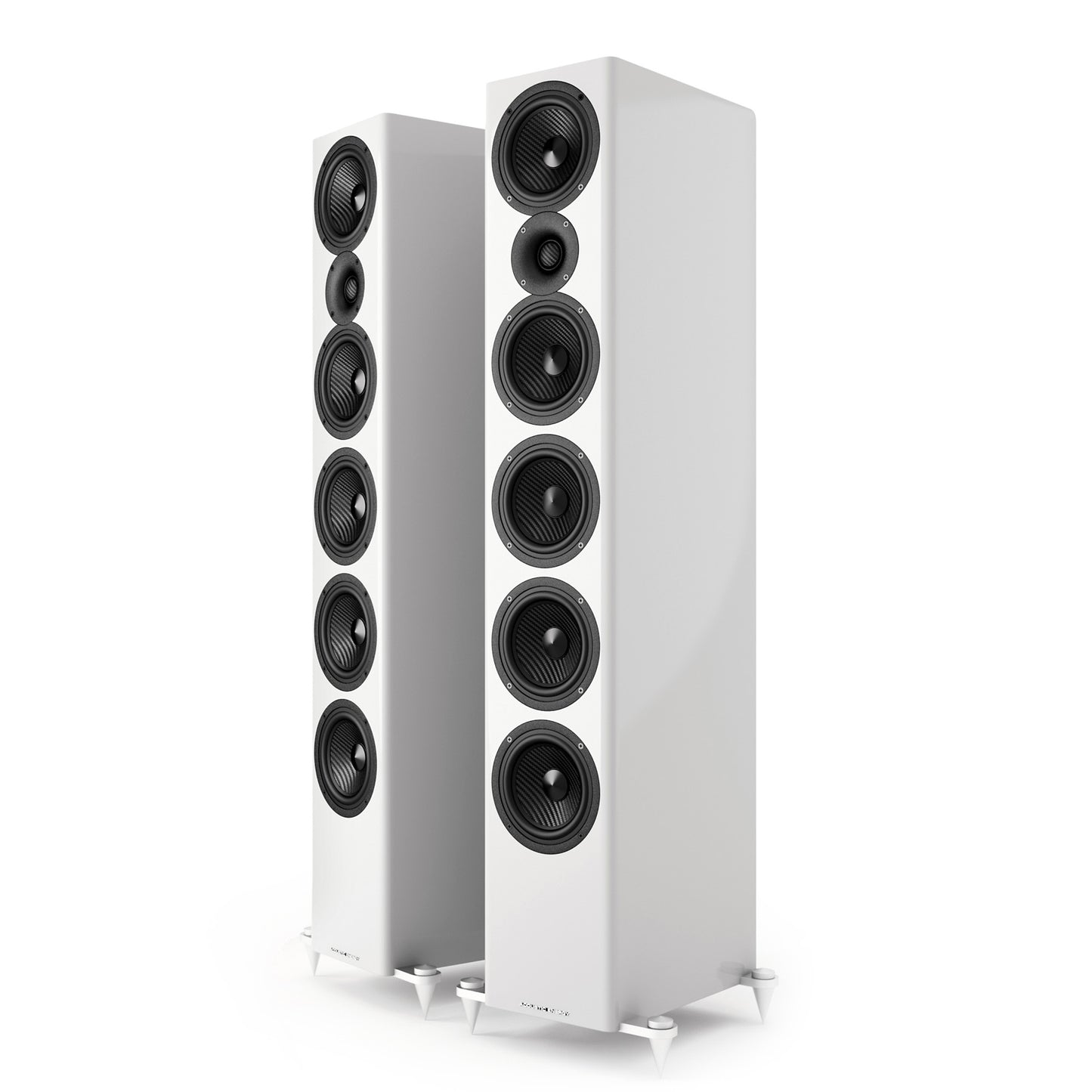

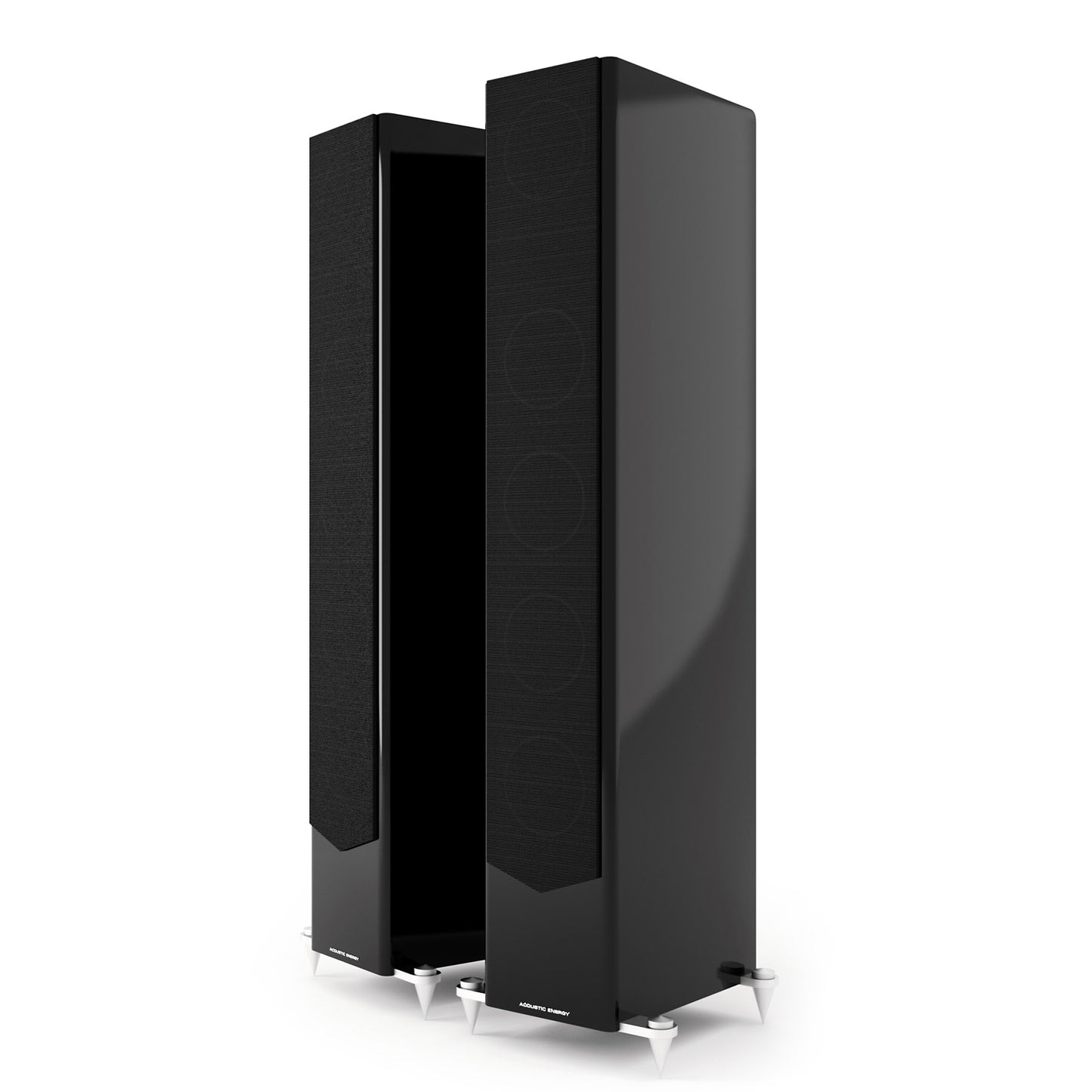

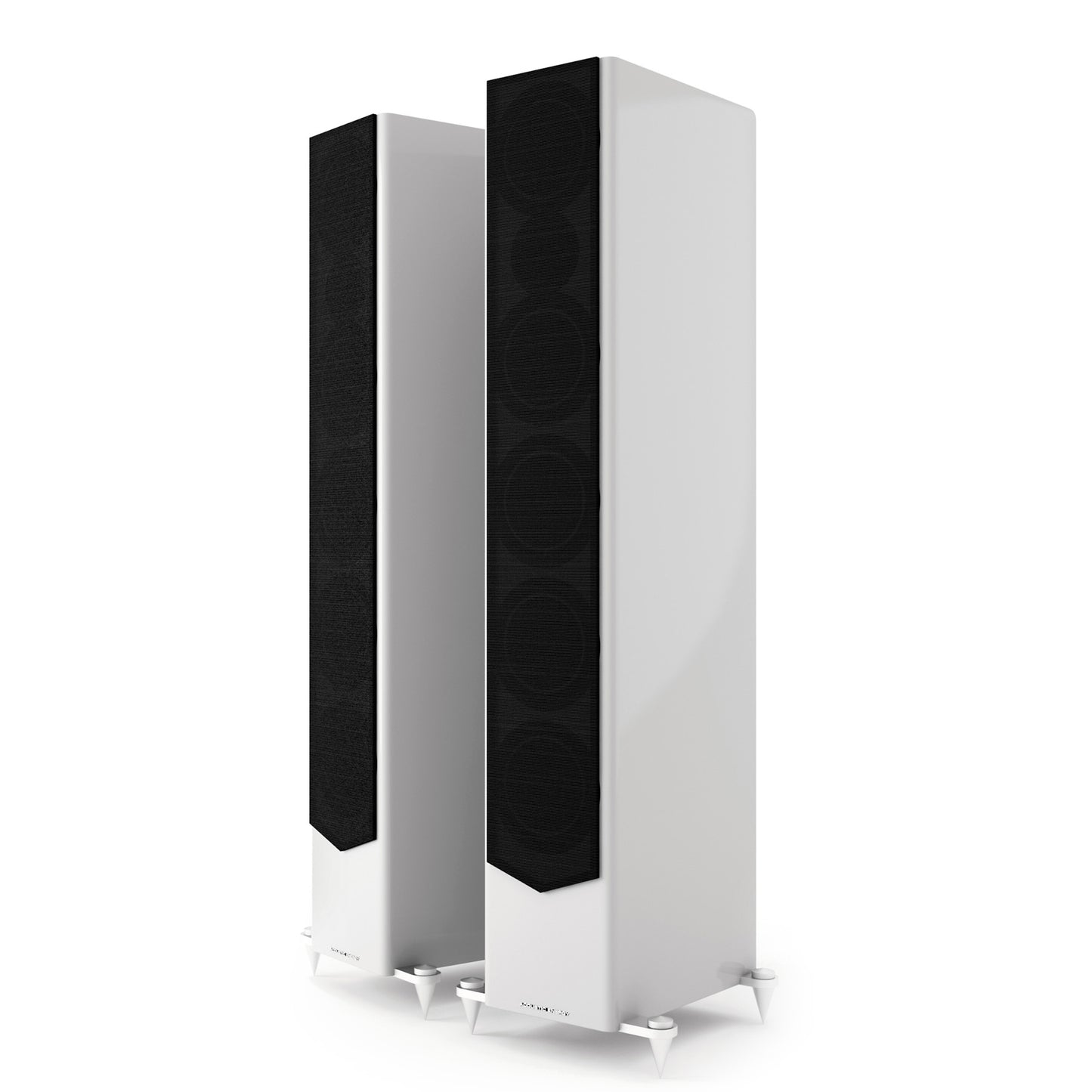

Acoustic Energy AE520 Floorstanding Speakers

Acoustic Energy AE520 Floorstanding Speakers with Carbon Fibre Drivers

The AE520 is the flagship of Acoustic Energy’s 500 Series. This slim-line floor-standing loudspeaker is ideal for medium to large sized rooms and features AE’s newly developed carbon fibre tweeters and mid/bass drivers. These bespoke drivers are designed to match the pistonic power and accuracy of the legendary ceramic aluminium drivers but with improved self-damping for a smoother, more transparent sound.

The 500 Series tweeter features a 25mm carbon fibre dome. Carbon fibre is much lighter and better damped than other typical hard dome materials and provides a lightning fast, natural sound that will surprise the listener with its neutrality. The cast aluminium WDT waveguide on the high frequency driver is positioned close to the mid/bass drivers for optimum dispersion and is extremely stiff to reduce vibration being passed to the tweeter, ensuring sweet, clear and natural highs.

The two dedicated 125mm carbon fibre mid-drivers include new oversized 35mm voice coils for low thermal compression and very high motor force factor. Both are mounted within their own dedicated sealed enclosure. The three dedicated low frequency drivers are reflex loaded by a large rear facing rectangular port. The vertical directivity has been optimised to give excellent vertical coverage whilst reducing the energy otherwise wasted on ceiling and floor reflections compared to traditional designs. The net result is a speaker offering much improved results than would be expected in acoustically poor rooms.

The crossover’s low frequency section is mounted on its own PCB board to physically separate it from the mid and high frequency filters and minimise crosstalk between components. All signal path inductors are premium air core versions providing much lower distortion compared to iron core whilst the signal path capacitors are high-voltage metallised polypropylene wound film versions. The midrange motional impedance has been compensated to significantly reduce colouration in the lower midrange.

These unique drivers are housed in 18mm Resonance Suppression Composite (RSC) cabinets, evolved from the prestigious Reference Series and featuring the same constrained layer composite to greatly reduce cabinet acoustic radiation, which would otherwise colour the sound.

Particular attention has been paid to achieving a more natural speech reproduction even at low levels, whilst still retaining the fast and exciting sound Acoustic Energy loudspeakers are highly renowned for worldwide. Offering unparalleled dynamic power, matched to the fast controlled bass, crystal clear midrange and class leading tonality, the AE520 delivers a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years.

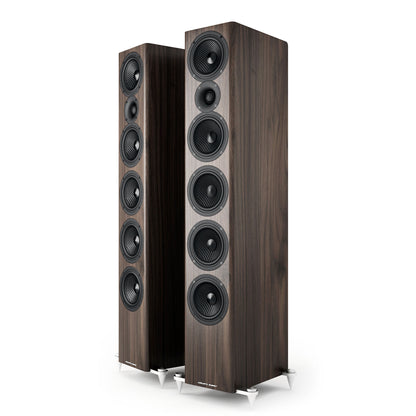

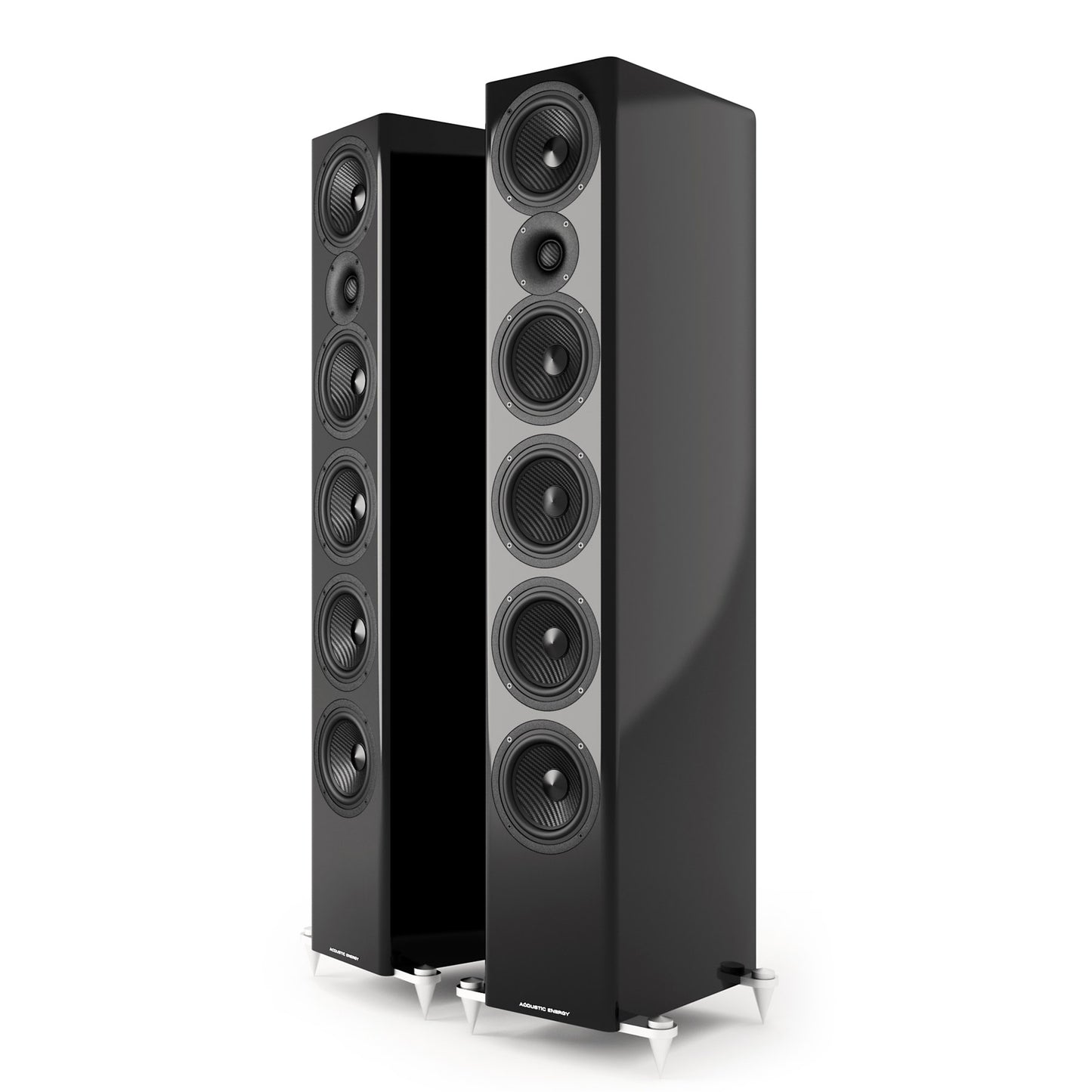

The elegant slim-line cabinets are exquisitely finished in Piano Gloss Black or American Walnut wood veneer options. Solid Aluminium bars are supplied to ensure rigid floor-coupling and maximum stability, whilst the stiffness of the metal structure reduces the room to speaker interaction.

Why Choose The Acoustic Energy AE520 Speakers?

The Acoustic Energy AE520 Speakers are the kind of slim floorstanders that look elegant and understated, until you start playing sound through them in a medium to large room and realise that they sound anything but polite. As the flagship of the 500 Series, they pack newly developed carbon fibre tweeters and mid/bass drivers that chase the pistonic precision of AE’s legendary ceramic aluminium units, but with improved self-damping for a smoother, more transparent edge. The 25mm carbon fibre dome is lightning fast and beautifully neutral, sitting in a cast aluminium waveguide that keeps dispersion tight and highs sweet and clean. Twin 125mm mid drivers with oversized voice coils sit sealed and focused, while three reflex-loaded bass drivers dig deep with control and serious dynamic punch, helped by optimised vertical directivity that keeps room reflections in check. Inside, it’s all premium air-core inductors and metallised polypropylene capacitors, carefully laid out to minimise crosstalk and colouration, housed in rigid 18mm RSC cabinets that dramatically cut resonance. The result? Crystal-clear mids, fast, controlled bass, and a big, thrilling presentation that still nails natural speech at low levels — all wrapped in a gloss or walnut finish that looks as sharp as it sounds.
