About The Project Xtension 10 Evolution Turntable
The Xtension 10 Evolution is an ideal turntable for those searching for excellent sound quality. It incorporates all the engineering know how and production quality expertise gained from Pro-Ject's 20 years' experience in turntable design.
The Xtension 10 chassis is made from MDF filled with metal sand, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 22 kg total turntable mass. The result is a unique combination of 'mass loaded' and 'floating' turntable design principles.
Instead of the standard adoption of pure metal used for the main platter, the Pro-Ject engineers have found a perfect alloy which is then damped on the inner side with Sorbothane®. Additionally, they have glued recycled Vinyl records to the top (which act as a perfect mat) and bake this 'sandwich' before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension.
Magnetic Main Bearing: To ensure stable speeds a proper platter bearing is needed. The Xtension 10 Evolution uses a special technology. The heavyweight platter spins on an inverted ceramic ball bearing with a magnetic support to reduce bearing noise and resonance to an absolute minimum. This solution relieves the main bearing and ensures that the platter runs ultra-silently.
High End Magnetic Suspension Feet: Many turntable manufacturers forget that the feet are one of the most important parts of a turntable. Therefore, Pro-Ject wanted the best possible solution for the premium Xtension 10 Evolution. With its superlative magnetic feet, this heavy turntable literally floats over the surface. These powerful magnets effectively decouple the turntable from the surface it's sitting on.
The Pro-Ject 10cc Evolution tonearm also benefits from 'high-mass' technologies, and is isolated from the main board by a sheet of Sorbothane®. To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14 g, it comes with a set of 4 different Sorbothane® damped counterweights. Xtension 10 Evolution comes with a beautiful dustcover with adjustable hinges and is presented in five high quality high gloss finishes: Gloss Black, Walnut, Palisander, Mahogany and Olive.
Our Take
The Pro-Ject Xtension 10 Evolution turntable is a masterclass in high-end audio engineering, combining mass-loaded stability with innovative floating design principles. Its MDF chassis, filled with metal sand, provides superior damping, while magnetic feet effectively decouple it from external vibrations. The precision-balanced sandwich platter, featuring an alloy core, Sorbothane® damping, and a recycled vinyl top layer, ensures ultra-silent operation. The turntable's inverted ceramic ball bearing with magnetic support minimises resonance, enhancing speed stability. Equipped with a 10cc Evolution carbon fibre tonearm and multiple counterweights for cartridge compatibility, the Xtension 10 Evolution delivers exceptional performance. With electronic speed control for 33/45/78 RPM, a heavy-weight record clamp, and a premium phono cable, this 22 kg masterpiece is available in five stunning high-gloss finishes, complete with an adjustable dust cover.
Main Features & Specifications
- Design: Reference Quality Manual Belt Drive Turntable
- We can supply the Xtension 10 Evolution turntable with the Ortofon Cadenza Red, Cadenza Blue, Cadenza Bronze and Cadenza Black moving coil cartridges preinstalled at a special bundle discount price. Please enquire.
- Super-heavy 22 kg construction
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich-platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- Extremely low level of natural resonance
- Perfect decoupling through magnetic feet

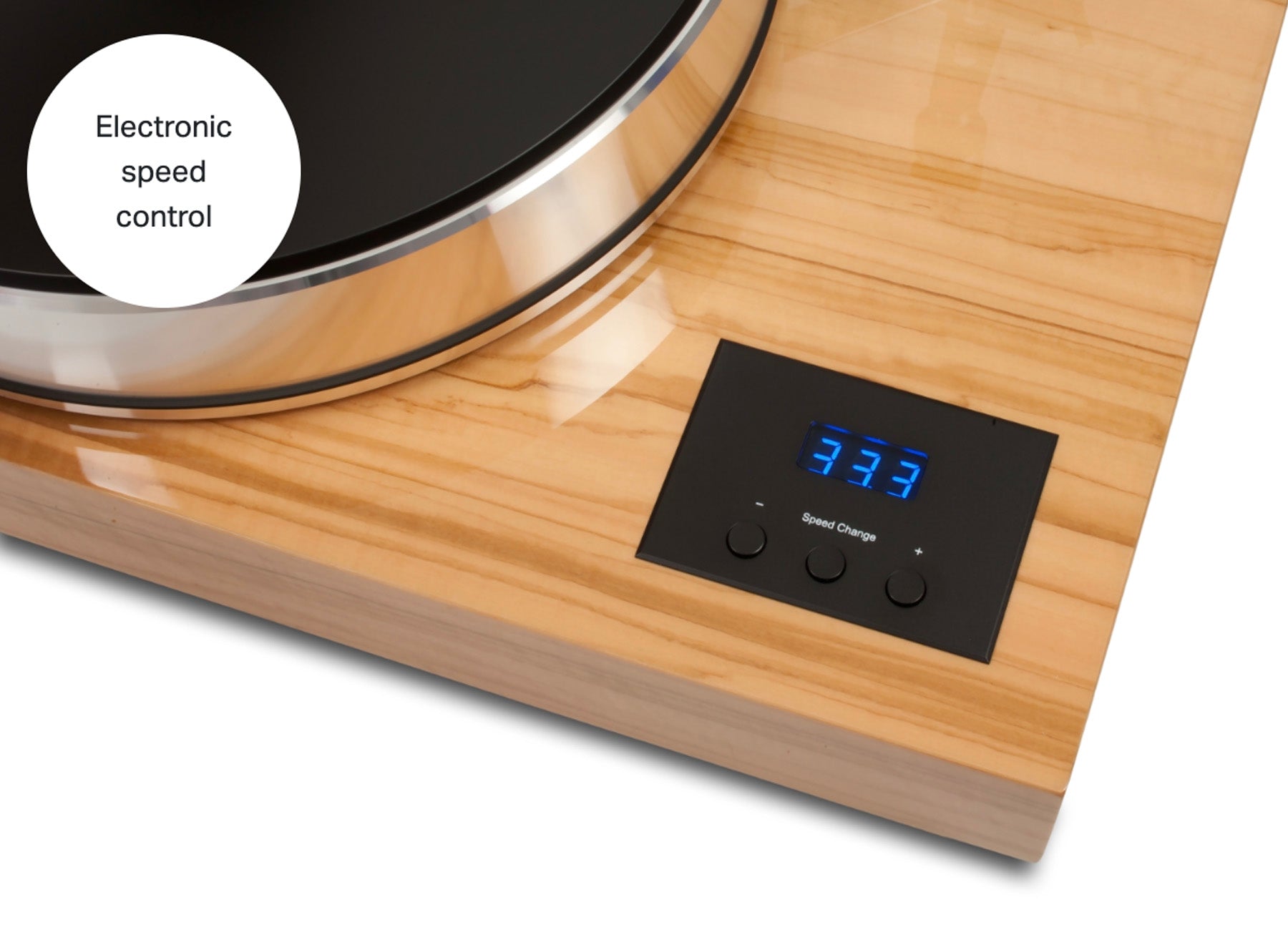

- Electronic speed control 33/45/78 RPM
- 10cc Evolution carbon fibre tonearm
- Inverted tonearm bearings (ABEC 7 quality)
- Phono cable included: 5 Pin Din to RCA
- Dustcover included
- Handmade in Europe
General
- Speeds: 33⅓, 45 & 78 RPM (electronic speed change – Speed Box DS built-in)
- Platter Weight: 10.5 kg
- Turntable Bearing Damping: Heavy weight metal block
- Speed Variance: ±0.08%
- Wow and Flutter: ±0.08% Max.
- Rumble: -73dB
- Effective Arm Length / Overhang: 254mm / 16mm
- Effective Tonearm Mass: 8.5 g
- Tracking Force Range: 10-30 mN
- Cartridge Weight Range: 4 – 14 g (4 counterweights incl.)
- External Power Supply: 220 - 240V/50Hz / 15V/1.000mA DC
- Power Consumption: 2W
- Included Accessories: Heavy Weight Record Clamp, Dustcover, Power Supply, Spirit Level, Gloves, Connect it 5 Pin Din to RCA Cable
- Available Finishes: Gloss Black, Mahogany, Palisander, Olive, Walnut
- Dimensions Lid Closed (WxHxD): 480 x 235 x 400mm
- Dimensions Lid Opened (WxHxD): 480 x 495 x 535mm
- Weight: 22 kg
- Manufacturer's Warranty: 2 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
