About the Blustream HMXL44KCS-KIT
Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists with over 30 years experience in the custom field alone. Add to this the experience of senior management and you can be assured of the highest level of commitment.
The Blustream Essential 4 x 4 HDBaseT Matrix offers unprecedented performance and value for both consumers and the custom installation market. 4x4 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDMI and Video Downscaling on HDBaseT™ Output 1, Audio Breakout with Line Level Volume Control, RS-232 & TCP / IP Control, HDCP 2.2 Compliant, Web GUI, includes 4 x HEX70CS-RX HDBaseT™ Receivers. Please call the Audio Trends Custom Installation team on (03)9874-8233 to discuss further.
HDBaseT Audiovisual: The One-cable Standard for Digital Connectivity
HDBaseT is the global standard for the transmission of uncompressed ultra-high-definition video & audio. For audiovisual, consumer electronics, and even industrial PCs, this can be a simple category cable - Cat6 or above. Since its introduction in 2010, HDBaseT has revolutionised the video distribution sector. It brings a rich feature set, increased reach, and better performance than existing solutions.
HDBaseT has also revolutionised the audiovisual market by offering more features, increased reach and better performance than existing solutions. The cornerstone of the technology is the 5Play feature set, the converged delivery of uncompressed ultra-high-definition digital video and audio, Ethernet, control signals, USB 2.0, and up to 100 Watts of power through a single, 100 metre LAN cable.
HDBaseT has become the technology of choice for several use cases, such as digital signage and video walls, projectors, corporate settings and more. It has been deployed in different verticals, from enterprises, hospitality and retail, education, government and more. And yes, HDBaseT audiovisual is the ultimate choice for any scenario where there is a need to transmit high-throughput content over long distances. Click on the video link above to learn more.
Main Features & Specifications
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
- Output 1 features simultaneous HDMI and HDBaseT™ output
- Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p video up to 70m
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
- Analogue audio input can be embedded onto any HDMI input
- Web interface module for control and configuration of the Matrix
- Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
- Supplied with Blustream IR receivers and emitters

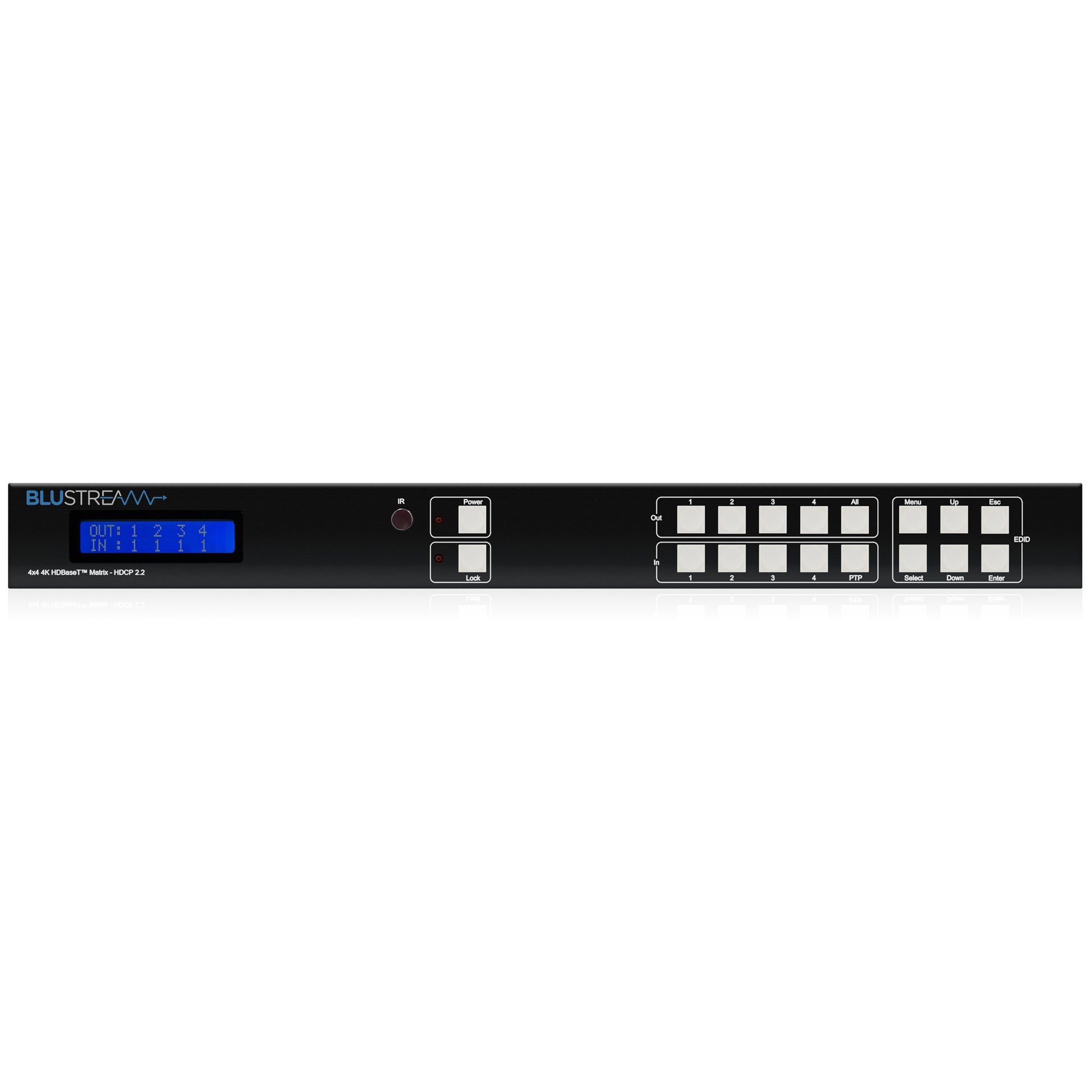

- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT™) to power supplied HDBaseT™ receivers
- 3rd Party drivers available for all major home control brands
- 1U Design for 19" rack mount integration - mounting kit included
- Advanced EDID management
- HDCP 2.2 compliant
Specifications

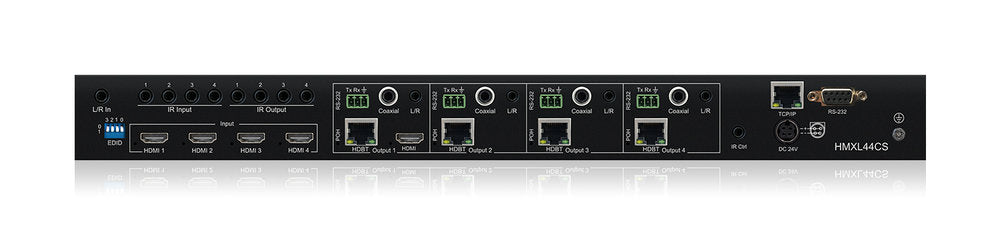

- Video Input Connectors: 4 x HDMI Type A, 19-pin, female
- Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
- Audio Output Connectors: 4 x 3.5mm stereo jack, 4 x RCA Coaxial Digital
- RS-232 serial port: 1 x DB-9, female, 4 x 3-pin Phoenix sockets for each zone (DB9 serial to Phoenix connector cables supplied)
- TCP / IP Control: 1 x RJ45, female
- IR Input ports: 5 x 3.5mm stereo jack
- IR Output ports: 4 x 3.5mm mono jack
- Rack-Mountable: 1U rack height, rack ears included
- Unit Dimensions (W x D x H): 440mm x 235mm x 44mm (without feet & connections)
- Unit Dimensions (WxDxH): 440mm x 245mm x 52mm (with feet & connections)
- Unit Weight: 2.98 kg
- Box/Carton Dimensions (WxDxH): 505mm x 305mm x 155mm
- Shipping Weight: 7.5 kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 1 x 24V/3.5A DC
Box Contents
- 1 x HMXL44CS matrix
- 4 x HEX70ED-RX receivers
- 1 x Rack mounting kit for HMXL44CS
- 4 x Mounting kits for HEX70ED-RX
- 1 x 24V/3.5A power supply

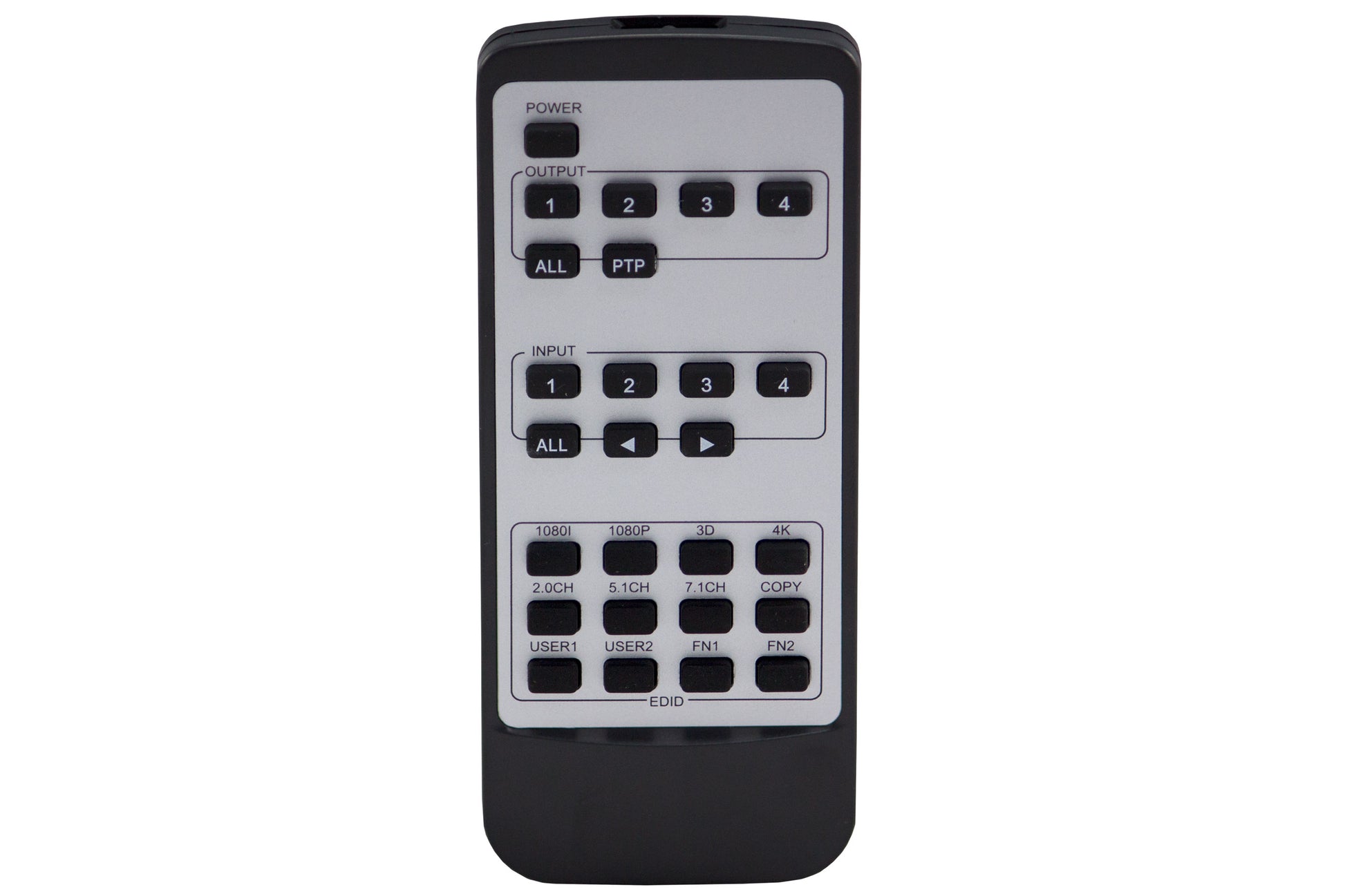

- 1 x IR Remote control
- 4 x IR control cable - 3.5mm-3.5mm cable
- 4 x IR emitter
- 5 x IR receiver
- 1 x User manual
Note: Features & Specifications Subject To Change Without Notice. E&OE.
