About The Blustream CMX88AB
Blustream is the audio visual industry's award winning option for advanced HDMI distribution. Their products have been designed and engineered by a global team of AV specialists with over 30 years experience in the custom field alone. Add to this the experience of senior management and you can be assured of the highest level of commitment.

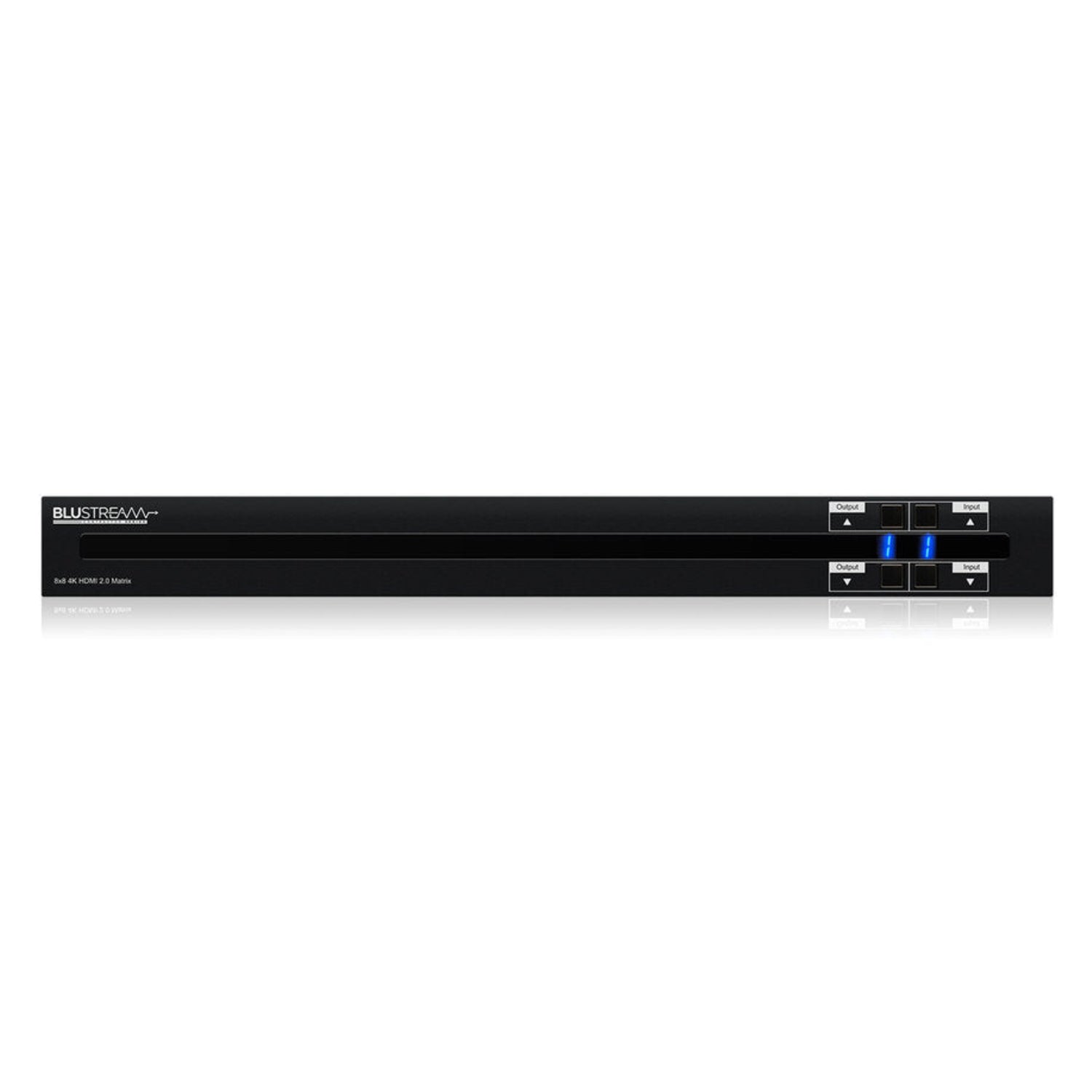

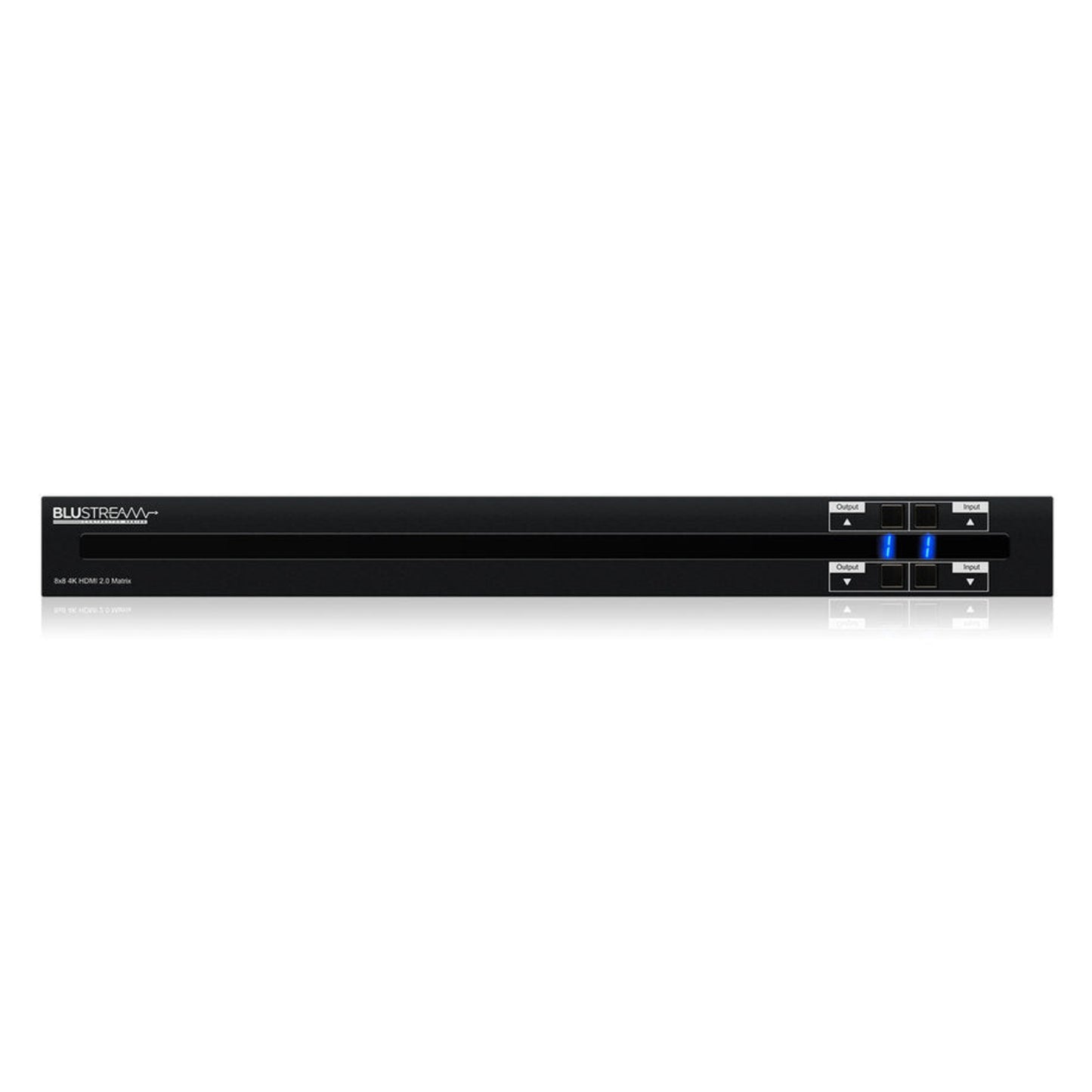

The Blustream Contractor CMX88AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market. The CMX88AB supports HDMI 2.0 with HDCP 2.2, allowing distribution of eight HDMI sources to eight displays. This enables all sources to be viewed as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 8-Way Matrix also includes audio breakout, EDID management and a web browser interface module for control and configuration of the matrix. Please call the Audio Trends Custom Installation team on (03) 9874-8233 to discuss further.
Main Features & Specifications
- Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Independent video down conversion on all HDMI outputs allowing for displays only capable of supporting lower 4K video resolutions (4K 60Hz 4:2:0) to receive native 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
- HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
- Web interface module for control and configuration of Matrix
- Control via front panel, IR, RS-232 and TCP / IP
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
- HDCP2.2 compliant
Specifications

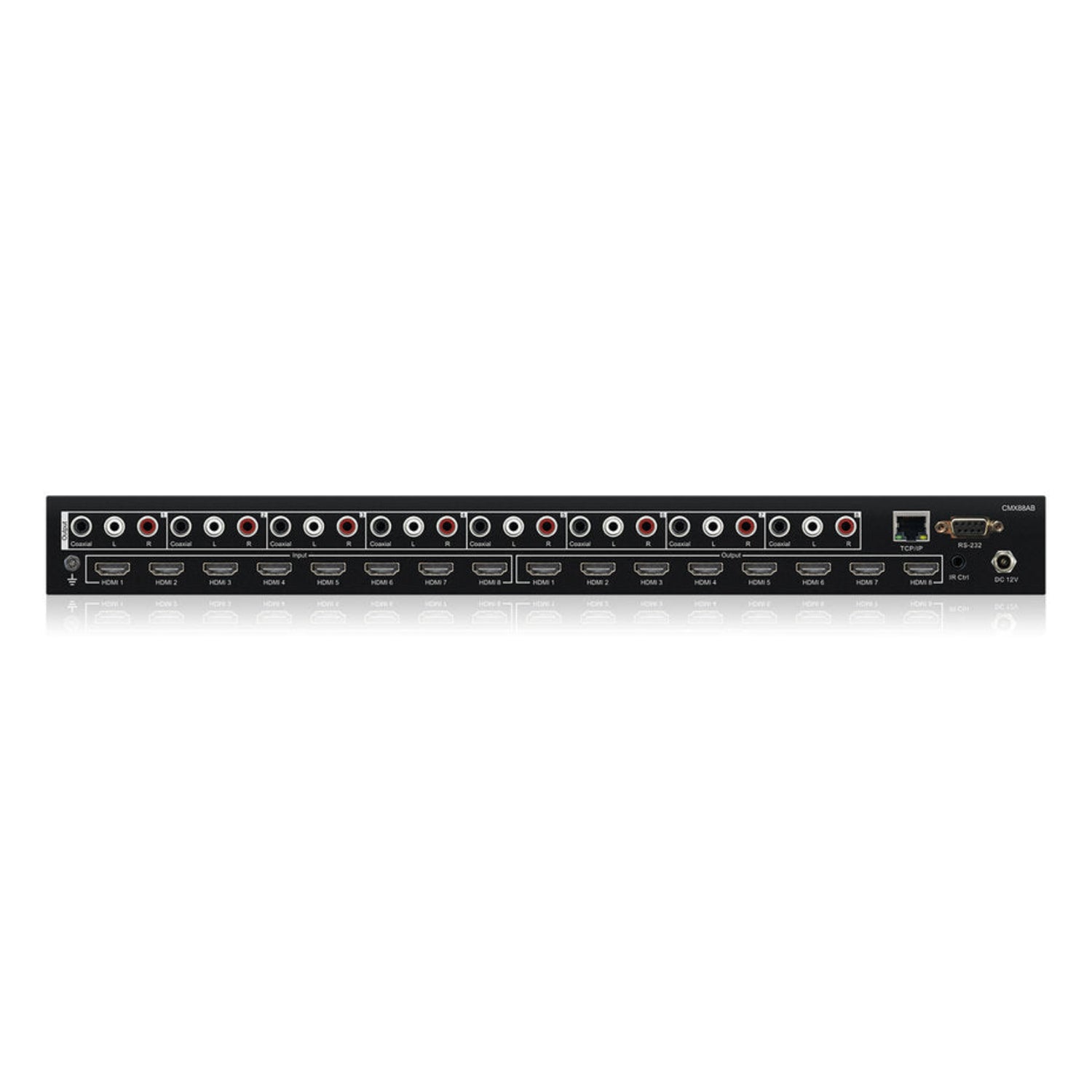

- Video Input Connectors: 8 x HDMI Type A, 19-pin, female, locking
- Video Output Connectors: 8 x HDMI Type A, 19-pin, female, locking
- Audio Output Connectors: 8 x RCA (S/PDIF), 8x Analogue RCA (Left / Right)
- TCP/IP Control: 1 x RJ45, female
- RS-232 serial port: DB-9, female
- IR Input ports: 1 x 3.5mm stereo jack
- Mounting kit included
- Casing Dimensions (WxDxH): 441mm x 226mm x 45mm
- Dimensions Including Connections (WxHxD): 441mm x 234mm x 50mm
- Shipping Weight: 3.5 kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 12V/3A DC
Box Contents
- 1 x CMX88AB
- 1 x 12V/3A power supply
- 1 x IR Remote control
- 1 x IR receiver
- 1 x Mounting Kit
- 1 x User manual
Note: Features & Specifications Subject To Change Without Notice. E&OE.
