System Overview
How would you like to listen to your favourite music throughout the house? With this multi-room audio system you can!
The system is designed to distribute music to 4 rooms in your house.
We've taken the guess work out of which streamers, amplifiers, speakers and cabling are required and combined them into one simple package. 3 zones are for indoor rooms (living / dining / bedroom / office or kitchen) and 1 zone is for an outdoor alfresco area with a flat ceiling.
Need more than 4 rooms? No problem, because this system is modular and can be expanded up to 64 zones!
The system is comprised of a Monitor Audio 4 zone multi-room streamer that uses BluOS technology. BluOS gives you access to popular audio streaming services like Spotify, Tidal, Deezer or TuneIn Radio, just to name a few.
The streamer will let you play 4 different types of music, in 4 rooms of your home, at different volumes, at the same time! Having a party? You can set the system to play the same music everywhere in the house, at the volume levels you want, all from the convenience of your smart device.
The streamer is the brains of the operation and tells the amplifier what to do. Included in the system is a 4-zone amplifier that will power the speakers in your 4 rooms.
All of the speakers for your indoor rooms are the in-ceiling type and have round white magnetic grills. The speakers blend in seamlessly with your décor and you won't even notice they are there. That is until you turn them on and hear the clarity of the sound!
Ceiling not white? No problem, because the grills are paintable to match the colour of your room.
The speakers for the outdoor alfresco are also in-ceiling but are all-weather speakers that are designed to live outside and deal with the elements of moisture, temperature and humidity. Don't have a flat ceiling in your alfresco? Not a problem, we can substitute the in-ceiling speakers for surface mount ones.
Finally all the cabling required to connect the entire system, is also included.
Note: Please ask us about Professional Installation. We have an experienced Audio Trends installation team who are available to make sure your system is installed correctly and will set up the app on your smart device for easy system control.

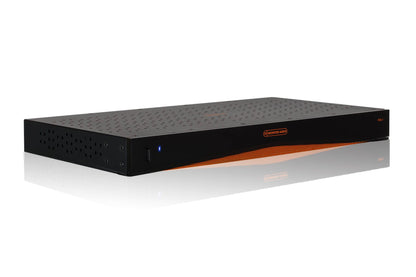

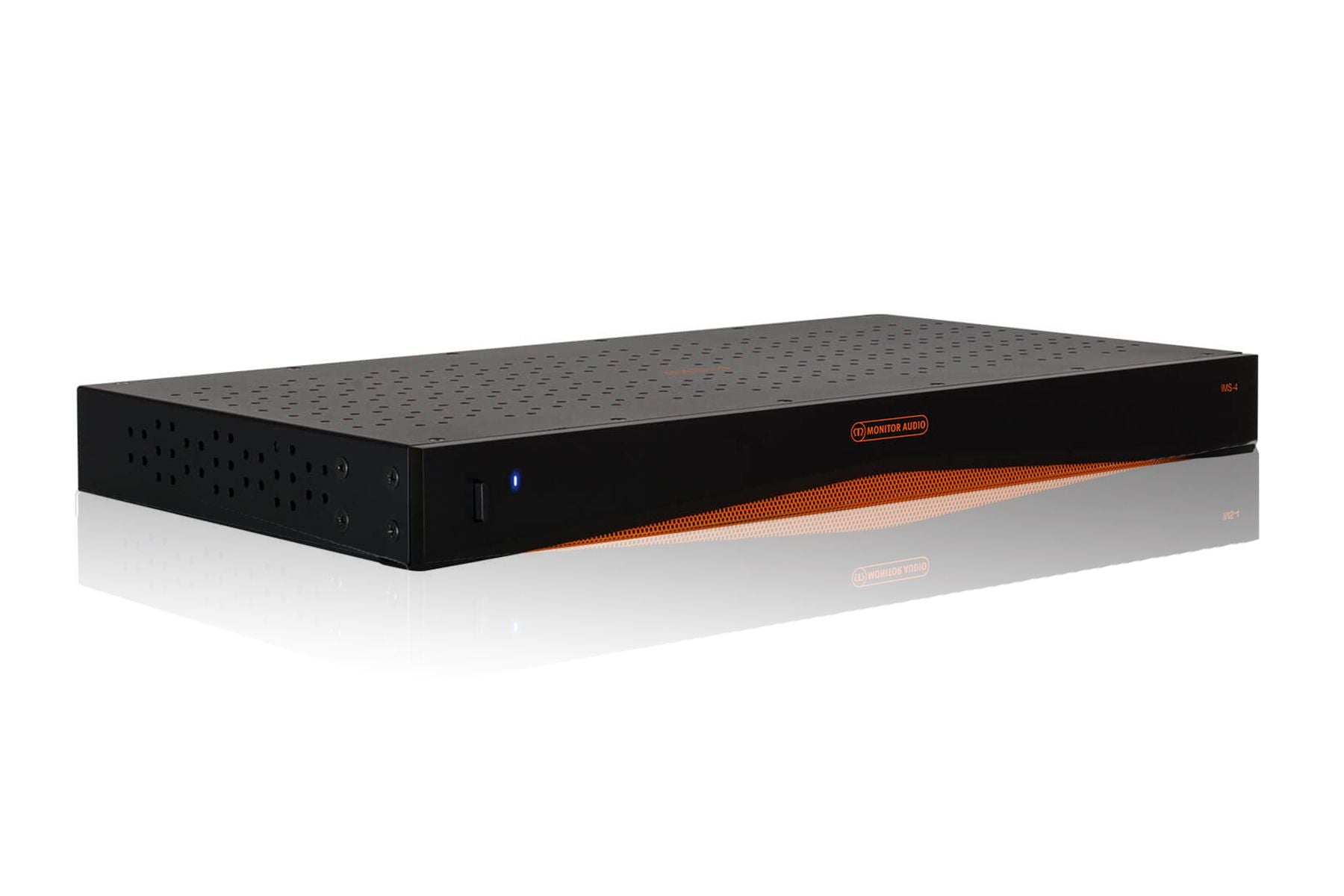

Monitor Audio IMS-4 Music Streamer
Featuring BluOS™ technology and Apple AirPlay 2, the IMS-4 is a versatile music streaming solution designed for custom install projects requiring premium sound quality.
BluOS™ technology allows the IMS-4 to stream to four separate zones and its BluOS Controller app offers complete flexibility: streaming from music services, easy access to music libraries and voice control through a smart device.
Accessed through the app, or one of the many supported integrated control systems, multiple IMS-4 Music Streamers can be integrated with other BluOS devices to provide up to 64 zones of music. Each zone can perform together in perfect sync or play different streams to different zones.
Lossless music can be played at up to 24-bit/192kHz to every room in a home network and, through BluOS, IMS-4 can deliver millions of Master Quality Authenticated (MQA) recordings, which captures and recreates the sound of the original studio performance.
The IMS-4 music streamer's discreet design (1U of rack space) ensures it can be easily incorporated into any custom installation project. Analogue and digital inputs allow the addition of a cable box or other non-network sources and makes them available in every zone. The IMS-4 even includes a system interrupt to let doorbells and fire alarms be heard.
Get further information & specifications on the Monitor Audio IMS-4 Music Streamer

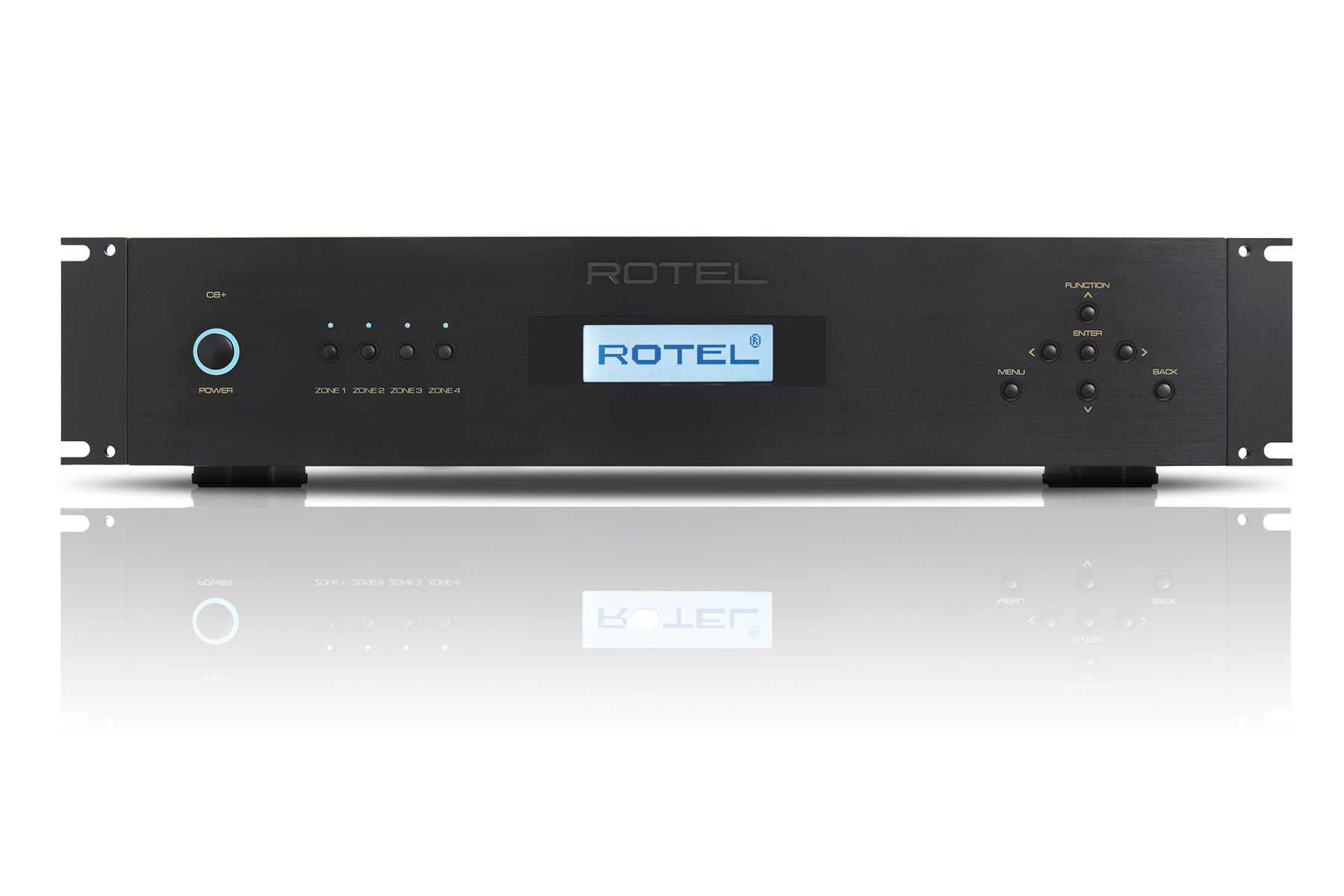

Rotel C8+ Custom Installation Amplifier
Performance meets efficiency in Rotel's C8+ Class AB Custom Installation Amplifier delivering on Rotel's 60-Year heritage of Performance, Quality and Value. The C8+ drives 8-channels of premium audio at 150 Watts per channel, all channels driven into 4 Ohm speakers utilizing Rotel's proprietary amplification technology.
The oversized in-house manufactured toroidal transformer drives thirty-two high current output transistor devices for effortless, deep, controlled bass energy. Outputs can be bridged providing 4 channels of 300 Watts per channel, capable of driving even the most demanding loudspeakers and exceptional audio clarity in critical listening zones.
For ultimate installation flexibility the C8+ includes 4 Analogue, 2 Coaxial and 2 Optical (24-bit/192kHz) inputs available to all Zones through internal matrix-switching with a Priority Zone PA Override feature allowing critical announcements to be broadcasts to all Zones. The front panel display and user controls provide selection of the matrixed source input and independent volume, bass and treble settings for each zone ensuring the C8+ can be tuned to the speaker and room characteristics. Device setup is also available via the front panel for easy system configuration when mounted in remote locations.
Speaker outputs utilize detachable Phoenix connectors for pre-wire installations with secure-locking screw terminals reducing service calls. Control system integration is available via IP and RS232 interfaces and the 12-Volt trigger input offers simplified power control.
The custom engineered 2U height chassis does not require top or bottom clearance spacing for ultra-efficient rack mounting. All rack mounting hardware is included.
Get further information & specifications on the Rotel C8+ Custom Installation Amplifier

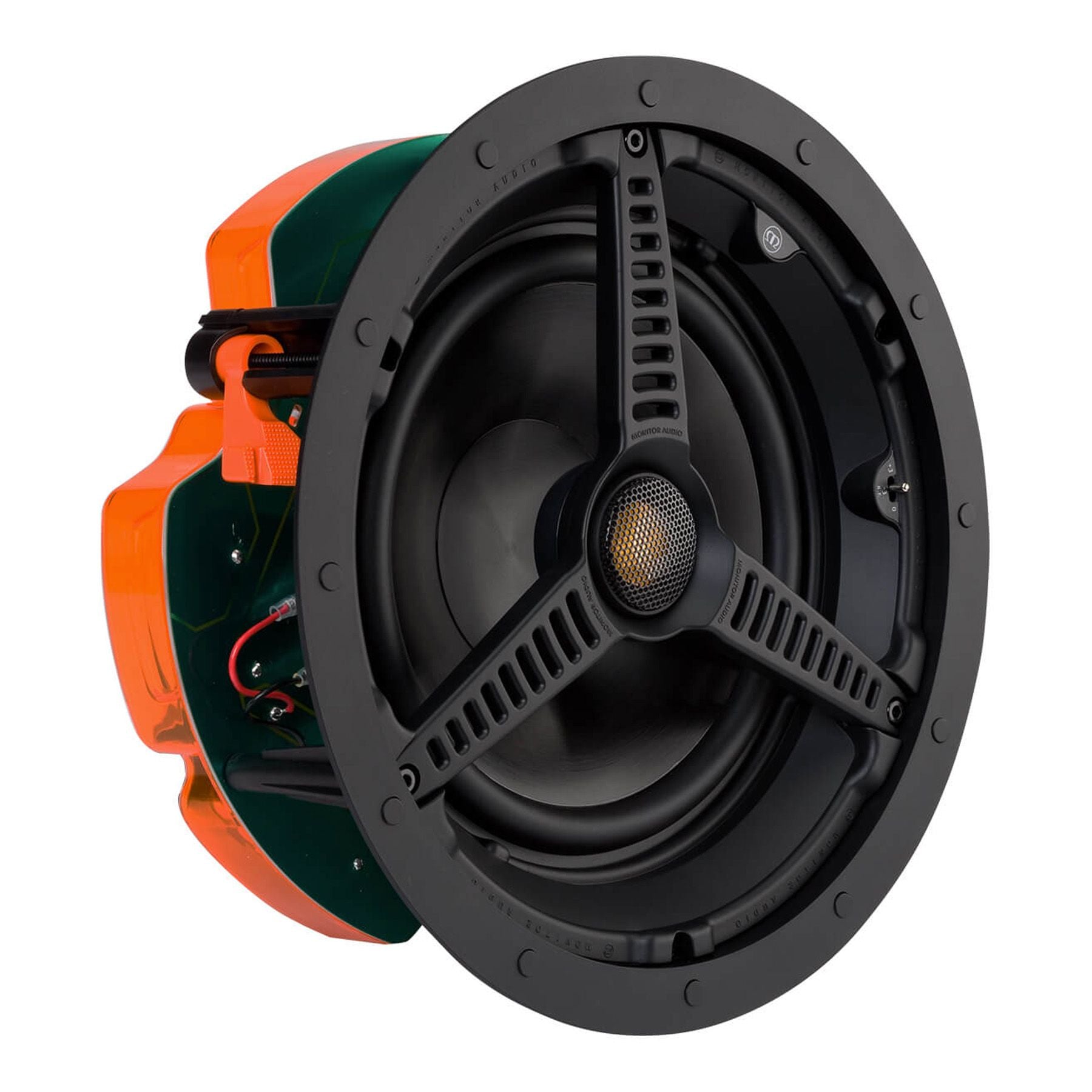

3 Pair of Monitor Audio C180 In-Ceiling Speakers
The sonic building block of any custom installation project, Monitor Audio's Core line provides a comprehensive selection of models, meticulously developed for specific uses.
Using a powerful 8 inch woofer, the Monitor Audio C180 is ideal for filling larger rooms with sound from above.
For the most accurate sound, your listening position ideally needs to be in-line with the treble. Without this, some of the precision is lost. Thanks to its pivoting tweeter, the C180 is ideally equipped. Simply direct the tweeter towards where you're most likely to be in the room.
Using an 8" (203mm) bass cone, the C180 is ideal for use in larger rooms and at higher volume levels. Larger coned speakers like these are also ideal for higher ceilings, where the sound has further to travel.
Using Monitor Audio's C-CAM gold treble unit and MMP II woofer, the C180 offers genuine hi-fi sound quality. The C-CAM (Ceramic Coated Aluminium Magnesium) gold treble unit gives an extended frequency response for a treble response that's smooth, sweet and detailed.
Designed for ceilings, it can also be mounted in a wall for ultimate versatility. It's finished in a neutral dark grey colour with a white grille but can be painted to blend in effortlessly.
Sweet, powerful sound from a discreet ceiling speaker – the Monitor Audio C180 is your key to superior sound installation.
Get further information & specifications on the Monitor Audio C180 In-Ceiling Speakers

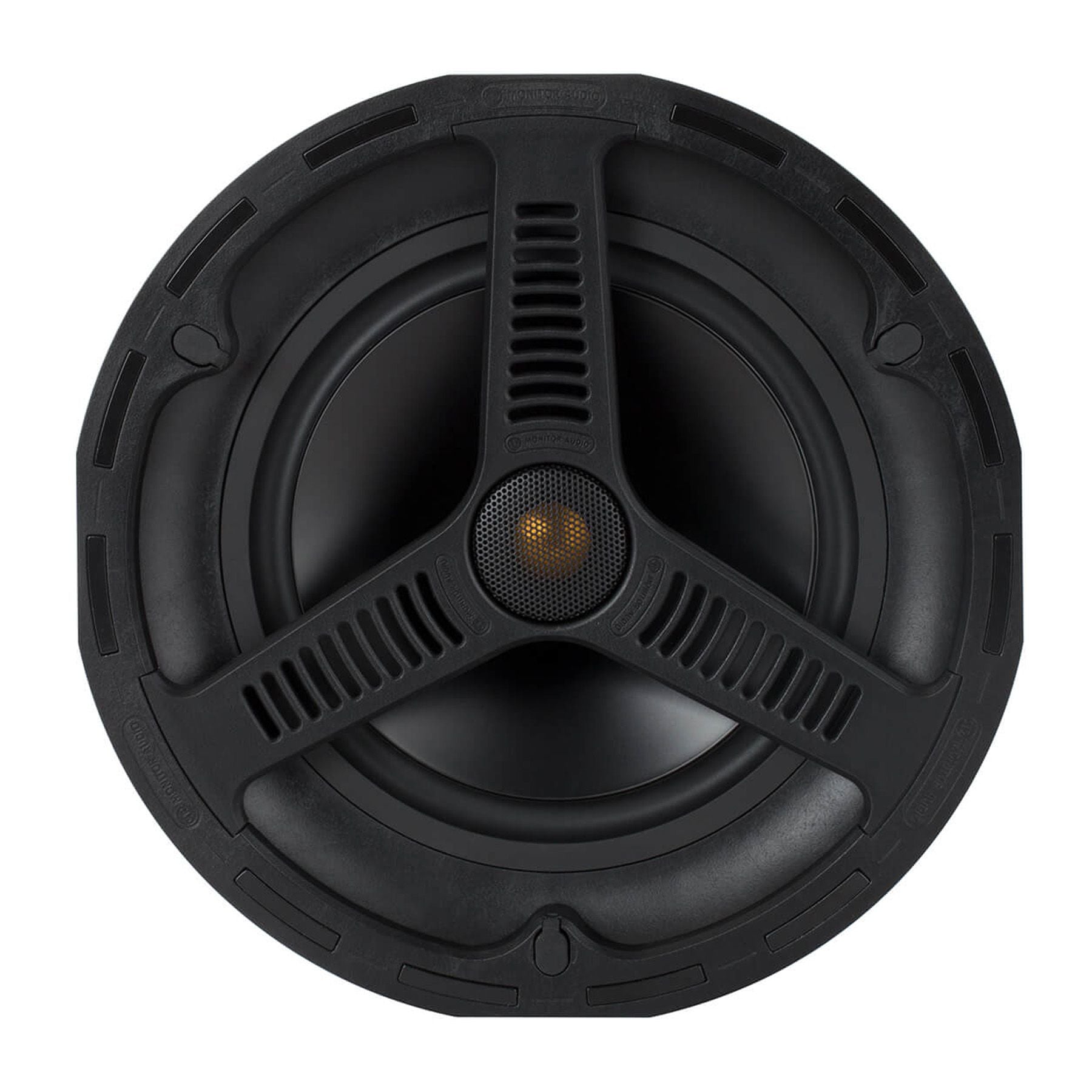

1 Pair of Monitor Audio AWC280 All Weather In-Ceiling Speakers
The perfect speaker for the toughest environments, the Monitor Audio AWC280 is a fine choice when your sound needs to survive all weather conditions.
The All Weather In-Ceiling series has a weatherproof construction for installation in more extreme environments such as bathrooms, beach houses, saunas or even boats. It offers long-term high performance reliability being built with heightened levels of water, dust, corrosion, UV and temperature protection. These speakers feature super-discreet Stainless Steel grilles and are certified against salt spray, UV stability, water, vibration and anti-corrosion. Operating temperature range: -34° to 79° C.
IP55 certified for use in extreme climate conditions, the AWC280 is resistant to salt spray, UV, water and vibration. Stainless steel trims and non-ferrous magnet are resistant to corrosion and EPDM (synthetic rubber) barriers prevent moisture ingress. From a bathroom to marine deck, this speaker takes all climates in its stride.
Using Monitor Audio's C-CAM gold treble unit and woofer, the AWC280 offers genuine hi-fi sound quality, with an extended frequency response. The C-CAM (Ceramic Coated Aluminium Magnesium) gold treble unit gives an ultra-extended frequency response for a treble response that's smooth, sweet and detailed. The equally precise-sounding C-CAM woofer unit handles mid-range and bass.
Designed for ceilings, it can also be mounted in a wall for ultimate versatility. It's finished in a neutral dark grey colour with a white grille but can be painted to blend in effortlessly.
Don't compromise on sound from your all-weather installation speaker – the Monitor Audio AWC280 provides it all.
Get further information & specifications on the Monitor Audio AWC280 All Weather In-Ceiling Speakers

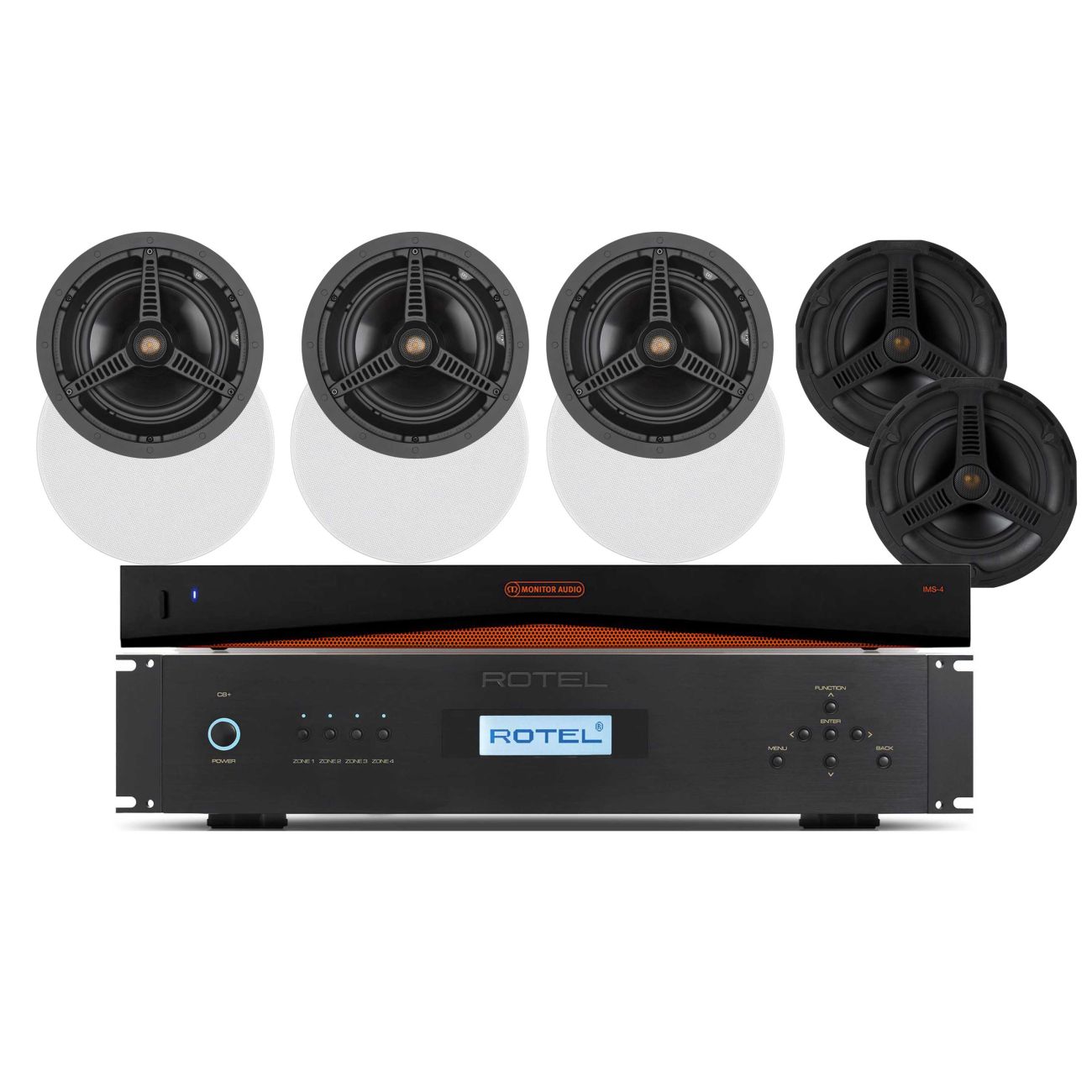

Included In This 4 Zone Multi-Room Audio System
- Monitor Audio IMS-4 Music Streamer
- Rotel C8+ Custom Installation Amplifier
- 3 Pair of Monitor Audio C180 In-Ceiling Speakers
- 1 Pair of Monitor Audio AWC280 All Weather In-Ceiling Speakers
- 150m 14 Gauge Speaker Cable
- 4 x 500mm Interconnect Cables
Note: Features & Specifications Subject To Change Without Notice. E&OE.
