About The JL Audio Dominion d110 Subwoofer
The d110 is a powered subwoofer with a 10" (254mm) Bass Driver and 750 Watts of Class D Power.
Born from JL Audio's vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

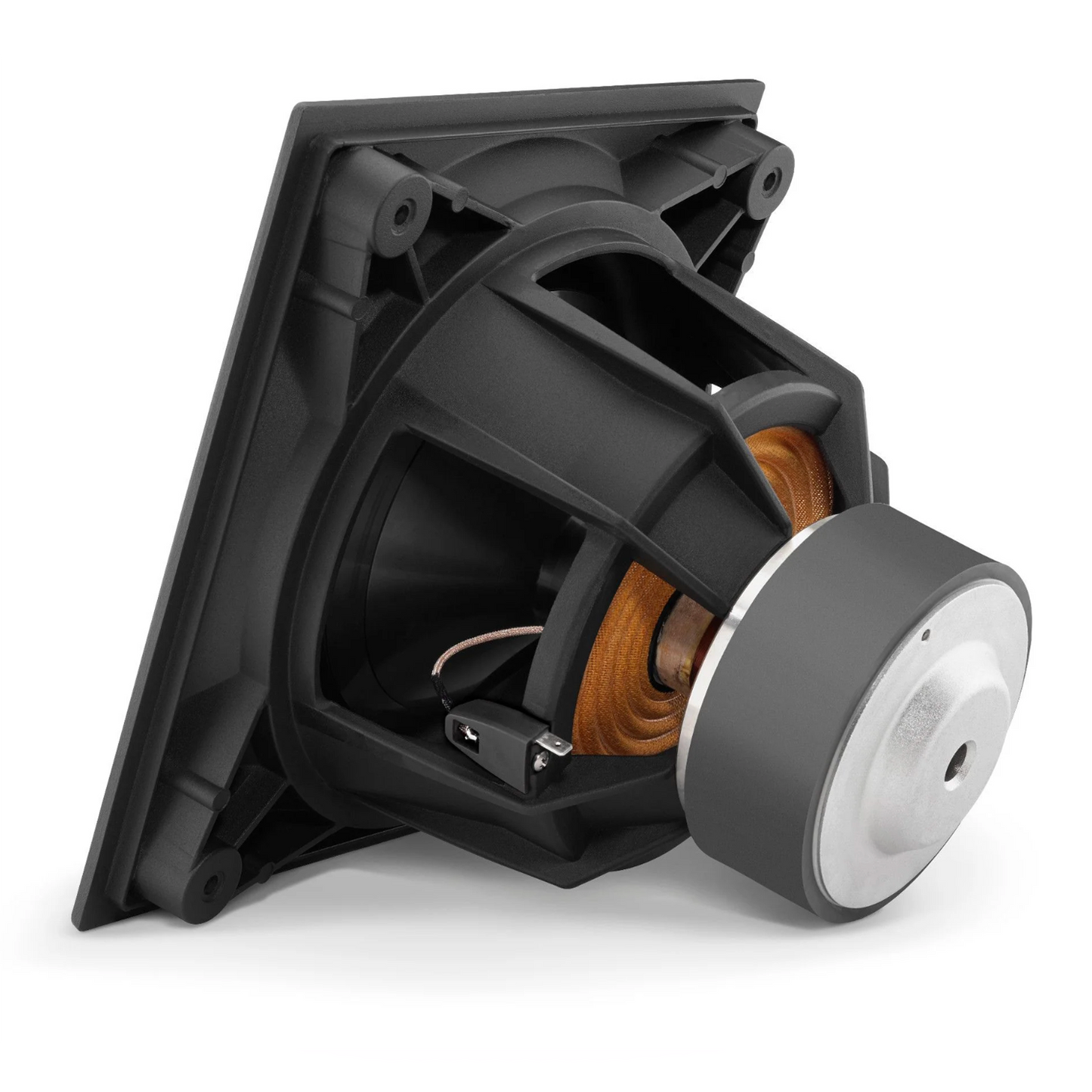

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio's exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, the Dominion® d110 subwoofer is capable of peak-to-peak excursions well in excess of 2.7" (68 mm) without distress or audible distortion.
Dominion® amplifiers utilise an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.
With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease.

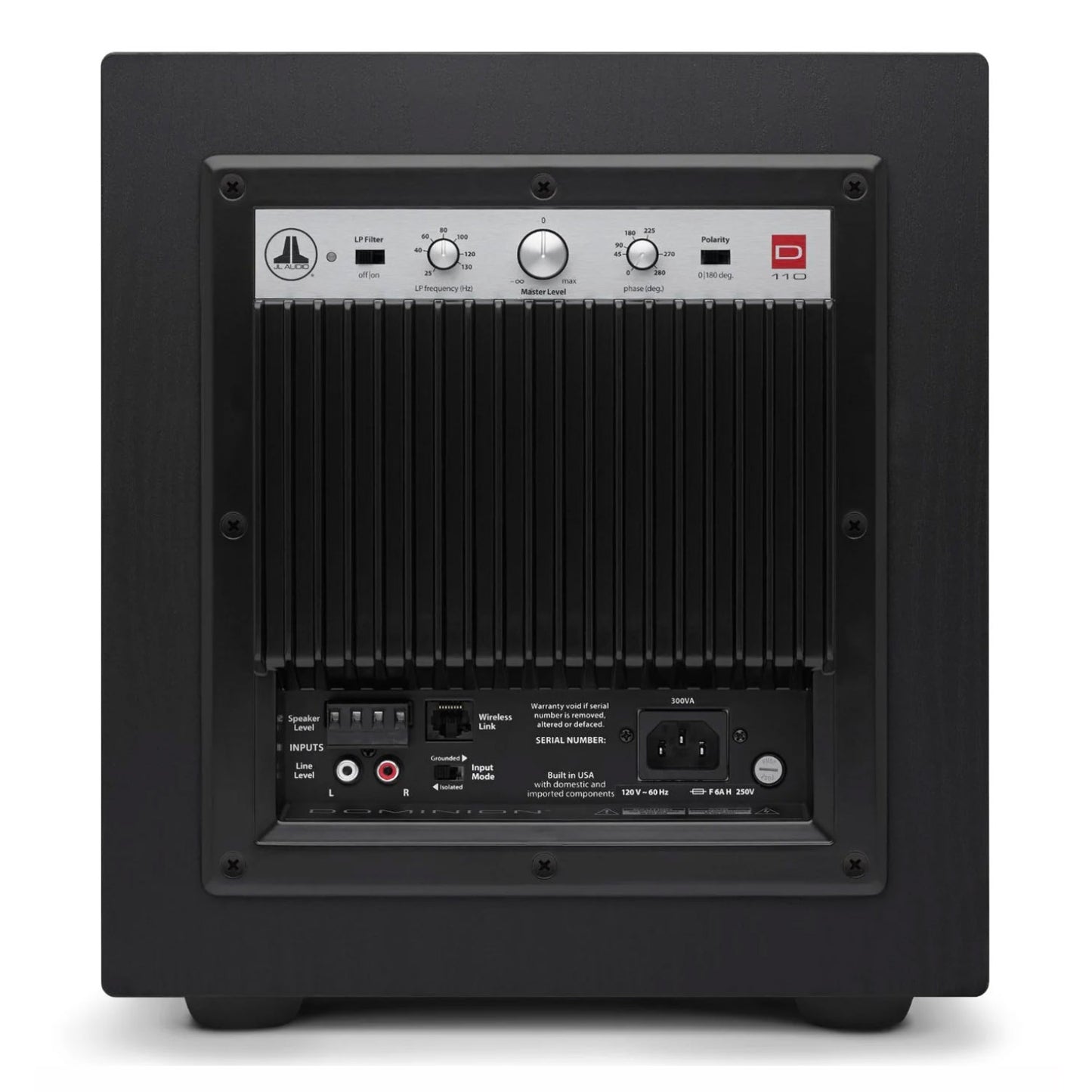

Low-pass signals are precisely guided, thanks to the onboard crossover's 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 30 metres away from your source unit.
To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio's U.S. factory to deliver years of listening enjoyment.
About Dominion®: Dominion® powered subwoofers benefit from JL Audio's expertise in driver and amplifier design to arrive at a unique solution for applications requiring a compact, more affordable subwoofer. Unlike any other product in its price class, Dominion® powered subwoofers combine a purpose engineered, DMA optimised, long excursion driver with an advanced Class D amplifier equipped with a tightly regulated switching power supply. Dominion® powered subwoofers can be used in a variety of compact applications, including full home theatre systems, media room systems, dedicated two-channel music systems, desktop audio workstations and small recording studios.

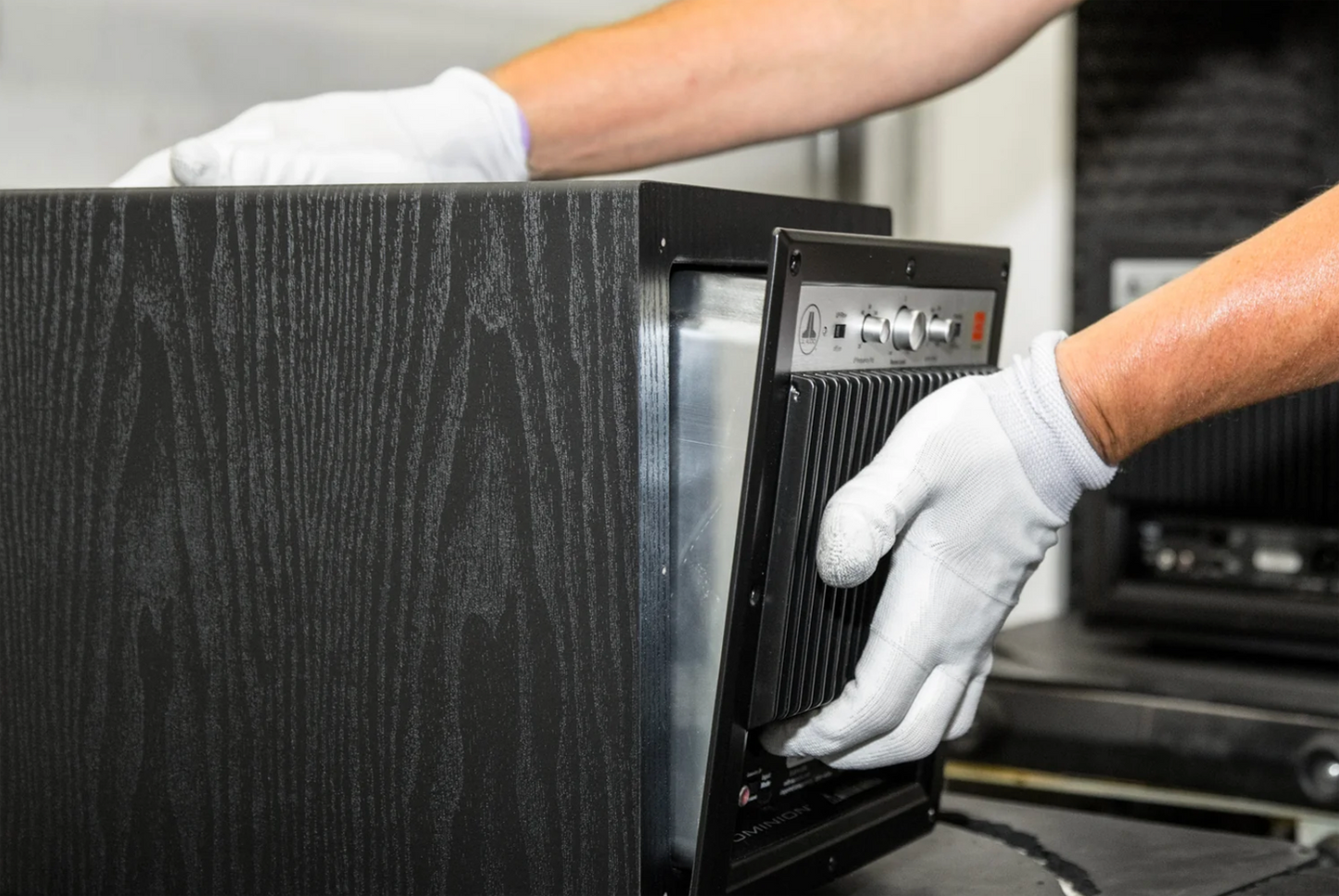

Built Like No Other: JL Audio's Miramar factory builds all of the home subwoofers, including the affordable Dominion® models. Dominions' unique drivers are built using the same advanced equipment and processes reserved for their top models and they share a production line with the E-Sub™ lineup.
Technology: JL Audio's engineering department is at the forefront of research into fundamental loudspeaker behaviour. They have developed proprietary electromagnetic and suspension analysis systems and invested heavily in state-of-the-art manufacturing and testing. This has produced subwoofer drivers widely considered as reference standards for linear displacement and dynamic stability. It has also resulted in numerous U.S. and International Patents issued for technologies that refine and extend the performance envelope of the dynamic driver.
Our Take
The JL Audio Dominion d110 Subwoofer is a powerful and compact solution, featuring a10 -inch bass driver and delivering 750 watts of Class D power. Born from JL Audio's extensive collection of advanced technologies, the Dominion d110 combines a state-of-the-art subwoofer and an advanced Class D amplifier to provide unparalleled performance and value for a wide range of applications. The Dominion driver incorporates JL Audio's exclusive Dynamic Motor Analysis (DMA) technology, enabling higher output levels with reduced distortion and improved dynamic tracking and resolution. This allows the d110 to achieve peak-to-peak excursions exceeding 2.7 inches without distress or audible distortion. The subwoofer's Class D amplifier utilizes a tightly regulated switching power supply, ensuring the Dominion remains powerful even when most compact subwoofers would falter. With features such as a 24 dB/octave Linkwitz-Riley alignment, phase and polarity controls, and flexible input options, the Dominion d110 integrates seamlessly into any system. Its meticulously engineered cabinet, crafted from solid CNC-cut MDF with internal bracing, contains the immense pressures generated by the Dominion driver. Built with precision in JL Audio's U.S. factory, the Dominion d110 offers years of listening enjoyment, making it ideal for home theatre systems, media rooms, and music systems.
Main Features & Specifications
- Design: Compact High Performance Powered Subwoofer
- Unbalanced Inputs: Stereo or Mono (two RCA jacks)
- High-Level Inputs: Stereo or Mono (removable plug)
- Input Grounding: Selectable (Isolated or Grounded)
- Level Control: Variable: Full mute to +15 dB over reference gain
- Power On/Off: Automatic Signal-Sensing only
- Low-Pass Filter: 24 dB per octave with Linkwitz-Riley alignment
- Low-Pass Cutoff Frequency Range: Variable: 25 Hz – 130 Hz
- Polarity: 0 or 180 degrees
- Phase: Variable from 0 – 280 degrees, referenced to 80 Hz
- Enclosure Type: Sealed

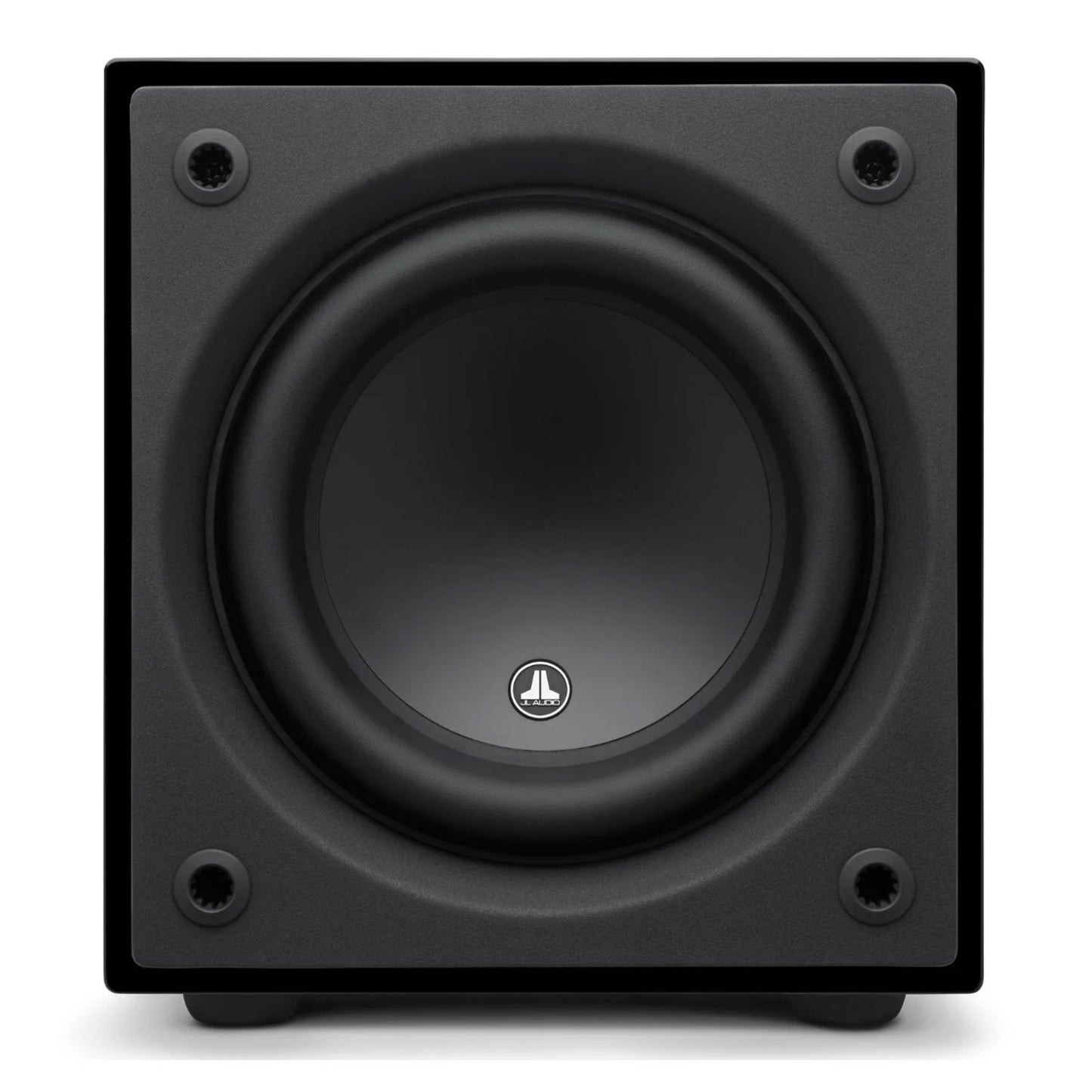

- Drivers: Single 10" (254mm) nominal diameter
- Frequency Response (anechoic)
- 27 – 111 Hz (±1.5dB)
- –3 dB at 25 Hz / 118 Hz
- –10 dB at 21 Hz / 143 Hz
- Input Impedance
- Line Inputs: 20 kΩ
- High-Level Inputs: 4.4 kΩ
- Effective Piston Area: 48.71 sq. in. (0.0314 sq. m)
- Effective Displacement: 2.08 litres
- Amplifier Power: 750 Watts RMS
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance

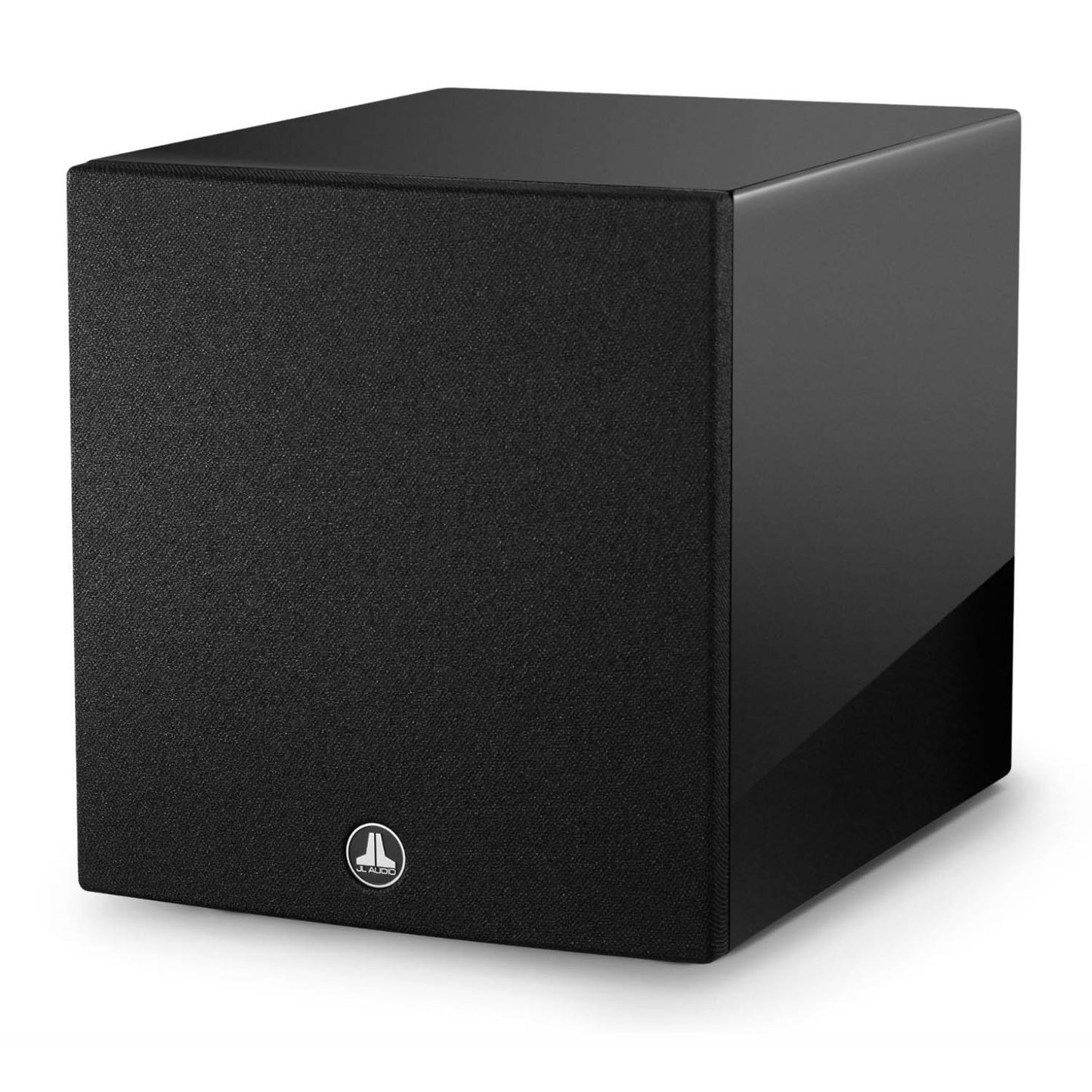

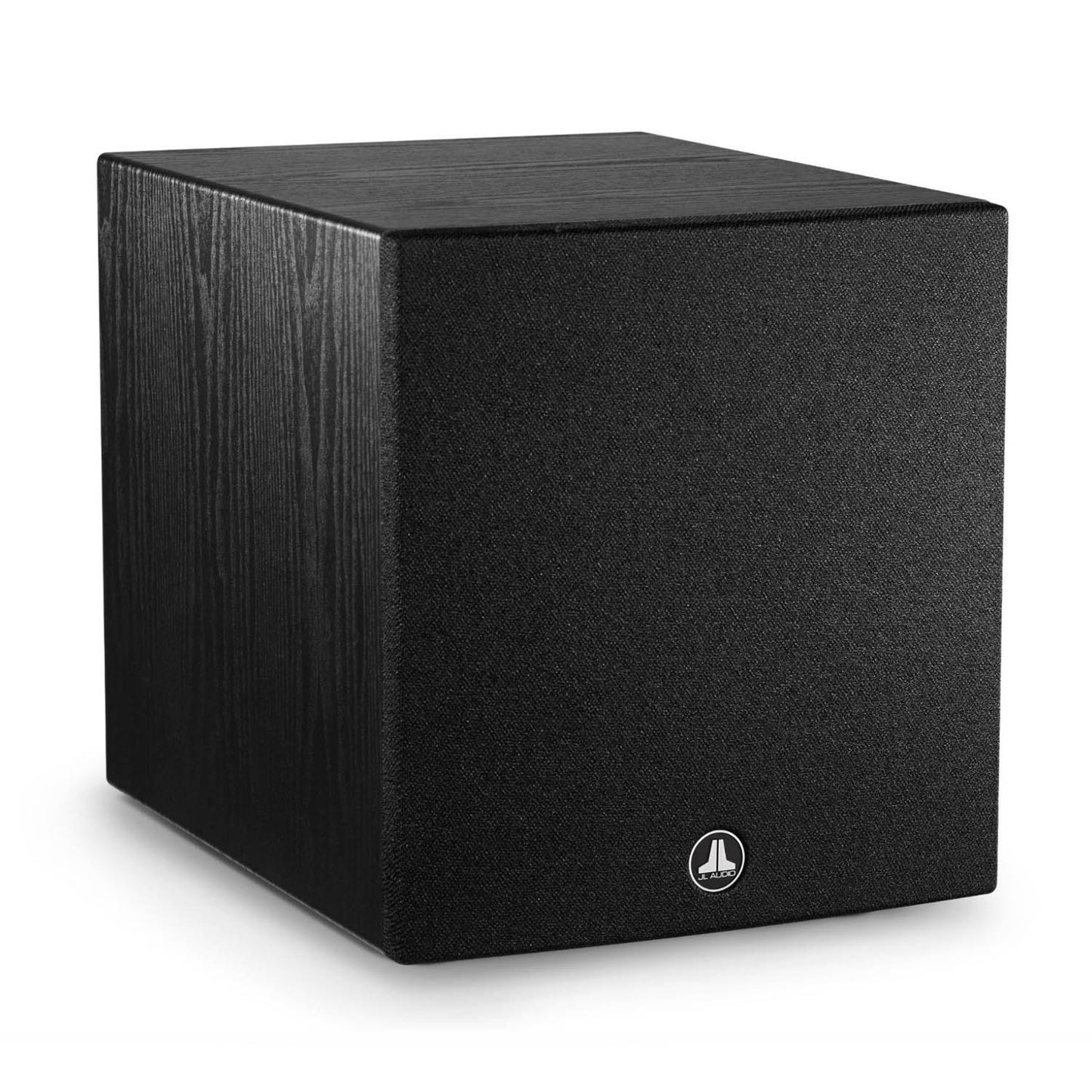

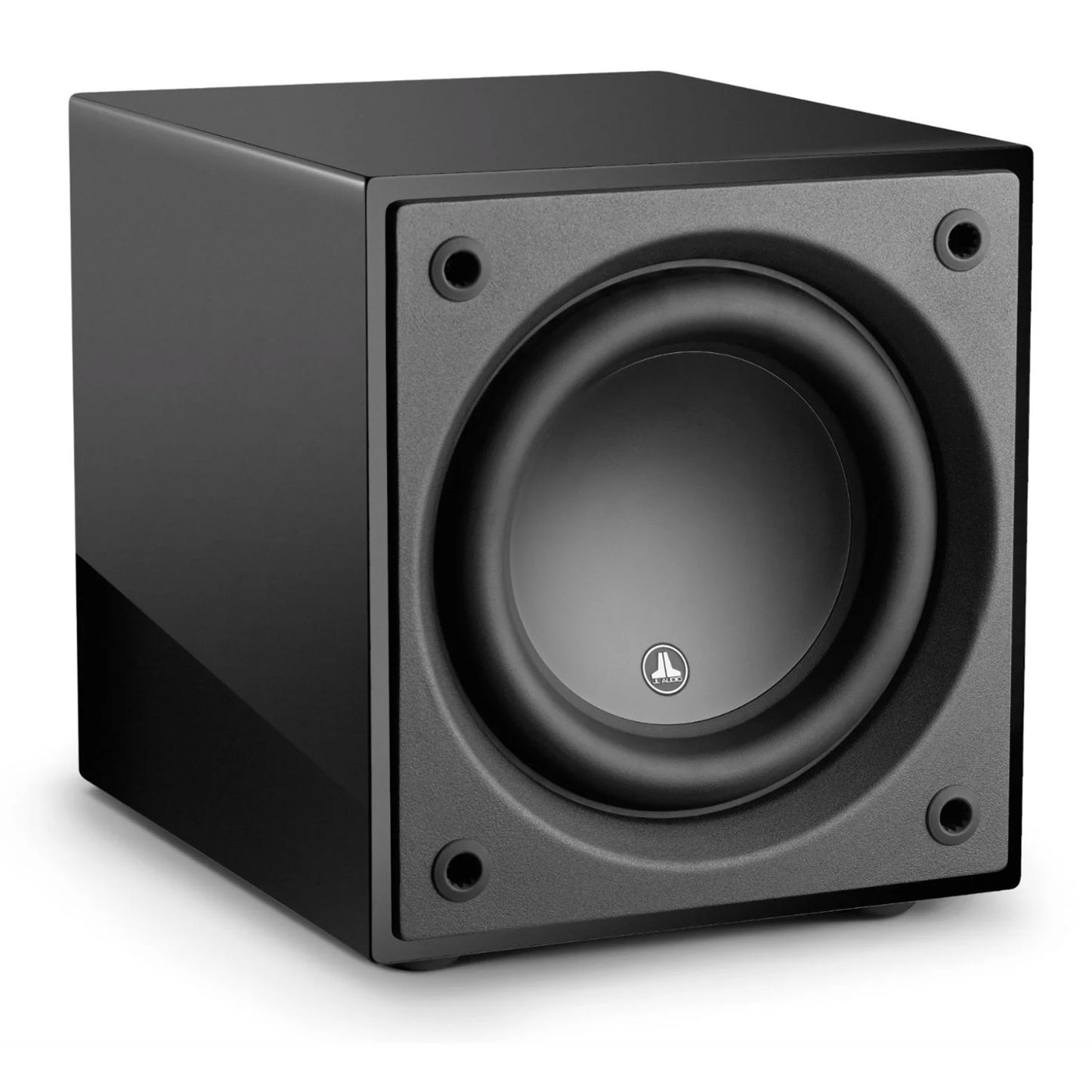

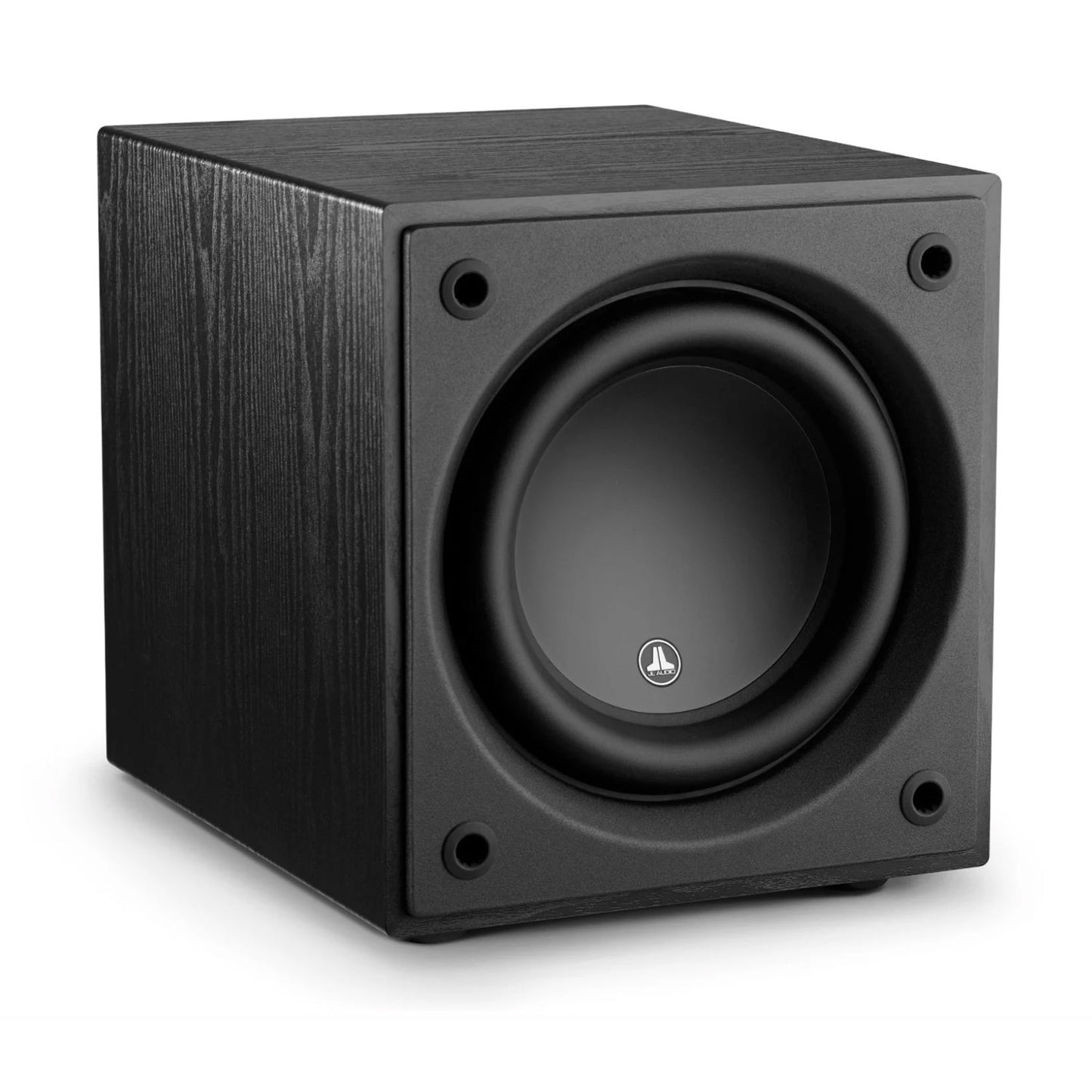

- Available Finishes: Gloss Black or Black Ash Vinyl Veneer
- Dimensions (WxHxD): 305 x 340 x 403mm
- Weight: 17.3 kg
- Manufacturer's Warranty: 3 Years
- Built in the USA with Global Components
Note: Features & Specifications Subject To Change Without Notice. E&OE.
